Wiring diagrams for Kia Optima III facelift (2013-2015)

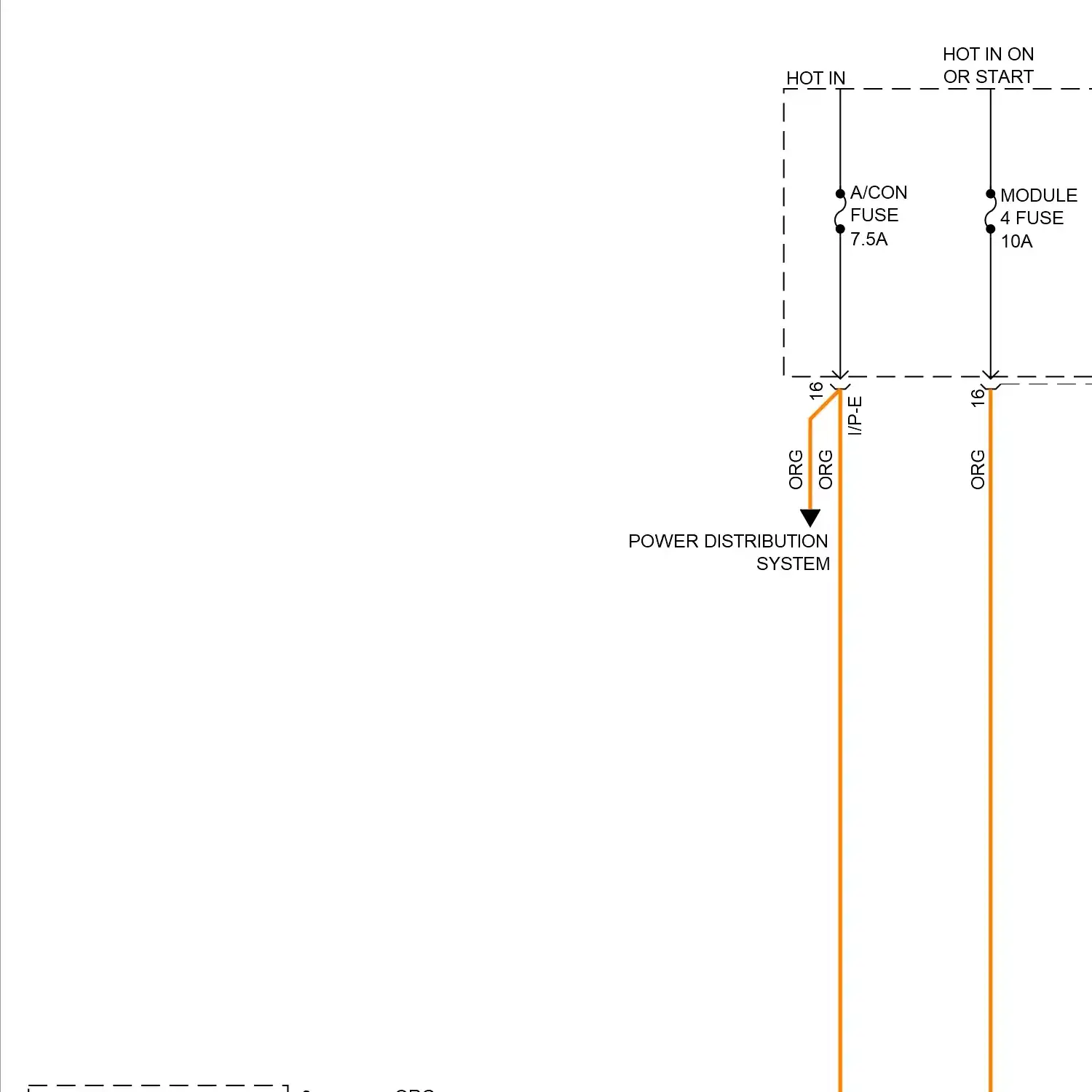

2.0l turbo, automatic a/c circuit

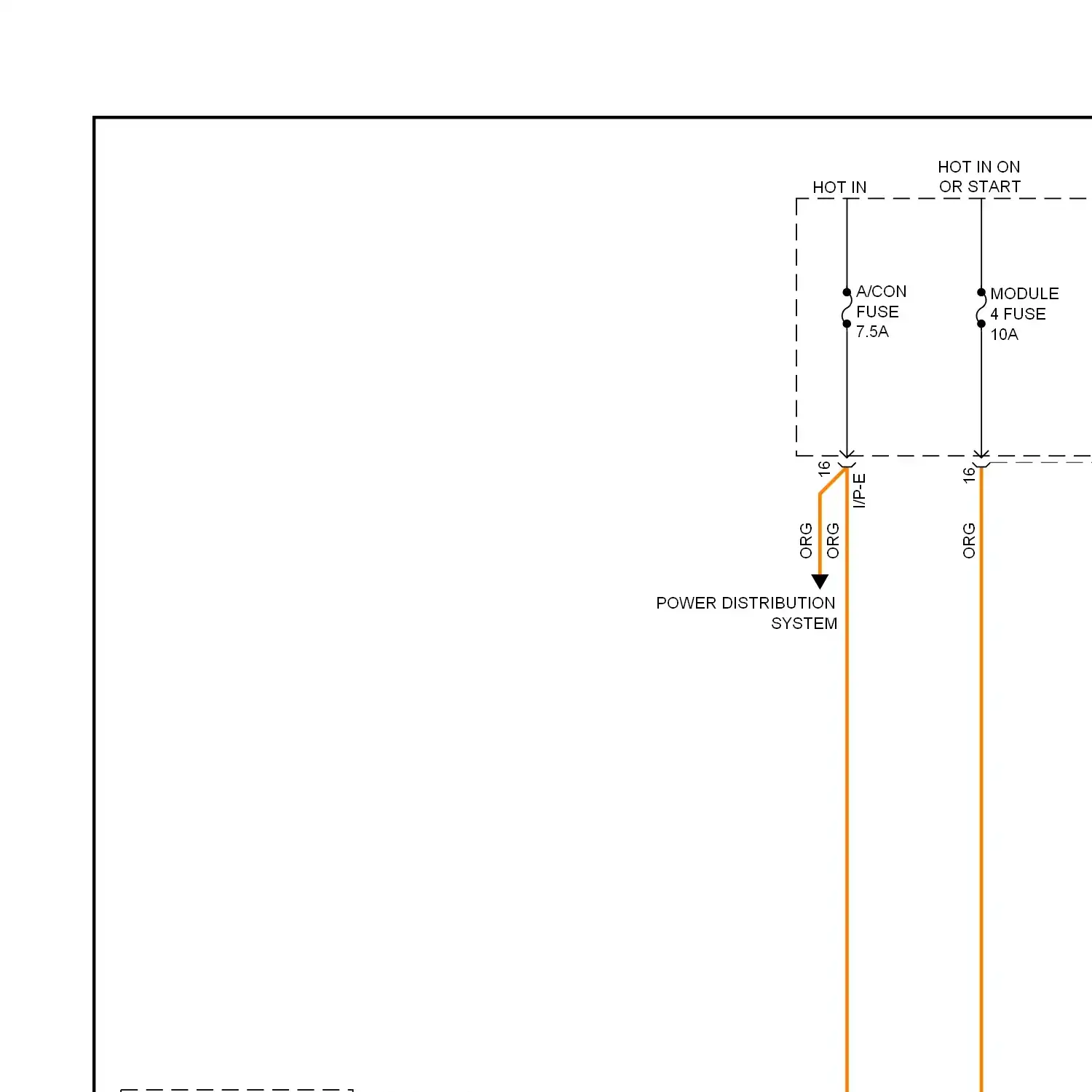

2.4l, automatic a/c circuit, except hybrid 2.4l, automatic a/c circuit, hybrid 2.4l, manual a/c circuit, except hybrid

Anti-lock brakes circuit, except hybrid korean made Anti-lock brakes circuit, except hybrid usa made Anti-lock brakes circuit, hybrid

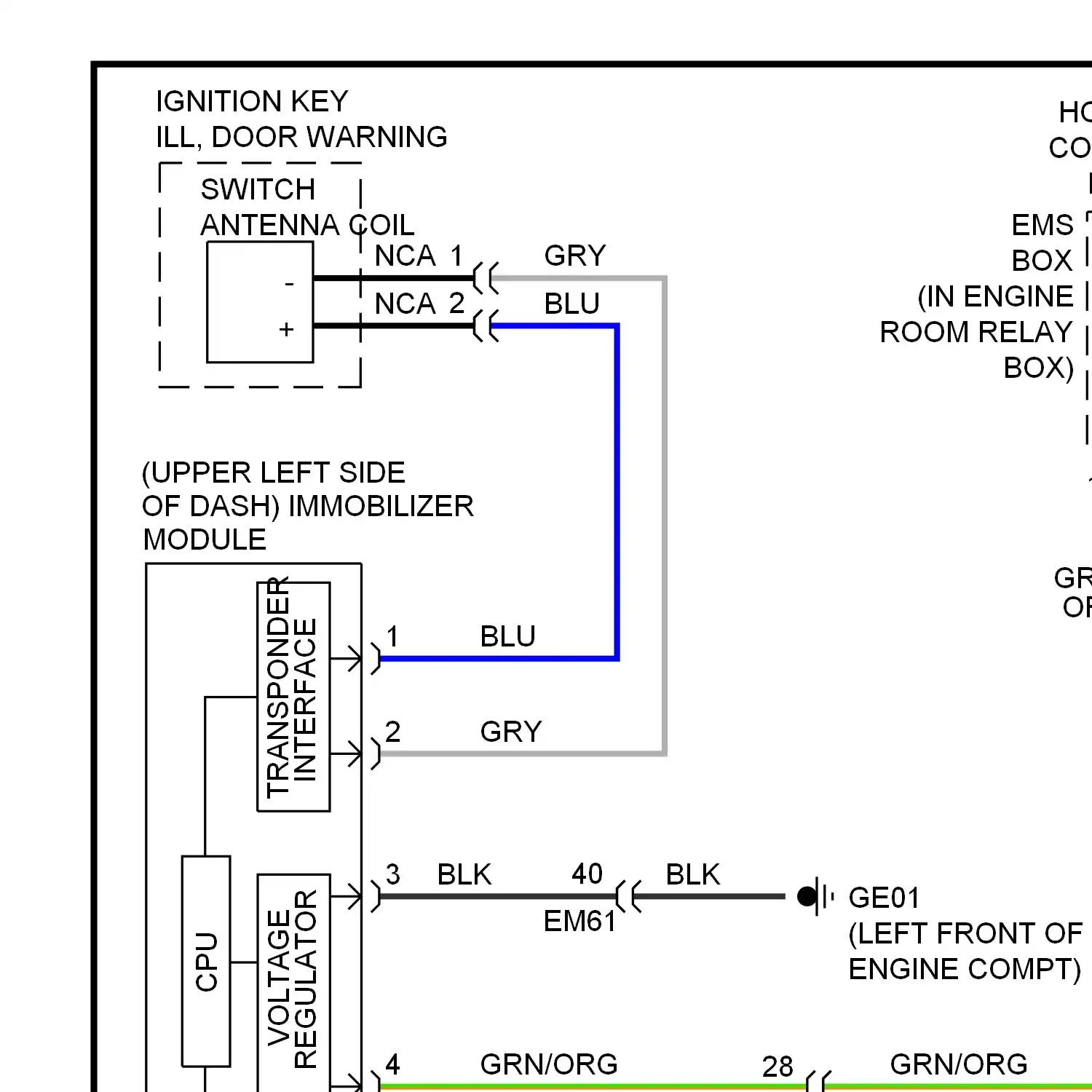

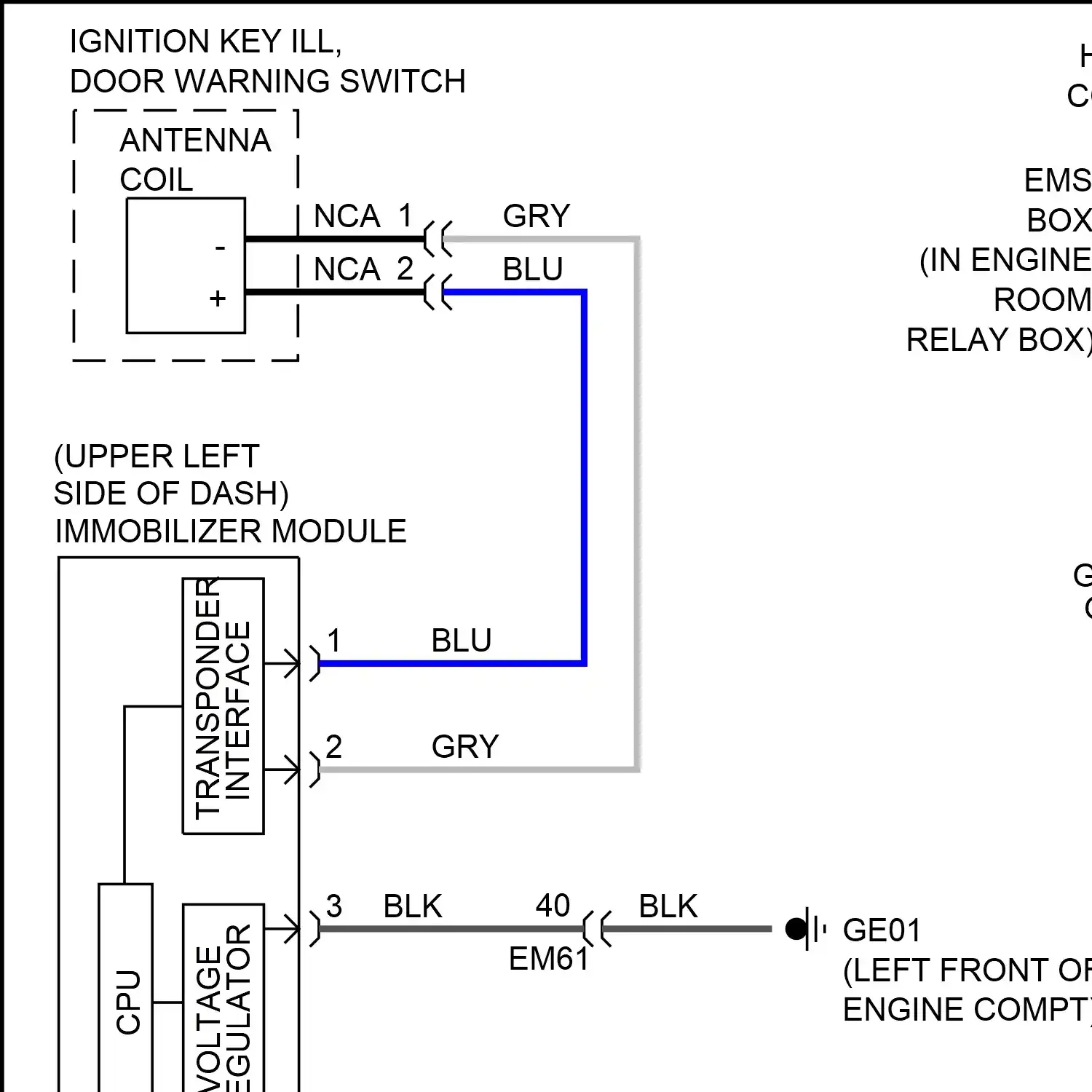

Forced entry circuit Immobilizer circuit, without smart key system Immobilizer circuit, with smart key system Immobilizer circuit, w/o smart key system Immobilizer circuit, w/ smart key system

Body control module circuit, except hybrid Body control module circuit, hybrid Intelligent power switch circuit

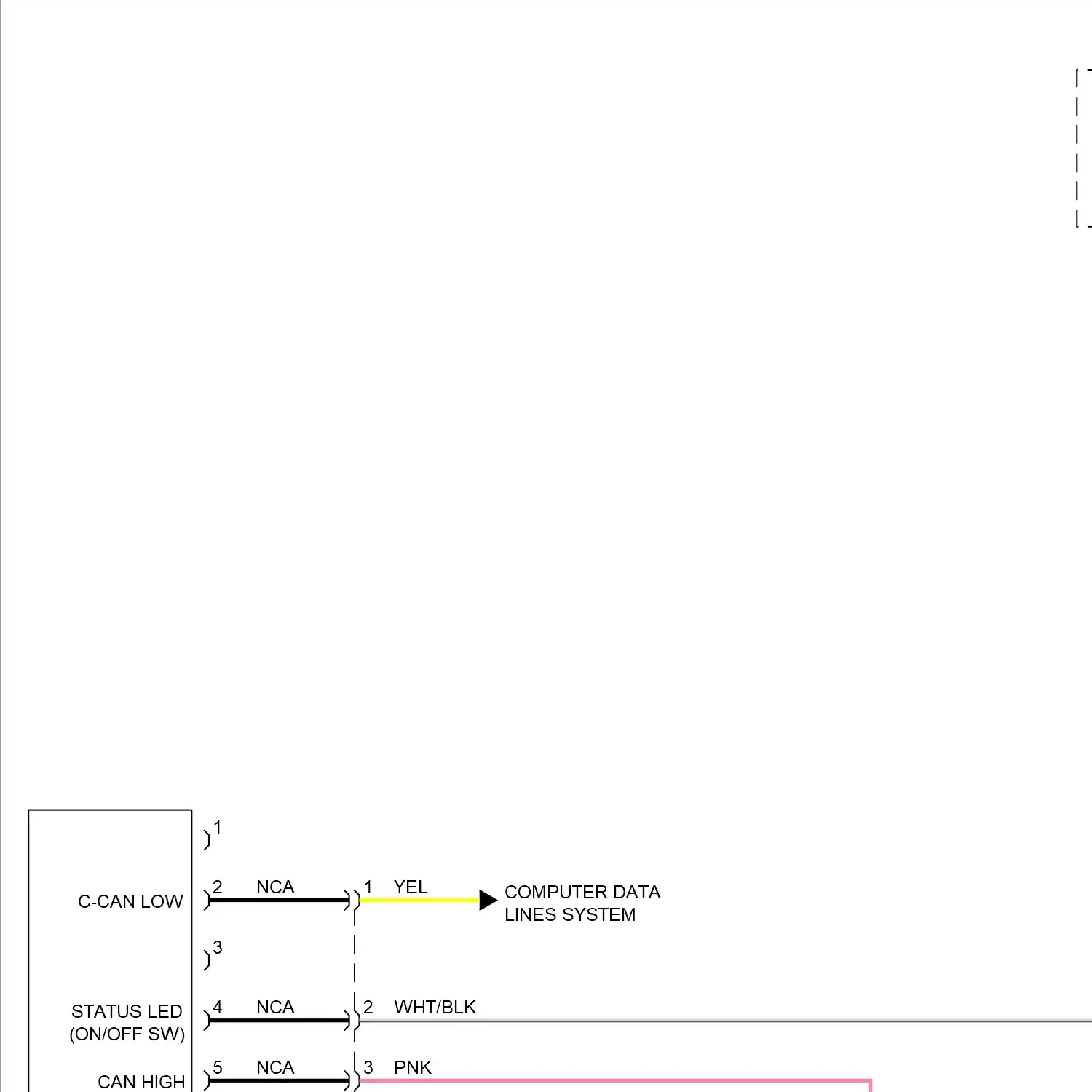

Computer data lines circuit, except hybrid Computer data lines circuit, hybrid

2.0l turbo, cooling fan circuit

2.4l, cooling fan circuit, except hybrid 2.4l, cooling fan circuit, hybrid

Cruise control circuit, except hybrid Cruise control circuit, hybrid

Defoggers circuit, w/ auto defogger Defoggers circuit, with auto defogger Defoggers circuit, without auto defogger Defoggers circuit, w/o auto defogger

Electronic power steering circuit

Wiring diagram engine performance 2.0l turbo

Wiring diagram engine performance 2.4l

Wiring diagram engine performance 2.4l hybrid, hybrid control circuit Wiring diagram engine performance 2.4l hybrid, mfi control circuit Wiring diagram engine performance 2.4l hybrid, virtual engine sound system circuit

Backup lamps circuit Exterior lamps circuit

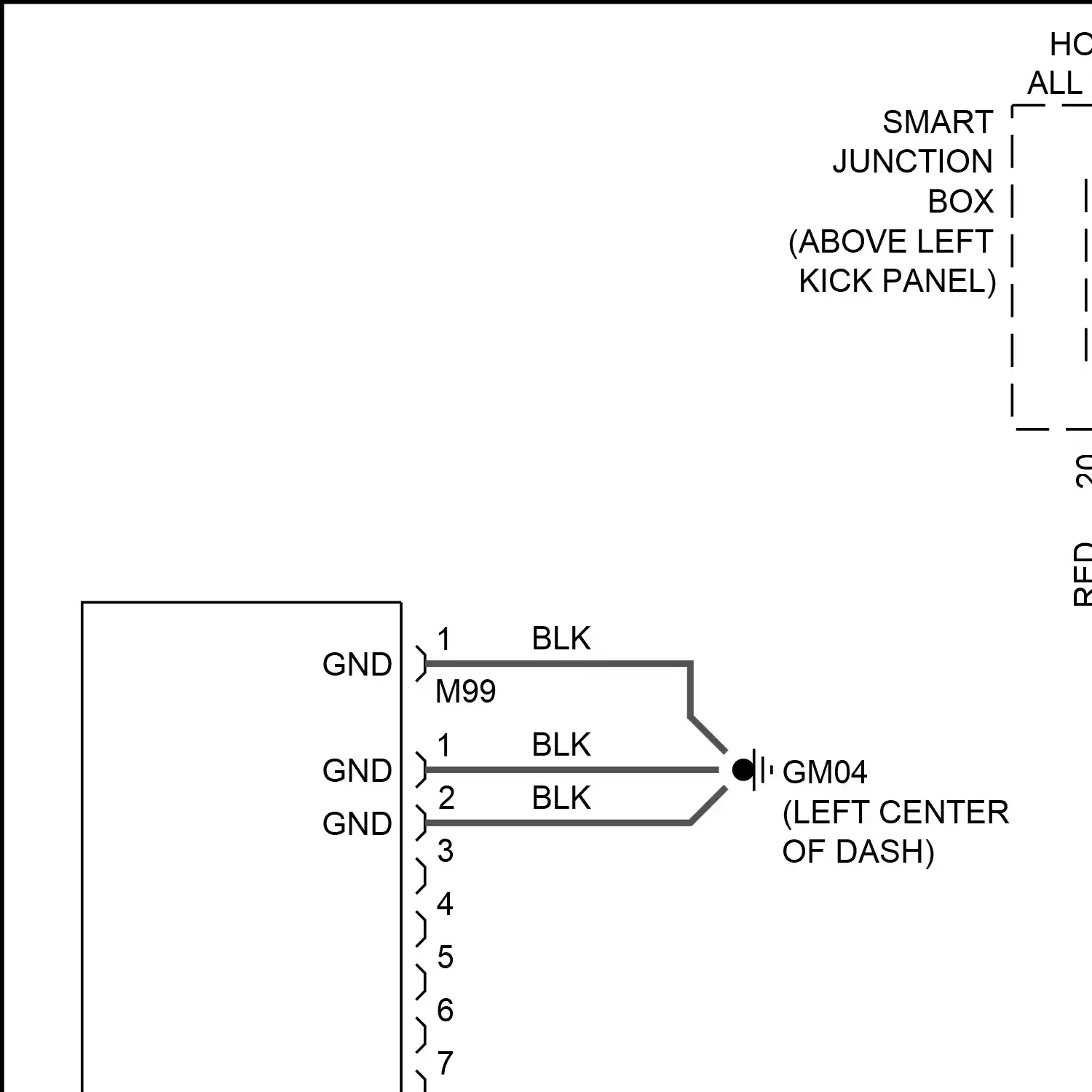

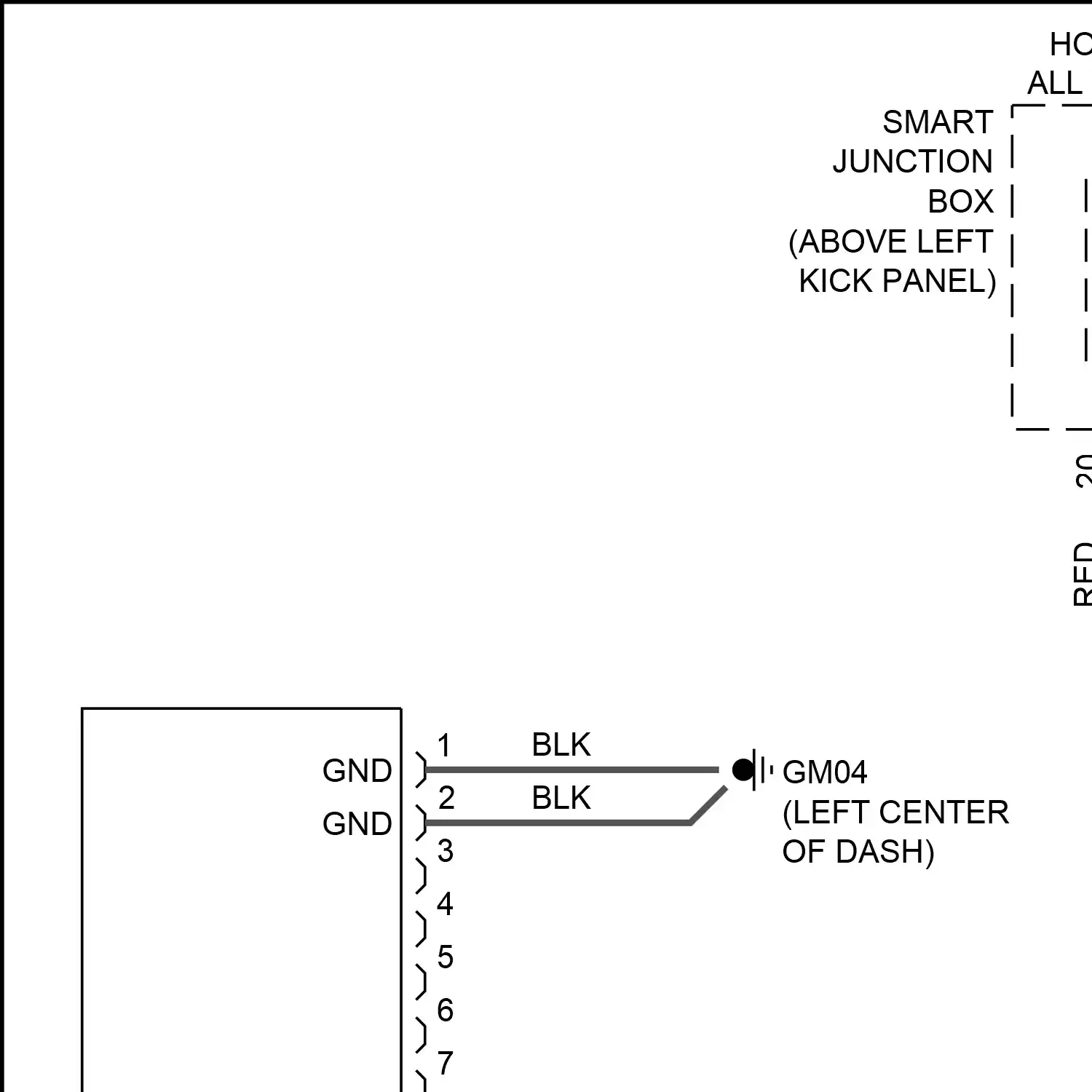

Ground distribution circuit, except hybrid Ground distribution circuit, hybrid

Auto headlamps leveling system (ahls) circuit Autolamps circuit Headlamps circuit

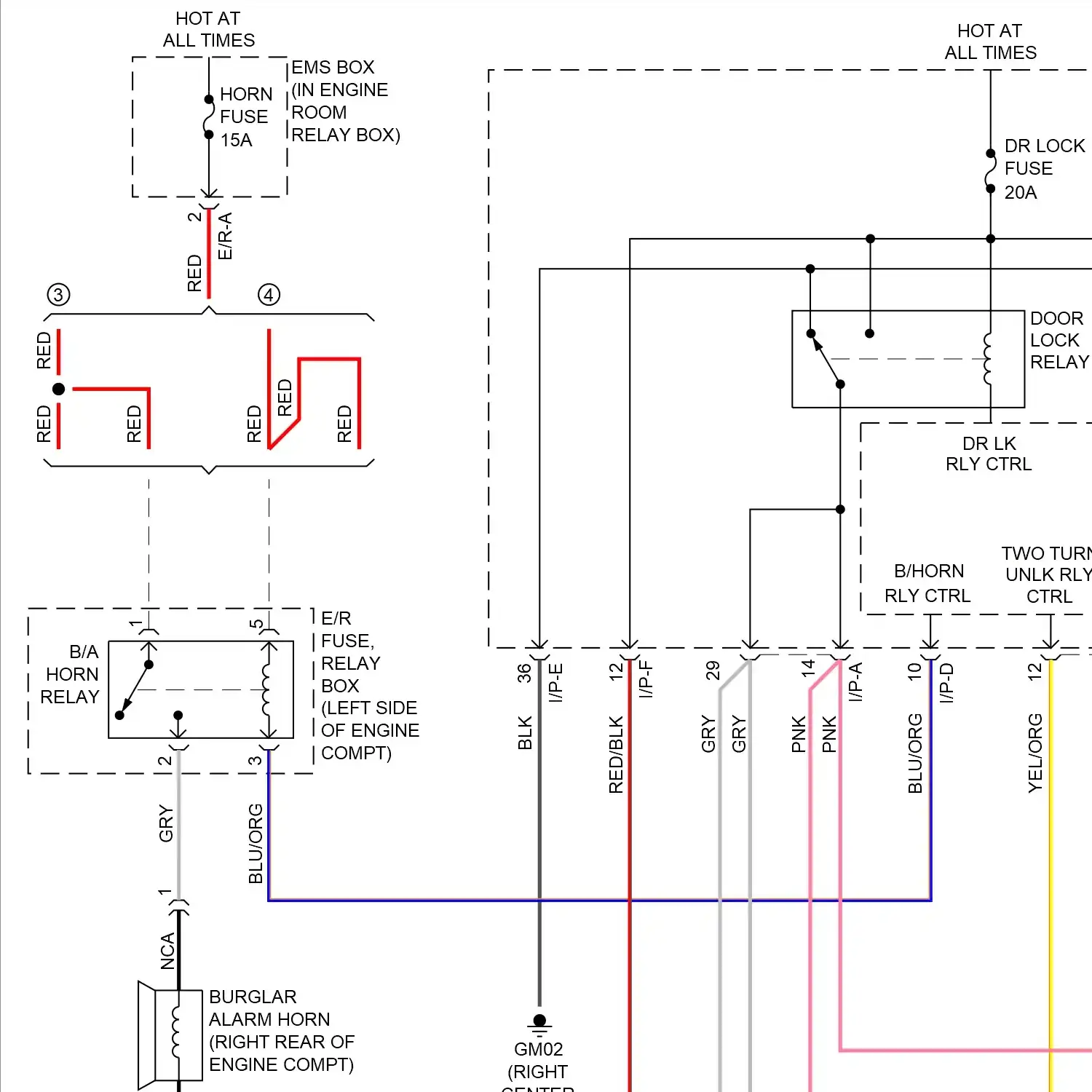

Horn circuit, except hybrid Horn circuit, hybrid

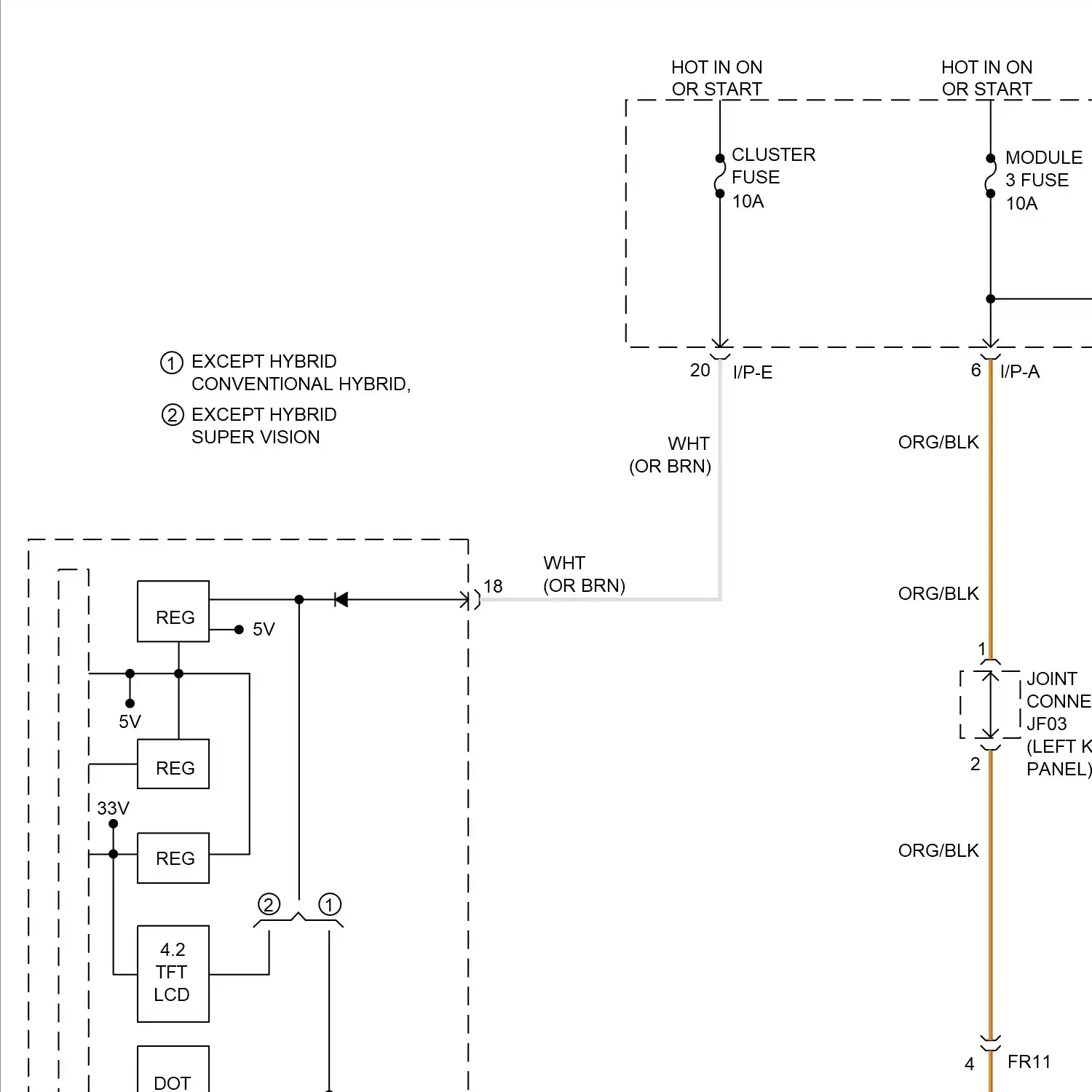

Instrument cluster circuit, except hybrid korean made Instrument cluster circuit, except hybrid usa made Instrument cluster circuit, hybrid

Courtesy lamps circuit, except hybrid Courtesy lamps circuit, hybrid Instrument illumination circuit, except hybrid Instrument illumination circuit, hybrid

Memory systems circuit

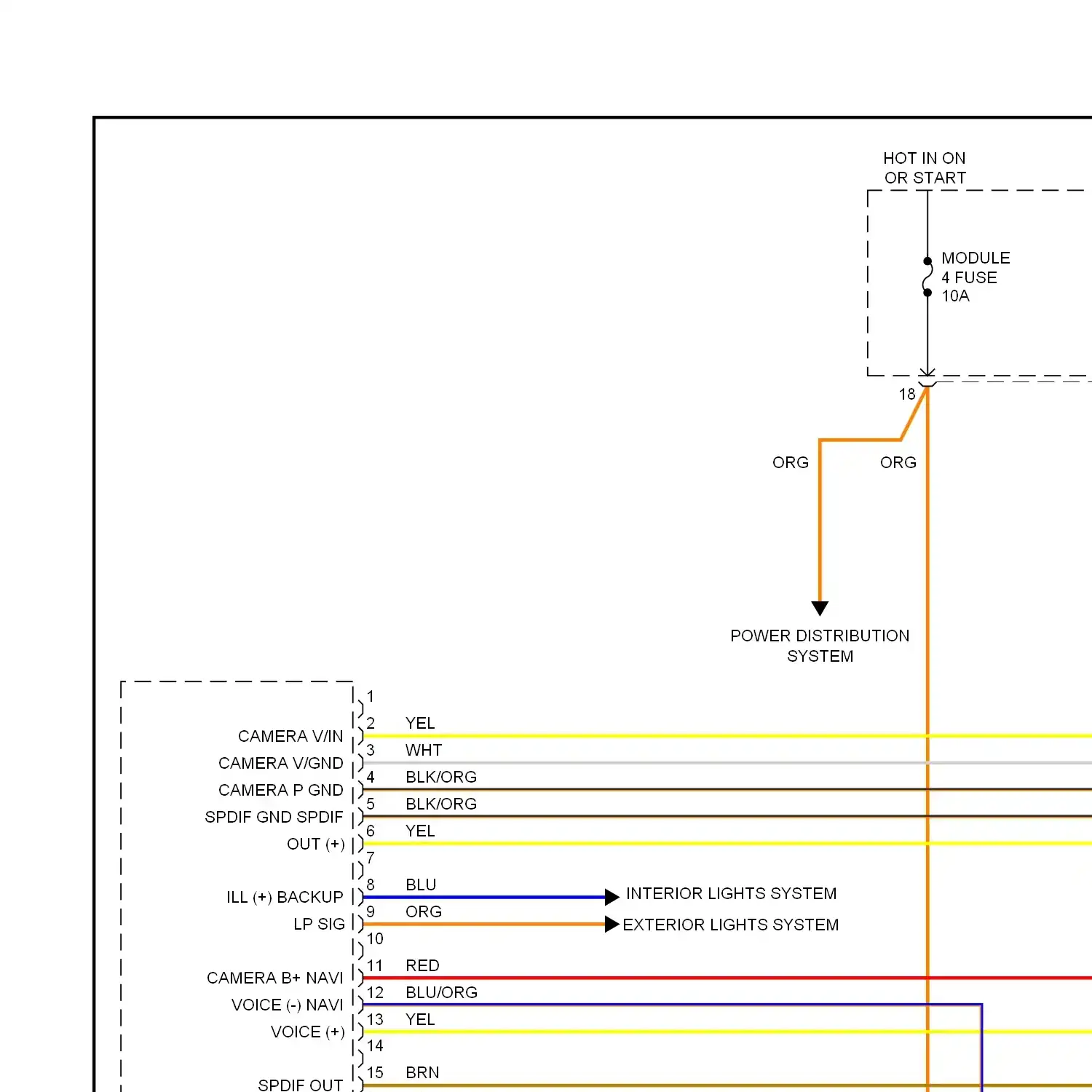

Blind spot information system circuit Mobile telematic system circuit, except hybrid Mobile telematic system circuit, hybrid Navigation circuit, version 3.0 w/ amplifier Navigation circuit, version 3.0 with amplifier Navigation circuit, version 3.0 without amplifier Navigation circuit, version 3.0 w/o amplifier Navigation circuit, version 4.0 Parking assistant circuit

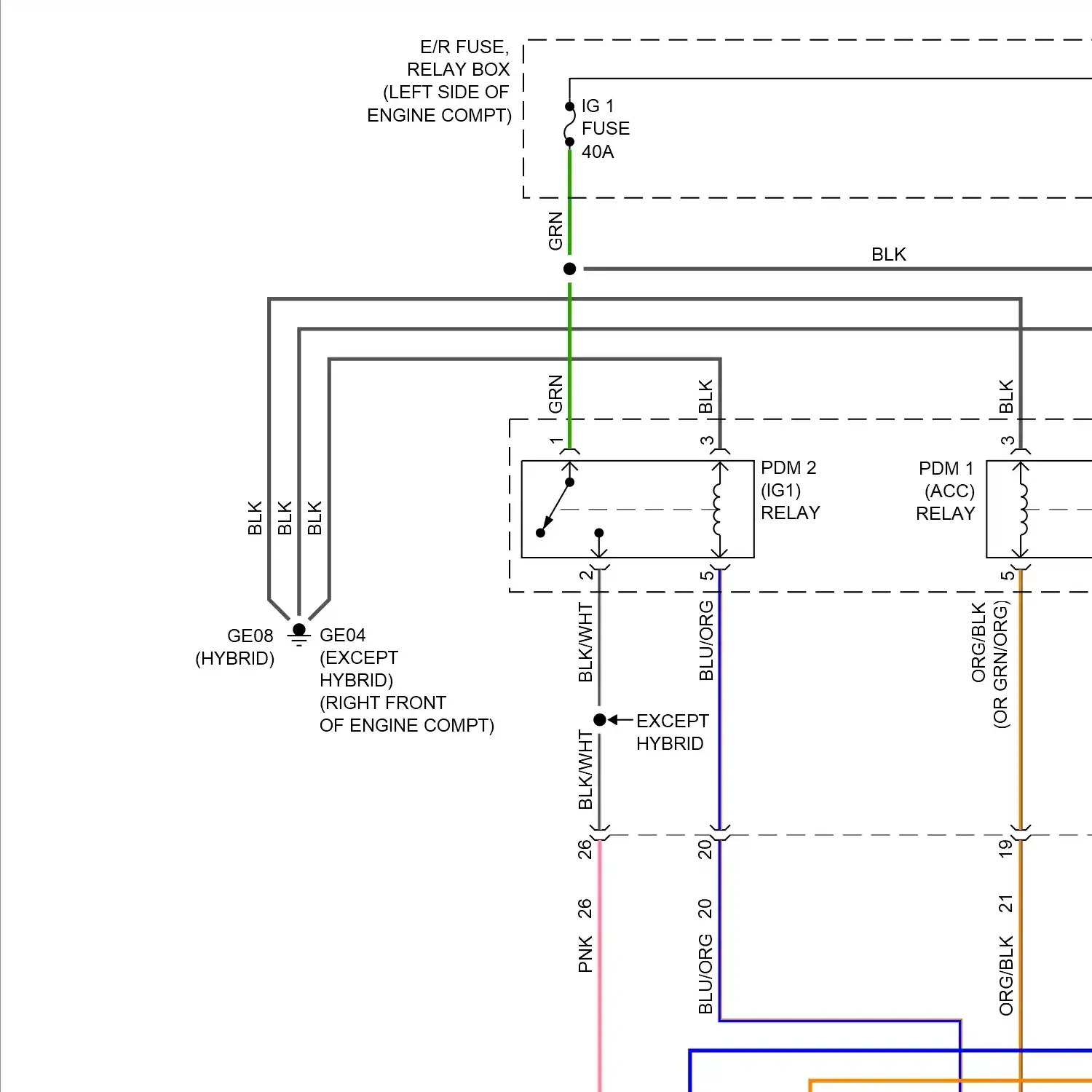

Power distribution circuit, except hybrid Power distribution circuit, hybrid

Power door locks circuit

Electrochromic mirror circuit Power mirror circuit, w/ auto folding Power mirror circuit, with auto folding Power mirror circuit, without auto folding Power mirror circuit, w/o auto folding

Climate control seats circuit Driver power seat circuit Front heated seats circuit Heated steering wheel circuit Passenger power seat circuit Rear heated seats circuit, except hybrid Rear heated seats circuit, hybrid

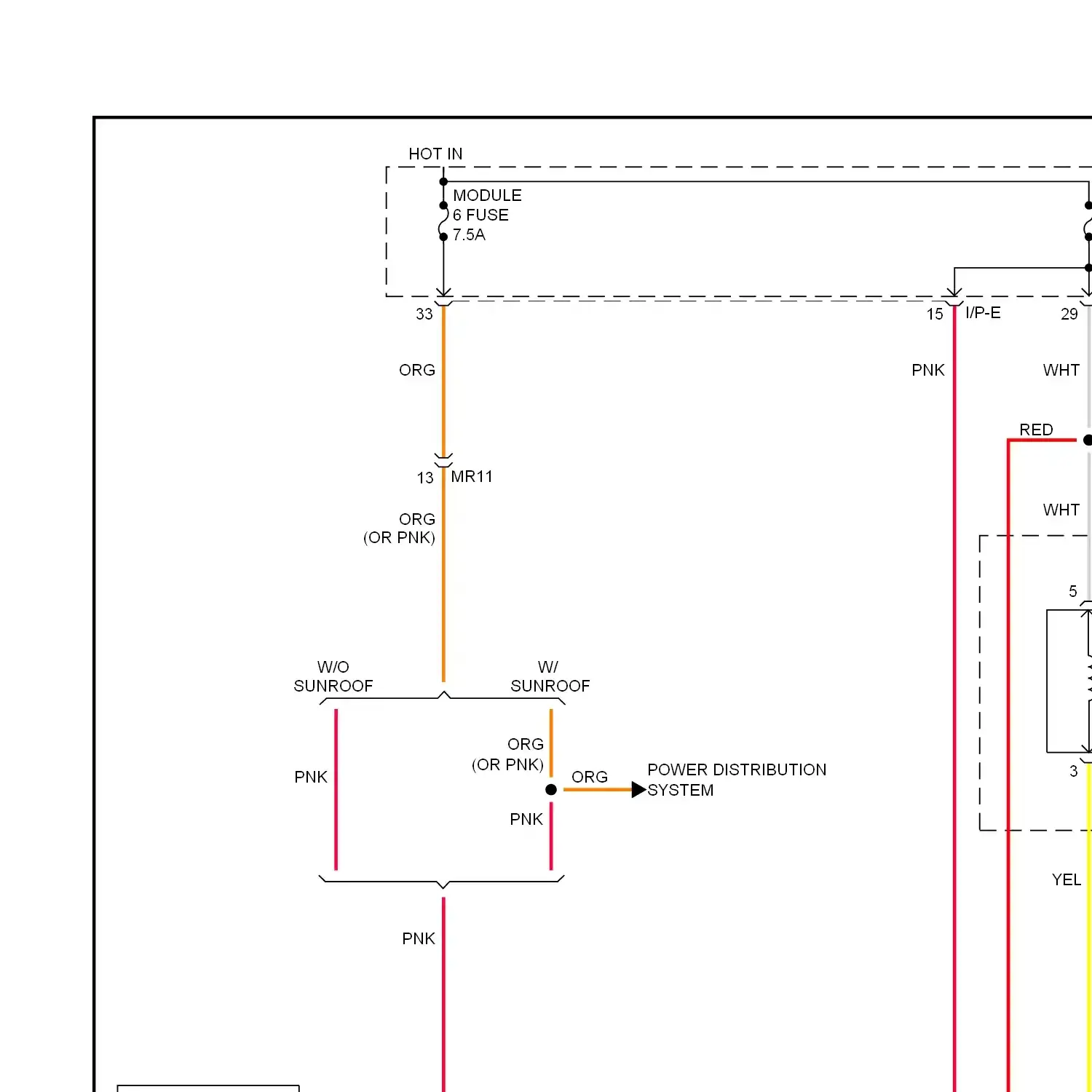

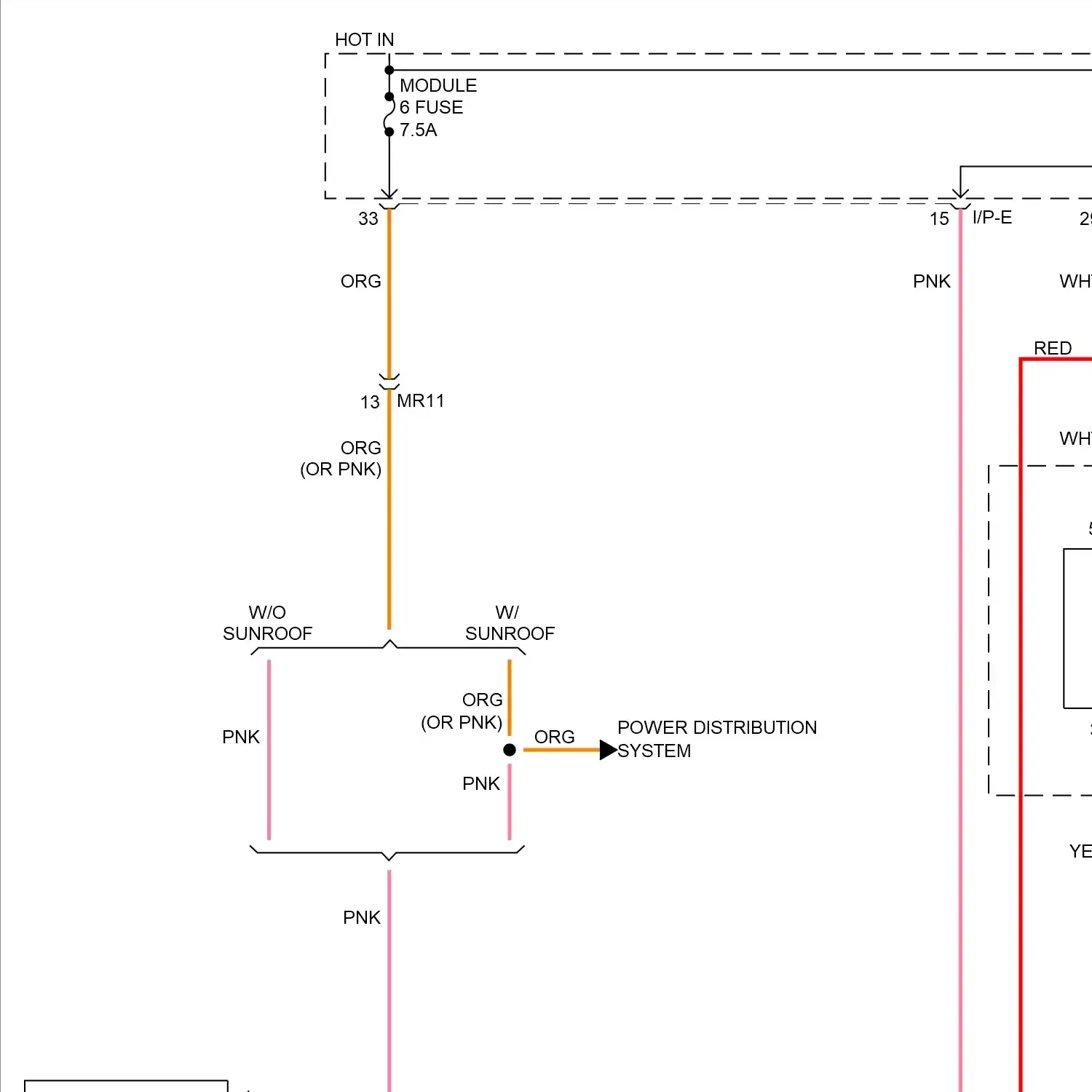

Power top/sunroof circuit

Power windows circuit, w/ auto up/down power window Power windows circuit, with auto up/down power window Power windows circuit, without auto up/down power window Power windows circuit, w/o auto up/down power window

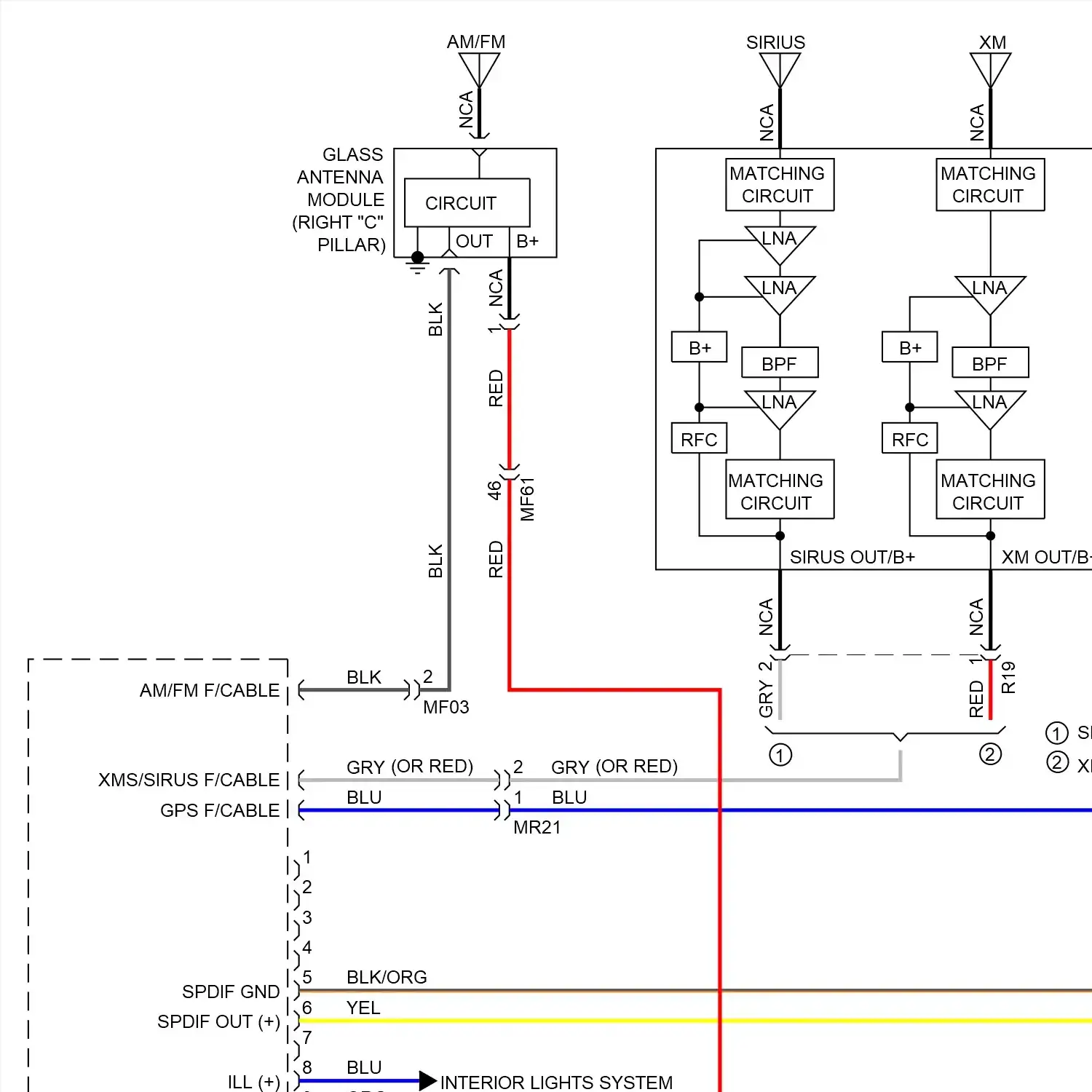

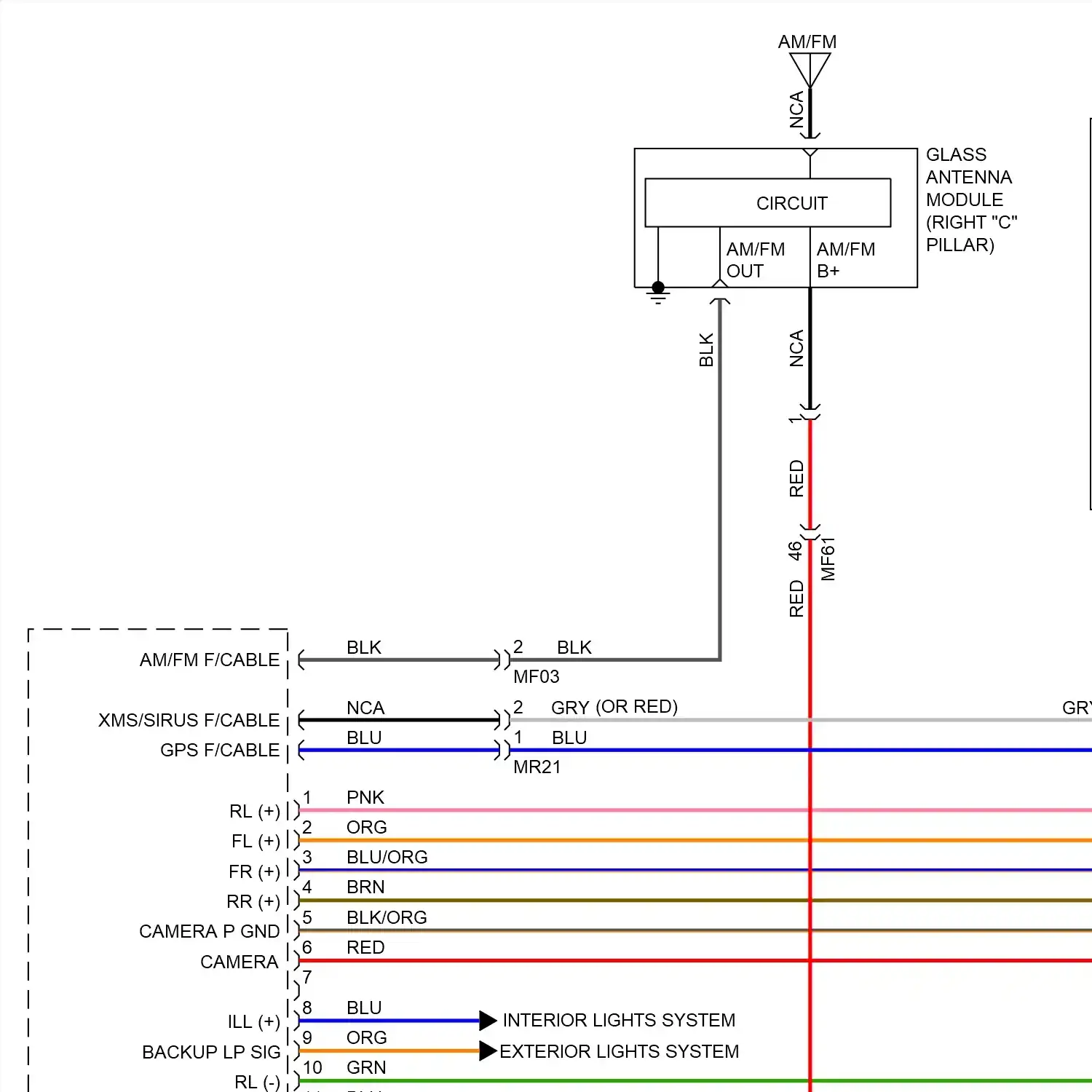

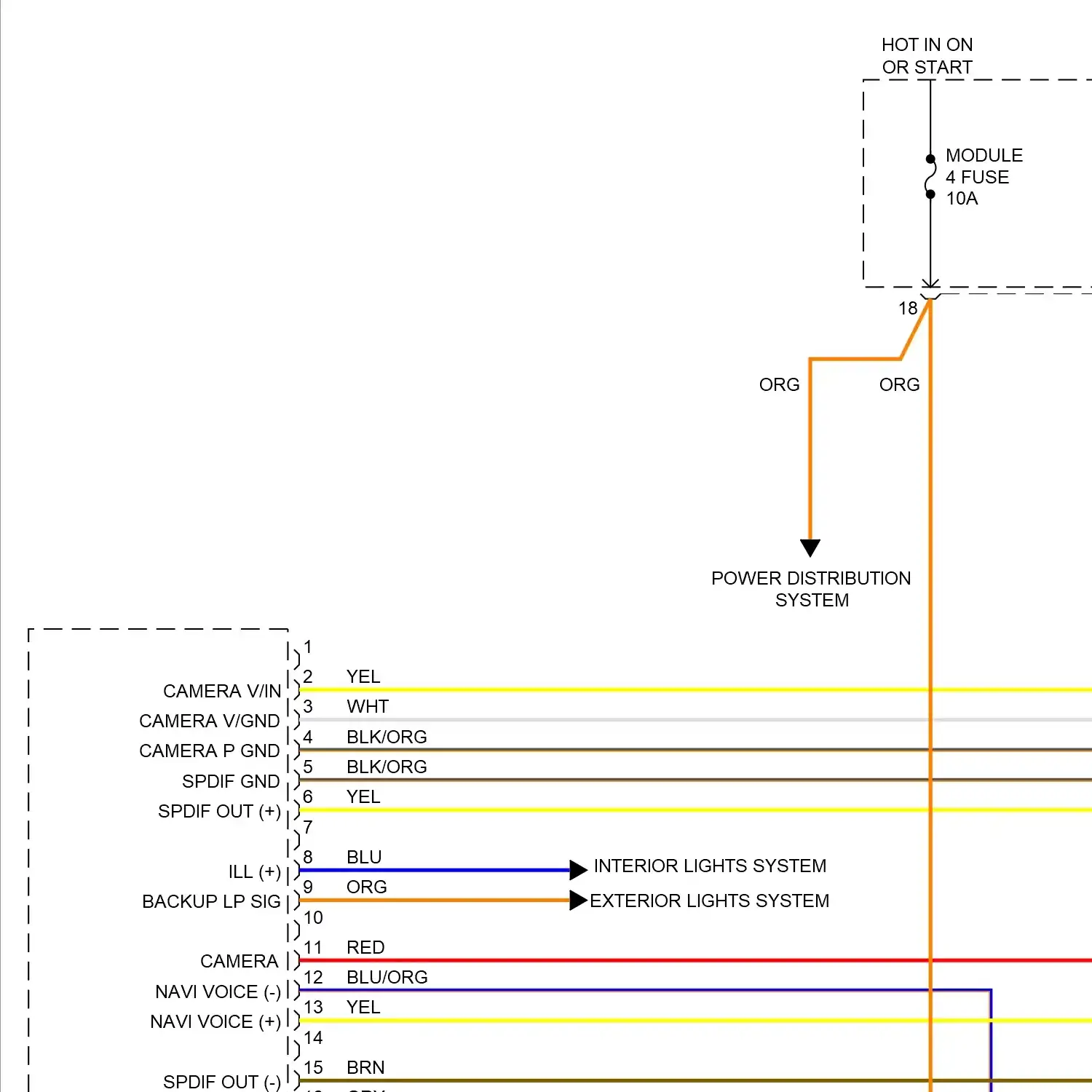

Radio circuit, 3.0 with navigation & amplifier Radio circuit, 3.0 with navigation without amplifier Radio circuit, 3.0 w/ navigation & amplifier Radio circuit, 3.0 w/ navigation w/o amplifier Radio circuit, 4.0 with navigation Radio circuit, 4.0 w/ navigation Radio circuit, without navigation without uvo & amplifier Radio circuit, without navigation without uvo with amplifier Radio circuit, without navigation with uvo & amplifier Radio circuit, without navigation with uvo without amplifier Radio circuit, w/o navigation w/o uvo & amplifier Radio circuit, w/o navigation w/o uvo w/ amplifier Radio circuit, w/o navigation w/ uvo & amplifier Radio circuit, w/o navigation w/ uvo w/o amplifier

Electric parking brake circuit Shift interlock circuit, except hybrid Shift interlock circuit, hybrid

Charging circuit Starting circuit, without smart key system Starting circuit, with smart key system Starting circuit, w/o smart key system Starting circuit, w/ smart key system

Supplemental restraints circuit

2.0l turbo, transmission circuit

2.4l, transmission circuit

2.4l hybrid, transmission circuit

Trunk & fuel door release circuit

Chime circuit, except hybrid Chime circuit, hybrid Tire pressure monitoring circuit

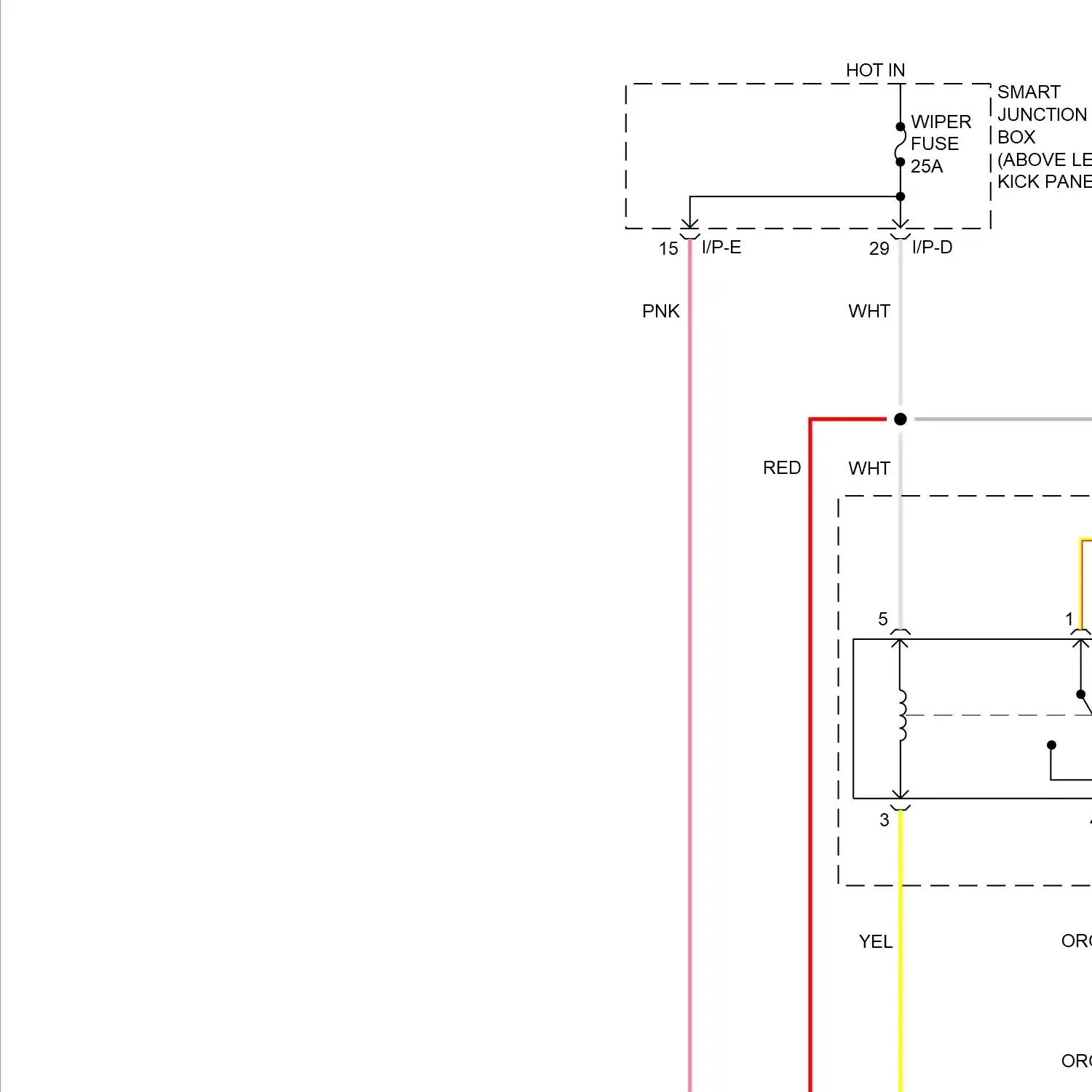

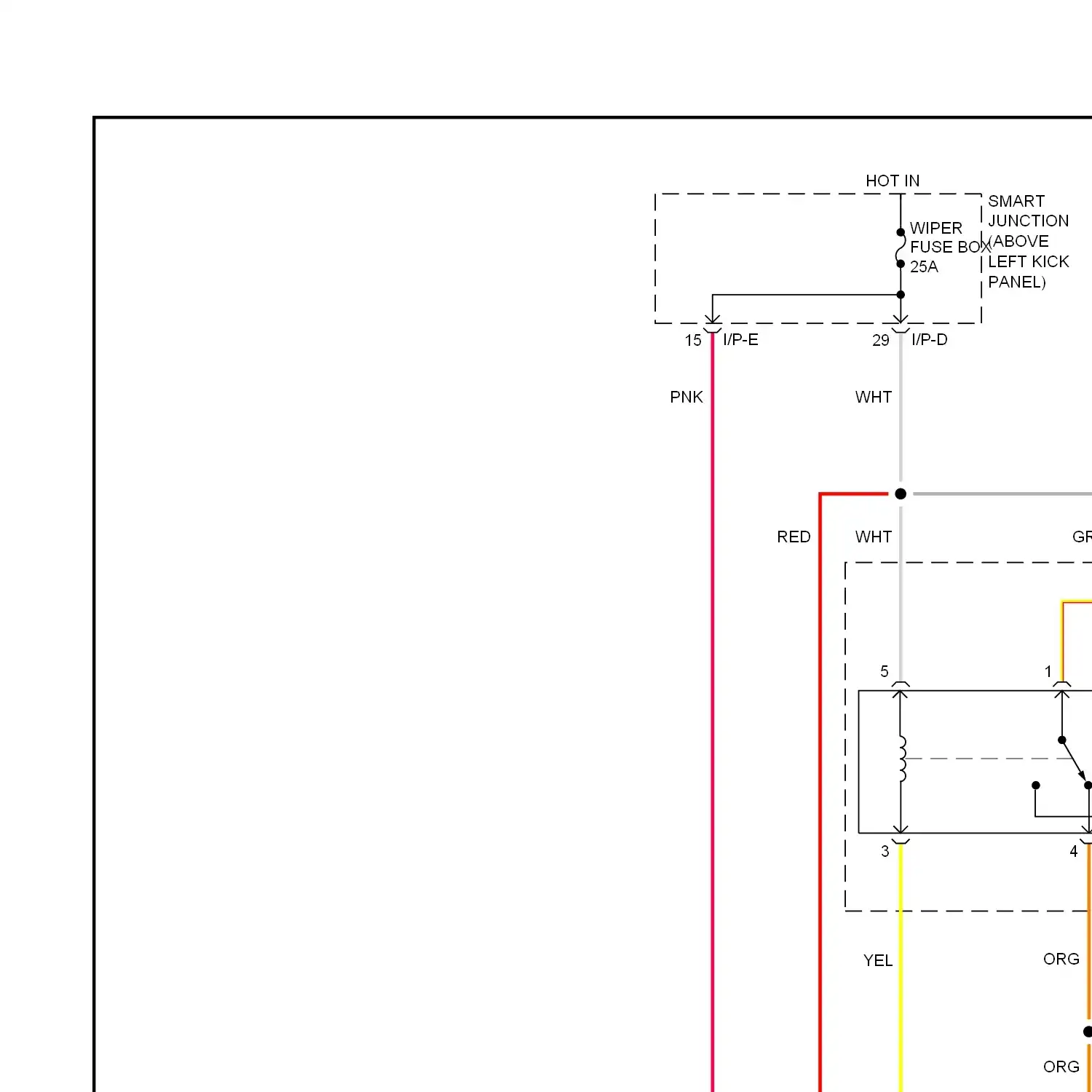

Wiper/washer circuit, without rain sensor Wiper/washer circuit, with rain sensor Wiper/washer circuit, w/o rain sensor Wiper/washer circuit, w/ rain sensor

29 30 HIGH LOW C-CAN TRANSCEIVER 31 32 LOW HIGH B-CAN TRANSCEIVER ALTERNATOR COM ALTERNATOR FR ANTENNA COIL ANTI-LOCK BRAKES ANTI-LOCK BRAKES SYSTEM B-CAN TRANSCEIVER B-CAN TRANSCEIVER TRANSCEIVER BATTERY BATTERY BATTERY GROUND BATTERY POWER BATTERY PWR BLOWER RESISTOR BURGLAR ALARM HORN C-CAN B-CAN TRANSCEIVER TRANSCEIVER C-CAN TRANSCEIVER DOOR LOCK HI LO B-CAN TRANSCEIVER HYBRID BATTERY MODULE 1 HYBRID BATTERY MODULE 2 HYBRID BATTERY MODULE 3 HYBRID BATTERY MODULE 4 HYBRID BATTERY MODULE 5 HYBRID BATTERY MODULE 6 HYBRID BATTERY MODULE 7 HYBRID BATTERY MODULE 8 HYBRID BATTERY MODULE 9 HYBRID BATTERY SAFETY PLUG HYBRID BATTERY THERMISTOR IGN COIL CTRL 4 IGN COIL CTRL 4 V SOL 1 V SOL 2 MEMORY PWR IGN COIL CTRL CYL 1 IGN COIL CTRL CYL 1 V SOL 1 V SOL 2 MEMORY PWR IGN COIL CTRL CYL 2 IGN COIL CTRL CYL 3 IGN COIL CTRL CYL 4 IGN COIL SHIELD GND IGNITION COIL 1 IGNITION COIL 1 SHIELD IGNITION COIL 1, 3 SHIELDS IGNITION COIL 2 IGNITION COIL 2 SHIELD IGNITION COIL 2, 4 SHIELDS IGNITION COIL 3 IGNITION COIL 3 SHIELD IGNITION COIL 4 IGNITION COIL 4 SHIELD IGNITION IGNITION COIL 2 COIL 1 IGNITION IGNITION COIL 2 COIL 3 SHIELD SHIELD IGNITION IGNITION COIL 3 COIL 4 IGNITION IGNITION COIL 3 COIL 4 SHIELD SHIELD IGNITION IGNITION COIL 4 COIL 3 KEY LOCK KEY UN LOCK LEFT HORN LIN DIAGNOSTIC DATA LINE ALTERNATOR COM LOCK ON RIGHT HORN RL SIG FL SIG DRIVER DR SW BATTERY PWR PDF GND SHUNT RESISTOR STARTER MTR CTRL SW TO HYBRID BATTERY TRANSCEIVER B-CAN TWO TURN B/HORN UNLK RLY RLY CTRL CTRL TWO TURN B/HORN UNLK RLY RLY CTRL CTRL LOW UN LOCK UN- LOCK LOCK

(RIGHT FRONT OF ENGINE ACTUATOR OUTPUT ACTUATOR OUTPUT HEAD LP LO ON SIG VEHICLE SPEED INPUT ON/START INPUT BODY K-LINE AUTO DEFOGGER ACTUATOR BLOWER MOTOR BMS BLOWER MOTOR CHECK ENGINE IND COOLING FAN MOTOR DRIVER CCS BLOWER MOTOR DRIVER DOOR LOCK ACTUATOR DRIVER FRONT HEIGHT ADJUSTER MOTOR DRIVER LUMBAR SUPPORT MOTOR DRIVER POWER WINDOW MOTOR DRIVER REAR HEIGHT ADJUSTER MOTOR DRIVER RECLINING MOTOR DRIVER TEMPERATURE ACTUATOR DRIVER'S RECLINING ADJUSTER MOTOR DRIVER'S SLIDE MOTOR ELECTRIC WASTE GATE ACTUATOR EMS BOX (IN ENGINE ENGINE CHECK IND ENGINE COMPT) ENGINE CONTROLS SYSTEM ENGINE CTRL RLY CTRL ENGINE CTRL RLY CTRL C/FAN PWM CTRL ENGINE RLY CTRL ENGINE RPM ENGINE RPM EMS COM ENGINE RPM SIG ETC DC MOTOR 1 ETC DC MOTOR 2 FILLER ACTUATOR FOLDING MOTOR FRONT WIPER MOTOR FRONT WIPER MOTOR (LEFT REAR OF FUEL FILLER ACTUATOR FUEL PUMP MOTOR FUEL SENDER, FUEL PUMP MOTOR HYBRID MOTOR HYBRID STARTER, GENERATOR MOTOR INTAKE ACTUATOR LEFT ELECTRONIC PARKING BRAKE ACTUATOR LEFT HEAD LAMP LEVELING DEVICE ACTUATOR LEFT HEADLAMP LEVELING DEVICE ACTUATOR LEFT REAR DOOR LOCK ACTUATOR LEFT REAR POWER WINDOW MOTOR LEFT REAR TRUNK SEAT LID WARMER MOTOR MODE ACTUATOR PASSENGER CCS BLOWER MOTOR PASSENGER DOOR LOCK ACTUATOR PASSENGER POWER WINDOW MOTOR PASSENGER RECLINING MOTOR PASSENGER SLIDE MOTOR PASSENGER TEMPERATURE ACTUATOR PCM (LEFT SIDE OF ENGINE PSU MOTOR PTC MOTOR RFP-MOTOR RFP-MOTOR C-CAN LOW RIGHT ELECTRIC PARKING BRAKE ACTUATOR RIGHT HEAD LAMP LEVELING DEVICE ACTUATOR RIGHT HEADLAMP LEVELING DEVICE ACTUATOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR POWER WINDOW MOTOR RLY MOTOR CTRL CTRL SW START MOTOR TOP OF ENGINE) TRUNK LID MOTOR WASHER MOTOR

COMBI ANTENNA MODULE GLASS ANTENNA MODULE ROOF ANTENNA SMART KEY ANTENNA 1 SMART KEY ANTENNA 2 SMART KEY BUMPER ANTENNA SMART KEY TRUNK ANTENNA

B-CAN TRANSCEIVER REGULATOR FUEL PRESSURE REGULATOR VALVE START STOP BUTTON SWITCH START-STOP BUTTON STOP BUTTON SWITCH

CAMERA B+ CAMERA GND CAMERA P GND CAMERA PWR CAMERA PWR CAMERA GND CAMERA PWR CAMERA GND CAMERA V/OUT CAMERA V/GND CAMERA GND CAMERA V/GND CAMERA V/GND CAMERA V/OUT CAMERA GND CAMERA V/IN CAMERA V/OUT

DATA LINK CONNECTOR DEFOGGER JOINT CONNECTOR PASSENGER UDB POWER OUTSIDE MIRROR JOINT CONNECTOR JOINT CONNECTOR UDA JOINT CONNECTOR UDB JOINT CONNECTOR UDC JOINT CONNECTOR UDD JOINT CONNECTOR UMA JOINT CONNECTOR UMB JOINT CONNECTOR UMC JOINT CONNECTOR UMD JOINT CONNECTOR URA LEAK CURRENT CONNECTOR MULTI-PURPOSE CHECK CONNECTOR MULTIPURPOSE CHECK CONNECTOR ON INPUT JOINT CONNECTOR UMC 9 10 11 12 13 14 15 16 GROUND POWER CONNECTOR

A/C CONTROL MODULE A/C CONTROL MODULE MANUAL A/C AUTOMATIC A/C BCM A/C CONTROL MODULE BCM SMART KEY CONTROL MODULE BLOWER MOTOR CONTROL MODULE BMS CONTROL MODULE DRIVER CCS CONTROL MODULE DRIVER DRIVER SEAT CCS WARMER CONTROL MODULE MODULE ELECTRO CHROMIC MIRROR A/C CONTROL MODULE ESC CONTROL MODULE FROM IPS CONTROL MODULE HYBRID CONTROL MODULE IPS CONTROL IPS 6 CONTROL MODULE IPS CONTROL MODULE IPS CONTROL MODULE B-CAN IPS CONTROL MODULE B-CAN K- LINE LOW HIGH IPS CONTROL MODULE B-CAN LINE LOW HIGH IPS CONTROL MODULE BURGLAR ALARM RELAY CONTROL IPS CONTROL MODULE CTRL IPS CONTROL MODULE IPS 3 CTRL CTRL IPS CONTROL MODULE LH PWR WINDOW RELAY CONTROL IPS CONTROL MODULE PARKING BRAKE BRAKE FLUID SWITCH LEVEL IPS CONTROL MODULE PARKING BRAKE SWITCH IPS CONTROL MODULE SEAT BELT BUCKLE SW IPS CONTROL MODULE TRUNK OPEN SW IPS IPS 6 CONTROL MODULE CTRL B-CAN LO HI PASSENGER CCS CONTROL MODULE SMART JUNCTION BOX IPS CONTROL MODULE SMART KEY CONTROL MODULE SRS CONTROL MODULE

+ECU A/V, LOW NAVIGATION M-CAN HEAD UNIT M-CAN HIGH 1 1 16 16 A/V, NAVIGATION HEAD UNIT A/V, OVERHEAD MTS NAVIGATION CONSOLE MODULE HEAD LAMP UNIT AMP VESS UNIT AUDIO A/V, NAVIGATION HEAD UNIT AUDIO CUP A/V, HOLDER NAVIGATION MOOD HEAD UNIT LAMP B+1 ECU 2 FUSE FUSE BACKUP LMP SIG A/V, NAVIGATION HEAD UNIT BCM TELEMATICS UNIT CONTROL UNIT) ECU 1 FUSE ECU 2 FUSE ECU 3 FUSE ECU 4 FUSE ELECTRIC OIL PUMP UNIT ESC UNIT FRONT VESS WIPER HOOD UNIT MOTOR SWITCH HEV ECU FUSE HEV ECU FUSE FUSE HYBRID CONTROL UNIT HYBRID POWER CONTROL UNIT INTEGRATED BRAKE ACTUATION UNIT INTEGRATED BRAKE ACTUATOR UNIT MCU BMS CONTROL HYBRID POWER MODULE CONTROL UNIT MDPS ELECTRIC UNIT PARKING BRAKE MODULE MDPS UNIT MDPS UNIT ESC MODULE PCM ELECTRIC OIL PUMP UNIT TELEMATICS UNIT TRANSAXLE INTEGRATED RANGE BRAKE SWITCH ACTUATION UNIT VESS UNIT WHEEL SPEED +ECU

A/BAG FUSE A/BAG IND FUSE A/CON FUSE A/CON FUSE MODULE 4 FUSE AHB 1 FUSE AHB 2 FUSE AHB 3 FUSE AHB 3 FUSE AHB 2 FUSE AHB 3 TCU 2 FUSE FUSE ALT FUSE AMP FUSE AMS FUSE AMS FUSE (LEFT SIDE OF ENGINE B+1 FUSE B+2 FUSE B+3 FUSE B/UP LAMP FUSE BATTERY C/FAN FUSE BATTERY, BATTERY FUSE BOX BATTERY, BATTERY FUSE BOX ALT FUSE BATTERY, BATTERY FUSE BOX BATTERY BLOWER FUSE BMS BOX FUSE BMS EWP FUSE FUSE BMS EWP INVERTER FUSE FUSE FUSE BMS FUSE BRAKE SW FUSE BRAKE SWITCH FUSE C/FAN 1 C/FAN FUSE C/FAN 1 FUSE C/FAN 2 BLOWER FUSE C/FAN 2 FUSE C/FAN FUSE C/LIGHTER FUSE CLUSTER FUSE DC FUSE DEICER FUSE DR LOCK FUSE E/R FUSE, EPB 1 FUSE EPB 2 DEICER FUSE FUSE EPB 2 FUSE EPB FUSE EPB-1 EPB-2 FUSE FUSE ESC 1 FUSE ESC 1 FUSE ESC 3 FUSE ESC 2 FUSE ESC 3 FUSE EWP FUSE F/PUMP FUSE FUSE BOX FUSE-INVERTER HORN FUSE HOT AT ALL TIMES E/R FUSE, HTD MIRR FUSE HTD STRG FUSE IG 1 A/BAG FUSE FUSE IG 1 FUSE IG 1 FUSE STOP LAMP FUSE W/O W/ SMART SMART KEY KEY IG 2 FUSE IGN 2 FUSE IGN COIL FUSE INJECTOR FUSE INTERIOR LAMP FUSE INVERTER FUSE LEAK CURRENT AUTOCUT DEVICE MEMORY 1 FUSE LEAK INTERIOR CURRENT LAMP AUTOCUT FUSE DEVICE LEAK MEMORY 1 FUSE CURRENT AUTOCUT DEVICE MDPS EPB FUSE FUSE MDPS FUSE MEMORY 1 CURRENT AUTO CUT FUSE DEVICE MEMORY 1 FUSE MEMORY 2 FUSE MODULE 1 FUSE MODULE 2 FUSE MODULE 3 FUSE MODULE 4 FUSE MODULE 5 FUSE MODULE 6 FUSE MODULE 7 FUSE MRMORY 1 FUSE MULTI AUTOCUT MEDIA DEVICE FUSE MULTI FUSE MULTI FUSE ESC 1 FUSE ESC 3 FUSE MULTI FUSE IG 2 FUSE MULTI MEDIA FUSE OPCU 1 FUSE OPCU 1 FUSE TCU 1 FUSE OPCU 2 FUSE OPCU C/FAN FUSE FUSE OPCU FUSE P/SEAT PASS FUSE P/WDW LH FUSE P/WDW RH FUSE PDM 1 FUSE PDM 2 FUSE PDM 3 FUSE POWER OUTLET FUSE RR HTD FUSE S/HEATER RR FUSE SNSR 1 FUSE SNSR 2 FUSE SNSR 3 FUSE START FUSE STOP LAMP FUSE STOP LAMP FUSE BRAKE LIGHT SWITCH IMMO PWR SUNROOF FUSE TCU 1 FUSE TCU 2 FUSE TO MODULE 3 FUSE TRUNK FUSE VACUUM PUMP FUSE WIPER FUSE

LEFT HEADLIGHT ASSEMBLY RIGHT HEADLIGHT ASSEMBLY

2.0L TURBO 2.4L W/O STEERING WHEEL HEATER W/ STEERING WHEEL HEATER 2.0L TURBO 2.4L W/O STEERING WHEEL HEATER W/ STEERING WHEEL HEATER 2 3 4 HEATER PAD STEERING GND ON INPUT WHEEL HEATER MODULE STEERING WHEEL HEATER MODULE STEERING WHEEL STEERING WHEEL HEATER MODULE W/ STEERING WHEEL HEATER W/O STEERING WHEEL HEATER W/ STEERING WHEEL HEATER W/O STEERING WHEEL HEATER HYBRID EXCEPT HYBRID W/ STEERING WHEEL HEATER W/O STEERING WHEEL HEATER HYBRID EXCEPT HYBRID 2 3 4 W/O STEERING WHEEL HEATER W/O STEERING WHEEL HEATER W/ STEERING WHEEL HEATER 3 4

ATM GLOVE LEVER BOX LAMP INDICATOR SWITCH ATM LEVER INDICATOR BSD INDICATOR GLOVE BOX ATM LAMP LEVER SWITCH INDICATOR POINTER ILL SECURITY INDICATOR

BACKUP LAMP BACKUP LAMP SIG CRASH PAD MOOD LAMP CUP 4.0 HOLDER MOOD LAMP CUP HOLDER MOOD LAMP DRIVER DOOR MOOD LAMP DRIVER DOOR SCUFF LAMP DRIVER LEFT SMART VANITY KEY LAMP OUTSIDE HANDLE DRIVER PASSENGER DOOR DOOR MOOD MOOD LAMP LAMP DRIVER PASSENGER DOOR DOOR SCUFF SCUFF LAMP LAMP ELECTRO- ROOM CHROMIC LAMP MIRROR EXCEPT LED LED LEFT LICENSE LAMP TAIL LAMP EXCEPT LED LED RIGHT LICENSE LAMP STOP LAMP EXTERIOR LIGHTS EXTERIOR LIGHTS DEFOGGER SYSTEM SYSTEM FRONT FOG LAMP SW GLOVE BOX LAMP) GLOVE RF BOX RECEIVER LAMP HEAD LAMP HIGH SW HEAD LAMP LOW SIG HEAD LAMP SW HIGH MOUNTED STOP LAMP INTERIOR INTERIOR LIGHTS LIGHTS SYSTEM SYSTEM INTERIOR LIGHTS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS INTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM INTERIOR LIGHTS SYSTEM ILL + INTERIOR LIGHTS SYSTEM NAVIGATION, SOUND SYSTEMS INTERIOR LIGHTS SYSTEM NAVIGATION, SOUND SYSTEMS NAVIGATION SYSTEM LEFT FRONT FOG LAMP LEFT FRONT FOG LAMP LEFT FRONT FOG LAMP LEFT LEFT FRONT FRONT FOG FOG LAMP LAMP LEFT LEFT HEADLAMP LICENSE LAMP LEFT LICENSE LAMP LEFT MAP LAMP LEFT REAR SEAT WARMER MODULE RIGHT LICENSE LICENSE LAMP LAMP LEFT RIGHT FRONT FRONT FOG FOG LAMP LAMP LEFT RIGHT VANITY VANITY LAMP LAMP LEFT VANITY LAMP LIGHTS INTERIOR SYSTEM MOOD LAMP OVERHEAD CONSOLE LAMP PARKING LAMP PASSENGER DOOR MOOD LAMP PASSENGER DOOR SCUFF LAMP POSITION LAMP REAR PERSONAL LAMP REAR PERSONAL LAMP ELECTRO- CHROMIC MIRROR RIGHT FRONT FOG LAMP RIGHT LEFT MAP MAP LAMP LAMP RIGHT LEFT VANITY VANITY LAMP LAMP RIGHT LICENSE LAMP RIGHT MAP LAMP RIGHT VANITY LAMP ROOM LAMP ROOM LAMP OUT ROOM OVERHEAD LAMP CONSOLE LAMP ROOM RIGHT OVERHEAD LAMP VANITY CONSOLE LAMP LAMP SCUFF LAMP SIDE MARKER LAMP SMART KEY OVERHEAD CONTROL CONSOLE LAMP MODULE STATIC LAMP DRL STATIC LAMP HI STATIC LAMP LO STOP LAMP STOP LAMP GND STOP LAMP SIG STOP LAMP SIG STOP LAMP SW STOP LAMP SW STP LAMP STP LAMP SIG STP LAMP SW STP LAMP SW 5 8 STP LAMP SW MEMORY PWR STP LAMP 5 8 4 SW LAMP IN SW LAMP IN HTD WHEEL TAIL LAMP TAIL LAMP IND TAIL LAMP TURN LAMP TELLTALE LAMP TRUNK DR SW ROOM RL RR LAMP TRUNK ROOM LAMP TURN LAMP TURN LAMP DEFOGGER UP/ DOWN TURN LAMP DRIVER POWER OUTSIDE MIRROR TURN LAMP LEFT/ RIGHT TURN LAMP PASSENGER POWER OUTSIDE MIRROR TURN STOP LAMP LAMP W/ REAR PERSONAL LAMP W/ REAR W/O REAR PERSONAL PERSONAL LAMP LAMP W/O REAR PERSONAL LAMP WASHER SIG INT 'R' INPUT STOP LAMP SW WIPER/WASHER SYSTEM EXTERIOR LIGHTS SYSTEM WIPER/WASHER SYSTEM STARTING/CHARGING SYSTEM INTERIOR LIGHTS SYSTEM

ELECTRIC OIL PUMP ELECTRIC OIL PUMP SHIELDS ELECTRIC WATER PUMP FUEL PUMP RLY CTRL HYBRID WATER PUMP PUMP POWER-U PUMP POWER-V PUMP POWER-W VACUUM PUMP WATER PUMP F/B

ACC RELAY B/A HORN RELAY BLOWER RELAY BMS BLOWER MOTOR RELAY BURGLAR ALARM RELAY BURGLAR ALARM RELAY CONTROL C/FAN HI RELAY C/FAN HI RELAY CTRL C/FAN LO RELAY CTRL C/FAN RELAY COOLING FAN RELAY COOLING FAN RELAY (LEFT FRONT OF DEICER RELAY DEICER RELAY CONTROL DOOR LOCK RELAY DOOR UNLOCK RELAY E/R FUSE, RELAY BOX E/R FUSE, RELAY BOX (LEFT SIDE OF ENGINE ENGINE CONTROL RELAY ENGINE CTRL RELAY CTRL ENGINE CTRL RELAY CTRL C/FAN LO RELAY CTRL C/FAN HI RELAY CTRL ESS RELAY CONTROL ESS RELAY CONTROL HAC RELAY CONTROL EWP RELAY F/PUMP RELAY FUEL PUMP RELAY GROUND START RELAY HAC RELAY CONTROL HEAD LAMP LOW SIG WIPER RELAY CTRL FOLDING HEADLAMP LOW SIG WIPER RELAY CTRL HORN RELAY HOT AT ALL TIMES E/R FUSE, RELAY BOX (LEFT SIDE OF HOT W/ ENGINE CONTROL RELAY ENERGIZED HYBRID FUSE, RELAY HYBRID FUSE, RELAY BOX LEAK CURRENT AUTOCUT DEVICE RELAY LEAK CURRENT AUTOCUT RELAY LEFT P/WDW RELAY LH PWR WINDOW RELAY CONTROL MAIN RELAY OPCU RELAY OUTSIDE MIRROR AUTO FOLDING RELAY OUTSIDE MIRROR AUTO UNFOLDING RELAY P/WDW LH RELAY P/WDW RH RELAY POWER RELAY ASSEMBLY PRECHARGE RELAY RAIN SNSR RELAY CONTROL REAR DEFOGGER RELAY CONTROL RELAY BOX RELAY BOX AMS FUSE (LEFT SIDE OF ENGINE RELAY ENERGIZED RELAY RELAY RH PWR WINDOW RELAY CONTROL RIGHT HEADLAMP RELAY RIGHT P/WDW RELAY ROOM RELAY BOX) RR HTD RELAY START RELAY TRUNK RELAY TURN SIGNAL LAMP SOUND RELAY TWO CRASH TURN PAD UNLOCK SWITCH RELAY TWO TURN UNLOCK RELAY WIPER RELAY WIPER RELAY CONTROL WIPER RELAY CONTROL 5 15 MIST WASHER SIGNAL WIPER RELAY CTRL

40 2 SENSOR GROUND 80 12 101 63 62 SENSOR GND SENSOR SUPPLY SENSOR SIG ECT SIGNAL ECT GROUND ACCELERATION PEDAL POSITION SENSOR ACCELERATOR PEDAL POSITION SENSOR AMBIENT TEMP SENSOR AMBIENT TEMPERATURE SENSOR APT SENSOR GND APT SENSOR SIG APT SENSOR SUPPLY AUTO DEFOGGER SENSOR AUTO LIGHT SENSOR AUTO LIGHT, PHOTO SENSOR AUTOLIGHT SENSOR BATTERY AMBIENT TEMPERATURE SENSOR BATTERY SENSOR BRAKE FLUID LEVEL SENSOR CAMSHAFT CAMSHAFT POSITION POSITION PCM SENSOR 1 SENSOR 2 CAMSHAFT POSITION SENSOR 1 CAMSHAFT POSITION SENSOR 2 CANISTER CRANKSHAFT CLOSE POSITION VALVE SENSOR CLUTCH PRESSURE SENSOR CRANKSHAFT POSITION SENSOR DRIVER FRONT IMPACT SENSOR DRIVER PRESSURE SIDE IMPACT SENSOR DRIVER SEAT TRACK POSITION SENSOR DRIVER SIDE IMPACT SENSOR ENGINE COOLANT TEMPERATURE SENSOR ETC MOTOR, THROTTLE POSITION SENSOR EVAPORATOR SENSOR EXTERNAL BUZZER BRAKE FLUID LEVEL SENSOR FUEL RAIL PRESSURE SENSOR FUEL TANK PRESSURE SENSOR HALL EFFECT SENSOR HOOD MOTOR SWITCH WASHER LEVEL SENSOR INCAR SENSOR INPUT SPEED SENSOR KNOCK SENSOR KNOCK SENSOR CONDENSER SHIELD KNOCK SENSOR SHIELD LEFT FRONT TIRE PRESSURE SENSOR LEFT FRONT WHEEL SENSOR LEFT REAR CENTER PARKING ASSIST SENSOR LEFT REAR PARKING ASSIST SENSOR LEFT REAR PARKING TRUNK LID ASSIST HANDLE SENSOR SWITCH LEFT REAR TIRE PRESSURE SENSOR LEFT REAR WHEEL SENSOR M-CAN HIGH M-CAN LOW AMBIENT TEMP SENSOR COMPUTER DATA LINES SYSTEM MANIFOLD ABSOLUTE PRESSURE SENSOR MAP SENSOR MAP SENSOR 1 MAP SENSOR 2 OIL TEMP SENSOR OIL TEMPERATURE SENSOR OUTPUT SPEED SENSOR PASSENGER FRONT IMPACT SENSOR PASSENGER PRESSURE SIDE IMPACT SENSOR PASSENGER SIDE IMPACT SENSOR PASSENGER WEIGHT CLASSIFICATION SENSOR PHOTO SENSOR POWER SENSOR RAIL PRESSURE SENSOR RAIN MULTIFUNCTION FRONT SENSOR SWITCH WIPER MOTOR RAIN PANORAMA MULTIFUNCTION SENSOR SUNROOF SWITCH RAIN SENSOR RAIN SENSOR RELAY RIGHT FRONT TIRE PRESSURE SENSOR RIGHT FRONT WHEEL SENSOR RIGHT REAR CENTER PARKING ASSIST SENSOR RIGHT REAR PARKING ASSIST SENSOR RIGHT REAR TIRE PRESSURE SENSOR RIGHT REAR WHEEL SENSOR SENSOR 1 FUSE SENSOR 2 FUSE SENSOR 3 FUSE SENSOR ENGINE COOLANT TEMPERATURE SENSOR SENSOR GND SENSOR GROUND SENSOR POWER SENSOR SIG SENSOR SUPPLY SHUNT RESISTOR HALL EFFECT RELAY SENSOR THROTTLE POSITION SENSOR VEHICLE SPEED SENSOR W/O RAIN SENSOR WASHER LEVEL SENSOR YAW RATE SENSOR

CENTER SPEAKER CENTER SPEAKER WOOFER SPEAKER DRIVER DOOR SPEAKER LEFT MIDRANGE SPEAKER LEFT MIDRANGE TWEETER SPEAKER LEFT MIDRANGE TWITTER SPEAKER LEFT REAR DOOR SPEAKER PASSENGER DOOR SPEAKER RIGHT MIDRANGE SPEAKER RIGHT MIDRANGE TWEETER SPEAKER RIGHT MIDRANGE TWITTER SPEAKER RIGHT REAR DOOR SPEAKER VESS SPEAKER WOOFER SPEAKER

2 15 14 HEAD LAMP HIGH SWITCH B-CAN LOW B-CAN HIGH 3 1 FRONT FOG LAMP SWITCH HEAD LAMP SWITCH ACTIVE AIR FLAP LEFT REAR POWER WINDOW SWITCH AUTO HOLD SWITCH BLOWER SWITCH BLOWER SWITCH IIII III II BRAKE LIGHT SWITCH BRAKE LIGHT SWITCH CAN LOW VBATT C-CAN HIGH BRAKE SWITCH BRAKE SWITCH ESC OFF SWITCH BSD SWITCH CLUTCH SWITCH COMPUTER DATA LINES SYSTEM HAZARD SWITCH CRASH FRONT PAD SEAT SWITCH WARMER, CCS SWITCH CRASH PAD SWITCH DEFOGGER SWITCH DIMMER, PASSING SWITCH DOOR LOCK SWITCH DOWN SHIFT SWITCH DOWN UP SHIFT SHIFT SWITCH SWITCH DRIVE IMS SWITCH DRIVER COOL SWITCH DRIVER DOOR SWITCH DRIVER DOOR SWITCH (LEFT DRIVER DRIVER DRIVER IMS POWER POWER SWITCH OUTSIDE WINDOW MIRROR SAFETY MODULE DRIVER DRIVER SEAT LUMBAR MANUAL SUPPORT SWITCH SWITCH DRIVER FRONT HEIGHT ADJUSTER SWITCH DRIVER HEATER SWITCH DRIVER IMS SWITCH DRIVER LEFT REAR IMS POWER SWITCH WINDOW SWITCH DRIVER LUMBAR SUPPORT DRIVER SEAT SWITCH MANUAL SWITCH DRIVER LUMBAR SUPPORT SWITCH DRIVER REAR HEIGHT ADJUSTER SWITCH DRIVER RECLINING LIMIT SWITCH DRIVER RECLINING SWITCH DRIVER SEAT BELT BUCKLE SWITCH DRIVER SEAT DRIVER IMS MODULE MANUAL SWITCH DRIVER SEAT MANUAL SWITCH DRIVER SEAT SWITCH DRIVER SLIDE SWITCH DRIVER WINDOW SWITCH ELECTRIC A/C PARKING CONTROL BRAKE MODULE SWITCH ELECTRIC AUTO PARKING HOLD BRAKE SWITCH SWITCH ELECTRIC PARKING BRAKE SWITCH ESC OFF ILL SWITCH ESC OFF SWITCH FOLDING SWITCH FOLDING SWITCH WASHER SIG INT 'R' INPUT STOP LAMP SWITCH FOLDING UNFOLDING SWITCH FOOT PARKING BRAKE SWITCH FRONT FOG LAMP SWITCH FRONT FOG LAMP SWITCH 'ON' FRONT SEAT WARMER, CCS SWITCH FRONT SEAT WARMER, CCS SWITCH DRIVER HEATER SWITCH FUEL FILLER DOOR SWITCH FUEL FILLER DOOR, TRUNK LID SWITCH GLOVE BOX LAMP/ SWITCH HAND PARKING BRAKE SWITCH HAZARD SWITCH HEAD LAMP HIGH SWITCH HEAD LAMP LOW SWITCH HEAD- LAMP SWITCH HOOD SWITCH HORN SWITCH IGNITION KEY ILL, DOOR WARNING SWITCH IGNITION KEY ILL, DOOR WARNING SWITCH ANTENNA COIL IGNITION KEY ILLUMINATION, DOOR WARNING SWITCH IGNITION LOCK SWITCH IGNITION SWITCH IND SWITCH LEAK CURRENT AUTOCUT SWITCH LEAK ON CURRENT AUTOCUT SWITCH LEFT AUDIO REMOTE CONTROL SWITCH LEFT BLUETOOTH REMOTE CONTROL SWITCH LEFT REAR DOOR LOCK ACTUATOR LEFT REAR POWER WINDOW SWITCH LEFT REAR DOOR SWITCH LEFT REAR POWER POWER WINDOW WINDOW SWITCH MAIN SWITCH LEFT REAR POWER WINDOW SWITCH LEFT REAR SEAT WARMER SWITCH LEFT REAR WINDOW SWITCH LIGHT SWITCH LIGHT SWITCH OFF TAIL LOCK/UNLOCK SWITCH MIRROR FOLDING SWITCH MIST SWITCH MULTI- FUNCTION SWITCH MULTI- FUNCTION SWITCH CLOCK SPRING MULTIFUNCTION SWITCH OIL PRESSURE SWITCH OVERHEAD CONSOLE PANORAMA SUNROOF PANORAMA SUNROOF SWITCH OVERHEAD CONSOLE PANORAMA SUNROOF SWITCH OVERHEAD PANORAMA CONSOLE SUNROOF PANORAMA SUNROOF SWITCH P POSITION SWITCH P/N SWITCH PADDLE SHIFT SWITCH PANORAMA SUNROOF SWITCH PARKING BRAKE BRAKE FLUID SWITCH LEVEL PARKING BRAKE SWITCH PARKING SWITCH PASSENGER COOL SWITCH PASSENGER DOOR SWITCH PASSENGER HEATER SWITCH PASSENGER HIGH SEAT SWITCH PASSENGER LOW HIGH COOL SWITCH PASSENGER POWER WINDOW SWITCH PASSENGER RECLINING LIMIT SWITCH PASSENGER RECLINING SWITCH PASSENGER SEAT BELT BUCKLE SWITCH PASSENGER SEAT MANUAL SWITCH PASSENGER SEAT SWITCH PASSENGER SLIDE SWITCH PASSENGER SWITCH HIGH HEATER SWITCH PASSENGER WINDOW SWITCH PASSENGER'S RECLINING LIMIT SWITCH POSITION SWITCH CODE POSITION SWITCH) POWER DRIVER IMS OUTSIDE MODULE MIRROR SWITCH POWER OUTSIDE MIRROR SWITCH POWER WINDOW MAIN SWITCH REAR DEF SWITCH RIGHT BLUETOOTH REMOTE CONTROL SWITCH RIGHT CRUISE REMOTE CONTROL SWITCH RIGHT LIGHT SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR LEFT REAR POWER WINDOW POWER WINDOW SWITCH SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT REAR SEAT WARMER SWITCH RIGHT REAR SEAT WARMER SWITCH HIGH IND RIGHT REAR SEAT WARMER SWITCH LOW IND RIGHT REAR WINDOW SWITCH RIGHT TRIP ECO REMOTE CONTROL SWITCH RIGHT TRIP REMOTE CONTROL SWITCH SELECT SWITCH SELECTOR SWITCH RIGHT SPORT MODE 11 12 4 3 CLOCK SPRING SWITCH CLOCK SPORT MODE SWITCH STEERING WHEEL HEATER SWITCH STOP LAMP SWITCH SWITCH LOW TAIL LAMP SWITCH TAIL SWITCH TRANSAXLE RANGE SWITCH TRUNK LID HANDLE SWITCH TRUNK LID SWITCH TRUNK OPEN SWITCH TRUNK ROOM LAMP SWITCH TURN SIGNAL LAMP SWITCH UP SHIFT SELECT SWITCH UP SHIFT SWITCH VACUUM SWITCH VACUUM VACUUM PUMP SWITCH VEHICLE SPEED LOCK/UNLOCK SWITCH WASHER SWITCH WINDOW LOCK SWITCH WIPER SWITCH

ATM SOLENOID BYPASS VALVE CANISTER CLOSE VALVE CANISTER CLOSER VALVE ELECTRICAL CONTROL VALVE KEY SOLENOID OIL CONTROL VALVE 1 OIL CONTROL VALVE 2 PURGE CONTROL SOLENOID VALVE PURGE SOLENOID VALVE RCV CONTROL SOLENOID VALVE SHIFT LOCK SOLENOID SHIFTLOCK SOLENOID START SOLENOID VARIABLE INTAKE SOLENOID VALVE

1 2 MEMORY PWR PNK ON/START INPUT C-CAN HIGH C-CAN LOW WIRE 1 2 PNK WIRE 1 13 12 SSB ILL GND SSB ILL POWER SSB GREEN 2 1 PNK PNK WIRE 3 4 5 6 PNK WIRE 4 1 PNK WIRE 10 11 12 PNK WIRE 13 14 15 16 17 18 PNK WIRE 16 17 18 19 20 21 22 23 24 25 26 27 28 29 PNK WIRE 18 6 STOP LP SW TAIL SW PNK WIRE 76 97 55 56 98 77 PNK WIRE (OR PNK/ PNK 2 2 1 1 WIRE (OR RED/ WIRE A/V TAIL PNK "P" POSITION WIRE AUTO HEAD PNK TAIL OFF WIRE BATTERY PWR PNK ON/START INPUT WIRE BLK ORG/ WIRE BLK PNK/ WIRE BLK RED/ WIRE BLK WIRE BLK/ GRY WIRE BLK/ WHT WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/ORG WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU ORG WIRE BLU WIRE BLU/ WHT WIRE BLU/BLK WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BRAKE LIGHT SWITCH CAN LOW PNK VBATT C-CAN HIGH WIRE BRN WIRE BRN/BLK WIRE BRN/ORG WIRE CAN LOW PNK VBATT WIRE DEFOGGER SYSTEM PNK WIRE DK GRN WIRE DN PNK WIRE EXCEPT HYBRID HYBRID PNK WIRE FET GATE PNK FET DRAIN WIRE GRN BLK/ WIRE GRN ORG/ WIRE GRN WIRE GRN/BLK WIRE GRN/ORG WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GROUND ON/START INPUT PNK WIRE GROUND PNK ON/START INPUT WIRE GRY WIRE GRY/BLK WIRE GRY/ORG WIRE HEAD PNK TAIL WIRE IND PNK WIRE INJ CTRL 3 LO PNK ON/START IN WIRE LT GRN WIRE LT GRN/BLK WIRE NCA WIRE ON/START IN PNK TAIL SW WIRE ON/START IN TAIL SW PNK WIRE ORG YEL/ WIRE ORG/ BLU WIRE ORG/ BRN WIRE ORG/ GRN WIRE ORG/ WIRE ORG/BLK WIRE PNK 1 2 3 4 5 6 WIRE PNK 1 2 3 4 WIRE PNK 1 2 3 WIRE PNK 7 8 9 10 11 12 WIRE PNK 7 8 9 WIRE PNK 8 5 9 10 WIRE PNK 8 9 10 11 12 13 WIRE PNK 8 10 WIRE PNK 12 13 HIGH LOW HIGH LOW LOW HIGH HIGH LOW WIRE PNK 14 15 16 17 18 19 WIRE PNK 90 89 WIRE PNK DEFOGGER SYSTEM COMPUTER DATA LINES SYSTEM WIRE PNK DEFOGGER SYSTEM WIRE PNK HI WIRE PNK HIGH WIRE PNK I/P-C WIRE PNK LOW WASHER IN WIRE PNK MEMORY POWER WIRE PNK ON INPUT WIRE PNK ON/START IN WIRE PNK ON/START INPUT BATTERY POWER BATTERY POWER WIRE PNK ON/START INPUT WIRE PNK P OUT WIRE PNK PNK 23 24 25 26 27 28 29 WIRE PNK PNK PNK WIRE PNK PNK WIRE PNK SOL PWR 2 WIRE PNK TAIL LAMP SWITCH WIRE PNK WIRE PNK/BLK WIRE PNK/ORG WIRE PNK/WHT WIRE POWER POWER ANT PWR ANT PWR SSB GREEN SSB ILL POWER RED WIRE RED/BLK WIRE RED/BLU WIRE RED/ORG WIRE RED/WHT WIRE RED/YEL WIRE REMOTE CTRL SW GND PNK USB D- WIRE RLY STAGE MONITORING PNK AUTO HOLD SW GROUND WIRE RLY STATE MONITORING AUTO HOLD SW PNK WIRE RLY STATE MONITORING PNK AUTO HOLD SW WIRE SSB GREEN STP LAMP PNK WIRE VEH SPD PNK WIRE WHT WIRE WHT/ BLK WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/ORG WIRE WHT/YEL WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/ORG WIRE YEL/RED WIRE

1 1 W/O LED W/ LED 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 M-CAN HIGH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 SSB ILL GND IMMO IND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 C-CAN LOW C-CAN HIGH 1 2 3 4 5 6 7 8 9 10 11 12 GND 1 2 3 4 5 6 7 8 GROUND 1 2 3 4 5 BATT POWER GND BATT POWER 1 2 3 IS PWN IN INH 1 2 3 PWR-W PWR-V PWR-U 1 2 C-CAN LOW C-CAN HIGH 1 2 C-CAN LOW C-CAN HIGH GROUND ON/START INPUT 1 2 ELTC A/C CPSR ELTC A/C CPSR 1 2 MEMORY PWR GND 1 5 C-CAN HIGH C-CAN LOW 1 77 60 GND C-CAN HIGH 2 WAY 2 WAY 10 WAY 2.0L 2.0L 2.4L 2.0L 2.4L 2.4L TURBO HYBRID 2.0L 2.4L TURBO 2.0L TURBO 2.0L TURBO 2.4L 2.0L TURBO 2.4L 1 1 2.4L 2.4L EXCEPT HYBRID 2.4L HYBRID 2.4L W/O SMART KEY 3 1 6 8 5 4 GROUND DETENT ILL + ILL - ACC/ON I/P 3 2 1 PWM SIG GND 3 4 EXCEPT HYBRID HYBRID 3.0 3.0 4.0 W/O UVO W/ UVO 3.0 4.0 W/O UVO W/ UVO 2 3 4 4 19 1 20 ACC/ON I/P DETENT ILL + ILL - 4.0 4.0 3.0 4.2 TFT 4.2 TFT LCD 5 7 PPL 6 9 B+ FOB-IN 7 8 C-CAN HIGH C-CAN LOW 7 9 OUT SPD SUPPLY OUT SPD SIG 8 10 SSB SW 2 SSB ILL 8 15 16 ON INPUT ON/START INPUT MEMORY PWR 9 8 C-CAN HIGH C-CAN LOW 10 4 C-CAN HIGH C-CAN LOW 10 WAY 2 WAY 10-WAY 12 6 2 ANT GND ANT PWR 12 11 W/ NAVIGATION W/O NAVIGATION 12 13 B-CAN HIGH B-CAN LOW 12 CGINJ 13 8 25 START FEEDBACK 14 15 B-CAN HI B-CAN LO 14 15 B-CAN HIGH B-CAN LOW 14 26 C-CAN LOW C-CAN HIGH 15 14 B-CAN LOW B-CAN HIGH 16 6 14 SSB AMBER IMMO PWR IMMO GND 16 17 6 GROUND SIGNAL POWER 19 12 11 H-CAN HIGH C-CAN LOW C-CAN HIGH 19 20 11 12 H-CAN HIGH H-CAN LOW C-CAN HIGH C-CAN LOW 24 8 GND "P" POSITION SW 24 24 W/O UVO W/ UVO 25 26 27 28 HIGH LOW HIGH LOW LOW HIGH HIGH LOW LOW HIGH HIGH LOW 26 VFS 26_VFS 29 30 HI LO 31 32 4 B-CAN LOW B-CAN HIGH 31 32 LO HI 31 32 LOW HIGH 32 31 HI LO 33 14 57 43 ECT SIGNAL ECT GROUND 39 40 GND GND 56 55 H-CAN LOW H-CAN HIGH 60 77 C-CAN LOW C-CAN HIGH 63 62 ECT SIGNAL ECT GROUND 77 60 C-CAN HIGH C-CAN LOW 77 78 C-CAN HIGH C-CAN LOW "B" PILLAR) BRAKE PEDAL MODULE "ON" "P" POSITION SW (AMBIENT TEMPERATURE (CONVENTIONAL (EXCEPT (OR (SUPER -SET CANCEL A/C PRESSURE TRANSDUCER A/V TAIL A/V, NAVIGATION KEYBOARD ABS IND. ACC RLY CTRL ACC RLY CTRL CPU MEM PWR ACC/ON I/P ACC/ON IN ACC/ON INPUT ACC/ON INPUT ON INPUT ACT ECO IN ACTIVE AIR FLAP AIR BAG IND AIR CONDITIONING SYSTEM ALARM RLY CTRL ALT COM ALT IN AM/FM AM/FM B+ OUT AM/FM F/CABLE AM/FM OUT AM/FM B+ AMP DAC ANT ANT GND PWR ANT ANT PWR GND ANT GND ANT PWR ANTI-THEFT ANTI-THEFT SYSTEM APS 1 GND APS 1 POWER APS 1 SIG APS 1 SPLY APS 1 SUPPLY APS 2 GND APS 2 POWER APS 2 SIG APS 2 SPLY APS 2 SUPPLY APT GND APT GND FTPS/APT POWER APT SENS GND APT SENS SIG APT SIG APT SIG GND APT SNSR GND APT SNSR GND MAP SNSR 2 GND MAP SNSR APT SNSR SIG APT SNSR SUPPLY AUDIO IN- AUDIO OUT - AUTO DEF ACT CLOSE AUTO DEF ACT F/B AUTO DEF ACT OPEN AUTO DOWN AUTO DOWN DOWN AUTO DOWN GND B+ AUTO DRIVER HEADLAMP CCS LEVELING CONTROL DEVICE MODULE MODULE AUTO HEAD AUTO HEADLAMP LEVELING DEVICE AUTO HEADLAMP LEVELING DEVICE MODULE AUTO HOLD IND AUTO HOLD SW AUTO LIGHT SEN GND AUTO LIGHT SEN SIG AUTO LIGHT SENS POWER AUTO LIGHT SW 'ON' AUTO LIGHT SW 'ON' INT TIME TX UNLOCK STATE AUTO LT IN AUTO STOP IND AUTO UP UP AUTO- HOLD AUTOCUT DEVICE AUTOMATIC A/C AUTOMATIC A/C MANUAL A/C AUTOMATIC MANUAL A/C A/C AUX DET AUX DETECT AUX GND AUX L + AUX L IN AUX R + AUX R IN AUX, USB JACK B+ BPF B+ GND B+ RIGHT TURN IND B-CAN B-CAN HAZARD SW SIG RH LO LH HI B-CAN HI B-CAN HI B-CAN LO AUTO LIGHT SEN GND AUTO LIGHT SEN SIG B-CAN HI B-CAN LOW AUTO LIGHT SEN GND AUTO LIGHT SEN SIG B-CAN HI LO B-CAN HIGH B-CAN HIGH B-CAN LOW B-CAN HIGH B-CAN LOW MEMORY POWER CPU B-CAN K- HIGH LOW LINE B-CAN LO B-CAN LOW B-CAN LOW B-CAN HIGH B-CAN LOW HIGH B-CAN TRANS- CEIVER HIGH LOW BACKUP LAMPS CIRCUIT BACKUP LMP SIG BACKUP LMP SIG AUDIO BACKUP LP SIG BATT POWER BATT PWR BCM DRIVER IMS MODULE BCM TX STATE UNLK BLOWER COMMON BLOWER F/B BLWR F/B BMS ASSEMBLY BODY K-LINE BOX) BRAKE FLUID LEVEL BRAKE IND BRAKE LIGHT SW BRAKE LT SW BRAKE PEDAL MODULE BRAKE SW BRAKE TEST SW BRK LT SW BRK SW BRK TEST SW BSD IND BUCKLE SW BUCKLE SW DRV SEAT BELT BURGLAR ALARM RLY CTRL BWD FWD C-CAN C-CAN C-CAN C-CAN C-CAN GND HIGH LOW C-CAN HI C-CAN HIGH C-CAN HIGH C-CAN LOW C-CAN HIGH C-CAN LOW B-CAN LOW B-CAN HIGH C-CAN HIGH C-CAN LOW GND C-CAN K- LOW HIGH HIGH LINE C-CAN LO C-CAN LO C-CAN HI C-CAN LOW C-CAN LOW C-CAN HIGH C-CAN LOW HIGH C-CAN LOW HIGH LOW HIGH C/FAN PWM CTRL C/FAN PWR CTRL C/FAN RLY CTRL HI C/FAN RLY CTRL HI IMMO IND C/FAN RLY CTRL LO CAN HI CAN HIGH CAN LO CAN LOW CCP-CAN HIGH CCP-CAN LOW CCV CTRL CHARGE IND CIGAR LIGHTER CIGAR STOP LIGHTER SIGNAL ELECTRONIC MODULE CKP GND CKP SIG CKPS 2 SIG CKPS GND CKPS GND VEHICLE SPD INPUT CLOCK BCM CLOCK- SPRING CLOSE OPEN CLOSE/ TILT DOWN CLUSTER SYSTEM CLUSTER SYSTEM INSTRUMENT CLUTCH SW CMP 1 GND CMP 1 SIG CMP 1 SIG CMP 2 SIG CMP 2 GND CMP 2 SIG CMPS 1 GND CMPS 1 SIG CMPS 2 GND CMPS 2 SIG COM FR COMD MTR SPD COMN LO COMP CAN HIGH COMP CAN LOW COMPT) COMPUTER 35 36 37 38 39 40 DATA LINES K-LINE SYSTEM COMPUTER DATA COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM B-CAN LOW B-CAN HIGH COMPUTER HIGH LOW DATA LINES SYSTEM COOLING FAN COOLING FAN CONTROLLER COOLING FANS SYSTEM COOLING FANS SYSTEM ANTI-THEFT SYSTEM CPU MEM PWR CRASH OUTPUT CRASH SIG CRUISE CONTROL CRUISE CONTROL SYSTEM CRUISE CONTROL VEHICLE SPD REMOTE CTRL SW GND ACC/ON INPUT SYSTEM CRUISE IND CRUISE ON/OFF CRUISE OUT CRUISE TRIP CURRENT DETECTING CVVT ACTU CTRL SIG 1 CVVT ACTU CTRL SIG 2 D IND D OUT D_OUT DATA I/O DATA LINES DATA LINK DEFOGGER SYSTEM DEFOGGER SYSTEM COMPUTER DATA LINES SYSTEM DEICER RLY CTRL DELAY CONTROL DETENT OUT DIAL ILL DN IN DN SELECT DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR OFF DOOR OPEN IND DOOR SW DOOR UNLOCK DOOR WARNING SW DOT LCD DOWN IN DOWN OFF DOWN SEEK DOWN SHIFT DOWN UP DOWN/ AUTO DOWN DOWN/ LEFT DR DR SW DR KEY UNLK DRVR DR KEY UNLK PASS DR LK RLY CTRL DR LK SW DR LK SW LK DR LK SW UNLK DR SW DR SW DRV PASS DR UNLK DR UNLK RLY CTRL DR WARNING SW DR WARNING SW IN DR/PASS DR KEY LK DRI DR LK/UNLK SIG DRI SEAT BELT DRIVER AIR BAG DRIVER ANCHOR PRETENSIONER DRIVER CCS CUSHION WARMER DRIVER CURTAIN AIR BAG DRIVER DOOR DRIVER DOOR SW DRIVER DR OPEN DRIVER DR SW DRIVER DRIVER CCS SEAT CUSHION WARMER WARMER MODULE DRIVER IMS MODULE DRIVER LCD DRIVER POWER OUTSIDE MIRROR DRIVER POWER WINDOW SAFETY MODULE DRIVER SEAT BELT PRETENSIONER DRIVER SEAT WARMER MODULE DRIVER SIDE AIR BAG DRIVER SMART KEY OUTSIDE HANDLE DRIVER'S CUSHION WARMER DRIVER'S DOOR DRIVER'S SEAT WARMER MODULE DRL GND DRL GND SIG GND DRV DR DRV DR KEY DRV DR SW DRV PASS DRV SEAT BELT DRV TEMP ACT COOL DRV TEMP ACT F/B DRV TEMP ACT WARM DRV/PASS DR E/R-A E/R-B E/R-EMS ECO IND ECT GND ECT GROUND ECT SIG ECT SIGNAL ECTS GND ECTS SIG ECV GROUND ECV POWER ECV POWER ECV GROUND ELECTRIC PARKING BRAKE MODULE ELECTRICAL CONTROL ELECTRO- CHROMIC MIRROR ELECTROCHROMIC MIRROR ELECTROCHROMIC MIRROR CONTROL ELECTRONIC A/C COMPRESSOR ELTC A/C CPSR EMS BOX EMS COM ENG CTRL RLY "ON" IN FTPS SIG IAT SENS APT SENS SIG ENG CTRL RLY CTRL ENG CTRL RLY ON ENG CTRL RLY ON IN ENG RLY CTRL ENG RPM SIG EPB IND EPS + EPS IND ESC IND ESC MODULE ESC OFF IND ESC OFF IND ESC ABS IND IND ESC OFF SW ESS RLY CNTRL ESS SIG ESS SIG HAC SIG 3 2 EV IND EWGA FDBK SNSR SIG EWGA FEEDBACK GND EWP F/B EWP RLY CTRL EXCEPT HYBRID EXCEPT HYBRID 2.4L HYBRID EXCEPT HYBRID CONVENTIONAL HYBRID, EXCEPT HYBRID SUPER VISION EXCEPT HYBRID HYBRID EXCEPT LED EXCEPT LED LED EXCEPT LED LED EXCEPT LED LED EXCEPT LED LED LED LED EXHAUST MANIFOLD) EXTERNAL BUZZER EXTERNAL BUZZER P POSITION START FEEDBACK SIGNAL IMMO GND F/CABLE F/CABLE FAN SPD FAN SPED FEEDBACK SIGNAL FEEDBACK START FET DRAIN FET GATE FL SIG FL SIGNAL FL SIGNAL RL SIGNAL RR VCC FR VCC FL VCC FL VCC RL VCC RR SIGNAL FR SIGNAL FOB HOLDER FOB-IN FPRV HI FPRV LO FR SIG FR SIG RR SIG BRK SW FR SIGNAL FR VCC FROM IPS 2 FRONT FOG IND FRONT POWER CIGAR OUTLET LIGHTER FRONT POWER OUTLET FRONT POWER OUTLET CIGAR LIGHTER FRONT WIPER DEICER FTPS GND FTPS SIG FTPS/APT POWER FTPS/APT PWR FUEL GAUGE FUEL LEVEL FLOAT FUEL SENDER FWD BWD GND 2 GND "P" POSITION SW GND CAN HIGH GND DRL GND GND GND GND GND 2 3 4 5 6 7 8 9 GND GND 15 16 17 18 19 20 21 22 23 24 25 26 GND GND GND GND LID 2 GND ON/START I/P PDT PWR PDF PWR HAC RLY CNTRL GND PDT GND GND GND POWER GPS F/CABLE GPS OUT/B+ GROUND DETENT GROUND GROUND GROUND GROUND ANT GND ANT GND H CAN+ H-CAN HIGH H-CAN LOW H-CAN LOW HIGH HAC RLY CNTRL HAC SIG HAC SIG ESS SIG 2 3 HALL EFFECT HALL SENS GND HALL SENS SIG-A HALL SENS SIG-B HALL SENS SIG-C HALL SENS-PWR HANDLE SW HAZ SIG SW HAZARD SW HAZARD SW SIG HEAD AUTO HEAD LP HEAD LP LO ON SIG HEAD LP LO SIG HIGH HEAD LP PARKING LO SIG BRAKE SW HIGH HEADLAMP LOW SIG HEADLAMPS CIRCUIT HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM WIPER/WASHER SYSTEM HEADLIGHTS SYSTEM WIPER/WASHER SYSTEM MIRRORS SYSTEM HEADLIGHTS SYSTEM WIPER/WASHER SYSTEM NAVIGATION, SOUND SYSTEMS HEADLMP LOW SIG HEIGHT DN HEIGHT DN RECLINING RR SLIDE RR HEIGHT SIG HEIGHT UP HEIGHT UP HEIGHT UP RECLINING FR SLIDE FR HI DRL HI LO HI OFF HID DRL GND GND HID GND HIGH 29 30 32 31 LOW HIGH LOW HIGH BEAM IND HIGH IND HIGH LOW HIGH LOW C-CAN HIGH LOW HIGH LOW HIGH LOW HIGH LOW C-CAN LOW C-CAN HIGH HIGH LOW HIGH LOW HIGH LOW HIGH LOW GND 2 3 HIGH LOW IND IND HIGH PASS HIGH TEMP IND HL 1 HL 2 HL 2 HL 3 HL 3 HOME LINK HOOD SW HOT AT ALL TIMES HOT IN HOT IN ACC OR ON HOT IN ON HOT IN ON OR ACC HOT IN ON OR START HOT IN ON OR START SMART JUNCTION BOX HTD SW SIG HTD WHEEL HTD WHL HYBRID COMPUTER DATA LINES SYSTEM HYBRID EXCEPT HYBRID HYBRID EXCEPT HYBRID 3 4 HYBRID INVERTER I/P CIRCUIT I/P JUNCTION BOX I/P-A I/P-B I/P-B I/P-D I/P-C I/P-D I/P-D I/P-F I/P-D I/P-G I/P-E I/P-E I/P-G I/P-F I/P-F I/P-D I/P-G I/P-G I/P-A I/P-G I/P-D IAT SENS IAT SNSR IGN CYL 1 CTRL IGN CYL 1 CTRL SS_B SS_A GND GND IGN CYL 2 CTRL IGN CYL 2 CTRL UD_VFS 26_VFS IGN CYL 3 CTRL IGN CYL 4 CTRL IGNITION KEY ILLUMINATION, DOOR IIII III II ILL ILL ILL PWM OUTPUT IMMO DATA LINE IMMO GND IMMO IND IMMO PWR IMMOBILIZER IND IMMOBILIZER MODULE IMS MEMORY 1 IMS MEMORY 2 IN SPEED SIG IN SPEED SPLY IN SPEED SPLY OUT SPEED SPLY IN SPEED SIG OUT SPEED SIG INJ CTRL 1 INJ CTRL 1 INJ CTRL 3 INJ CTRL 4 INJ CTRL 2 INJ CTRL 1 LO INJ CTRL 2 INJ CTRL 2 HI INJ CTRL 2 HI INJ CTRL 2 LO INJ CTRL 2 LO INJ CTRL 3 INJ CTRL 3 HI INJ CTRL 3 HI INJ CTRL 3 LO ON/START IN INJ CTRL 3 LO INJ CTRL 4 INJ CTRL 4 HI INJ CTRL 4 LO INJ CTRL I HI INJECTOR 1 INJECTOR 2 INJECTOR 3 INJECTOR 4 INPUT CIRCUIT INPUT ON/START INPUT SPD SIG INPUT SPD SIG DOWN SHIFT TPS 1 SIG APS 2 SUPPLY APS 1 SUPPLY INPUT SPD SPLY INPUT SPD SUPPLY INPUT SPEED INSTRUMENT CLUSTER INSTRUMENT CLUSTER S-GND INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INT LO INT LO HI OFF INT TIME INTAKE ACT INTAKE ACT F/B INTAKE ACT FRE INTAKE ACT REC INTERLOCK IN INTERLOCK OUT INTERNAL CONTROL INTK ACT FRE INTK ACT REC IPS 1 IPS 1 CONTROL IPS 1 CTRL IPS 2 IPS 2 CONTROL IPS 2 CTRL IPS 2 CTRL IPS 1 RLY CTRL IPS 3 IPS 3 CONTROL IPS 3 CTRL IPS 3 IPS 1 CTRL CTRL IPS 4 IPS 4 CONTROL IPS 4 CTRL IPS 5 IPS 5 CONTROL IPS 5 CONTROL B-CAN IPS 5 CTRL IPS 6 IPS 6 CONTROL IPS 6 CTRL IPS 6 CTRL B-CAN IPS 7 IPS 7 CTRL IPS CONTROL IPS CONTROL IPS 4 MODULE CTRL IPS ON CONTROL INPUT MODULE IPS ON/START CONTROL INPUT MODULE IPS ON/STRT CONTROL INPUT MODULE IS INH PWN IN IVVT EXHAUST IVVT INTAKE J/C UMC JOINT CON- JOINT CON- NECTOR UDC K LINE K- LINE LOW HIGH K- SPD LINE SIG KEY ILL CNTRL HI KEY ILL CNTRL HI LO KEY ILL CTRL KEY LEFT KEY LK SIG KEY RIGHT KICK PANEL) KNOCK SENS GND KNOCK SENS SIG KNOCK SENS SIG APS 2 GND ECTS GND CMPS 2 SIG KOREAN MADE KOREAN MADE USA MADE L IN LCD DRIVER LCD DRIVER SEG LCD FUEL LEAK CURRENT LEAK CURRENT AUTO CUT DEVICE LEAK CURRENT AUTOCUT LEAK CURRENT AUTOCUT DEVICE LEAK CURRENT AUTOCUT RLY CTRL LEAK CURRENT AUTOCUT SW CTRL LED EXCEPT LED LED LH GND LED LH PWR LED RH GND LED RH PWR LEFT "C" PILLAR) LEFT BLIND SPOT DETECTION RADAR LEFT BLIND SPOT DETECTION RADAR LEFT LEFT CCW LEFT CW LEFT CWW LEFT DOWN SHIFT LEFT DOWN/ LEFT LEFT HEADLAMP LEFT REAR COMBINATION LEFT REAR SEAT WARMER LEFT REAR SEAT WARMER MODULE LEFT RIGHT LEFT SMART KEY REAR CONTROL SEAT MODULE WARMER MODULE LEFT SMART KEY RIGHT REAR CONTROL REAR SEAT MODULE SEAT WARMER WARMER LEFT TURN IND LEFT/ RIGHT RIGHT LEFT/ RIGHT UP/ DOWN LH TRN SIG LID 1 LID 1 GND LID 1 LID 2 ON/ LIN DIAG DATA LINE LIN DIAG DATA LINE C/FAN RLY CTRL LO LIN DIAGNOSTIC DATA LINE LIN GND ON/ LIN LID 1 GND ON/ LIN LID 2 GND ON/ LIN LINE LIN ON/ LINE VFS LINE_VFS LINES SYSTEM LINK CURRENT AUTOCUT DEVICE LK UNLK LK/UNLK SIG LO HI LO INT LO INT INT HI HI OFF OFF LO INT OFF HI LO ON SIG LOW FUEL IND LOW HI LOW HIGH LOW HIGH IND IND LOW IND LOW M-CAN LOW PASS HIGH LOW VOLTAGE DC-DC CONVERTER LOW WASHER IN LOW WSH IN M-CAN M-CAN C-CAN K- LOW LOW HIGH HIGH LINE 17 32 18 33 M-CAN HI M-CAN HIGH M-CAN HIGH 1 1 16 16 M-CAN HIGH M-CAN LOW ACC/ON IN M-CAN LO M-CAN LO M-CAN HI M-CAN LOW M/HI M/LO HI 2 3 4 5 6 MAIN RLY MANUAL A/C MANUAL A/C AUTOMATIC A/C MAP SENS SIG MAP SENS SPLY MAP SNSR MAP SNSR 2 GND MAP SNSR 2 SIG MAP SNSR SUPPLY MAP, TIA SENS GND MAP, TIA SNSR GND MASTER IND MATCHING CIRCUIT MATCHING CIRCUIT GPS OUT/B+ MEM POWER MEM POWER ON/START I/P ACC/ON I/P CRASH SIG MEM PWR MEMORY POWER MEMORY POWER CPU MEMORY POWER LOAD MEMORY POWER ON/START INPUT C-CAN HIGH C-CAN LOW GROUND MEMORY PWR MEMORY PWR MEMORY PWR MEMORY PWR MIC - MIC SHIELD MICOM INSTRUMENT CLUSTER MIRROR FOLDING SW MIRRORS SYSTEM MIRRORS SYSTEM WIPER/ WASHER SYSTEM MODE ACT DEF MODE ACT DEF F/B MODE ACT F/B MODE ACT VENT MTR SPD MTS MODULE N IND N OUT N_OUT NATURAL VACUUM LEAK DETECTION NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS NECTOR UDC NTC + GND NTC NTC GND POWER NTC- NVLD DATA LINE OD VFS OD_VFS OFF DOWN OFF DOWN HIGH UP IND OFF DOWN UP OFF HI OFF ON OFF TAIL OFF UP OIL PR OIL PRESSURE OIL PRESSURE IND OIL TEMP SENS OIL TEMPERATURE ON DOOR ON DOOR OFF ON INPUT ON INPUT GND ON INPUT GROUND ON/START I/P ON/START IN ON/START INPUT ON/START INPUT MEMORY PWR ON/STRT I/P ON/STRT INPUT OPCU RLY CTRL OPERATION SOUND OPU STATUS OR ON OTS GND OTS SIG OUT SPD SIG OUT SPD SUPPLY OUT SPEED SIG OUT SPEED SPLY OUTPUT SPD SIG OUTPUT SPD SIG UP SHIFT TPS 2 SIG APS 2 SIG APS 1 SIG OUTPUT SPD SPLY OUTPUT SPD SUPPLY OUTPUT SPD SUPPLY INPUT SPD SUPPLY OUTPUT SPEED SIGNAL OUTPUT SPEED SUPPLY INPUT SPEED SIGNAL INPUT SPEED SUPPLY OUTSIDE MIRROR OVERHEAD CONSOLE P IND P OUT P POSITION P-GND P/N SW P/WDW LH P/WDW LH RLY CTRL P/WDW RH P/WDW RH RLY CTRL P_OUT PANEL) PANORAMA SUNROOF PANORAMA SUNROOF PASSENGER PASSENGER CCS SEAT CUSHION WARMER WARMER MODULE PARKING BRAKE SW PASS DR PASS DR KEY PASS DR LK/UNLK SIG PASS DR SW PASS HIGH PASS SEAT BELT PASS TEMP ACT COOL PASS TEMP ACT F/B PASS TEMP ACT WARM PASSENGER ANCHOR PRETENSIONER PASSENGER CCS CUSHION WARMER PASSENGER CURTAIN AIR BAG PASSENGER CUSHION WARMER PASSENGER DRIVER PASSENGER PASSENGER CCS SEAT CUSHION WARMER WARMER MODULE PASSENGER POWER OUTSIDE MIRROR PASSENGER POWER WINDOW SAFETY MODULE PASSENGER SBR PASSENGER SBR GROUND PASSENGER SEAT BELT PRETENSIONER PASSENGER SEAT WARMER MODULE PASSENGER SIDE AIR BAG PASSENGER SMART KEY OUTSIDE HANDLE PASSENGER SRS WEIGHT CONTROL CLASSIFICATION MODULE MODULE PASSENGER WEIGHT CLASSIFICATION MODULE PCM HIGH PCSV CTRL PDF GND PDF PWR PDF SIG PDM 2 PDM 2 PDM 1 PDM 3 PDT GND PDT PWR PDT SIG PDT SIG PDF SIG AUTO HOLD SW POSITION SW POWER ANT PWR POWER CONDITIONING POWER DISTRIBUTION SYSTEM POWER GND POWER GROUND POWER MEMORY POWER POWER POWER WINDOWS SYSTEM POWER WINDOWS SYSTEM COMPUTER DATA LINES SYSTEM HEADLIGHTS SYSTEM PRCHRG RLY PRE RLY PSU MTG PSU MTG GND PWR ESC OFF SW FL VCC FR VCC C-CAN HIGH C-CAN LOW PSU MTP PWN DRIVER PWN IN PWR IN PWR SPLY PWR-U PWR-V PWR-W R - OUT R IN R IND R INPUT R_OUT READY IND REAR DEF IND REAR DEF SW REAR DEFOGG RLY CTRL REAR DEFOGGER REAR DEFOGGER SW INPUT REAR PARK ASSIST BUZZER REAR PARKING ASSIST BUZZER REAR SEAT WARMER RECLINING FR RECLINING RR RECLINING SIG REMOTE CTRL SW GND REMOTE CTRL SW SIG RES+ REVERSE PROTECTION, FILTER REVERSE SIG FILTER PROTECTION, FILTER RF COM RF RECEIVER RFC MATCHING CIRCUIT RH LH RH TRN SIG RIGHT BLIND SPOT DETECTION RADAR RIGHT CW RIGHT END OF DASH) RIGHT HEADLAMP RIGHT LEFT REAR REAR SEAT SEAT WARMER MODULE WARMER MODULE RIGHT LEFT REAR REAR SEAT SEAT WARMER WARMER RIGHT LEFT REAR REAR SEAT SEAT WARMER WARMER MODULE MODULE RIGHT REAR POWER WINDOW RIGHT REAR SEAT WARMER RIGHT REAR SEAT WARMER MODULE RIGHT TURN IND RIGHT UP SHIFT RL DR LK/UNLK SIG RL DR SW RL RR RL RR PASS RL SIG RL SIGNAL RL VCC RL VCC RR VCC RLY CTRL RLY GND RLY STAGE MONITORING AUTO HOLD SW RLY STATE MONITORING ROOM LP OUT RR DEF SW IN RR DR LH RR DR LK/UNLK SIG RR DR RH RR DR SW RR RL RR SIG RR SIGNAL RR VCC RSLVER SHIELD RSLVER SHIELD TEMP SNSR-GND RSLVER SNSR 1 RSLVER SNSR 2 RSLVER SNSR 3 RSLVER SNSR 4 RSLVR SHIELD S GND S OUT S_GND S_OUT SAFETY WINDOW MODULE SEAT BELT SEAT BELT BUCKLE SW SEAT BELT IND SEAT BELT REMINDER SEAT BELT REMINDER CRASH OUTPUT SEATS SYSTEM SEATS SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM SEATS SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM CRUISE CONTROL SYSTEM SECURITY IND SECURITY IND KEY ILL CTRL SEEK UP SEG LCD FUEL SEG LCD TEMP SEG LDC SELECT DN SERVICE IND SET IND SET- SET- CANCEL RES+ SET- CANCEL RES+ TRIP SET- RES+ SHIELD SNSR GND CMP 1 GND CMP 2 GND SHIFT INTERLOCK SYSTEM SHIFT INTERLOCK SYSTEM DEFOGGER SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM SHIFT INTERLOCK SYSTEM SHIFT INTERLOCK SYSTEM SIG 1 SIG 2 SIG 3 SIG 3 SIG 4 SIG 4 SIG FILTER SIG GND SIGNAL 1 SIGNAL 2 SIGNAL 3 SIGNAL 4 SIGNAL BACKUP SIGNAL PROCESSING SIRUS OUT/B+ SIRUS XM SLIDE FR SLIDE RR SLIDE RR RECLINING RR HEIGHT DN HEIGHT DN SLIDE SIG SMART JUNCTION SMART JUNCTION BOX SMART JUNCTION BOX (ABOVE SMART JUNCTION BOX (ABOVE LEFT SMART JUNCTION BOX (ABOVE LEFT KICK SNSR GND SNSR INTERFACE SNSR SIG SOL PWR 1 SOL PWR 2 SPD HIGH LOW SIG C-CAN SPD LOW HIGH HIGH LOW SIG C-CAN C-CAN SPD SIG SPDIF GND SPEED B+ SIGNAL SPEED CONTROL SPORT IND SS A SS B SS_A SS_B SSB AMBER SSB FEEDBACK SIGNAL SSB ILL SSB ILL GND SSB ILL POWER SSB ILL PWR SSB ILL PWR 4 7 SSB ILL GND SSB SW 1 SSB SW 2 START FEEDBACK START FEEDBACK SIGNAL START MTR CTRL SW START RLY CTRL START SIG START SIGNAL STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING WHEEL) STOP LMP SW STOP LP SIG STOP LP SW STOP SIGNAL ELECTRONIC MODULE STP LP SIG STP LP SW STP LP SW 5 1 SUPER VISION TYPE SUPER VISION TYPE CONVENTIONAL TYPE SUPPLEMENTAL RESTRAINTS SYSTEM SUPPLY POWER SW 1 SW 1 APPLY SW 2 SW 2 RELEASE SW 2 SW 1 SW 3 SW 4 SW 4 SW 3 SW 2 SW 1 C-CAN HIGH C-CAN LOW SW CTRL SW LP IN SW SIG T/CON VFS T/CONN-VFS T/CONN_VFS TACHOMETER SPEEDOMETER TAIL AV TAIL OFF TAIL OFF HEAD HEAD TAIL ON IND TAIL SW TEMP HIGH IND TEMP SNSR SIG TEMP SNSR-GND TEMP SNSR-SHIELD TEMPERATURE GAUGE TILT UP TIRE PRESSURE MONITORING MODULE TO PDM 2 TO PDM 3 TO SNSR 2 TPMS IND TPS 1 SIG TPS 2 SIG TPS GND TPS GND APS 1 SPLY APS 1 GND TPS GND APS 2 GND APS 1 GND IMMO DATA LINE TPS GROUND TPS POWER TPS SPLY TPS SUPPLY TRANS- CEIVER TRANSMISSION SYSTEM TRANSMISSIONS SYSTEM TRANSMISSIONS SYSTEM CRUISE CONTROL SYSTEM TRIP CANCEL TRIP OUT TRIP OUT CRUISE OUT TRIP OUT OUT TRIP UP TRNK LID SW TRNK RM LP TRUNK LID TRUNK OPEN TRUNK OPEN IND TRUNK OPEN SW TRUNK OPN SW TRUNK RLY TRUNK RLY CTRL TRUNK ROOM TRUNK ROOM LP TRUNK TRUNK OPEN ROOM SW LP TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN SIG LMP RLY CTRL TURN SIG LP SOUND TURN SIG LP SOUND RLY CTRL TURN SIG LP SW SIG TWO TURN TX UNLOCK STATE TYPE) TYPE) (CONVENTIONAL UD VFS UD_VFS UN FOLDING UNLK LK UNLK RLY CTRL UNLK SIG UP AUTO UP UP DN SELECT UP DOWN UP DOWN B+ GND UP IN UP OFF UP SHIFT UP/ DOWN/ RIGHT LEFT UP/ RIGHT UP/ UP RIGHT USB D+/IPOD RX USB D+/RX USB D- USB D-/IPOD FX USB D-/IPOD FX USB D+/IPOD RX USB/IPOD GND USB D-/TX USB GND USB VCC USB VOD USB/IPOD GND USB/IPOD VOD V SOL 1 V SOL 2 VEH SPD VEHICLE SPD VEHICLE SPD IN VEHICLE SPD INPUT VEHICLE SPEED VEHICLE SPEED INPUT VIB GND VIB GND GND VIS CTRL VISION TYPE) VOUT SIG W/ BSD W/ CCS W/ CCS W/O CCS W/ DRL W/ EPB W/ HID W/ LED W/ MEMORY W/ NAVIGATION W/ PASSENGER SAFETY POWER WINDOW W/ REAR PERSONAL LAMPS W/O REAR PERSONAL LAMPS W/ REAR SEAT WARMER W/ REAR SEAT WARMER W/O REAR SEAT WARMER W/ SMART KEY W/ SUNROOF W/ UVO W/ UVO 4.0 W/ UVO AUDIO W/ UVO AUDIO W/O UVO AUDIO AUTOMATIC A/C MANUAL A/C W/ UVO W/O UVO W/ W/O CCS CCS W/ W/O NAVIGATION NAVIGATION W/ W/O SUNROOF SUNROOF W/O AUTO FOLDING W/O AUTO UP/DOWN POWER WINDOW W/ AUTO UP/DOWN POWER WINDOW W/O AUTO UP/DOWN POWER WINDOW W/ AUTO UP/DOWN POWER WINDOW EXCEPT HYBRID HYBRID W/O BSD W/O CCS W/O HID W/O LED W/ LED W/O MEMORY W/O NAVIGATION W/O NAVIGATION NAVIGATION W/O NAVIGATION W/ NAVIGATION W/O PASSENGER SAFETY POWER WINDOW W/O PASSENGER SAFETY POWER WINDOW W/ REAR SEAT WARMER W/O PASSENGER SAFETY POWER WINDOW W/ REAR SEAT WARMER W/O REAR SEAT WARMER W/O REAR SEAT WARMER W/O REAR SEAT WARMER W/ REAR SEAT WARMER W/O REAR SEAT WARMER W/ REAR SEAT WARMER W/ MEMORY W/O SMART KEY W/O SMART SMART KEY KEY W/O SUNROOF W/O UVO W/O UVO 3.0 W/O UVO W/ UVO W/O UVO W/ UVO W/ NAVIGATION W/O NAVIGATION W/O W/ SMART SMART KEY KEY WASHER SIG WASHER SIGNAL WELCOME IND WELCOME IND SECURITY IND WHEEL SPEED WIPER "P" IN WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM WIPER/WASHER SYSTEM STARTING/CHARGING SYSTEM XM OUT/B+ XMS/SIRUS F/CABLE XMS/SIRUS F/CABLE GPS F/CABLE
