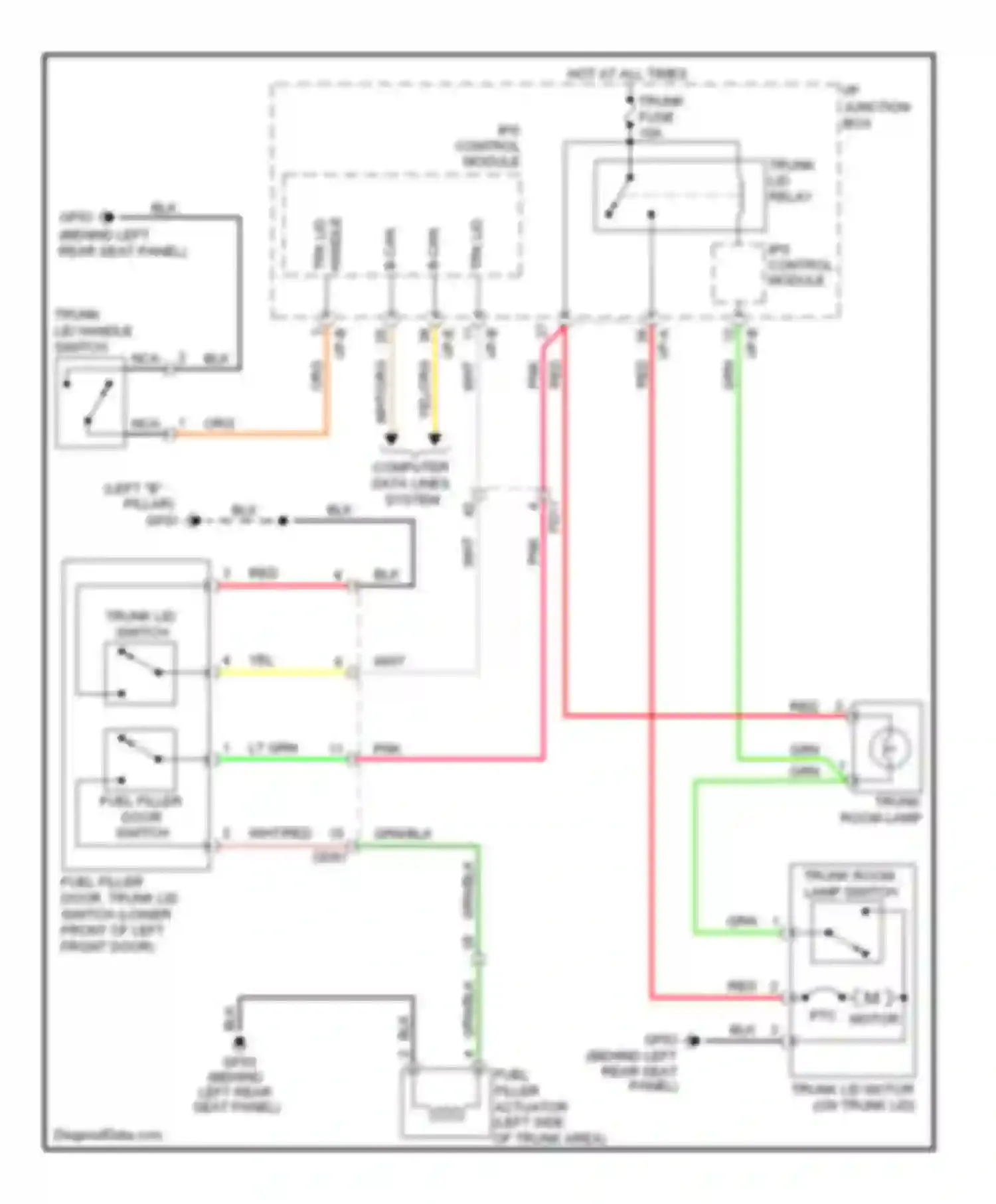

Trunk & fuel door release circuit for Kia Optima III (2010-2013)
Trunk & fuel door release circuit
B-CAN HI
B-CAN LO
BLK WIRE
COMPUTER DATA LINES SYSTEM
FUEL FILLER ACTUATOR
FUEL FILLER DOOR SWITCH
FUEL FILLER DOOR, TRUNK LID SWITCH (LOWER FRONT OF LEFT FRONT DOOR)
GRN WIRE
GRN/BLK WIRE
HANDLE SW
HOT AT ALL TIMES
I/P JUNCTION BOX
I/P-A
I/P-B
I/P-E
IPS CONTROL
LT GRN WIRE
MODULE
NCA WIRE
ORG/ WIRE
PANEL)
PNK WIRE
PTC MOTOR
RED WIRE
TRK LID
TRK LID SW
TRUNK FUSE
TRUNK LID HANDLE SWITCH
TRUNK LID MOTOR (ON TRUNK LID)
TRUNK LID RELAY
TRUNK LID SWITCH
TRUNK ROOM LAMP
TRUNK ROOM LAMP SWITCH
WHT WIRE
WHT/ORG WIRE
WHT/RED WIRE
YEL WIRE
YEL/ORG WIRE
