Back-up lamps circuit, late production for Kia Optima II (2005-2008)

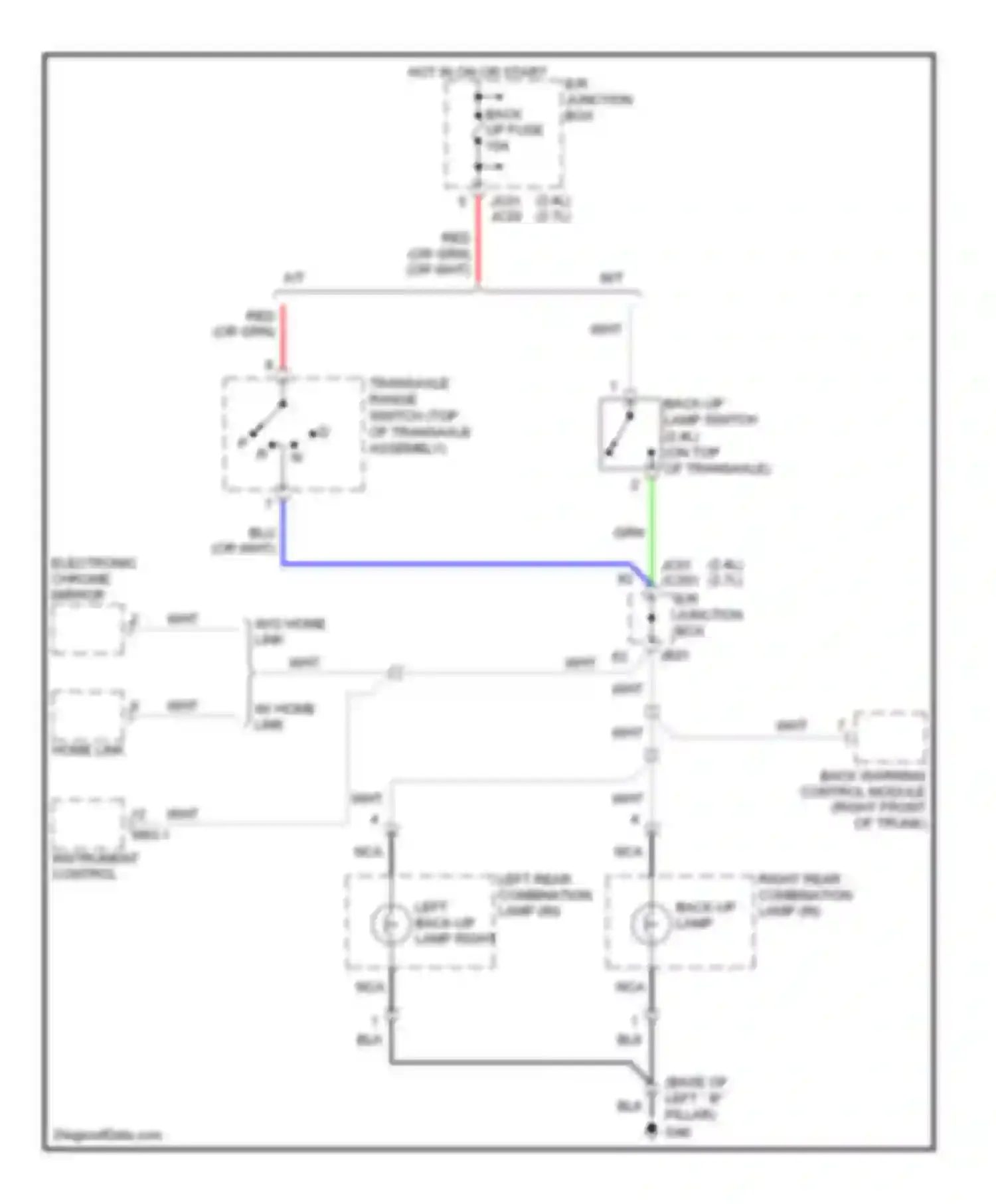

Back-up lamps circuit, late production
A/T
BACK WARNING CONTROL MODULE (RIGHT FRONT OF TRUNK)
BACK-UP FUSE
BACK-UP LAMP SWITCH (2.4L) (ON TOP OF TRANSAXLE)
BLK WIRE
BLU WIRE
E/R JUNCTION BOX
ELECTRONIC CHROME MIRROR
GRN WIRE
HOME LINK
HOT IN ON OR START
INSTRUMENT CONTROL
LEFT BACK-UP LAMP RIGHT BACK-UP LAMP
M/T
NCA WIRE
RED WIRE
RIGHT REAR COMBINATION LAMP (IN) LEFT REAR COMBINATION LAMP (IN)
TRANSAXLE RANGE SWITCH (TOP OF TRANSAXLE ASSEMBLY)
W/ HOME LINK
WHT WIRE
