Kia Optima II (2005-2008) power mirror switch Wiring diagrams
This page contains all the electrical diagrams for the component. power mirror switch, in which he is found in the car Kia Optima II (2005-2008). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram power mirror switch (1 of 3)
BATTERY JOINT CONNECTOR
BLK WIRE
CLOCKSPRING/ COMBINATION SWITCH
COMBINATION SWITCH
CRUISE CONTROL UNIT
CRUISE REMOTE CONTROL SWITCH
DRIVER POWER SEAT ABS CONTROL UNIT
ETACS
FUSE/RELAY BOX COOLING FAN LOW RELAY WIPER RELAY
GRN WIRE
GROUND
HIGH MOUNT STOP LIGHT FUEL LID ACTUATOR
INSTRUMENT CLUSTER
INSTRUMENT CLUSTER AMPLIFIER
J/C 14
JB-07
JOINT CONNECTOR JC-05
JOINT CONNECTOR JC-07
JOINT CONNECTOR JC-08
JOINT CONNECTOR JC-15
JOINT CONNECTOR JC-17
LEFT FRONT DOOR KEY UNLOCK SWITCH
LEFT FRONT FOGLIGHT
LEFT FRONT TURN SIGNAL LAMP
LEFT HIGH HEADLIGHT
LEFT HORN
LEFT LICENSE LAMP RIGHT LICENSE LAMP RIGHT TAILLAMP
LEFT LOW HEADLIGHT
LEFT POSITION LAMP
LEFT POWER MIRROR MOTOR LEFT FRONT DOOR LOCK MOTOR
LEFT REAR COMBINATION LAMP
LEFT REAR TURN SIGNAL LAMP
LEFT SEAT WARMER
LEFT SIDE MARKER LAMP
MAP LAMP ROOM LAMP OVERHEAD CONSOLE
NCA WIRE
ORG/ WIRE
PASSENGER POWER SEAT SEAT BELT SWITCH
POWER ANTENNA
POWER MIRROR SWITCH
REAR DEFROSTER RELAY
RIGHT FRONT FOGLIGHT
RIGHT FRONT TURN SIGNAL LAMP
RIGHT HIGH HEADLIGHT
RIGHT LEFT SUNVISOR LAMP SUNVISOR LAMP
RIGHT LOW HEADLIGHT
RIGHT POSITION DRL UNIT RIGHT HORN LAMP
RIGHT REAR COMBINATION LAMP
RIGHT REAR TURN SIGNAL LEFT TAILLAMP LAMP
RIGHT SIDE MARKER LAMP
RIGHT STOP LIGHT LEFT STOP LIGHT
RIGHT TAILLAMP TRUNK LID SOLENOID
SUN ROOF RELAY
SUN-ROOF MOTOR
TRUNK UNLOCK SWITCH LEFT TAILLAMP
TWO TURN UNLOCK RELAY
W/ ABS
W/O ABS
W/O SUN ROOF
W/O SUN ROOF W/ SUN ROOF
Go to component -> Ground distribution circuit, early production (1 of 3) -> POWER MIRROR SWITCH
Wiring diagram power mirror switch (2 of 3)
A/CON FUSE
ABS 1 FUSE
ABS 2 FUSE
ABS CONTROL UNIT
ACC SOCKET
ACC SOCKET FUSE
AIR CON CONTROL UNIT
ALT FUSIBLE LINK
AUDIO
AUDIO FUSE
AUTOMATIC A/C
BATTERY
BLK WIRE
BRN WIRE
C/LIGHTER FUSE
CIGAR LIGHTER
COND FUSE
CONDENSER FAN HIGH RELAY 2
CONDENSER FAN MOTOR
COOLING FAN HIGH RELAY 2
COOLING FAN MOTOR
CRUISE CONTROL SWITCH EPS UNIT
DRL UNIT
ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE OF ENGINE COMPARTMENT)
EPS FUSE
FROM JOINT CONNECTOR SC-02 (DIAGRAM 3 OF 5)
FUSE
GENERATOR
HEAD FUSE
HEADLIGHT HIGH RELAY
HEADLIGHT LOW RELAY
IGNITION SWITCH
JB-01
JB-01 AIR CON SWITCH
JB-02
JB-03
JB-04
JB-05
JB-06
JB-07
JB-08
JB-09
JB-09 MANUAL A/C
JB-11
JB-16
JOINT CONNECTOR JC-05
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
LOCK
MODE ACTUATOR
NCA WIRE
ON LOCK OFF
ON OFF
ORG/ WIRE
P/WINDOW FUSE
PNK WIRE
POWER MIRROR SWITCH
POWER WINDOW RELAY
RAD FUSE
RED WIRE
STARTER
STARTER RELAY
TO BLOWER FUSE (DIAGRAM 2 OF 5)
TO ETACS FUSE (DIAGRAM 5 OF 5)
TO JUNCTION BLOCK (BACK-UP FUSE) (DIAGRAM 2 OF 5)
TO JUNCTION BLOCK (START FUSE) (DIAGRAM 5 OF 5)
WHT WIRE
YEL WIRE
Go to component -> Power distribution circuit, early production (1 of 5) -> POWER MIRROR SWITCH

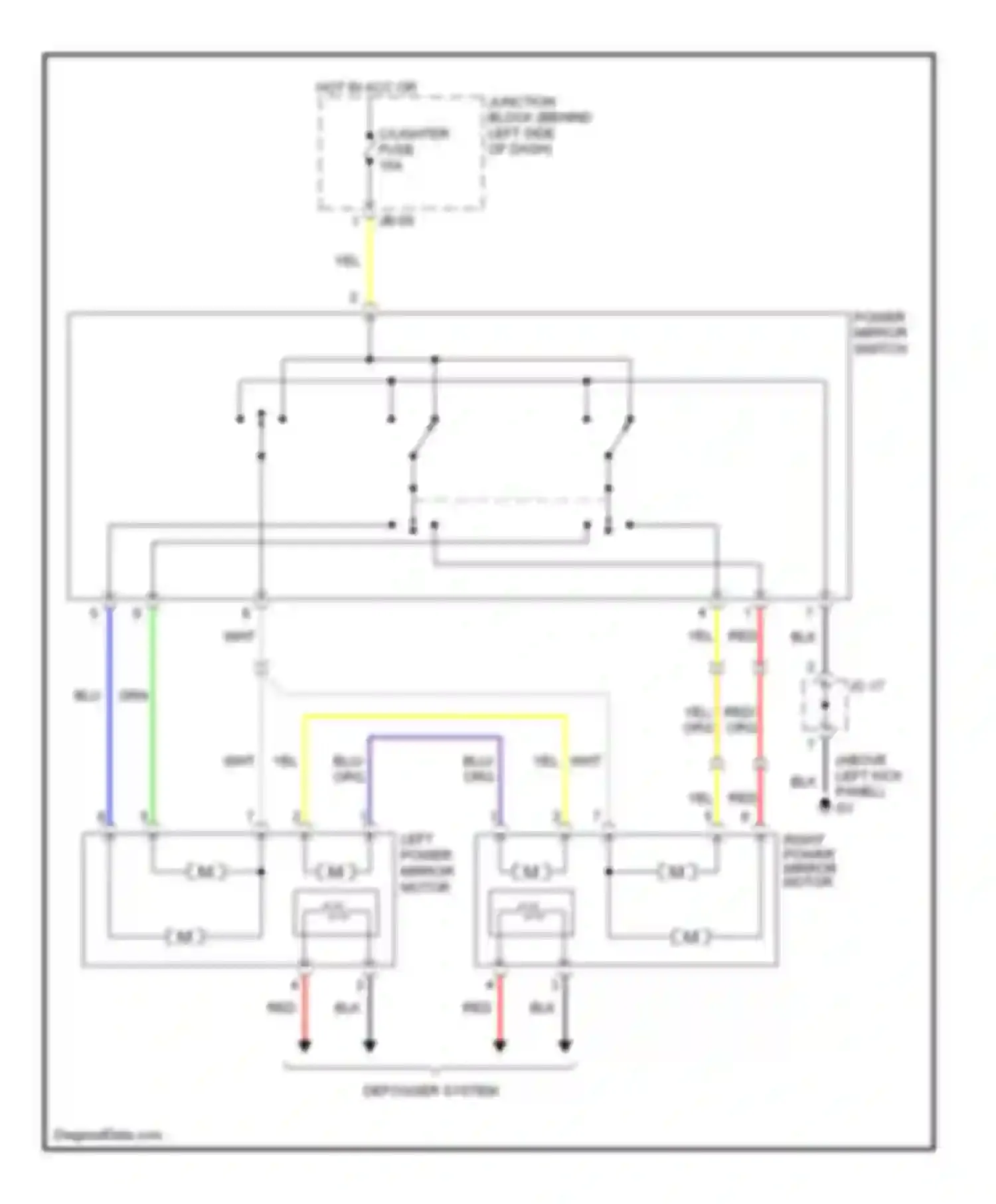

Wiring diagram power mirror switch (3 of 3)
Go to component -> Power mirror circuit, early production -> POWER MIRROR SWITCH
