Kia Optima II (2005-2008) jb-13 Wiring diagrams
This page contains all the electrical diagrams for the component. jb-13, in which he is found in the car Kia Optima II (2005-2008). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram jb-13 (1 of 15)
A/T
BACK-UP FUSE
BLK WIRE
GRN WIRE
HOT IN ON OR START
INSTRUMENT CLUSTER SYSTEM
JB-01 ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE OF ENGINE COMPT)
JB-03
JB-06
JB-08
JB-10
JB-13
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
LEFT REAR COMBINATION LAMP LEFT BACK-UP LAMP
M/T
PNK PNK WIRE
PNK WIRE
POWER DISTRIBUTION SYSTEM
RIGHT REAR COMBINATION LAMP RIGHT BACK- UP LAMP
TRANSMISSIONS SYSTEM
WHT WIRE
Go to component -> Back-up lamps circuit, early production -> JB-13
Wiring diagram jb-13 (2 of 15)
1 1 2 2 3 3 PNK PNK WIRE
10 10 JB-10 JB-10
AIR CONDITIONING SYSTEM
BLK WIRE
BLU WIRE
CHARGING STARTING/CHARGING SYSTEM SYSTEM
CLUSTER FUSE
D/CLOCK FUSE
DEFOGGER SYSTEM
DOOR DOOR LOCKS LOCKS SYSTEM SYSTEM
DOOR KEY HOLE ILLUMINATION (W/O BURGLAR ALARM)
DOOR LOCKS SYSTEM
ELECTRONIC POWER STEERING SYSTEM
ETACS
ETACS FUSE
GRN WIRE
HOT AT ALL TIMES
HOT IN ON
HOT IN ON OR START
ILLUM ILLUM
INTERIOR LIGHTS LIGHTS SYSTEM SYSTEM
JB-07
JB-10
JB-13
JB-14
JC-17
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
ORG/ WIRE
PNK PNK PNK WIRE
PNK WIRE
POWER WINDOWS SYSTEM
WARNING SYSTEM
YEL WIRE
Go to component -> Body control modules circuit, early production (2 of 2) -> JB-13
Wiring diagram jb-13 (3 of 15)
BLK WIRE
BLU WIRE
D/LOCK FUSE
DIODE (UNDER LEFT SIDE OF DASH)
ETACS
GRN WIRE
GRN/BLK WIRE
HOT AT ALL TIMES
INSTRUMENT CLUSTER
INSTRUMENT CLUSTER SYSTEM
JB-06
JB-07 JB-14
JB-08
JB-11
JB-13
JB-14 PNK WIRE
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
LEFT DOOR COUR- TESY LAMP
LEFT REAR DOOR SWITCH (ON LEFT "C" PILLAR)
MAP LAMP
OFF ON DOOR OFF
ORG/ WIRE
PNK WIRE
RIGHT DOOR COUR- TESY LAMP
RIGHT REAR DOOR SWITCH (ON RIGHT "C" PILLAR)
RIGHT SUN- VISOR LAMP
ROOM FUSE
ROOM LAMP LEFT SUN- VISOR LAMP
TRUNK IND
TRUNK ROOM LAMP
TRUNK ROOM LAMP SWITCH
YEL WIRE
YEL/BLK WIRE
Go to component -> Courtesy lamps circuit, early production without sunroof -> JB-13
Wiring diagram jb-13 (4 of 15)
BLK WIRE
BLU WIRE
D/LOCK FUSE
DIODE (UNDER LEFT INSTRUMENT CLUSTER SIDE OF DASH)
DOOR
ETACS
GRN WIRE
GRN/BLK WIRE
HOT AT ALL TIMES
INSTRUMENT CLUSTER SYSTEM
JB-06 JUNCTION BLOCK (JB) (BEHIND LEFT SIDE OF DASH)
JB-07
JB-08
JB-11
JB-13
JB-14
JUNCTION BLOCK (JB) (BEHIND LEFT SIDE OF DASH)
LEFT DOOR COUR- TESY LAMP
LEFT REAR DOOR SWITCH (ON LEFT "C" PILLAR)
LEFT SUN- VISOR LAMP
LT GRN WIRE
MAP LAMP
MAP LAMP ON OFF
OFF ON DOOR
ORG/ WIRE
OVERHEAD CONSOLE
PNK WIRE
POWER TOPS PNK SYSTEM PNK JB-14 WIRE
RIGHT DOOR COUR- TESY LAMP
RIGHT REAR DOOR SWITCH (ON RIGHT "C" PILLAR)
RIGHT SUN- VISOR LAMP
ROOM FUSE
ROOM LAMP
TRUNK IND
TRUNK ROOM LAMP
TRUNK ROOM LAMP SWITCH
YEL WIRE
YEL/BLK WIRE
Go to component -> Courtesy lamps circuit, early production with sunroof -> JB-13
Wiring diagram jb-13 (5 of 15)
6 7 PNK WIRE
BLK WIRE
BLU WIRE
BRN/ORG WIRE
COMBINATION SWITCH
ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE OF ENGINE COMPT)
ETACS
GRN WIRE
HIGH MOUNTED STOP LIGHT
HOT AT ALL TIMES
ILLUMINATION SWITCH
J/C 05
J/C 14
J/C 15
JB-01
JB-01 ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE JB-02 OF ENGINE COMPT)
JB-05
JB-06
JB-08
JB-09
JB-13
JC-07
JC-08
JOINT CONNECTOR SC-01
JOINT CONNECTOR SC-07
JUNCTION BLOCK (JB) (BEHIND LEFT SIDE OF DASH)
LEFT FRONT TURN SIGNAL, POSITION LAMP
LEFT LICENSE LAMP
LEFT REAR COMBINATION LAMP TURN LAMP
LEFT SIDE MARKER LAMP
LEFT TAIL FUSE
OFF
ORG/ WIRE
PNK WIRE
RIGHT FRONT TURN SIGNAL, POSITION LAMP
RIGHT LICENSE LAMP TAIL LAMP STOP LAMP
RIGHT REAR COMBINATION LAMP TURN LAMP
RIGHT SIDE MARKER LAMP
RIGHT TAIL FUSE
STOP FUSE
STOPLIGHT SWITCH (ABOVE BRAKE PEDAL, ON BRACKET)
TAIL FUSE
TAIL LAMP RELAY
TAIL LAMP STOP LAMP
W/ CRUISE CONTROL
W/O CRUISE CONTROL
Go to component -> Exterior lamps circuit, early production (1 of 2) -> JB-13

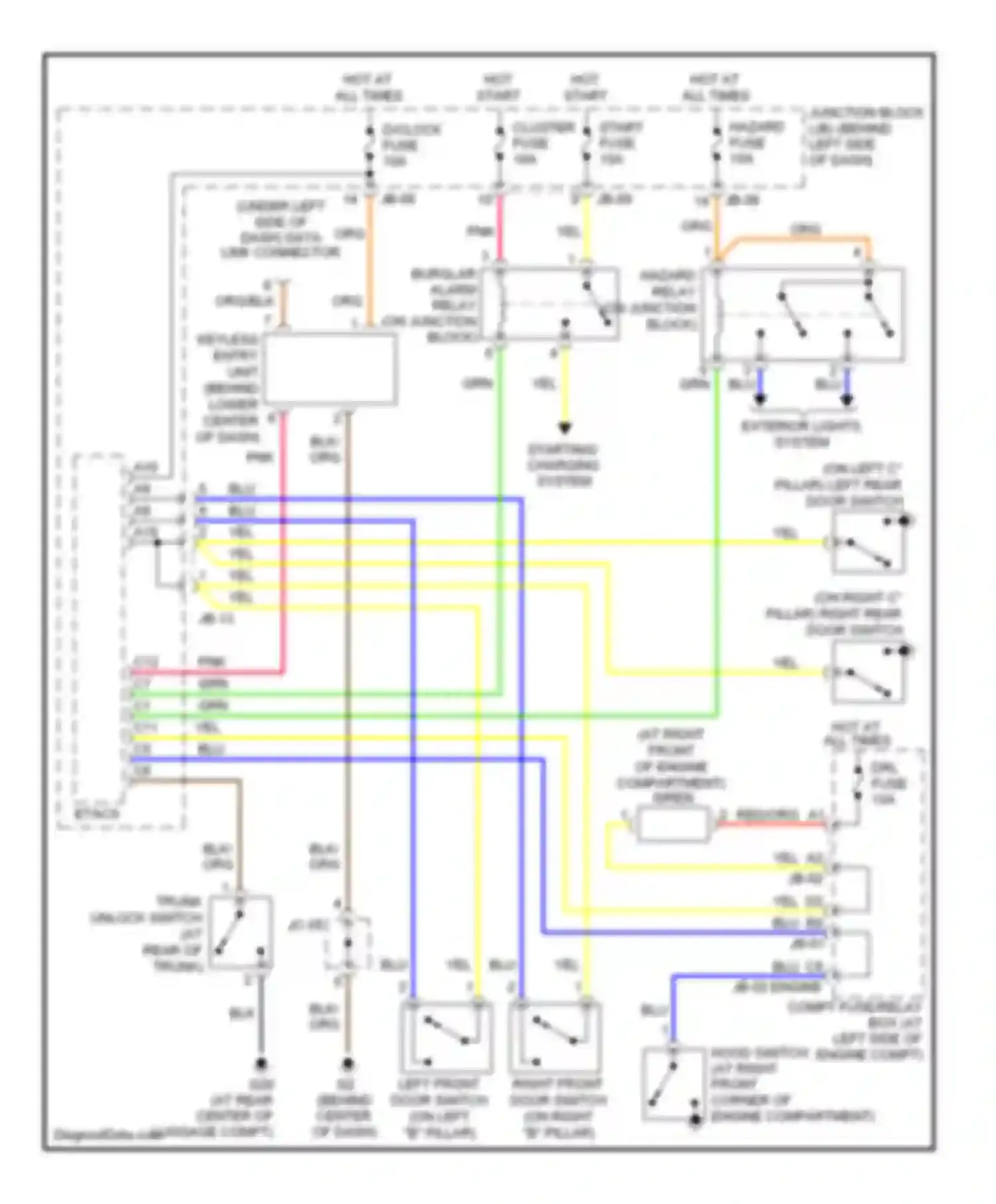

Wiring diagram jb-13 (6 of 15)
BLK WIRE
BLU WIRE
BURGLAR ALARM RELAY (ON JUNCTION BLOCK)
CLUSTER FUSE
D/CLOCK FUSE
DRL FUSE
ETACS
FUSE
GRN WIRE
HAZARD FUSE
HAZARD RELAY (ON JUNCTION BLOCK)
HOOD SWITCH (AT RIGHT FRONT CORNER OF ENGINE COMPARTMENT)
HOT AT ALL TIMES
HOT IN
J/C 05
JB-01
JB-02
JB-02 ENGINE COMPT FUSE/RELAY BOX (AT LEFT SIDE OF ENGINE COMPT)
JB-06
JB-09
JB-13
JUNCTION BLOCK (JB) (BEHIND LEFT SIDE OF DASH)
KEYLESS ENTRY UNIT (BEHIND LOWER CENTER OF DASH)
ORG/ WIRE
ORG/BLK WIRE
PNK WIRE
RED/ORG WIRE
STARTING/ CHARGING SYSTEM
TRUNK UNLOCK SWITCH (AT REAR OF TRUNK)
YEL WIRE
Go to component -> Forced entry circuit, early production -> JB-13
Wiring diagram jb-13 (7 of 15)
10 JB-10
3 JB-13 PNK WIRE
ABS CONTROL UNIT (AT RIGHT REAR OF ENGINE COMPT)
BLK WIRE
BLK/ORG WIRE
BLU WIRE
BRAKE FLUID LEVEL SENSOR (ON BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY)
BRN WIRE
BRN/ORG WIRE
DIGITAL CLOCK
DIODE (UNDER LEFT SIDE OF DASH)
DRL UNIT (IF EQUIPPED) (AT RIGHT FRONT SIDE OF ENGINE COMPT)
ENGINE CONTROLS SYSTEM
ETACS
FUEL GAUGE SENDING UNIT
FUEL PUMP MOTOR
FUEL TANK
GRY WIRE
JB-01
JB-02
JB-13
JOINT CONNECTOR 15
JOINT CONNECTOR JC-06
JUNCTION BLOCK (JB) (BEHIND LEFT SIDE OF DASH)
LEFT REAR DOOR SWITCH (ON LEFT "C" PILLAR)
ORG/ WIRE
PARKING BRAKE SWITCH (AT BASE OF PARKING BRAKE LEVER)
PNK JB-10 WIRE
PNK WIRE
RIGHT FRONT DOOR SWITCH (ON RIGHT "B" PILLAR)
RIGHT REAR DOOR SWITCH (ON RIGHT "C" PILLAR)
THERMISTOR (CLOSED W/ LOW FUEL LEVEL)
W/ DRL
W/O DRL
YEL WIRE
Go to component -> Instrument cluster circuit, early production (2 of 2) -> JB-13
Wiring diagram jb-13 (8 of 15)
AIR CON CONTROL UNIT (AUTOMATIC A/C) (UNDER CENTER OF DASH)
AIR CON SWITCH (MANUAL A/C)
ASHTRAY ILLUM
ATM ILLUM
AUDIO CRUISE CONTROL SWITCH
AUTO
AUTOMATIC A/C
BLK WIRE
BLU WIRE
BRN WIRE
BRN/ORG WIRE
CIGAR LIGHTER
COMBNATION SWITCH
ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE OF ENGINE COMPT)
ETACS
GLOVE BOX LAMP)
GLOVE BOX SWITCH
GRY WIRE
HAZARD SWITCH
HEADLIGHTS SYSTEM
HOT AT ALL TIMES
ILLUM- INATION SWITCH
INSTRUMENT CLUSTER DIGITAL CLOCK
J/C 05
J/C 06
J/C 15
JB-01
JB-05
JB-06
JB-09
JB-11
JB-13
JC-17
JC-18
JOINT CONNECTOR SC-02
LEFT REAR POWER WINDOW SWITCH
LEFT SEAT WARMER SWITCH
MANUAL A/C
OFF
ORG/ WIRE
PANEL LIGHT CONTROL SWITCH
PNK WIRE
POWER WINDOW MAIN SWITCH
RIGHT FRONT POWER WINDOW SWITCH
RIGHT REAR POWER WINDOW SWITCH
RIGHT SEAT WARMER SWITCH
RIGHT TAIL FUSE
SPORTS MODE SWITCH
TAIL FUSE
TAIL LAMP RELAY
TCS SWITCH
WHT WIRE
Go to component -> Instrument illumination circuit, early production -> JB-13
Wiring diagram jb-13 (10 of 15)
2.4L
A/CON COMP FUSE
A/T
ABS CONTROL UNIT IGNITION COIL IGNITION FAILURE SENSOR
AIR CON RELAY
AMPLIFIER SUNROOF RELAY
BACK-UP FUSE
BACK-UP LIGHT SWITCH
BLOWER FUSE
BLOWER MOTOR
BLOWER RELAY
BLU WIRE
DATA LINK CONNECTOR (DLC) MULTI- PURPOSE CHECK CONNECTOR
ECM CONTROL RELAY
ECM CONTROL RELAY ENGINE CONTROL MODULE (ECM)
ENGINE CONTROL MODULE (2.7L)
ENGINE/TRANSAXLE CONTROL MODULE (A/T) ENGINE CONTROL MODULE (M/T)
FROM ABS 2 FUSE (DIAGRAM 1 OF 5)
FROM IGNITION SWITCH (DIAGRAM 1 OF 5)
GRN WIRE
HORN FUSE
HORN RELAY
IGN COIL FUSE ABS FUSE
INJECTOR 1
INJECTOR 2
INJECTOR 3 INJECTOR 5
INJECTOR 4
INJECTOR 4 INJECTOR 1 INJECTOR 2 INJECTOR 3
INJECTOR 6)
INJECTOR FUSE
JB-01
JB-03
JB-03 PNK WIRE
JB-07 PNK WIRE
JB-08
JB-08 PNK JB-01 WIRE
JB-09 JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
JB-13
JB-14
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
M/T
MAIN FUSE
MAIN RELAY
NCA WIRE
ORG/ WIRE
P/AMP FUSE
PNK 2.4L 2.4L 2.7L PNK PNK PNK (A/T) (M/T) PNK WIRE
PNK A/T M/T WIRE
PNK JB-07 WIRE
PNK PNK PNK WIRE
PNK PNK WIRE
PNK WIRE
PULSE GENERATOR "A" PULSE GENERATOR "B"
RED WIRE
RESISTOR
SPEED SENSOR
SUNROOF FUSE
TCM (2.7L) INHIBITOR SWITCH
TO CLUSTER FUSE (DIAGRAM 5 OF 5)
TO CONDENSER FAN HIGH RELAY 1 (DIAGRAM 4 OF 5)
TO FOG FUSE (DIAGRAM 3 OF 5)
TO JUNCTION BLOCK (A/CON SW FUSE) (DIAGRAM 5 OF 5)
Go to component -> Power distribution circuit, early production (2 of 5) -> JB-13
