Kia Optima II (2005-2008) instrument cluster front fog lamp Wiring diagram
This page shows the only wiring diagram for the component.instrument cluster front fog lamp, which is found in the car Kia Optima II (2005-2008). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

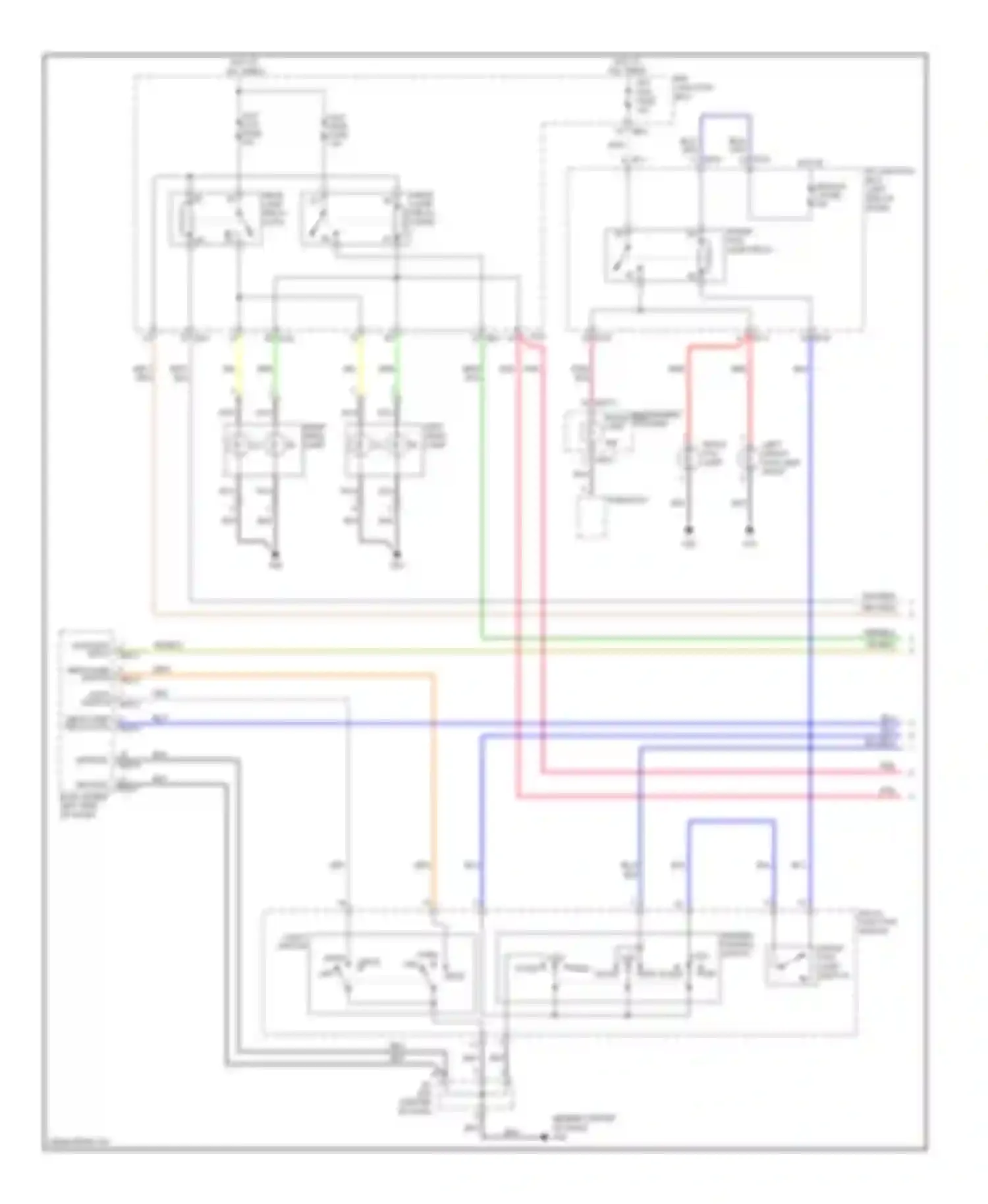

Wiring diagram instrument cluster front fog lamp (1 of 1)
AUTO SWITCH
BCM (UNDER LEFT SIDE OF DASH)
BLK WIRE
BLU WIRE
BLU/BLK WIRE
DIMMER, PASSING SWITCH
E/R JUNCTION BOX
FRONT FOG LAMP
FRONT FOG LAMP RELAY
FRT FOG FUSE
GRN WIRE
GRN/BLK WIRE
GROUND
GRY WIRE
GRY/ORG WIRE
H/LP (HIGH) FUSE
H/LP (LOW) FUSE
HEAD LAMP RELAY(LOW)
HEAD- LAMP RELAY (HIGH)
HEAD- LAMP RELAY (LOW)
HEAD- LAMP SWITCH
HOT AT ALL TIMES
HOT IN ON
I/P JUNCTION BOX (LEFT END OF DASH)
I/P-B
I/P-E
I/P-J
IND
INSTRUMENT CLUSTER FRONT FOG LAMP
J/C
LEFT FRONT FOG LAMP RIGHT FRONT FOG LAMP
LEFT HEAD- LAMP
LIGHT SWITCH
LO HI
LOW FLASH
LOW HIGH HIGH FLASH
MODULE 2 FUSE
MULTI- FUNCTION SWITCH
NCA WIRE
OFF
ON/START INPUT
ORG/ WIRE
PARK HEAD
PARK OFF HEAD
PNK PNK WIRE
PNK WIRE
RED WIRE
RHEOSTAT
RIGHT HEAD- LAMP
SWITCH
WHT WIRE
WHT/BLK WIRE
YEL WIRE
YEL/BLK WIRE
Go to component -> Headlights circuit, late production with drl (1 of 2) -> INSTRUMENT CLUSTER FRONT FOG LAMP
