Kia Optima II (2005-2008) illumination switch Wiring diagrams
This page contains all the electrical diagrams for the component. illumination switch, in which he is found in the car Kia Optima II (2005-2008). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram illumination switch (1 of 3)
6 7 PNK WIRE
BLK WIRE
BLU WIRE
BRN/ORG WIRE
COMBINATION SWITCH
ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE OF ENGINE COMPT)
ETACS
GRN WIRE
HIGH MOUNTED STOP LIGHT
HOT AT ALL TIMES
ILLUMINATION SWITCH
J/C 05
J/C 14
J/C 15
JB-01
JB-01 ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE JB-02 OF ENGINE COMPT)
JB-05
JB-06
JB-08
JB-09
JB-13
JC-07
JC-08
JOINT CONNECTOR SC-01
JOINT CONNECTOR SC-07
JUNCTION BLOCK (JB) (BEHIND LEFT SIDE OF DASH)
LEFT FRONT TURN SIGNAL, POSITION LAMP
LEFT LICENSE LAMP
LEFT REAR COMBINATION LAMP TURN LAMP
LEFT SIDE MARKER LAMP
LEFT TAIL FUSE
OFF
ORG/ WIRE
PNK WIRE
RIGHT FRONT TURN SIGNAL, POSITION LAMP
RIGHT LICENSE LAMP TAIL LAMP STOP LAMP
RIGHT REAR COMBINATION LAMP TURN LAMP
RIGHT SIDE MARKER LAMP
RIGHT TAIL FUSE
STOP FUSE
STOPLIGHT SWITCH (ABOVE BRAKE PEDAL, ON BRACKET)
TAIL FUSE
TAIL LAMP RELAY
TAIL LAMP STOP LAMP
W/ CRUISE CONTROL
W/O CRUISE CONTROL
Go to component -> Exterior lamps circuit, early production (1 of 2) -> ILLUMINATION SWITCH

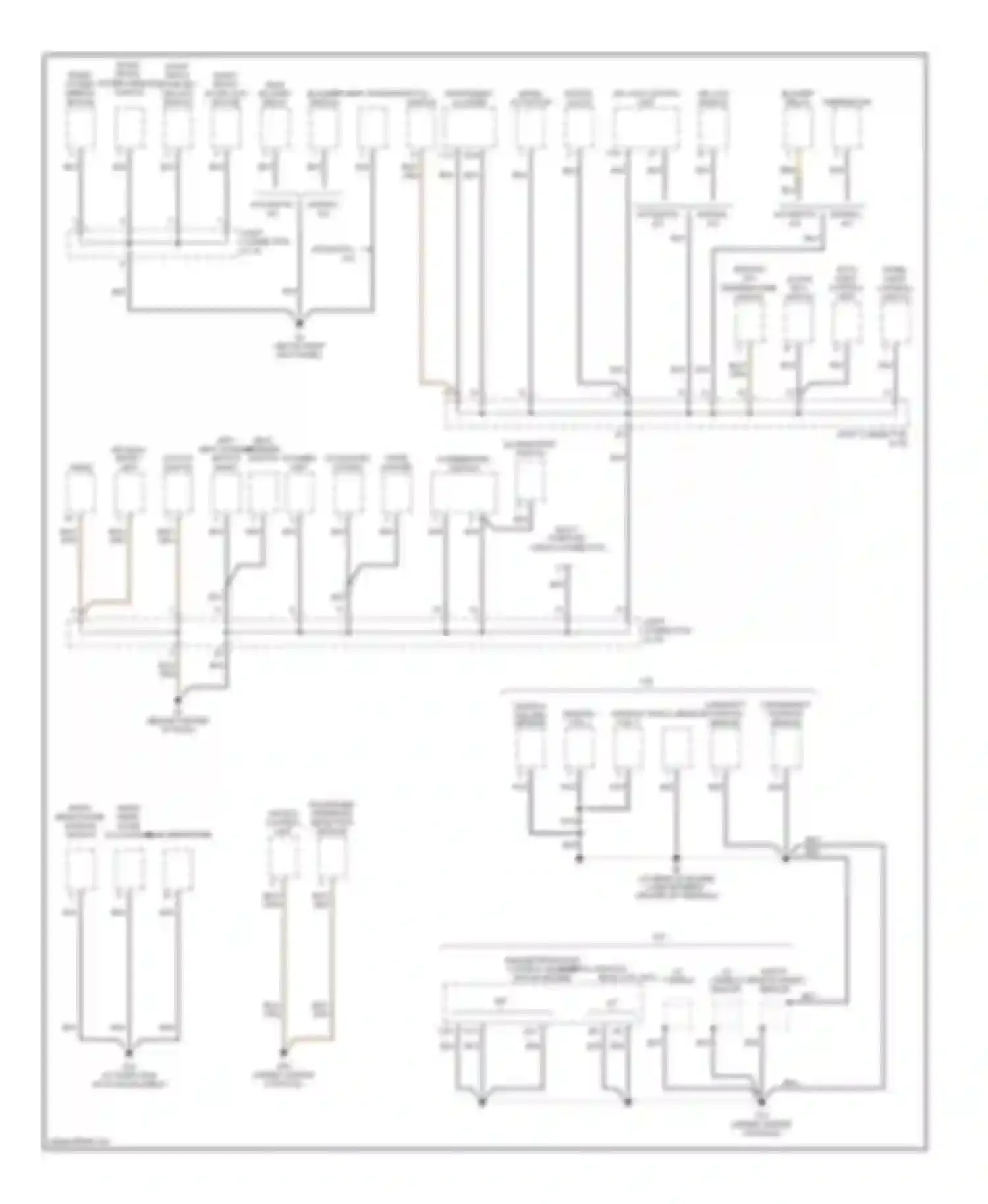

Wiring diagram illumination switch (2 of 3)
2.4L
A/T
AIR CON CONTROL UNIT
AIR CON SWITCH
AUDIO
AUTO LIGHT CONTROL UNIT
AUTOMATIC A/C
BLK WIRE
BLOWER RELAY
BLOWER SWITCH
BRN WIRE
CAMSHAFT POSITION SENSOR CRANKSHAFT POSITION SENSOR KNOCK SENSOR
CIGAR LIGHTER ACCESSORY SOCKET
CLUTCH SWITCH
COMBINATION SWITCH
DIGITAL CLOCK
ENGINE/TRANSAXLE CONTROL MODULE (E/TCM) ENGINE CONTROL MODULE (ECM) (A/T) (M/T)
FLASHER UNIT
GLOVE BOX SWITCH
HIGH BLOWER RELAY
IGNITION COIL 2
IGNITION FAILURE SENSOR IGNITION COIL 1
ILLUMINATION SWITCH
INSTRUMENT CLUSTER
JOINT CONNECTOR JC-05
JOINT CONNECTOR JC-06
JOINT CONNECTOR JC-18
KEYLESS ENTRY UNIT
KNOCK SENSOR SHIELD SENSOR 2 SHIELD SENSOR 1 SHIELD
LEFT SEAT WARMER SWITCH RIGHT SEAT WARMER SWITCH
M/T
MANUAL A/C
MODE ACTUATOR
MULTI-PURPOSE CHECK CONNECTOR
NCA WIRE
ORG/ WIRE
PANEL LIGHT CONTROL SWITCH
PASSENGER PRESENCE DETECTION SENSOR AIR BAG CONTROL UNIT
POWER TRANSISTOR
REAR DEFROSTER
RIGHT FRONT DOOR KEY UNLOCK SWITCH
RIGHT FRONT DOOR LOCK MOTOR
RIGHT FRONT POWER WINDOW SWITCH
RIGHT POWER MIRROR MOTOR
RIGHT REAR DOOR LOCK MOTOR
RIGHT REAR POWER WINDOW SWITCH
TCS SWITCH
TEMPERATURE SWITCH
THERMISTOR
Go to component -> Ground distribution circuit, early production (2 of 3) -> ILLUMINATION SWITCH

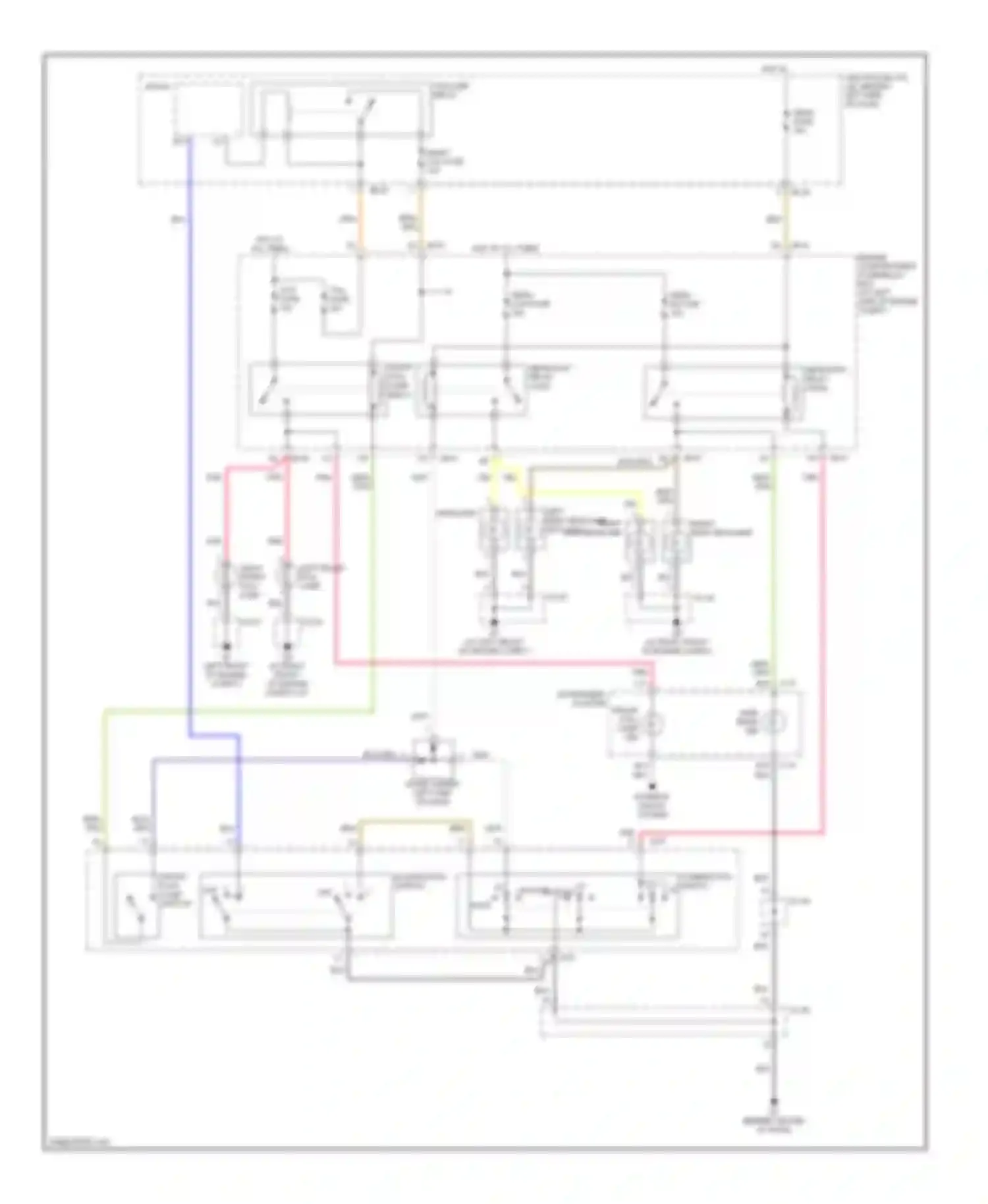

Wiring diagram illumination switch (3 of 3)
BLK WIRE
BLK/ORG WIRE
BLU WIRE
BLU/ORG WIRE
BRN WIRE
C-01
COMBINATION SWITCH LO HI
DIODE (UNDER LEFT SIDE OF DASH)
E-01
ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE OF ENGINE COMPT)
ETACS
FOG FUSE
FRONT FOG LAMP IND
FRONT FOG LAMP RELAY
FRONT FOG- LAMP SWITCH OFF
GRN WIRE
GRY WIRE
HEAD FUSE
HEAD HI FUSE
HEAD LOW FUSE
HEADLIGHT RELAY (HIGH)
HEADLIGHT RELAY (LOW)
HIGH BEAM IND
HOT AT ALL TIMES
HOT IN ON
ILLUMINATION SWITCH
INSTRUMENT CLUSTER
J/C 05
J/C 06
J/C-07 J/C-08
JB-01
JB-02
JB-05
JB-09
JC-07
JC-08
JUNCTION BLOCK (JB) (BEHIND LEFT SIDE OF DASH)
LEFT HIGH HEADLAMP LEFT LOW HEADLAMP
LO LO HI PASS HI PASS
OFF
ORG/ WIRE
PASS
PNK E-01 WIRE
PNK WIRE
RIGHT FRONT FOG LAMP LEFT FRONT FOG LAMP
RIGHT HIGH HEADLAMP
RIGHT LOW HEADLAMP
RIGHT TAIL FUSE
TAIL FUSE
TAILLAMP RELAY
WHT WIRE
YEL WIRE
Go to component -> Headlights circuit, early production without drl -> ILLUMINATION SWITCH
