Kia Optima II (2005-2008) combination switch Wiring diagrams
This page contains all the electrical diagrams for the component. combination switch, in which he is found in the car Kia Optima II (2005-2008). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
Wiring diagram combination switch (1 of 5)
6 7 PNK WIRE
BLK WIRE
BLU WIRE
BRN/ORG WIRE
COMBINATION SWITCH
ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE OF ENGINE COMPT)
ETACS
GRN WIRE
HIGH MOUNTED STOP LIGHT
HOT AT ALL TIMES
ILLUMINATION SWITCH
J/C 05
J/C 14
J/C 15
JB-01
JB-01 ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE JB-02 OF ENGINE COMPT)
JB-05
JB-06
JB-08
JB-09
JB-13
JC-07
JC-08
JOINT CONNECTOR SC-01
JOINT CONNECTOR SC-07
JUNCTION BLOCK (JB) (BEHIND LEFT SIDE OF DASH)
LEFT FRONT TURN SIGNAL, POSITION LAMP
LEFT LICENSE LAMP
LEFT REAR COMBINATION LAMP TURN LAMP
LEFT SIDE MARKER LAMP
LEFT TAIL FUSE
OFF
ORG/ WIRE
PNK WIRE
RIGHT FRONT TURN SIGNAL, POSITION LAMP
RIGHT LICENSE LAMP TAIL LAMP STOP LAMP
RIGHT REAR COMBINATION LAMP TURN LAMP
RIGHT SIDE MARKER LAMP
RIGHT TAIL FUSE
STOP FUSE
STOPLIGHT SWITCH (ABOVE BRAKE PEDAL, ON BRACKET)
TAIL FUSE
TAIL LAMP RELAY
TAIL LAMP STOP LAMP
W/ CRUISE CONTROL
W/O CRUISE CONTROL
Go to component -> Exterior lamps circuit, early production (1 of 2) -> COMBINATION SWITCH
Wiring diagram combination switch (2 of 5)
6 7 PNK WIRE
BLK WIRE
BLK/ORG WIRE
BLU WIRE
BRN WIRE
BRN/ORG WIRE
COMBINATION SWITCH
FLASHER UNIT (ON JUNCTION BLOCK)
GRN WIRE
GRY WIRE
HAZARD FUSE
HAZARD RELAY (ON JUNCTION BLOCK)
HAZARD SWITCH
HOT AT ALL TIMES
HOT IN ON OR START
INSTRUMENT CLUSTER
JB-06
JB-08
JB-09
JB-09 JB-13
JB-11
JB-12
JOINT CONNECTOR JC-05
JOINT CONNECTOR JC-06
JUNCTION BLOCK (JB) (BEHIND LEFT SIDE OF DASH)
JUNCTION BLOCK (JB) (BEHIND LEFT SIDE OF DASH) ETACS (ON JUNCTION BLOCK)
LEFT
LEFT REAR COMBINATION LAMP TAIL
LEFT TURN INDICATOR
OFF
ON OFF
ORG/ WIRE
PNK WIRE
RIGHT
RIGHT REAR COMBINATION LAMP
RIGHT TURN INDICATOR
STOP
T/SIG FUSE
TAIL
TURN SWITCH
Go to component -> Exterior lamps circuit, early production (2 of 2) -> COMBINATION SWITCH
Wiring diagram combination switch (3 of 5)
BATTERY JOINT CONNECTOR
BLK WIRE
CLOCKSPRING/ COMBINATION SWITCH
COMBINATION SWITCH
CRUISE CONTROL UNIT
CRUISE REMOTE CONTROL SWITCH
DRIVER POWER SEAT ABS CONTROL UNIT
ETACS
FUSE/RELAY BOX COOLING FAN LOW RELAY WIPER RELAY
GRN WIRE
GROUND
HIGH MOUNT STOP LIGHT FUEL LID ACTUATOR
INSTRUMENT CLUSTER
INSTRUMENT CLUSTER AMPLIFIER
J/C 14
JB-07
JOINT CONNECTOR JC-05
JOINT CONNECTOR JC-07
JOINT CONNECTOR JC-08
JOINT CONNECTOR JC-15
JOINT CONNECTOR JC-17
LEFT FRONT DOOR KEY UNLOCK SWITCH
LEFT FRONT FOGLIGHT
LEFT FRONT TURN SIGNAL LAMP
LEFT HIGH HEADLIGHT
LEFT HORN
LEFT LICENSE LAMP RIGHT LICENSE LAMP RIGHT TAILLAMP
LEFT LOW HEADLIGHT
LEFT POSITION LAMP
LEFT POWER MIRROR MOTOR LEFT FRONT DOOR LOCK MOTOR
LEFT REAR COMBINATION LAMP
LEFT REAR TURN SIGNAL LAMP
LEFT SEAT WARMER
LEFT SIDE MARKER LAMP
MAP LAMP ROOM LAMP OVERHEAD CONSOLE
NCA WIRE
ORG/ WIRE
PASSENGER POWER SEAT SEAT BELT SWITCH
POWER ANTENNA
POWER MIRROR SWITCH
REAR DEFROSTER RELAY
RIGHT FRONT FOGLIGHT
RIGHT FRONT TURN SIGNAL LAMP
RIGHT HIGH HEADLIGHT
RIGHT LEFT SUNVISOR LAMP SUNVISOR LAMP
RIGHT LOW HEADLIGHT
RIGHT POSITION DRL UNIT RIGHT HORN LAMP
RIGHT REAR COMBINATION LAMP
RIGHT REAR TURN SIGNAL LEFT TAILLAMP LAMP
RIGHT SIDE MARKER LAMP
RIGHT STOP LIGHT LEFT STOP LIGHT
RIGHT TAILLAMP TRUNK LID SOLENOID
SUN ROOF RELAY
SUN-ROOF MOTOR
TRUNK UNLOCK SWITCH LEFT TAILLAMP
TWO TURN UNLOCK RELAY
W/ ABS
W/O ABS
W/O SUN ROOF
W/O SUN ROOF W/ SUN ROOF
Go to component -> Ground distribution circuit, early production (1 of 3) -> COMBINATION SWITCH
Wiring diagram combination switch (4 of 5)
2.4L
A/T
AIR CON CONTROL UNIT
AIR CON SWITCH
AUDIO
AUTO LIGHT CONTROL UNIT
AUTOMATIC A/C
BLK WIRE
BLOWER RELAY
BLOWER SWITCH
BRN WIRE
CAMSHAFT POSITION SENSOR CRANKSHAFT POSITION SENSOR KNOCK SENSOR
CIGAR LIGHTER ACCESSORY SOCKET
CLUTCH SWITCH
COMBINATION SWITCH
DIGITAL CLOCK
ENGINE/TRANSAXLE CONTROL MODULE (E/TCM) ENGINE CONTROL MODULE (ECM) (A/T) (M/T)
FLASHER UNIT
GLOVE BOX SWITCH
HIGH BLOWER RELAY
IGNITION COIL 2
IGNITION FAILURE SENSOR IGNITION COIL 1
ILLUMINATION SWITCH
INSTRUMENT CLUSTER
JOINT CONNECTOR JC-05
JOINT CONNECTOR JC-06
JOINT CONNECTOR JC-18
KEYLESS ENTRY UNIT
KNOCK SENSOR SHIELD SENSOR 2 SHIELD SENSOR 1 SHIELD
LEFT SEAT WARMER SWITCH RIGHT SEAT WARMER SWITCH
M/T
MANUAL A/C
MODE ACTUATOR
MULTI-PURPOSE CHECK CONNECTOR
NCA WIRE
ORG/ WIRE
PANEL LIGHT CONTROL SWITCH
PASSENGER PRESENCE DETECTION SENSOR AIR BAG CONTROL UNIT
POWER TRANSISTOR
REAR DEFROSTER
RIGHT FRONT DOOR KEY UNLOCK SWITCH
RIGHT FRONT DOOR LOCK MOTOR
RIGHT FRONT POWER WINDOW SWITCH
RIGHT POWER MIRROR MOTOR
RIGHT REAR DOOR LOCK MOTOR
RIGHT REAR POWER WINDOW SWITCH
TCS SWITCH
TEMPERATURE SWITCH
THERMISTOR
Go to component -> Ground distribution circuit, early production (2 of 3) -> COMBINATION SWITCH

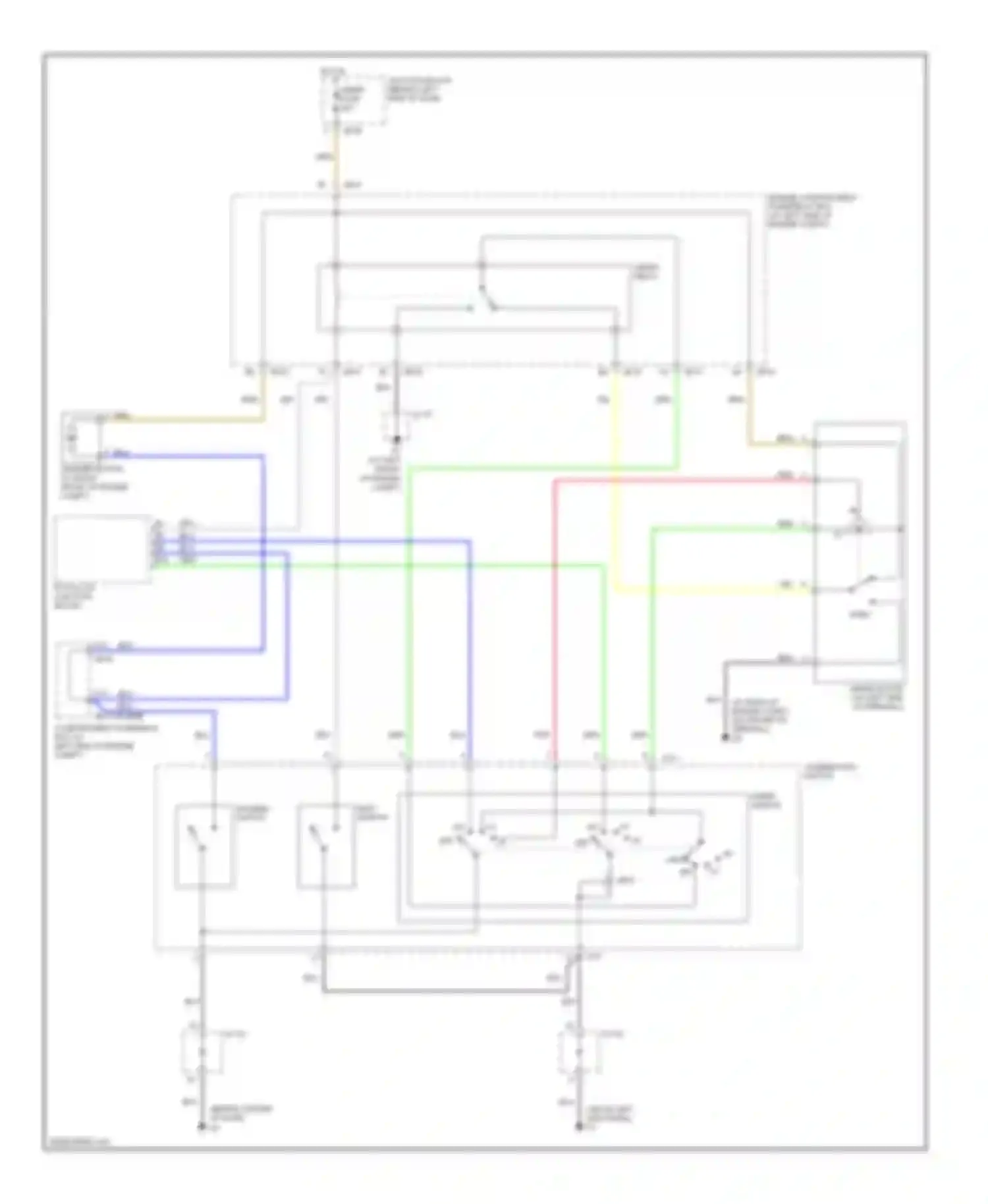

Wiring diagram combination switch (5 of 5)
BLK WIRE
BLU WIRE
BRN WIRE
COMBINATION SWITCH
D-01
ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE OF ENGINE COMPT)
ETACS (ON JUNCTION BLOCK)
GRN WIRE
GRY WIRE
HOT IN ON
J/C 05
JB-01
JB-01 ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE OF ENGINE COMPT)
JB-02
JB-03
JB-05
JC-07
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
LO INT
LO INT HI OFF
LO INT OFF HI
MIST
MIST SWITCH
OFF
PARK
PNK WIRE
WASHER MOTOR (AT RIGHT FRONT OF ENGINE COMPT)
WASHER SWITCH
WIPER FUSE
WIPER MOTOR (ON LEFT SIDE OF FIREWALL)
WIPER RELAY
WIPER SWITCH
YEL WIRE
Go to component -> Wiper/washer circuit, early production -> COMBINATION SWITCH
