Kia Optima II (2005-2008) 14 15 pnk washer sig int Wiring diagram
This page shows the only wiring diagram for the component.14 15 pnk washer sig int, which is found in the car Kia Optima II (2005-2008). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

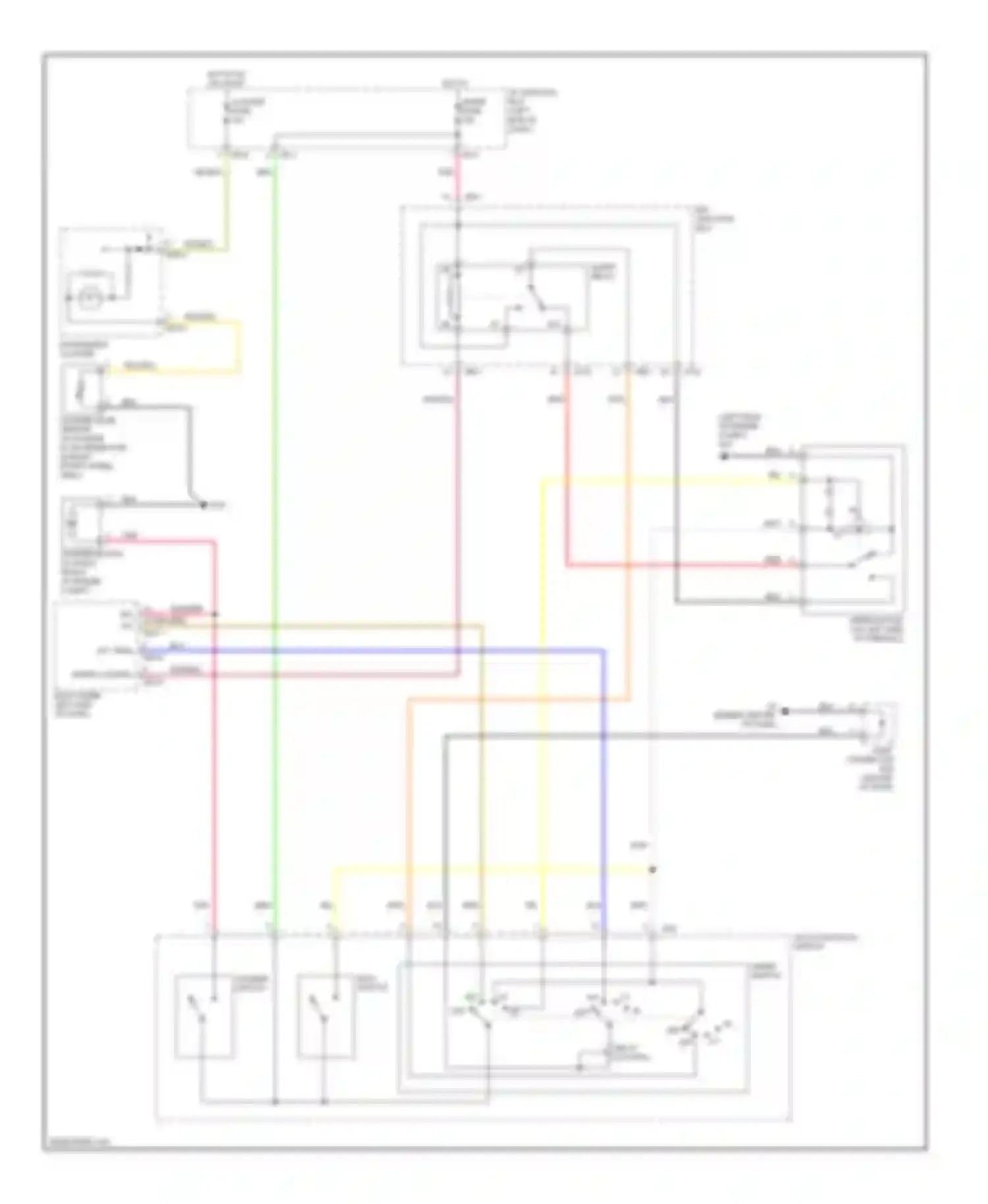

Wiring diagram 14 15 pnk washer sig int (1 of 1)
14 15 PNK WASHER SIG INT WIRE
BCM (UNDER LEFT SIDE OF DASH)
BLK WIRE
BLU WIRE
BRN WIRE
CLUSTER FUSE
DELAY CONTROL
E/R JUNCTION BOX
GRN WIRE
HI OFF LO INT
HOT IN ON
HOT IN ON OR START
I/P JUNCTION BOX (LEFT END OF DASH)
I/P-C
I/P-E
I/P-K
INSTRUMENT CLUSTER
INT TIME
JOINT CONNECTOR
LO INT HI OFF
LO INT OFF HI
MIST SWITCH
MULTI- FUNCTION SWITCH
ORG/ WIRE
PNK WIRE
PNK/BLK WIRE
RED WIRE
WASHER LEVEL SENSOR (IN WASHER FLUID RESERVOIR, IN RIGHT FRONT WHEEL WELL)
WASHER MOTOR (AT RIGHT FRONT OF ENGINE COMPT)
WASHER SWITCH
WHT WIRE
WIPER CONTROL
WIPER FUSE
WIPER MOTOR (ON LEFT SIDE OF FIREWALL)
WIPER RELAY
WIPER SWITCH
YEL WIRE
YEL/BLK WIRE
YEL/ORG WIRE
Go to component -> Front wiper/washer circuit, late production without rain sensor -> 14 15 PNK WASHER SIG INT WIRE
