Wiring diagrams for Kia Optima II (2005-2008)

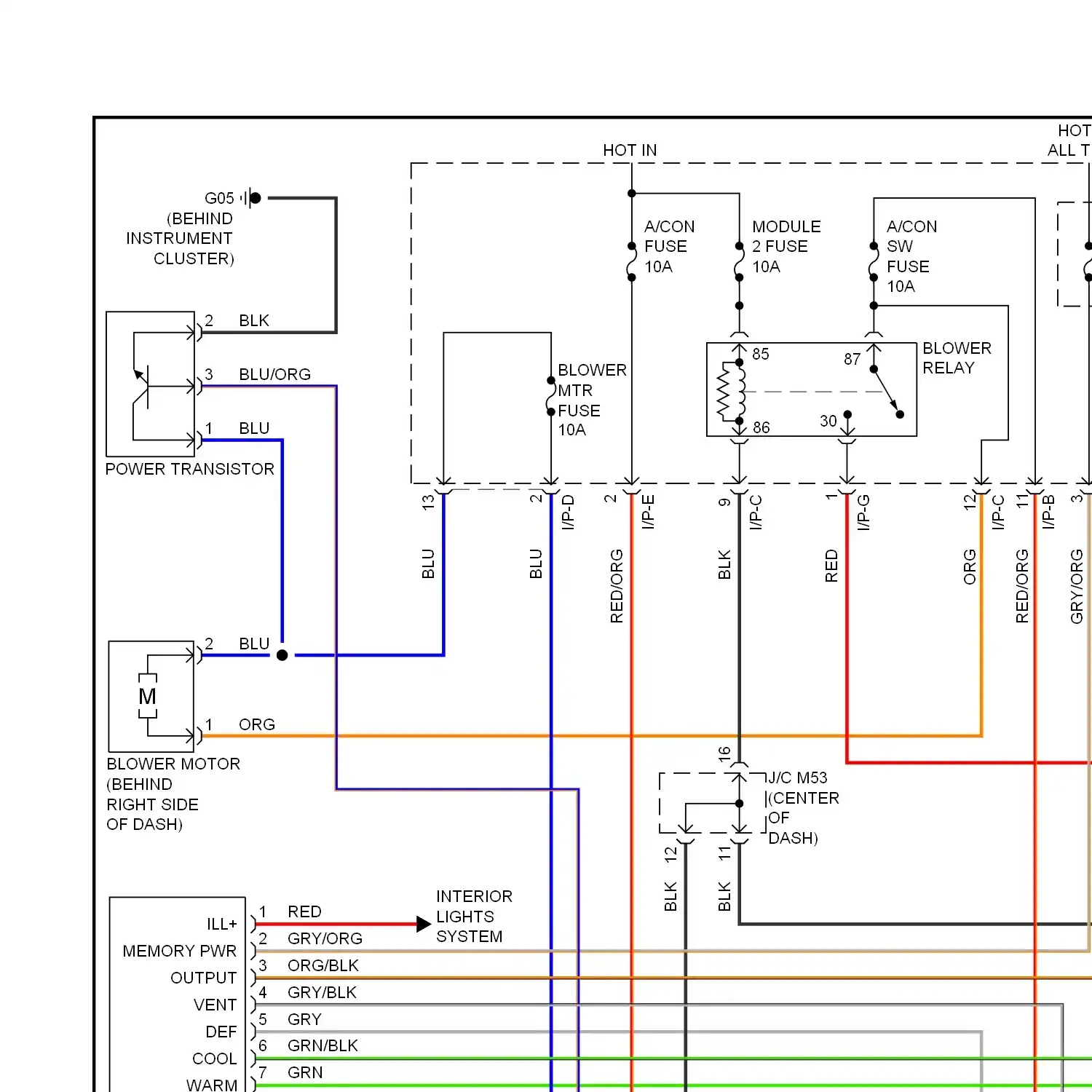

Automatic a/c circuit, late production Manual a/c circuit, late production

2.4l, automatic a/c circuit, early production 2.4l, manual a/c circuit, early production

2.7l, automatic a/c circuit, early production 2.7l, manual a/c circuit, early production

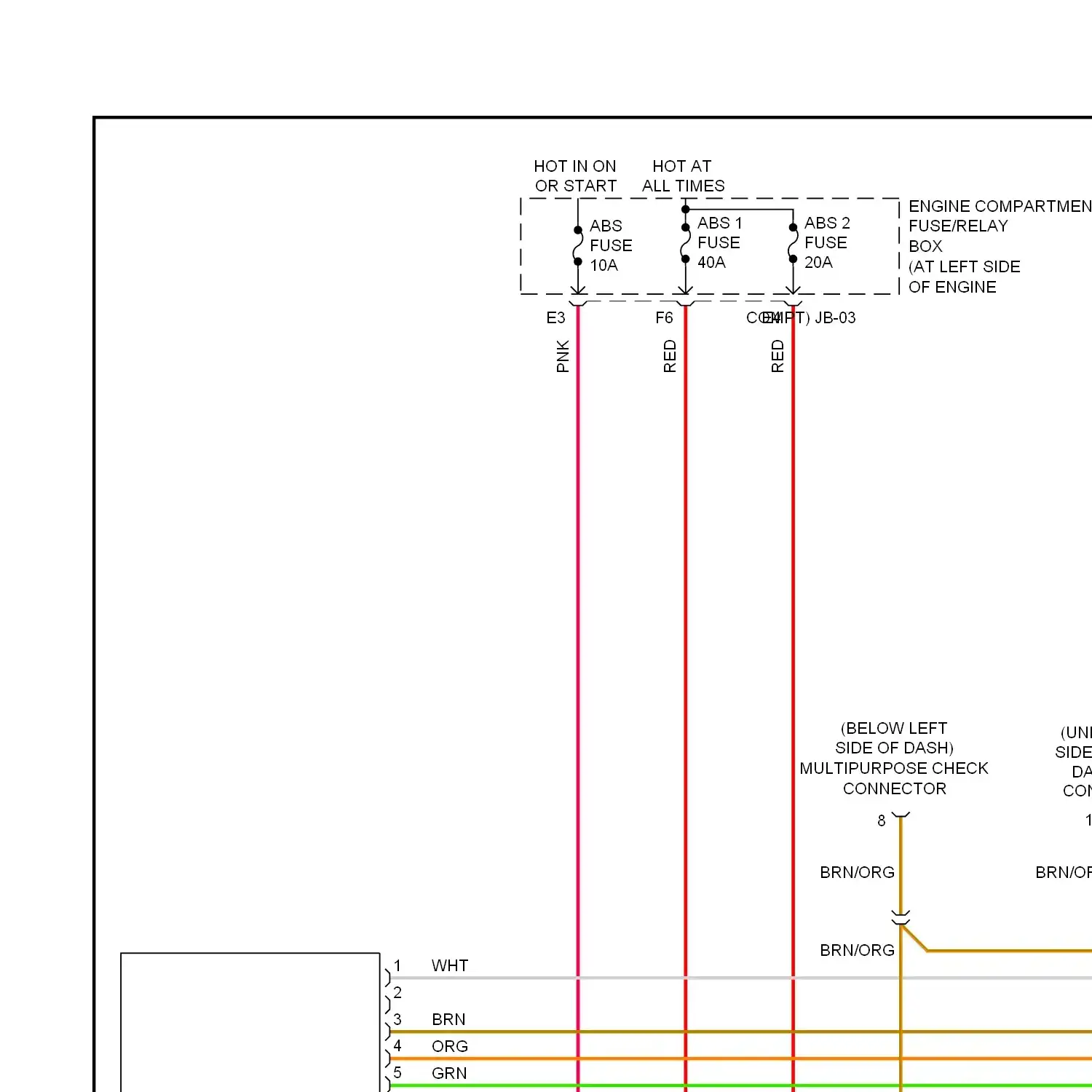

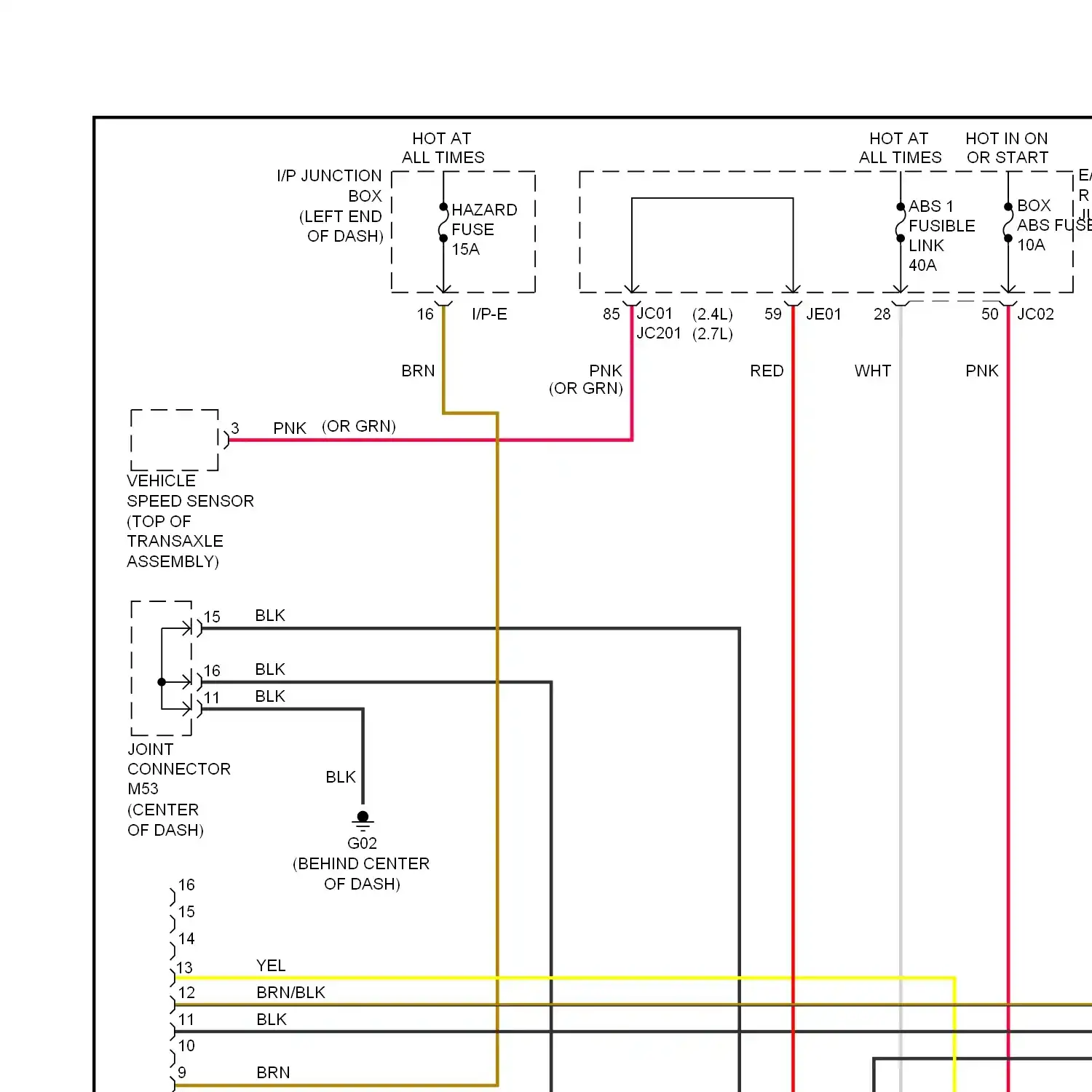

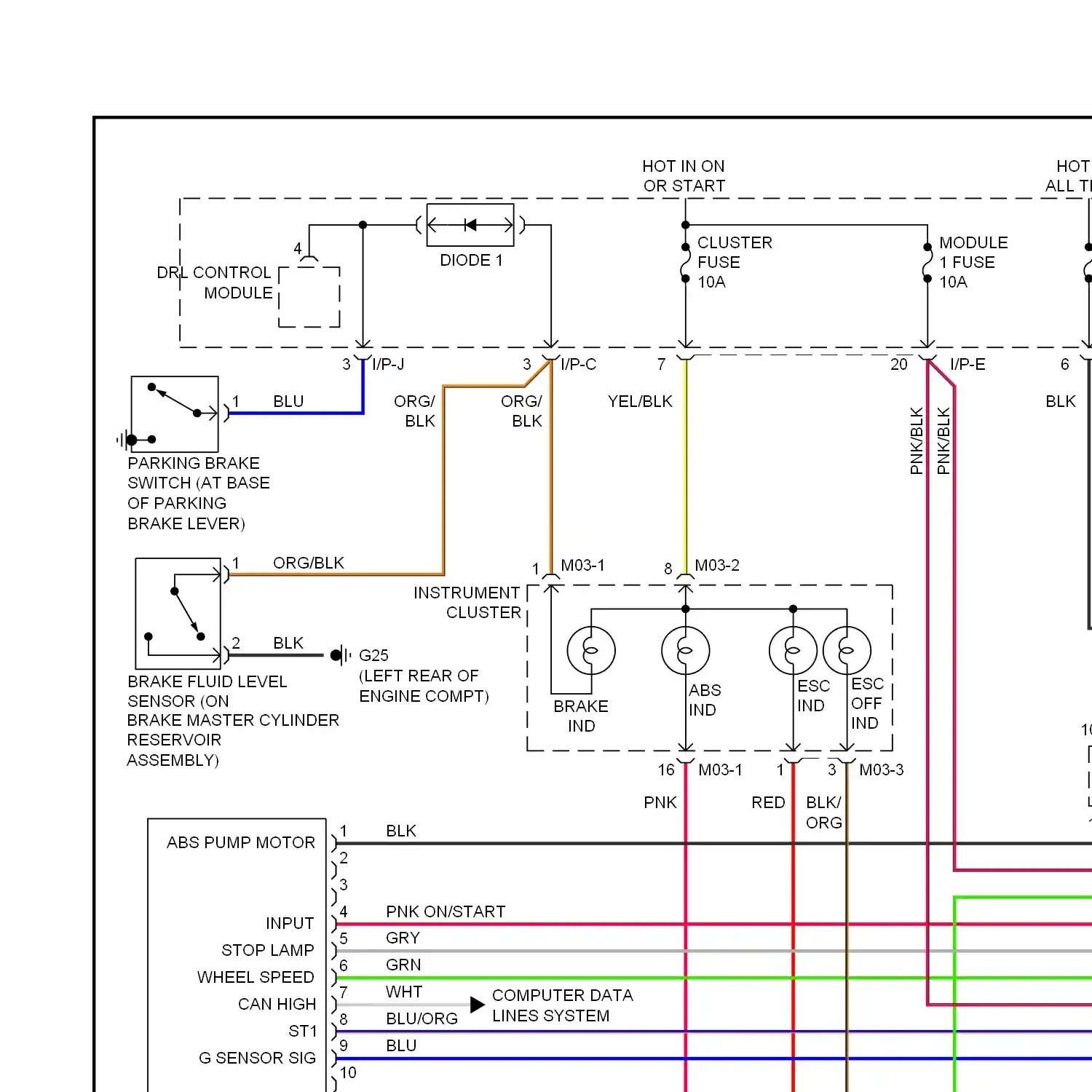

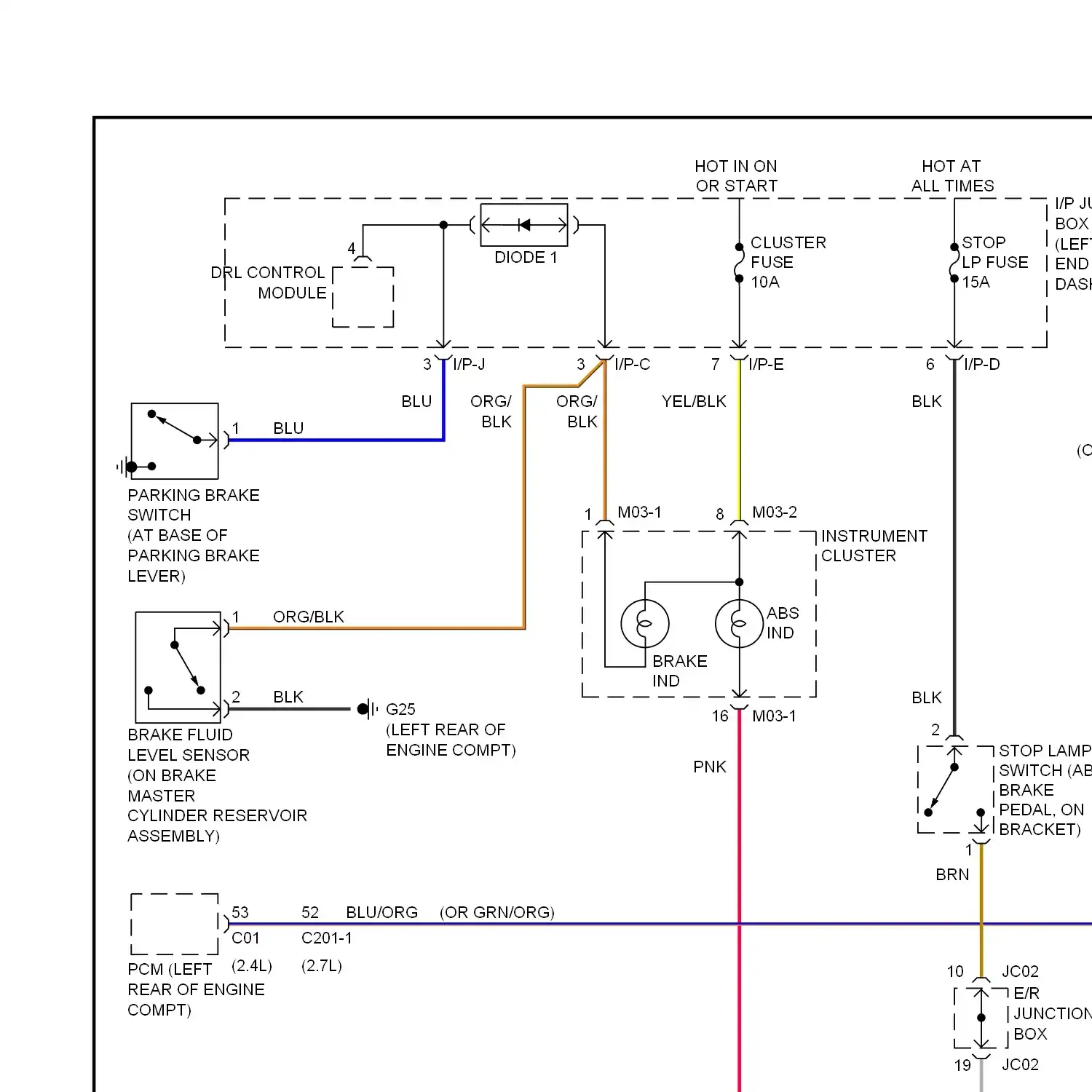

Anti-lock brakes circuit, early production Anti-lock brakes circuit, late production with esc Anti-lock brakes circuit, late production without esc

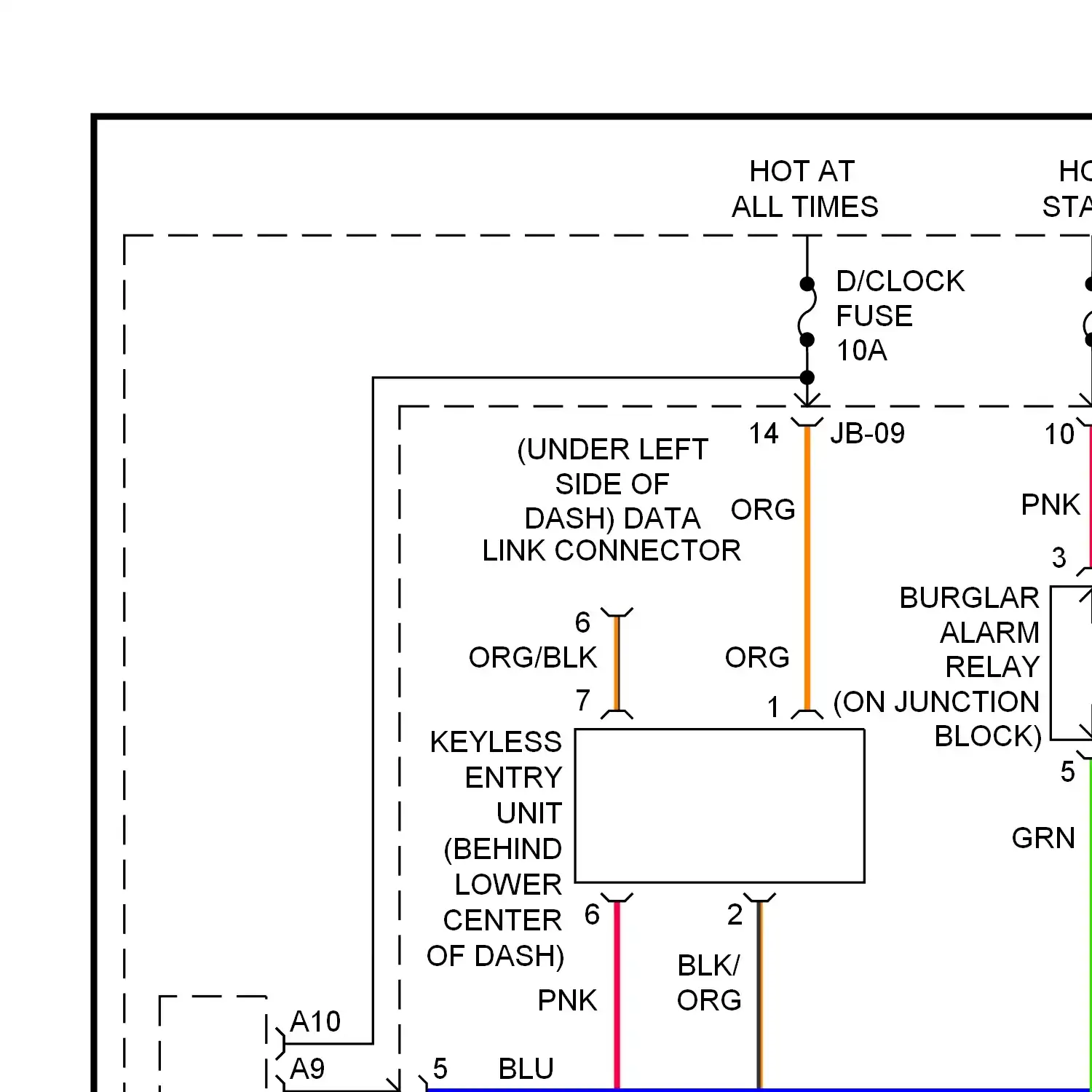

Forced entry circuit, early production Forced entry circuit, late production

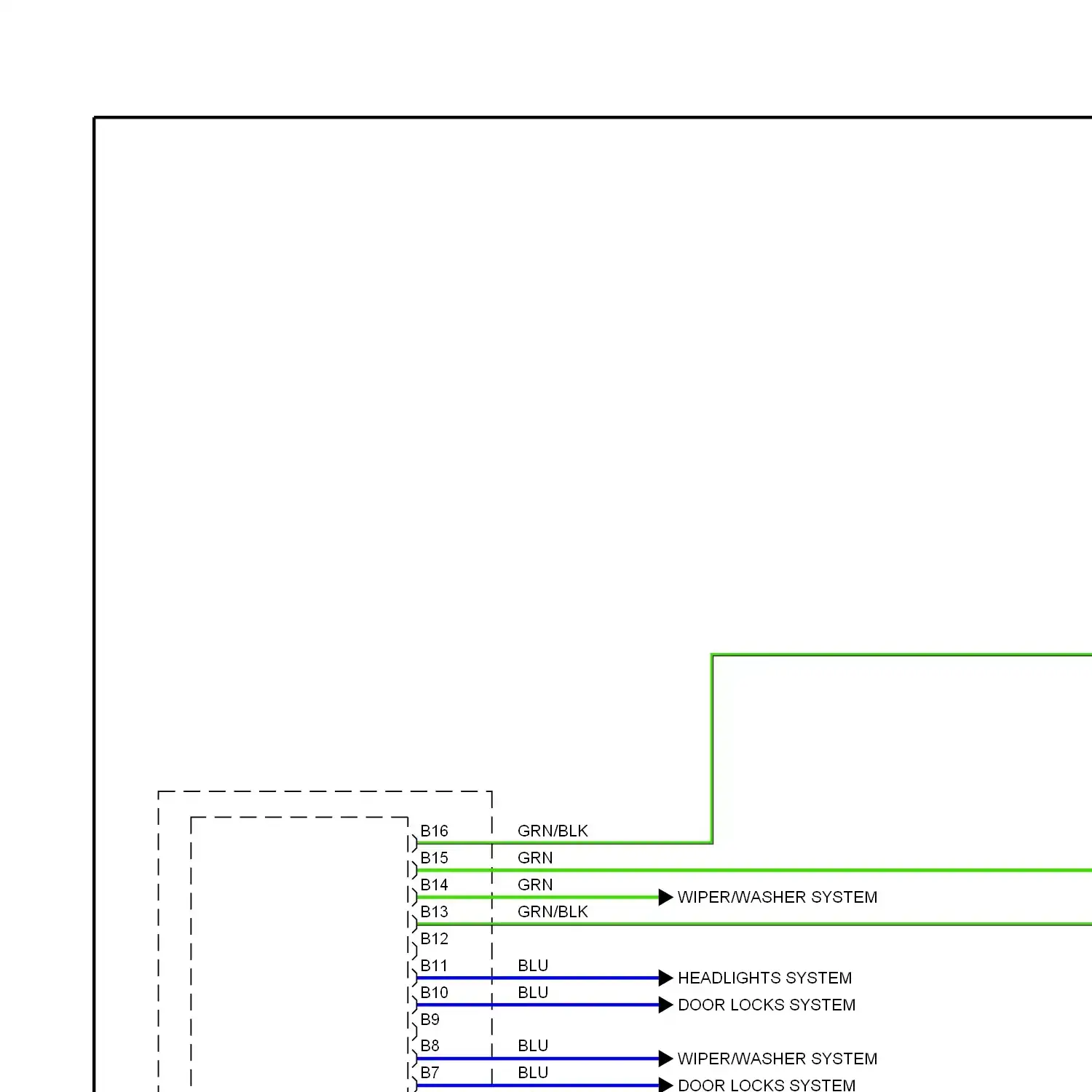

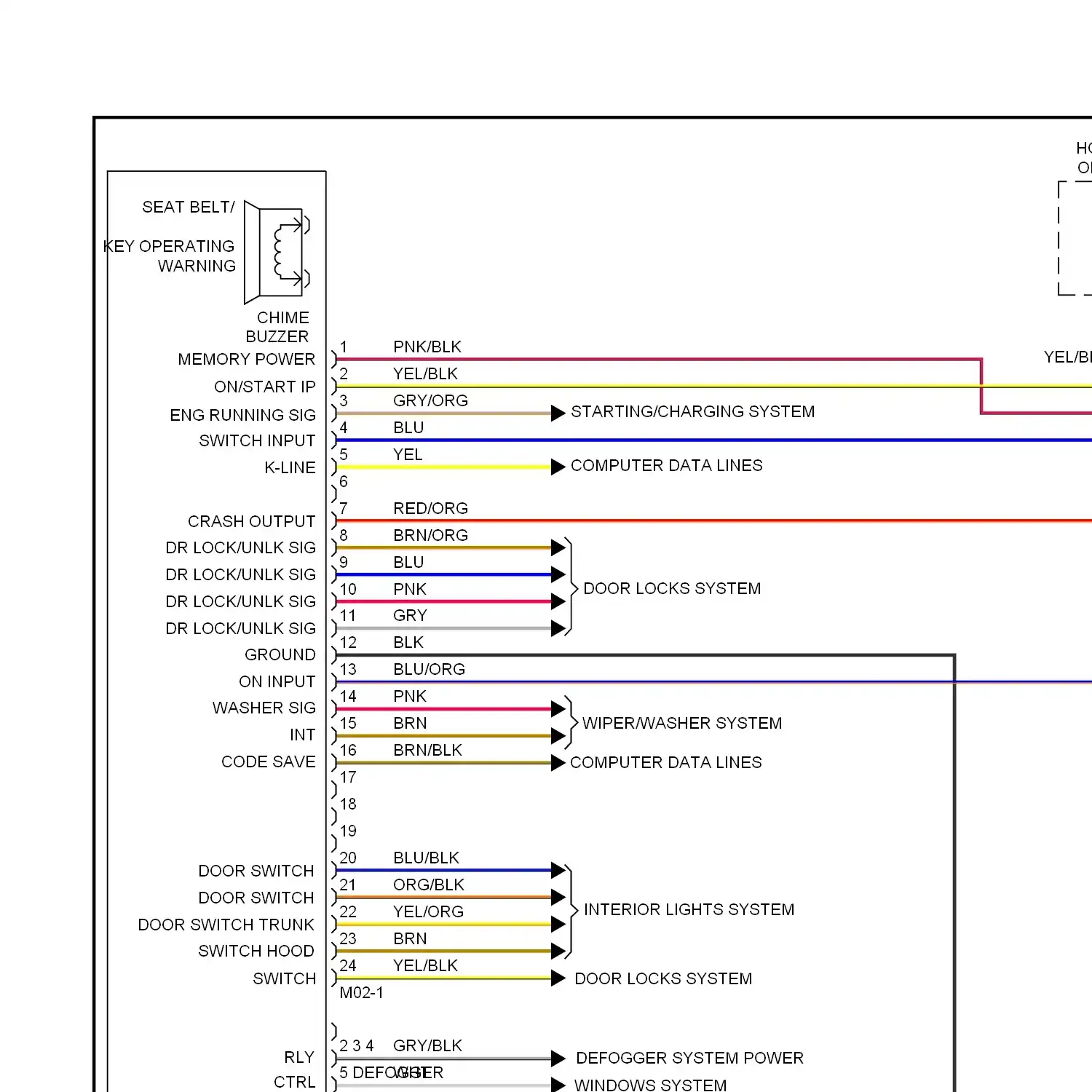

Body control modules circuit, early production Body control modules circuit, late production

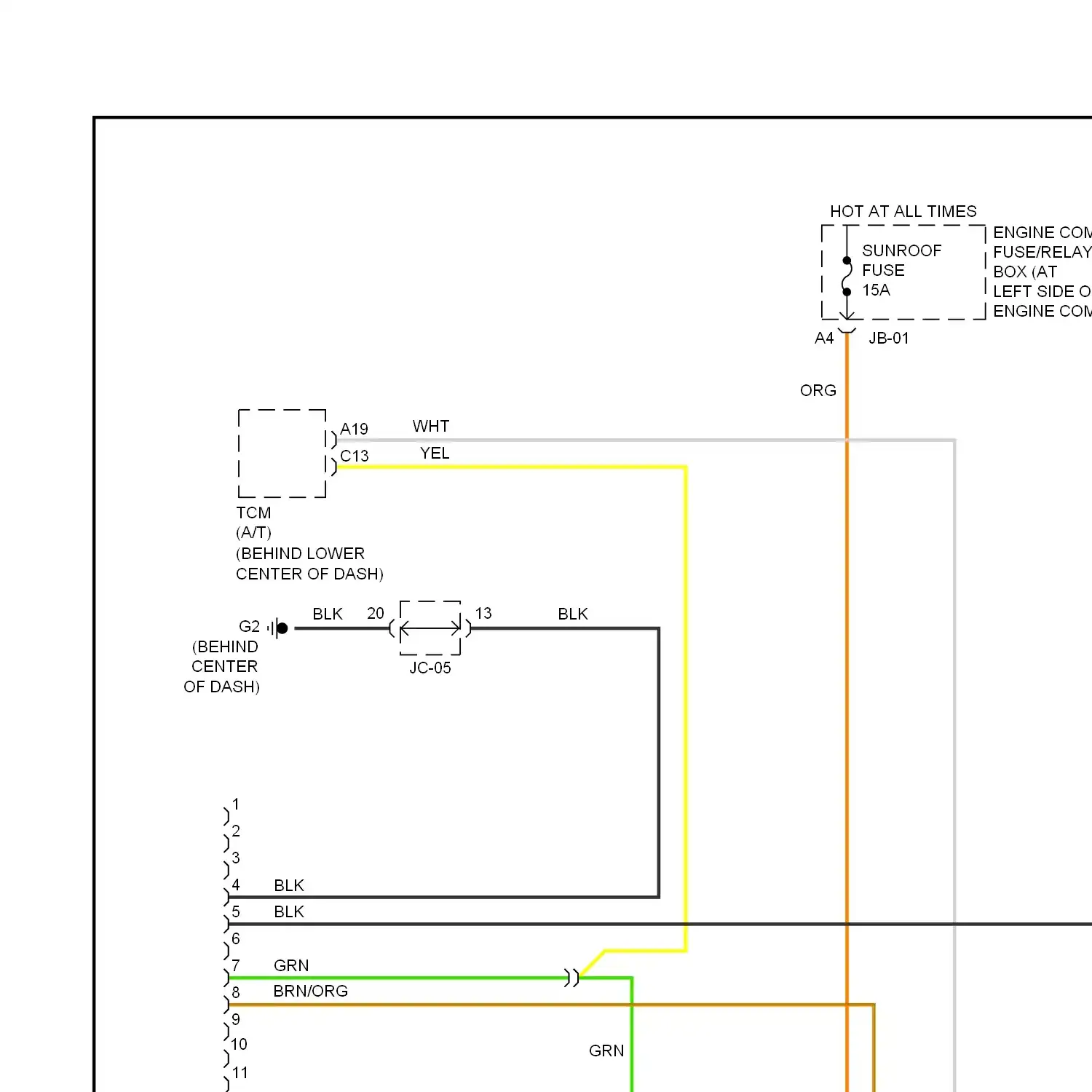

Computer data lines circuit, late production

2.4l, computer data lines circuit, early production

2.7l, computer data lines circuit, early production

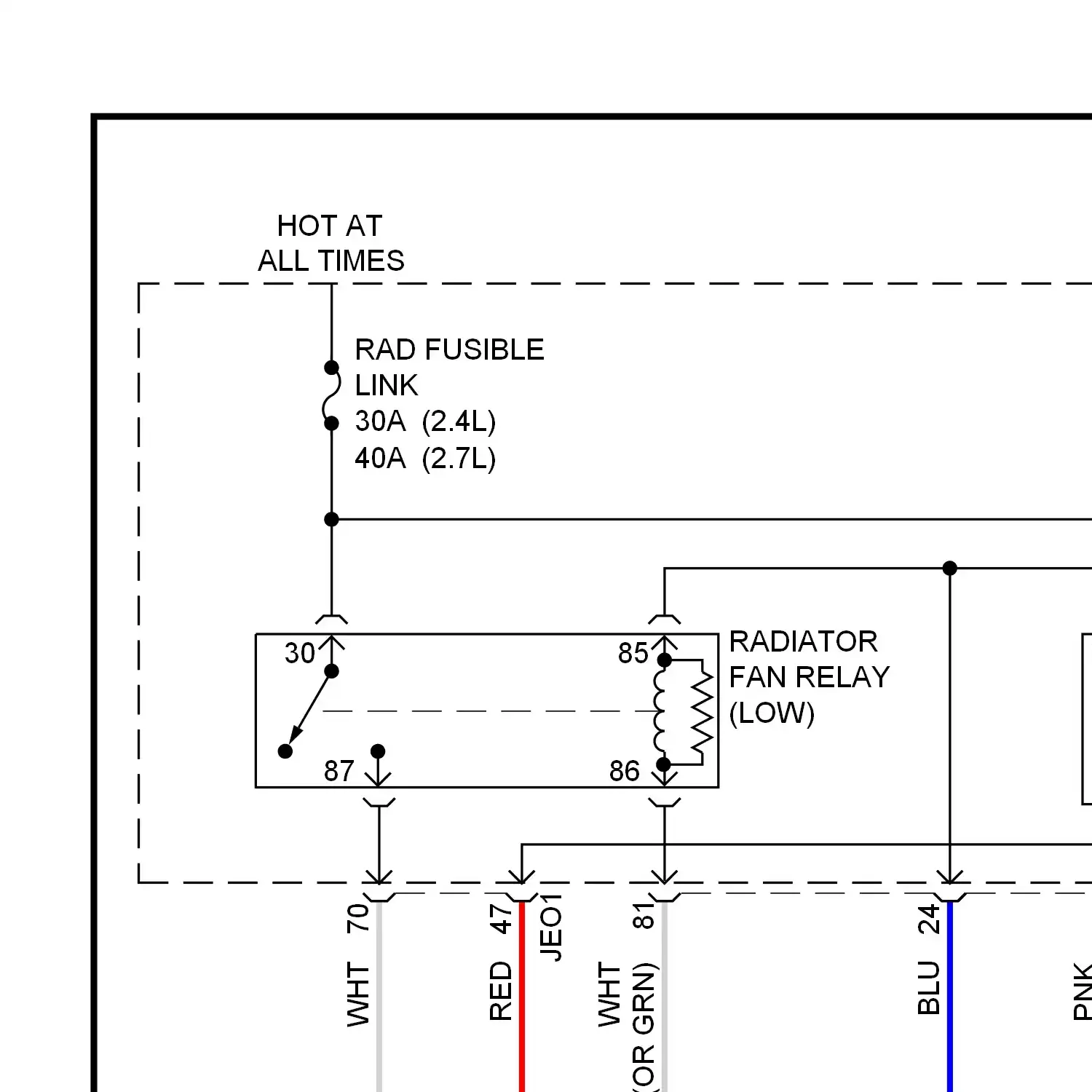

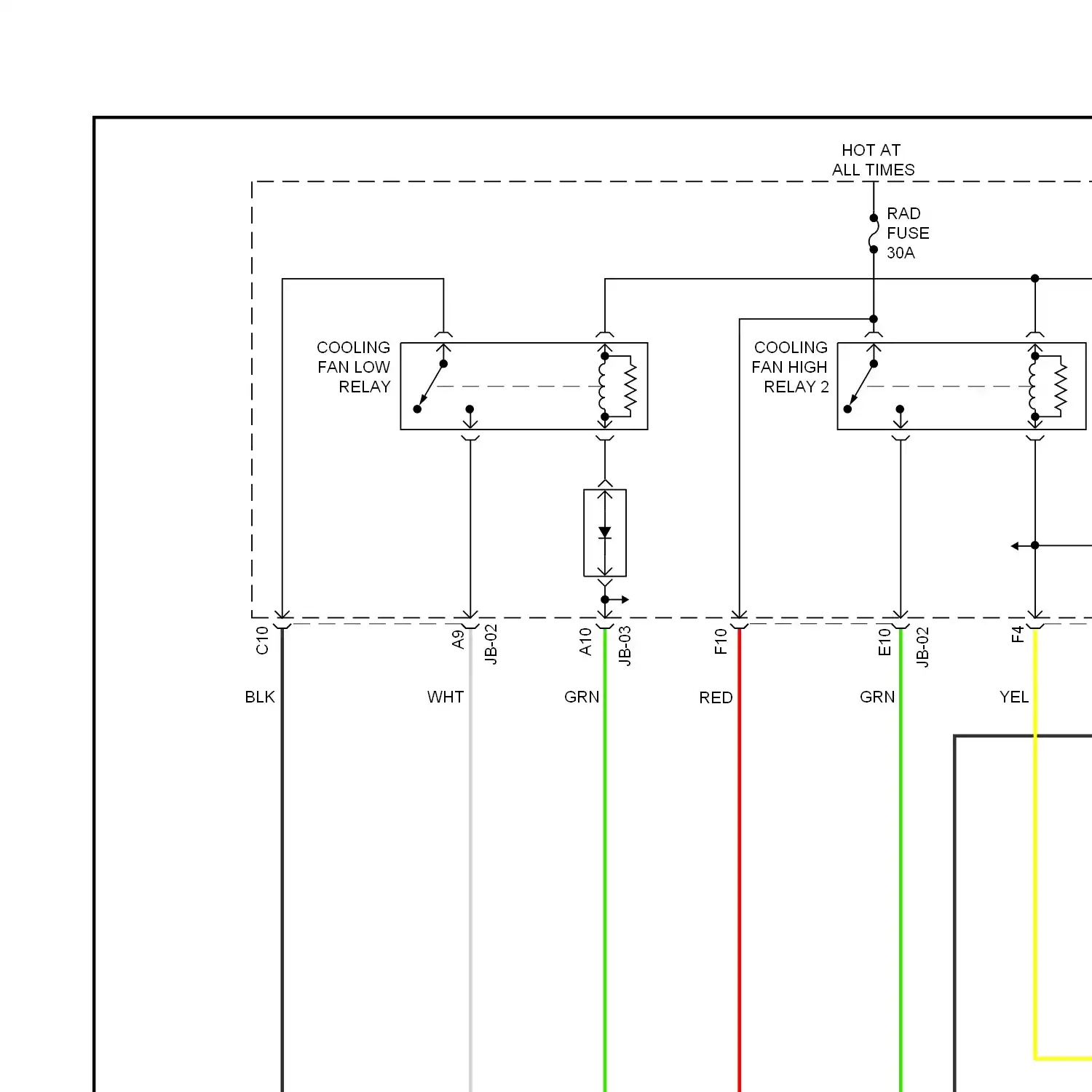

Cooling fan circuit, early production Cooling fan circuit, late production

Cruise control circuit, early production

2.4l, cruise control circuit, late production

2.7l, cruise control circuit, late production

Defoggers circuit, early production Defoggers circuit, late production with heated mirror Defoggers circuit, late production without heated mirror

Electronic power steering circuit, early production

Wiring diagram engine performance 2.4l, a/t early production Wiring diagram engine performance 2.4l, late production Wiring diagram engine performance 2.4l, m/t early production

Wiring diagram engine performance 2.7l, early production Wiring diagram engine performance 2.7l, late production

Back-up lamps circuit, early production Back-up lamps circuit, late production Exterior lamps circuit, early production Exterior lamps circuit, late production

Ground distribution circuit, early production Ground distribution circuit, late production

Headlights circuit, early production with autolamps Headlights circuit, early production with drl Headlights circuit, early production without drl Headlights circuit, late production with autolamps Headlights circuit, late production with drl Headlights circuit, late production without drl

Horn circuit, early production Horn circuit, late production

Instrument cluster circuit, early production Instrument cluster circuit, late production

Courtesy lamps circuit, early production without sunroof Courtesy lamps circuit, early production with sunroof Courtesy lamps circuit, late production Instrument illumination circuit, early production Instrument illumination circuit, late production

Parking assistant circuit

Power antenna circuit

Power distribution circuit, early production Power distribution circuit, late production

Power door locks circuit, early production Power door locks circuit, late production

Electrochromic mirror circuit, early production Electrochromic mirror circuit, late production with home link Electrochromic mirror circuit, late production without home link Power mirror circuit, early production Power mirror circuit, late production

Driver seat circuit, early production Driver seat circuit, late production Heated seats circuit, early production Heated seats circuit, late production Passenger seat circuit, early production Passenger seat circuit, late production

Power top/sunroof circuit, early production Power top/sunroof circuit, late production

Power windows circuit, early production Power windows circuit, late production

Radio circuit, early production with amplifier Radio circuit, early production without amplifier Radio circuit, late production with amplifier with cruise Radio circuit, late production with amplifier without cruise Radio circuit, late production without amplifier with cruise Radio circuit, late production without amplifier without cruise

Shift interlock circuit

Charging circuit, late production Starting circuit, a/t early production Starting circuit, late production Starting circuit, m/t early production

2.4l, charging circuit, early production

2.7l, charging circuit, early production

Supplemental restraints circuit, early production Supplemental restraints circuit, late production

2.4l, transmission circuit

2.7l, transmission circuit, early production 2.7l, transmission circuit, late production

Trunk & fuel door release circuit, early production Trunk & fuel door release circuit, late production

Tire pressure monitoring circuit Warning systems circuit, early production Warning systems circuit, late production

Front wiper/washer circuit, late production without rain sensor Front wiper/washer circuit, late production with rain sensor Wiper/washer circuit, early production

A-01 STARTER ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES SYSTEM CRUISE CONTROL SYSTEM ANTI-LOCK BRAKES SYSTEM HEADLIGHTS SYSTEM AUDIO AMPLIFIER AUTO CRUISE GROUND BATTERY TPS SIG BATTERY GROUND BATTERY GROUND INJ 2 INJ 4 BURGLAR HORN DIODE 1 DRL RESISTOR F PMP CTRL PURGE SOL IGN COIL 1 FAN RLY FAN RLY A/C REL IGN COIL 2 FROM HORN GENERATOR FR GROUND BATTERY KS SIG MAP SENS IN FTP SENS IGN COIL 6 IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 5 IGNITION COIL 5 IGNITION COIL 3 IGNITION COIL 6 IGNITION COIL SHIELD INSTRUMENT CLUSTER AMPLIFIER K-LINE GROUND GROUND GROUND MEM PWR BATTERY BATTERY LEFT HORN LOCK OFF ON LOCK ON M/T GENERATOR FR ON LOCK OFF PULSE GENERATOR PULSE GENERATOR "A" PULSE GENERATOR "B" PULSE GENERATOR "B" PULSE GENERATOR "A" IGNITION COIL 6 IGNITION COIL 4 RIGHT HORN TO IGN COIL TO IGN COIL (DIAGRAM UN UN LOCK LOCK UN- LOCK LOCK

(AT REAR OF ENGINE COMPARTMENT, ON (LEFT REAR OF ENGINE COMPARTMENT, (RIGHT FRONT OF ENGINE BLOWER MOTOR CHECK ENGINE IND CONDENSER FAN MOTOR COOLING FAN MOTOR DRIVER DOOR LOCK ACTUATOR DRIVER OUTSIDE MIRROR MOTOR, DEFOGGER ENGINE CONTROLS SYSTEM ENGINE CONTROLS SYSTEM ELECTRONIC POWER STEERING SYSTEM ENGINE CONTROLS SYSTEM TRANSMISSIONS SYSTEM CRUISE CONTROL SYSTEM ENGINE ENGINE RUNNING IP SIG ENGINE ROOM JUNCTION BOX ENGINE RUNNING IP SIG FRONT HEIGHT ADJUSTER MOTOR FUEL FILLER ACTUATOR FUEL PUMP MOTOR FUEL PUMP MOTOR SHIELD FUEL SENDER, FUEL PUMP MOTOR FUEL SENDER, FUEL PUMP MOTOR (TOP OF FUEL SENDER HIGH MOUNT STOP LIGHT FUEL LID ACTUATOR IDLE SPEED ACTUATOR LEFT POWER MIRROR MOTOR LEFT POWER MIRROR MOTOR LEFT FRONT DOOR LOCK MOTOR LEFT REAR DOOR LOCK ACTUATOR LEFT REAR DOOR LOCK MOTOR MODE ACTUATOR OF ENGINE COMPT) OF ENGINE COMPT) JB-03 PASSENGER DOOR LOCK ACTUATOR PASSENGER OUTSIDE MIRROR MOTOR, DEFOGGER PASSENGER RECLINING ADJUSTER MOTOR PASSENGER SLIDE MOTOR PCM (LEFT REAR OF ENGINE REAR HEIGHT ADJUSTER MOTOR RIGHT FRONT DOOR LOCK MOTOR RIGHT POWER MIRROR MOTOR RIGHT POWER MIRROR MOTOR LEFT POWER MIRROR MOTOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR DOOR LOCK MOTOR RIGHT REAR POWER WINDOW MOTOR SAFETY WINDOW MOTOR START MOTOR STARTING/CHARGING SYSTEM ENGINE CONTROLS SYSTEM EXTERIOR LIGHTS SYSTEM SUN-ROOF MOTOR TOP OF ENGINE) TRANSMISSIONS, ENGINE CONTROLS SYSTEMS TRUNK LID MOTOR UP POWER WINDOW MOTOR WASHER MOTOR WIPER MOTOR

ANTENNA GND ANTENNA GROUND GLASS ANTENNA GLASS ANTENNA MODULE JB-09 JB-12 GLASS ANTENNA POWER ANTENNA POWER ANTENNA SYSTEM W/O GLASS W/ GLASS ANTENNA ANTENNA

ACC SOCKET ACC SOCKET FUSE BATTERY JOINT CONNECTOR CIGAR LIGHTER ACCESSORY SOCKET DATA LINK CONNECTOR JOINT CONNECTOR JOINT CONNECTOR 15 JOINT CONNECTOR JC-05 JOINT CONNECTOR JC-06 JOINT CONNECTOR JC-07 JOINT CONNECTOR JC-08 JOINT CONNECTOR JC-14 JOINT CONNECTOR JC-15 JOINT CONNECTOR JC-17 JOINT CONNECTOR JC-18 JOINT CONNECTOR SC-01 JOINT CONNECTOR SC-02 JOINT CONNECTOR SC-06 JOINT CONNECTOR SC-07 MULTI-PURPOSE CHECK CONNECTOR MULTIPURPOSE CHECK CONNECTOR POWER CONNECTOR POWER CONNECTOR AUDIO FUSE MEMORY FUSE SHORT CONNECTOR SC-01 SHORT CONNECTOR SC-02 SHORT CONNECTOR SC-05 SHORT CONNECTOR SC-06 SOCKET FUSE A/CON FUSE

A/C CONTROL MODULE A/C CONTROL MODULE AUTOMATIC A/C A/C CONTROL MODULE POWER OUTSIDE MIRROR SWITCH ABS CONTROL MODULE ABS CONTROL MODULE PCM ATM CONTROL RELAY ENGINE/TRANSAXLE CONTROL MODULE ATM KEY LOCK CONTROL MODULE BACK WARNING CONTROL MODULE BCM ATM KEY LOCK CONTROL MODULE DRL CONTROL MODULE DRL CONTROL MODULE BLOWER RELAY ENGINE CONTROL MODULE ENGINE CONTROL MODULE ENGINE/TRANSAXLE CONTROL MODULE A/T ENGINE/ TRANSAXLE CONTROL MODULE ENGINE CONTROL MODULE ENGINE/TRANSAXLE CONTROL MODULE ESC CONTROL MODULE ESC CONTROL MODULE ABS CONTROL MODULE IMMOBILIZER CONTROL MODULE LEFT SIDE MARKER LAMP E/R JUNCTION BOX ATM CONTROL MODULE PASSENGER FOOT LAMP DRIVER FOOT LAMP A/C CONTROL MODULE SRS CONTROL MODULE SUNROOF CONTROL MODULE TIRE PRESSURE MONITORING MODULE ATM KEY LOCK CONTROL MODULE

ABS CONTROL UNIT AIR BAG CONTROL UNIT AIR CON CONTROL UNIT AIR CON SWITCH AIR CON CONTROL UNIT AUTO LIGHT CONTROL UNIT CRUISE CONTROL SWITCH EPS UNIT CRUISE CONTROL UNIT CRUISE CONTROL UNIT WASHER MOTOR AQS DRIVER DOOR LAMP PASSENGER DOOR LAMP KEY ILLUMINATION SWITCH FLASHER UNIT DRIVER POWER SEAT ABS CONTROL UNIT DRL UNIT ECU 1 FUSE ECU FUSE ECU PCU FUSE FUSE ECU RLY FUSE ECU RLY FUSIBLE LINK FLASHER UNIT FROM ECU 1 FUEL GAUGE SENDING UNIT HOT AT ALL TIMES ECU FUSE KEYLESS ENTRY UNIT KEYLESS ENTRY UNIT REAR DEFROSTER REAR DEFROSTER RIGHT POSITION DRL UNIT RIGHT HORN LAMP SAFETY WINDOW ECU SPORTS MODE SWITCH AIR CON SWITCH AIR CON CONTROL UNIT TO ECU

A/BAG FUSE A/BAG IND FUSE A/CON COMP FUSE A/CON FUSE A/CON SW FUSE A/CON SWITCH FUSE ABS 1 FUSE ABS 2 FUSE ABS 2 FUSE ATM FUSE ABS FUSE ADJ PEDAL FUSE ADJ PEDAL W/ DEICER FUSE FUSE AIR BAG FUSE TELL TAIL FUSE ALT FUSE ATM FUSE AUDIO FUSE B/UP FUSE BACK- UP FUSE ABS FUSE ABS 2 FUSIBLE LINK BACK-UP FUSE BLOWER FUSE BLOWER MTR FUSE C/ LIGHTER FUSE C/LIGHTER FUSE CLUSTER FUSE COND FUSE D/CLOCK FUSE D/LOCK FUSE DR/LOCK FUSE DRL FUSE E/R JUNCTION BOX ABS FUSE E/R JUNCTION BOX FRT FOG FUSE ECS FUSE EGR FUSE EPS FUSE ETACS FUSE F/PUMP FUSE F/PUMP FUSE H/LP HI FUSE FOG FUSE FRT FOG FUSE FUEL PUMP FUSE FUSE FUSE FUSE FUSE FUSE FUSE H/LP FUSE H/LP FUSE TO A/CON FUSE, HAZARD FUSE HEAD FUSE HEAD HI FUSE HEAD LOW FUSE HORN FUSE HOT AT ALL TIMES D/CLOCK FUSE HOT IN ON MODULE 2 FUSE HOT IN ON OR ACC AUDIO FUSE HOT IN ON OR START BACK UP LAMP FUSE HOT IN ON OR START E/R JUNCTION BACK-UP FUSE BOX I/P B+ 1 FUSE IGN 1 FUSE IGN 2 FUSE IGN COIL FUSE IGN COIL FUSE ABS FUSE INJ FUSE INJECTOR FUSE IP B+ 2 FUSE LEFT TAIL FUSE LH TAIL FUSE MAIN FUSE MEMORY FUSE MIRR HTD FUSE MODULE 1 FUSE MODULE 2 FUSE P/AMP FUSE P/SEAT LH FUSE P/SEAT RH FUSE P/WDW LH FUSE P/WDW RH FUSE P/WINDOW FUSE PCU FUSE POWER FUSE 1 POWER FUSE 2 RAD FUSE REAR HTD FUSE RH TAIL FUSE RIGHT TAIL FUSE ROOM FUSE RR HTD FUSE S/HTD FUSE S/ROOF FUSE S/WARMER FUSE SAFETY PWR FUSE SNSR 1 FUSE SNSR 2 FUSE SNSR 3 FUSE STOP FUSE STOP FUSE HAZARD FUSE STOP LAMP FUSE STOP LP FUSE SUN ROOF FUSE SUNROOF FUSE T/LID FUSE T/SIG FUSE TAIL FUSE TAIL LH FUSE TAIL RH FUSE TELL TAIL FUSE TELL TAIL FUSE A/BAG FUSE TO POWER FUSE 1 (DIAGRAM TURN CLUSTER FUSE FUSE TURN FUSE VAPS FUSE FUSE W/ DEICER FUSE WIPER FUSE

LEFT HIGH HEADLIGHT LEFT LOW HEADLIGHT RIGHT HIGH HEADLIGHT RIGHT LOW HEADLIGHT

LEFT POWER MIRROR HEATER RIGHT POWER MIRROR HEATER

ABS INDICATOR AIR BAG INDICATOR BRAKE INDICATOR CHARGE INDICATOR CHECK INDICATOR CRUISE INDICATOR DOOR AJAR INDICATOR DOOR INDICATOR FRONT FOG INDICATOR HIGH BEAM INDICATOR K-LINE ON/START INPUT HIGH LOW SRS INDICATOR CONTROL LEFT TURN INDICATOR LOW FUEL INDICATOR OIL PRESSURE INDICATOR RIGHT TURN INDICATOR SEAT BELT INDICATOR TCS OFF INDICATOR TRUNK INDICATOR

AUDIO LAMP AUDIO TRUNK ROOM LAMP DIGITAL CLOCK INSTRUMENT CLUSTER DRIVER DOOR LAMP EXTERIOR LIGHTS SYSTEM ANTI-THEFT SYSTEM HEADLIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM WIPER/WASHER SYSTEM FRONT FOG LAMP FRONT FOG LAMP IND GLOVE BOX LAMP) HEAD LAMP RLY HIGH MOUNTED STOP LAMP INSTRUMENT CLUSTER FRONT FOG LAMP INSTRUMENT CLUSTER FRONT FOG LAMP HIGH BEAM INSTRUMENT CLUSTER FRONT FOG- LAMP IND INTERIOR LIGHTS LIGHTS SYSTEM SYSTEM INTERIOR LIGHTS SYSTEM ILLU LEFT BACK-UP LAMP RIGHT BACK-UP LAMP LEFT DOOR COUR- TESY LAMP LEFT DOOR COURTESY LAMP LEFT FRONT FOG LAMP LEFT FRONT FOG LAMP RIGHT FRONT FOG LAMP LEFT FRONT TURN SIGNAL LAMP LEFT FRONT TURN SIGNAL LAMP TURN SIGNAL LAMP LEFT FRONT TURN SIGNAL, POSITION LAMP LEFT HEAD- LAMP LEFT HIGH HEAD- LAMP LEFT LICENSE LAMP LEFT LICENSE LAMP RIGHT LICENSE LAMP RIGHT TAILLAMP LEFT LOW HEAD LAMP LEFT POSITION LAMP LEFT REAR COMBINATION LAMP LEFT REAR COMBINATION LAMP LEFT BACK-UP LAMP LEFT REAR COMBINATION LAMP TAIL LEFT REAR COMBINATION LAMP TURN LAMP LEFT REAR TURN SIGNAL LAMP LEFT SIDE MARKER LAMP LEFT SIDE MARKER LAMP LEFT POSITION LAMP LEFT SUN- VISOR LAMP LEFT SUNVISOR LAMP LEFT TAIL LAMP LEFT LICENSE LAMP LEFT TAIL LAMP LEFT VANITY LAMP MAP LAMP MAP LAMP ON OFF MAP LAMP ROOM LAMP OVERHEAD CONSOLE PASSENGER DOOR LAMP PASSENGER FOOT LAMP RIGHT DOOR COUR- TESY LAMP RIGHT FRONT FOG LAMP RIGHT FRONT FOG LAMP LEFT FRONT FOG LAMP RIGHT FRONT TURN SIGNAL LAMP RIGHT FRONT TURN SIGNAL LAMP TURN SIGNAL LAMP RIGHT FRONT TURN SIGNAL, POSITION LAMP RIGHT HEAD- LAMP RIGHT HIGH HEAD LAMP RIGHT LEFT SUNVISOR LAMP SUNVISOR LAMP RIGHT LICENSE LAMP RIGHT LICENSE LAMP TAIL LAMP STOP LAMP RIGHT LOW HEAD LAMP RIGHT POSITION LAMP RIGHT REAR COMBINATION LAMP RIGHT REAR COMBINATION LAMP RIGHT BACK- UP LAMP RIGHT REAR COMBINATION LAMP TURN LAMP RIGHT REAR TURN SIGNAL LEFT TAILLAMP LAMP RIGHT SIDE MARKER LAMP RIGHT SIDE MARKER LAMP LEFT SIDE MARKER LAMP RIGHT SUN- VISOR LAMP RIGHT SUNVISOR LAMP ROOM LAMP MAP LAMP OVERHEAD CONSOLE RIGHT TAIL LAMP RIGHT TAIL LAMP RIGHT LICENSE LAMP RIGHT VANITY LAMP ROOM LAMP ROOM LAMP DRIVER FOOT LAMP ROOM LAMP LEFT SUN- VISOR LAMP ROOM LAMP ROOM GROUND STOP LAMP STOP LAMP POWER SIGNAL STOP LAMP SW TAIL LAMP TAIL LAMP IND TAIL LAMP STOP LAMP TRANSMISSIONS SYSTEM EXTERIOR LIGHTS SYSTEM TRUNK ROOM LAMP TURN LAMP TAIL LAMP STOP LAMP UD N INPUT UP SW STP LAMP SW O/T

FUEL PUMP FUEL PUMP FUEL TANK

A/C RELAY A/T CONTROL RELAY A/T RELAY GROUND ACC/ON GROUND PARKING VEHICLE SPD PEDAL RELAY AIR CON RELAY AMPLIFIER SUNROOF RELAY ATM CONTROL RELAY BLOWER RELAY BURGLAR ALARM RELAY BURGLAR HORN RELAY CONDENSER FAN HIGH RELAY 1 CONDENSER FAN HIGH RELAY 2 CONDENSER FAN LOW RELAY COOLING FAN HIGH RELAY 1 COOLING FAN HIGH RELAY 2 COOLING FAN LOW RELAY DATA LINK CONNECTOR BURGLAR ALARM RELAY DOOR LOCK RELAY DOOR LOCK RELAY DOOR UNLOCK RELAY DOOR UNLOCK RELAY DOOR UNLOCK RELAY DOOR LOCK RELAY ECM CONTROL RELAY ECM RELAY ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE ENGINE COMPARTMENT FUSE/RELAY BOX (AT LEFT SIDE MAIN FUSE ENGINE CONTROL RELAY FRONT FOG LAMP RELAY FRONT FOGLAMP RELAY FUEL PUMP RELAY FUEL PUMP RELAY (BEHIND RIGHT FUSE/RELAY BOX COOLING FAN LOW RELAY WIPER RELAY HAZARD RELAY HAZARD SWITCH HEADLIGHT HIGH RELAY HEADLIGHT LOW RELAY HIGH BLOWER RELAY HIGH BLOWER RELAY AIR CON SWITCH HIGH RELAY HORN RELAY HORN RELAY ATM CONTROL RELAY HOT W/ ENGINE CONTROL RELAY ENERGIZED ICM RELAY BOX ICM RELAY BOX (LEFT SIDE INSTRUMENT CLUSTER BURGLAR ALARM RELAY CLUTCH SWITCH LOW RELAY MAIN RELAY MAIN RELAY (BEHIND RIGHT SIDE OF DASH PASSENGER POWER SEAT ADJUSTER SWITCH TWO TURN UNLOCK RELAY PNK TRUNK LID RELAY WIRE POWER WINDOW RELAY REAR DEFOGGER RELAY REAR DEFOGGER RELAY CTRL REAR DEFROSTER RELAY SEAT WARMER RELAY SPEED SIG A/C RELAY CONTROL FAN RLY CTRL CRUISE IND CRUISE IND CCV MIL IND SPORT MODE SWITCH KEY SOLENOID WINDSHIELD DEFOGGER RELAY START RELAY STARTER RELAY SUN ROOF RELAY SUNROOF RELAY TAIL LAMP RELAY TAIL LAMP RELAY CONTROL OUTPUT TAILLAMP RELAY TRUNK LID RELAY TRUNK LID RELAY FUEL/TRUNK LID SWITCH TWIN RELAY TWO TURN UNLOCK RELAY TWO TURN UNLOCK RELAY ADJUSTABLE PEDAL RELAY WINDSHIELD DEFOGGER RELAY WINDSHIELD DEFOGGER RELAY CTRL WIPER RELAY

ABS CONTROL UNIT IGNITION COIL IGNITION FAILURE SENSOR ACTIVE INCAR, HUMIDITY SENSOR AMBIENT TEMPERATURE SENSOR APS 2 SUPPLY SENSOR SUPPLY AUTO LIGHT SENSOR BRAKE FLUID LEVEL SENSOR BRAKE FLUID LEVEL SENSOR LEFT HORN LEFT FRONT FOG LAMP BUCKLE SENSOR CAM SENSOR CAMSHAFT POSITION SENSOR 2 (ON REAR OF CAMSHAFT POSITION SENSOR CRANKSHAFT POSITION SENSOR KNOCK SENSOR CRANKSHAFT POSITION SENSOR ECT SENSOR ETC MOTOR, THROTTLE POSITION SENSOR FUEL PUMP RELAY SENSOR 4 FUEL TEMPERATURE SENSOR G SENSOR SIG IGNITION FAILURE SENSOR IGNITION COIL 1 KNOCK SENSOR SHIELD SENSOR 2 SHIELD SENSOR 1 SHIELD LEFT FRONT WHEEL SPEED SENSOR (ON LEFT FRONT STEERING LEFT REAR WHEEL SPEED SENSOR MAP SENSOR (ON INTAKE MASS AIR FLOW SENSOR MASS AIR FLOW SENSOR IGNITION COIL SHIELD PCM SHIELD PCM MASS AIR FLOW SENSOR KNOCK SENSOR SHIELD OIL TEMP SENSOR OXYGEN SENSOR OXYGEN SENSOR OXYGEN SENSOR PASSENGER OC SENSOR PASSENGER PRESENCE DETECTION SENSOR PASSENGER PRESENCE DETECTION SENSOR AIR BAG CONTROL UNIT PASSENGER SEAT TRACK POSITION SENSOR PURGE SOLENOID VALVE CAMSHAFT POSITION SENSOR RAIN SENSOR RAIN SENSOR RELAY SEAT WARMER RELAY RAIN SENSOR RELAY SENSOR 1 SENSOR 2 SENSOR 3 SENSOR 1 SENSOR 2 SENSOR FUSE SENSOR GND SENSOR GND SENSOR GND SENSOR GND SENSOR GND SENSOR GROUND A/C PRESSURE SPEED SENSOR SPEED SENSOR EPS UNIT STEERING ANGLE SENSOR THROTTLE POSITION SENSOR VEHICLE SPEED SENSOR VEHICLE SPEED SENSOR STOP LAMP SWITCH WASHER LEVER SENSOR YAW SENSOR SIG

DRIVER DOOR SPEAKER DRIVER TWEETER SPEAKER LEFT FRONT DOOR SPEAKER LEFT REAR DOOR SPEAKER LEFT REAR SPEAKER LEFT TWEETER SPEAKER PASSENGER DOOR SPEAKER PASSENGER DRIVER DOOR DOOR SPEAKER SPEAKER PASSENGER PASSENGER DOOR TWEETER SPEAKER SPEAKER PASSENGER TWEETER SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT REAR DOOR SPEAKER RIGHT REAR SPEAKER RIGHT TWEETER SPEAKER WOOFER SPEAKER

76 25 BATTERY VOLTAGE CRUISE CONTROL SWITCH ADJUSTABLE PEDAL SWITCH AIR CON SWITCH AUDIO CRUISE CONTROL SWITCH AUTO SWITCH BACK-UP LIGHT SWITCH BLOWER SWITCH BRAKE SWITCH CAN LOW GROUND SELF TEST CLOCKSPRING/ COMBINATION SWITCH CLUTCH SWITCH COMB- INATION SWITCH COMB- INATION SWITCH LO HI PASS COMBINATION SWITCH COMBINATION SWITCH LO HI COMBNATION SWITCH CRUISE CONTROL SWITCH CRUISE REMOTE CONTROL SWITCH DEFOGGER SWITCH DIMMER, PASSING SWITCH DOOR LOCK SWITCH DOOR SWITCH DOOR SWITCH DOOR SWITCH DOOR SWITCH TRUNK SWITCH HOOD SWITCH DOWN SHIFT UP SHIFT SELECT SWITCH DRIVER BUCKLE SWITCH DRIVER DOOR UNLOCK SWITCH DRIVER POWER SEAT ADJUSTER SWITCH DRIVER RECLINING LIMIT SWITCH DRIVER SEAT BUCKLE SWITCH DRIVER SEAT MANUAL SWITCH DRIVER SEAT WARMER SWITCH DRIVER WINDOW SWITCH ESC SWITCH ESC SWITCH ON GROUND SIGNAL SIGNAL GROUND ABS, ESC SOL F-10 COMBINATION SWITCH F-11 CLOCKSPRING COMBINATION SWITCH FOG LAMP SWITCH FRONT FOG LAMP SWITCH FRONT FOG- LAMP SWITCH OFF FUEL FILLER DOOR, TRUNK LID SWITCH FUEL/TRUNK LID SWITCH GLOVE BOX SWITCH HAZARD SWITCH HEAD- LAMP SWITCH HORN SWITCH HTD SWITCH IGNITION LOCK SWITCH IGNITION LOCK SWITCH TRANSAXLE RANGE SWITCH IGNITION SWITCH ILLUM- INATION SWITCH ILLUMINATION SWITCH INPUT ILL- GATE DRAIN F/B F/B F/B SENS+ MOTOR+ SIG SWITCH GND INSTRUMENT CLUSTER MULTI- FUNCTION SWITCH BCM JB-01 AIR CON SWITCH KEY ILLUMINATION SWITCH LEFT AUDIO REMOCON SWITCH LEFT FRONT DOOR KEY UNLOCK SWITCH LEFT REAR POWER WINDOW SWITCH LEFT REAR WINDOW SWITCH LEFT SEAT WARMER SWITCH LEFT SEAT WARMER SWITCH ATM ILLUMINATION LEFT SEAT WARMER SWITCH RIGHT SEAT WARMER SWITCH LEFT VANITY LAMP SWITCH LEFT/ RIGHT SWITCH RIGHT LIGHT SWITCH LIMIT SWITCH MIST SWITCH MULTI- FUCTION SWITCH MULTI- FUNCTION SWITCH MULTI- FUNCTION SWITCH BACK WARNING BUZZER MULTI- FUNCTION SWITCH LIGHT SWITCH PARK OFF HEAD MULTI- FUNCTION SWITCH TURN SIGNAL SWITCH MULTI-FUNCTION SWITCH INSTRUMENT CLUSTER MULTIFUNCTION SWITCH MULTIFUNCTION SWITCH CLOCK SPRING P INPUT R INPUT N INPUT D INPUT SELECT SWITCH UP SHIFT DOWN SHIFT PANEL LIGHT CONTROL SWITCH PARKING POSITION SWITCH ATM SOLENOID PASSENGER BUCKLE SWITCH PASSENGER DOOR UNLOCK SWITCH PASSENGER DOOR UNLOCK SWITCH UL PASSENGER POWER SEAT ADJUSTER SWITCH PASSENGER POWER SEAT SEAT BELT SWITCH PASSENGER POWER WINDOW SWITCH PASSENGER RECLINING LIMIT SWITCH PASSENGER SEAT BUCKLE SWITCH PASSENGER SEAT WARMER SWITCH PASSENGER SLIDE LIMIT SWITCH PASSENGER WINDOW SWITCH POWER MIRROR SWITCH POWER OUTSIDE MIRROR SWITCH POWER SEAT MANUAL SWITCH POWER WINDOW MAIN SWITCH POWER WINDOW MAIN SWITCH RIGHT FRONT POWER WINDOW SWITCH REAR DEFOGGER SWITCH IP RIGHT AUDIO REMOCON SWITCH RIGHT CRUISE REMOCON SWITCH RIGHT FRONT DOOR KEY UNLOCK SWITCH RIGHT FRONT DOOR SWITCH (ON RIGHT RIGHT FRONT POWER WINDOW SWITCH RIGHT REAR DOOR SWITCH (ON RIGHT RIGHT REAR POWER WINDOW SWITCH RIGHT REAR WINDOW SWITCH RIGHT SEAT WARMER SWITCH RIGHT VANITY LAMP SWITCH RIGHT VANITY LAMP SWITCH ROOM LAMP SAFETY WINDOW MOTOR DRIVER SEAT MANUAL SWITCH PASSENGER SEAT MANUAL SWITCH SELECT SWITCH SELECTOR SWITCH RIGHT SLIDE ADJUSTER LIMIT SWITCH SPORT MODE SWITCH SPORTS MODE SWITCH STOP LAMP SWITCH STOP LIGHT SWITCH STOPLIGHT SWITCH SUN ROOF SWITCH SWITCH INPUT TCS SWITCH TCS SWITCH PANEL LIGHT CONTROL SWITCH GLOVE BOX LAMP HAZARD SWITCH TEMP SWITCH TEMPERATURE SWITCH TRANSAXLE RANGE SWITCH (TOP OF TRANSAXLE RANGE SWITCH BACK-UP LAMP SWITCH TRIP MODE SWITCH TRUNK LID SWITCH TRUNK ROOM LAMP SWITCH TRUNK UNLOCK SWITCH LEFT TAILLAMP TURN SWITCH UP/ DOWN SWITCH W/ D/LOCK SWITCH W/O D/LOCK SWITCH W/ DOOR LOCK SWITCH W/ IGN LOCK SWITCH W/ IGNITION LOCK SWITCH W/O DOOR LOCK SWITCH W/O IGN LOCK SWITCH W/O IGNITION LOCK SWITCH WARMER LIMIT SWITCH WASHER SWITCH WIND- SHIELD DEFOGGER SWITCH WINDOW LOCK SWITCH WINDSHIELD DEFOGGER SWITCH WIPER SWITCH

1 2 3 4 5 6 7 8 SOLENOID CTRL SOLENOID CTRL 2.4L 2.7L CANISTER CLOSE VALVE ATM SOLENOID EGR SOLENOID OIL CONTROL VALVE 1 RIGHT TAILLAMP TRUNK LID SOLENOID VARIABLE INTAKE MANIFOLD VALVE 2

1 1 2 2 3 3 PNK PNK WIRE 1 2 3 4 5 6 7 8 9 10 PNK MEMORY POWER ACTIVE RH TURN SW LF TURN SW GROUND WIRE 1 2 3 4 5 6 7 8 PNK WIRE 1 2 3 4 5 6 PNK WIRE 1 2 3 PNK WIRE 1 8 PNK WIRE 3 5 PNK WIRE 3 JB-13 PNK WIRE 6 7 PNK WIRE 6 58 MEMORY POWER CRUISE CONTROL SWITCH PNK WIRE 7 8 9 PNK WIRE 8 9 PNK PNK WIRE 10 11 12 13 14 15 16 17 PNK WIRE 12 11 10 6 5 4 3 2 1 PNK WIRE 14 15 PNK WASHER SIG INT WIRE 15 16 PNK WIRE (OR RED/ WIRE BLK WIRE BLK/ORG WIRE BLU ORG WIRE BLU WIRE BLU/BLK WIRE BLU/GRN WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT GRN/WHT WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/ORG WIRE BRN/WHT WIRE GRN ORG/ WIRE GRN WIRE GRN/BLK BLK WIRE GRN/BLK WIRE GRN/ORG WIRE GRN/RED WIRE GRN/WHT WIRE GROUND BATTERY PNK B-01 WIRE GRY WIRE GRY/BLK WIRE GRY/ORG WIRE I/P-A PNK WIRE I/P-C PNK WIRE IGN COIL 1 IGN COIL 2 PNK WIRE JB-03 PNK PNK WIRE JB-03 PNK WIRE JB-06 PNK WIRE JB-07 PNK WIRE JB-08 PNK JB-01 WIRE JB-09 PNK WIRE JB-11 PNK WIRE JB-14 PNK WIRE LT BLU WIRE LT GRN WIRE LT GRN/BLK WIRE LT GRN/WHT WIRE MODULE PNK WIRE NCA WIRE ORG/ BLU WIRE ORG/ WIRE ORG/BLK WIRE P INPUT MODE SW PULSE GEN A PULSE GEN B PNK WIRE PNK 1 2 3 4 WIRE PNK 1 2 WIRE PNK 2 1 3 WIRE PNK 2.4L 2.7L 2.4L WIRE PNK 2.7L PNK PNK WIRE PNK 3 5 WIRE PNK 4 5 WIRE PNK 6 7 8 WIRE PNK 7 8 WIRE PNK 9 10 11 12 13 14 WIRE PNK 11 12 13 14 15 16 17 18 19 WIRE PNK 16 17 18 19 20 21 WIRE PNK 20 21 WIRE PNK 23 24 WIRE PNK (OR WIRE PNK A/T M/T WIRE PNK ABS CONTROL K LINE WIRE PNK ABS IND CTRL WIRE PNK APS 2 SIGNAL APS 2 GROUND AFS WIRE PNK E-01 WIRE PNK FTP SENS K-LINE DIAG WIRE PNK FUEL LVL WIRE PNK GEN FR A/C PRES WIRE PNK I/P-K WIRE PNK IGNITION GROUND GROUND OD DCC WIRE PNK IGNITION GROUND GROUND WIRE PNK INTERIOR LIGHTS SYSTEM WIRE PNK JB-05 WIRE PNK JB-07 WIRE PNK JB-08 WIRE PNK JB-10 WIRE PNK LR 5 SPEED TM UD BATT VOLTAGE BATT VOLTAGE PWM SIGNAL WIRE PNK LR DATA WIRE PNK LR OD WIRE PNK ON/START INPUT STOP LAMP WHEEL SPEED CAN HIGH WIRE PNK PNK 10 11 WIRE PNK PNK PNK 7 8 9 WIRE PNK PNK PNK PNK PNK 2 3 4 5 6 7 8 WIRE PNK PNK PNK PNK PNK PNK PNK 1 2 3 4 5 6 7 8 9 WIRE PNK PNK PNK PNK PNK PNK PNK 1 2 3 4 5 6 7 8 WIRE PNK PNK PNK PNK WIRE PNK PNK PNK WIRE PNK PNK WIRE PNK PULSE GEN A WIRE PNK SC-06 WIRE PNK SIGNAL WIRE PNK TRUNK ID RLY CTRL WIRE PNK WIRE PNK/BLK WIRE POWER TOPS PNK SYSTEM PNK JB-14 WIRE R INPUT D INPUT UP SHIFT PNK WIRE RED WIRE RED/ BLK WIRE RED/BLK WIRE RED/GRN WIRE RED/ORG WIRE RED/WHT WIRE RED/YEL WIRE STN PNK PNK WIRE TAN WIRE WHT WIRE WHT/BLK WIRE WHT/ORG WIRE WINDSHIELD DEFOGGER SWITCH PNK WIRE YEL WIRE YEL/BLK WIRE YEL/ORG WIRE YEL/RED WIRE YEL/WHT WIRE

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 GEN A GEN B 1 JB-07 1 N-03 1 Q-01 2 1 W/ CRUISE CONTROL W/O CRUISE CONTROL 2 3 4 5 DEFOGGER RLY PWR WIN RLY CTRL 2 4 6 3 1 LAR G GND SELF TEST VCC YAW RATE 2.4L 2.4L 2.7L 6 76 2.4L 2.7L 61 15 2.4L A/T 2.7L 2 3 2.7L 2 3 4 5 6 7 8 9 10 11 12 2.7L 2.4L A/T 2.4L M/T 4 OF 5) 6 3 2 5 4 ON/START 6 12 I/P-C I/P-E 6 50 34 TRANSMISSIONS SYSTEM 7 8 9 10 11 12 DR UNLK RLY CTRL 10 10 JB-10 JB-10 10 JB-06 10 JB-10 14 JB-09 201-2 "B" PILLAR) "C" PILLAR) (DIAGRAM (OR (OR (OR A-01 A-02 A/BAG IND A/C COMPRESSOR A/C PRES A/C REQ SW A/C SIG A/T LCD ILL IND A/T LCD ILLUMINATION A/T M/T ABS 1 FUSIBLE LINK ABS 2 FUSIBLE LINK ABS IND. ACC/ON INPUT ADJUSTABLE PEDAL AIR CONDITIONING AIR CONDITIONING SYSTEM AIR CONDITIONING SYSTEM COOLING FANS SYSTEM AIR FLOW SENS CMP SENS SENS GROUND P/N INPUT AIR TEMP SENS ALT FUSIBLE LINK ANALOG FUEL LEVEL IN FUEL TANK PRESSURE K LINE A/C COMP SW ANTI-THEFT SYSTEM ANTILOCK BRAKES SYSTEM ASHTRAY ILL ASHTRAY ILLUM ATM CTRL RLY ATM ILLUM AUDIO BCM AUTO HI OFF AUTO OFF HI AUTO UP AUTO DOWN AUTO UP/DOWN CONTROLLER AUTOMATIC A/C AUTOMATIC A/C MANUAL A/C B-01 B-01 INSTRUMENT CLUSTER SYSTEM B/ALARM RLY CTRL BCM (UNDER LEFT BLOWER FUSIBLE LINK BODY COMPUTER SYSTEM BRAKE IND BRAKE SW BUZZER RX TX TX BACKUP GND C-01 C-01 INSTRU- MENT CLUSTER CAN CLOSE CAN HIGH CAN LOW CHARGE IND CHARGING STARTING/CHARGING SYSTEM SYSTEM CHIME BUZZER CIGAR LIGHTER CIGARETTE LIGHTER CKP SIGNAL CLOCK- SPRING CLOSED WITH BRAKE PEDAL DEPRESSED OPEN WITH BRAKE PEDAL DEPRESSED CLUTCH IN CMP SENS CKP SENS COMM HI COMM LO P INPUT N INPUT SPORT SW DWN SHFT STOP SW COMPRESSOR) COMPT) COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM COMPUTER DATA LINES SYSTEM AIR CONDITIONING SYSTEM COND FUSIBLE LINK COOL WARM F/B VENT DEF F/B FRE REC F/B GND GND COOLING FANS SYSTEM COOLING FANS SYSTEM AIR CONDITIONING SYSTEM COOLING FANS SYSTEM COOLING FANS SYSTEM AIR CONDITIONING SYSTEM COURTESY LAMPS CIRCUIT CPS HIGH CRUISE CLUTCH PEDAL POSITION CRUISE CONTROL SYSTEM CRUISE CONTROL SYSTEM HEADLIGHTS SYSTEM CRUISE CONTROLS SYSTEM CRUISE IND CRUISE MAIN CRUISE SET IND CRUISE SW CRUISE SW GND CYL 1& 4 D INPUT D-01 DCC R INPUT SELECT SW DOWN SW DCC VFS GROUND DEFOGGER SYSTEM DEFOGGER SYSTEM POWER WINDOWS SYSTEM DELAY CONTROL DIAGNOSIS VSS INPUT ON INPUT GROUND DIGITAL CLOCK DIGITAL CLOCK RHEOSTAT DOOR AJAR IND DOOR DOOR LOCKS LOCKS SYSTEM SYSTEM DOOR LOCKS SYSTEM DOOR LOCKS SYSTEM ANTI-THEFT SYSTEM DOOR LOCKS SYSTEM UL 4 7 DOWN 1 4 DOWN 1 4 5 10 DOWN SHIFT DOWN UP DOWN/ LEFT DRIVER AIR BAG DRIVER AIRBAG DRIVER CURTAIN AIRBAG DRIVER RECLINING DRIVER RECLINING DRIVER SEAT DRIVER CUSHION WARMER MODULE WARMER DRIVER SEAT TRACK POSITION DRIVER SIDE DRIVER SLIDE E-01 E/R JUNCTION BOX ECM MIRROR EGR SOL ELECTRONIC CHROME MIRROR ELECTRONIC CHROME MIRROR CONTROL ELECTRONIC POWER STEERING SYSTEM ELECTRONIC POWER STEERING, INSTRUMENT CLUSTER SYSTEMS EPS + EQ SEL ESC CONTROL ESC IND ESC OFF CONTROL ESC CONTROL YAW POWER POWER ESC OFF IND ESC OFF IND ESC IND ETC MTR SIG F PMP CTRL A/C REL MIL CTRL SPARK TIMING INJ 3 F-10 F-11 FAN RLY FAN RLY FLASH SOURCE FROM BLOWER FROM SNSR 1 FROM SNSR 2 FROM SNSR 3 FROM WIPER FRONT FOG IND FRONT HEIGHT FRONT HEIGHT ADJUSTER (BELOW FRONT POWER OUTLET FUEL FILLER FUEL GAUGE FUEL INJ + FUEL INJECTORS FUEL LEVEL FUEL SENDER FUEL TANK FUEL TEMP KS SIG FLASH SOURCE MEM PWR GEN FR INJ 2 GEN G GROUND CRASH OUTPUT GROUND GROUND ATM CTRL GROUND SENS GND HAZARD SW STOP SW HEAD AUTO HEADLIGHTS SYSTEM HEADLIGHTS SYSTEM DOOR LOCKS SYSTEM HI LO HI OFF LO INT HI-BEAM IND HIGH BEAM HIGH BEAM IND HIGH HIGH FLASH FLASH HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW HIGH LOW OC HIGH HIGH MOUNTED HIGH MOUNTED STOP LIGHT HL 1 HL 2 HL 3 HOME LINK HOME LINK OVERHEAD CONSOLE HOOD SW HOT AT ALL TIMES HOT AT ALL TIMES AM HOT IN HOT IN ACC OR ON HOT IN HOT AT ON OR START ALL TIMES HOT IN ON HOT IN ON OR ACC HOT IN ON OR START HOT IN ON, START I-01 I/P JUNCTION I/P JUNCTION BOX I/P JUNCTION BOX (LEFT END I/P-A I/P-B I/P-C I/P-D I/P-E I/P-E I/P-A I/P-F I/P-G I/P-J I/P-J I/P-E I/P-K I/P-L IGN 2 FUSIBLE LINK IGN CTRL IGN FAIL SENS IGNITION ECT SENS TP SENS AIR FLOW SEN VSS IN ILL CONTROL SEAT BELT IND GROUND ILLUM ILLUM IMMOBILIZER IND IND IND IND IND DATA INJ 1 INJ 3 INJ 1 INJ 4 INJECTOR 1 INJECTOR 2 INJECTOR 3 INJECTOR 5 INJECTOR 4 INJECTOR 4 INJECTOR 1 INJECTOR 2 INJECTOR 3 INJECTOR 6) INPUT INPUT ILL- INSTRUMENT CLUSTER INSTRUMENT CLUSTER DIGITAL CLOCK INSTRUMENT CLUSTER MIL IND INSTRUMENT CLUSTER SYSTEM INSTRUMENT CONTROL INT TIME J/C 05 J/C 06 J/C 14 J/C 15 J/C SC-01 J/C SC-03 J/C-06 J/C-05 J/C-07 J/C-08 J/P-J J/P-K JB-01 JB-02 JB-03 JB-03 JB-01 JB-03 JB-02 JB-04 JB-05 JB-06 JB-06 JB-08 JB-06 JB-11 JB-07 JB-07 JB-14 JB-08 JB-08 POWER DISTRIBUTION SYSTEM JB-09 JB-09 JB-13 JB-09 MANUAL A/C JB-10 JB-11 JB-11 JB-13 JB-12 JB-13 JB-13 12 JB-08 JB-13 JB-10 JB-13 JB-11 JB-14 JB-15 JB-16 JC-07 JC-08 JC-17 JC-18 JE-01 JOINT CONNCTOR JC-15 K LINE K-LINE DIAG KNUCKLE) LCD DRIVER LEFT "C" PILLAR) LEFT FRONT FOGLAMP LEFT FRONT FOGLIGHT LEFT HEADLAMP LEFT HIGH HEADLAMP LEFT HIGH HEADLAMP LEFT LOW HEADLAMP LEFT LOW HEADLAMP LEFT RIGHT LEFT SEAT WARMER LEFT TURN IND LO HI LO HI PASS LO HI PASS PASS LO INT LO INT HI OFF LO INT OFF HI LO LO HI PASS HI PASS LOW FLASH LOW FLASH HIGH LOW FUEL IND LOW HIGH HIGH FLASH LOW LOW LOW LOW LOW FLASH HIGH HIGH HIGH FLASH FLASH LOW WASHER IND LR DCC M/T A/T MAF SENS GRD MAF SIGNAL MANIFOLD) MANUAL A/C MANUAL A/C AUTOMATIC A/C MANUAL OFF MAP SIGNAL MEM PWR MEM PWR B-01 MEMORY POWER MICRO COMPUTER MICRO CONTROLLER MIL CTRL P/S SW RLY CTRL MIL IND MIRRORS SYSTEM MULTI- FUNCTION MULTIPURPOSE CHECK N INPUT NC NO NO NC OF DASH) OFF AUTO OFF AUTO AUTO OFF DOWN OFF LO AUTO OFF ON DOOR OFF ON DOOR OFF OIL PRESSURE IND OIL TEMP SENS OIL TEMP SENS SENS GROUND PULSE GEN B ON INPUT ON OFF ON ON OFF OFF ON/START IN ON/START INPUT OPENING CLOSING GROUND OVERHEAD CONSOLE P INPUT PARK HEAD PARK HEAD OFF PARK OFF PARK OFF AUTO PARK OFF HEAD PASSENGER AIR BAG PASSENGER CURTAIN AIRBAG PASSENGER CUSHION WARMER PASSENGER RECLINING WARMER PASSENGER SEAT PASSENGER SEAT WARMER MODULE PASSENGER'S SEAT) PCSV CNTRL POWER DISTRIBUTION SYSTEM POWER MEMORY POWER POWER POWER POWER GROUND POWER SUPPLY POWER TRANSISTOR POWER WINDOWS SYSTEM PURGE SOL CCV R INPUT RAD FUSIBLE LINK REAR DEFROSTER REAR HEIGHT REAR HEIGHT ADJUSTER REAR POWER OUTLET REAR POWER OUTLET FRONT POWER OUTLET REAR WINDOW DEFOGGER REAR WINDOW DEFOGGER REAR WINDOW DEFOGGER RESET+ RESUME/ ACCEL REVERSE INPUT RHEO GROUND RIGHT FRONT FOGLAMP RIGHT FRONT FOGLIGHT RIGHT HIGH HEADLAMP RIGHT LOW HEADLAMP RIGHT SEAT WARMER RIGHT STOP LIGHT LEFT STOP LIGHT RIGHT TURN IND RLY CTRL RR HTD FUSIBLE LINK RX RX RX TX TX SAFETY PWR ECS/ RR FOG P/SEAT LH P/SEAT RH SC-01 SC-04 SC-05 SC-06 SC-07 SEAT BELT IND SEAT BELT/ KEY OPERATING WARNING SEATS SYSTEM SEEK DOWN SEEK UP SELECT SW SENS GRND OIL TEMP SENS PULSE SET/ COAST SET/ COAST RESUME/ ACCEL SHIELD GND SHIFT INTERLOCK SYSTEM SIDE OF DASH) SIGNAL POWER GROUND ABS, TCS SOL SIGNAL SIGNAL GROUND SLIDE ADJUSTER SLIDE OPEN SLIDE CLOSE SPEEDO- METER TACHO- METER SPORT MODE SRS IND ST SIG AIR TEMP MAP SENS FUEL LVL STARTING/ CHARGING STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING ANGLE STEERING WHEEL) STOP SIG ATM KEY SUPPLEMENTAL RESTRAINTS SYSTEM SW INPUT TCS OFF IND TELL TAIL TELL TALE TEMP GAUGE TEMP HOT IND TEMP LCD FUEL LCD TILT UP TILT DOWN TIRE PRESSURE MONITORING MODULE TO D/CLOCK TO MEMORY TO S/WARMER TO SNSR 1 TO SNSR 3 (DIAGRAM TO SPARK PLUGS TPMS IND TPS 1 GROUND TPS 1 POWER TPS 1 SIGNAL TPS 2 SUPPLY TRANSAXLE ASSEMBLY) TRANSMISSIONS SYSTEM TRIP METER ODO METER TRUNK AJAR TRUNK AJAR IND TRUNK AJAR IND DOOR AJAR IND TRUNK IND TRUNK LID TRUNK, TAILGATE, FUEL DOORS SYSTEM TRUNK, TAILGATE, FUEL DOORS SYSTEM STARTING/CHARGING SYSTEM UN LK SW UP OFF UP SHIFT UP/ RIGHT VCC DIRECTION PULSE SENS GND VOL DOWN VOL UP VSS INPUT W/ ABS W/ AUTOMATIC A/C W/ B/ALARM W/ BURGLAR ALARM W/ CRUISE CONTROL W/ CRUISE W/O CRUISE W/ DRL W/ ESC W/ ESC W/ ABS W/ HOME LINK W/ HOMELINK W/ IMMOBILIZER W/O IMMOBILIZER W/ MANUAL A/C W/O ABS W/O B/ALARM W/O BURGLAR ALARM W/O CRUISE CONTROL W/O DRL W/O ESC W/O HOMELINK W/O SUN ROOF W/O SUN ROOF W/ SUN ROOF WARNING SYSTEM WARNING SYSTEM SUPPLEMENTAL RESTRAINTS SYSTEM WINDSHIELD DEFOGGER WIPER CONTROL WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM WIPER/WASHER SYSTEM DOOR LOCKS SYSTEM DOOR LOCKS SYSTEM X-02
