Kia Optima I (2000-2002) right door unlock switch wiring diagram
This page shows the only wiring diagram for the component.right door unlock switch, which is found in the car Kia Optima I (2000-2002). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

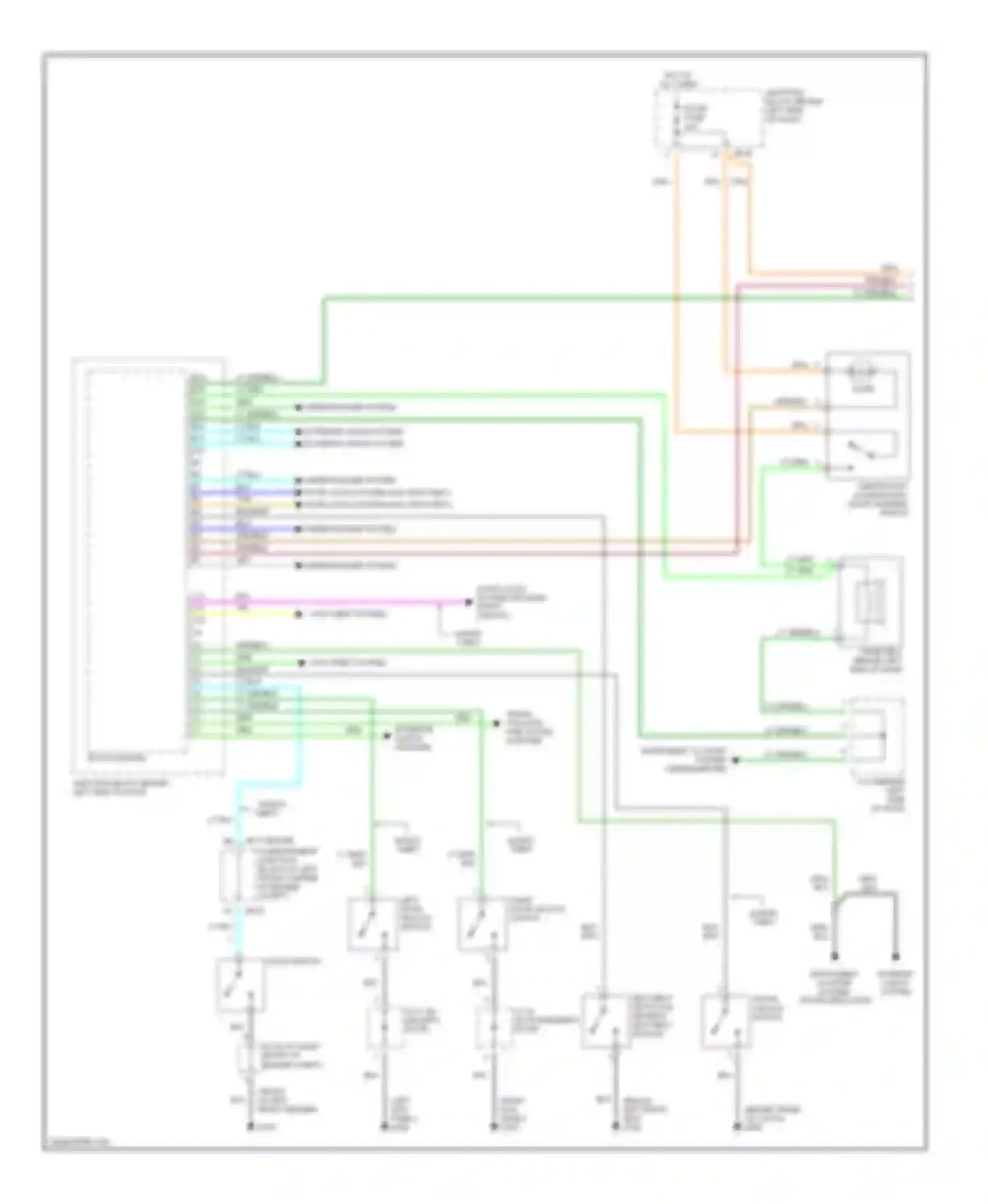

right door unlock switch wiring diagram (1 of 1)
ANTI-THEFT SYSTEM
BLK WIRE
BLK/WHT WIRE
BLU WIRE
CHIME BELL (BEHIND LEFT SIDE OF DASH)
DOOR LOCKS SYSTEM (KEYLESS ENTRY CIRCUIT)
ETACS MODULE
EXTERIOR LIGHTS SYESTEM
EXTERIOR LIGHTS SYSTEM EXTERIOR LIGHTS SYSTEM
F-14 (BEHIND LEFT SIDE OF DASH)
GRN WIRE
GRN/BLK WIRE
GRY WIRE
HOOD SWITCH
HOT AT ALL TIMES
IGNITION KEY ILLUMINATION, DOOR WARNING SWITCH
ILLUM
INSTRUMENT CLUSTER SYSTEM (SPEEDOMETER)
INSTRUMENT CLUSTER SYSTEM (TRUNK INDICATOR)
JB-01 ENGINE COMPARTMENT JUNCTION BLOCK (AT LEFT FRONT CORNER OF ENGINE COMPT)
JB-02
JB-08
JC-08 (AT RIGHT FRONT OF ENGINE COMPT)
JC-17 (IN DRIVER'S DOOR)
JC-18 (IN PASSENGER'S DOOR)
JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH)
LEFT DOOR UNLOCK SWITCH
LT BLU WIRE
LT GRN WIRE
LT GRN/BLK WIRE
ORG/ WIRE
ORG/BLK WIRE
PNK/BLK WIRE
PPL
RIGHT DOOR UNLOCK SWITCH
ROOM FUSE
SEAT BELT SWITCH (IN DRIVER'S SEAT BELT BUCKLE)
TAN WIRE
TRUNK UNLOCK SWITCH
TRUNK, TAILGATE, FUEL DOORS SYESTEM
W/ANTI-THEFT
WHT WIRE
WIPER/WASHER SYSTEM
YEL WIRE
Go to component -> Body computer circuits (1 of 2) -> RIGHT DOOR UNLOCK SWITCH
