Kia Niro I (2016-2019) control ic wiring diagram
This page shows the only wiring diagram for the component.control ic, which is found in the car Kia Niro I (2016-2019). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

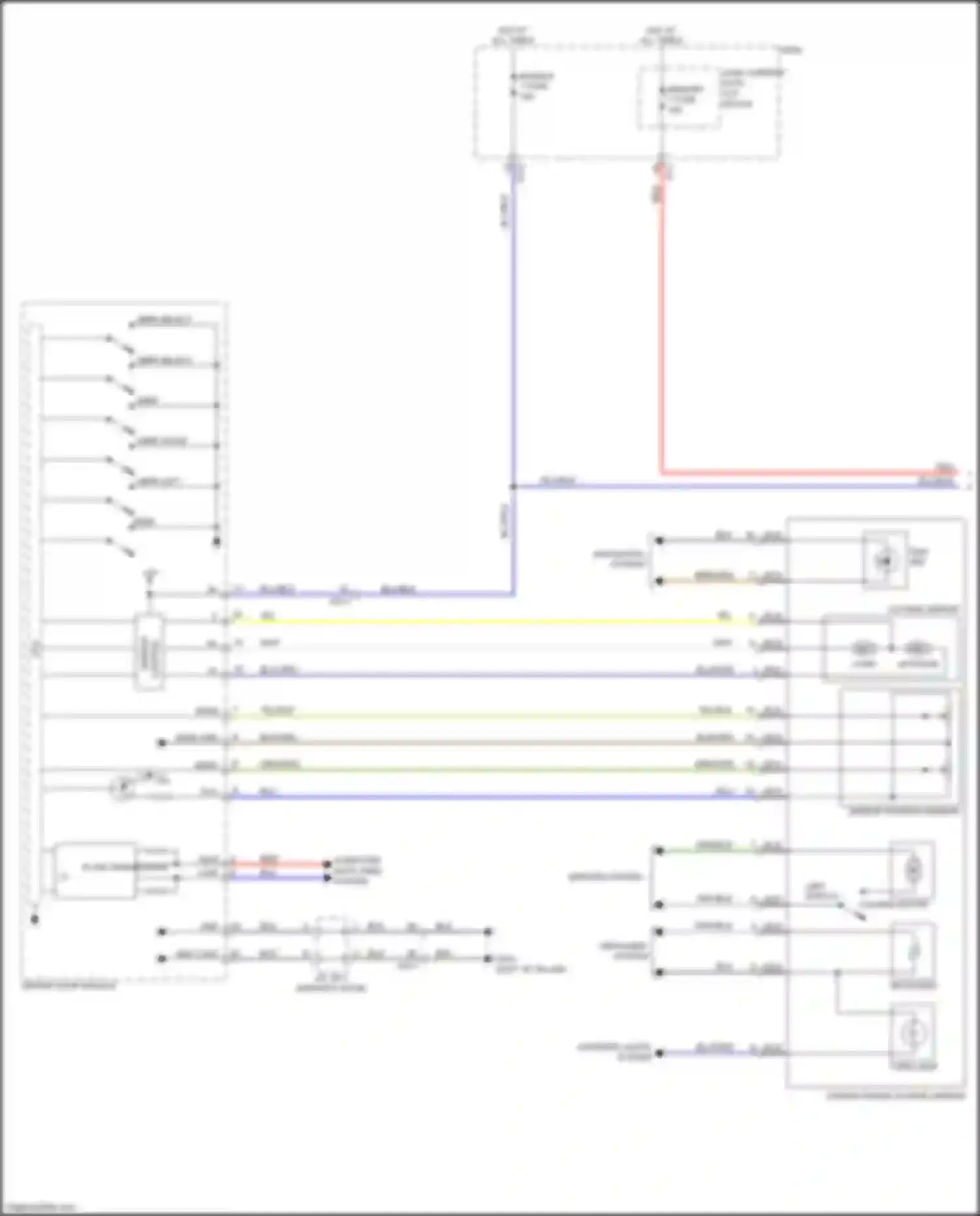

control ic wiring diagram (1 of 1)
+VP
B-CAN TRANSCEIVER IC
BLK WIRE
BLK/ORG WIRE
BLU WIRE
BLU/BLK WIRE
BLU/ORG WIRE
BRN/ORG WIRE
BSD IND
COMPUTER DATA LINES SYSTEM
CONTROL IC
DEFOGGER
DEFOGGER SYSTEM
DRIVER DOOR MODULE
DRIVER POWER OUTSIDE MIRROR
DRIVER'S DOOR
FOLDING MOTOR
GND LOAD
GRN/BLK WIRE
GRN/ORG WIRE
GRY/BLK WIRE
HOT AT ALL TIMES
I/P-C
I/P-D
IGPM
LEAK CURRENT AUTO CUT DEVICE
LH/RH
LIMIT SWITCH
MEMORY 1 FUSE
MIRR DOWN
MIRR LEFT
MIRR RH
MIRR SELECT L
MIRR SELECT R
MIRR UP
MIRROR
MIRROR POSITION SENSOR
MIRRORS SYSTEM
MODULE 1 FUSE
NAVIGATION SYSTEM
NCA WIRE
OUTSIDE MIRROR
RED WIRE
SENS GND
SENS H
SENS V
TURN LAMP
UP/DOWN
VCC
WHT WIRE
WHT/BLK WIRE
YEL WIRE
YEL/BLK WIRE
Go to component -> Memory mirrors circuit (1 of 2) -> CONTROL IC
