Kia K9 II (2018-2021) low sig 1 gnd Wiring diagram
This page shows the only wiring diagram for the component.low sig 1 gnd, which is found in the car Kia K9 II (2018-2021). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

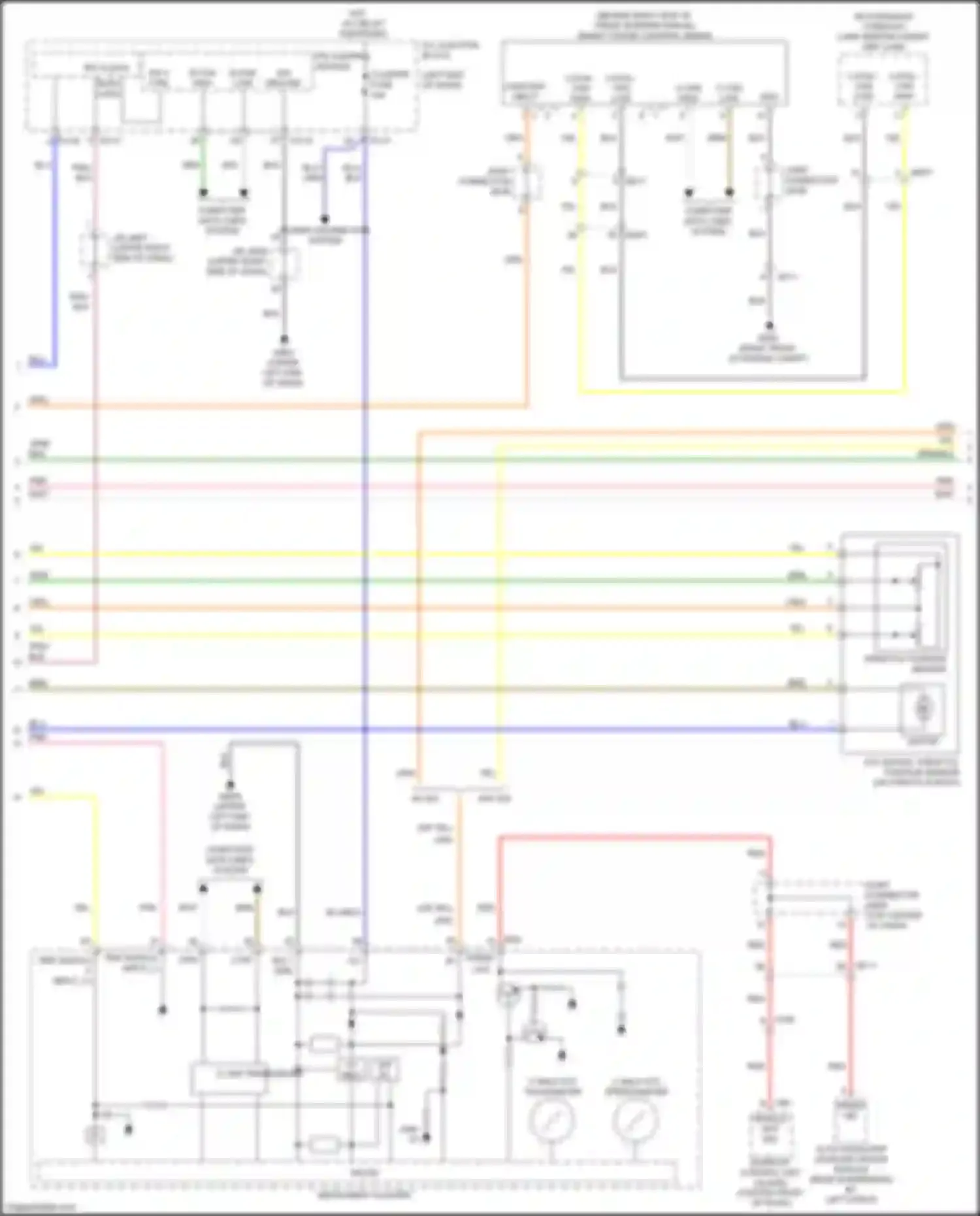

Wiring diagram low sig 1 gnd (1 of 1)
AUTO HEADLAMP LEVELING DEVICE MODULE
B-CAN HIGH
B-CAN LOW
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BODY LOAD
BRN WIRE
C-CAN HIGH
C-CAN LOW
C-CAN TRANSCEIVER
CLUSTER FUSE
COMPUTER DATA LINES SYSTEM
ETC MOTOR, THROTTLE POSITION SENSOR
GRN WIRE
GRN/BLK WIRE
GRY WIRE
HOT W/
ICU JUNCTION BLOCK
ICU-B
ICU-F
ICU-G
INSTRUMENT CLUSTER
IPS 5 CTRL
IPS CONTROL MODULE
LANE KEEPING ASSIST UNIT (LINE)
LOCAL CAN HIGH
LOCAL CAN LOW
LOW SIG 1 GND
MICOM
MOTOR
ON/START INPUT
ORG/ WIRE
PNK WIRE
POWER DISTRIBUTION SYSTEM
RED WIRE
SIG GROUND
SMART CRUISE CONTROL RADAR
SPEED OUT
SPEED SIG
SUNROOF CONTROL UNIT (GLASS)
SW REG
THROTTLE POSITION SENSOR
TRIP SWITCH 2 INPUT_(+)
TRIP SWITCH INPUT_(-)
VEHICLE SPD SIG
W/ ISG
W/O ISG
WHT WIRE
YEL WIRE
Go to component -> Cruise control circuit (2 of 3) -> LOW SIG 1 GND
