Kia K3 I facelift (2015-2018) auto light switch Wiring diagram
This page shows the only wiring diagram for the component.auto light switch, which is found in the car Kia K3 I facelift (2015-2018). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

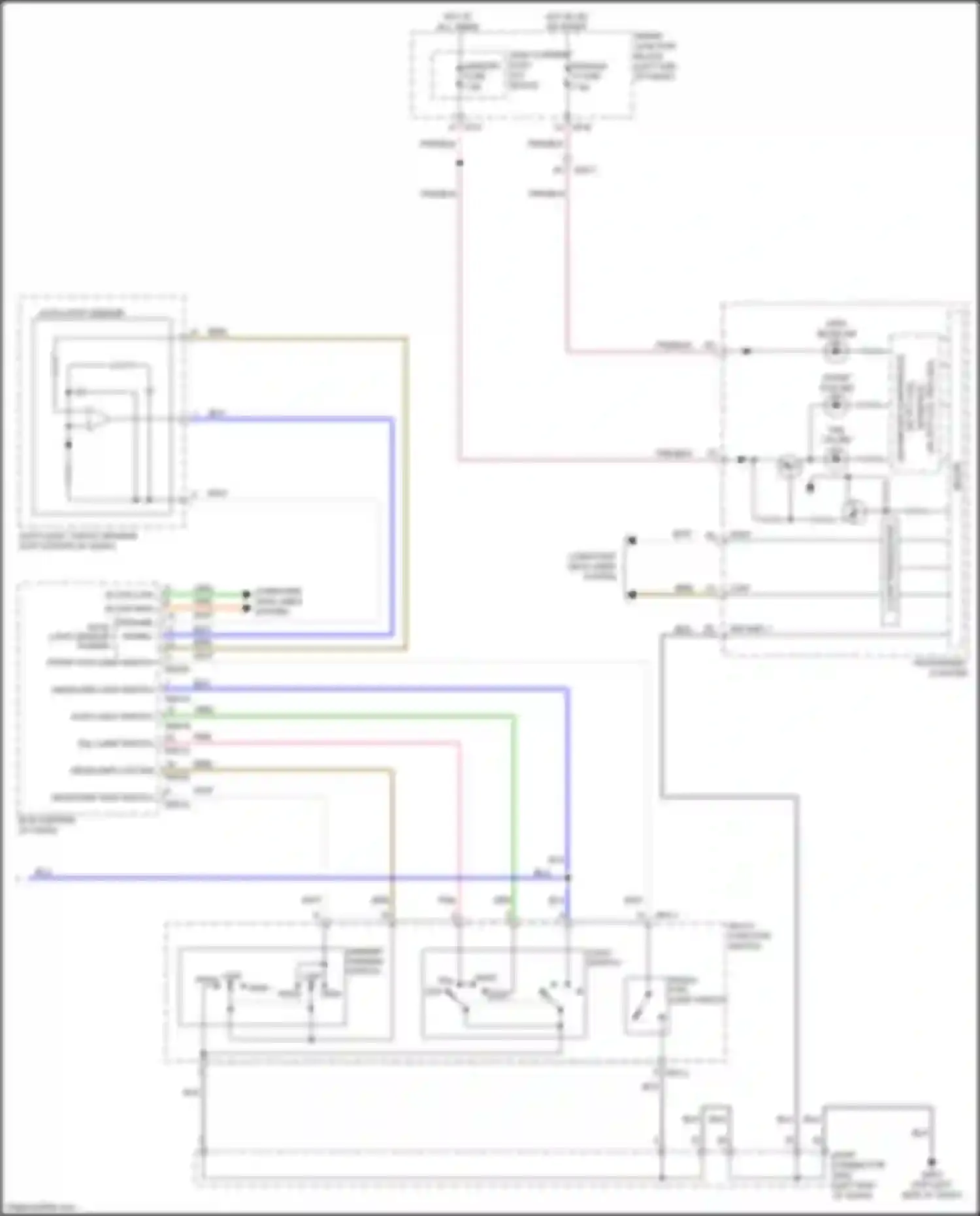

Wiring diagram auto light switch (1 of 1)
AUTO LIGHT SENSOR
AUTO LIGHT SWITCH
AUTO LIGHT, PHOTO SENSOR (TOP CENTER OF DASH)
B-CAN HIGH
B-CAN LOW
BCM (CENTER OF DASH)
BLK WIRE
BLU WIRE
BRN WIRE
C-CAN TRANSCEIVER
COMPUTER DATA LINES SYSTEM
DIMMER, PASSING SWITCH
FRONT FOG IND
FRONT FOG LAMP SWITCH
GRN WIRE
GROUND AUTO SIGNAL LIGHT SENSOR POWER
HEAD
HEADLAMP HIGH SWITCH
HEADLAMP LOW SIG
HEADLAMP LOW SWITCH
HIGH BEAM IND
HIGH PASS
HOT AT ALL TIMES
HOT IN ON OR START
I/P-B
I/P-F
INSTRUMENT CLUSTER
INTERFACE
LEAK CURRENT AUTO CUT DEVICE
LED DRIVER IC/INTERFACE
LIGHT SWITCH
LOW PASS HIGH
MEMORY FUSE
MICOM
MODULE 3 FUSE
MULTI- FUNCTION SWITCH
ORG/ WIRE
PNK WIRE
PNK/BLK WIRE
SIG GND 1
SMART JUNCTION BLOCK
TAIL LAMP SWITCH
TAIL OFF AUTO
TAIL ON IND
WHT WIRE
Go to component -> Autolamps circuit (2 of 2) -> AUTO LIGHT SWITCH
