Kia Cerato IV facelift (2021-2024) fog lamp sw out Wiring diagram
This page shows the only wiring diagram for the component.fog lamp sw out, which is found in the car Kia Cerato IV facelift (2021-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

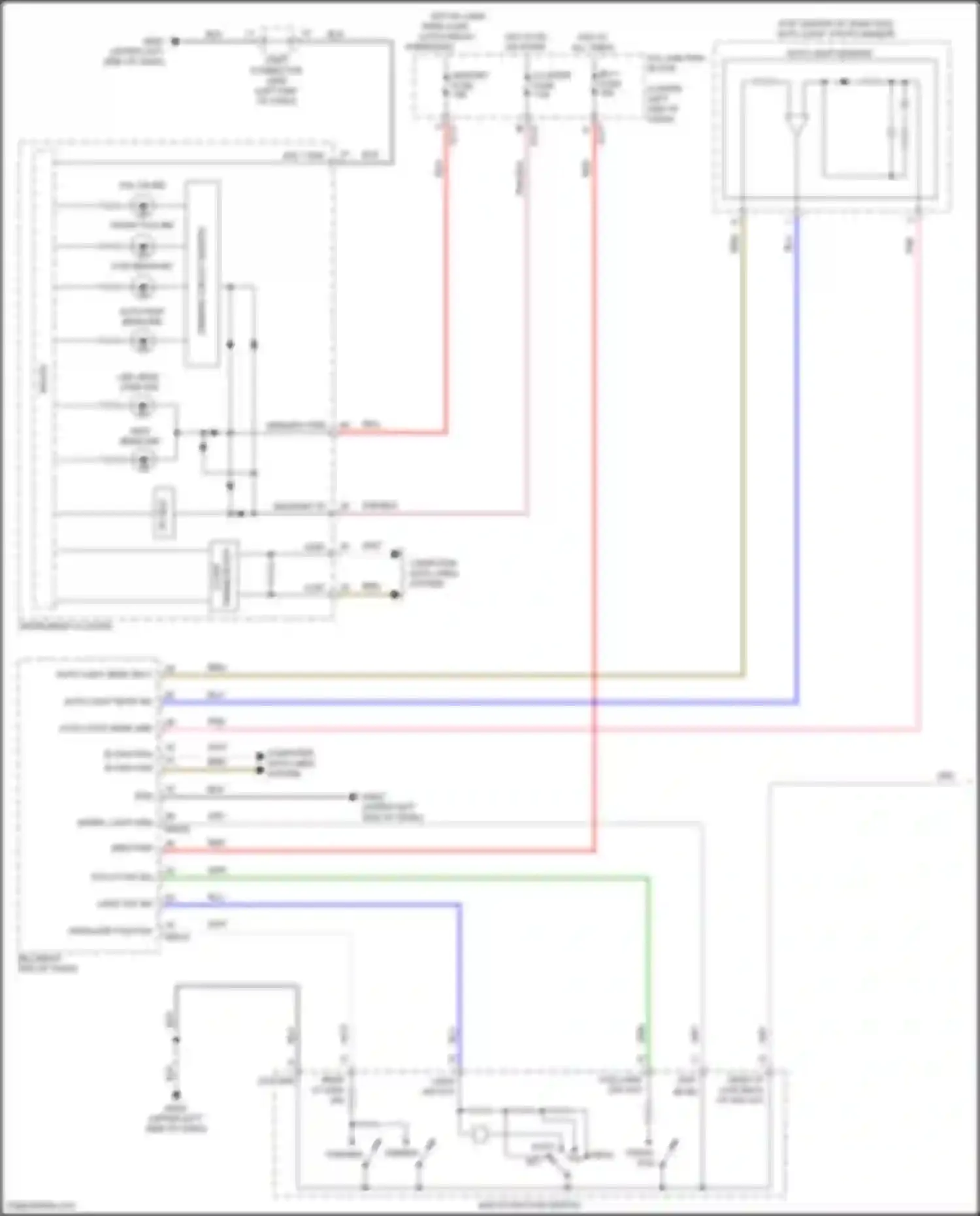

Wiring diagram fog lamp sw out (1 of 1)
AUTO
AUTO HIGH BEAM IND
AUTO LIGHT SENS GND
AUTO LIGHT SENS SIG
AUTO LIGHT SENS SPLY
AUTO LIGHT SENSOR
B-CAN HIGH
B-CAN LOW
BLK WIRE
BLU WIRE
BRN WIRE
C-CAN
CLUSTER FUSE
COMPUTER DATA LINES SYSTEM
DIMMER
DIMMING CIRCUIT (GREEN)
FOG LAMP SW OUT
FOG LP SW SIG
FRONT FOG
FRONT FOG IND
GND (BCM)
GRN WIRE
GRY WIRE
HEAD LP HIGH SW OUT GND
HEAD LP LOW BACK UP SW OUT
HEAD TAIL
HEADLAMP HIGH SW IN
HIGH BEAM IND
HOT AT ALL TIMES
HOT IN ON OR START
HOT W/ LONG TERM LOAD LATCH RELAY ENERGIZED
IBU (RIGHT END OF DASH)
IBU 1 FUSE
ICU JUNCTION BLOCK
ICU-E
ICU-F
INSTRUMENT CLUSTER
LED HEAD LAMP IND
LIGHT SW OUT
LIGHT SW SIG
LOW BEAM IND
MEM PWR
MEMORY FUSE
MEMORY PWR
MICOM
MULTI- FUNCTION SWITCH
OFF
ON/START I/P
PASSING
PNK WIRE
PNK/BLK WIRE
RED WIRE
SIG 1 GND
TAIL ON IND
TRANSCEIVER/
WHT WIRE
WIPER, LIGHT GND
Go to component -> Autolamps circuit (1 of 2) -> FOG LAMP SW OUT
