Kia Cerato III facelift (2016-2021) headlamp high switch Wiring diagrams
This page contains all the electrical diagrams for the component. headlamp high switch, in which he is found in the car Kia Cerato III facelift (2016-2021). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

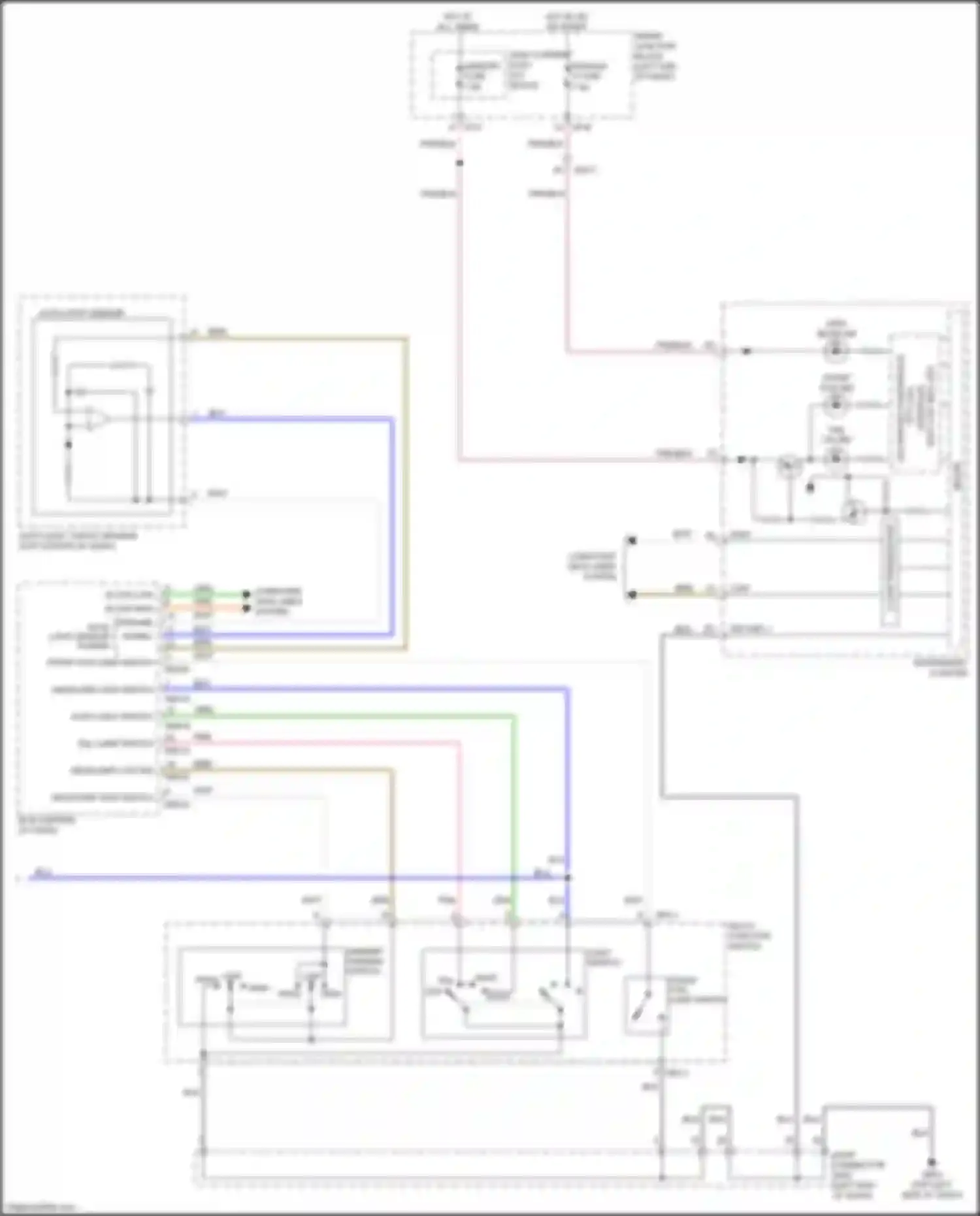

Wiring diagram headlamp high switch (1 of 2)
AUTO LIGHT SENSOR
AUTO LIGHT SWITCH
AUTO LIGHT, PHOTO SENSOR (TOP CENTER OF DASH)
B-CAN HIGH
B-CAN LOW
BCM (CENTER OF DASH)
BLK WIRE
BLU WIRE
BRN WIRE
C-CAN TRANSCEIVER
COMPUTER DATA LINES SYSTEM
DIMMER, PASSING SWITCH
FRONT FOG IND
FRONT FOG LAMP SWITCH
GRN WIRE
GROUND AUTO SIGNAL LIGHT SENSOR POWER
HEAD
HEADLAMP HIGH SWITCH
HEADLAMP LOW SIG
HEADLAMP LOW SWITCH
HIGH BEAM IND
HIGH PASS
HOT AT ALL TIMES
HOT IN ON OR START
I/P-B
I/P-F
INSTRUMENT CLUSTER
INTERFACE
LEAK CURRENT AUTO CUT DEVICE
LED DRIVER IC/INTERFACE
LIGHT SWITCH
LOW PASS HIGH
MEMORY FUSE
MICOM
MODULE 3 FUSE
MULTI- FUNCTION SWITCH
ORG/ WIRE
PNK WIRE
PNK/BLK WIRE
SIG GND 1
SMART JUNCTION BLOCK
TAIL LAMP SWITCH
TAIL OFF AUTO
TAIL ON IND
TFT LCD
WHT WIRE
Go to component -> Autolamps circuit (2 of 2) -> HEADLAMP HIGH SWITCH

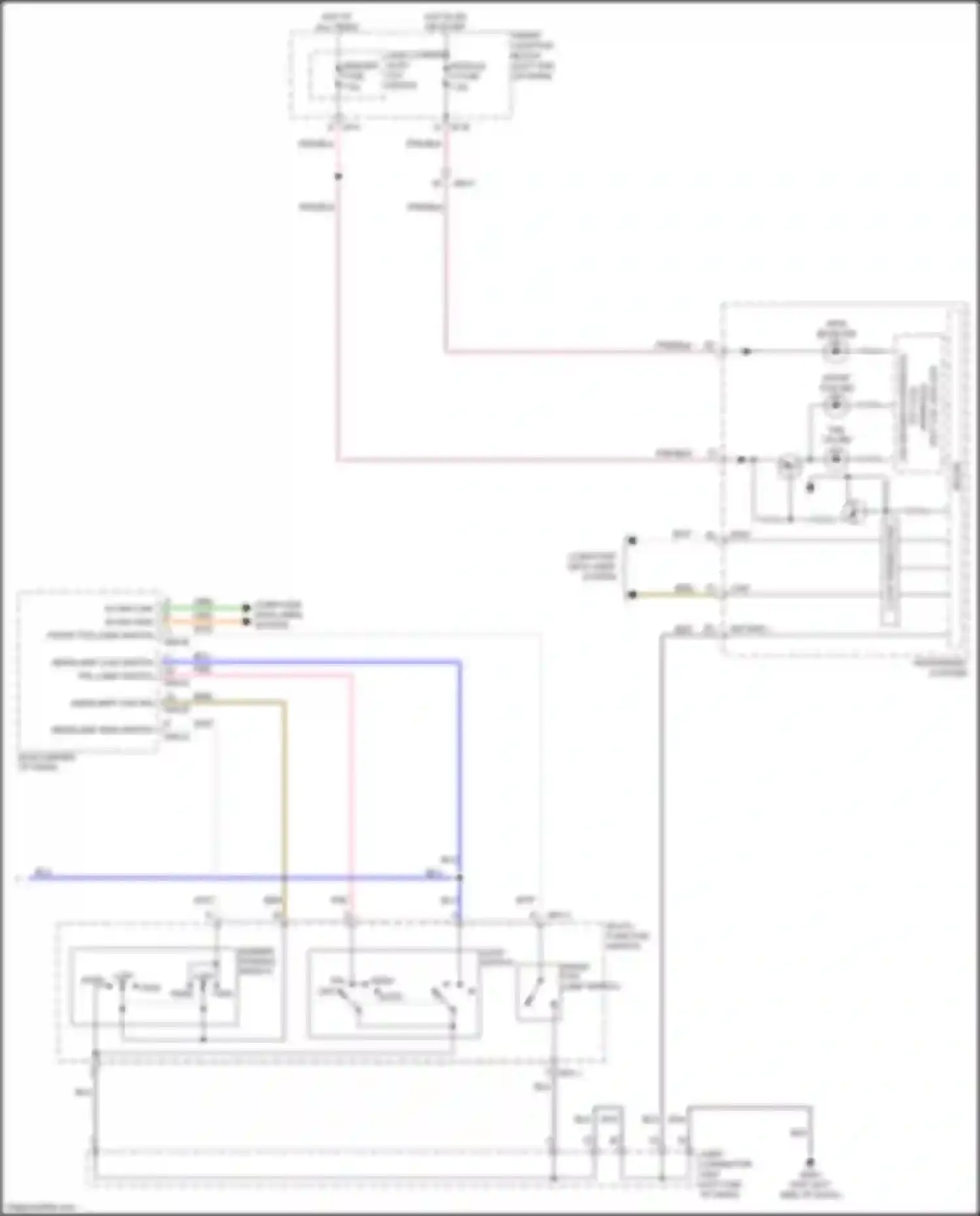

Wiring diagram headlamp high switch (2 of 2)
AUTO
B-CAN HIGH
B-CAN LOW
BCM (CENTER OF DASH)
BLK WIRE
BLU WIRE
BRN WIRE
C-CAN TRANSCEIVER
COMPUTER DATA LINES SYSTEM
DIMMER, PASSING SWITCH
FRONT FOG IND
FRONT FOG LAMP SWITCH
GRN WIRE
HEAD
HEADLAMP HIGH SWITCH
HEADLAMP LOW SIG
HEADLAMP LOW SWITCH
HIGH BEAM IND
HIGH PASS
HOT AT ALL TIMES
HOT IN ON OR START
I/P-B
I/P-F
INSTRUMENT CLUSTER
INTERFACE
LEAK CURRENT AUTO CUT DEVICE
LED DRIVER IC/INTERFACE
LIGHT SWITCH
LOW PASS
MEMORY FUSE
MICOM
MODULE 3 FUSE
MULTI- FUNCTION SWITCH
ORG/ WIRE
PNK WIRE
PNK/BLK WIRE
SIG GND 1
SMART JUNCTION BLOCK
TAIL LAMP SWITCH
TAIL OFF
TAIL ON IND
TFT LCD
WHT WIRE
Go to component -> Headlamps circuit (2 of 2) -> HEADLAMP HIGH SWITCH
