Kia Cadenza I facelift (2013-2016) ips rear htd control module relay control Wiring diagram
This page shows the only wiring diagram for the component.ips rear htd control module relay control, which is found in the car Kia Cadenza I facelift (2013-2016). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

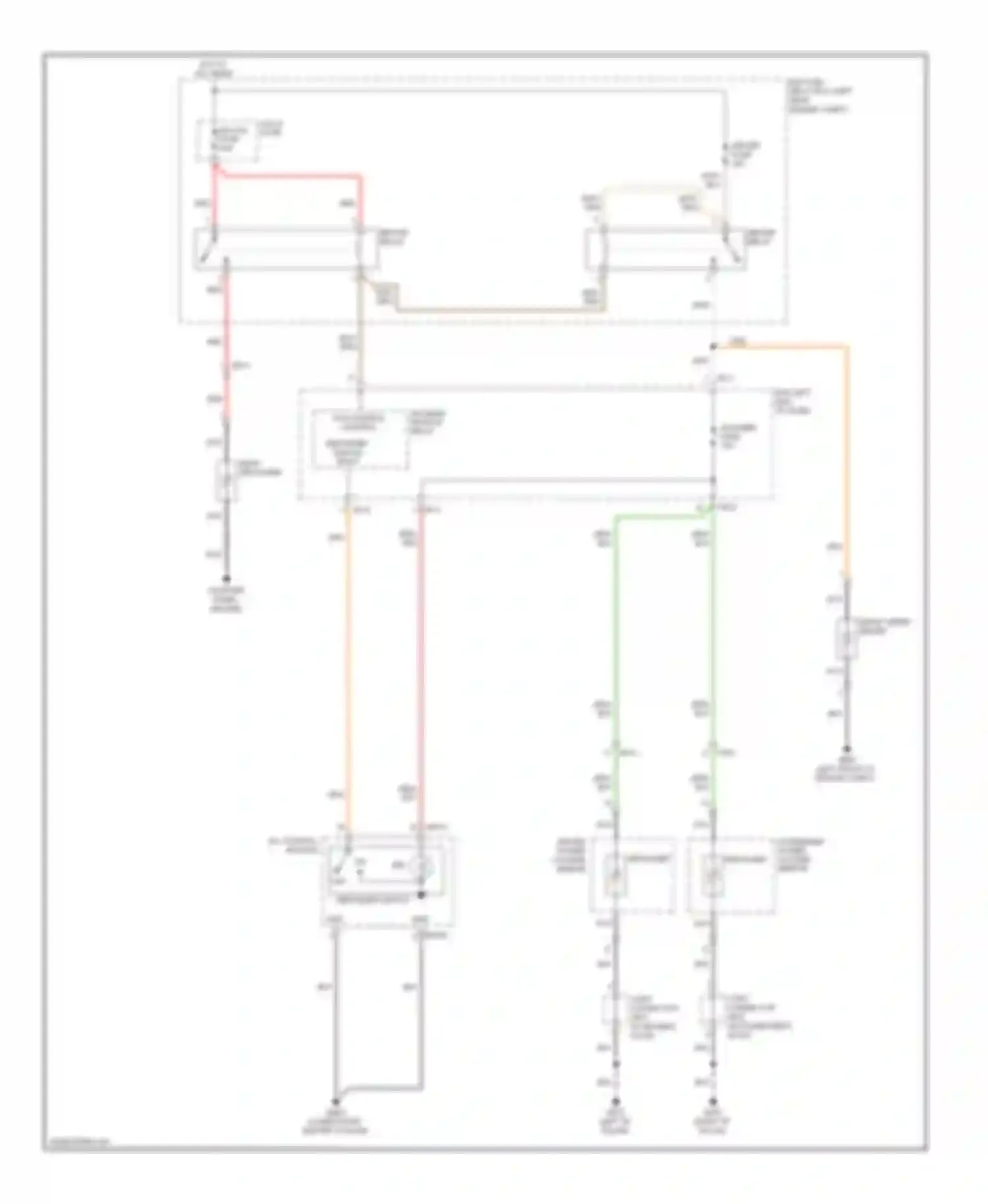

Wiring diagram ips rear htd control module relay control (1 of 1)
A/C CONTROL MODULE
BLK WIRE
DEFOGGER
DEFOGGER SWITCH
DEFOGGER SWITCH INPUT
DEICER FUSE
DEICER RELAY
DRIVER POWER OUTSIDE MIRROR
E/R FUSE, RELAY BOX (LEFT REAR OF
ENGINE COMPT)
FRONT WIPER DEICER
GND GND
GRN WIRE
HOT AT ALL TIMES
HTD MIRR FUSE
I/P-D
I/P-F
I/P-H I/P-C
IPM (LEFT END OF DASH)
IPS REAR HTD CONTROL MODULE RELAY CONTROL
JOINT CONNECTOR
MULTI FUSE
NCA WIRE
OFF
ON IND.
ORG/ WIRE
PASSENGER POWER OUTSIDE MIRROR
QUARTER PANEL GROUND
REAR DEFOGGER
RED WIRE
RR HTD FUSE
RR HTD RELAY
WHT WIRE
Go to component -> Defoggers circuit, without auto defogger -> IPS REAR HTD CONTROL MODULE RELAY CONTROL
