Jeep Gladiator JT (2019-2023) driver glass heater Wiring diagrams
This page contains all the electrical diagrams for the component. driver glass heater, in which he is found in the car Jeep Gladiator JT (2019-2023). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

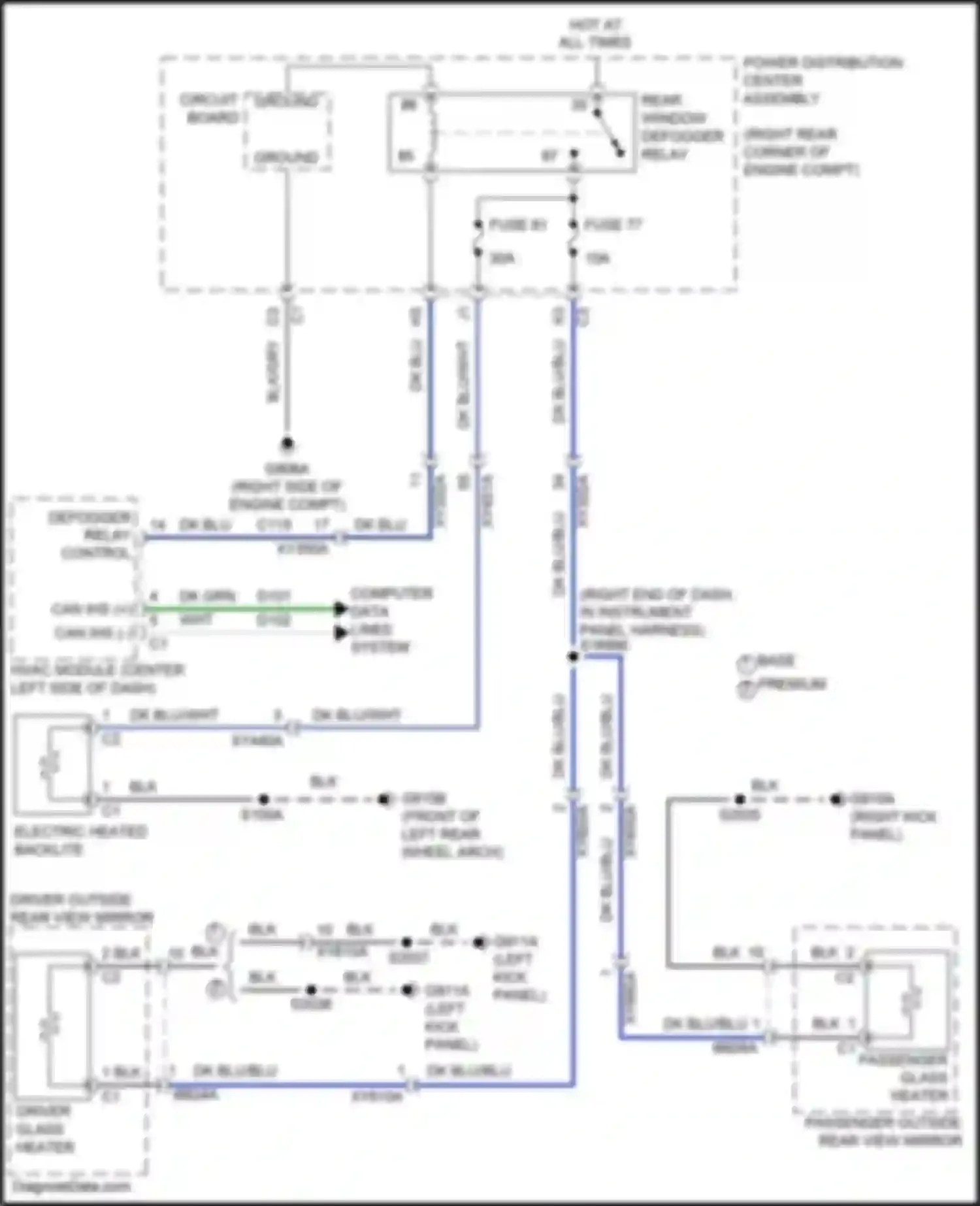

driver glass heater wiring diagram (1 of 3)
BASE
BLK WIRE
BLK/GRY WIRE
CAN IHS (-)
CIRCUIT BOARD
COMPUTER DATA LINES SYSTEM
DEFOGGER RELAY CONTROL
DK BLU WIRE
DK BLU/BLU WIRE
DK BLU/WHT WIRE
DK GRN WIRE
DRIVER GLASS HEATER
DRIVER OUTSIDE REAR- VIEW MIRROR
ELECTRIC HEATED BACKLITE
FUSE 77
FUSE 81
GROUND
HOT AT ALL TIMES
HVAC MODULE (CENTER LEFT SIDE OF DASH)
PASSENGER GLASS HEATER
PASSENGER OUTSIDE REAR VIEW MIRROR
POWER DISTRIBUTION CENTER ASSEMBLY
PREMIUM
REAR WINDOW DEFOGGER RELAY
WHT WIRE
Go to component -> Defoggers circuit -> DRIVER GLASS HEATER
driver glass heater wiring diagram (2 of 3)
BLK WIRE
BLK/BLU WIRE
BLK/GRY WIRE
BLK/VIO WIRE
BLK/WHT WIRE
BLK/YEL WIRE
BLOWER MOTOR
CLUSTER
CONSOLE CIGAR LIGHTER
DATA LINK CONNECTOR 1
DRIVER ASSISTANT SYSTEM MODULE
DRIVER BLIND SPOT INDICATOR LAMP
DRIVER DOOR HANDLE LAMP
DRIVER DOOR LOCK SWITCH
DRIVER GLASS HEATER
DRIVER MIRROR TURN INDICATOR LAMP
DRIVER OUTSIDE REAR- VIEW MIRROR
FRONT WINDOW SWITCH
HEADLAMP LEVELING MODULE
HEADLAMP SWITCH
IN-CAR TEMPERATURE SENSOR
INSIDE REAR VIEW MIRROR
INVERTER MODULE
INVERTER SWITCH
KEYLESS IGNITION NODE MODULE
LEFT FRONT FOOTWELL LAMP
LEFT VANITY LAMP
MIRROR SWITCH
OFF ROAD BANK SWITCH 2
OVERHEAD CONSOLE SWITCH
PASSENGER BLIND SPOT INDICATOR LAMP
PASSENGER DOOR HANDLE LAMP
PASSENGER DOOR LOCK SWITCH
PASSENGER GLASS HEATER
PASSENGER MIRROR TURN INDICATOR LAMP
PASSENGER OUTSIDE REAR VIEW MIRROR
PREMIUM
RIGHT END OF DASH)
RIGHT VANITY LAMP
SEAT BELT REMINDER INDICATOR
STEERING COLUMN CONTROL MODULE
STEERING COLUMN LOCK MODULE
UPPER BANK SWITCH
Go to component -> Ground distribution circuit (3 of 5) -> DRIVER GLASS HEATER
driver glass heater wiring diagram (3 of 3)
BLK WIRE
BLK/BRN WIRE
BLK/GRY WIRE
BLU WIRE
BLU/BLK WIRE
BODY CONTROL MODULE (RIGHT REAR OF ENGINE COMPT)
BRN WIRE
CAN C (+)
CIRCUIT BOARD
COMPUTER DATA LINES SYSTEM
DEFOGGER SYSTEM
DRIVER ADJUST MIRROR MOTOR
DRIVER BLIND SPOT INDICATOR LAMP
DRIVER GLASS HEATER
DRIVER MIRROR TURN INDICATOR LAMP
DRIVER OUTSIDE REAR- VIEW MIRROR
DRV MIRR HORZ DRV
DRV MIRR VERT DRV
FUSE 96
GRN WIRE
HOT AT ALL TIMES
MIRR COM DRV
MIRR SW SPLY
MIRROR SWITCH
NAVIGATION SYSTEM
ORG/GRY WIRE
PANEL)
PASS MIRR HORZ DRV
PASS MIRR VERT DRV
PASSENGER ADJUST MIRROR MOTOR
PASSENGER BLIND SPOT INDICATOR LAMP
PASSENGER GLASS HEATER
PASSENGER MIRROR TURN INDICATOR LAMP
PASSENGER OUTSIDE REAR VIEW MIRROR
PNK/DK BLU WIRE
PNK/GRN WIRE
POWER DISTRIBUTION CENTER ASSEMBLY
POWER MIRROR RELAY
PWR MIRR RLY CTRL
RED WIRE
TAN WIRE
TAN/BLU WIRE
TAN/DK GRN WIRE
TAN/GRN WIRE
TAN/GRY WIRE
TAN/ORG WIRE
YEL WIRE
Go to component -> Power mirrors circuit -> DRIVER GLASS HEATER
