Jeep Compass II (2016-2022) start/stop neutral sw sig Wiring diagrams
This page contains all the electrical diagrams for the component. start/stop neutral sw sig, in which he is found in the car Jeep Compass II (2016-2022). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

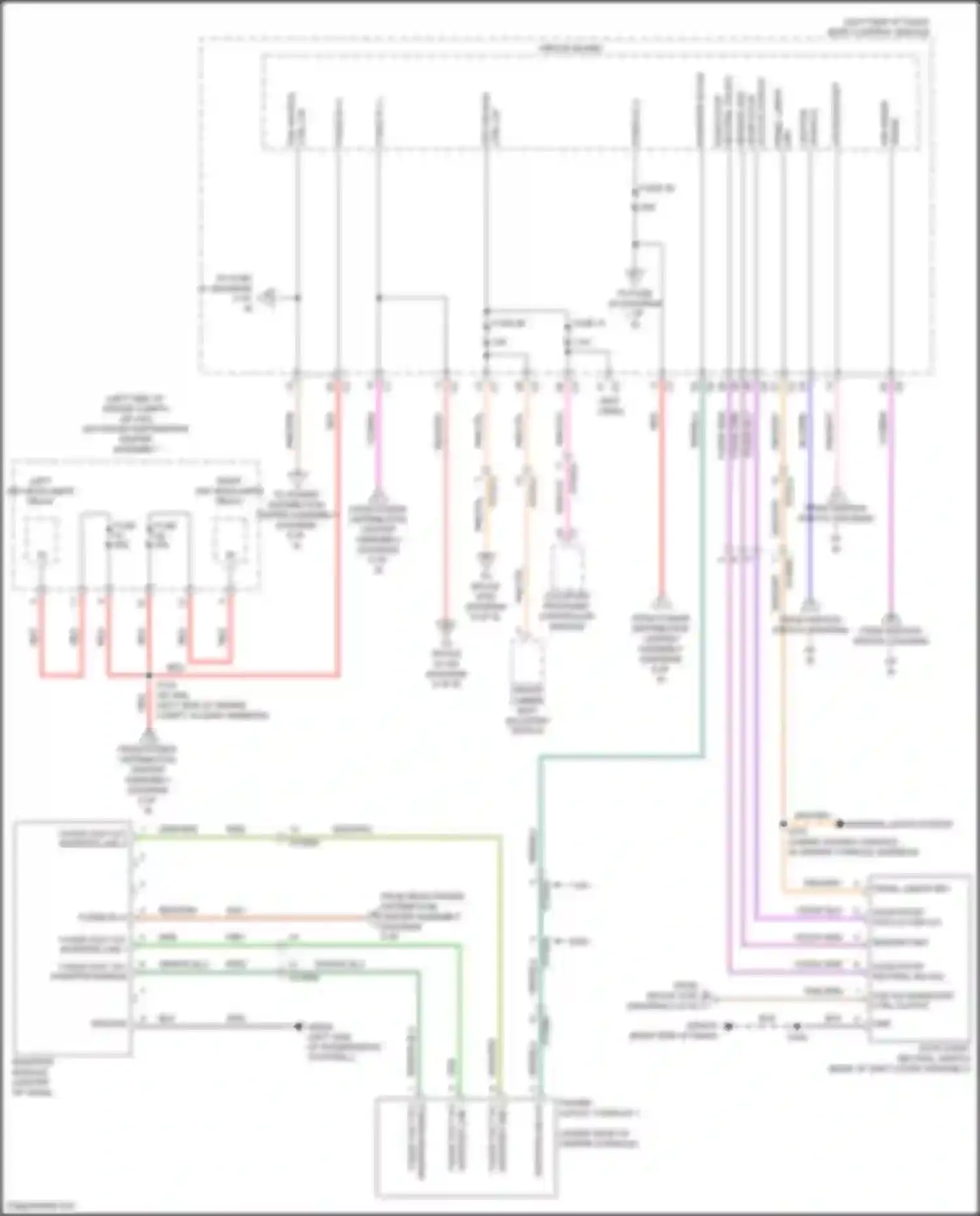

Wiring diagram start/stop neutral sw sig (1 of 2)
110/220 VOLT A/C
110/220 VOLT A/C INVERTER ENABLE
110/220 VOLT A/C INVERTER LINE 1
110/220 VOLT A/C INVERTER LINE 2
BLK WIRE
BLU/PNK WIRE
CIRCUIT BOARD
CTRL O/P
DRIVER LUMBAR SEAT ADJUSTER SWITCH
DRV (+)
FROM IGNITION SWITCH (DIAGRAM 1 OF 6)
FROM POWER DISTRIBUTION CENTER ASSEMBLY (DIAGRAM 6 OF 6)
FROM REAR POWER DISTRIBUTION CENTER ASSEMBLY (DIAGRAM 5 OF 6)
FSD IGN RUN
FSD IGN RUN/START CTRL OUTPUT
FUSE 31
FUSE 38
FUSE 94
FUSED B (+)
GRN WIRE
GRN/BLU WIRE
GRN/DK BLU WIRE
GRN/ORG WIRE
GROUND
HID POWER DISTRIBUTION CENTER ASSEMBLY
IGN CRANK
IGN RUN/START
IGNITION
INVERTER ENABLE
INVERTER LINE 1
INVERTER LINE 2
INVERTER MODULE
INVERTER SW SIG
LEFT HID HEADLAMPS RELAY
NEUTRAL SW SIG
OCCUPANT RESTRAINT CONTROLLER MODULE
ORG/GRY WIRE
PANEL LAMPS
PANEL LAMPS DRV
PNK/GRN WIRE
PNK/VIO WIRE
PNK/WHT WIRE
PNK/YEL WIRE
POWER OUTLET CONSOLE 1
RED WIRE
RED/GRN WIRE
RED/GRY WIRE
RIGHT END OF DASH)
RIGHT HID HEADLAMPS RELAY
RUN/ACC
SENSE
SENSOR GND
START/STOP NEUTRAL SW SIG
START/STOP STATUS DISPLAY
START/STOP)
STATUS DISPLAY
STOP START NEUTRAL SWITCH
TO FUSE 51 (DIAGRAM 3 OF 6)
TO FUSE 53 (DIAGRAM 1 OF 6)
TO POWER DISTRIBUTION CENTER ASSEMBLY (DIAGRAM 5 OF 6)
VIO/BRN WIRE
VIO/DK BLU WIRE
VIO/DK GRN WIRE
VIO/RED WIRE
W/ HID
Go to component -> Power distribution circuit (2 of 6) -> START/STOP NEUTRAL SW SIG

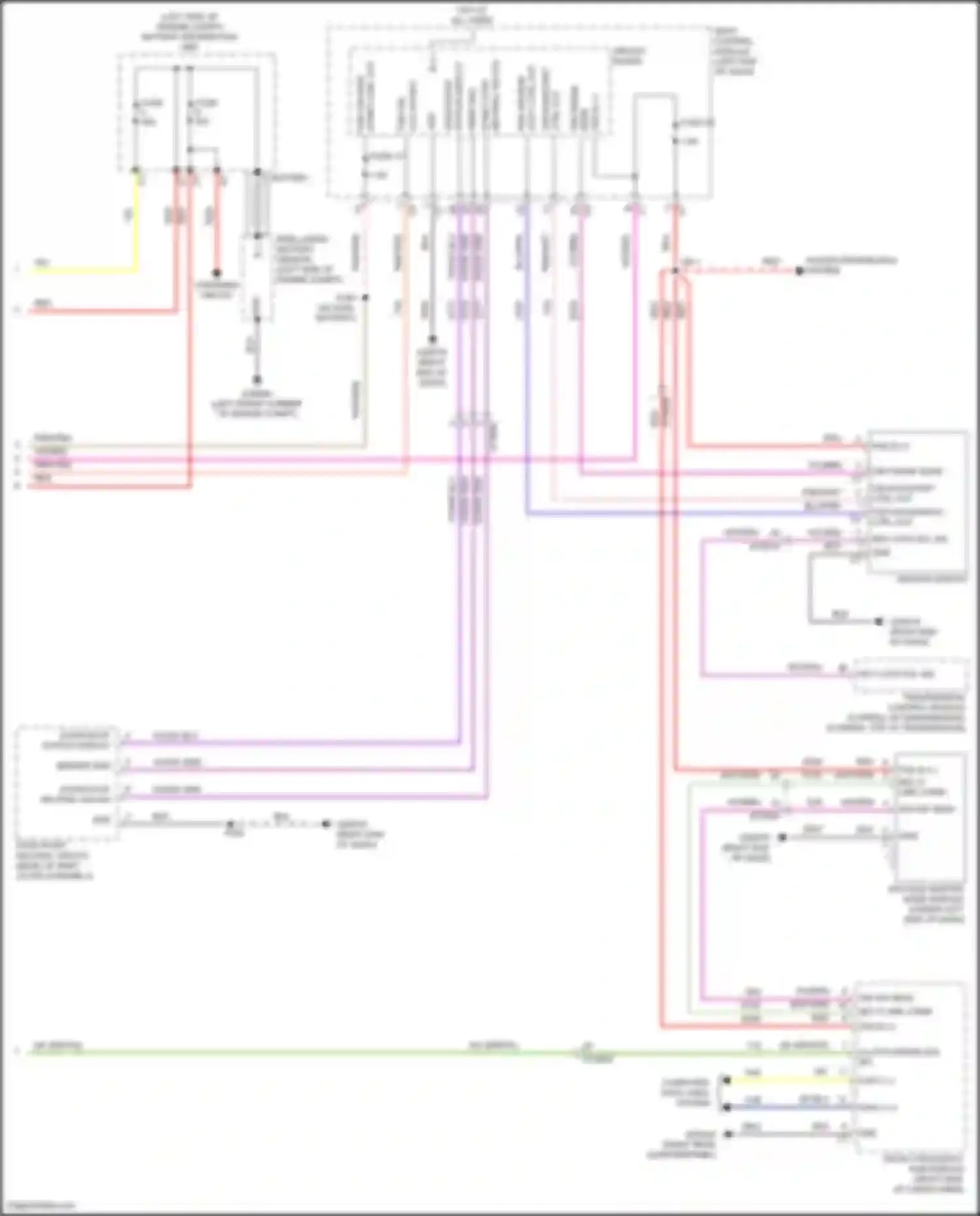

Wiring diagram start/stop neutral sw sig (2 of 2)
ACCY CTRL OUT
B(+)
BATTERY
BATTERY DISTRIBUTION UNIT
BLK WIRE
BLU/PNK WIRE
BODY CONTROL MODULE
CAN C (+)
CHARGING CIRCUIT
CIRCUIT BOARD
CLUTCH INTERLOCK SIG
COMPUTER DATA LINES SYSTEM
CTRL OUT
DK BLU WIRE
DK GRN/YEL WIRE
FSD B (+) SEC K LINE COMM
FSD B(+)
FSD IGN RUN
FSD IGN RUN/ACC CTRL OUT
FSD IGN SW
FUSE 51
FUSE 53
FUSE C
FUSE E
HOT AT ALL TIMES
IGN CRANK
IGN CRANK SENS
IGN RUN/START
IGN RUN/START CTRL OUT
IGN SW SENS
IGNITION SWITCH
INTELLIGENT BATTERY SENSOR
KEY LOCK SOL SIG
KEYLESS IGNITION NODE MODULE
N/A
NEUTRAL SW SIG
OUT (START)
PNK/GRN WIRE
PNK/ORG WIRE
PNK/WHT WIRE
POWER DISTRIBUTION SYSTEM
RADIO FREQUENCY HUB MODULE
RED WIRE
RIGHT END OF DASH)
SEC K LINE COMM
SENS
SENS GND
SENSOR GND
START CTRL OUT
START STOP
START/STOP NEUTRAL SW SIG
START/STOP STATUS DISPLAY
START/STOP)
STATUS DISPLAY
STOP START NEUTRAL SWITCH
TRANSMISSION CONTROL MODULE
VIO/BRN WIRE
VIO/DK BLU WIRE
VIO/DK GRN WIRE
VIO/GRN WIRE
VIO/RED WIRE
WHT/GRN WIRE
YEL WIRE
Go to component -> Starting circuit (2 of 2) -> START/STOP NEUTRAL SW SIG
