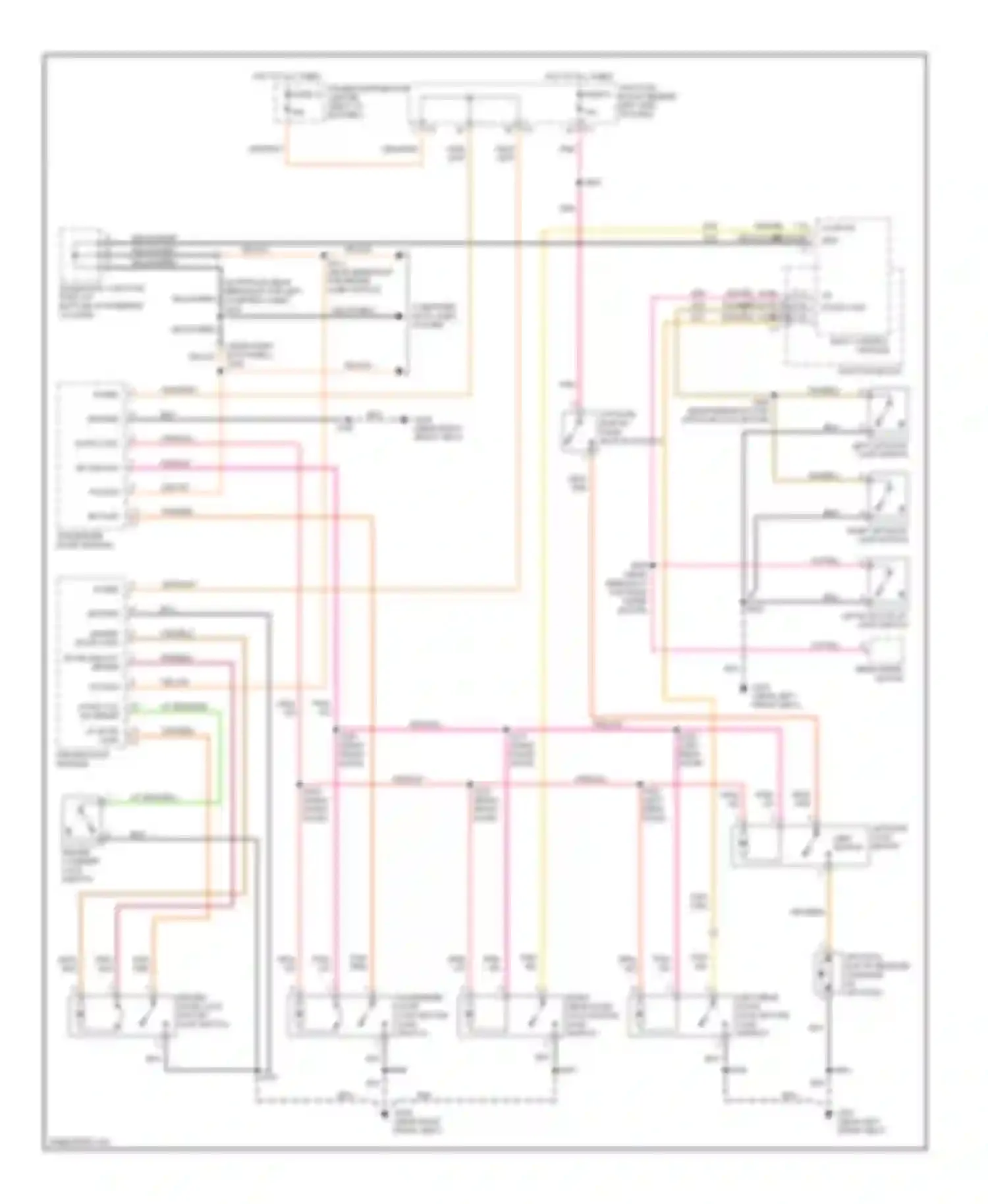

Jeep Cherokee III (2001-2004) 8 21 23 24 25 10 flip-up ajar liftgate ajar lr door ajar Wiring diagram

7 15 RR DOOR AJAR PCI BUS 8 21 23 24 25 10 FLIP-UP AJAR LIFTGATE AJAR LR DOOR AJAR BLK WIRE BODY CONTROL MODULE COMPUTER DATA LINES SYSTEM DIAGNOSTIC JUNCTION PORT (AT BOTTOM OF STEERING COLUMN) DOOR LOCK DOOR UNLOCK DRIVER DR UNLOCK DRIVER CYLINDER LOCK SWITCH DRIVER DOOR LOCK DRIVER DOOR LOCK MOTOR/ AJAR SWITCH DRIVER DOOR MODULE FUSE 12 FUSE 8 FUSED B (+) GROUND HOT AT ALL TIMES JUNCTION BLOCK JUNCTION BLOCK (BEHIND LEFT SIDE OF DASH) LEFT LIFTGATE AJAR SWITCH LEFT REAR DOOR LOCK MOTOR/ AJAR SWITCH LF DOOR AJAR SW LF KEY CYL SW SENSE LIFTGATE FLIP-UP AJAR SWITCH LIFTGATE FLIP-UP PUSH BUTTON SWITCH LIFTGATE FLIP-UP RELEASE SOLENOID (IN LIFTGATE) LIFTGATE LOCK MOTOR LIMIT SWITCH LT GRN/ORG WIRE ORG/ WIRE ORG/BLK WIRE ORG/BRN WIRE ORG/VIO WIRE ORG/WHT WIRE PASSENGER DOOR LOCK MOTOR/ AJAR SWITCH PASSENGER DOOR MODULE PCI BUS PNK PNK WIRE PNK WIRE PNK/BLK WIRE PNK/VIO WIRE POWER DISTRIBUTION CENTER (NEXT TO BATTERY) REAR WIPER MOTOR RED WIRE RF AJAR SW RIGHT LIFTGATE AJAR SWITCH RIGHT REAR DOOR LOCK MOTOR/ AJAR SWITCH TAN WIRE TAN/BLK WIRE TAN/ORG WIRE TAN/RED WIRE TAN/YEL WIRE VIO WIRE VIO/YEL WIRE WHT WIRE YEL WIRE YEL/VIO WIRE YEL/VIO/BLK WIRE YEL/VIO/BRN WIRE YEL/VIO/GRY WIRE YEL/VIO/WHT WIRE
