Jeep Cherokee II facelift (1997-2001) hot at all times circuit breaker 2 Wiring diagrams
This page contains all the electrical diagrams for the component. hot at all times circuit breaker 2, in which he is found in the car Jeep Cherokee II facelift (1997-2001). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

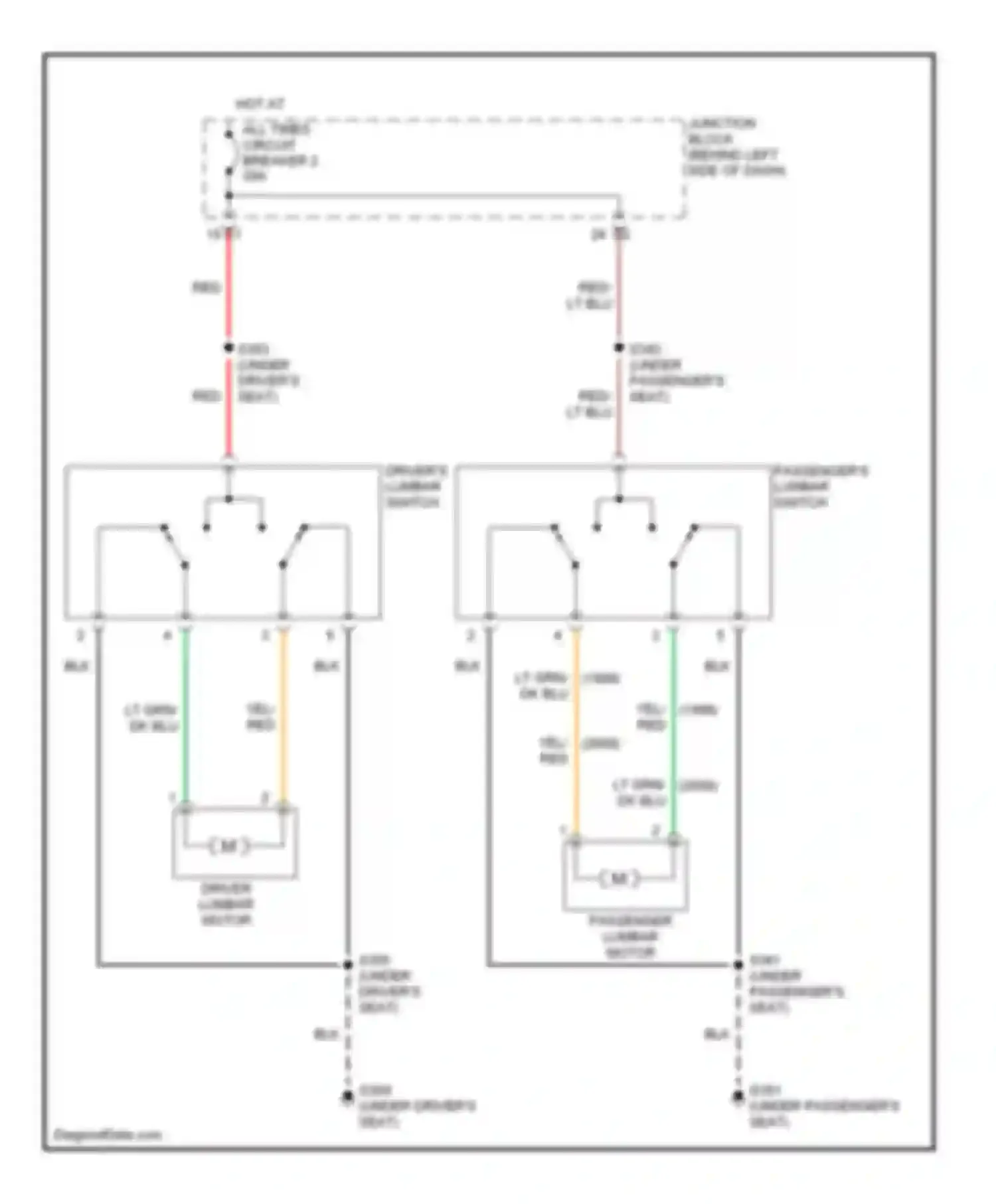

Wiring diagram hot at all times circuit breaker 2 (1 of 2)
Go to component -> Lumbar circuit -> HOT AT ALL TIMES CIRCUIT BREAKER 2
Wiring diagram hot at all times circuit breaker 2 (2 of 2)
15 24 (DRIVER SIDE) (PASSENGER SIDE)
BLK WIRE
DRIVER OR PASSENGER POWER SEAT SWITCH
DRIVER SIDE
HOT AT ALL TIMES CIRCUIT BREAKER 2
JUNCTION BLOCK
LEFT
PASSENGER SIDE
PILLAR)
POWER SEAT FRONT RISER MOTOR
POWER SEAT HORIZONTAL MOTOR
POWER SEAT REAR RISER MOTOR
RED WIRE
RED/LT BLU WIRE
RED/LT GRN WIRE
RED/WHT WIRE
RED/YEL WIRE
YEL/LT BLU WIRE
YEL/LT GRN WIRE
YEL/WHT WIRE
Go to component -> Power seat circuit, base -> HOT AT ALL TIMES CIRCUIT BREAKER 2
