Jaguar XK II facelift (2009-2011) cornering lamp wiring diagram
This page shows the only wiring diagram for the component.cornering lamp, which is found in the car Jaguar XK II facelift (2009-2011). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

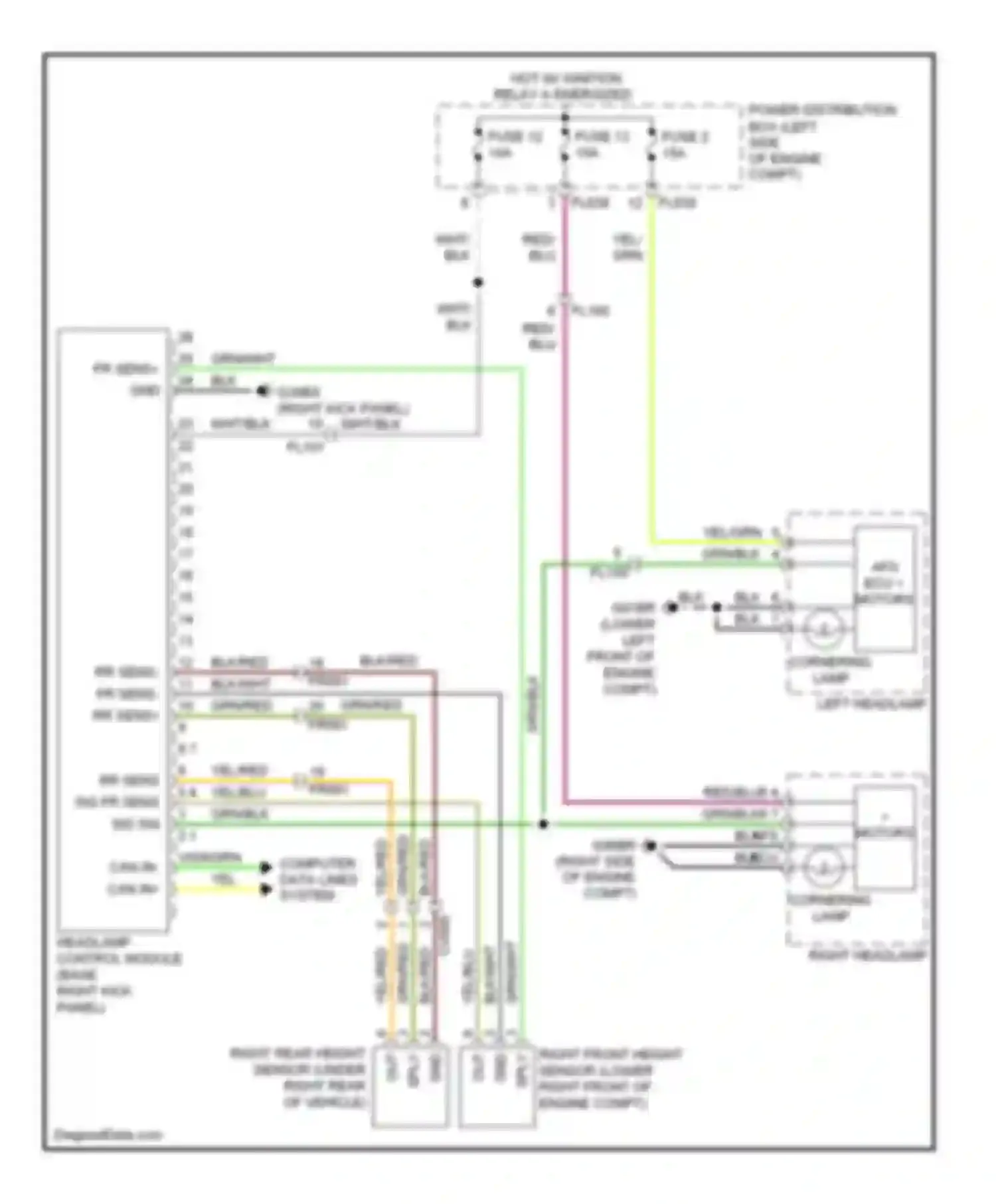

cornering lamp wiring diagram (1 of 1)
23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 VIGN
5 4 6 7 AFS ECU + MOTORS
AFS ECU + MOTORS
BLK WIRE
BLK/RED WIRE
BLK/WHT WIRE
BLU WIRE
CAN IN- CAN IN+
COMPUTER DATA LINES SYSTEM
CORNERING LAMP
FR SENS+ GND
FUSE 12
FUSE 13
FUSE 2
GRN WIRE
GRN/BLK WIRE
GRN/RED WIRE
GRN/WHT WIRE
HEADLAMP CONTROL MODULE (BASE RIGHT KICK PANEL)
HOT W/ IGNITION RELAY A ENERGIZED
LEFT HEADLAMP
OUT
POWER DISTRIBUTION BOX (LEFT SIDE OF ENGINE COMPT)
RED WIRE
RED/BLU WIRE
RIGHT FRONT HEIGHT SENSOR (LOWER RIGHT FRONT OF ENGINE COMPT)
RIGHT HEADLAMP
RIGHT REAR HEIGHT SENSOR (UNDER RIGHT REAR OF VEHICLE)
RR SENS SIG FR SENS SIG SIG
RR SENS- FR SENS- RR SENS+
SPLY
WHT WIRE
WHT/BLK WIRE
YEL WIRE
YEL/BLU WIRE
YEL/GRN WIRE
YEL/RED WIRE
Go to component -> Headlamps leveling circuit, with adaptive headlamp leveling -> CORNERING LAMP
