Jaguar XJS Series 3 (1990-1996) right terminal post Wiring diagrams
This page contains all the electrical diagrams for the component. right terminal post, in which he is found in the car Jaguar XJS Series 3 (1990-1996). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

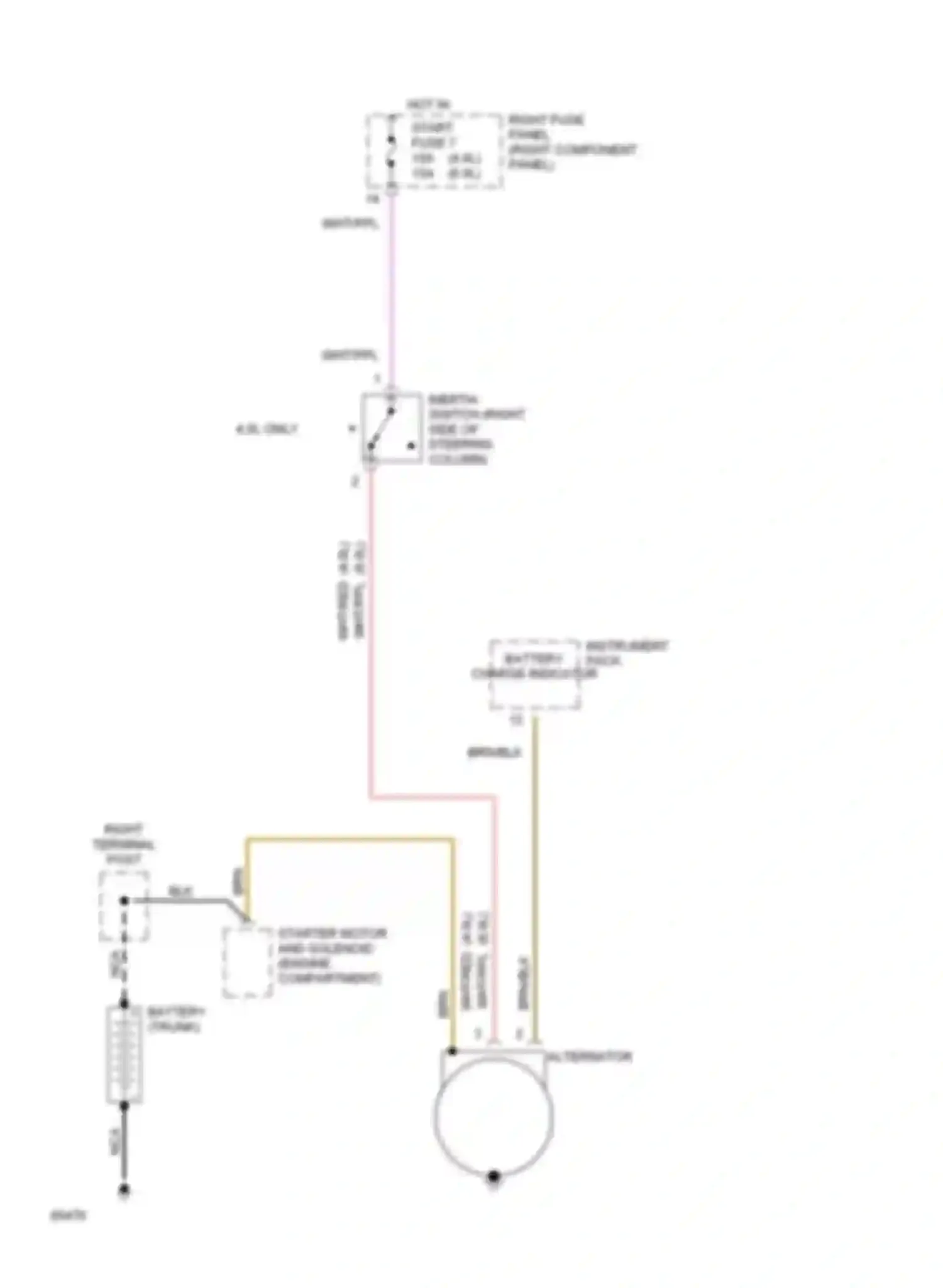

right terminal post wiring diagram (1 of 2)
ALTERNATOR
BATTERY (TRUNK)
BATTERY CHARGE INDICATOR
BLK WIRE
BRN WIRE
BRN/BLK WIRE
HOT IN START FUSE 7
INERTIA SWITCH (RIGHT SIDE OF STEERING COLUMN)
INSTRUMENT PACK
NCA WIRE
RIGHT FUSE PANEL (RIGHT COMPONENT PANEL)
RIGHT TERMINAL POST
STARTER MOTOR AND SOLENOID (ENGINE COMPARTMENT)
WHT/PPL WIRE
WHT/RED WIRE
Go to component -> Charging circuit -> RIGHT TERMINAL POST

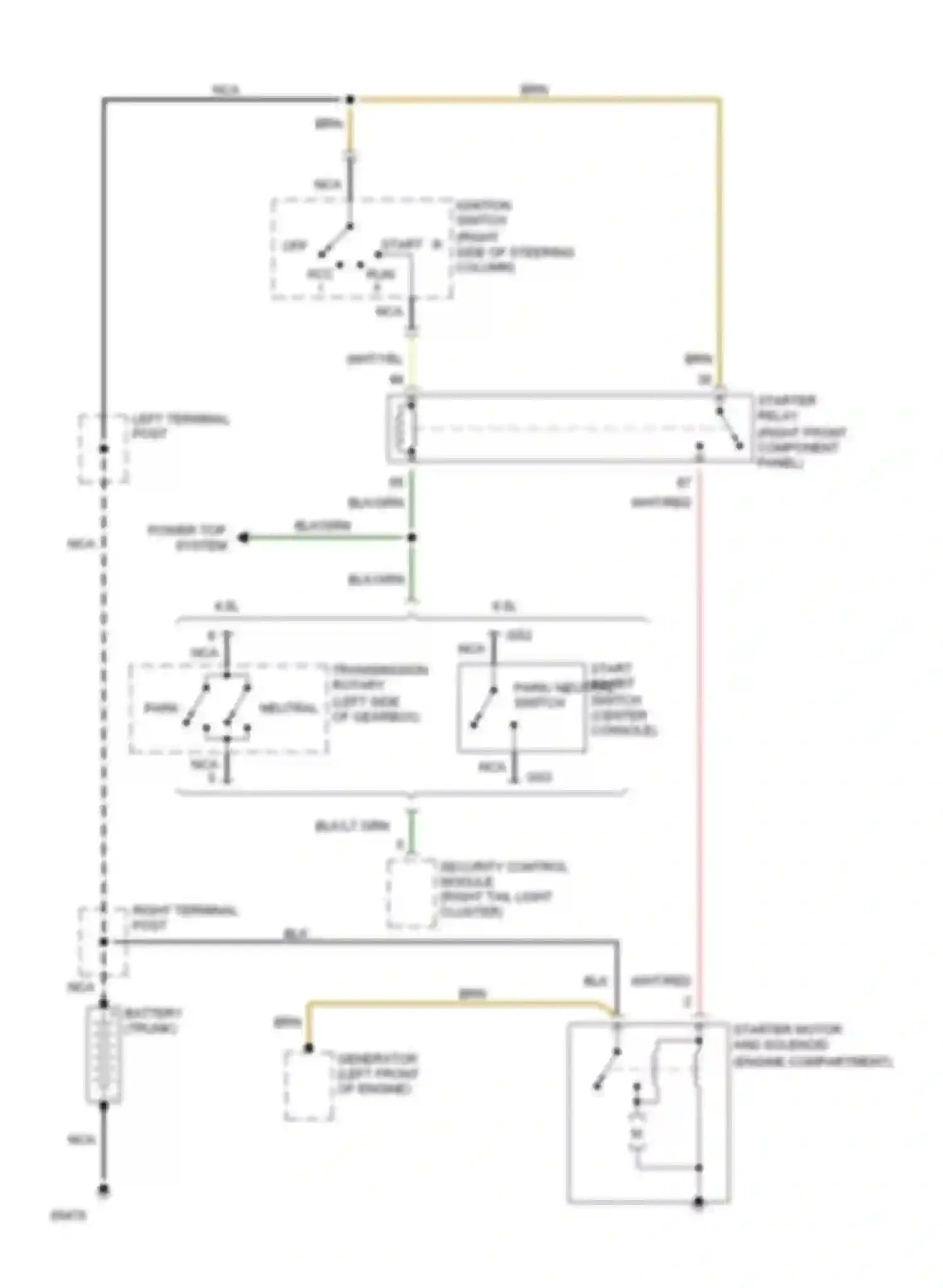

right terminal post wiring diagram (2 of 2)
4.0L
6.0L
BATTERY (TRUNK)
BLK WIRE
BLK/GRN WIRE
BLK/LT GRN WIRE
BRN WIRE
GENERATOR (LEFT FRONT OF ENGINE)
IGNITION SWITCH
INHIBIT SWITCH (CENTER CONSOLE)
LEFT TERMINAL POST
NCA WIRE
NEUTRAL
OFF
PARK
POWER TOP SYSTEM
RIGHT TERMINAL POST
RUN WIRE
SECURITY CONTROL MODULE (RIGHT TAIL LIGHT CLUSTER)
STARTER MOTOR AND SOLENOID
STARTER RELAY
TRANSMISSION ROTARY PARK/ NEUTRAL SWITCH (LEFT SIDE OF GEARBOX)
WHT/RED WIRE
WHT/YEL WIRE
Go to component -> Starting circuit -> RIGHT TERMINAL POST
