Jet heater circuit for Jaguar XF II (2015-2020)

Jet heater circuit

Get access

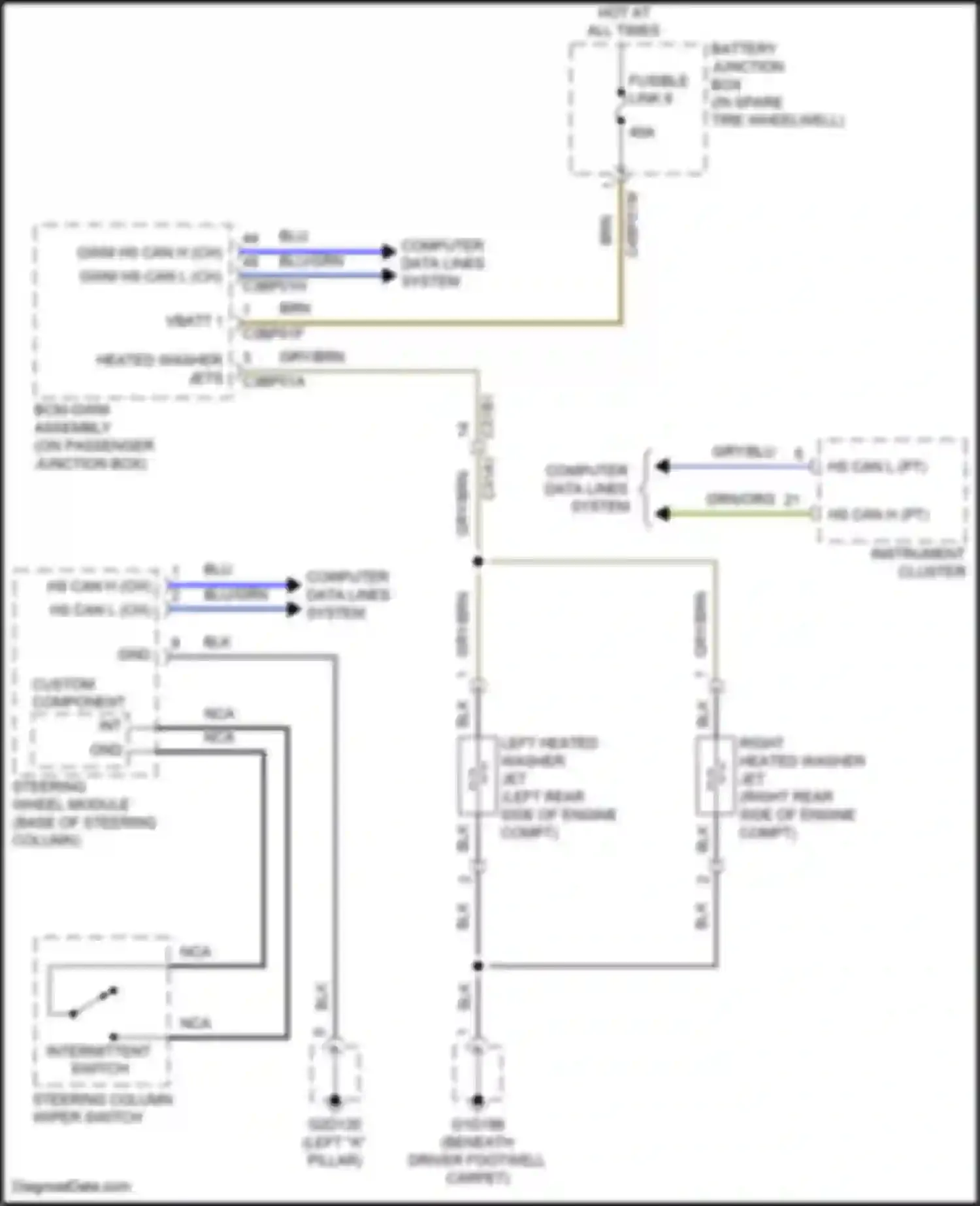

BATTERY JUNCTION BOX BCM-GWM ASSEMBLY BLK WIRE BLU WIRE BLU/GRN WIRE BRN WIRE COMPUTER DATA LINES SYSTEM CUSTOM COMPONENT FUSIBLE LINK 6 GRN/ORG WIRE GRY/BLU WIRE GRY/BRN WIRE GWM HS CAN H (CH) GWM HS CAN L (CH) HEATED WASHER JETS HOT AT ALL TIMES HS CAN H (CH) HS CAN H (PT) HS CAN L (CH) HS CAN L (PT) INSTRUMENT CLUSTER INTERMITTENT SWITCH LEFT HEATED WASHER JET NCA WIRE RIGHT HEATED WASHER JET STEERING COLUMN WIPER SWITCH STEERING WHEEL MODULE VBATT 1
