Wiring Diagrams for Jaguar XE I (2015-2019)

Automatic a/c circuit Fuel fired heater circuit

Anti lock brake circuit Terrain response circuit

Anti-theft circuit, active Anti-theft circuit, passive

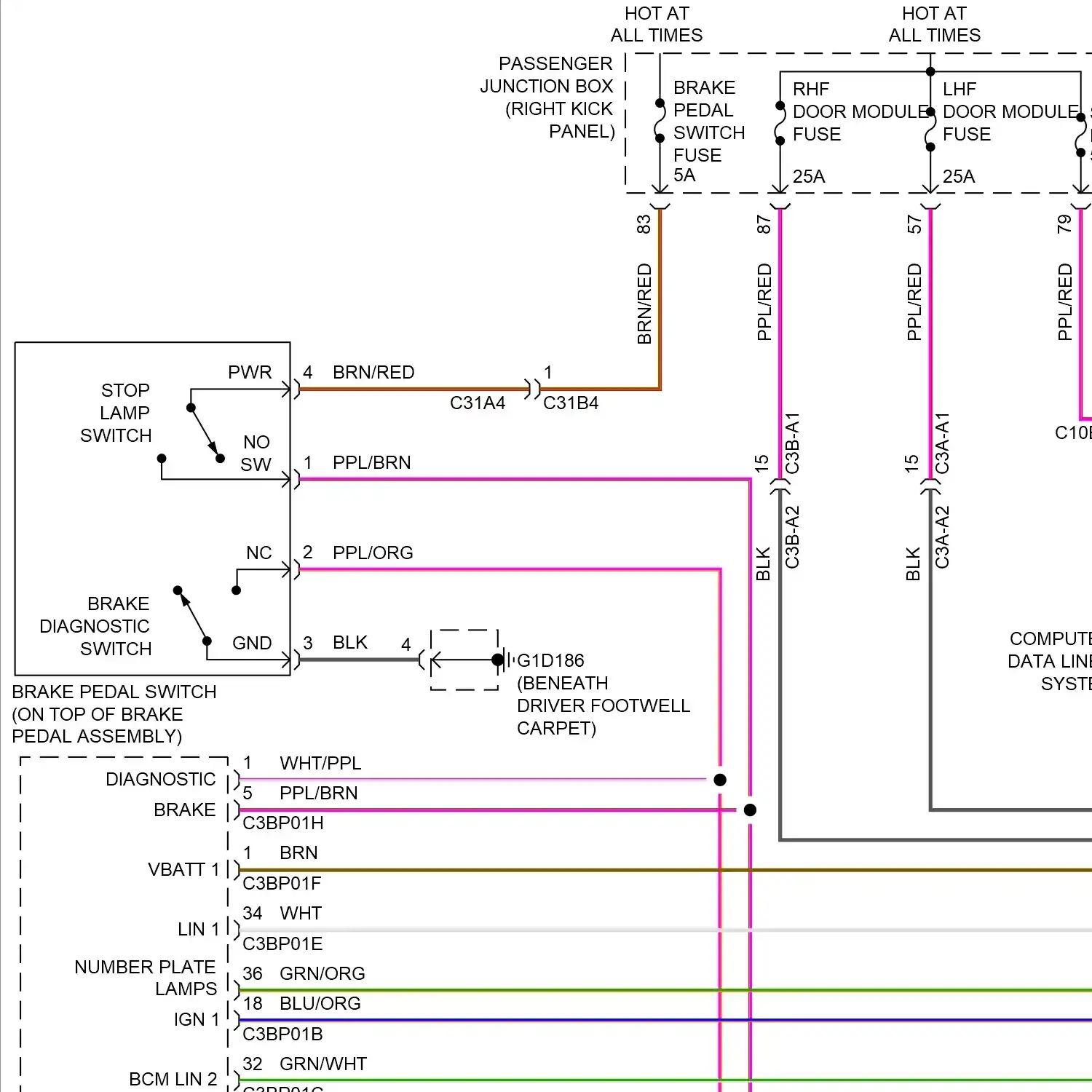

Body control modules circuit

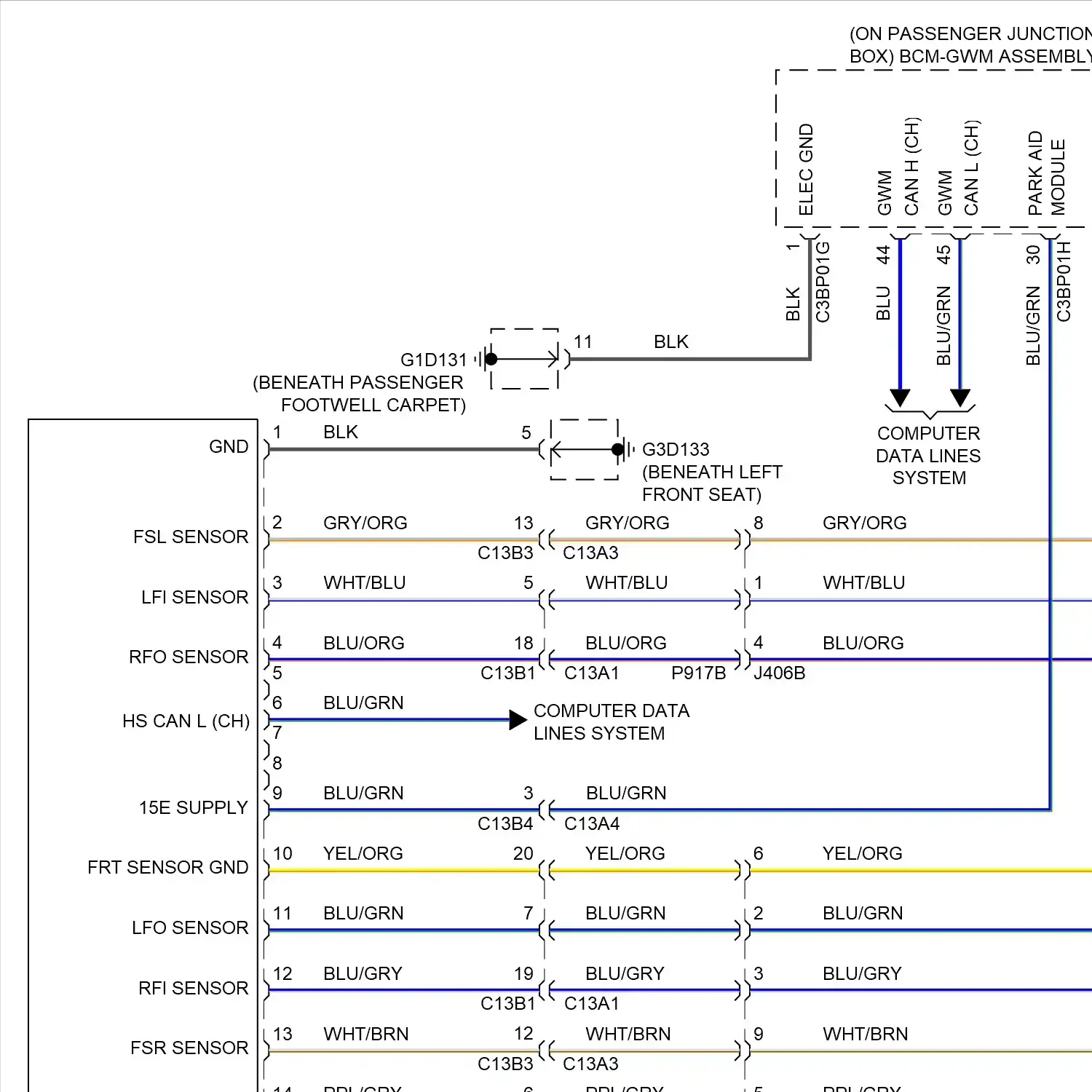

Computer data lines circuit

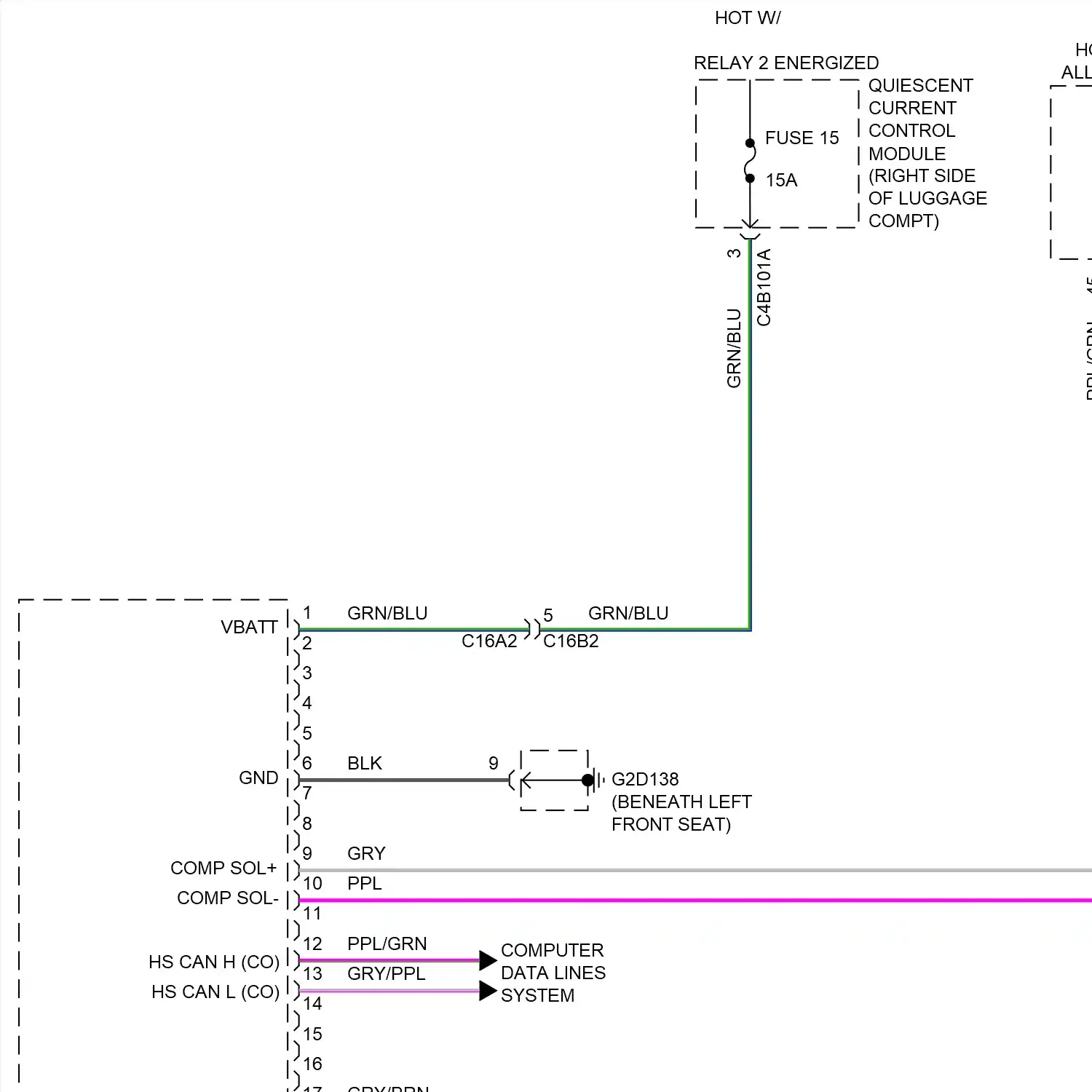

Cooling fan circuit

2.0l turbo, cruise control circuit

2.0l turbo diesel, cruise control circuit

3.0l sc, cruise control circuit

Heated mirrors circuit Heated windshield circuit Rear defogger circuit

Power steering circuit Steering column adjustment circuit

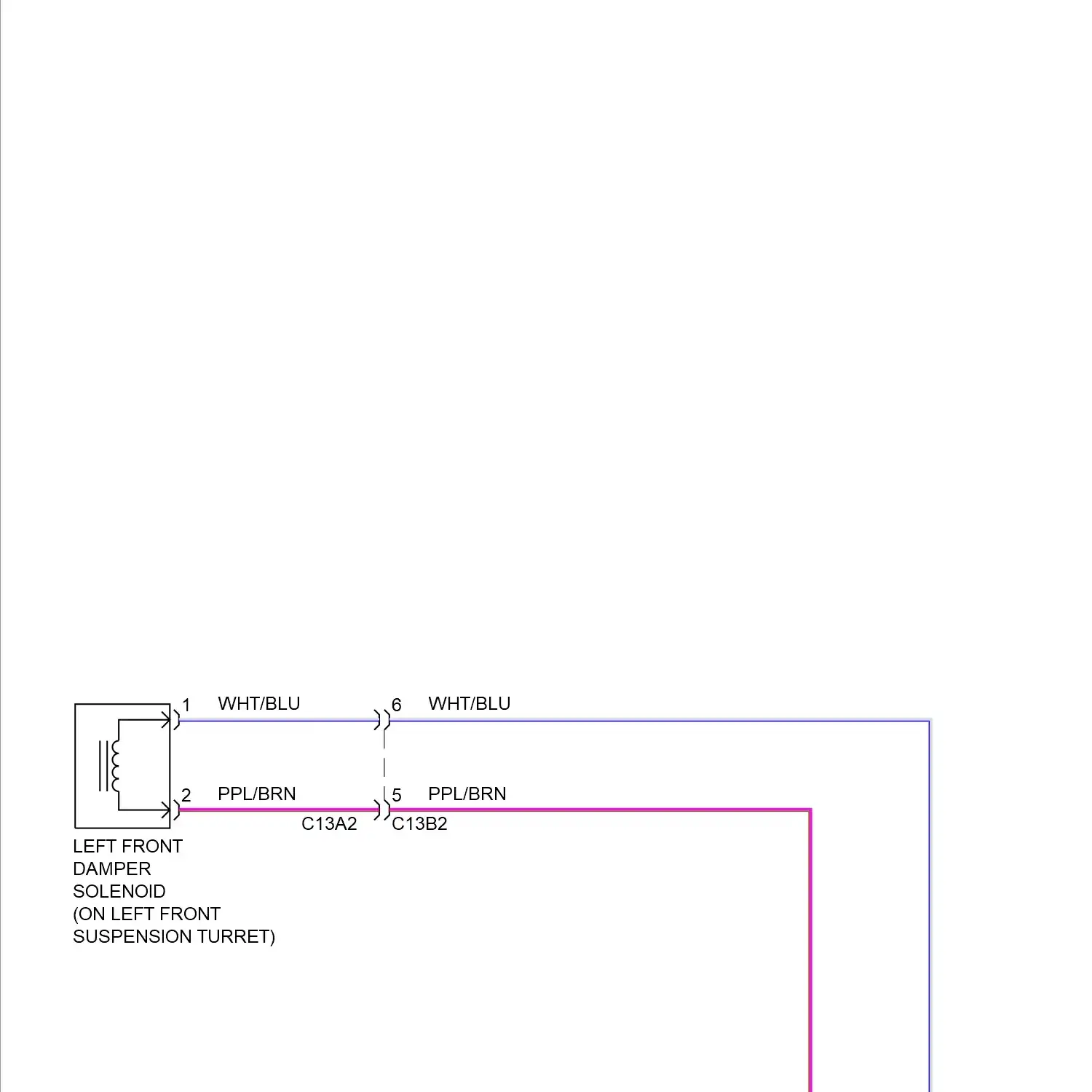

Electronic suspension circuit

Wiring diagram engine performance 2.0l turbo

Wiring diagram engine performance 2.0l turbo diesel

Wiring diagram engine performance 3.0l sc

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Adaptive front lighting circuit Headlamps circuit

Horn circuit

Head-up display circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Driver"s memory seat circuit, 10-way Driver"s memory seat circuit, 8-way Memory mirrors circuit Steering column memory circuit

Blind spot monitoring circuit Multi camera circuit Navigation circuit, base Navigation circuit, premium 17-speaker system Parking assistant circuit Rear view camera circuit Telematics circuit

Power distribution circuit

Power door locks circuit

Electrochromic mirror circuit Power mirrors circuit

Climate control seats circuit Heated seats circuit Heated steering wheel circuit Power seats circuit, 10-way Power seats circuit, 2-way

Power top/sunroof circuit

Power windows circuit

Base radio circuit Premium radio circuit, 11-speaker system Premium radio circuit, 17-speaker system

Shift interlock circuit

2.0l turbo, charging circuit 2.0l turbo, starting circuit

2.0l turbo diesel, charging circuit 2.0l turbo diesel, starting circuit

3.0l sc, charging circuit 3.0l sc, starting circuit

Supplemental restraints circuit

2.0l turbo, a/t circuit 2.0l turbo, awd circuit

2.0l turbo diesel, a/t circuit 2.0l turbo diesel, awd circuit

3.0l sc, a/t circuit 3.0l sc, awd circuit

Power tailgate circuit Trunk & fuel door release circuit

Seat belt warning circuit Tire pressure monitoring circuit

Jet heater circuit Power wash circuit Wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, INSTRUMENT CLUSTER SYSTEMS AUDIO AMPLIFIER MODULE BATTERY BACKUP SOUNDER BATTERY JUNCTION BOX BATTERY MONITORING SYSTEM MODULE BATTERY REFERENCE VOLTAGE CTRL RESISTOR A CTRL RESISTOR B DR LOCK/MIRR FOLD IN ELEC STEERING COL LOCK ELECTRIC STEERING COLUMN LOCK FROM BATTERY MONITORING SYSTEM FUEL FLAP LOCK HORN CONTROL HORN CTRL HORN IN IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 5 IGNITION COIL 6 LEFT HORN LF LOCK SW LR LOCK SW O FUEL FLAP LOCK O-ELEC-STEERING- COL-LOCK RF LOCK SW RIGHT HORN RR LOCK SW STARTER MONITOR STEERING COLUMN LOCK MODULE

(LOWER LEFT REAR OF ENGINE COMPT, (RIGHT FRONT OF ENGINE ACTIVE ENGINE MOUNT SOLENOID ACTIVE GRILLE AIR SHUTTER MOTOR AFS DC MOTOR MOTOR AFS MOTOR BYPASS VALVE ACTUATOR COOLING FAN MOTOR FUSIBLE LINK DC MOTOR + DC MOTOR CIG DC MOTOR GND DC MOTOR SIG DC MOTOR SPLY DEMIST DISTRIBUTION MOTOR DEPLOYABLE TOWBAR MOTOR DEPLOYABLE TOWBAR MOTOR SHIELD DRIVER DOOR FOLDING MOTOR DRIVER SEAT BACKREST RECLINE MOTOR DRIVER SEAT CUSHION EXTENSION MOTOR DRIVER SEAT FORWARD/REARWARD MOTOR DRIVER SEAT HEIGHT MOTOR DRIVER SEAT TILT MOTOR ENGINE CONTROLS SYSTEM ENGINE RUNNING CONTROL FRONT ENGINE JUNCTION BOX FUEL FLAP RELEASE MOTOR HCM MOTOR HEIGHT MOTOR DOWN HEIGHT MOTOR UP INTAKE MANIFOLD VARIABLE SWIRL ACTUATOR LATCH RELEASE MOTOR LEFT CUSHION EXTENSION SEAT MOTOR LEFT ELECTRIC PARK BRAKE ACTUATOR LEFT FRONT CENTRAL DOOR LOCKING MOTOR LEFT FRONT FACE/FEET MOTOR LEFT FRONT RECLINE BACKREST SEAT MOTOR LEFT FRONT TEMPERATURE BLEND MOTOR LEFT FRONT WINDOW MOTOR LEFT HOOD ACTUATOR LEFT REAR CENTRAL DOOR LOCKING MOTOR LEFT REAR WINDOW MOTOR LEFT SEAT FORWARD REARWARD MOTOR LEFT SEAT HEIGHT MOTOR LEFT SEAT TILT MOTOR LH BONNET ACTUATOR NEG LH BONNET ACTUATOR PWR LH MOTOR +VE LID LUGGAGE COMPARTMENT CLOSING MOTOR LUGGAGE COMPARTMENT CENTRAL DOOR LOCKING MOTOR LUGGAGE COMPARTMENT LID CLOSING MOTOR MOTOR NEG MOTOR POS MOTOR PWR PASSENGER DOOR FOLDING MOTOR REAR ENGINE JUNCTION BOX RECIRCULATION MOTOR RH BONNET ACTUATOR NEG RH BONNET ACTUATOR PWR RH MOTOR -VE RIGHT CUSHION EXTENSION SEAT MOTOR RIGHT ELECTRIC PARK BRAKE ACTUATOR RIGHT FRONT CENTRAL DOOR LOCKING MOTOR RIGHT FRONT RECLINE BACKREST SEAT MOTOR RIGHT FRONT TEMPERATURE BLEND MOTOR RIGHT FRONT WINDOW MOTOR RIGHT HOOD ACTUATOR RIGHT REAR CENTRAL DOOR LOCKING MOTOR RIGHT REAR WINDOW MOTOR RIGHT SEAT FORWARD REARWARD MOTOR RIGHT SEAT HEIGHT MOTOR RIGHT SEAT TILT MOTOR SLIDE MOTOR FORWARD SLIDE MOTOR REARWARD SLIDE MOTOR SENS SQUAB MOTOR INCLINE SQUAB MOTOR RECLINE SQUAB MOTOR SENS STARTER MOTOR STEERING COLUMN ADJUST MOTOR SUN BLIND MOTOR TILT COLUMN MOTOR TILT MOTOR DOWN TILT MOTOR SENS TILT MOTOR UP TOP OF ENGINE) VANE VGT ACTUATOR WASTEGATE ACTUATOR WINDSHIELD WASHER MOTOR WINDSHIELD WIPER MOTOR

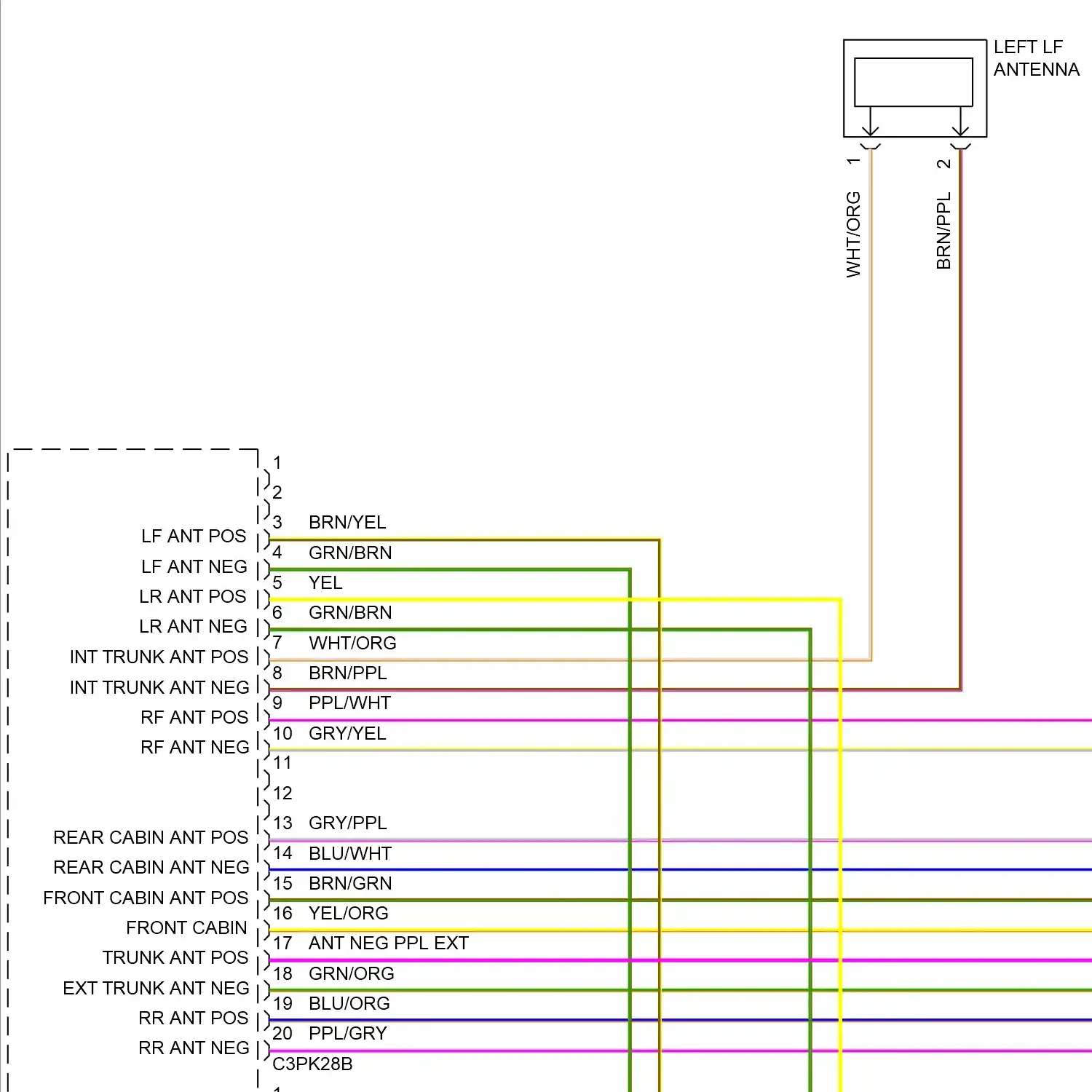

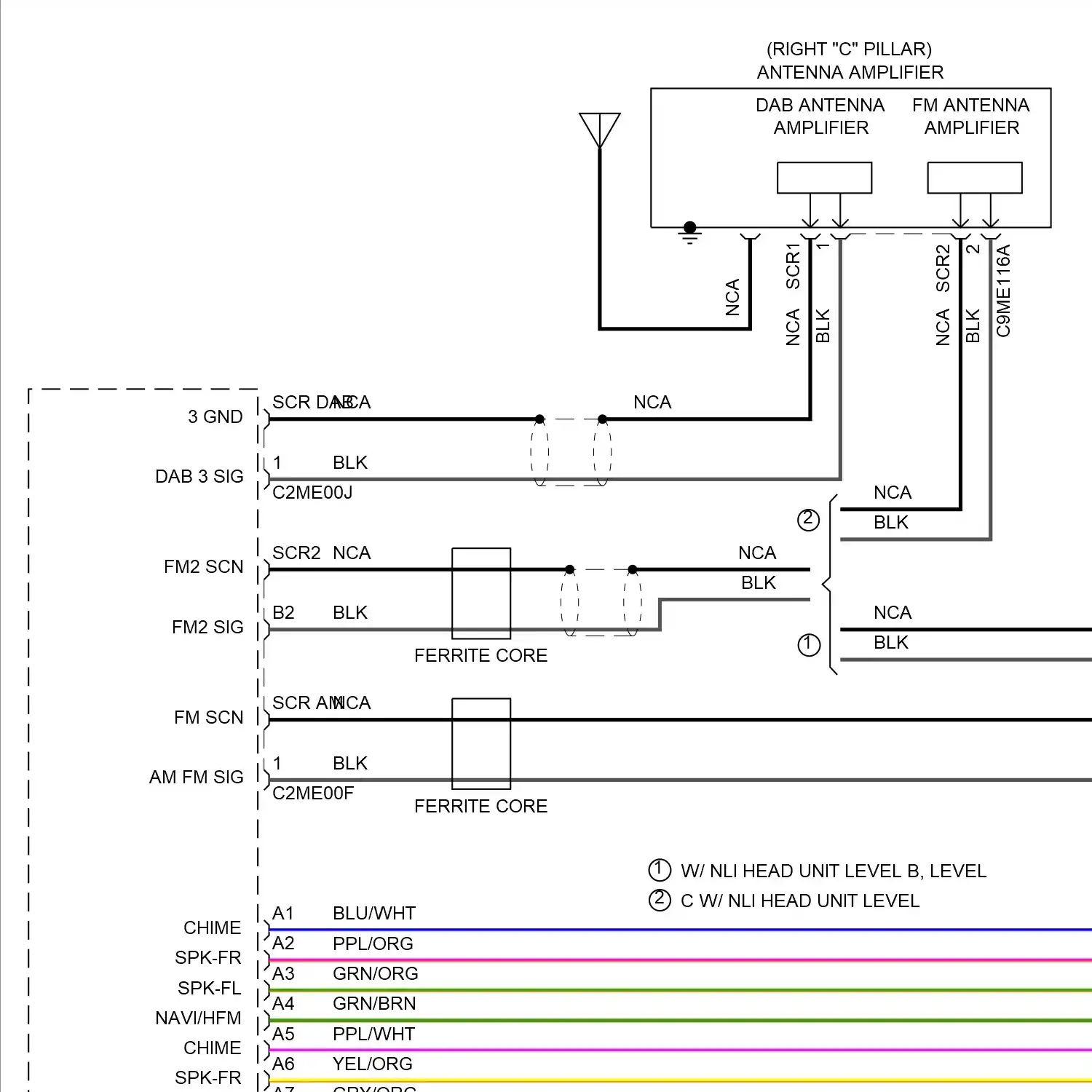

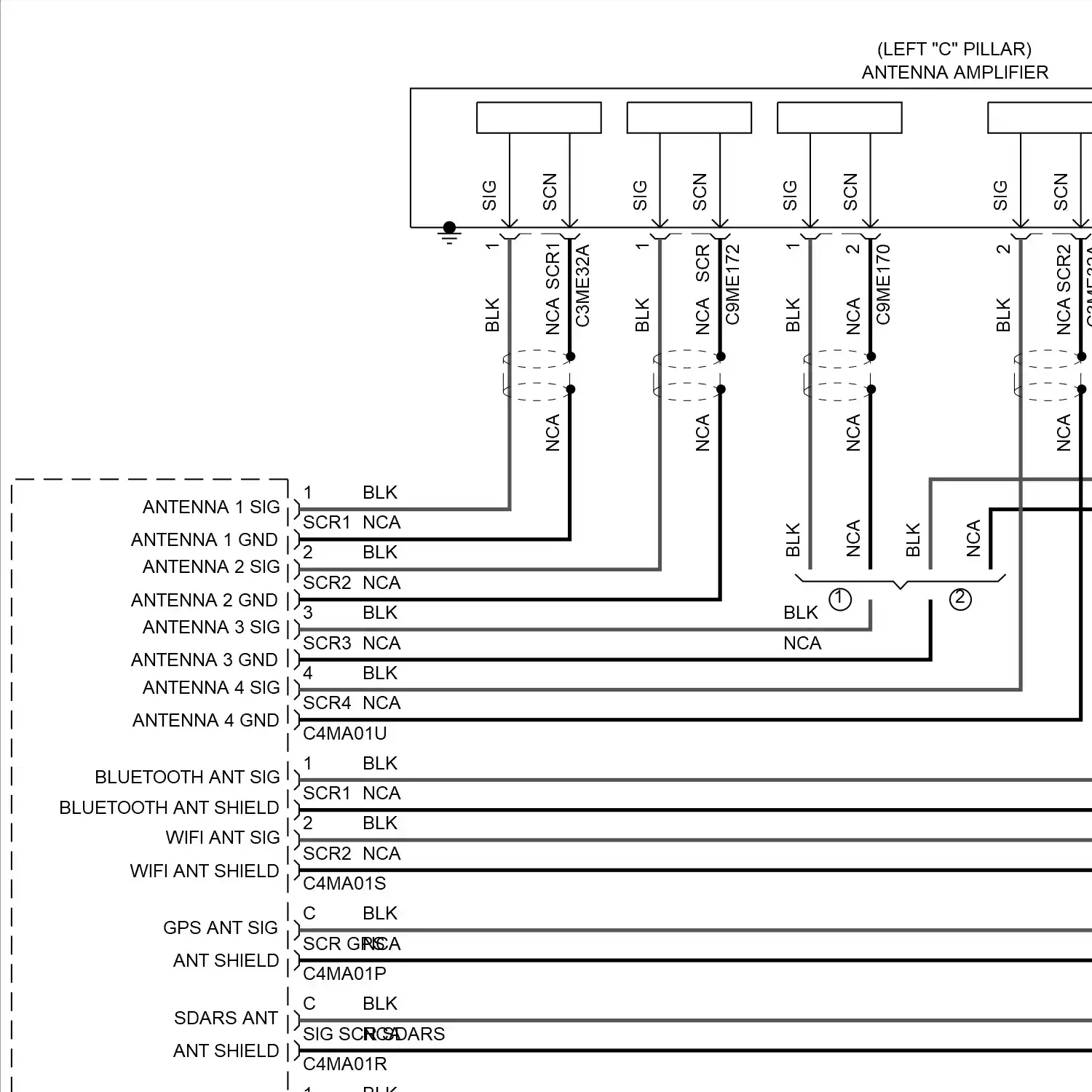

AM FM ANTENNA SCR AM FM ANTENNA SIG ANTENNA 1 GND ANTENNA 2 SIG ANTENNA 1 SIG ANTENNA 2 GND ANTENNA 3 SIG ANTENNA 3 GND ANTENNA 4 SIG ANTENNA 4 GND DAB ANTENNA DAB ANTENNA AMPLIFIER EXTERNAL WIFI ANTENNA FM ANTENNA AMPLIFIER FRONT BLUETOOTH ANTENNA FRONT CABIN LF ANTENNA FRONT WIFI ANTENNA FUEL FIRED BOOSTER HEATER ANTENNA GSM ANTENNA LEFT LF ANTENNA REAR CENTER CONSOLE LF ANTENNA REAR EXTERNAL LF ANTENNA SDARS ANTENNA

CAMERA LVDS N CAMERA LVDS P CAMERA LVDS P SCR LVDS SCR FORWARD FACING CAMERA FRONT PROXIMITY CAMERA LEFT MIRROR PROXIMITY CAMERA REAR VIEW CAMERA RIGHT MIRROR PROXIMITY CAMERA

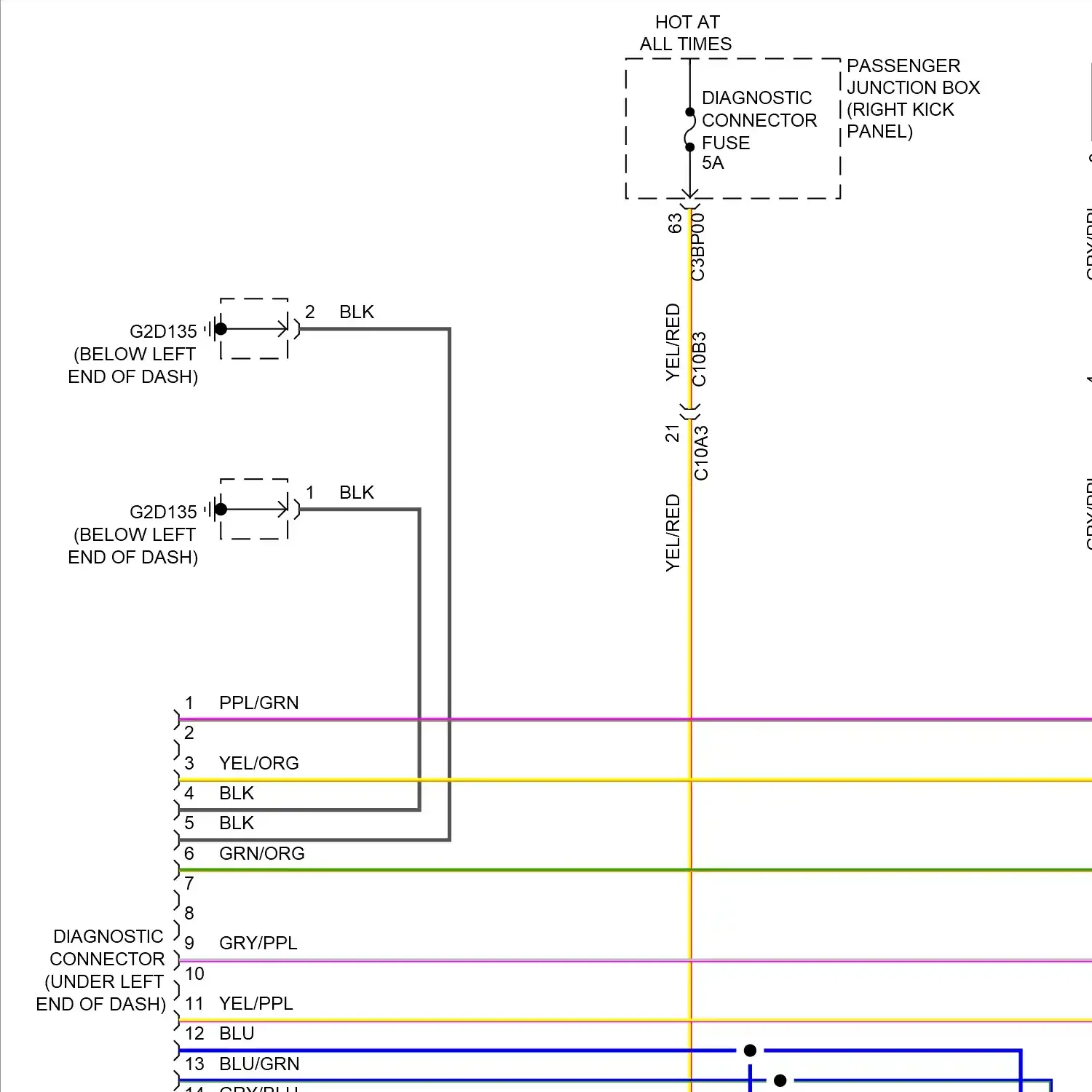

ACCESSORY SOCKET 1 CONTROL ACCESSORY SOCKET 2 CONTROL DIAGNOSTIC CONNECTOR DIAGNOSTIC CONNECTOR FUSE ROAD PRICING CONNECTOR SOCKET 2 CTRL

ABS CONTROL MODULE CAMERA CONTROL MODULE CLIMATE CONTROL MODULE DC-DC CONVERTER CONTROL MODULE DEF HEATING CONTROL MODULE DEPLOYABLE TOWBAR CONTROL MODULE ENGINE CONTROL MODULE FRONT BLOWER CONTROL MODULE GLOW PLUG CONTROL MODULE HEAD-UP DISPLAY CONTROL MODULE HOT W/ ENGINE CONTROL MODULE RELAY ENERGIZED IMAGE PROCESSING CONTROL MODULE INTEGRATED CLIMATE CONTROL MODULE, SWITCH PACK INTEGRATED CLIMATE CONTROL MODULE, SWITCHPACK PARKING ASSIST CONTROL MODULE POWER STEERING CONTROL MODULE QUIESCENT CURRENT CONTROL MODULE ROOF OPENING PANEL CONTROL MODULE SPEED CONTROL MODULE STEERING WHEEL HEATER CONTROL MODULE TELEMATIC CONTROL MODULE TRANSFER CASE CONTROL MODULE TRANSMISSION CONTROL MODULE

ACTIVE SENDER UNIT AUDIO HEAD UNIT COOLING FAN CONTROL UNIT ECU GND 1 ECU OUTPUT FUEL TANK UNIT HAZARD WARNING DIRECTION INDICATOR UNIT IMMOBILIZER ANTENNA UNIT MULTI-FUNCTION DISPLAY UNIT NGI HEAD UNIT NLI HEAD UNIT PASSIVE SENDER UNIT SENDER ACTIVE UNIT SENDER PASSIVE UNIT W/ NGI HEAD UNIT W/ NGI HEAD UNIT W/O NGI HEAD UNIT W/ NLI HEAD UNIT LEVEL B W/ NLI HEAD UNIT LEVEL B W/ NLI HEAD UNIT LEVEL C W/ NLI HEAD UNIT LEVEL B, LEVEL C W/ NLI HEAD UNIT LEVEL C W/ NLI HEAD UNIT LEVEL C

ACC FUSE ACTIVE CAMERA FUSE AWD FUSE BBS FUSE BRAKE PEDAL SWITCH FUSE CAMI/ CAMO/ LPWGV FUSE COOLANT PUMP SC FUSE CUBBY BOX POWER POINT FUSE CVD FUSE DEPLOYABLE SIDE STEP FUSE DIESEL PUMP FEEDBACK FUSE DIESEL SOL FUSE DIM FUSE ECFC/ EBF/ AEM FUSE ETS- TCM FUSE EWP OR GTDI OIL FLOW FUSE EWP/GTDI OIL FLOW FUSE FRONT CIGAR LIGHTER FUSE FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 9 FUSE 10 FUSE 13 FUSE 15 FUSE 16 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 28 GCU FUSE GWM FUSE HCM FUSE HEADLAMP WASH FUSE HEATED STEERING WHEEL FUSE HEATED/ CLIMATE SEAT 20 FUSE HEATED/ CLIMATE SEAT 21 FUSE HEGO FUSE HEGO POST/ DTML/ FLEX FUSE HEGO/ HEGO MID FUSE HEGOS POST CAT FUSE HEVAC CLUTCH FUSE HORNS FUSE HSW FUSE HUD FUSE IGN COILS FUSE KVM LATCH FUSE KVM LOGIC FUSE LEFT REAR HEAT SEAT FUSE LH AFS FUSE LH REAR HEAT SEAT FUSE LHF DOOR MODULE FUSE LHR DOOR MODULE FUSE MIRROR ELEC/ BSM/ CAM FUSE MIRROR ELEC/ BSM/CAM FUSE MIRROR ELEC/BSM/ CAM FUSE NOX/ HEGO/ DEF FUSE NOX/ HEGO/DEF FUSE OSJ/ SOP/VOP/ VCLNTP FUSE PCM BATT FUSE PEMS ACTUATORS/ GPCM FUSE PEMS SENSORS FUSE POWER AMP FUSE POWER TRUNK LID FUSE PV/ CBV/ ESTAT/ VVE/ VVI FUSE REAR HEAT SEAT SWITCH FUSE RFR FUSE RH AFS FUSE RH REAR HEAT SEAT FUSE RHF DOOR MODULE FUSE RHR DOOR MODULE FUSE RIGHT REAR HEAT SEAT FUSE ROAD PRICING FUSE SPARE FUSE SUN BLIND FUSE SUNROOF FUSE SWM FUSE TCU FUSE TRAILER ENGINE RUN FUSE UNDER BONNET FUSE BOX VANES/ PCV/MAF/ UHEGO FUSE VANES/PCV/ MAF/UHEGO FUSE VBATT TRM FUSE VBATT TRM INT LIGHTS FUSE VICS FUSE VVT/ FMV-FPV FUSE

BLOCK HEATER BLOCK HEATER HARNESS TO AC MAINS SUPPLY DEF PRESSURE LINE HEATER ELECTRIC BOOSTER HEATER FUEL FIRED BOOSTER HEATER LEFT REAR SEAT BACKREST HEATER LEFT SEAT BACKREST HEATER LEFT WINDSHIELD HEATER MIRROR HEATER PTC HEATER 1 FUSIBLE LINK PTC HEATER 2 FUSIBLE LINK RIGHT BACKREST SEAT HEATER RIGHT REAR SEAT BACKREST HEATER RIGHT SEAT BACKREST HEATER RIGHT WINDSHIELD HEATER STEERING WHEEL HEATER

LEFT FRONT O DIRECTION INDICATOR LEFT REAR O DIRECTION INDICATOR LF INDICATOR PAD INDICATOR OFF PASSENGER AIR BAG DISABLE INDICATOR RF INDICATOR RIGHT FRONT O DIRECTION INDICATOR

APPROACH LAMP BCALL BACKLIGHT SPLY ECALL BACKLIGHT SPLY EXTERIOR LIGHTS, HEADLIGHTS SYSTEMS GLOVE BOX ILLUMINATION LAMP HIGH MOUNTED STOP LAMP LEFT FOG, TAIL LAMP ASSEMBLY LEFT FRONT DOOR SILL LAMP LEFT FRONT FOOTWELL LAMP LEFT FRONT PUDDLE LAMP LEFT MAP LAMP LEFT REAR FOOTWELL LAMP LEFT REAR LICENSE PLATE LAMP LEFT REAR NUMBER PLATE LAMP LEFT REAR PUDDLE LAMP LEFT REVERSE LAMP LEFT STOP LAMP LEFT TAIL LAMP ASSEMBLY LUGGAGE COMPARTMENT LAMP O INTERIOR LIGHTS REAR INTERIOR LAMP RIGHT FOG, TAIL LAMP ASSEMBLY RIGHT FRONT DOOR SILL LAMP RIGHT FRONT FOOTWELL LAMP RIGHT FRONT PUDDLE LAMP RIGHT MAP LAMP RIGHT REAR FOOTWELL LAMP RIGHT REAR LICENSE PLATE LAMP RIGHT REAR NUMBER PLATE LAMP RIGHT REAR PUDDLE LAMP RIGHT REVERSE LAMP RIGHT STOP LAMP RIGHT TAIL LAMP ASSEMBLY TRUNK, TAILGATE, FUEL DOORS, INTERIOR LIGHTS SYSTEMS

ABS PUMP FUSIBLE LINK BOLSTER PUMP CHARGE AIR COOLANT PUMP DRIVER FUEL PUMP MODULE DRIVER LUMBAR PUMP DRIVER LUMBER PUMP FUEL PUMP FUEL PUMP CTRL FUEL PUMP DRIVER MODULE FUEL SENS PUMP HIGH PRESSURE FUEL PUMP 1 HIGH PRESSURE FUEL PUMP 2 I FUEL PUMP CTRL I FUEL SENS PUMP IC WATER PUMP IC WATER PUMP O T WCAC LEFT LUMBAR PUMP O FUEL PUMP CONTROL O T CCP IC WATER PUMP PASSENGER LUMBER PUMP POWER WASH PUMP PUMP RTN PUMP SUPPLY PUMP U PUMP V PUMP W PURGE PUMP RIGHT LUMBAR PUMP TANK LEAKAGE DIAGNOSTIC MODULE PUMP WASH PUMP RLY CTRL

ACCESSORY SOCKET RELAY AWD RELAY BLOWER RELAY CHARGE AIR COOLANT PUMP RELAY COMFORT RELAY COOLING FAN RELAY DEF TANK MODULE CONTROL RELAY EXTENDED IGNITION MICRO RELAY EXTENDED IGNITION MINI RELAY EXTENDED IGNITION RELAY FUEL PUMP RELAY FUEL PUMP RELAY FUSE HEATED STEERING WHEEL RELAY HEATED WINDSHIELD RELAY HORN RELAY HOT W/ COMFORT RELAY ENERGIZED HOT W/ EXTENDED IGNITION RELAY ENERGIZED HOT W/ RELAY 1 ENERGIZED HOT W/ RELAY 2 ENERGIZED LEFT HEADLAMP WASH PUMP RELAY PTC 1 RELAY PTC 2 RELAY REAR ENGINE JUNCTION BOX AWD RELAY REAR ENGINE JUNCTION BOX WIPER ON-OFF RELAY REAR HEATED SCREEN RELAY RELAY 1 RELAY 2 STARTER MOTOR RELAY STARTER PINION RELAY STARTER RELAY TRAILER SOCKET RELAY WIPER FAST- SLOW RELAY WIPER ON/ OFF RELAY

ACCELERATOR PEDAL POSITION SENSOR AIR CONDITIONING PRESSURE SENSOR AMBIENT AIR TEMPERATURE SENSOR BRAKE FLUID LEVEL SENSOR CHARGE AIR COOLER TEMPERATURE SENSOR COOLANT PUMP POSITION SENSOR CRANKCASE PRESSURE SENSOR CYLINDER BLOCK TEMPERATURE SENSOR CYLINDER HEAD TEMPERATURE SENSOR DIFFERENTIAL PRESSURE DPF SENSOR DOWNSTREAM SCR NOX SENSOR DOWNSTREAM SCR SOOT SENSOR DRIVER SEAT POSITION SENSOR EVAPORATOR TEMPERATURE SENSOR FIXED TURBOCHARGER OUTLET TEMPERATURE SENSOR FRONT KNOCK SENSOR FRONT SUNLOAD SENSOR FRT SENSOR GND FRT SENSOR PWR FSL SENSOR FSR SENSOR FUEL RAIL PRESSURE SENSOR FUEL RAIL PRESSURE/ TEMPERATURE SENSOR FUEL SENSOR EJECT FUEL SENSOR PUMP FUEL TEMPERATURE SENSOR HALL SENSOR RETURN HIGH PRESSURE EGR COOLER BYPASS VALVE POSITION SENSOR HIGH PRESSURE EGR COOLER OUTLET TEMPERATURE SENSOR HIGH PRESSURE EGR INLET PRESSURE SENSOR HUMIDITY/ TEMPERATURE SENSOR IN-VEHICLE TEMPERATURE SENSOR INTAKE BANK 1 CAMSHAFT POSITION SENSOR INTAKE DPF TEMPERATURE SENSOR LEFT ANTI-TRAP TRAP SENSOR LEFT BANK KNOCK SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT DOOR IMPACT PRESSURE SENSOR LEFT FRONT HEIGHT SENSOR LEFT FRONT INNER PARKING AID SENSOR LEFT FRONT OUTER PARKING AID SENSOR LEFT FRONT PARK ASSIST SENSOR LEFT FRONT TIRE SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT MID CATALYST HEATED OXYGEN SENSOR LEFT PEDESTRIAN IMPACT SENSOR LEFT POST CATALYST HEATED OXYGEN SENSOR LEFT PRE CATALYST HEATED OXYGEN SENSOR LEFT REAR HEIGHT SENSOR LEFT REAR INNER PARKING AID SENSOR LEFT REAR OUTER PARKING AID SENSOR LEFT REAR PARK ASSIST SENSOR LEFT REAR SIDE IMPACT SENSOR LEFT REAR TIRE SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT SIDE FRONT IMPACT SENSOR LFI SENSOR LFO SENSOR LOW FUEL PRESSURE SENSOR LOW PRESSURE EGR COOLER OUTLET TEMPERATURE SENSOR LOW PRESSURE EGR DIFFERENTIAL PRESSURE SENSOR LPA SENSOR LRI SENSOR LRO SENSOR MID CATALYST HEATED OXYGEN SENSOR OCCUPANT CLASSIFICATION CONTROL MODULE SENSOR OCCUPANT CLASSIFICATION SENSOR CONTROL MODULE OCCUPANT DETECTION SENSOR OIL LEVEL, TEMPERATURE SENSOR OIL PRESSURE/ TEMPERATURE SENSOR OUTLET BANK 1 CAMSHAFT POSITION SENSOR OUTLET DPF TEMPERATURE SENSOR POLLUTION SENSOR POST CATALYST HEATED OXYGEN SENSOR PRE CATALYST HEATED OXYGEN SENSOR RADIATOR OUTLET TEMPERATURE SENSOR RAIN/ LIGHT SENSOR RAIN/LIGHT SENSOR REAR KNOCK SENSOR REAR SENSOR GND REAR SENSOR PWR RFI SENSOR RFO SENSOR RIGHT ANTI-TRAP SENSOR RIGHT BANK KNOCK SENSOR RIGHT FRONT DOOR IMPACT PRESSURE SENSOR RIGHT FRONT HEIGHT SENSOR RIGHT FRONT INNER PARKING AID SENSOR RIGHT FRONT OUTER PARKING AID SENSOR RIGHT FRONT PARK ASSIST SENSOR RIGHT FRONT SEAT POSITION SENSOR RIGHT FRONT TIRE SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT MID CATALYST HEATED OXYGEN SENSOR RIGHT PEDESTRIAN IMPACT SENSOR RIGHT POST CATALYST HEATED OXYGEN SENSOR RIGHT PRE CATALYST HEATED OXYGEN SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR HEIGHT SENSOR RIGHT REAR INNER PARKING AID SENSOR RIGHT REAR OUTER PARKING AID SENSOR RIGHT REAR PARK ASSIST SENSOR RIGHT REAR SIDE IMPACT SENSOR RIGHT REAR TIRE SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT SIDE FRONT IMPACT SENSOR RRI SENSOR RRO SENSOR RRP SENSOR SEAT BELT TENSION SENSOR SPARE TIRE SENSOR TELESCOPE SENSOR TEMPERATURE SENSOR TEMPERATURE/ HUMIDITY SENSOR TEMPERATURE/HUMIDITY SENSOR TILT SENSOR TRANSMISSION NEUTRAL SENSOR TURBINE BYPASS CONTROL ACTUATOR POSITION SENSOR UPSTREAM SCR NOX SENSOR VARIABLE VALVE LIFT ASSEMBLY OIL TEMPERATURE SENSOR WASHER FLUID LEVEL SENSOR WATER IN-FUEL SENSOR

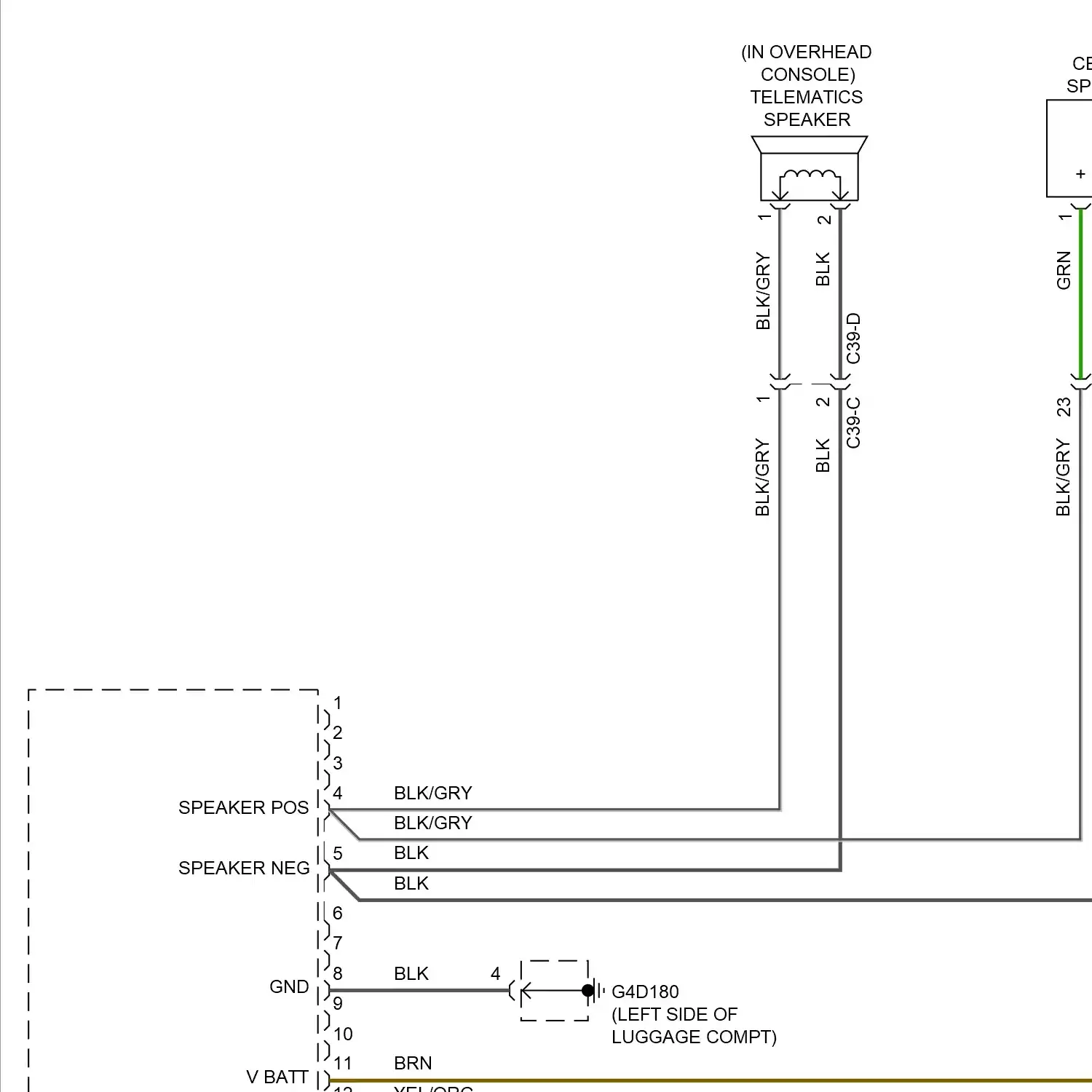

11 SPEAKER 17 SPEAKER BASE, PREMIUM 11-SPEAKER SYSTEM PREMIUM 17-SPEAKER SYSTEM CENTER SPEAKER DEPLOYABLE TOWBAR SPEAKER LEFT FRONT DOOR BASS SPEAKER LEFT FRONT DOOR MID RANGE SPEAKER LEFT REAR DOOR BASS SPEAKER LEFT REAR SURROUND SOUND SPEAKER RIGHT FRONT DOOR BASS SPEAKER RIGHT FRONT DOOR MID RANGE SPEAKER RIGHT REAR DOOR BASS SPEAKER RIGHT REAR SURROUND SOUND SPEAKER SPEAKER 1+ SPEAKER 2+ SPEAKER NEG SPEAKER POS SUBWOOFER SPEAKER TELEMATICS SPEAKER

AJAR SWITCH ALL SURFACE PROGRESS CONTROL SWITCH AUXILIARY LIGHTING SWITCH BELT SWITCH BOT CLUTCH SWITCH BRAKE DIAGNOSTIC SWITCH BRAKE FLUID LEVEL SWITCH BRAKE PEDAL SWITCH BRAKE VACUUM SWITCH CENTER REAR SEAT HEATER SWITCH COOLANT LEVEL SWITCH DEPLOYABLE TOWBAR SWITCH DIAGNOSTIC BRAKE SWITCH DOWNSHIFT PADDLE SWITCH DRIVER CENTRAL DOOR LOCKING SWITCH DRIVER DOOR SWITCH DRIVER DOOR WINDOW SWITCH DRIVER SEAT BELT SWITCH DRIVER WINDOW MIRROR SWITCH PACK ELECTRIC PARK BRAKE SWITCH EXIT SWITCH FRONT PASSENGER SBR SWITCH GLOVE BOX SWITCH HAZARD WARNING SWITCH HOOD SWITCH HORN SWITCH HTR SWITCH I BRAKE DIAGNOSTIC SWITCH I BRAKE SWITCH I PARK NEUTRAL SWITCH I TAILGATE RELEASE EXTERIOR SWITCH IGN 3 BRAKE FLUID LEVEL SWITCH ILLUMINATION O HAZARD SWITCH INTERIOR LIGHT SWITCH INTERIOR RELEASE TAILGATE SWITCH INTERMITTENT SWITCH ISOLATOR SWITCH LADDER SWITCH 1 LATCH CLUTCH SWITCH LEFT REAR DOOR SWITCH LEFT REAR SEAT BELT SWITCH LEFT REAR WINDOW SWITCH LOCK PUSH SWITCH LEFT FRONT DOOR HANDLE LOCK PUSH SWITCH LEFT REAR DOOR HANDLE LOCK PUSH SWITCH RIGHT FRONT DOOR HANDLE LOCK PUSH SWITCH RIGHT REAR DOOR HANDLE LOW COOLANT SWITCH LUGGAGE COMPARTMENT LID CLOSE SWITCH LUGGAGE COMPARTMENT LID CLOSING SWITCH LUGGAGE COMPARTMENT RELEASE SWITCH MENU OK SWITCH MODE SWITCH O ILLUMINATION SWITCH OIL PRESSURE SWITCH PARK SWITCH PASSENGER DOOR SWITCH PASSENGER DOOR WINDOW SWITCH PASSENGER SEAT BELT SWITCH PHONE ANSWER END SWITCH PROGRESS CONTROL ALL SURFACE SWITCH REAR CENTER SEAT BELT SWITCH REAR SEAT CENTER HEATER SWITCH RELEASE SWITCH RESISTIVE LADDER SWITCH 1 REVERSE SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR SEAT BELT SWITCH RIGHT REAR WINDOW SWITCH SEEK DOWN SWITCH SEEK UP SWITCH SET SWITCH STEERING COLUMN WIPER SWITCH STEERING WHEEL HEATER SWITCH STOP LAMP SWITCH STOPLAMP SWITCH STOPLAMP SWITCH BRAKE DIAGNOSTIC SWITCH SWITCH AJAR SWITCH DOWN SWITCH ILL SWITCH UNLOCK SWITCH UP TAIL DOOR LUGGAGE COMPARTMENT SWITCH TAILGATE AJAR SWITCH TAILGATE SWITCH TRANSMISSION CONTROL SWITCH UNLOCK PULL SWITCH UPSHIFT PADDLE SWITCH VOICE SWITCH VOLUME SWITCH WASH FLUID LEVEL SWITCH 1 WASH SWITCH WASHER FLUID LEVEL SWITCH 1 WINDOW SWITCH WINDSHIELD WIPER VARIABLE DELAY SWITCH WIPER FRONT SLOW SWITCH WIPER PARK FRONT SWITCH

CHANGEOVER VALVE EGR COOLER BYPASS SOLENOID VALVE FUEL PRESSURE CONTROL VALVE FUEL VOLUME CONTROL VALVE HIGH PRESSURE EGR SOLENOID VALVE LEFT FRONT DAMPER SOLENOID LEFT LUMBAR PUMP SOLENOID LEFT LUMBAR, BOLSTER SOLENOID LEFT REAR DAMPER SOLENOID LOW PRESSURE EGR SOLENOID VALVE OIL PUMP SOLENOID PISTON COOLING OIL JET SOLENOID PURGE CONTROL VALVE PURGE VALVE RIGHT FRONT DAMPER SOLENOID RIGHT LUMBAR PUMP SOLENOID RIGHT LUMBAR SOLENOID PUMP RIGHT LUMBAR, BOLSTER SOLENOID RIGHT REAR DAMPER SOLENOID SAI SOLENOID VALVE TURBOCHARGER BYPASS COMPRESSOR SOLENOID TURBOCHARGER COMPRESSOR BYPASS SOLENOID VALVE GND VALVE RTN VALVE SUPPLY VARIABLE COOLANT PUMP SOLENOID VARIABLE VALVE LIFT SOLENOID

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/PPL WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/PPL WIRE BRN/RED WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/ORG WIRE GRN/PPL WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/ORG WIRE GRY/PPL WIRE GRY/RED WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE ORG/GRN WIRE ORG/GRY WIRE ORG/WHT WIRE ORG/YEL WIRE PNK WIRE PPL/BLK WIRE PPL/BRN WIRE PPL/GRN WIRE PPL/GRY WIRE PPL/ORG WIRE PPL/RED WIRE PPL/WHT WIRE RED WIRE RED/BLK WIRE RED/PPL WIRE RED/WHT WIRE RED/YEL WIRE VIO/RED WIRE WHT WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/ORG WIRE WHT/PPL WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/ORG WIRE YEL/PPL WIRE YEL/RED WIRE

1 CLUTCH BOT-SW 2 WAY 2-WAY 10-WAY 8-WAY 2.0 DATA NEG 2.0 DATA POS 2.0L TURBO 2.0L TURBO 2.0L TURBO DIESEL 2.0L TURBO, 2.0L TURBO DIESEL 2.0L TURBO, 3.0L SC 2.0L TURBO 2.0L TURBO DIESEL, 3.0L SC 2.0L TURBO 3.0L SC 2.0L TURBO 3.0L SC 2.0L TURBO DIESEL 3.0L SC, 2.0L TURBO DIESEL 2.0L TURBO DIESEL 2.0L TURBO DIESEL 2.0L TURBO 2.0L TURBO DIESEL 2.0L TURBO 3.0L SC 2.0L TURBO, 3.0L SC 2.0L TURBO DIESEL 3.0L SC 2.0L TURBO DIESEL 3.0L SC 2.0L TURBO 2.0L TURBO DIESEL 3.0L SC 2.0L TURBO W/ LED W/O LED 2.0L TURBO DIESEL, 2.0L TURBO 3.0L SC 2.0L TURBO DIESEL 2.0L TURBO 3.0L SC 2.0L TURBO DIESEL 2.0L TURBO 10 WAY 8 WAY 10-WAY (BELOW RIGHT SIDE OF DASH (CENTER (NOT A/C CLUTCH RLY CTRL ABS VALVES FUSIBLE LINK AC MAINS SUPPLY ACM SCN ACM SIG AIR BAG AIR BAG DEPLOYED AJAR SW ALERT - AM FM SIG AMBIENT AIR AMBIENT AIR TEMP AMBIENT AIR TEMP I A ATS AMBIENT AIR TEMP RTN AMBIENT AIR TEMP RTN G R ATS G R ATS/G R WGPT AMP SHIELD AMP WAKE UP ANTI THEFT ALARM WARNING IND ANTI-THEFT SYSTEM APP GND 1 APP GND 2 AQS PWM AUDIO LIN AUDIO VIDEO INPUT OUTPUT PANEL AUDIO-VIDEO INPUT/OUTPUT PANEL AUX GND AUX L + AUX R + AUX RH + AUX SHIELD AWD FUSIBLE LINK B D LIN BACK FAN SPEED BACK TED + PPL CUSH TEMP SIG BACK TED - BACK TEMP SIG BACKLIGHTING ADJ BACKLIGHTING ADJUST BACKUP LAMPS CIRCUIT BATT 1 BATT 2 BATT 3 BATT SPLY BCALL LED 1 BCALL LED 2 BCM LIN BCM LIN 2 BCM LIN 7 BCM LIN I/P BCM-GWM ASSEMBLY BLIND CLOSE BLIND OPEN BLUETOOTH ANT SHIELD BLUETOOTH ANT SIG BLWR MTR RLY CTRL BOLSTER DEFLATE BOLSTER INFLATE BOOST PRESS BOOT AJAR BR 2 NEG BR 2 POS BRAKE DIAG SW BRAKE DIAG SW I-S BRKRED BRAKE FLUID LEVEL SW BRAKE LT BRAKE PAD BRAKE SW BRK DIAG SW BRK VACUUM SW BTN DIAGNOSTIC BTS V REF CABLE JUNCTION STUD CAM EX SENS A CAM EX SENS B CAM IN SENS A CAM IN SENS B CAM SENS A GND CAM SENS A PWR CAM SENS B GND CAN ID SELECT CAN L CENTER REAR OF LUGGAGE COMPT) CENTRAL JUNCTION BOX CH CAN-H CH CAN-L CHIME IN+ CLMN ADJ DN CLMN ADJ EXTEND CLMN ADJ HALL COUNT TELESCOPE CLMN ADJ HALL COUNT TILT CLMN ADJ RETRACT CLMN ADJ SW CLMN ADJ SW GND CLMN ADJ SWITCHPACK CLMN ADJ UP CLOCK- SPRING CLOSE MTR NEG CLOSE MTR POS CLUTCH BOT SW CLUTCH PWR IN COMP SOL + PPL COMP SOL - COMPUTER DATA COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM CONTINUOUSLY VARIABLE DAMPING MODULE CONTINUOUSLY VARIABLE MODULE COOL FAN GND COOL FAN SIG COOLANT LEVEL SW COOLANT TEMP SENS I A CTS COOLING FAN COOLING FANS SYSTEM COURTESY FEED COURTESY SPLY CRANK REQUEST CRANK SENS CRANK SENS RTN CRANK SENS SIG CRASH SIG CRASH UNLOCK CRUISE CONTROL SYSTEM CTRL PWR CTRL RTN CUSH FAN SPEED CUSH SEN SIG CUSH TED - CUSH TEMP RTN CUSHION EXTEND CUSHION RETRACT CUSTOM COMPONENT DAB 3 SCN DAB 3 SCR DAB 3 SCREEN DAB 3 SIG DAB L SCR DAB L SIG DAB OUT SCR DAB OUT SIG DABL/DAB 3 SHIELD DAB 3 SIG DABL/DAB 3 SIG DATA LINES SYSTEM DEF TANK MODULE DEFOGGER SYSTEM DEMAND 1 DEMAND 2 DEPL/STOW IND DI/SML/PD/LDM GND DI/SML/POS/LDM GND DIAG SW DIAGNOSTIC SW DIAGNOSTICS 1 DIAGNOSTICS 2 DIAGNOSTICS CONTROL DIGITAL DISC PLAYER DIM GND DIMMER SIG DIMMER VREG DIV VLV DOOR AJAR DOOR HANDLE SPLY DOSING INJECTOR DRIVER AIR BAG DRIVER AJAR DRIVER DOOR DRIVER LOAD LIMITER SEAT BELT RETRACTOR DRIVER MIRROR WINDOW SWITCHPACK DRIVER SEAT DRIVER SEAT BELT ANCHOR PRETENSIONER DRIVER SEAT BELT PRETENSIONER DRIVER SEAT MEMORY SWITCHPACK DRIVER SEAT MODULE DRIVER SEAT SWITCHPACK DRIVER SW DRIVER WINDOW MIRROR SWITCHPACK DRV PLP + DRV SEAT BELT PRETEN PWR DRV SEAT BELT PRETEN RTN DRV SEAT BELT SW DRV SEAT POS PWR DRV SILL + DRV STAGE 1 AIR BAG PWR DRV STAGE 1 AIR BAG RTN DRV STAGE 2 AIR BAG PWR DRV STAGE 2 AIR BAG RTN EARLY WAKE-UP EC RTN EC SUPPLY EC+ ECALL LED 1 ECALL LED 2 ECALL/BCALL SW ECT RTN ECT SENS ELEC GND ELECTRIC THROTTLE ELECTROCHROMIC MIRROR CIRCUIT EMS POWER FUSIBLE LINK EMS PWR FUSIBLE LINK ENABLE OTG ID EPAS FUSIBLE LINK ESCL GND ESCL GND CTRL ESD GND EVAP TEMP EXIT SW EXT BOOT REL SW EXT TRUNK ANT NEG EXT TRUNK ANT POS EXTEND SENS EXTERIOR TAILGATE F PMP + FAN CONTROL FAN CTRL FAN PWR FAN RTN FAST WIPE FB HTR FB HTR DIV VLV FERRITE CORE FL HIGH - FL LOW - FL MID - FLICK WIPE FM 2 SIG FOG LIGHT FP PHASE 1 FP PHASE 2 FP PHASE 3 FP PHASE U FP PHASE V FP PHASE W FPDM PWM CTRL FPDM PWM SIG FR CLUTCH SW FR HIGH - FR LOW + PPL RL HIGH + FR LOW - FR MID - FR RELEASE NEG FR RELEASE POS FRONT BLOWER FRONT BLOWER FUSIBLE LINK FRONT CABIN ANT NEG FRONT CABIN ANT NEG PPL EXT TRUNK ANT POS FRONT CABIN ANT POS FRONT CONSOLE OVERHEAD FRONT HEATED SCREEN CONTROL FRONT OF RADIATOR) FRONT OVERHEAD CONSOLE FRT PASS SBR SW FRT SENS GND FRT SENS HEIGHT FRT SENS PWR FUEL FLAP UNLOCK FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUEL SENS EJECT FUEL TANK MODULE FUSIBLE LINK 1 FUSIBLE LINK 2 FUSIBLE LINK 3 FUSIBLE LINK 4 FUSIBLE LINK 5 FUSIBLE LINK 6 FUSIBLE LINK 7 FUSIBLE LINK 8 FUSIBLE LINK 9 FUSIBLE LINK 10 FUSIBLE LINK 11 FUSIBLE LINK 12 G R AMS G R APP 1 G R APP 2 G R ATS G R ATS/G R WGPT G R BPTS G R BPTS COOLANT TEMP SENS RTN G R CTS G R CA S G R CAS G R CBT G R CHT G R CRS G R CTS G R DPFDP G R EGR G R FLPS G R GNSW G R HPEGRIP G R LPEGRDP G R LPWGP G R LSVG G R MAP G R OPTS G R OUTS G R PCRC G R PFTS G R RADWTS G R RAILPS G R RAULS G R SWV G R TLPCO G R TLPEGROUT G R TVA GCU FUSIBLE LINK GLOW 1 GLOW 2 GLOW 3 GLOW 4 GLOW PLUG 1 GLOW PLUG 2 GLOW PLUG 3 GLOW PLUG 4 GND 2 GND FUEL RETURN GND FUEL RTN GND IN GND LIGHTING STALK GND OUT GND RES FROM ICP GND SCR SCR GND SW GND TO BCM GNSW ANGLE GPS ANT SIG SCR GPS ANT SHIELD GPS SCN GPS SIG GPS SIG SCR GPS SCN GROUND DISTRIBUTION SYSTEM GSM 1 SIG SCR GSM 1 GND GSM 1 SIG SCR GSM 1 SCN GSM 2 GND GSM 2 SIG GWM HS GWM HS CAN GWM HS CAN H GWM HS CAN L GWM MS CAN H GWM MS CAN L HALL 1 HALL 2 HALL GND HALL SENS HALL SENS 1 - HALL SENS 2 HALL SENS A GND HALL SENS B GND HALL SENS GND HALL SENS GND 2 HALL SENS RTN HALL SENS SPLY HALL V REF HAZARD SW HAZARD SW ILLU HDC HI HDC LO HEAD-UP DISPLAY COOLING FAN HEAD-UP DISPLAY COOLING FAN MODULE HEADLIGHTS SYSTEM HEATED REAR SCREEN CONTROL HEATED STEERING WHEEL CTRL HEATED WASHER JETS HEIGHT DOWN HEIGHT UP HFSL FUSIBLE LINK HFSR FUSIBLE LINK HIGH BEAM HIGH LINE PREMIUM HIGH/DRL/DI/LDM GND HIGH/DRL/DI/SML GND HLL GND HLL PWR HLL V HOME POSN SW HORNS SYSTEM HOT AT ALL TIMES HS CAN+ HS CAN-H HS CAN-L HTD STEERING WHEEL CTRL HTR LED HTR MIRR HTR RTN HTR+ IPE I A I A AAP 2 I A APP 1 I A ATS I A BPS I A BTS I A CASSENE I A CATTSPRE I A CBT I A CBTS I A CHT I A CPP I A CTS I A EXTS I A FLPS I A HPCBPVP I A HPEGR I A IATS I A IMTS I A LPEGR I A LPWGP I A LSCP I A LSVN I A OPS I A OUTS I A PCRC I A PFDP I A PITCS I A RADWTS I A RAILFTS I A RAILPS I A SWV I A TLPCO I A TVA I A VCLNTP I A WGP I BRAKE PAD WEAR I BRK I BRK DIAG SW I BRK SW I EVENT NOTIFICATION SIG I F AMS I F CASE I F CASI I F CRASH I F CRSPOS I FUEL SENS EJECT I HAZARD SW I PARK NEUTRAL SW I S BRKMN I S BRKOS I S BRKRED I S BRKVAC I S BVS I S CLBOT I S PN I S PSP I S WAK I S WAKE I S WIF I T CRASH I T GNSSW I T LPEGRDP I T OPTS I T RAULS I T VTG I WIPER FRONT SLOW SW I-A MAP I-BONNET AJAR SW I-DRV AJAR SW I-LR DOOR AJAR SW I-PASS AJAR SW I-RR DOOR AJAR SW I-S BRKMN I-S BRKOS I-TAILGATE AJAR SW IA TPS 1 ICP GND IEPB GND IGN 1 IGN 2 IN IGN 3 IGN 5 IGN 6 IGN SPLY IGNITION 1 IGNITION 6 IMC GND IN CAR TEMP SENS INFOTAINMENT MASTER CONTROLLER ING PWR INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INSTRUMENT CLUSTER, ANTI-THEFT SYSTEMS INSTRUMENT ILLUMINATION CIRCUIT INT TRUNK ANT NEG INT TRUNK ANT POS INTERIOR LT SIG INTERIOR LT SW INTRUSION DETECTION MODULE IPC LIN IS BRK MN IS BRK RD JAGUAR DRIVE SWITCHPACK KEYLESS VEHICLE MODULE L CH- L-BAND SIG LATCH GND LATCH SPLY LATCH) LDM LIN LDM SPLY LDM SUPPLY LED ARRAY LED GND LEFT "C" PILLAR) LEFT BLIND SPOT MONITORING MODULE LEFT CONSOLE ILLUMINATION LEFT DI LEFT DOOR MIRROR LEFT FOG LEFT FOG, TAILLAMP LEFT FRONT ACCELEROMETER LEFT FRONT ARMREST AMBIANCE LIGHTING LEFT FRONT BACKREST CLIMATE ASSEMBLY LEFT FRONT CLIMATE CONTROL SEAT MODULE LEFT FRONT CUSHION CLIMATE ASSEMBLY LEFT FRONT DOOR AMBIANCE LIGHTING LED LEFT FRONT DOOR AMBIENCE LIGHTING LED LEFT FRONT DOOR HANDLE LEFT FRONT DOOR HANDLE AMBIANCE LIGHTING LED LEFT FRONT DOOR HANDLE AMBIENCE LIGHTING LED LEFT FRONT DOOR LATCH MODULE LEFT FRONT DOOR MODULE LEFT FRONT DOOR POCKET AMBIANCE LIGHTING LED LEFT FRONT DOOR POCKET AMBIENCE LIGHTING LED LEFT FRONT HEATED SEAT MODULE LEFT FRONT OUTER VENT ILLUMINATION LEFT FRONT SIDE AIR BAG LEFT FRONT SIDE MARKER LEFT FRONT TWEETER LEFT HEADLAMP LEFT HEATED WASHER JET LEFT IN - LEFT LUMBAR, BOLSTER SOLENOIDS LEFT O BRAKE LIGHT LEFT O DIPPED BEAM LEFT O HEADLAMP ELECTRONICS SUPPLY LEFT O REVERSE LIGHT OR SINGLE LEFT POSITION DRL SPLY LEFT REAR LEFT REAR ARMREST AMBIANCE LIGHTING LEFT REAR ARMREST AMBIENCE LIGHTING LEFT REAR DOOR HANDLE LEFT REAR DOOR HANDLE AMBIANCE LIGHTING LED LEFT REAR DOOR HANDLE AMBIENCE LIGHTING LED LEFT REAR DOOR LATCH ASSEMBLY LEFT REAR DOOR MODULE LEFT REAR DOOR POCKET AMBIANCE LIGHTING LED LEFT REAR DOOR POCKET AMBIENCE LIGHTING LED LEFT REAR DOOR TWEETER LEFT REAR POSITION LIGHT LEFT REAR PRETENSIONER LEFT REAR SEAT MODULE LEFT SEAT SWITCHPACK LEFT SIDE AIR CURTAIN LEFT STEERING WHEEL SWITCHPACK LEFT TAIL LEFT TAIL LT LEFT TAILLAMP ASSEMBLY LEFT VANITY MIRROR LF ANT NEG LF ANT POS LF CLUTCH SW LF DAMPER NEG LF DAMPER POS LF HEIGHT GND LF HEIGHT SIG LF RELEASE NEG LF RELEASE POS LF SIDE MARKER LF UNLOCK SW LF VA GND LH BRAKE LIGHT LH C PILLAR CS GND LH C PILLAR CS PWR LH CRASH SENS PWR LH CRASH SENS RTN LH CURTAIN AIR BAG PWR LH CURTAIN AIR BAG RTN LH DI LH DRL SPLY LH BEAM DIPPED LH ELECTRONICS SPLY POS/LH DRL SPLY LH ELEC SPLY LH FRONT HIGH - LH FRONT LOW - LH FRONT MID - LH ICS PWR LH ICS RTN LH MAIN BEAM LH PADDLE LADDER LH PPS GND LH PPS PWR LH REAR HIGH - LH REAR LOW - LH REVERSE LIGHT LH SIDE AIR BAG PWR LH SIDE AIR BAG RTN LH SOLAR SENS LH STRUT HALL 1 LH STRUT HALL 2 LH STRUT HALL GND LH STRUT HALL SPLY LH STRUT MTR NEG LH STRUT MTR POS LH SUNLOAD LH SURROUND - LH TAIL LIGHTING 1 LIGHTING STALK GND LIGHTING SWITCHES LIN 1 LIN 2 LIN 2 BCM LIN 2 GWM LIN 3 LIN 3 GWM LIN 4 LIN 5 LIN 7 LIN B LIN IN LIN OUT LINE HTR PWR LINES SYSTEM LOCAL CAN NEG LOCAL CAN POS LOGIC FEED LOGIC GND LOGIC SPLY LOW BEAM GND LOW BEAM/ISM LR AJAR LR ANT NEG LR ANT POS LR DAMPER NEG LR DAMPER POS LR DIRECTION IND LR FOG LIGHT LR HEIGHT GND LR HEIGHT SIG LR LIGHT POSITION LR SEAT BELT RETRACTOR GND LR SEAT BELT RETRACTOR PWR LR UNLOCK SW LUGGAGE COMPARTMENT POWERED LID STRUT LUMBAR DEFLATE LUMBAR DOWN LUMBAR FWD LUMBAR INFLATE LUMBAR RWD LUMBAR UP LVDS + SCR LVDS SCR LVDS SCR MAIN GND MAP SENS RTN MAP SENS SIG MASTER LT SW MEM SET SW MEM STATUS LED MEM SWITCHPACK GND MEMORY SENS X MEMORY SENS Y MEMORY SYSTEMS MIC 1 GND MIC 1+ MIC 2 GND MIC - MIC NEG MIC POS MIC SHIELD MID HEGO A GND MID HEGO A HTR MID HEGO A SIG MID HEGO B GND MID HEGO B HTR MID HEGO B SIG MID SEAT BELT BUCKLE SECOND ROW MIRR FOLD OUT/Y MIRR GND MIRR SENS GND MIRR SENS X MIRR SENS Y MIRR SENS/MEM SW GND MIRR SPLY MIRR X MIRR XY MIRROR GND MIRROR GROUND MIRRORS SYSTEM MS CAN-H MS CAN-L MTR GND MTR NEG MTR POS MTR PWR MTR SEN MTR SEN 1 MTR SEN GND MTR SENS NAVI/HFM IN - NAVI/HFM+ NAVIGATION SYSTEM NO SW NOT USED NOTIFICATION SIG NTC- NTSC + VID OUT NUMBER PLATE LAMPS O ACC O COMFORT SPLY CTRL O CRANK REQUEST O DEMAND INTERIOR O DEMAND INTERIOR LIGHTING 1 O EXT IGN CTRL 2 O IGN 1 O IGN 3 O IGN 4 O IGN 6 O IGNITION 1 O IGNITION 3 O IGNITION 4 O IGNITION 5 O IGNITION 6 O MAIN BEAM LEFT O NUMBER PLATE LAMPS O PCM EARLY O PCM EARLY WAKE UP O R LSVG O RESTRAINTS IGNITION 1 O RESTRAINTS IGNITION 2 O S EMS RLY O S HRLY O S MRLY O S OSJS O S SCRMRLY O S STRH O S STRPL O S STRTH O S STRTL O S TDMH O S TDMP O S TDMV O T CCP O T CPRC O T CPV O T CTH O T ECLG O T FAN 1 O T EHT O T EMC O T ETC O T HPEGRCB O T HPEGRNEG O T HPEGRPOS O T HPTBVC O T LPEGRNEG O T LPEGRPOS O T LPWGSV O T LSH O T MEU O T OILP O T PCV O T PSP O T RAMCP O T RAMVH O T RAMVL O T RAPP O T SCNEG O T SCPOS O T SCVNEG O T SCVPOS O T SOILP O T TVMNEG O T TVMPOS O T VCLNTP O T VGTHPNEG O T VGTHPPOS O T VVTEX O T VVTIN O T WCAC O TAILGATE RELEASE O V FLPS O V FSCVH O V FSCVL O V SVAPP 1 O V SVAPP 2 O V SVTVA O-PASSIVE SOUNDER O-SECURITY-LED OIL SENS RTN OIL TEMP LVL PWM OPT DRV GND OPT DRV PWR 1 OPT DRV USB GND OPT DRV USB SHIELD OPT DRV VBUS OTG DIA OUTLET TEMP SENS P N SIG P SIG P/N SIG P/N SW PA ILLUM PA SW PARALLEL DOWN PARALLEL UP PARK AID PARK AID MODULE PARK NEUTRAL SW PASS PLP + PASS SEAT BELT PRETEN PWR PASS SEAT BELT PRETEN RTN PASS SEAT BELT SW PASS SILL - PASSENGER AIR BAG PASSENGER AJAR PASSENGER JUNCTION BOX PASSENGER LOAD LIMITER SEAT BELT RETRACTOR PASSENGER SEAT BELT ANCHOR PRETENSIONER PASSENGER SEAT BELT PRETENSIONER PASSENGER SW PASSIVE SOUNDER PDC ILLUM PDC SW PORTABLE AUDIO INTERFACE MODULE POS+SM POS/RH DRL SPLY POSITION DRL POST HEGO A GND POST HEGO A HTR POST HEGO A SIG POST HEGO B GND POST HEGO B HTR POST HEGO B SIG POWER AMP FUSIBLE LINK POWER DISTRIBUTION SYSTEM POWER FEED 1 POWER FEED 2 POWER GND POWER GND 1 POWER GND 2 POWER OUT PPL CONTROL PPL ING PWR PPL O T ECLG PPL SW I/P 9 PPL SW ILL PREMIUM AMBIENT LIGHTING PRESS SENS PRESS SENS TEMP PRESS SIG PRIVATE CAN H PRIVATE CAN L PT CAN H PT CAN HIGH PT CAN L PT CAN LOW PT-CAN HI PT-CAN LO PTC HTR 1 RLY CTRL PTC HTR 2 RLY CTRL PURGE RTN PWM CTRL PWR GND PWR GND 1 PWR GND 2 PWR GND 3 PWR IN QUALITY VOLTAGE MODULE RAD TEMP SENS RADIATOR OUTLET TEMP RAIL PRESS SENS RAIL PRESS SENS RTN RAIL PRESS SENS SIG RE- REAR ACCELEROMETER REAR CABIN ANT NEG REAR CABIN ANT POS REAR FOG REAR HEATED SCREEN CONTROL REAR HEATED SCREEN FUSIBLE LINK REAR JUNCTION BOX REAR SCREEN REAR SENS GND REAR SENS HEIGHT REAR SENS PWR REAR VIEW MIRROR) REAR WINDOW HEATED ELEMENT REC SIG REL SW REPEATER LED RES LADDER DN RES LADDER UP RES LDR RESTRAINTS IGN 1 RESTRAINTS IGN 2 REVERSE GEAR SW REVERSE LED ARRAY REVERSE LT RF ANT NEG RF ANT POS RF DAMPER NEG RF DAMPER POS RF FILTER RF HEIGHT GND RF HEIGHT SIG RF RECEIVER RF SEAT POS SENS PWR RF SIDE MARKER RF SIG RF UNLOCK SW RF VA GND RF VA SIG RH BEAM DIPPED RH BRAKE LIGHT RH C PILLAR CS GND RH C PILLAR CS PWR RH CRASH SENS PWR RH CURTAIN AIR BAG PWR RH CURTAIN AIR BAG RTN RH DI RH ELEC SPLY RH ELECTRONICS SPLY RH FRONT HIGH - RH FRONT LOW - RH FRONT MID - RH ICS PWR RH ICS RTN RH MAIN BEAM RH PADDLE LADDER RH PPS GND RH PPS PWR RH REAR HIGH - RH REAR LOW - RH REVERSE LIGHT RH SIDE AIR BAG PWR RH SIDE AIR BAG RTN RH SOLAR SENS RH SUNLOAD RH SURROUND - RH TAIL RIGHT BLIND SPOT MONITORING MODULE RIGHT CONSOLE ILLUMINATION RIGHT DI RIGHT DOOR MIRROR RIGHT FOG, TAILLAMP RIGHT FRONT ACCELEROMETER RIGHT FRONT ARMREST AMBIANCE LIGHTING RIGHT FRONT BACKREST CLIMATE ASSEMBLY RIGHT FRONT CLIMATE CONTROL SEAT MODULE RIGHT FRONT CUSHION CLIMATE ASSEMBLY RIGHT FRONT DOOR AMBIANCE LIGHTING LED RIGHT FRONT DOOR AMBIENCE LIGHTING LED RIGHT FRONT DOOR HANDLE RIGHT FRONT DOOR HANDLE AMBIANCE LIGHTING LED RIGHT FRONT DOOR HANDLE AMBIENCE LIGHTING LED RIGHT FRONT DOOR LATCH MODULE RIGHT FRONT DOOR MODULE RIGHT FRONT DOOR POCKET AMBIANCE LIGHTING LED RIGHT FRONT DOOR POCKET AMBIENCE LIGHTING LED RIGHT FRONT HEATED SEAT MODULE RIGHT FRONT OUTER VENT ILLUMINATION RIGHT FRONT SIDE AIR BAG RIGHT FRONT SIDE MARKER RIGHT FRONT TWEETER RIGHT HEADLAMP RIGHT HEATED WASHER JET RIGHT IN - RIGHT O BRAKE LIGHT RIGHT O DIPPED BEAM RIGHT O HEADLAMP ELECTRONICS SUPPLY RIGHT O MAIN BEAM RIGHT O REVERSE LIGHT RIGHT POSITION DRL SPLY RIGHT REAR RIGHT REAR ARMREST AMBIANCE LIGHTING RIGHT REAR ARMREST AMBIENCE LIGHTING RIGHT REAR DOOR HANDLE RIGHT REAR DOOR HANDLE AMBIANCE LIGHTING LED RIGHT REAR DOOR HANDLE AMBIENCE LIGHTING LED RIGHT REAR DOOR LATCH ASSEMBLY RIGHT REAR DOOR MODULE RIGHT REAR DOOR POCKET AMBIANCE LIGHTING LED RIGHT REAR DOOR POCKET AMBIENCE LIGHTING LED RIGHT REAR DOOR TWEETER RIGHT REAR O POSITION LIGHT RIGHT REAR PRETENSIONER RIGHT REAR PUDDLE HANDLE RIGHT REAR SEAT MODULE RIGHT SEAT BELT BUCKLE SECOND ROW RIGHT SEAT SWITCHPACK RIGHT SIDE AIR CURTAIN RIGHT STEERING WHEEL SWITCHPACK RIGHT TAIL LT RIGHT TAIL/ RIGHT TAILLAMP ASSEMBLY RIGHT VANITY MIRROR RL CLUTCH SW RL HIGH - RL LOW - RL RELEASE NEG RL RELEASE POS ROOF POD RR AJAR RR ANT NEG RR ANT POS RR CLUTCH SW RR DAMPER NEG RR DAMPER POS RR DIRECTION IND RR HEIGHT GND RR HEIGHT SIG RR HIGH - RR LIGHT POSITION RR LOW - RR RELEASE NEG RR RELEASE POS RR SEAT BELT RETRACTOR GND RR UNLOCK SW RR VA GND RR VA SIG RX SERIAL DATA SC OUTLET TEMP SCN A SCR AM FM SCN SCR AMP SHIELD SCR BR SHIELD SCR CAM - SCR DAB 3 GND SCR GND SCR L BAND GND SCR NTSC - VID OUT SCR SDAR GND SCR SHIELD SCR SHIELD PPL POWER SCR VID - SDAR RF SIG IN SDARS ANT SIG SCR SDARS ANT SHIELD SEAT BACK FAN SPEED SEAT BACK TED - SEAT BACK TEMP RTN SEAT BACK TEMP SIG SEATS SYSTEM SECOND ROW LEFT SEAT BELT BUCKLE SECOND ROW MIDDLE SEAT BELT BUCKLE SECOND ROW RIGHT SEAT BELT BUCKLE SECURITY LED SEN+ SENDER GND SENS GND SENS RTN SENS SIG SENS SPLY SENS SUPPLY SHIELD 1 SHIELD 2 SHIFT INTERLOCK SYSTEM SIDE MARKER SIG A SIG A AJAR SIG B SIG GND SIG OUTPUT SIGNAL SPLITTER MODULE SIM CARD READER SLIDE BACKWARD SLIDE FORWARD SLIDE SENS SLOW WIPE SOL + SPARE FUSIBLE LINK SPK-FL - SPK-FR + SPLY 1 SQUAB HTR SQUAB INCLINE SQUAB RECLINE SQUAB SENS SSS ILLUM SSS RESISTIVE LADDER A SSS RESISTIVE LADDER B SSS VARIANT CTRL A SSS VARIANT CTRL B STAGE 1 STAGE 1 GND STAGE 1 PWR STAGE 2 STAGE 2 GND STAGE 2 PWR START REQUEST START STOP START STOP GND START STOP SW GND START/ STOP SW 1 START/ STOP SW 2 STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN ADJUSTMENT SWITCHPACK STEERING COLUMN ASSEMBLY STEERING WHEEL MODULE STOP START STOP START SW RTN SUB CAN - SUB CAN H SUB CAN L SUN BLIND SUNROOF OPEN/CLOSE SUNROOF TILT/ CLOSE SUPPLEMENTAL RESTRAINTS SYSTEM SUPPLY 1 SUPPLY 1 V BATT SUPPLY 2 SUPPLY 3 SW 1 SW 2 SW 3 SW 4 SW GND SW I/P 10 PPL SW ILL. SW ILLUMI SW RETURN T A IAT TAIL LED ARRAY TAILGATE AJAR SW TAILGATE CLOSE TAILGATE REL EXT SW TAILGATE RELEASE TAILGATE) TANK HTR TANK HTR GND TANK LEAKAGE DIAGNOSTIC MODULE TCU BR 2 NEG TCU BR 2 POS TCU BR SHIELD TCU SCN TCU SIG TEMP SENS GND TEMP SENS RTN TEMP SIG THROTT MTR SENS 1 THROTT MTR SENS 2 THROTTLE MTR NEG THROTTLE MTR POS THROTTLE MTR SENS RTN THROUGH PANEL STUD TILT DOWN TILT SENS TILT UP TIRE PRESSURE MONITORING MODULE TIRE PRESSURE MONITORING SYSTEM MODULE TOUCHSCREEN SWITCHPACK TOWING DETECT TRAILER BRAKE FUSIBLE LINK TRAILER PICK-UP TRANSMISSIONS SYSTEM TRIP COMP TRIP COMPUTER SW DIGITAL TRUNK LT TRUNK, TAILGATE, FUEL DOORS SYSTEM UHEGO A HTR UHEGO A NV UHEGO A PC UHEGO A VG UHEGO B HTR UHEGO B NV PPL UHEGO B PC UHEGO B VG UIP DIAG UIP USB 2.0 D - UIP USB 3.0 SSRX - UIP USB 3.0 SSTX - UIP USB GND UIP USB SHIELD UIP VBUS UIP VBUS GND USB 2.0 D + USB 2.0 HUB USB 3.0 SIGNAL BOOSTER USB 3.0 SSRX + USB 3.0 SSTX - USB DATA + SCR SHIELD USB DATA - USB GND USB HOST DATA NEG USB HOST DATA POS USB HUB 2.0 D + USB HUB GND USB HUB PWR USB HUB VBUS USB OTG DATA + USB OTG DIAG USB OTG ENABLE USB OTG SHIELD USED) USS GND USS PWM USS UBAT V BATT V BATT 1 V REF V REF 1 V REF 2 V V BAT V V BAT VVT VBATT 1 VBATT 2 VBUS GND VOLTAGE QUALITY MODULE VVT EXHAUST A VVT EXHAUST B VVT INTAKE A VVT INTAKE B W/ ELECTRICAL DEPLOYABLE SWAN NECK W/ DETACHABLE TOWBAR W/ GPS SIGNAL SPLITTER W/ GPS SIGNAL SPLITTER W/O GPS SIGNAL SPLITTER W/ HEATED COOLED SEATS W/O HEATED COOLED SEATS W/ HEATED, COOLED SEATS W/ IN CONTROL APPS W/O IN CONTROL APPS W/ KEYLESS ENTRY W/ LDW W/O LDW W/ MEMORY W/ START/STOP SYSTEM W/ TELEMATICS W/ TELEMATICS W/O TELEMATICS W/ UREA EMISSION TANK W/O UREA EMISSION TANK W/O GPS SIGNAL SPLITTER W/O HEATED COOLED SEATS W/O LED W/ LED W/O MEMORY W/O START/STOP SYSTEM W/O TELEMATICS WAKE-UP WARNING SYSTEMS WASHER FORWARD CONTROL WASHER REVERSE CONTROL WIFI ANT SHIELD WIFI ANT SIG WIFI EXT SIG SCR WIFI EXT GND WINDOW DOWN WINDOW UP WIPER FRONT FAST CONTROL WIPER FRONT FAST CTRL WIPER FRONT ON CONTROL WIPER FRONT ON CTRL WIPER LIMP HOME WIPER/WASHER SYSTEM WIPERS FUSIBLE LINK WIRELESS HEADPHONES
