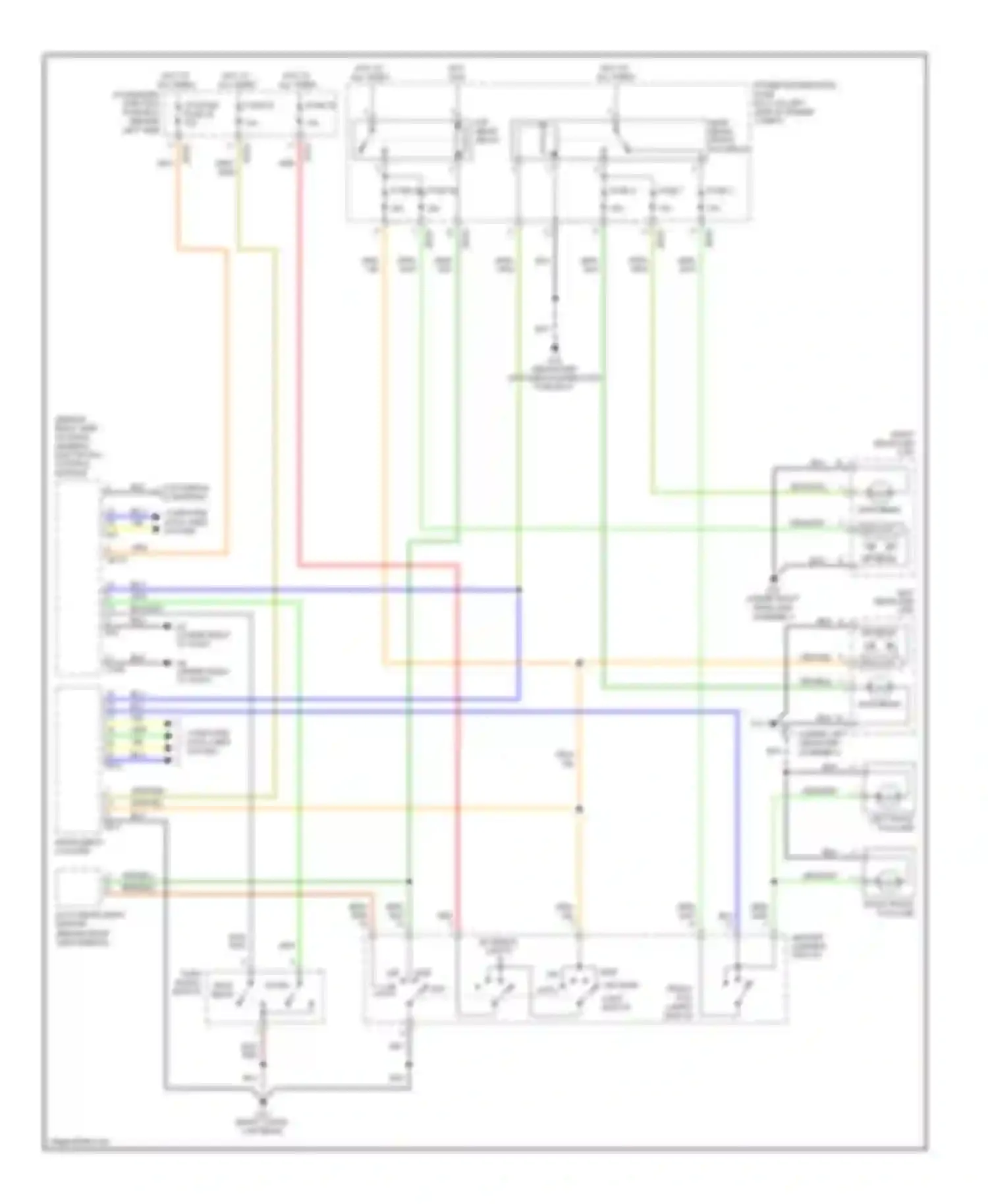

Autolamps & fog lamps circuit, with high intensity gas discharge headlights for Jaguar X-type I (2001-2009)

AUTO AUTO HEADLAMPS SENSOR BALLAST BLK WIRE BLK/WHT WIRE BLU WIRE BRN WIRE BRN/RED WIRE COMPUTER DATA LINES SYSTEM DIP DIP BEAM DIP BEAM RELAY EXTERIOR LIGHTS EXTERNAL ANTENNA FRONT FOG LAMPS SWITCH FUSE 1 FUSE 2 FUSE 29 FUSE 30 FUSE 38 FUSE 4 FUSE 45 GRN WIRE GRN/BLK WIRE GRN/ORG WIRE GRN/WHT WIRE HOT AT ALL TIMES HOT AT ALL TIMES PASSENGER JUNCTION FUSE BOX (BEHIND LEFT SIDE OF DASH) FUSE 35 HOT IN INSTRUMENT CLUSTER LEFT FRONT FOG LAMP LEFT HEADLAMP UNIT MAIN BEAM MAIN BEAM/ FRONT FOG RELAY MASTER LIGHTING SWITCH OFF AUTO ORG/ WIRE ORG/GRN WIRE ORG/YEL WIRE POWER DISTRIBUTION FUSE BOX (ON LEFT SIDE OF ENGINE COMPT) RED WIRE RIGHT FRONT FOG LAMP RIGHT HEADLAMP UNIT RUN WIRE SIDE DIP SIDE OFF MAIN LIGHT SWITCH TURN SIGNAL SWITCH MAIN BEAM WHT WIRE YEL WIRE
