Jaguar F-Pace I (2016-2020) rear window heated element Wiring diagram

This page shows the only wiring diagram for the component.rear window heated element, which is found in the car Jaguar F-Pace I (2016-2020). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

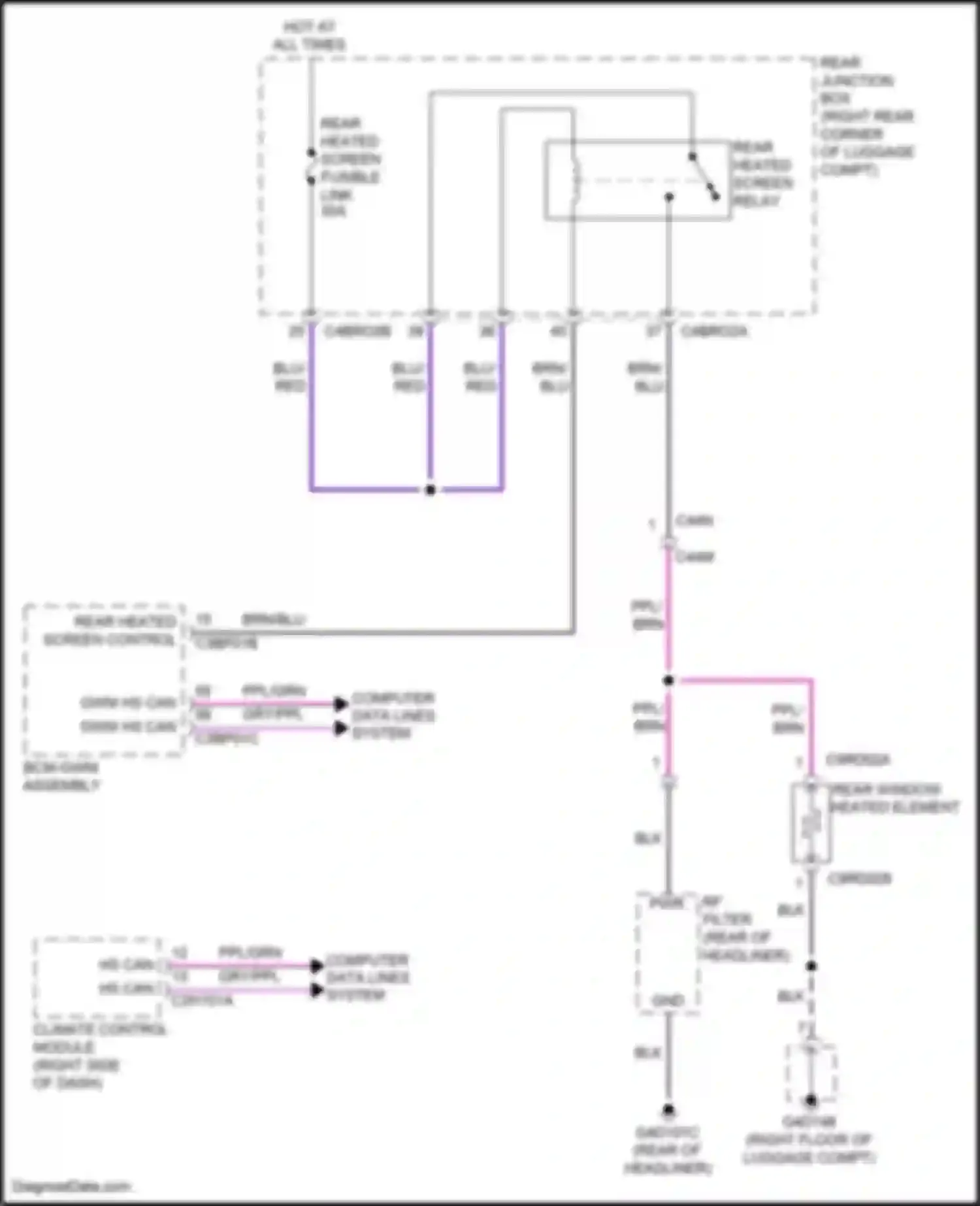

Wiring diagram rear window heated element (1 of 1)

Wiring diagram rear window heated element for Jaguar F-Pace I (2016-2020)

Get access

BCM-GWM ASSEMBLY BLK WIRE BLU WIRE BRN WIRE BRN/BLU WIRE CLIMATE CONTROL MODULE COMPUTER DATA LINES SYSTEM GRY/PPL WIRE GWM HS CAN H GWM HS CAN L HOT AT ALL TIMES HS CAN-H HS CAN-L PPL PPL/GRN WIRE PWR REAR HEATED SCREEN CONTROL REAR HEATED SCREEN FUSIBLE LINK REAR HEATED SCREEN RELAY REAR JUNCTION BOX REAR WINDOW HEATED ELEMENT RED WIRE RF FILTER

Go to component: -> Rear defogger circuit -> REAR WINDOW HEATED ELEMENT
