Wiring diagrams for Jaguar F-Pace I (2016-2020)

Automatic a/c circuit Fuel fired heater circuit

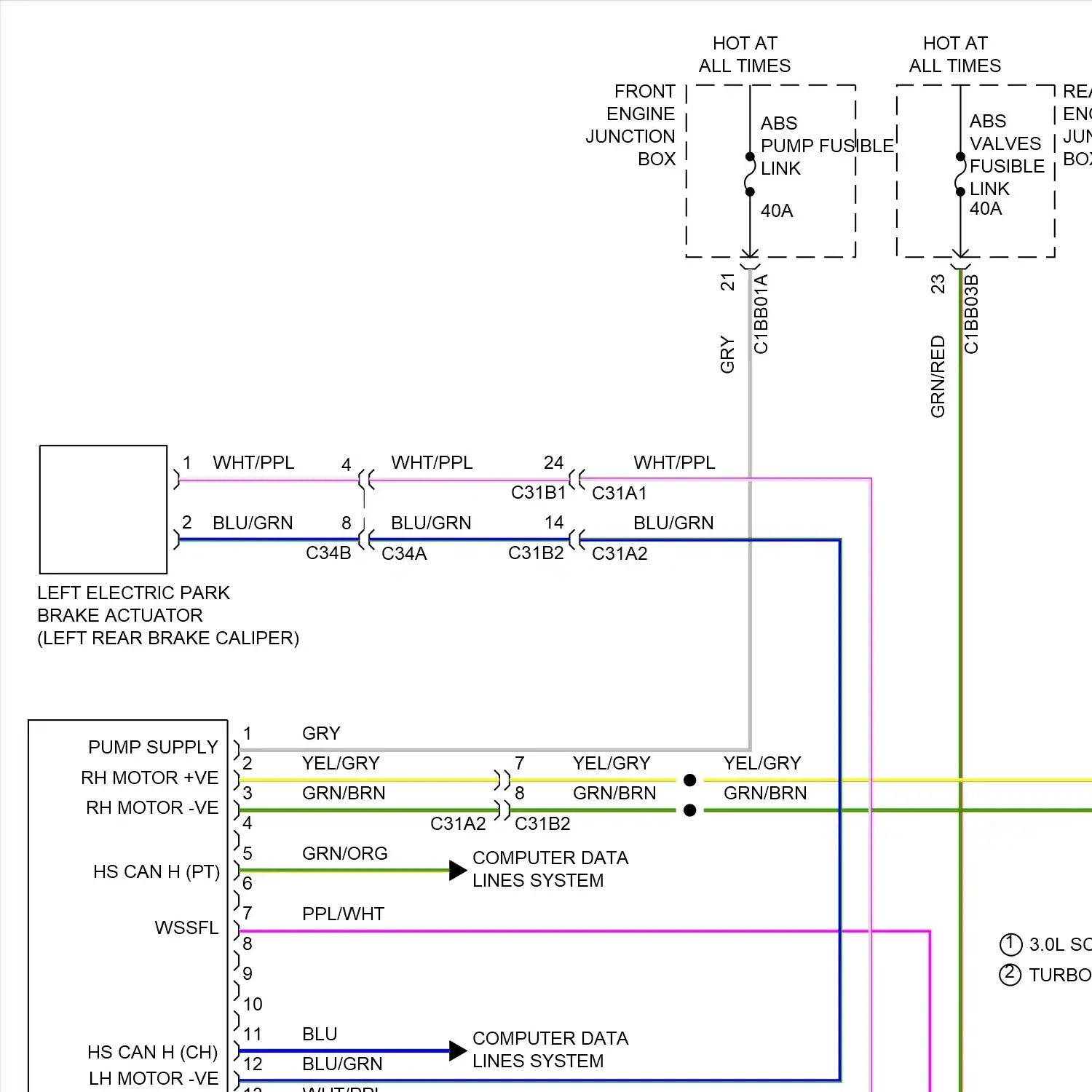

Anti lock brake circuit Terrain response circuit

Anti-theft circuit, active Anti-theft circuit, passive

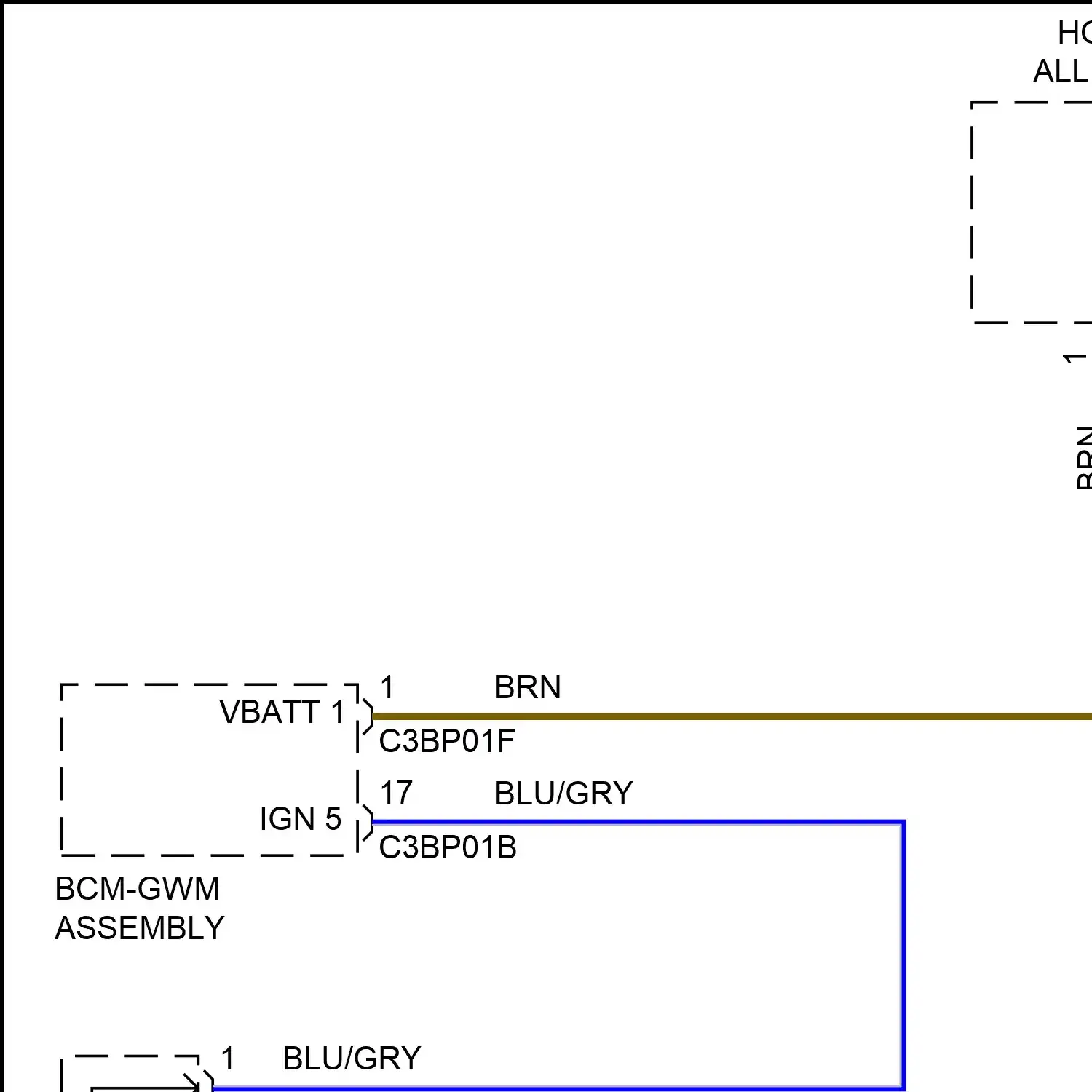

Body control modules circuit

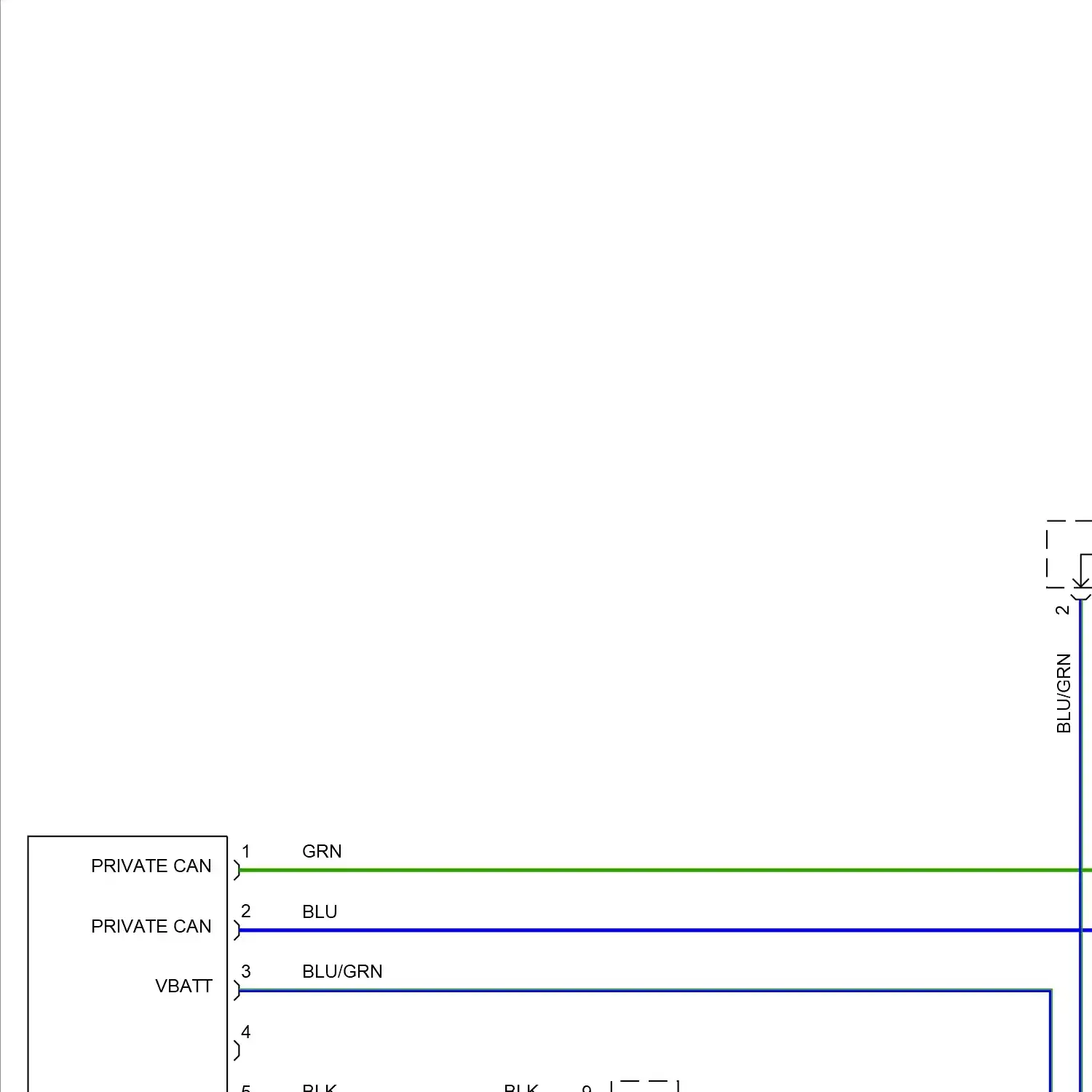

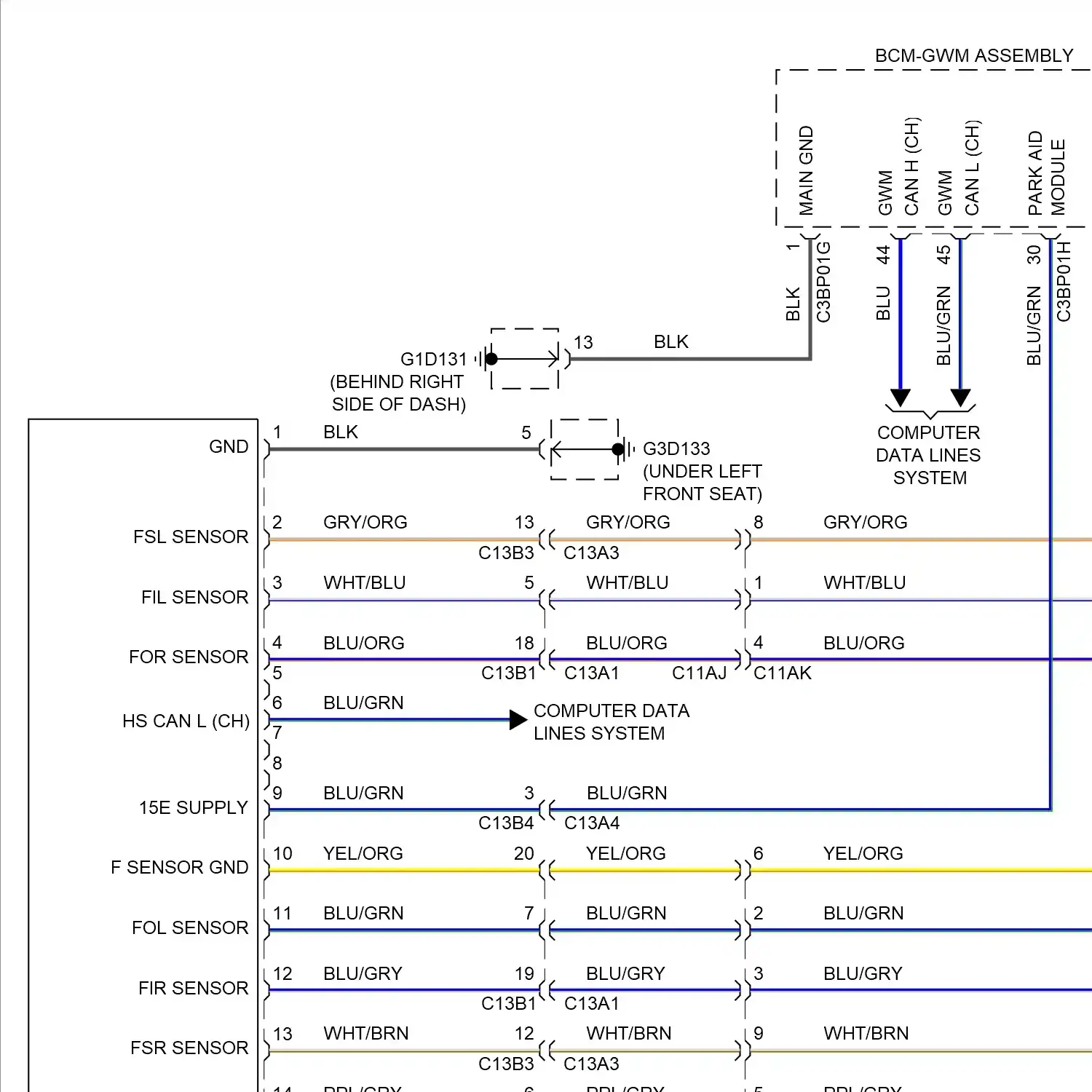

Computer data lines circuit

Cooling fan circuit

2.0l turbo diesel, cruise control circuit

3.0l sc, cruise control circuit

Heated mirrors circuit Heated windshield circuit Rear defogger circuit

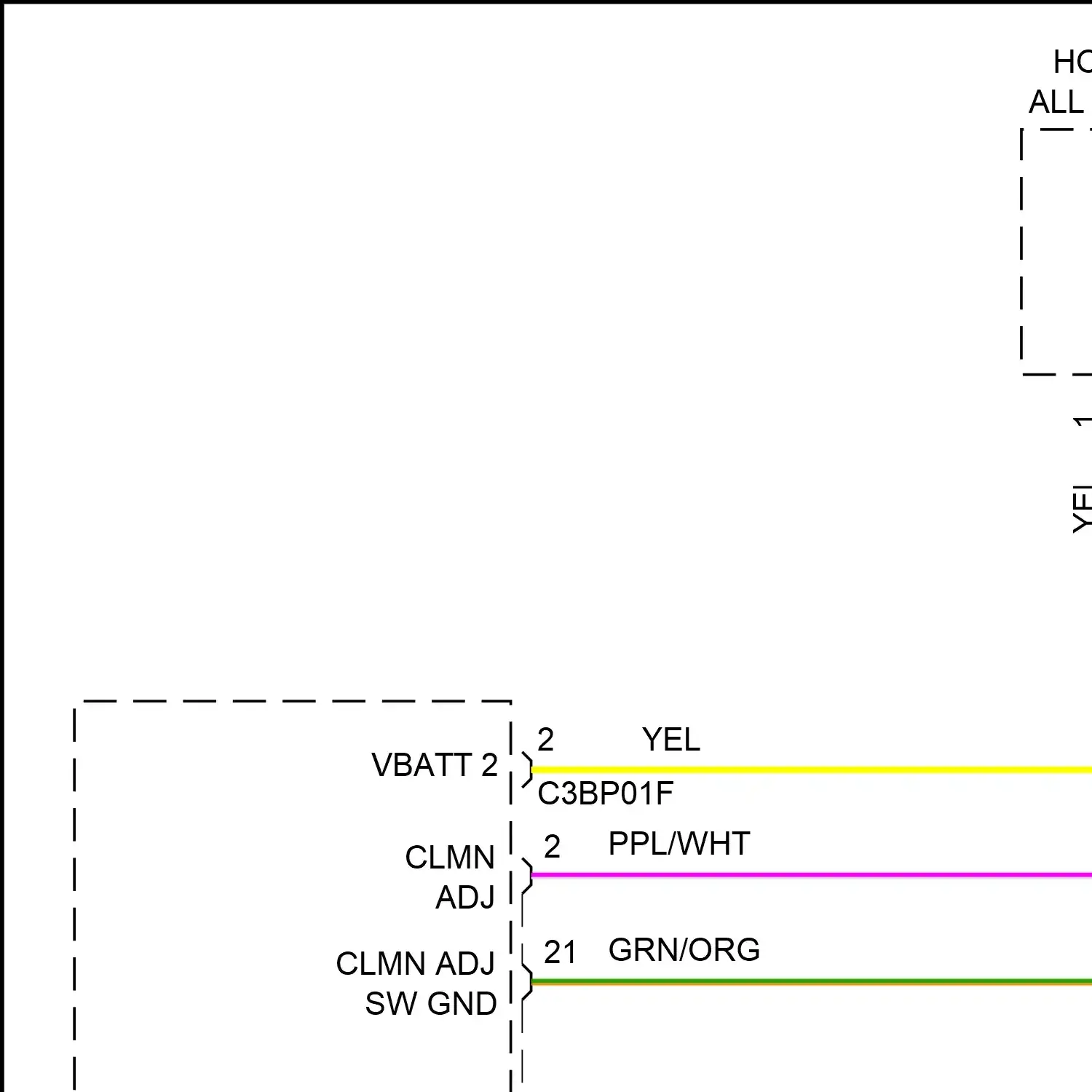

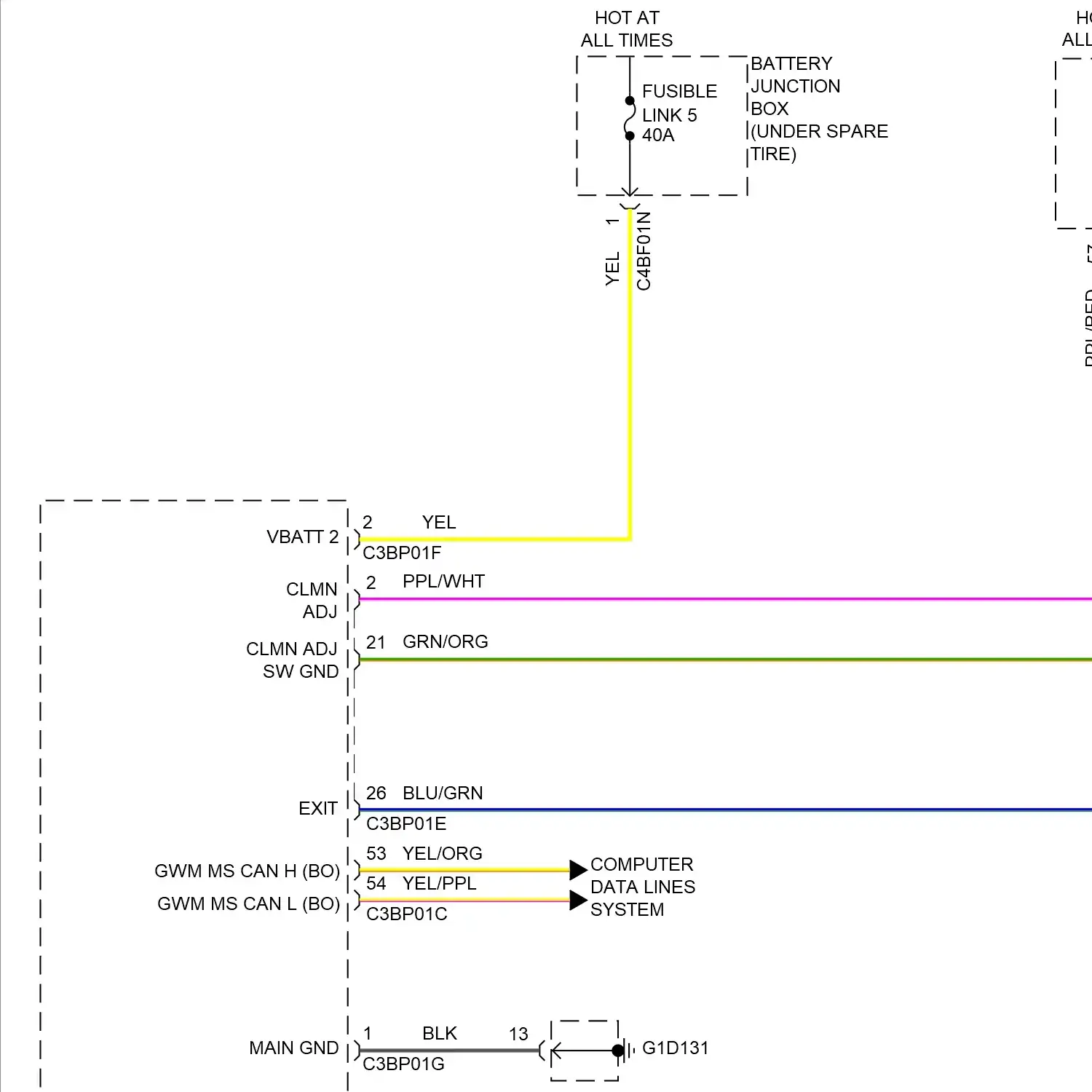

Power steering circuit Steering column adjustment circuit

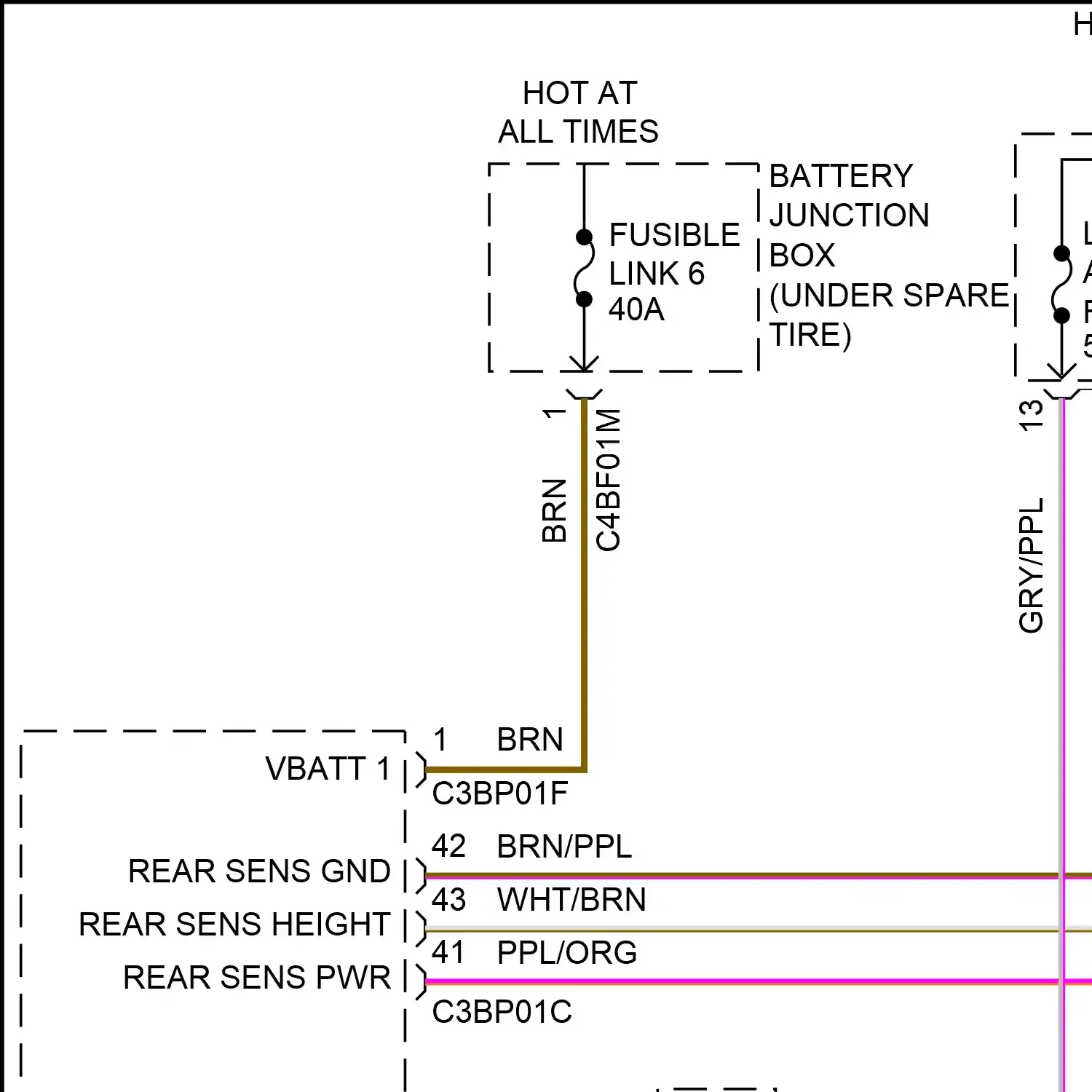

Electronic suspension circuit

Wiring diagram engine performance 2.0l turbo diesel

Wiring diagram engine performance 3.0l sc

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

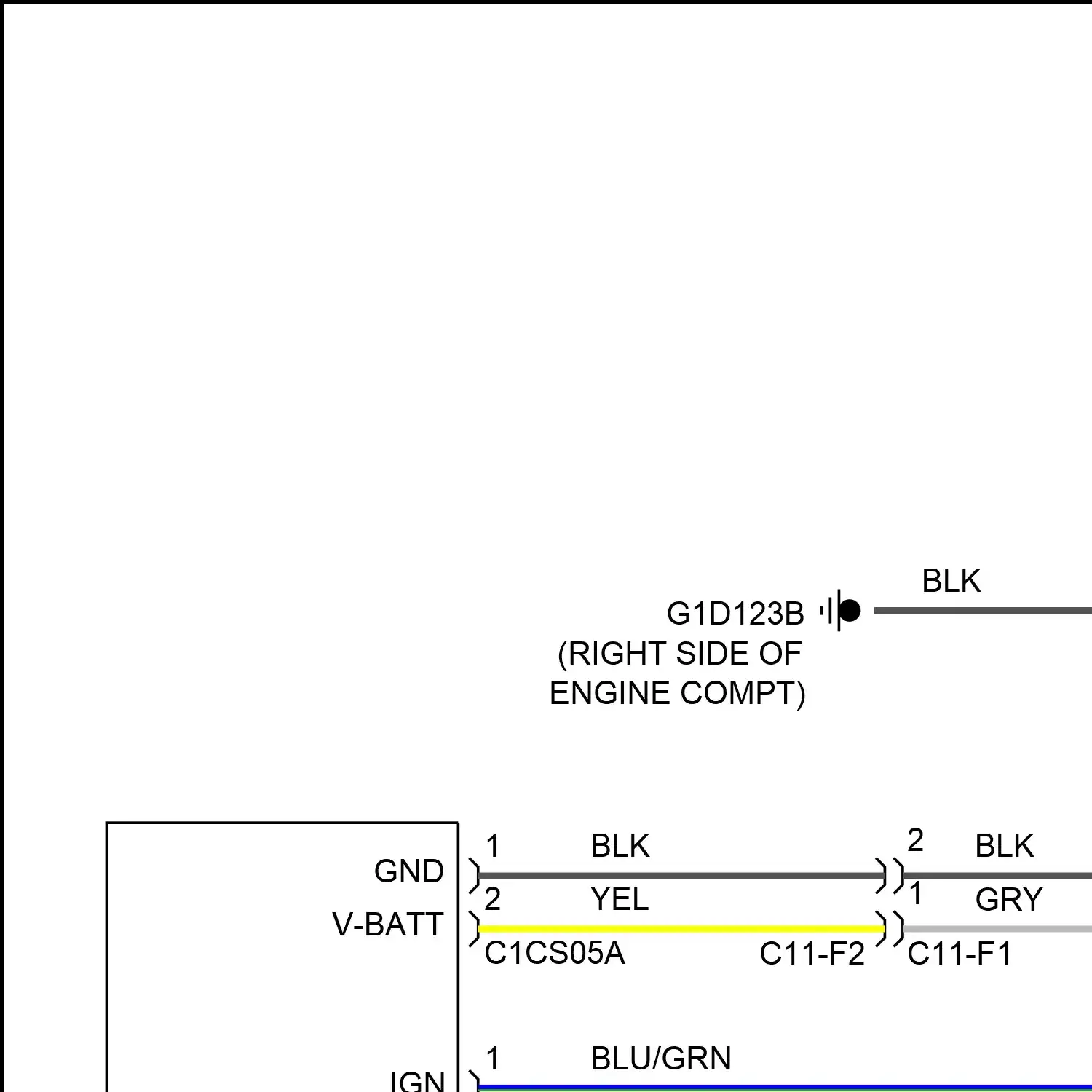

Ground distribution circuit

Adaptive front lighting circuit Headlamps circuit

Horn circuit

Head-up display circuit Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

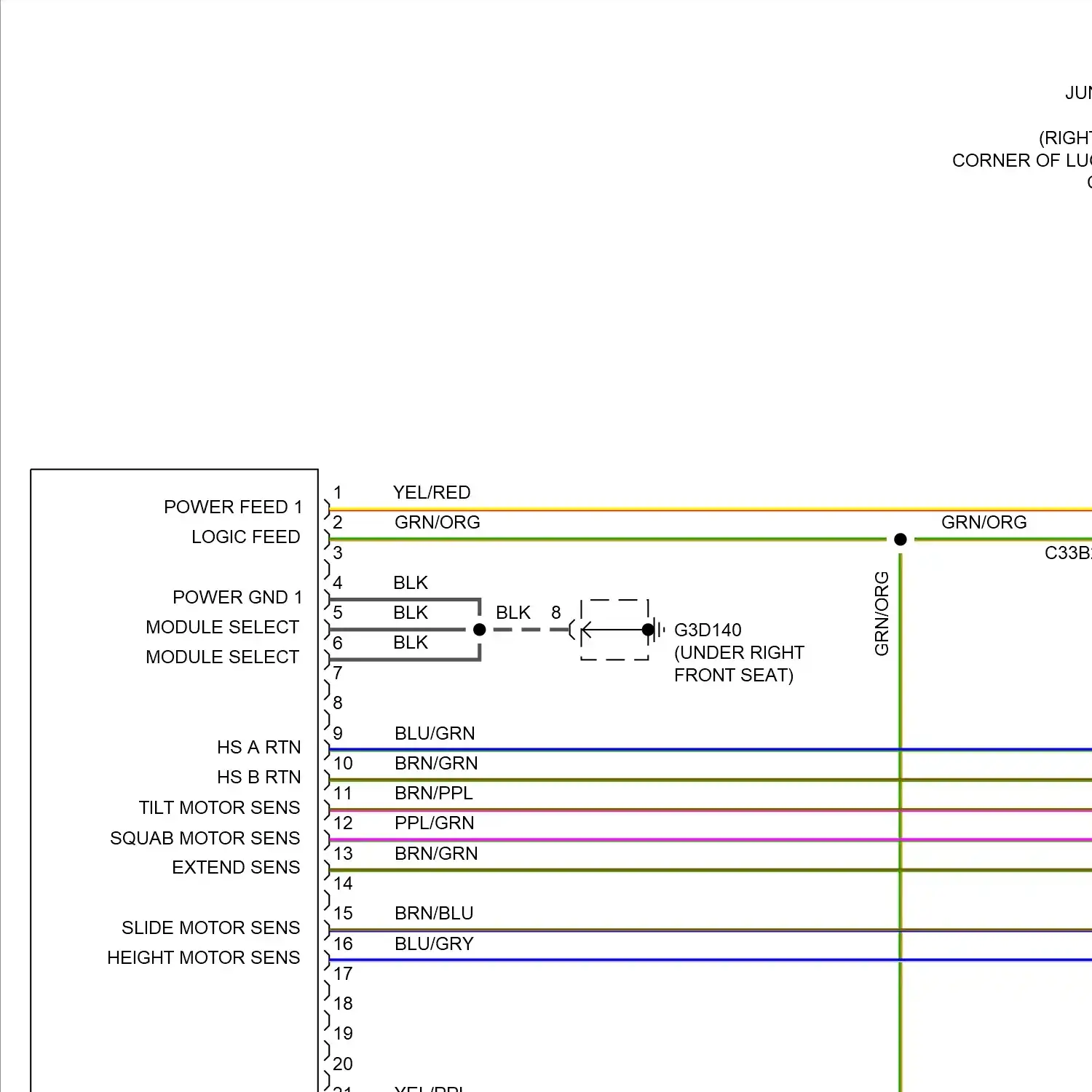

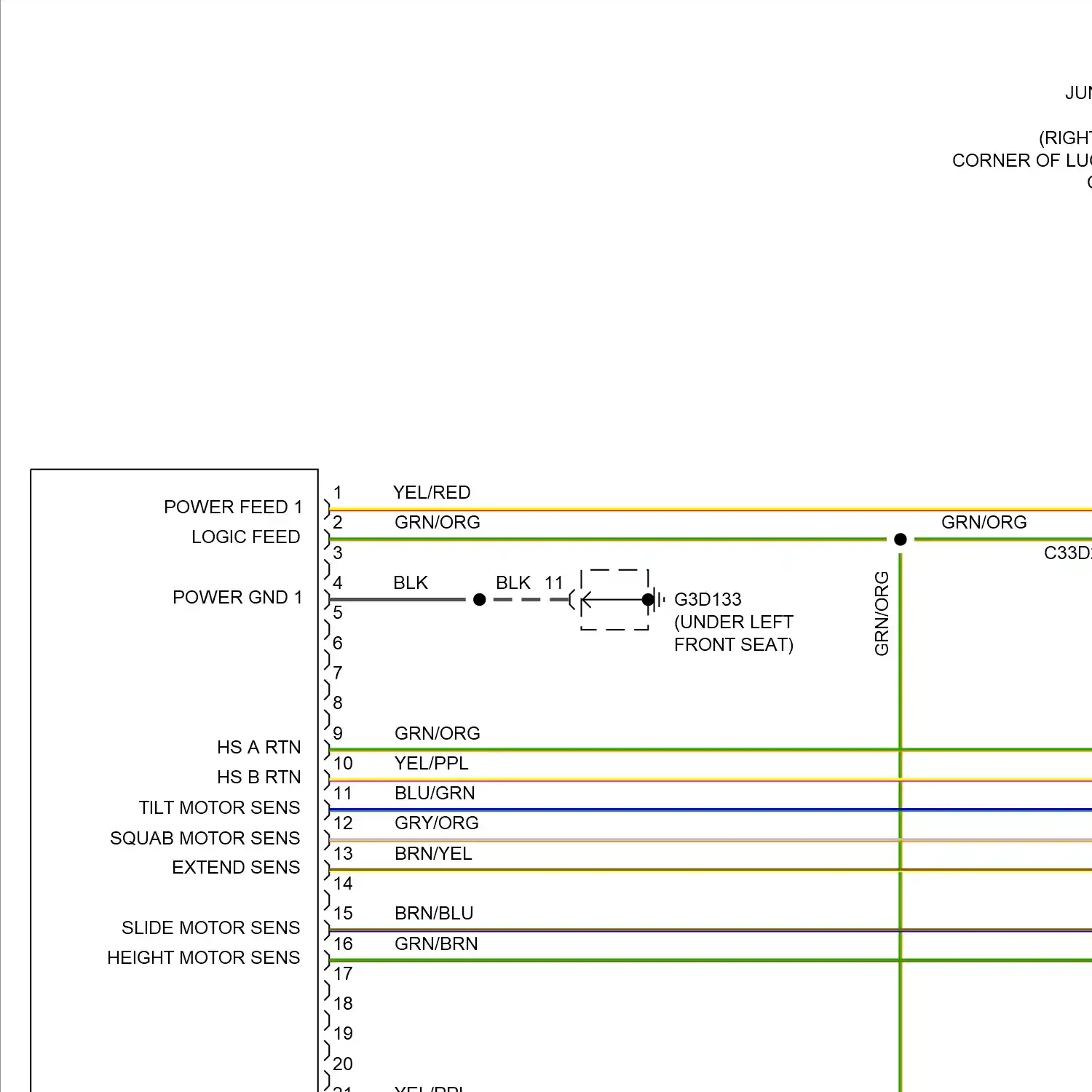

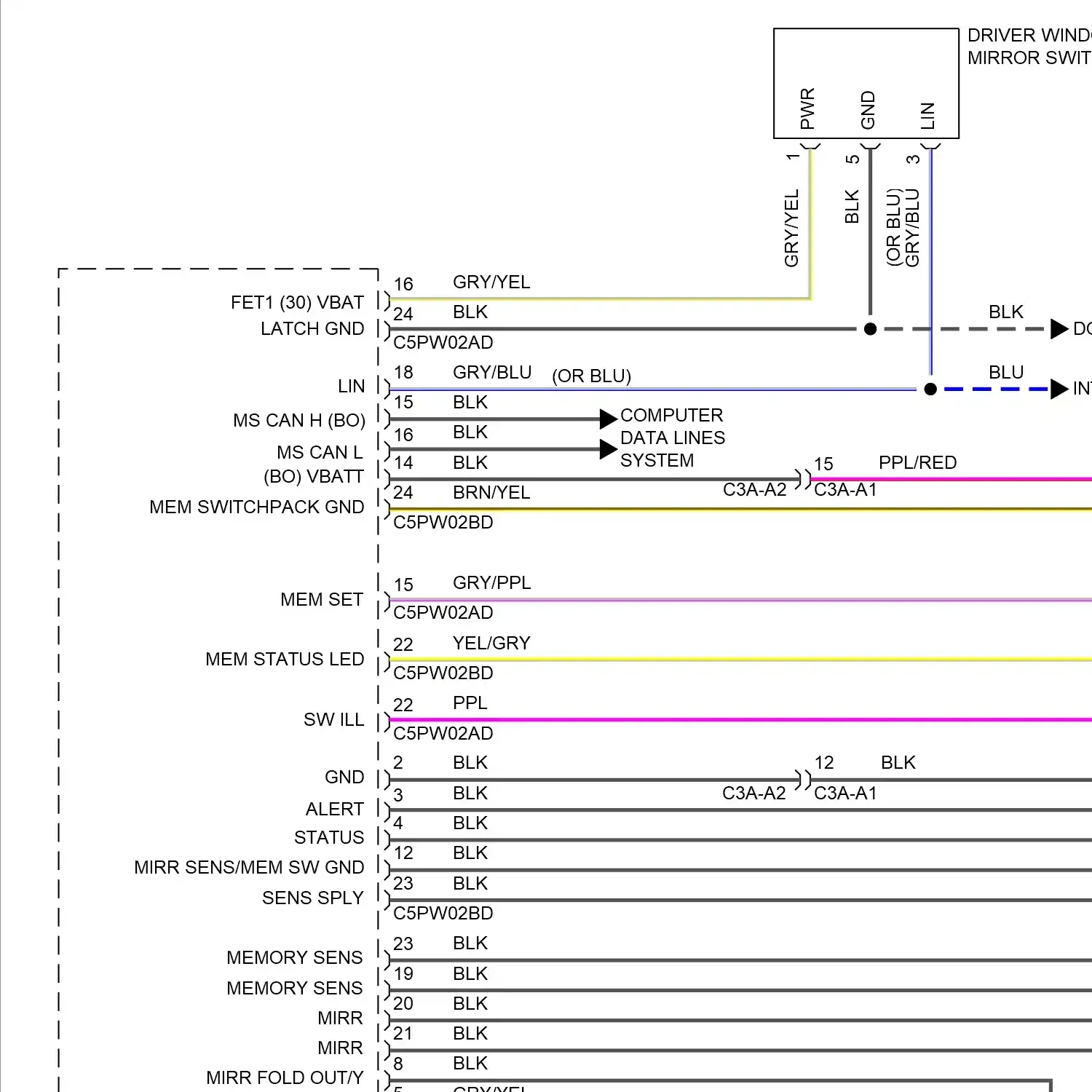

Driver"s memory seat circuit, 10-way Driver"s memory seat circuit, 8-way Memory mirrors circuit Passenger"s memory seat circuit Steering column memory circuit

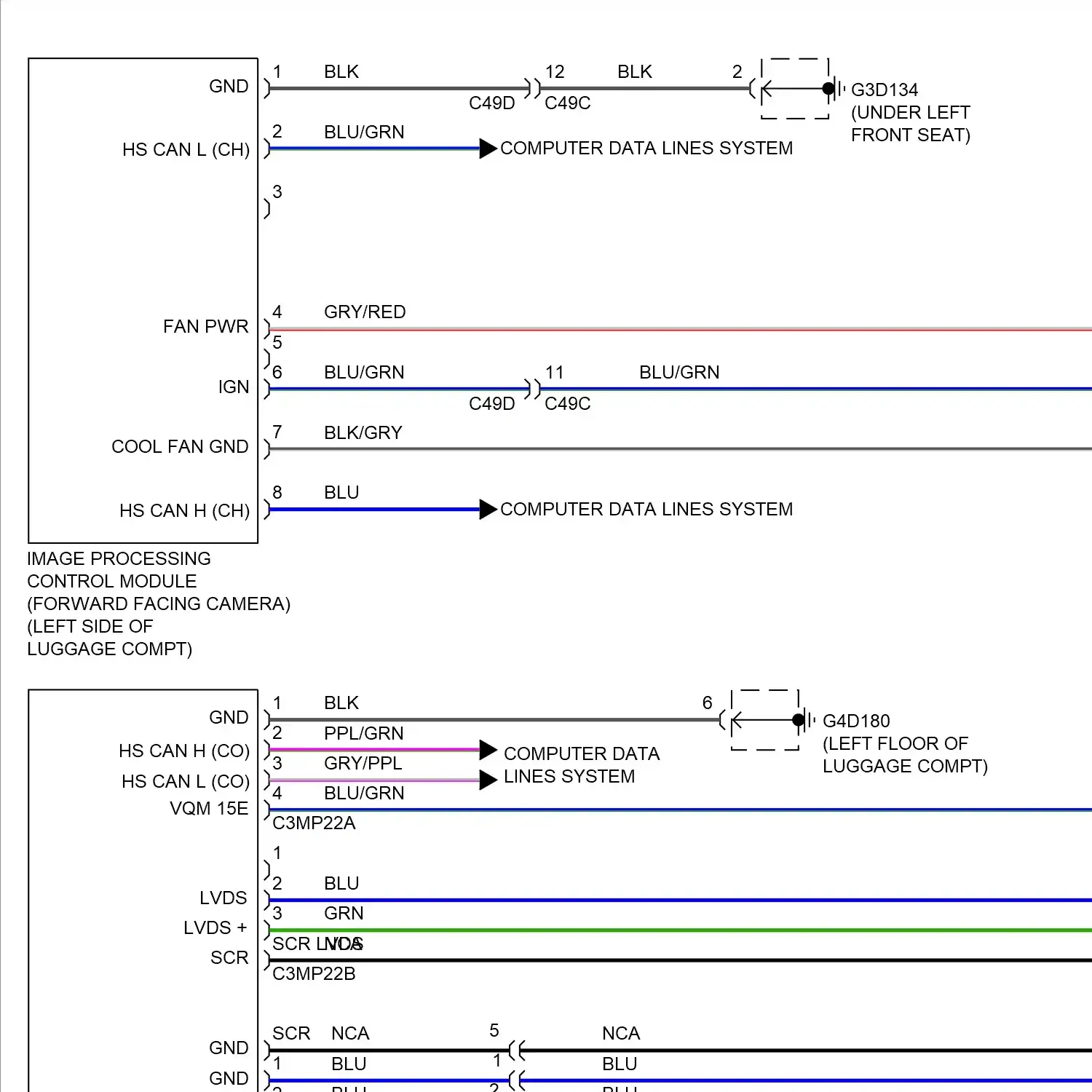

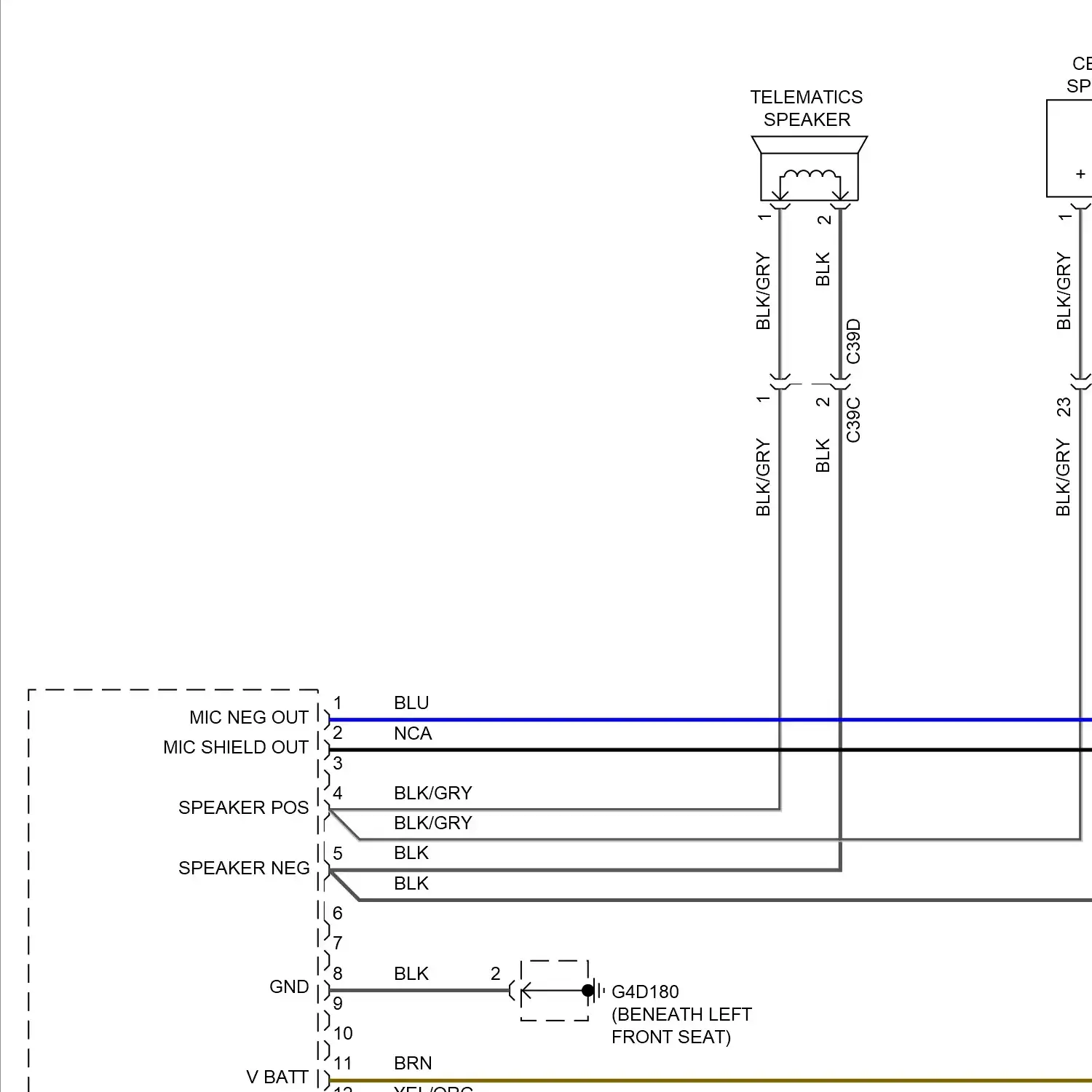

Blind spot monitoring circuit Multi camera circuit Navigation circuit, base Navigation circuit, premium 11-speaker system Navigation circuit, premium 17-speaker system Parking assistant circuit Rear view camera circuit Telematics circuit

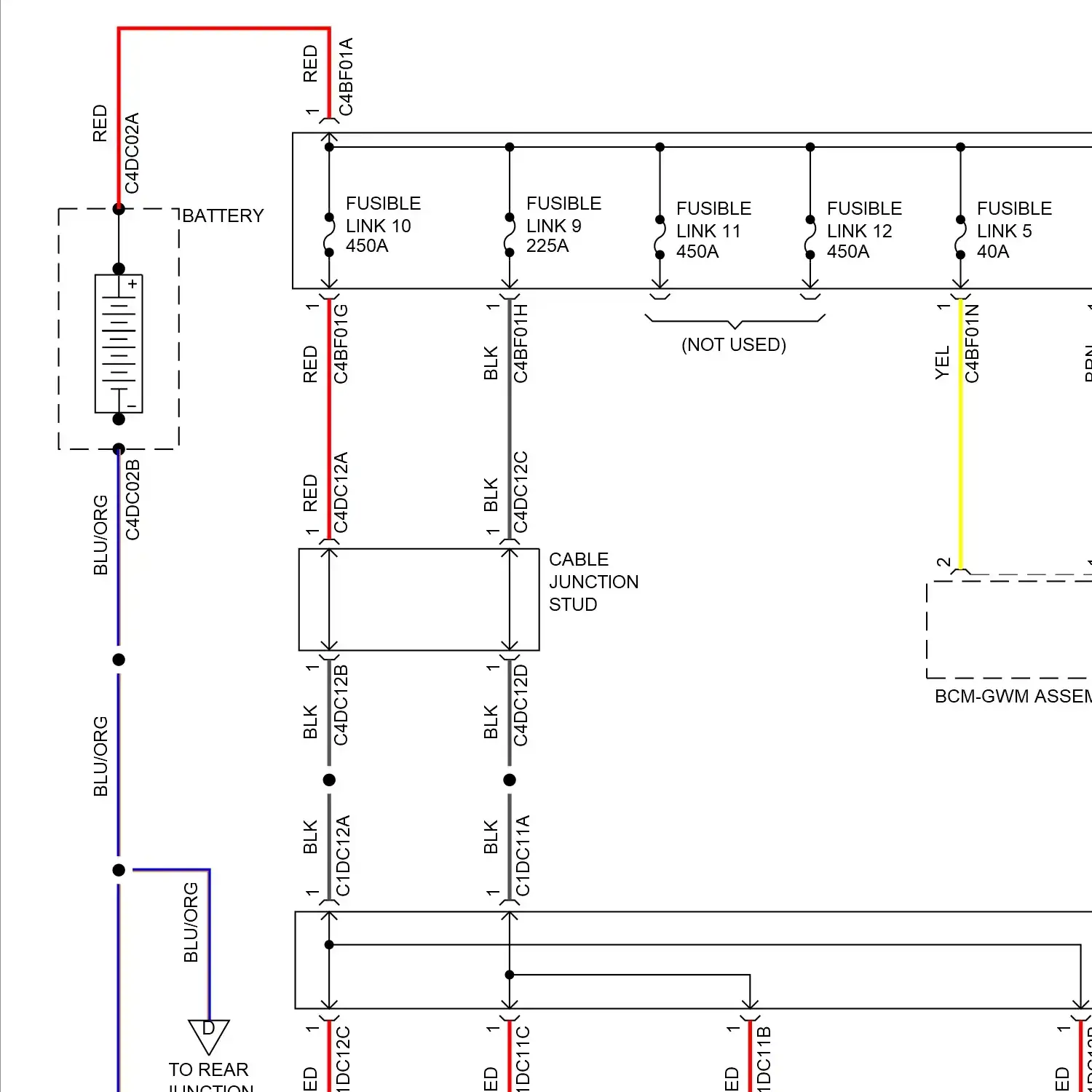

Power distribution circuit

Power door locks circuit

Electrochromic mirror circuit Power mirrors circuit

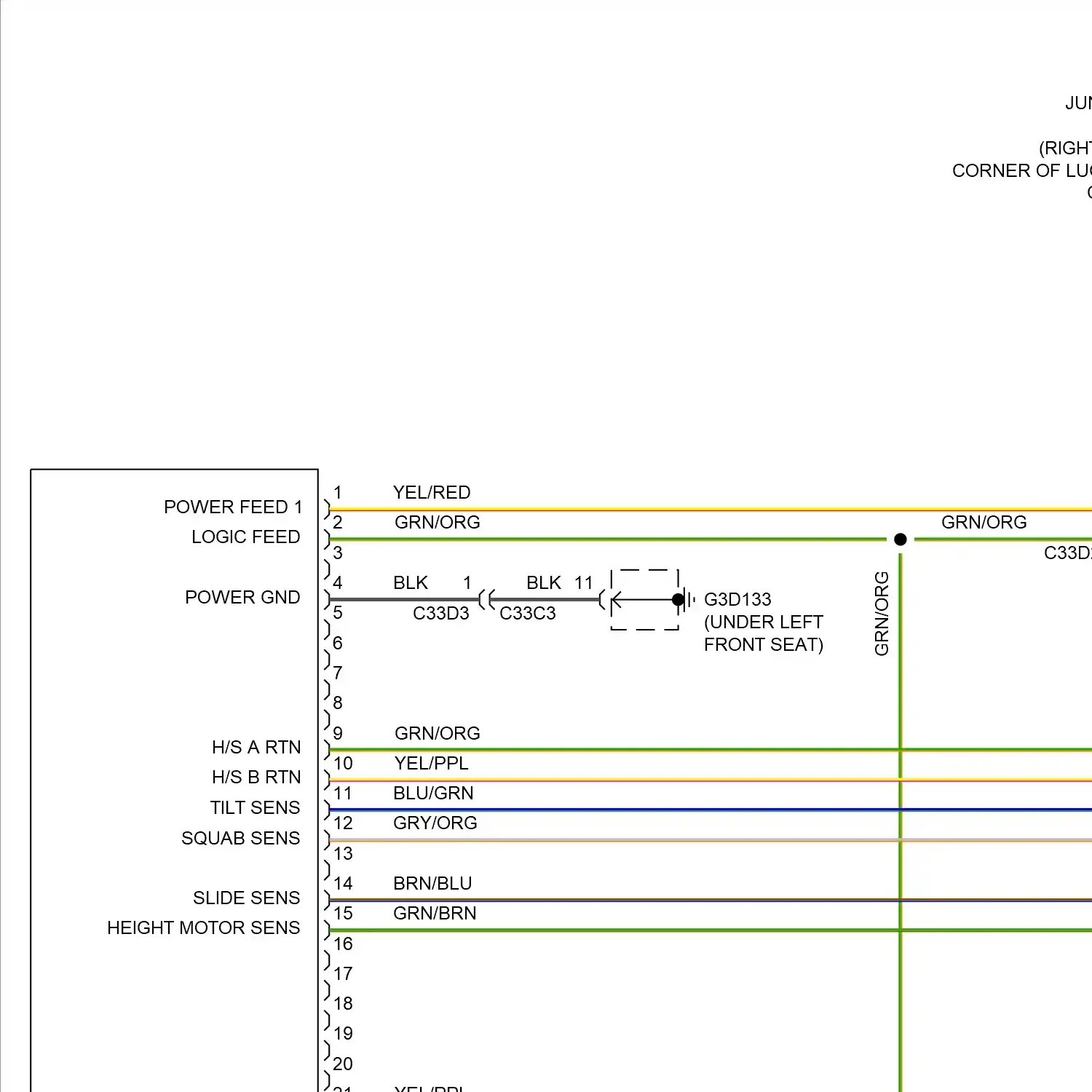

Climate control seats circuit Front power seat circuit Heated seats circuit Heated steering wheel circuit Rear power seat circuit

Power top/sunroof circuit

Power windows circuit

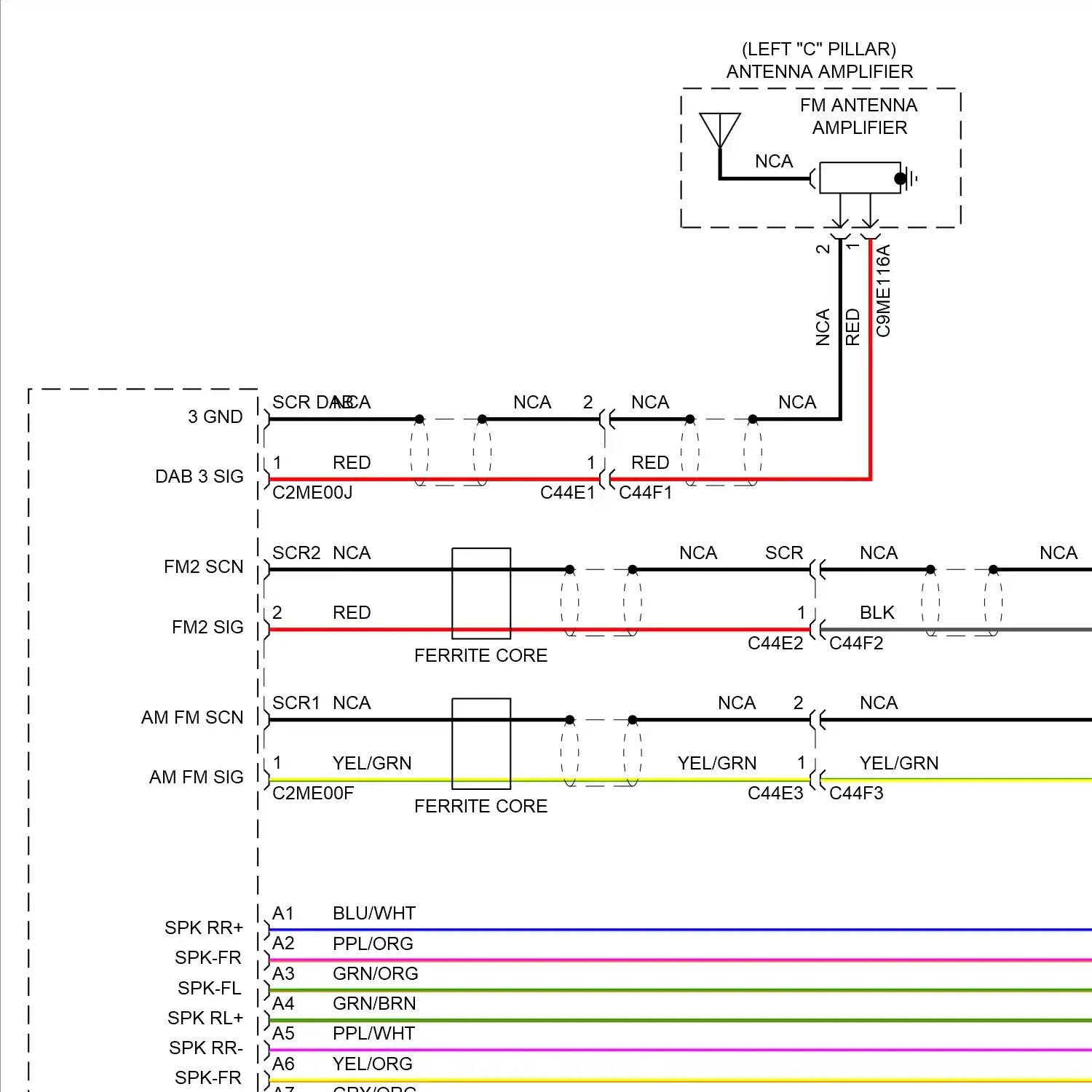

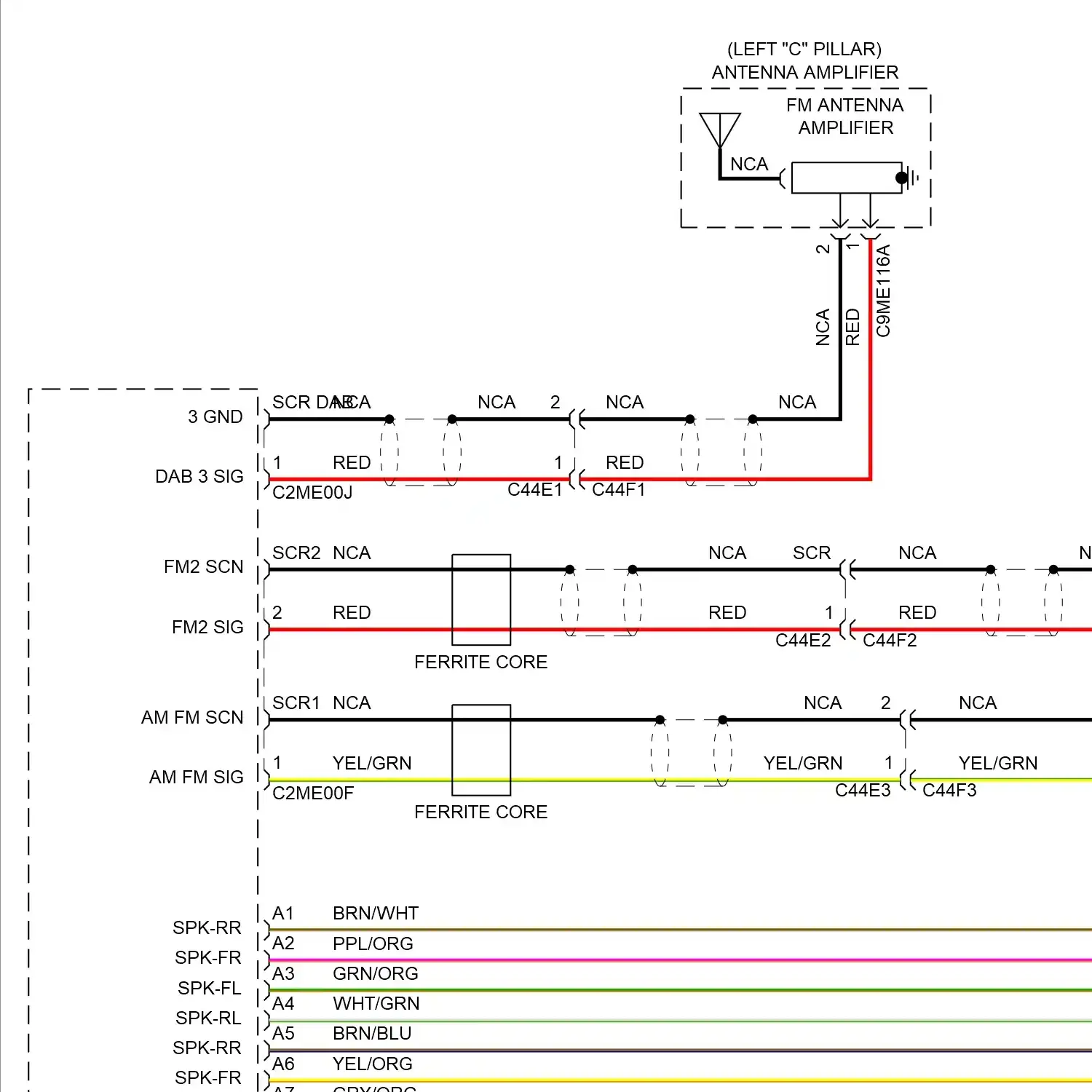

Base radio circuit Premium radio circuit, 11-speaker system Premium radio circuit, 17-speaker system

Shift interlock circuit

2.0l turbo diesel, charging circuit 2.0l turbo diesel, starting circuit

3.0l sc, charging circuit 3.0l sc, starting circuit

Supplemental restraints circuit

2.0l turbo diesel, a/t circuit 2.0l turbo diesel, awd circuit

3.0l sc, a/t circuit 3.0l sc, awd circuit

Power tailgate circuit Trunk & fuel door release circuit

Seat belt warning circuit Tire pressure monitoring circuit

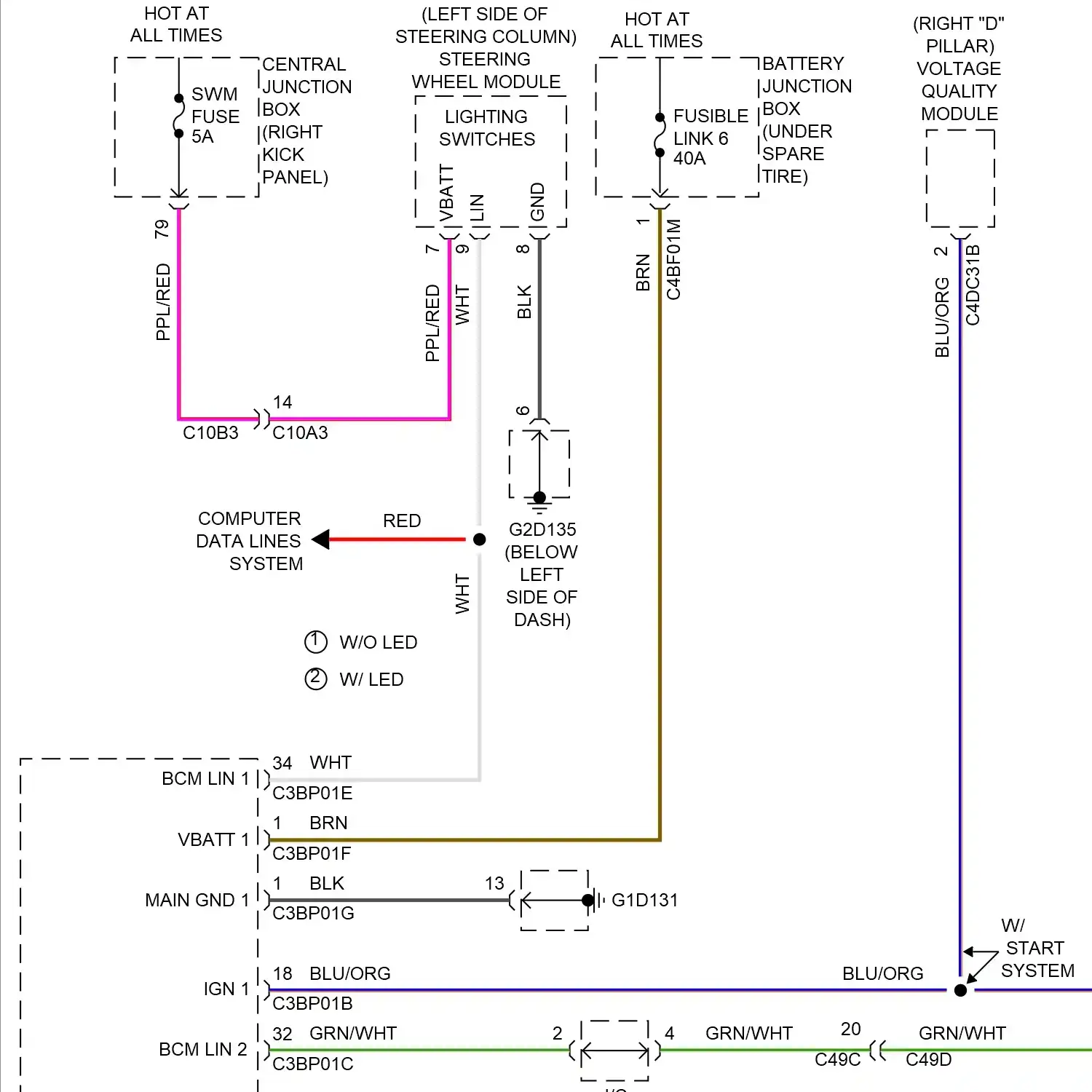

Front wiper/washer circuit Jet heater circuit Power wash circuit Rear wiper/washer circuit

ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, INSTRUMENT CLUSTER SYSTEMS AUDIO AMPLIFIER MODULE BATTERY BACKUP SOUNDER BATTERY JUNCTION BOX BATTERY MONITORING SYSTEM MODULE BATTERY REFERENCE VOLTAGE CTRL RESISTOR A CTRL RESISTOR B D LOCK D LOCK/MIRR FOLD IN DR LOCK/MIRR FOLD IN ELEC STEERING COL LOCK ELECTRIC STEERING COLUMN LOCK FROM BATTERY MONITORING SYSTEM FUEL FLAP LOCK HORN CONTROL HORN CTRL HORN IN IGNITION COIL 1 IGNITION COIL 2 IGNITION COIL 3 IGNITION COIL 4 IGNITION COIL 5 IGNITION COIL 6 LEFT HORN LF LOCK SW LR LOCK SW MIRR FOLD IN/D LOCK O FUEL FLAP LOCK O-ELEC-STEERING- COL-LOCK RF LOCK SW RIGHT HORN RR LOCK SW STARTER MONITOR STEERING COLUMN LOCK MODULE W/ BATTERY MONITORING SYSTEM MODULE W/O BATTERY MONITORING SYSTEM MODULE

(RIGHT FRONT OF ENGINE ACTIVE ENGINE MOUNT SOLENOID ACTIVE GRILLE AIR SHUTTER MOTOR AFS DC MOTOR MOTOR AFS MOTOR BYPASS VALVE ACTUATOR CONFIG SINGLE MOTOR COOLING FAN MOTOR FUSIBLE LINK DC MOTOR + DC MOTOR CIG DC MOTOR GND DC MOTOR SIG DC MOTOR SPLY DEMIST DISTRIBUTION MOTOR DEPLOYABLE TOWBAR MOTOR DEPLOYABLE TOWBAR MOTOR SHIELD ENGINE CONTROLS SYSTEM ENGINE RUNNING CONTROL FRONT ENGINE JUNCTION BOX FRONT ROOF BLIND MOTOR FUEL FLAP RELEASE MOTOR HCM MOTOR HEIGHT MOTOR DOWN HEIGHT MOTOR SENS HEIGHT MOTOR UP INTAKE MANIFOLD VARIABLE SWIRL ACTUATOR LATCH RELEASE MOTOR LEFT DEPLOYABLE SIDE STEP MOTOR LEFT ELECTRIC PARK BRAKE ACTUATOR LEFT FRONT CENTRAL DOOR LOCKING MOTOR LEFT FRONT DOOR CENTRAL LOCKING MOTOR LEFT FRONT FACE AIR DISTRIBUTION MOTOR LEFT FRONT FACE/FEET MOTOR LEFT FRONT FEET AIR DISTRIBUTION MOTOR LEFT FRONT SEAT BACKREST RECLINE MOTOR LEFT FRONT TEMPERATURE BLEND MOTOR LEFT FRONT WINDOW MOTOR LEFT REAR CENTRAL DOOR LOCKING MOTOR LEFT REAR FACE AIR DISTRIBUTION MOTOR LEFT REAR FEET AIR DISTRIBUTION MOTOR LEFT REAR RECLINE BACKREST SEAT MOTOR LEFT REAR SEAT BACKREST RECLINE MOTOR LEFT REAR TEMPERATURE BLEND MOTOR LEFT REAR WINDOW MOTOR LEFT SEAT BACKREST RECLINE MOTOR LEFT SEAT CUSHION EXTENSION MOTOR LEFT SEAT FORWARD REARWARD MOTOR LEFT SEAT FORWARD/REARWARD MOTOR LEFT SEAT HEIGHT MOTOR LEFT SEAT TILT MOTOR LH MOTOR +VE LUGGAGE COMPARTMENT CENTRAL DOOR LOCKING MOTOR MOTOR + UP MOTOR DOWN MOTOR PWR PASSENGER DOOR FOLDING MOTOR REAR BLOWER MOTOR REAR ENGINE JUNCTION BOX REAR WINDOW WIPER MOTOR RECIRCULATED AIR MOTOR RH MOTOR -VE RIGHT DEPLOYABLE SIDE STEP MOTOR RIGHT ELECTRIC PARK BRAKE ACTUATOR RIGHT FRONT CENTRAL DOOR LOCKING MOTOR RIGHT FRONT DOOR CENTRAL LOCKING MOTOR RIGHT FRONT FACE AIR DISTRIBUTION MOTOR RIGHT FRONT FEET AIR DISTRIBUTION MOTOR RIGHT FRONT SEAT BACKREST RECLINE MOTOR RIGHT FRONT TEMPERATURE BLEND MOTOR RIGHT FRONT WINDOW MOTOR RIGHT REAR CENTRAL DOOR LOCKING MOTOR RIGHT REAR FACE AIR DISTRIBUTION MOTOR RIGHT REAR FEET AIR DISTRIBUTION MOTOR RIGHT REAR RECLINE BACKREST SEAT MOTOR RIGHT REAR SEAT BACKREST RECLINE MOTOR RIGHT REAR TEMPERATURE BLEND MOTOR RIGHT REAR WINDOW MOTOR RIGHT SEAT BACKREST RECLINE MOTOR RIGHT SEAT CUSHION EXTENSION MOTOR RIGHT SEAT FORWARD REARWARD MOTOR RIGHT SEAT FORWARD/REARWARD MOTOR RIGHT SEAT HEIGHT MOTOR RIGHT SEAT TILT MOTOR ROOF OPENING PANEL MOTOR SLIDE MOTOR FORWARD SLIDE MOTOR REARWARD SLIDE MOTOR SENS SQUAB MOTOR INCLINE SQUAB MOTOR RECLINE SQUAB MOTOR SENS STARTER MOTOR STEERING COLUMN ADJUST MOTOR TAILGATE CLOSING MOTOR TILT COLUMN MOTOR TILT MOTOR DOWN TILT MOTOR SENS TILT MOTOR UP TOP OF ENGINE) UPPER TAILGATE CDL MOTOR VANE VGT ACTUATOR WASTEGATE ACTUATOR WINDSHIELD WIPER MOTOR

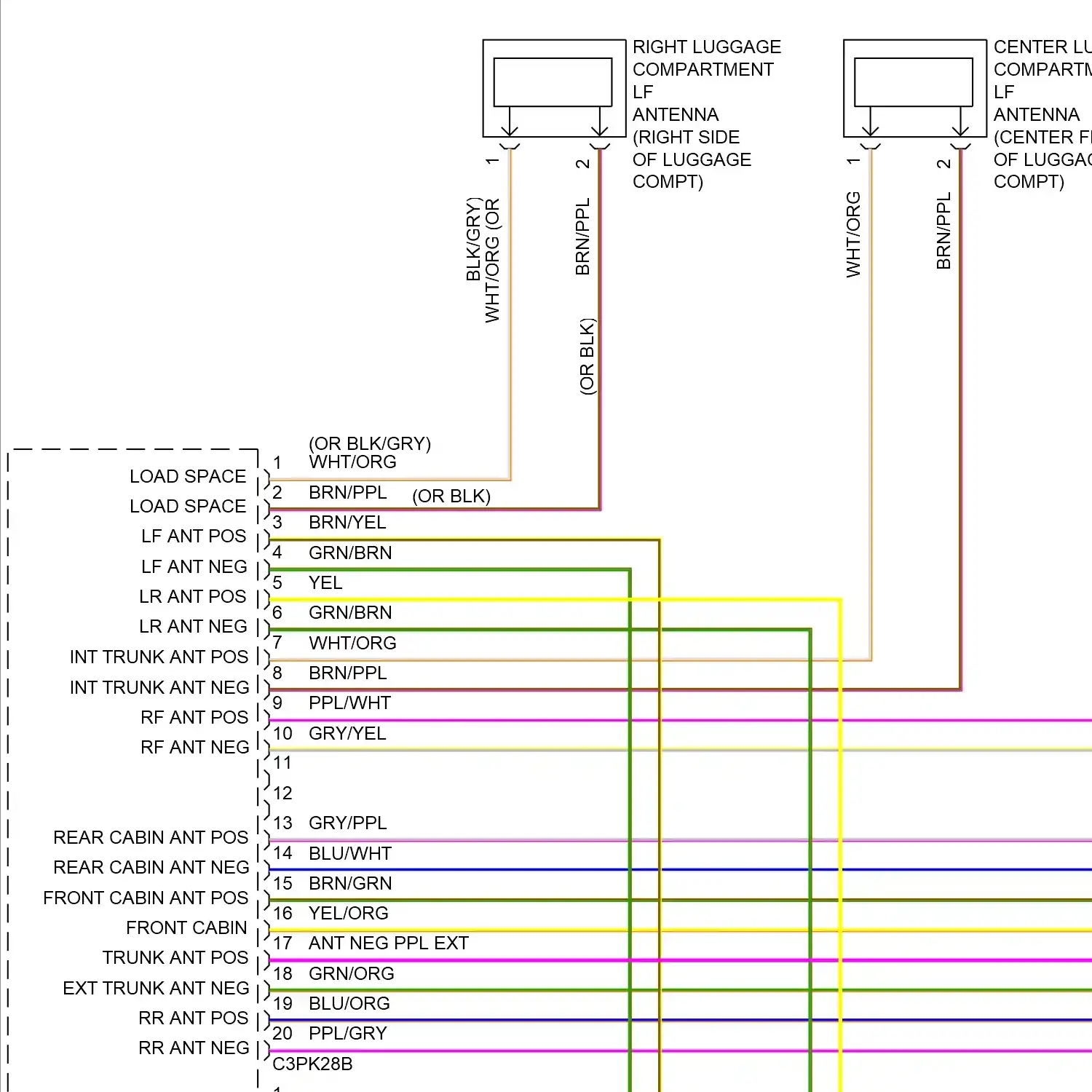

AM FM ANTENNA SCR AM FM ANTENNA SIG AM/FM DIVERSITY ANTENNA AMPLIFIER ANTENNA 1 GND ANTENNA 1 SIG ANTENNA 2 GND ANTENNA 2 SIG ANTENNA 3 GND ANTENNA 3 SIG ANTENNA 4 GND ANTENNA 4 SIG CENTER LUGGAGE COMPARTMENT LF ANTENNA DAB ANTENNA DIGITAL RADIO COMBINER ANTENNA EXTERNAL WIFI ANTENNA FM ANTENNA AMPLIFIER FRONT BLUETOOTH ANTENNA FRONT CENTER CONSOLE LF ANTENNA FRONT WIFI ANTENNA FUEL FIRED BOOSTER HEATER ANTENNA GSM ANTENNA LEFT TV ANTENNA AMPLIFIER REAR CENTER CONSOLE LF ANTENNA REAR EXTERNAL LF ANTENNA RIGHT LUGGAGE COMPARTMENT LF ANTENNA SDARS ANTENNA

CAMERA LVDS N CAMERA LVDS P CAMERA LVDS P SCR LVDS SCR FORWARD FACING CAMERA FRONT PROXIMITY CAMERA LEFT MIRROR PROXIMITY CAMERA REAR VIEW CAMERA RIGHT MIRROR PROXIMITY CAMERA

ACCESSORY SOCKET 1 CONTROL ACCESSORY SOCKET 2 CONTROL DIAGNOSTIC CONNECTOR DIAGNOSTIC CONNECTOR FUSE LEFT REAR FLOOR CONSOLE USB CHARGING SOCKET REAR CONSOLE ACCESSORY SOCKET FUSE RIGHT REAR FLOOR CONSOLE USB CHARGING SOCKET ROAD PRICING CONNECTOR SOCKET 2 CTRL

ABS CONTROL MODULE AUXILIARY BLOWER CONTROL MODULE CAMERA CONTROL MODULE CLIMATE CONTROL MODULE DEF HEATING CONTROL MODULE DEF TANK CONTROL MODULE RELAY DEPLOYABLE TOWBAR CONTROL MODULE ENGINE CONTROL MODULE FRONT BLOWER MOTOR CONTROL MODULE GLOW PLUG CONTROL MODULE HEAD-UP DISPLAY CONTROL MODULE HOT W/ ENGINE CONTROL MODULE RELAY ENERGIZED IMAGE PROCESSING CONTROL MODULE INTEGRATED CLIMATE CONTROL MODULE, SWITCH PACK INTEGRATED CLIMATE CONTROL MODULE, SWITCHPACK LEFT FRONT CLIMATE CONTROL MODULE PARKING AID CONTROL MODULE POWER STEERING CONTROL MODULE QUIESCENT CURRENT CONTROL MODULE RIGHT FRONT CLIMATE CONTROL MODULE SPEED CONTROL MODULE STEERING WHEEL HEATER CONTROL MODULE TELEMATIC CONTROL MODULE TRAILER BRAKE CONTROL MODULE TRANSFER CASE CONTROL MODULE TRANSMISSION CONTROL MODULE UPPER TAILGATE CONTROL MODULE

ACTIVE SENDER UNIT AUDIO HEAD UNIT DIRECTION UNIT IND DISPLAY UNIT ECU GND 1 ECU OUTPUT FUEL GAUGE SENDER ACTIVE UNIT FUEL GAUGE SENDER PASSIVE UNIT FUEL TANK UNIT HAZARD WARNING DIRECTION INDICATOR UNIT IMMOBILIZER ANTENNA UNIT MULTI-FUNCTION DISPLAY UNIT PASSIVE SENDER UNIT W/ NGI HEAD UNIT W/ NLI HEAD UNIT LEVEL B W/ NLI HEAD UNIT LEVEL B W/ NLI HEAD UNIT LEVEL C W/ NLI HEAD UNIT LEVEL B, LEVEL C W/ NLI HEAD UNIT LEVEL C

ACC FUSE ACTIVE CAMERA FUSE AWD FUSE BBS FUSE BRAKE PEDAL SWITCH FUSE COOLANT PUMP SC FUSE CUBBY BOX POWER POINT FUSE CVD FUSE DEF TANK MODULE FUSE DEF TANK MODULE FUSE 10 DEPLOYABLE SIDE STEP FUSE DIESEL PUMP FEEDBACK FUSE DIESEL SOL FUSE ETS- TCM FUSE EWP OR GTDI OIL FLOW FUSE EWP/GTDI OIL FLOW FUSE FRONT CIGAR LIGHTER FUSE FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 15 FUSE 16 FUSE 17 FUSE 22 FUSE 23 FUSE 25 FUSE 28 FUSE 34 GWM FUSE HCM FUSE HEADLAMP WASH FUSE HEATED STEERING WHEEL FUSE HEATED/ CLIMATE SEAT 20 FUSE HEATED/ CLIMATE SEAT 21 FUSE HEGO FUSE HEGOS POST CAT FUSE HEVAC CLUTCH FUSE HORNS FUSE HSW FUSE HUD FUSE IGN COILS FUSE KVM LATCH FUSE KVM LOGIC FUSE LEFT REAR HEAT SEAT FUSE LH AFS FUSE LHF DOOR MODULE FUSE LHR DOOR MODULE FUSE LOAD SPACE FUSE MIRROR ELEC/ BSM/ CAM FUSE MIRROR ELEC/ BSM/CAM FUSE MIRROR ELEC/BSM/ CAM FUSE NOX/ HEGO/ DEF FUSE NOX/ HEGO/DEF FUSE PCM BATT FUSE PEMS ACTUATORS/ GPCM FUSE PEMS SENSORS FUSE POWER AMP FUSE POWER TRUNK LID FUSE R WIPERS FUSE REAR HEAT SEAT SWITCH FUSE RFR FUSE RH AFS FUSE RHF DOOR MODULE FUSE RHR DOOR MODULE FUSE RIGHT REAR HEAT SEAT FUSE ROAD PRICING FUSE SPARE FUSE SUN BLIND FUSE SUNROOF FUSE SWM FUSE TCU FUSE TRAILER BRAKE MODULE FUSE TRAILER INLINE FUSE UNDER BONNET FUSE BOX VANAS/ PCV/ MAF/ UHEGO FUSE VANAS/ PCV/MAF/ UHEGO FUSE VANES/ PCV/ MAF/ UHEGO FUSE VANES/PCV/ MAF/UHEGO FUSE VBATT TRM FUSE VBATT TRM INT LIGHTS FUSE VICS FUSE VVT/ FMV-FPV FUSE

BLOCK HEATER BLOCK HEATER HARNESS AC MAINS SUPPLY BLOCK HEATER HARNESS TO AC MAINS SUPPLY DEF PRESSURE LINE HEATER ELECTRIC BOOSTER HEATER FUEL FIRED BOOSTER HEATER HEATER BLOCK LEFT BACKREST SEAT HEATER LEFT REAR SEAT BACKREST HEATER LEFT SEAT BACKREST HEATER LEFT WIND SHIELD HEATER LEFT WINDSHIELD HEATER MIRR HEATING MIRROR HEATER PTC HEATER 1 FUSIBLE LINK PTC HEATER 2 FUSIBLE LINK RIGHT BACKREST SEAT HEATER RIGHT REAR SEAT BACKREST HEATER RIGHT SEAT BACKREST HEATER RIGHT WINDSHIELD HEATER STEERING WHEEL HEATER W/ FUEL OPERATOR HEATER

LEFT FRONT O DIRECTION INDICATOR LEFT REAR O DIRECTION INDICATOR LF INDICATOR PAD INDICATOR OFF PASSENGER AIR BAG DISABLE INDICATOR RF INDICATOR RIGHT FRONT O DIRECTION INDICATOR

APPROACH LAMP BCALL BACKLIGHT SPLY ECALL BACKLIGHT SPLY EXTERIOR LIGHTS, HEADLIGHTS SYSTEMS FORWARD MOUNTED LUGGAGE COMPARTMENT LAMP GLOVE BOX ILLUMINATION LAMP HIGH MOUNTED STOP LAMP LEFT BODY TAIL LAMP ASSEMBLY LEFT FRONT DOOR SILL LAMP LEFT FRONT FOG LAMP LEFT FRONT FOOTWELL LAMP LEFT MAP LAMP LEFT REAR FOG LAMP LEFT REAR FOOTWELL LAMP LEFT REAR INTERIOR LAMP LEFT REAR NUMBER PLATE LAMP LEFT REVERSE LAMP LEFT STOP LAMP LEFT TAILGATE TAIL LAMP ASSEMBLY O INTERIOR LIGHTS REARWARD MOUNTED LUGGAGE COMPARTMENT LAMP REPEATER LAMP RIGHT FRONT DOOR SILL LAMP RIGHT FRONT FOG LAMP RIGHT FRONT FOOTWELL LAMP RIGHT MAP LAMP RIGHT REAR FOG LAMP RIGHT REAR FOOTWELL LAMP RIGHT REAR INTERIOR LAMP RIGHT REAR NUMBER PLATE LAMP RIGHT REVERSE LAMP RIGHT STOP LAMP RIGHT TAILGATE TAIL LAMP ASSEMBLY

ABS PUMP FUSIBLE LINK AUTOMATIC TRANSMISSION FLUID PUMP BOLSTER PUMP CHARGE AIR COOLANT PUMP FRONT/REAR WINDOW WASHER PUMP FUEL PUMP FUEL PUMP CTRL FUEL PUMP DRIVER MODULE FUEL SENS PUMP HIGH PRESSURE FUEL PUMP 1 HIGH PRESSURE FUEL PUMP 2 I FUEL PUMP CTRL I FUEL SENS PUMP IC WATER PUMP IC WATER PUMP O T WCAC LEFT LUMBAR PUMP LEFT LUMBER PUMP LUMBAR/BOLSTER PUMP O FUEL PUMP CONTROL POWER WASH PUMP PUMP RTN PUMP SUPPLY PUMP U PUMP V PUMP W PURGE PUMP RIGHT LUMBAR PUMP WASH PUMP RLY CTRL

ACCESSORY SOCKET RELAY AWD RELAY BLOWER RELAY CHARGE AIR COOLANT PUMP RELAY COMFORT RELAY EXTENDED IGNITION MICRO RELAY EXTENDED IGNITION MINI RELAY EXTENDED IGNITION RELAY FRONT FOG LAMP RELAY FUEL PUMP RELAY FUEL PUMP RELAY FUSE GRAPHICAL RELAY 1 GRAPHICAL RELAY 2 HEATED STEERING WHEEL RELAY HEATED WINDSHIELD RELAY HORN RELAY HOT W/ COMFORT RELAY ENERGIZED HOT W/ EXTENDED IGNITION MICRO RELAY ENERGIZED HOT W/ EXTENDED IGNITION RELAY ENERGIZED HOT W/ EXTENDED RELAY ENERGIZED HOT W/ GRAPHICAL RELAY 2 ENERGIZED HOT W/ MICRO RELAY 2 ENERGIZED HOT W/ RELAY 1 ENERGIZED HOT W/ TRAILER SOCKET RELAY ENERGIZED LEFT HEADLAMP WASH PUMP RELAY PTC 1 RELAY PTC 2 RELAY REAR BLOWER RELAY REAR HEATED SCREEN RELAY REAR WIPER RELAY STARTER MOTOR RELAY STARTER PINION RELAY STARTER RELAY TRAILER SOCKET RELAY WIPER FAST- SLOW RELAY WIPER ON/ OFF RELAY

ACCELERATOR PEDAL POSITION SENSOR AIR CONDITIONING PRESSURE SENSOR AMBIENT AIR TEMPERATURE SENSOR BRAKE FLUID LEVEL SENSOR BRAKE VACUUM SENSOR CHARGE AIR COOLER TEMPERATURE SENSOR COOLANT PUMP POSITION SENSOR CRANKCASE PRESSURE SENSOR CYLINDER BLOCK TEMPERATURE SENSOR CYLINDER HEAD TEMPERATURE SENSOR DIFFERENTIAL PRESSURE SENSOR DOWN STREAM SCR NOX SENSOR DOWNSTREAM SCR NOX SENSOR DRIVER SEAT POSITION SENSOR EVAPORATOR TEMPERATURE SENSOR F SENSOR GND F SENSOR PWR FIL SENSOR FIR SENSOR FIXED TURBOCHARGER OUTLET TEMPERATURE SENSOR FOL SENSOR FOR SENSOR FRONT SUNLOAD SENSOR FSL SENSOR FSR SENSOR FUEL RAIL PRESSURE SENSOR FUEL TEMPERATURE SENSOR HALL SENSOR RETURN HIGH PRESSURE EGR COOLER BYPASS VALVE POSITION SENSOR HIGH PRESSURE EGR COOLER OUTLET TEMPERATURE SENSOR HIGH PRESSURE EGR INLET PRESSURE SENSOR IN-VEHICLE TEMPERATURE SENSOR INTAKE DPF TEMPERATURE SENSOR LEFT BANK KNOCK SENSOR LEFT FRONT BRAKE PAD WEAR SENSOR LEFT FRONT DOOR IMPACT PRESSURE SENSOR LEFT FRONT FACE DUCT AIR TEMPERATURE SENSOR LEFT FRONT FOOT DUCT AIR TEMPERATURE SENSOR LEFT FRONT HEIGHT SENSOR LEFT FRONT INNER PARKING AID SENSOR LEFT FRONT OUTER PARKING AID SENSOR LEFT FRONT PARK ASSIST SENSOR LEFT FRONT TIRE SENSOR LEFT FRONT WHEEL SPEED SENSOR LEFT HALL SENSOR LEFT MID CATALYST HEATED OXYGEN SENSOR LEFT PARK ASSIST SENSOR LEFT POST CATALYST HEATED OXYGEN SENSOR LEFT PRE CATALYST HEATED OXYGEN SENSOR LEFT REAR FACE DUCT AIR TEMPERATURE SENSOR LEFT REAR FOOT DUCT AIR TEMPERATURE SENSOR LEFT REAR HEIGHT SENSOR LEFT REAR INNER PARKING AID SENSOR LEFT REAR OUTER PARKING AID SENSOR LEFT REAR SIDE IMPACT SENSOR LEFT REAR TIRE SENSOR LEFT REAR WHEEL SPEED SENSOR LEFT SIDE FRONT IMPACT SENSOR LEFT SS SENSOR LEFT UPPER ANTI TRAP SENSOR LOW FUEL PRESSURE SENSOR LOW PRESSURE EGR COOLER OUTLET TEMPERATURE SENSOR LOW PRESSURE EGR DIFFERENTIAL PRESSURE SENSOR MANIFOLD ABSOLUTE PRESSURE, TEMPERATURE SENSOR OCCUPANT CLASSIFICATION SENSOR CONTROL MODULE OCCUPANT DETECTION SENSOR OIL LEVEL, TEMPERATURE SENSOR OIL PRESSURE/ TEMPERATURE SENSOR OUTLET DPF TEMPERATURE SENSOR POLLUTION SENSOR PRE CATALYST HEATED OXYGEN SENSOR R SENSOR GND R SENSOR PWR RADIATOR OUTLET TEMPERATURE SENSOR RAIN/ LIGHT SENSOR RAIN/LIGHT SENSOR RIGHT BANK KNOCK SENSOR RIGHT FRONT DOOR IMPACT PRESSURE SENSOR RIGHT FRONT FACE DUCT AIR TEMPERATURE SENSOR RIGHT FRONT FOOT DUCT AIR TEMPERATURE SENSOR RIGHT FRONT HEIGHT SENSOR RIGHT FRONT INNER PARKING AID SENSOR RIGHT FRONT OUTER PARKING AID SENSOR RIGHT FRONT PARK ASSIST SENSOR RIGHT FRONT SEAT POSITION SENSOR RIGHT FRONT TIRE SENSOR RIGHT FRONT WHEEL SPEED SENSOR RIGHT HALL SENSOR RIGHT MID CATALYST HEATED OXYGEN SENSOR RIGHT POST CATALYST HEATED OXYGEN SENSOR RIGHT PRE CATALYST HEATED OXYGEN SENSOR RIGHT REAR BRAKE PAD WEAR SENSOR RIGHT REAR FACE DUCT AIR TEMPERATURE SENSOR RIGHT REAR FOOT DUCT AIR TEMPERATURE SENSOR RIGHT REAR HEIGHT SENSOR RIGHT REAR INNER PARKING AID SENSOR RIGHT REAR OUTER PARKING AID SENSOR RIGHT REAR PARK ASSIST SENSOR RIGHT REAR SIDE IMPACT SENSOR RIGHT REAR TIRE SENSOR RIGHT REAR WHEEL SPEED SENSOR RIGHT SIDE FRONT IMPACT SENSOR RIGHT SS SENSOR RIGHT UPPER ANTI TRAP SENSOR RIL SENSOR RIR SENSOR ROL SENSOR ROR SENSOR RSL SENSOR RSR SENSOR SEAT BELT TENSION SENSOR SPARE TIRE SENSOR TELESCOPE SENSOR TEMPERATURE SENSOR TEMPERATURE/ HUMIDITY SENSOR TILT SENSOR TRANSMISSION NEUTRAL SENSOR TURBINE BYPASS CONTROL ACTUATOR POSITION SENSOR UPSTREAM SCR NOX SENSOR W/ AUTO DIMMING REAR VIEW MIRROR, RAIN SENSOR WASHER FLUID LEVEL SENSOR WATER IN-FUEL SENSOR

11 SPEAKER 11 SPEAKER SYSTEM 17 SPEAKER 17-SPEAKER SYSTEM BASE, 11-SPEAKER SYSTEM CENTER SPEAKER DEPLOYABLE TOWBAR SPEAKER LEFT FRONT DOOR BASS SPEAKER LEFT FRONT DOOR MID RANGE SPEAKER LEFT REAR DOOR BASS SPEAKER LEFT REAR SURROUND SOUND SPEAKER RIGHT FRONT DOOR BASS SPEAKER RIGHT FRONT DOOR MID RANGE SPEAKER RIGHT REAR DOOR BASS SPEAKER RIGHT REAR SURROUND SOUND SPEAKER SPEAKER 1+ SPEAKER 2+ SPEAKER NEG SPEAKER POS SUBWOOFER SPEAKER TELEMATICS SPEAKER W/ BASE RADIO, 11-SPEAKER PREMIUM RADIO W/ 17-SPEAKER PREMIUM RADIO

AJAR SWITCH ALL SURFACE PROGRESS CONTROL SWITCH AUXILIARY LIGHTING SWITCH BELT SWITCH BOT CLUTCH SWITCH BRAKE DIAGNOSTIC SWITCH BRAKE FLUID LEVEL SWITCH BRAKE PEDAL SWITCH BRAKE VACUUM SWITCH CENTER REAR BUCKLE SWITCH CENTER REAR HEATER SWITCH COOLANT LEVEL SWITCH DEPLOYABLE TOWBAR SWITCH DOWNSHIFT PADDLE SWITCH DRIVER CENTRAL DOOR LOCKING SWITCH DRIVER DOOR SWITCH ELECTRIC PARK BRAKE SWITCH EXIT SWITCH FRONT PASSENGER SBR SWITCH GLOVE BOX SWITCH HAZARD SWITCH ILLUMINATION O HOOD SWITCH HORN SWITCH HTR SWITCH I BRAKE DIAGNOSTIC SWITCH I BRAKE SWITCH I PARK NEUTRAL SWITCH I TAILGATE RELEASE EXTERIOR SWITCH IGN 3 BRAKE FLUID LEVEL SWITCH INTERIOR LIGHT SWITCH INTERIOR RELEASE TAIL DOOR SWITCH INTERMITTENT SWITCH ISOLATOR SWITCH LADDER SWITCH 1 LATCH CLUTCH SWITCH LEFT FRONT BUCKLE SWITCH LEFT REAR BUCKLE SWITCH LEFT REAR DOOR SWITCH LOCK PUSH SWITCH LEFT FRONT DOOR HANDLE LOCK PUSH SWITCH LEFT REAR DOOR HANDLE LOCK PUSH SWITCH RIGHT FRONT DOOR HANDLE LOCK PUSH SWITCH RIGHT REAR DOOR HANDLE LOW COOLANT SWITCH LUGGAGE COMPARTMENT RELEASE SWITCH MENU OK SWITCH MID SBR BUCKLE SWITCH MODE SWITCH O ILLUMINATION SWITCH OIL PRESSURE SWITCH PARK SWITCH PASSENGER CENTRAL DOOR LOCKING SWITCH PASSENGER DOOR SWITCH PASSENGER DOOR WINDOW SWITCH PHONE ANSWER END SWITCH REAR SEAT CENTER HEATER SWITCH REAR WIPER PARK SWITCH RELEASE SWITCH RESISTIVE LADDER SWITCH 1 REVERSE GEAR SWITCH RIGHT FRONT BUCKLE SWITCH RIGHT REAR BUCKLE SWITCH RIGHT REAR DOOR SWITCH RIGHT SBR BUCKLE SWITCH SEEK DOWN SWITCH SEEK UP SWITCH SET SWITCH STEERING COLUMN WIPER SWITCH STEERING WHEEL HEATER SWITCH STOP LAMP SWITCH STOPLAMP SWITCH STOPLAMP SWITCH DIAGNOSTIC BRAKE SWITCH SWITCH AJAR SWITCH DOWN SWITCH ILL SWITCH UNLOCK SWITCH UP TAIL DOOR LUGGAGE COMPARTMENT SWITCH TAIL DOOR SWITCH TAILGATE AJAR SWITCH TAILGATE GLOBAL CLOSE SWITCH TRANSMISSION CONTROL SWITCH UNLOCK PULL SWITCH UPSHIFT PADDLE SWITCH VOICE SWITCH VOLUME SWITCH WASH FLUID LEVEL SWITCH 1 WASH SWITCH WASHER FLUID LEVEL SWITCH 1 WINDSHIELD WIPER VARIABLE DELAY SWITCH WIPER FRONT SLOW SWITCH WIPER PARK FRONT SWITCH WIPER PARK REAR SWITCH

CHANGEOVER VALVE EGR COOLER BYPASS SOLENOID VALVE FUEL PRESSURE CONTROL VALVE FUEL VOLUME CONTROL VALVE HIGH PRESSURE EGR SOLENOID VALVE LEFT FRONT DAMPER SOLENOID LEFT LUMBAR PUMP SOLENOID LEFT PUMP LUMBAR SOLENOID LEFT REAR DAMPER SOLENOID LOW PRESSURE EGR SOLENOID VALVE MANIFOLD INTAKE TUNING/ SYMPOSER SOLENOID OIL PUMP SOLENOID PISTON COOLING OIL JET SOLENOID PURGE CONTROL VALVE PURGE VALVE RIGHT FRONT DAMPER SOLENOID RIGHT LUMBAR PUMP SOLENOID RIGHT PUMP LUMBAR SOLENOID RIGHT REAR DAMPER SOLENOID SAI SOLENOID VALVE TURBOCHARGER BYPASS COMPRESSOR SOLENOID VALVE GND VALVE RTN VALVE SUPPLY VARIABLE COOLANT PUMP SOLENOID

(OR RED/ WIRE BLK WIRE BLK/BLU WIRE BLK/BRN WIRE BLK/GRN WIRE BLK/GRY WIRE BLK/ORG WIRE BLK/PPL WIRE BLK/RED WIRE BLK/VIO WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BRN WIRE BLU/GRN WIRE BLU/GRY WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/BLU WIRE BRN/GRN WIRE BRN/PPL WIRE BRN/RED WIRE BRN/WHT WIRE BRN/YEL WIRE GRN WIRE GRN/BLU WIRE GRN/BRN WIRE GRN/ORG WIRE GRN/PPL WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLU WIRE GRY/BRN WIRE GRY/ORG WIRE GRY/PPL WIRE GRY/RED WIRE GRY/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLU WIRE ORG/GRN WIRE ORG/WHT WIRE ORG/YEL WIRE PNK WIRE PPL/BLK WIRE PPL/BRN WIRE PPL/GRN WIRE PPL/GRY WIRE PPL/ORG WIRE PPL/RED WIRE PPL/WHT WIRE RED WIRE RED/BLK WIRE RED/PPL WIRE RED/YEL WIRE VIO/GRY WIRE WHT WIRE WHT/BLU WIRE WHT/BRN WIRE WHT/GRN WIRE WHT/ORG WIRE WHT/PPL WIRE WHT/RED WIRE WHT/VIO WIRE WHT/YEL WIRE YEL WIRE YEL/BLU WIRE YEL/BRN WIRE YEL/GRN WIRE YEL/GRY WIRE YEL/ORG WIRE YEL/PPL WIRE YEL/RED WIRE

0 IGNITION 9 2.0 DATA NEG 2.0 DATA POS 2.0L TURBO DIESEL 2.0L TURBO DIESEL 3.0L SC 3.0L SC 2.0L TURBO DIESEL 3.0L SC 2.0L TURBO DIESEL W/ MEMORY W/O MEMORY 8 WAY 8-WAY 10-WAY W/ MEMORY W/O MEMORY 10-WAY (CENTER (NOT (RIGHT SIDE OF TRANSMISSION -VE A/C CLUTCH RLY CTRL ABS VALVES FUSIBLE LINK ACM SCN ACM SIG AIR BAG AIR BAG DEPLOYED AIR INTAKE + AIR INTAKE FEEDBACK AIR TEMPERATURE AJAR SW ALERT - AM FM SCN AM FM SIG AMBIENT AIR AMBIENT AIR TEMP AMBIENT AIR TEMP I A ATS AMBIENT AIR TEMP RTN AMBIENT AIR TEMP RTN G R ATS AMP SHIELD AMP WAKE UP ANTI THEFT ALARM WARNING IND ANTI-THEFT SYSTEM APP GND 1 APP GND 2 AQS PWM AUD LIN AUDIO LIN AUDIO VIDEO INPUT OUTPUT PANEL AUDIO-VIDEO INPUT/OUTPUT PANEL AUX GND AUX L + AUX R + AUX RH + AUX SHIELD AWD FUSIBLE LINK B D LIN BACK FAN SPEED BACK TED - BACK TEMP SIG BACKLIGHTING ADJ BACKLIGHTING ADJUST BACKUP LAMPS CIRCUIT BATT SPLY BCALL LED 1 BCALL LED 2 BCM LIN BCM LIN 1 BCM LIN 2 BCM LIN 7 BCM-GWM ASSEMBLY BLUETOOTH ANT SIG BLUETOOTH ANT SHIELD WIFI ANT SIG BLWR MTR RLY CTRL BOLSTER DEFLATE BOLSTER INFLATE BOOST PRESS BOOT AJAR BOTTOM CLUTCH SW BR 2 NEG BR 2 POS BRAKE DIAG SW BRAKE DIAG SW I-S BRKRED BRAKE FLUID LEVEL SW BRAKE LT BRAKE ON/OFF BRAKE PAD BRAKE SW BRK CONT OUT BRK DIAG SW BRK ON/OFF BRK VACUUM SW BTN DIAGNOSTIC BTS V REF CABLE JUNCTION STUD CAM EX SENS A CAM EX SENS B CAM IN SENS A CAM IN SENS B CAM SENS A GND CAM SENS A PWR CAM SENS B GND CAN ID SELECT CAN L CENTER CONSOLE ILLUMINATION CENTERAL JUNCTION BOX CENTRAL JUNCTION BOX CHIME IN+ CLMN ADJ DN CLMN ADJ EXTEND CLMN ADJ HALL COUNT TELESCOPE CLMN ADJ HALL COUNT TILT CLMN ADJ RETRACT CLMN ADJ SW CLMN ADJ SW GND CLMN ADJ SWITCHPACK CLMN ADJ UP CLOCK- SPRING CLOSE MTR + CLUTCH BOT SW CLUTCH PWR IN COMP SOL + PPL COMP SOL - COMPUTER DATA LINES COMPUTER DATA LINES SYSTEM CONFIG SBM CONTINUOUSLY VARIABLE DAMPING MODULE CONTROL/ DIAGNOSTICS COOL FAN GND COOLANT LEVEL SW COOLANT TEMP SENS I A CTS COOLANT TEMP SENS RTN G R CTS COOLING FANS SYSTEM COURTESY SPLY CRANK REQUEST CRANK SENS CRANK SENS RTN CRANK SENS SIG CRASH SIG CRASH UNLOCK CRUISE CONTROL SYSTEM CTRL PWR CTRL RTN CUSH FAN SPEED CUSH SEN SIG CUSH TED - CUSH TEMP RTN CUSHION EXTEND CUSHION RETRACT CUSTOM COMPONENT DAB 1 SCREEN DAB 3 SCR DAB 3 SIG DAB L SCR DAB L SIG DAB OUT SCR DAB OUT SIG DABL/DAB 3 SHIELD DAB 1 SIG DABL/DAB 3 SIG DATA LINES SYSTEM DC-DC CONVERTER MODULE DEF TANK MODULE DEFOGGER SYSTEM DEMAND 1 DEMAND 2 DEPL/STOW IND DIAG SW DIAGNOSTIC SW DIAGNOSTICS 1 DIAGNOSTICS 2 DIGITAL DISC PLAYER DIM GND DIMMER SIG DIMMER VREG DIV VLV DOOR AJAR DOOR HANDLE SPLY DOOR LOCKS SYSTEM DOSING INJECTOR DRIVER AIR BAG DRIVER AJAR SW DRIVER DOOR FOLDING MIRROR DRIVER HEATED SEAT MODULE DRIVER SEAT DRIVER SEAT BELT ANCHOR PRETENSIONER DRIVER SEAT BELT PRETENSIONER DRIVER SW DRIVER WINDOW MIRROR SWITCHPACK DRL SPLY DRV PLP + DRV SEAT BELT PRETEN PWR DRV SEAT BELT PRETEN RTN DRV SEAT BELT SW DRV SEAT POS PWR DRV STAGE 1 AIR BAG PWR DRV STAGE 1 AIR BAG RTN DRV STAGE 2 AIR BAG PWR DRV STAGE 2 AIR BAG RTN EARLY WAKE-UP EC RTN EC SUPPLY EC+ ECALL LED 1 ECALL LED 2 ECALL/BCALL SW ECS GND ECT RTN ECT SENS ELECTRIC THROTTLE ELECTROCHROMIC MIRROR CIRCUIT ELECTRONIC SUSPENSION SYSTEM EMS PWR FUSIBLE LINK ENABLE OTG ID EPAS FUSIBLE LINK ESCL GND ESCL GND CTRL ESD GND EVAP TEMP EXIT SW EXT BOOT REL SW EXT TRUNK ANT NEG EXTEND SENS EXTERIOR LAMPS CIRCUIT EXTERIOR TAILGATE F PMP + FAN CONTROL FAN GND FAN PWR FAN RTN FAST WIPE FB HTR FB HTR DIV VLV FERRITE CORE FINISHER LUGGAGE COMPARTMENT ILLUMINATION FL FACE DUCT SENS FL HIGH - FL LOW - FL MID - FLICK WIPE FOG LIGHT FP PHASE FP PHASE 1 FP PHASE 2 FP PHASE 3 FP PHASE V FPDM PWM CTRL FPDM PWM SIG FR CLUTCH SW FR FACE DUCT SENS FR FOOT DUCT SENS FR HIGH - FR LOW + PPL RL HIGH + FR LOW - FR MID - FR RELEASE NEG FR RELEASE POS FR SW BLIND CLOSE FR SW BLIND OPEN FRONT BLOWER FUSIBLE LINK FRONT CABIN ANT NEG PPL EXT TRUNK ANT POS FRONT CABIN ANT POS FRONT CONSOLE OVERHEAD FRONT FOGS FRONT HEATED SCREEN CONTROL FRONT OF RADIATOR) FRONT OVERHEAD CONSOLE FRT CABIN ANT NEG PPL EXT TRUNK ANT POS FRT CABIN ANT POS FRT PASS SBR SW FRT SENS GND FRT SENS HEIGHT FRT SENS PWR FUEL FLAP UNLOCK FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUEL SENS EJECT FUSIBLE LINK 1 FUSIBLE LINK 2 FUSIBLE LINK 3 FUSIBLE LINK 4 FUSIBLE LINK 5 FUSIBLE LINK 6 FUSIBLE LINK 7 FUSIBLE LINK 8 FUSIBLE LINK 9 FUSIBLE LINK 10 FUSIBLE LINK 11 FUSIBLE LINK 12 G R AMS G R ATS G R BPTS G R CAS G R CRS G R CTS G R DPFDP G R EGR G R FLPS G R GNSW G R GVT G R LPEGRDP G R LPWGP G R LSVG G R PCRC G R PFTS G R RADWTS G R RAILPS G R RAULS G R SWV G R TLPEGROUT G R TVA GCU FUSIBLE LINK GLOW 1 GLOW 2 GLOW 3 GLOW 4 GLOW PLUG 1 GLOW PLUG 2 GLOW PLUG 3 GLOW PLUG 4 GND 2 GND FUEL RETURN GND FUEL RTN GND IN GND LIGHTING STALK GND RES FROM ICP GND SCR SCR GND SIG GND STOP GND SW GNSW ANGLE GPS ANT SIG SCR GPS ANT SHIELD GPS SCN GPS SIG GPS SIGNAL SPLITTER GROUND DISTRIBUTION SYSTEM GSM 1 GND GSM 1 SCN GSM 1 SIG GSM 2 GND GSM 2 SIG GSM SCN GSM SIG GWM HS GWM HS CAN GWM HS CAN H GWM HS CAN L GWM LIN 2 GWM MS CAN H GWM MS CAN L H/S A RTN H/S B RTN HALL 1 HALL 2 HALL A OUTPUT HALL GND HALL SENS HALL SENS 1 - HALL SENS 2 HALL SENS GND HALL SENS RTN HALL SENS SPLY HALL V REF HAZARD SW HAZARD SW ILLU HAZARD WARNING HDC HI HDC LO HEAD-UP DISPLAY COOLING FAN HEAD-UP DISPLAY COOLING FAN MODULE HEADLIGHTS SYSTEM HEATED REAR SCREEN CONTROL HEATED REAR WINDOW ELEMENT HEATED STEERING WHEEL CTRL HEATED WASHER JETS HEIGHT DOWN HEIGHT UP HFSL FUSIBLE LINK HFSR FUSIBLE LINK HIGH BEAM HLL GND HLL PWR HLL V HOME POSN SW HORNS SYSTEM HOT AT ALL TIMES HS CAN-H HS CAN-L HTD STEERING WHEEL CTRL HTR LED HTR MIRR HTR RTN HTR+ IPE I A I A ATS I A BPS I A BTS I A CASSENE I A CATTSPRE I A CBTS I A CHT I A CTS I A EXTS I A FLPS I A HPCBPVP I A HPEGR I A HPEGRIP I A LPEGR I A LPWGP I A LSCP I A OPTS I A PCRC I A PFDP I A PITCS I A RADWTS I A RAILFTS I A RAILPS I A SWV I A TLPCO I A TVA I A VCLNTP I BRAKE PAD WEAR I BRK I BRK SW I EVENT NOTIFICATION SIG I F AMS I F CRASH I F CRSPOS I FUEL SENS EJECT I HAZARD SW I PARK NEUTRAL SW I S BRKMN I S BRKOS I S BRKRED I S BVS I S CLBOT I S PN I S PSP I S WAK I S WAKE I S WIF I START STOP I T CRASH I T GNSSW I T LPEGRDP I T RAULS I T VTG I WIPER FRONT SLOW SW I-BONNET AJAR SW I-DRV AJAR SW I-LR DOOR AJAR SW I-PASS AJAR SW I-RR DOOR AJAR SW I-S BRKMN I-S BRKOS I-TAILGATE AJAR SW ICP GND IEPB GND IGN 1 IGN 2 IN IGN 3 IGN 5 IGN 8 IGN SPLY IGNITION 1 IGNITION 6 IMAGE PROCESSING MODULE IMC GND IN CAR TEMP SENS ING PWR INSTRUMENT CLUSTER INSTRUMENT CLUSTER SYSTEM INSTRUMENT CLUSTER, ANTI-THEFT SYSTEMS INSTRUMENT ILLUMINATION CIRCUIT INT TRUNK ANT NEG INT TRUNK ANT POS INTERIOR LT INTERIOR LT SIG INTERIOR LT SW INTRUSION DETECTION MODULE IPC LIN IS BRKMN IS BRKRED JAGUAR DRIVE SWITCHPACK KEYLESS VEHICLE MODULE L CH- L-BAND SIG LATCH GND LATCH SPLY LATCH) LB/HB GND LDM GND LDM LIN LED GND LEFT "C" PILLAR) LEFT BLIND SPOT MONITORING MODULE LEFT BODY TAILLAMP ASSEMBLY LEFT CONSOLE ILLUMINATION LEFT DEPLOY LEFT DI LEFT DIRECTION LEFT DOOR MIRROR LEFT FRONT ACCELEROMETER LEFT FRONT CLIMATE CONTROL SEAT MODULE LEFT FRONT DOOR AMBIENCE LIGHTING LED LEFT FRONT DOOR HANDLE LEFT FRONT DOOR HANDLE AMBIENCE LIGHTING LED LEFT FRONT DOOR LATCH MODULE LEFT FRONT DOOR MODULE LEFT FRONT DOOR POCKET AMBIENCE LIGHTING LED LEFT FRONT OUTER VENT ILLUMINATION LEFT FRONT SEAT BACKREST CLIMATE ASSEMBLY LEFT FRONT SEAT CUSHION CLIMATE ASSEMBLY LEFT FRONT SEAT MEMORY SWITCHPACK LEFT FRONT SEAT MODULE LEFT FRONT SIDE AIR BAG LEFT FRONT SIDE MARKER LEFT FRONT TWEETER LEFT FRONT VENT OUTER ILLUMINATION LEFT HANDS FREE TAILGATE MODULE LEFT HEADLAMP LEFT HEATED WASHER JET LEFT IN - LEFT O BRAKE LIGHT LEFT O DIPPED BEAM LEFT O HEADLAMP ELECTRONICS SUPPLY LEFT O REVERSE LIGHT OR SINGLE LEFT POSITION DRL SPLY LEFT POWERED TAILGATE STRUT LEFT REAR ARMREST AMBIENCE LIGHTING LEFT REAR DOOR HANDLE LEFT REAR DOOR HANDLE AMBIENCE LIGHTING LED LEFT REAR DOOR LATCH ASSEMBLY LEFT REAR DOOR MODULE LEFT REAR DOOR POCKET AMBIENCE LIGHTING LED LEFT REAR DOOR TWEETER LEFT REAR FOG LIGHT LEFT REAR POSITION LIGHT LEFT REAR PRETENSIONER LEFT REAR SEAT MODULE LEFT REAR SEATS SWITCHPACK LEFT SEAT SWITCHPACK LEFT SIDE AIR CURTAIN LEFT STEERING WHEEL SWITCHPACK LEFT STOW LEFT TAIL LT LEFT TAILGATE TAILLAMP ASSEMBLY LEFT TAILLAMP LEFT TRAILER POSITION LIGHT LEFT VANITY MIRROR LF ANT NEG LF ANT POS LF CLUTCH SW LF DAMPER NEG LF DAMPER POS LF HEIGHT GND LF HEIGHT SIG LF RELEASE NEG LF RELEASE POS LF SIDE MARKER LF UNLOCK SW LF VA GND LH BRAKE LIGHT LH C PILLAR CS GND LH C PILLAR CS PWR LH CRASH SENS PWR LH CRASH SENS RTN LH CURTAIN AIR BAG PWR LH CURTAIN AIR BAG RTN LH DI LH DRL SPLY LH BEAM DIPPED LH ELECTRONICS SPLY LH DRL SPLY LH LIN LH MAIN BEAM LH PADDLE LADDER LH PPS GND LH PPS PWR LH REVERSE LIGHT LH SIDE AIR BAG PWR LH SIDE AIR BAG RTN LH SOLAR SENS LH SPINDLE COM GND NEG LH SPINDLE MTR PWR POS LH SPINDLE SHIELD LH SUNLOAD LH SURROUND - LH TAIL LHS UPPER HALL 1 LHS UPPER HALL 2 LHS UPPER HALL GND LHS UPPER HALL SPLY LIGHTING 1 LIGHTING STALK GND LIGHTING SWITCHES LIN 1 LIN 1 BCM LIN 1 GWM LIN 2 LIN 2 BCM LIN 2 BUS LIN 2 GND LIN 2 GWM LIN 2 PWR LIN 3 LIN 3 GWM LIN 4 LIN 5 LIN B LIN IN LIN OUT LINE HTR PWR LOAD SPACE LOCAL CAN NEG LOCAL CAN POS LOGIC FEED LOGIC GND LOGIC SPLY LOW BEAM/ISM LR AJAR SW LR ANT NEG LR ANT POS LR DAMPER NEG LR DAMPER POS LR DIRECTION IND LR FOG LIGHT LR HEIGHT GND LR HEIGHT SIG LR LIGHT POSITION LR SEAT BELT RETRACTOR GND LR SEAT BELT RETRACTOR PWR LR UNLOCK SW LS STEP DEPLOY LS STEP STOW LUMBAR DEFLATE LUMBAR DOWN LUMBAR FWD LUMBAR INFLATE LUMBAR RWD LUMBAR UP LVDS + SCR LVDS SCR LVDS SCR MAIN ELECTRIC COOLING FAN MAIN GND MAIN GND 1 MAP SENS RTN MAP SENS SIG MASTER LT SW MEM SET SW MEM STATUS LED MEM SWITCHPACK GND MEMORY SENS X MEMORY SENS Y MEMORY SYSTEMS MIC 1 GND MIC 1+ MIC 2 GND MIC - MIC NEG MIC NEG OUT MIC POS MIC POS OUT MIC SHIELD MIC SHIELD OUT MID HEGO A GND MID HEGO A HTR MID HEGO A SIG MID HEGO B GND MID HEGO B HTR MID HEGO B SIG MIRR FOLD OUT/Y MIRR GND MIRR SENS GND/ MEM SW MIRR SENS GND/MEM SW MIRR SENS SPLY MIRR SENS X MIRR SENS Y MIRR SENS/MEM SW GND MIRR SPLY MIRR X MIRR XY MIRR Y/FOLD OUT MIRROR GND MIRROR GROUND MIRRORS SYSTEM MODULE SELECT A MODULE SELECT B MS CAN-H MS CAN-L MTR GND MTR NEG MTR POS MTR PWR MTR SEN MTR SEN 1 MTR SEN GND MTR SENS MULTI- FUNCTION MULTI-FUNCTION DISPLAY NAVI/HFM IN - NAVIGATION SYSTEM NO SW NOTIFICATION SIG NTC- NTSC + VID OUT NUMBER PLATE LAMPS O COMFORT SPLY CTRL O CRANK REQUEST O CRNK REQUEST O DEMAND INTERIOR O DEMAND INTERIOR LIGHTING 1 O EXT IGN CTRL 2 O IGN 3 O IGN 4 O IGN 6 O IGN 9 O IGNITION 1 O IGNITION 3 O IGNITION 4 O IGNITION 5 O IGNITION 6 O IGNITION 8 O MAIN BEAM LEFT O NUMBER PLATE LAMPS O PCM EARLY O PCM EARLY WAKE UP O RESTRAINTS IGNITION 1 O RESTRAINTS IGNITION 2 O S EMS RLY O S MRELAY O S OSJS O S SCRMRLY O S STRH O S STRTH O S STRTL O S STRTL 1 O S STRTL 2 O S TDMH O S TDMP O S TDMV O T CTH O T ECLG O T FAN 1 O T EHT O T EMC O T HPEGRCB O T HPEGRNEG O T HPEGRPOS O T HPTBVC O T LPEGRNEG O T LPEGRPOS O T LPWGSV O T LSH O T MEU O T OILP O T PCV O T RAMCP O T RAMVH O T RAMVL O T RAPP O T SCVNEG O T SCVPOS O T SOILP O T TVMNEG O T TVMPOS O T VCLNTP O T VGTHPNEG O T VGTHPPOS O T VVTEX O T WCAC O TAILGATE RELEASE O V SVTVA O-PASSIVE SOUNDER O-SECURITY-LED OIL SENS RTN OIL TEMP LVL PWM OPT DRV GND OPT DRV PWR 1 OPT DRV USB GND OPT DRV USB SHIELD OPT DRV VBUS OT TVMNEG OT TVMPOS OTG DIA OUTLET TEMP SENS P N SIG P SIG P/N SIG P/N SW PA ILLUM PA SW PARALLEL DOWN PARALLEL UP PARK AID PARK AID MODULE PARK NEUTRAL SW PASS PLP + PASS SEAT BELT PRETEN PWR PASS SEAT BELT PRETEN RTN PASS SEAT BELT SW PASS SILL - PASSENGER AIR BAG PASSENGER AJAR SW PASSENGER FRONT HEATED SEAT MODULE PASSENGER HEATED SEAT MODULE PASSENGER JUNCTION BOX PASSENGER LOAD LIMITER SEAT BELT RETRACTOR PASSENGER SEAT BELT ANCHOR PRETENSIONER PASSENGER SEAT BELT PRETENSIONER PASSENGER SIDE INSTRUMENT PANEL ILLUMINATION PASSENGER SW PASSIVE SOUNDER PDC ILLUM PDC SW PORTABLE AUDIO INTER FACE MODULE PORTABLE AUDIO INTERFACE MODULE POSITION DRL POST HEGO A GND POST HEGO A HTR POST HEGO A SIG POST HEGO B GND POST HEGO B HTR POST HEGO B SIG POWER DISTRIBUTION SYSTEM POWER FEED 1 POWER FEED 2 POWER GND POWER GND 1 POWER GND 2 PPL CONTROL PPL ING PWR PPL O T ECLG PPL SW I/P 9 PPL SW ILL PREMIUM AMBIENT LIGHTING PREMIUM HIGH LINE PRESS SENS PRESS SENS TEMP PRIVATE CAN H PRIVATE CAN L PT CAN HIGH PT CAN LOW PTC HTR 2 RLY CTRL PTC HTR RLY 1 CTRL PURGE RTN PWM CTRL PWR GND PWR GND 1 PWR GND 2 PWR GND 3 PWR IN PWR OUT RAD TEMP SENS RADIATOR OUTLET TEMP RAIL PRESS SENS RAIL PRESS SENS RTN RAIL PRESS SENS SIG REAR ACCELEROMETER REAR BLOWER FUSIBLE LINK REAR BLWR RLY CTRL REAR CABIN ANT NEG REAR CABIN ANT POS REAR CLIMATE CONTROL PANEL REAR FOG REAR HEATED SCREEN CONTROL REAR HEATED SCREEN FUSIBLE LINK REAR JUNCTION BOX REAR SENS GND REAR SENS HEIGHT REAR SENS PWR REAR VIEW MIRROR) REAR WINDOW HEATED ELEMENT REAR WIPER CONTROL REC SIG REL SW REPEATER LED RES LADDER DN RES LADDER UP RES LDR RESTRAINTS IGN 1 RESTRAINTS IGN 2 REVERSE LED ARRAY REVERSE LT RF ANT NEG RF ANT POS RF DAMPER NEG RF DAMPER POS RF FILTER RF HEIGHT GND RF HEIGHT SIG RF RECEIVER RF SEAT POS SENS PWR RF SIDE MARKER RF SIG RF UNLOCK SW RF VA GND RF VA SIG RH BEAM DIPPED RH BRAKE LIGHT RH C PILLAR CS GND RH C PILLAR CS PWR RH CRASH SENS PWR RH CRASH SENS RTN RH CURTAIN AIR BAG PWR RH CURTAIN AIR BAG RTN RH DI RH DRL SPLY RH ELECTRONICS SPLY RH LIN RH MAIN BEAM RH PADDLE LADDER RH PPS GND RH PPS PWR RH REVERSE LIGHT RH SIDE AIR BAG PWR RH SIDE AIR BAG RTN RH SOLAR SENS RH SPINDLE COM GND NEG RH SPINDLE MTR PWR POS RH SPINDLE SHIELD RH SUNLOAD RH SURROUND - RH TAIL RHS UPPER HALL 1 RHS UPPER HALL 2 RHS UPPER HALL GND RHS UPPER HALL SPLY RIGHT BLIND SPOT MONITORING MODULE RIGHT BODY TAILLAMP ASSEMBLY RIGHT CONSOLE ILLUMINATION RIGHT DEPLOY RIGHT DI RIGHT DIRECTION RIGHT DOOR MIRROR RIGHT FRONT ACCELEROMETER RIGHT FRONT CLIMATE CONTROL SEAT MODULE RIGHT FRONT DOOR AMBIANCE LIGHTING LED RIGHT FRONT DOOR AMBIENCE LIGHTING LED RIGHT FRONT DOOR HANDLE RIGHT FRONT DOOR HANDLE AMBIANCE LIGHTING LED RIGHT FRONT DOOR HANDLE AMBIENCE LIGHTING LED RIGHT FRONT DOOR LATCH MODULE RIGHT FRONT DOOR MODULE RIGHT FRONT DOOR POCKET AMBIANCE LIGHTING LED RIGHT FRONT DOOR POCKET AMBIENCE LIGHTING LED RIGHT FRONT OUTER VENT ILLUMINATION RIGHT FRONT SEAT BACKREST CLIMATE ASSEMBLY RIGHT FRONT SEAT CUSHION CLIMATE ASSEMBLY RIGHT FRONT SEAT MEMORY SWITCHPACK RIGHT FRONT SEAT MODULE RIGHT FRONT SIDE AIR BAG RIGHT FRONT SIDE MARKER RIGHT FRONT TWEETER RIGHT FRONT VENT OUTER ILLUMINATION RIGHT HANDS FREE TAILGATE MODULE RIGHT HEADLAMP RIGHT HEATED WASHER JET RIGHT IN - RIGHT O BRAKE LIGHT RIGHT O DIPPED BEAM RIGHT O HEADLAMP ELECTRONICS SUPPLY RIGHT O MAIN BEAM RIGHT O REVERSE LIGHT RIGHT POSITION DRL SPLY RIGHT POWERED TAILGATE STRUT RIGHT REAR AIMREST AMBIENCE LIGHTING RIGHT REAR ARMREST AMBIENCE LIGHTING RIGHT REAR DOOR HANDLE RIGHT REAR DOOR HANDLE AMBIENCE LIGHTING LED RIGHT REAR DOOR LATCH ASSEMBLY RIGHT REAR DOOR MODULE RIGHT REAR DOOR POCKET AMBIENCE LIGHTING LED RIGHT REAR DOOR TWEETER RIGHT REAR FOG LIGHT RIGHT REAR FOOTWELL RIGHT REAR HEATED SEAT MODULE RIGHT REAR O POSITION LIGHT RIGHT REAR PRETENSIONER RIGHT REAR SEAT MODULE RIGHT REAR SEATS SWITCHPACK RIGHT SEAT SWITCHPACK RIGHT SIDE AIR CURTAIN RIGHT STEERING WHEEL SWITCHPACK RIGHT STOW RIGHT TAIL LT RIGHT TAILGATE TAILLAMP ASSEMBLY RIGHT TAILLAMP RIGHT VANITY MIRROR RL CLUTCH SW RL FACE DUCT SENS RL FOOT DUCT SENS RL HIGH - RL LOW - RL RELEASE NEG RL RELEASE POS ROOF BLIND CLOSE ROOF BLIND OPEN ROOF POD RR AJAR SW RR ANT NEG RR ANT POS RR CLUTCH SW RR DAMPER NEG RR DAMPER POS RR DIRECTION IND RR FACE DUCT SENS RR FOG LIGHT RR FOOT DUCT SENS RR HEIGHT GND RR HEIGHT SIG RR HIGH - RR LIGHT POSITION RR LOW - RR RELEASE NEG RR RELEASE POS RR SEAT BELT RETRACTOR GND RR UNLOCK SW RR VA GND RR VA SIG RS STEP DEPLOY RS STEP STOW RUNNING LAMPS RX SERIAL DATA SC OUTLET TEMP SCN A SCR AMP SHIELD SCR BR SHIELD SCR CAM - SCR DAB 3 GND SCR GND SCR L BAND GND SCR SDAR GND SCR SHIELD SCR VID - SDAR RF SIG IN SDARS ANT SIG SCR SDARS ANT SHIELD SDIN N SDIN P SDOUT N SDOUT P SEAT BACK FAN SPEED SEAT BACK TED + PPL CUSH TEMP SIG SEAT BACK TED - SEAT BACK TEMP RTN SEAT BACK TEMP SIG SEATS SYSTEM SECOND ROW LEFT SEAT BELT BUCKLE SECOND ROW MIDDLE SEAT BELT BUCKLE SECOND ROW RIGHT SEAT BELT BUCKLE SECURITY LED SECURITY LED TRIP COMPUTER SW DIGITAL SENS GND SENS RTN SENS SIG SENS SPLY SENS SUPPLY SHIELD A SHIELD B SHIFT INTERLOCK SYSTEM SIDE MARKER SIG A SIG A AJAR SIG B SIG GND SIG OUTPUT SIGNAL SPLITTER SIGNAL SPLITTER MODULE SLIDE BACKWARD SLIDE FORWARD SLIDE SENS SLOW WIPE SOL + SOUND SYSTEMS SPARE FUSIBLE LINK SPK-FL - SPK-FR + SPK-RL - SPK-RR - SPLY 1 SPLY CTRL SQUAB HTR SQUAB INCLINE SQUAB RECLINE SQUAB SENS SS SPLY SSS ILLUM SSS RESISTIVE LADDER A SSS RESISTIVE LADDER B SSS VARIANT CTRL A SSS VARIANT CTRL B STAGE 1 STAGE 1 GND STAGE 1 PWR STAGE 2 STAGE 2 GND STAGE 2 PWR START REQUEST START STOP START STOP GND START STOP SW GND START/ STOP SW 1 START/ STOP SW 2 STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN ADJUSTMENT SWITCHPACK STEERING COLUMN ASSEMBLY STEERING COLUMN) STEERING WHEEL MODULE SUB CAN - SUB CAN H SUB CAN L SUNROOF CLOSE SW SUNROOF OPEN SUNROOF CLOSE SUNROOF OPEN SW SUPPLEMENTAL RESTRAINTS SYSTEM SUPPLY 1 SUPPLY 1 V BATT SUPPLY 2 SUPPLY 3 SW 1 SW 2 SW 3 SW 4 SW GND SW I/P 10 PPL SW ILL. SW ILLUMI T A IAT TAIL DETECT TAIL DOOR SW TAIL LED ARRAY TAILGATE AJAR SW TAILGATE CLOSE TAILGATE REL EXT SW TAILGATE RELEASE TAILGATE) TANK HTR TANK HTR GND TANK LEAKAGE DIAGNOSTIC MODULE TCU BR 2 NEG TCU BR 2 POS TCU BR SHIELD TCU CU SCN TCU CU SIG TCU SCN TCU SIG TEMP SENS GND TEMP SENS RTN THROTT MTR SENS 1 THROTT MTR SENS 2 THROTTLE MTR NEG THROTTLE MTR POS THROTTLE MTR SENS RTN THROUGH PANEL STUD TILT DOWN TILT SENS TILT UP TIRE PRESSURE MONITORING SYSTEM MODULE TL+SM TOUCH SCREEN SWITCHPACK TOUCHSCREEN SWITCHPACK TOWING DETECT TRAILER BRAKE CONTRAL MODULE TRAILER BRAKE MODULE FUSIBLE LINK TRAILER PICK-UP TRAILER) TRANSMISSIONS SYSTEM TRIP COMP TRUNK, TAILGATE, FUEL DOORS SYSTEM UHEGO A HTR UHEGO A NV UHEGO A PC UHEGO A VG UHEGO B HTR UHEGO B NV PPL UHEGO B PC UHEGO B VG UIP DIAG UIP USB 2.0 D - UIP USB 3.0 SSRX - UIP USB 3.0 SSTX - UIP USB GND UIP USB SHIELD UIP VBUS UIP VBUS GND USB 2.0 D + USB 2.0 HUB USB 3.0 SIGNAL BOOSTER USB 3.0 SSRX + USB 3.0 SSTX - USB DATA + SCR SHIELD USB DATA - USB GND USB HOST DATA + USB HOST DATA NEG USB HOST DATA POS USB HOST SHIELD USB HUB 2.0 D + USB HUB GND USB HUB PWR USB HUB VBUS USB OTG DATA + USB OTG DIAG USB OTG ENABLE USB OTG SHIELD USED) USS GND USS PWM USS UBAT V BAT V BATT V BATT 1 V REF V REF 1 V REF 2 V V BAT VAC GND VAC SIG VBATT 1 VBATT 2 VBUS GND VLOTAGE QUALITY MODULE VOLTAGE QUALITY MODULE VREF 1 VREF 2 VVT EXHAUST A VVT EXHAUST B VVT INTAKE A VVT INTAKE B W/ 2-ZONE W/ 2-ZONE CLIMATE CONTROL W/ 4-ZONE W/ BLIND SPOT W/O BLIND SPOT W/ CLIMATE CONTROL SEAT W/ FRONT/ REAR AIR CONDITIONING W/ FRONT/REAR AIR CONDITIONING W/ GPS SIGNAL SPLITTER W/ GPS SIGNAL SPLITTER W/O GPS SIGNAL SPLITTER W/ HEATED SEATS W/ IN CONTROL APPS W/ IN CONTROL APPS W/O IN CONTROL APPS W/ KEYLESS ENTRY W/ LDW W/O LDW W/ PASSIVE W/ POWER POINT PLUG 2-OFF W/ REAR POWER SEATS W/ START/STOP SYSTEM W/ STOP/ START SYSTEM W/ STOP/START SYSTEM W/ TELEMATICS W/O TELEMATICS W/ TELEMATICS W/O TELEMATICS W/ DIGITAL RADIO W/O DIGITAL RADIO W/ TURBOCHARGER W/O BOLSTER ADJUSTMENT W/ BOLSTER ADJUSTMENT W/O CLIMATE CONTROL SEAT W/O GPS SIGNAL SPLITTER W/O IN CONTROL APPS W/O LED W/ LED W/O MEMORY W/O PASSIVE W/O STOP/ START SYSTEM W/O STOP/START SYSTEM WAKE-UP WARNING SYSTEMS WASHER FORWARD CONTROL WASHER REVERSE CONTROL WIFI ANT SHIELD WIFI EXT GND WIFI EXT SIG WINDOW DOWN WINDOW UP WIPER FRONT FAST CONTROL WIPER FRONT FAST CTRL WIPER FRONT ON CONTROL WIPER FRONT ON CTRL WIPER LIMP HOME WIPER/WASHER SYSTEM WIPERS FUSIBLE LINK WIRELESS HEADPHONES
