Car Wiring Diagrams for 3.2l, computer data lines for Isuzu Rodeo II (1998-2004)

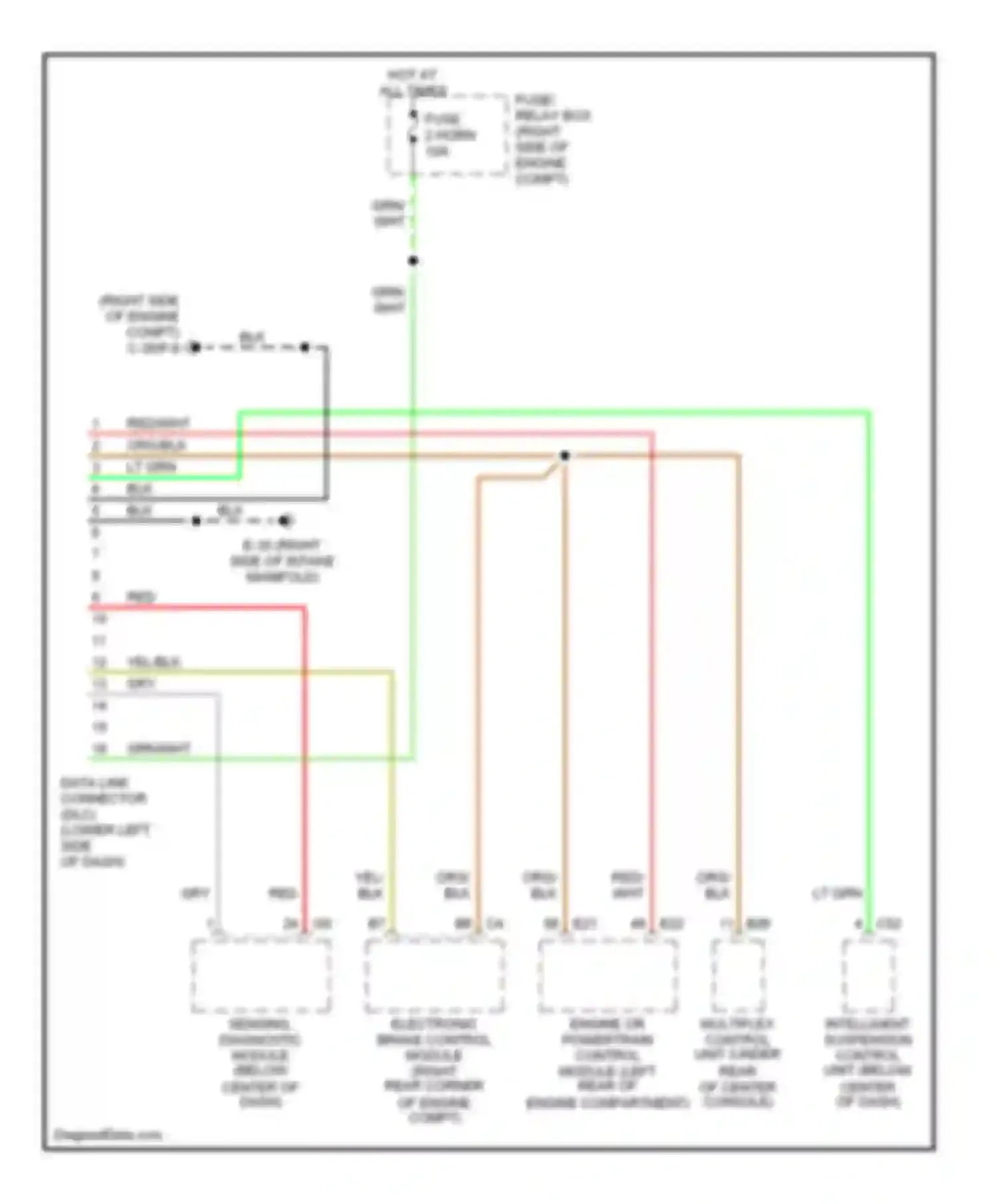

BLK WIRE DATA LINK CONNECTOR (DLC) (LOWER LEFT SIDE OF DASH) E-30 (RIGHT SIDE OF INTAKE MANIFOLD) ELECTRONIC BRAKE CONTROL MODULE (RIGHT REAR CORNER OF ENGINE COMPT) ENGINE OR POWERTRAIN CONTROL MODULE (LEFT REAR OF ENGINE COMPARTMENT) FUSE 2 HORN FUSE/ RELAY BOX (RIGHT SIDE OF ENGINE COMPT) GRN WIRE GRN/WHT WIRE GRY WIRE HOT AT ALL TIMES INTELLIGENT SUSPENSION CONTROL UNIT (BELOW CENTER OF DASH) LT GRN WIRE MULTIPLEX CONTROL UNIT (UNDER REAR OF CENTER CONSOLE) ORG/ WIRE ORG/BLK WIRE RED WIRE RED/WHT WIRE SENSING, DIAGNOSTIC MODULE (BELOW CENTER OF DASH) WHT WIRE YEL WIRE YEL/BLK WIRE
