Car Wiring Diagrams for Horn circuit for Isuzu Rodeo I (1989-1998)

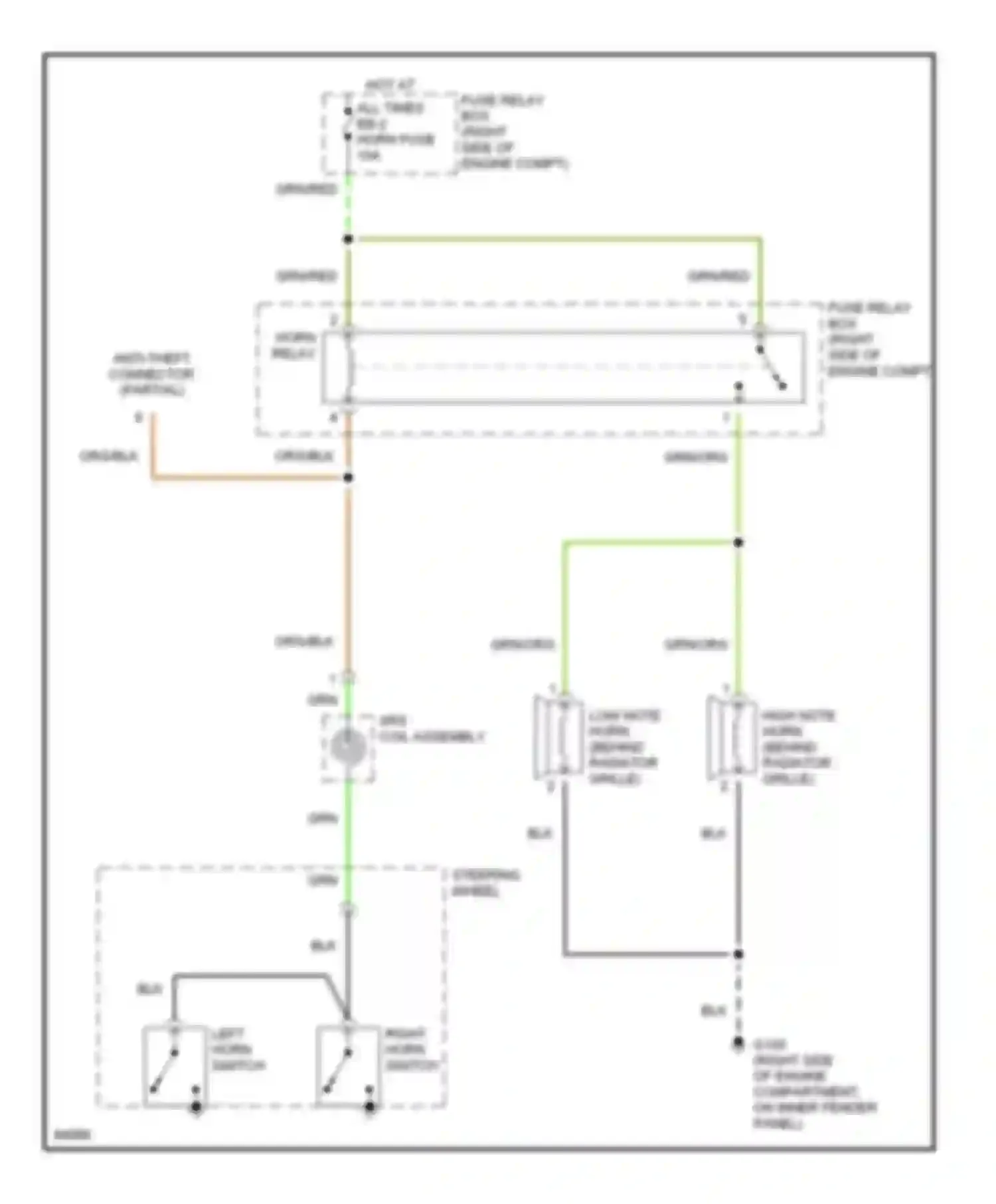

Horn circuit
ANTI-THEFT CONNECTOR (PARTIAL)
BLK WIRE
FUSE/ RELAY BOX (RIGHT SIDE OF ENGINE COMPT)
GRN WIRE
GRN/ORG WIRE
GRN/RED WIRE
HIGH NOTE HORN (BEHIND RADIATOR GRILLE)
HORN RELAY
HOT AT ALL TIMES EB-2 HORN FUSE
LEFT HORN SWITCH
LOW NOTE HORN (BEHIND RADIATOR GRILLE)
ORG/BLK WIRE
RIGHT HORN SWITCH
SRS COIL ASSEMBLY
STEERING WHEEL)
