Car Wiring Diagrams for Rear defogger circuit for Isuzu Rodeo I (1989-1998)

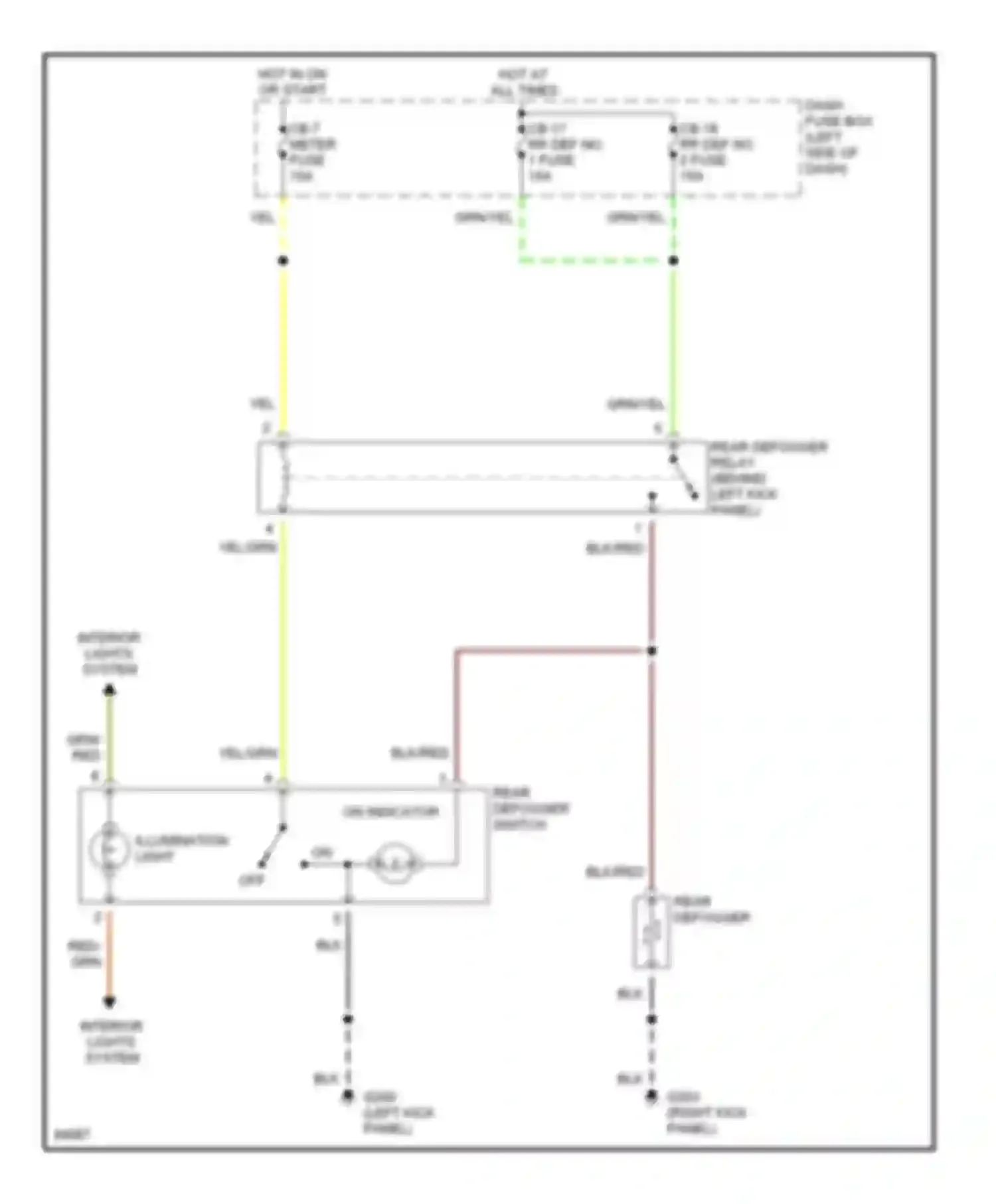

BLK WIRE BLK/RED WIRE CB-17 RR DEF NO. 1 FUSE CB-18 RR DEF NO. 2 FUSE CB-7 METER FUSE DASH FUSE BOX (LEFT SIDE OF DASH) GRN WIRE GRN/YEL WIRE HOT AT ALL TIMES HOT IN ON OR START ILLUMINATION LIGHT OFF ON INDICATOR REAR DEFOGGER REAR DEFOGGER RELAY (BEHIND LEFT KICK PANEL) REAR DEFOGGER SWITCH RED WIRE YEL WIRE YEL/GRN WIRE
