Isuzu Axiom I (2001-2004) rear wiper fuse 16 Wiring diagram
This page shows the only wiring diagram for the component.rear wiper fuse 16, which is found in the car Isuzu Axiom I (2001-2004). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

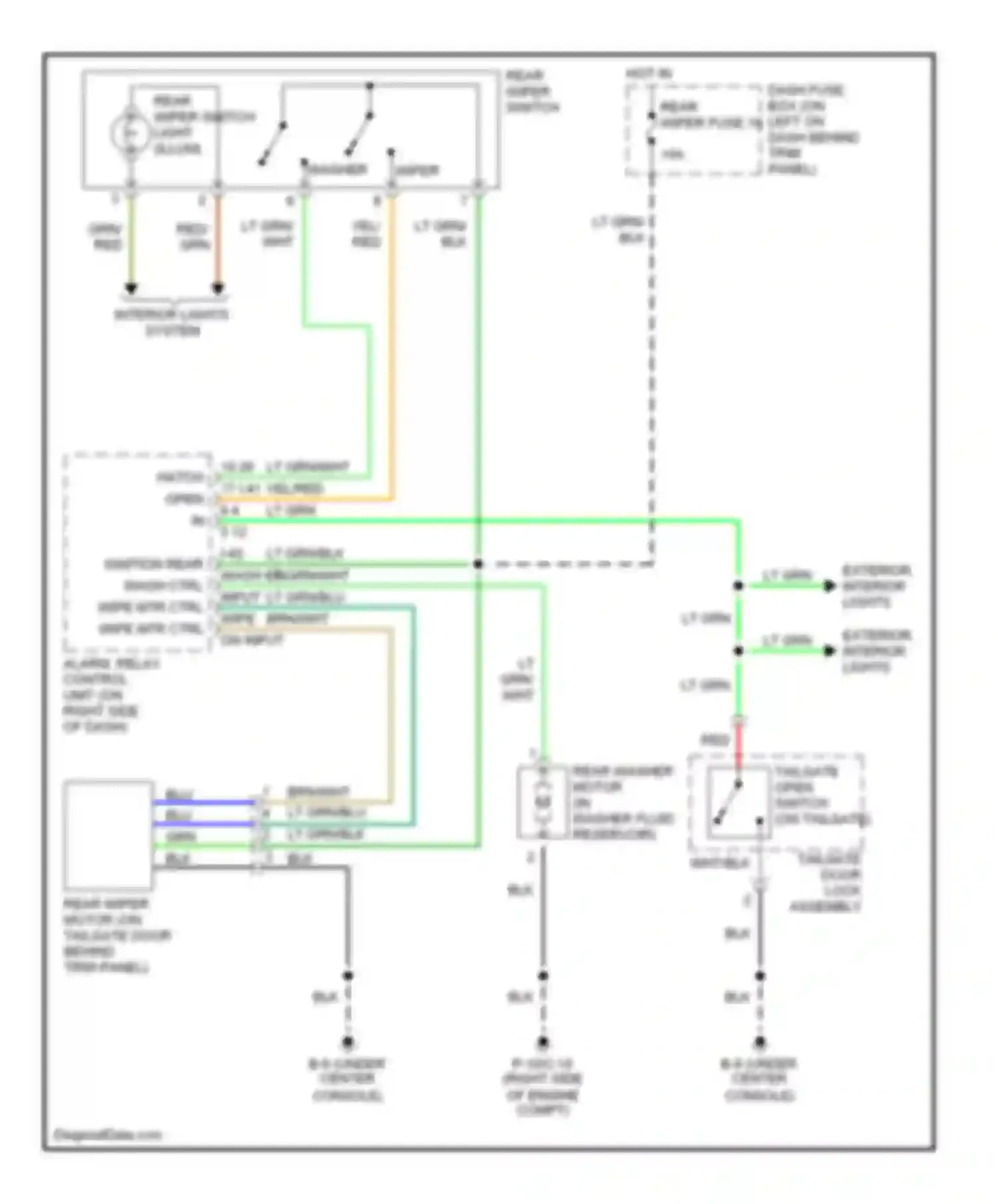

Wiring diagram rear wiper fuse 16 (1 of 1)
19 20 17 I-41 6 4 5 12 I-42 WASH ON INPUT WIPE ON INPUT HATCH OPEN IN
ALARM, RELAY CONTROL UNIT (ON RIGHT SIDE OF DASH)
B-9 (UNDER CENTER CONSOLE)
BLK WIRE
BLU WIRE
BRN/WHT WIRE
DASH FUSE BOX (ON LEFT ON DASH BEHIND TRIM PANEL)
EXTERIOR, INTERIOR LIGHTS
GRN WIRE
HOT IN ON
IGNITION REAR WASH CTRL WIPE MTR CTRL WIPE MTR CTRL
LT GRN WIRE
LT GRN/BLK WIRE
LT GRN/BLU WIRE
LT GRN/WHT WIRE
P-10/C-10 (RIGHT SIDE OF ENGINE COMPT)
REAR WASHER MOTOR (IN WASHER FLUID RESERVOIR)
REAR WIPER FUSE 16
REAR WIPER MOTOR (ON TAILGATE DOOR BEHIND TRIM PANEL)
REAR WIPER SWITCH
REAR WIPER SWITCH LIGHT (ILLUM)
RED WIRE
TAILGATE DOOR LOCK ASSEMBLY
TAILGATE OPEN SWITCH (ON TAILGATE)
WASHER
WHT WIRE
WHT/BLK WIRE
WIPER
YEL WIRE
YEL/RED WIRE
Go to component -> Rear wiper/washer circuit -> REAR WIPER FUSE 16
