Isuzu Axiom I (2001-2004) 4 45 a/c comp relay ctrl a/c on input Wiring diagram
This page shows the only wiring diagram for the component.4 45 a/c comp relay ctrl a/c on input, which is found in the car Isuzu Axiom I (2001-2004). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

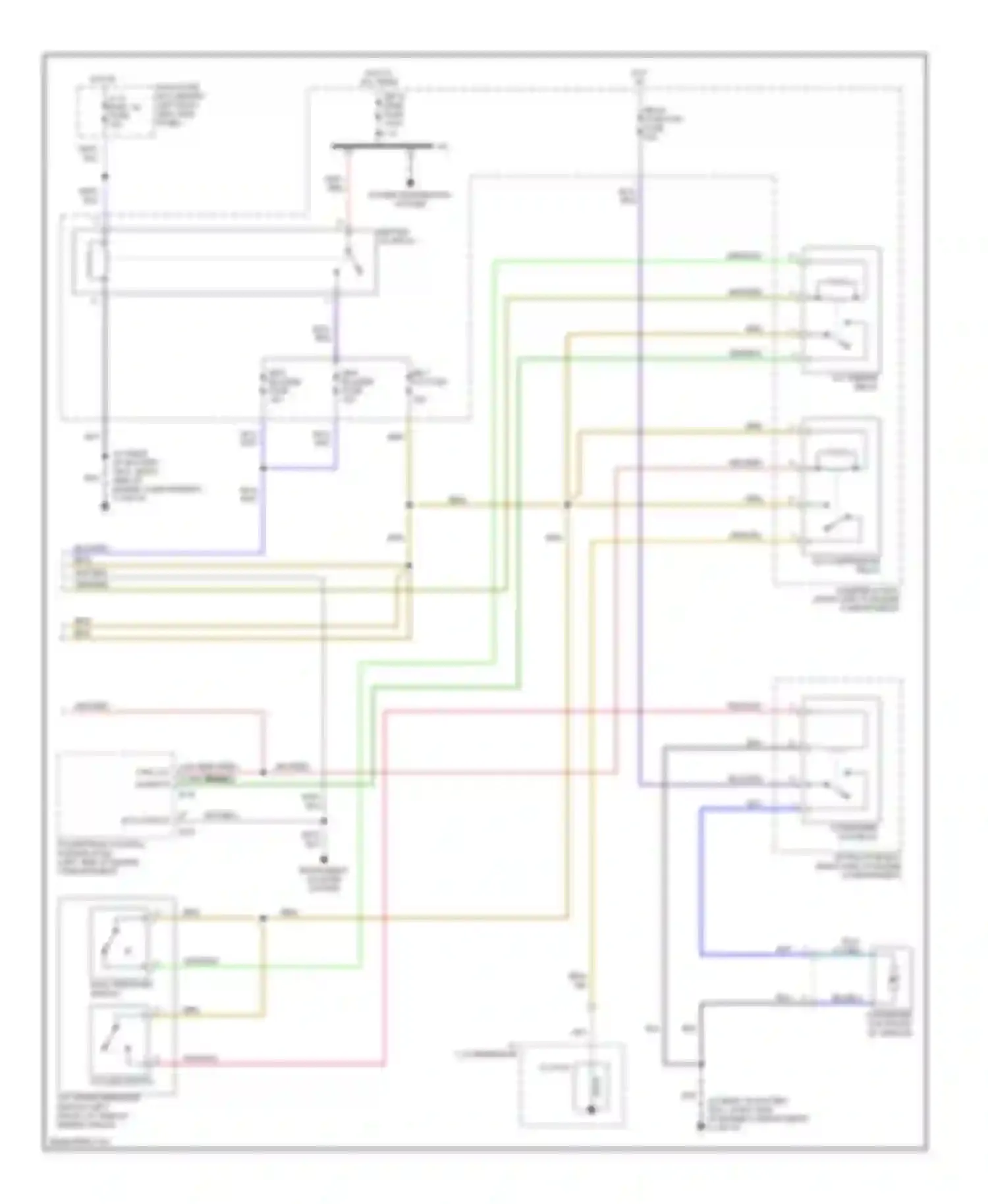

Wiring diagram 4 45 a/c comp relay ctrl a/c on input (1 of 1)
4 45 A/C COMP RELAY CTRL A/C ON INPUT
A/C COMPRESSOR
A/C COMPRESSOR RELAY
A/C THERMO RELAY
A/C TRIPLE PRESSURE SWITCH (LEFT FRONT OF VEHICLE BEHIND GRILLE)
BLK WIRE
BLU WIRE
BLU/BLK WIRE
BLU/ORG WIRE
BLU/WHT WIRE
BRN WIRE
BRN/YEL WIRE
C-15 ELEC. IG FUSE
CLUTCH
CONDENSER FAN (FRONT OF VEHICLE)
CONDENSER FAN RELAY
CYCLING SWITCH
DASH FUSE BOX (BEHIND LEFT DASH SIDE TRIM PANEL)
DUAL PRESSURE SWITCH
E-34
EB-16 MAIN FUSE
EB-20 COND FAN FUSE
EB-5 BLOWER FUSE
EB-6 BLOWER FUSE EB-7 A/C FUSE
ECT OUTPUT E-35
FUSE/RELAY BOX (RIGHT SIDE OF ENGINE COMPARTMENT)
GRN/BLK WIRE
GRN/RED WIRE
GRN/WHT WIRE
GRY WIRE
GRY/RED WIRE
HEATER-A/C RELAY
HOT AT ALL TIMES
HOT IN ON
INSTRUMENT CLUSTER SYSTEM
J/C A
LT GRN WIRE
OPTION FUSE BOX (RIGHT SIDE OF ENGINE COMPARTMENT)
ORG/ WIRE
PNK/WHT WIRE
POWER DISTRIBUTION SYSTEM
POWERTRAIN CONTROL MODULE (PCM) (LEFT SIDE OF ENGINE COMPARTMENT)
RED WIRE
WHT WIRE
WHT/BLK WIRE
YEL WIRE
Go to component -> Automatic a/c circuit (2 of 2) -> 4 45 A/C COMP RELAY CTRL A/C ON INPUT
