2.2l, cooling fan circuit for Isuzu Amigo II (1998-2000)

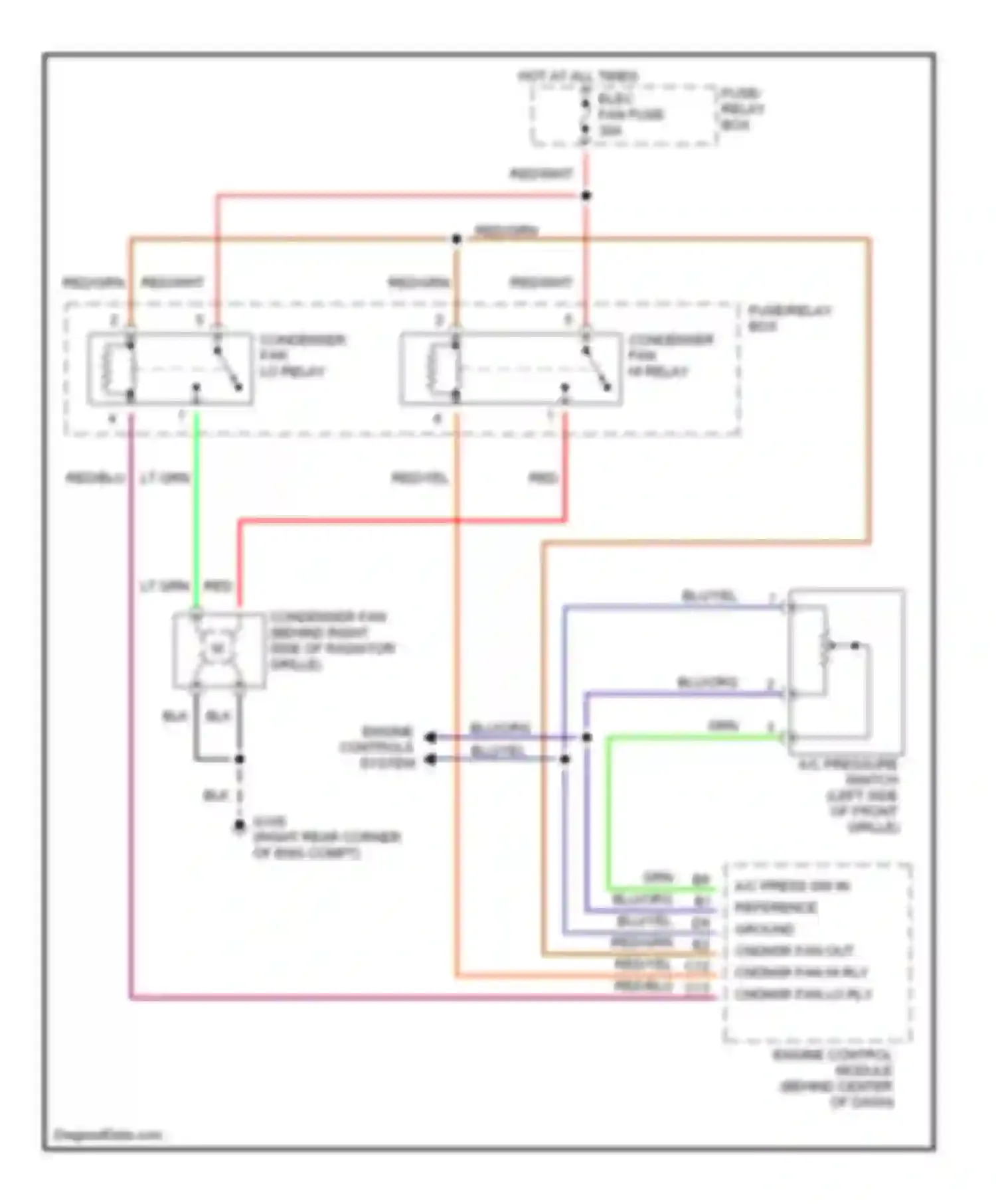

2.2l, cooling fan circuit
A/C PRESSURE SWITCH (LEFT SIDE OF FRONT GRILLE)
BLK WIRE
BLU/ORG WIRE
BLU/YEL WIRE
CONDENSER FAN (BEHIND RIGHT SIDE OF RADIATOR GRILLE)
CONDENSER FAN HI RELAY
CONDENSER FAN LO RELAY
ELEC FAN FUSE
ENGINE CONTROL MODULE (BEHIND CENTER OF DASH)
ENGINE CONTROLS SYSTEM
FUSE/ RELAY BOX
FUSE/RELAY BOX
GRN WIRE
HOT AT ALL TIMES
LT GRN WIRE
RED WIRE
RED/BLU WIRE
RED/GRN WIRE
RED/WHT WIRE
RED/YEL WIRE
