Infiniti QX60 II (2021-2024) mirror lh rightward/ downward Wiring diagram
This page shows the only wiring diagram for the component.mirror lh rightward/ downward, which is found in the car Infiniti QX60 II (2021-2024). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

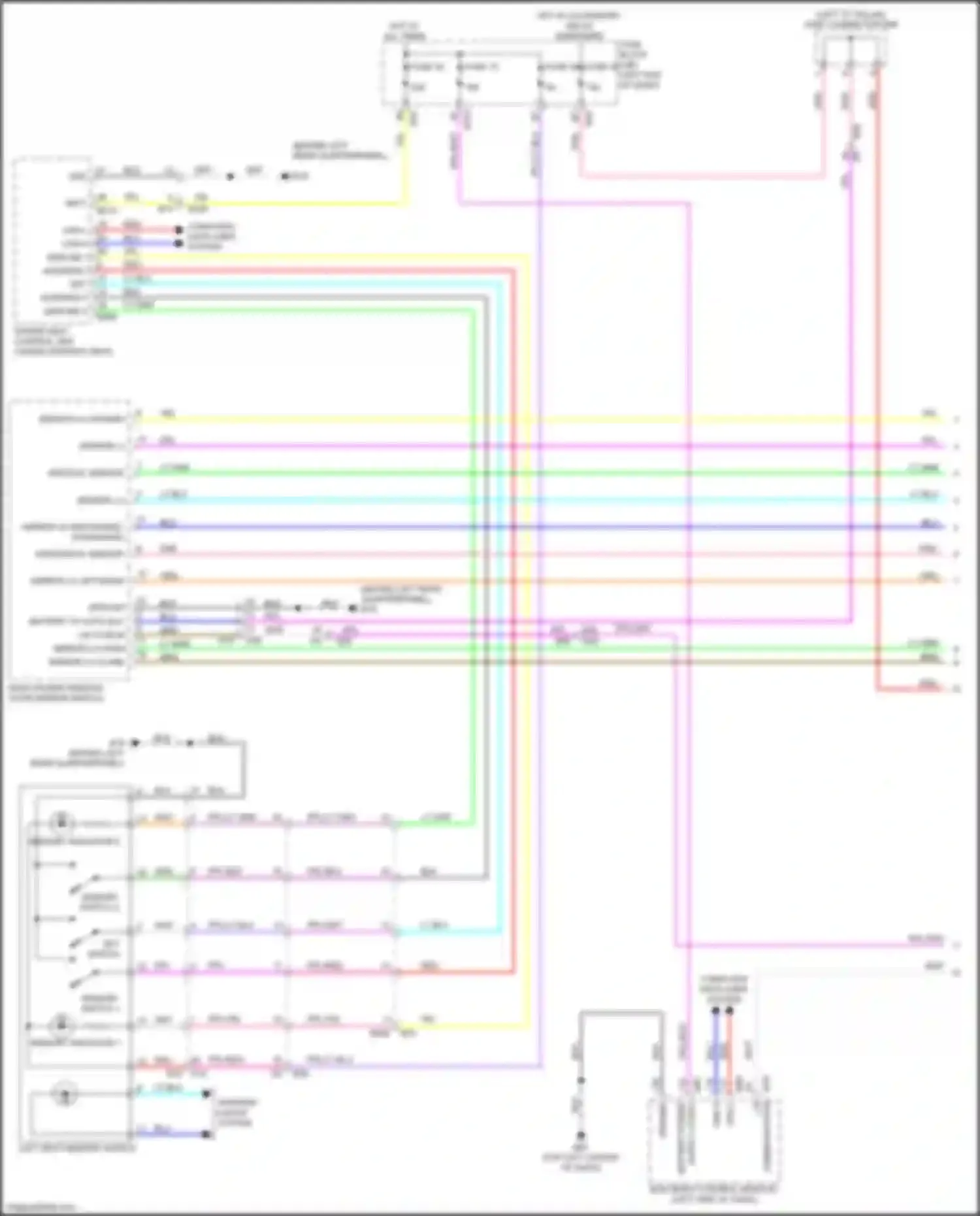

Wiring diagram mirror lh rightward/ downward (1 of 1)
ADDRESS 2
ADDRESS-1
BATTERY POWER
BATTERY TO AUTO ACC
BCM (BODY CONTROL MODULE) (LEFT SIDE OF DASH)
BLK WIRE
BLU WIRE
BRN WIRE
CAN L
CAN-H
COMMUNICATION
COMPUTER DATA LINES SYSTEM
DRIVER SEAT CONTROL UNIT
FUSE 15
FUSE 26
FUSE 45
FUSE 54
FUSE BLOCK (J/B)
GRN WIRE
GROUND
GRY WIRE
HORIZONTAL SENSOR
HOT AT ALL TIMES
HOT W/ ACCESSORY RELAY ENERGIZED
LEFT SEAT MEMORY SWITCH
LIN
LIN TO BCM
LT BLU WIRE
LT GRN WIRE
MAIN POWER WINDOW, DOOR MIRROR SWITCH
MEM IND 1
MEM IND 2
MEMORY INDICATOR 1
MEMORY INDICATOR 2
MEMORY SWITCH 1
MEMORY SWITCH 2
MIRROR LH CLOSE
MIRROR LH LEFTWARD
MIRROR LH OPEN
MIRROR LH RIGHTWARD/ DOWNWARD
MIRROR LH UPWARD
ORG/ WIRE
PNK WIRE
PPL
PPL/BLK WIRE
PPL/GRY WIRE
PPL/LT BLU WIRE
PPL/LT GRN WIRE
PPL/RED WIRE
PPL/WHT WIRE
PPL/YEL WIRE
RED WIRE
SENSOR
SET SW
SET SWITCH
SUPPLY (FUSE)
VERTICAL SENSOR
WHT WIRE
YEL WIRE
Go to component -> Memory mirrors circuit (1 of 2) -> MIRROR LH RIGHTWARD/ DOWNWARD
