Infiniti QX60 I facelift (2016-2021) indt twdr lh- Wiring diagrams
This page contains all the electrical diagrams for the component. indt twdr lh-, in which he is found in the car Infiniti QX60 I facelift (2016-2021). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

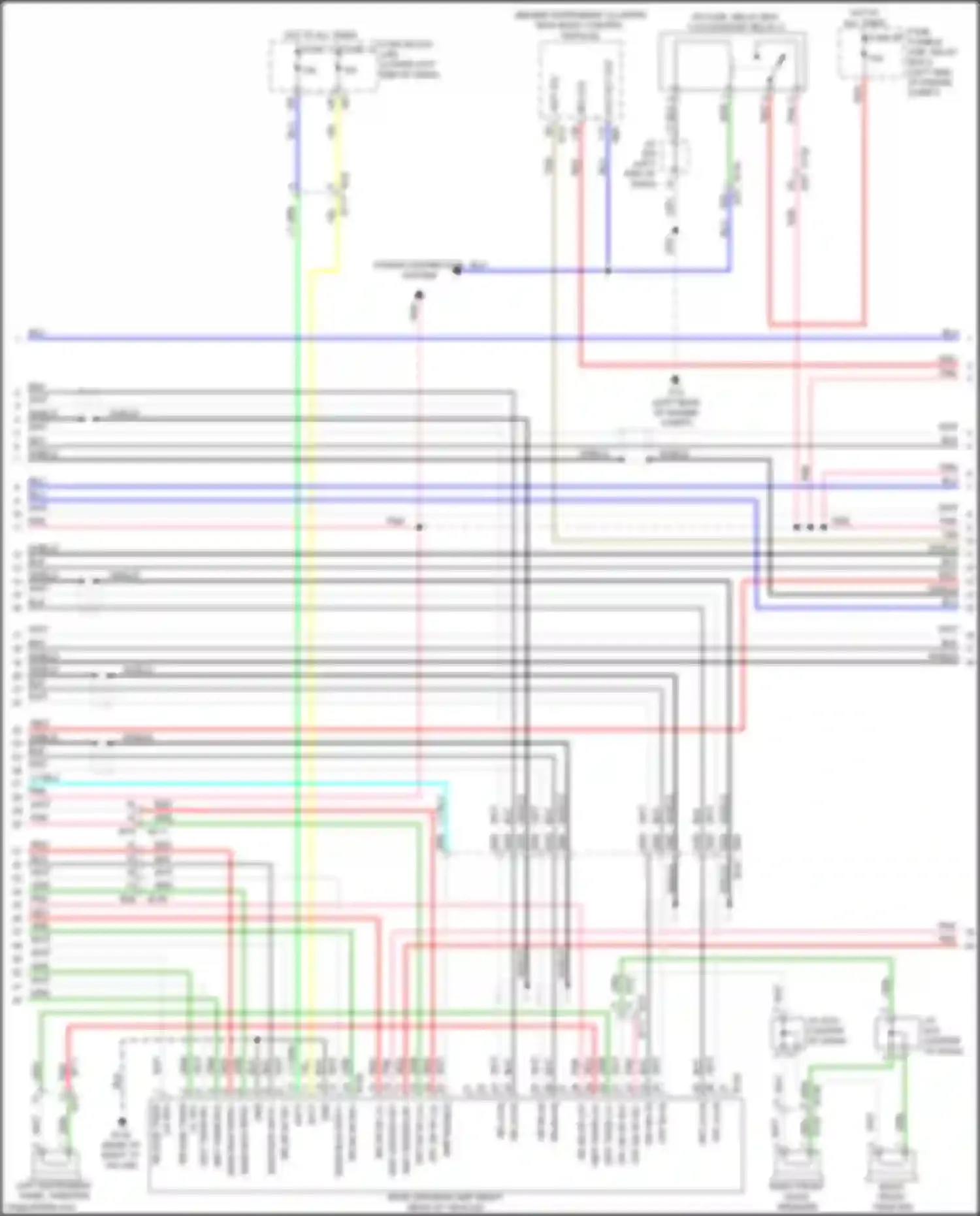

Wiring diagram indt twdr lh- (1 of 2)
ACC RLY OUT
AMP ENABLE
BCM (BODY CONTROL MODULE)
BLK WIRE
BLU WIRE
BOSE SPEAKER AMP (RIGHT REAR OF VEHICLE)
FRT DR SP LH-
FRT DR SP RH-
FRT LH+IN
FRT LH-IN
FRT RH+IN
FRT RH-IN
FUSE 11
FUSE 12
FUSE 65
FUSE BLOCK (J/B)
FUSE, FUSIBLE LINK, RELAY BOX 2
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
I-KEY SIG
INDT TWDR LH-
INDT TWDR RH-
INST CENTER SP+
LEFT INSTRUMENT PANEL TWEETER
LH RH
LT BLU WIRE
LT GRN WIRE
PNK WIRE
POWER DISTRIBUTION SYSTEM
RED WIRE
REV SIG
RIGHT FRONT DOOR SPEAKER
RIGHT FRONT TWEETER
RR DR SP LH+
RR DR SP RH-
RR LH IN-
RR LH+(IN)
RR RH IN-
RR RH+(IN)
RR SIDE TWDR
SHIELD
TAN WIRE
WHT WIRE
YEL WIRE
Go to component -> Navigation circuit, except hybrid w/o center point audio (3 of 6) -> INDT TWDR LH-
Wiring diagram indt twdr lh- (2 of 2)
ACC RLY OUT
AMP ENABLE
BCM (BODY CONTROL MODULE)
BLK WIRE
BLU WIRE
BOSE SPEAKER AMP (RIGHT REAR OF VEHICLE)
FRT DR SP LH-
FRT DR SP RH-
FRT LH+IN
FRT LH-IN
FRT RH+IN
FRT RH-IN
FUSE 11
FUSE 12
FUSE 65
FUSE BLOCK (J/B)
FUSE, FUSIBLE LINK, RELAY BOX 2
GRN WIRE
GRY WIRE
HOT AT ALL TIMES
I-KEY SIG
INDT TWDR LH-
INDT TWDR RH-
INST CENTER SP+
LEFT INSTRUMENT PANEL TWEETER
LH RH
LT BLU WIRE
LT GRN WIRE
PNK WIRE
POWER DISTRIBUTION SYSTEM
RED WIRE
REV SIG
RIGHT FRONT DOOR SPEAKER
RIGHT FRONT TWEETER
RR DR SP LH+
RR DR SP RH-
RR LH IN-
RR LH+(IN)
RR RH IN-
RR RH+(IN)
RR SIDE TWDR
SHIELD
TAN WIRE
WHT WIRE
YEL WIRE
Go to component -> Radio circuit, except hybrid bose w/o center point audio (3 of 6) -> INDT TWDR LH-
