Wiring Diagrams for Infiniti QX60 I facelift (2016-2021)

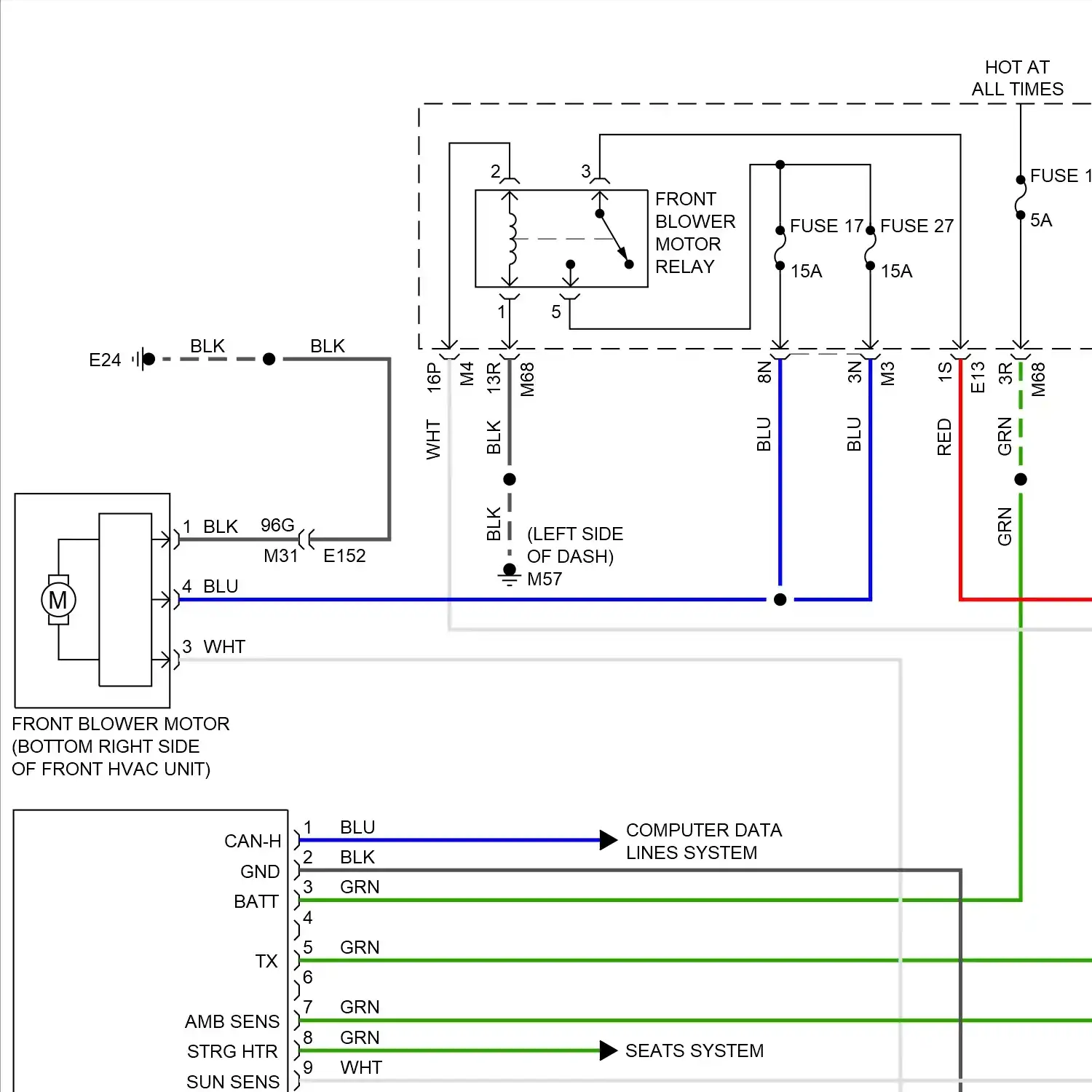

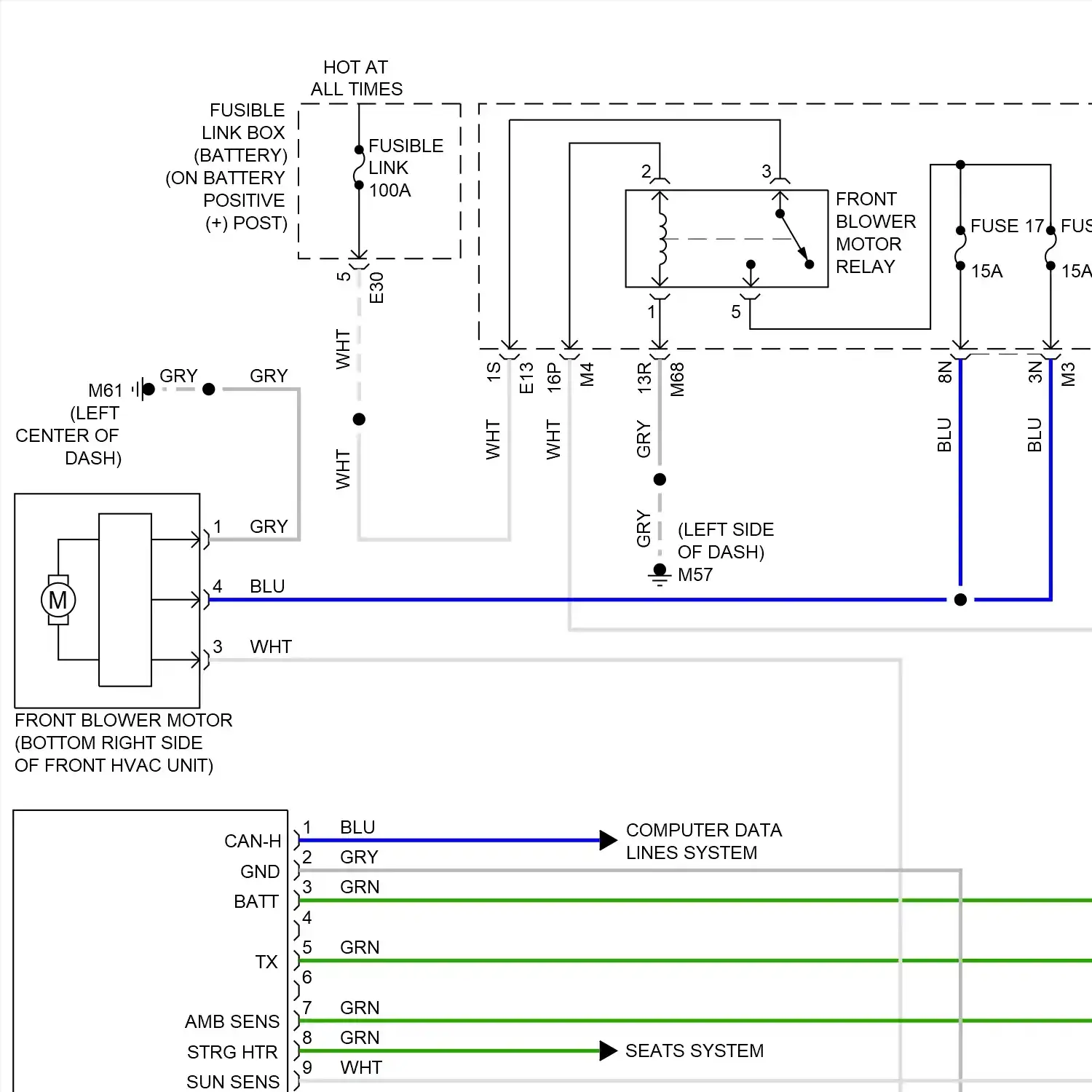

Automatic a/c circuit, except hybrid Automatic a/c circuit, hybrid

Anti-lock brakes circuit, except hybrid Anti-lock brakes circuit, hybrid

Forced entry circuit Immobilizer circuit

Body control modules circuit

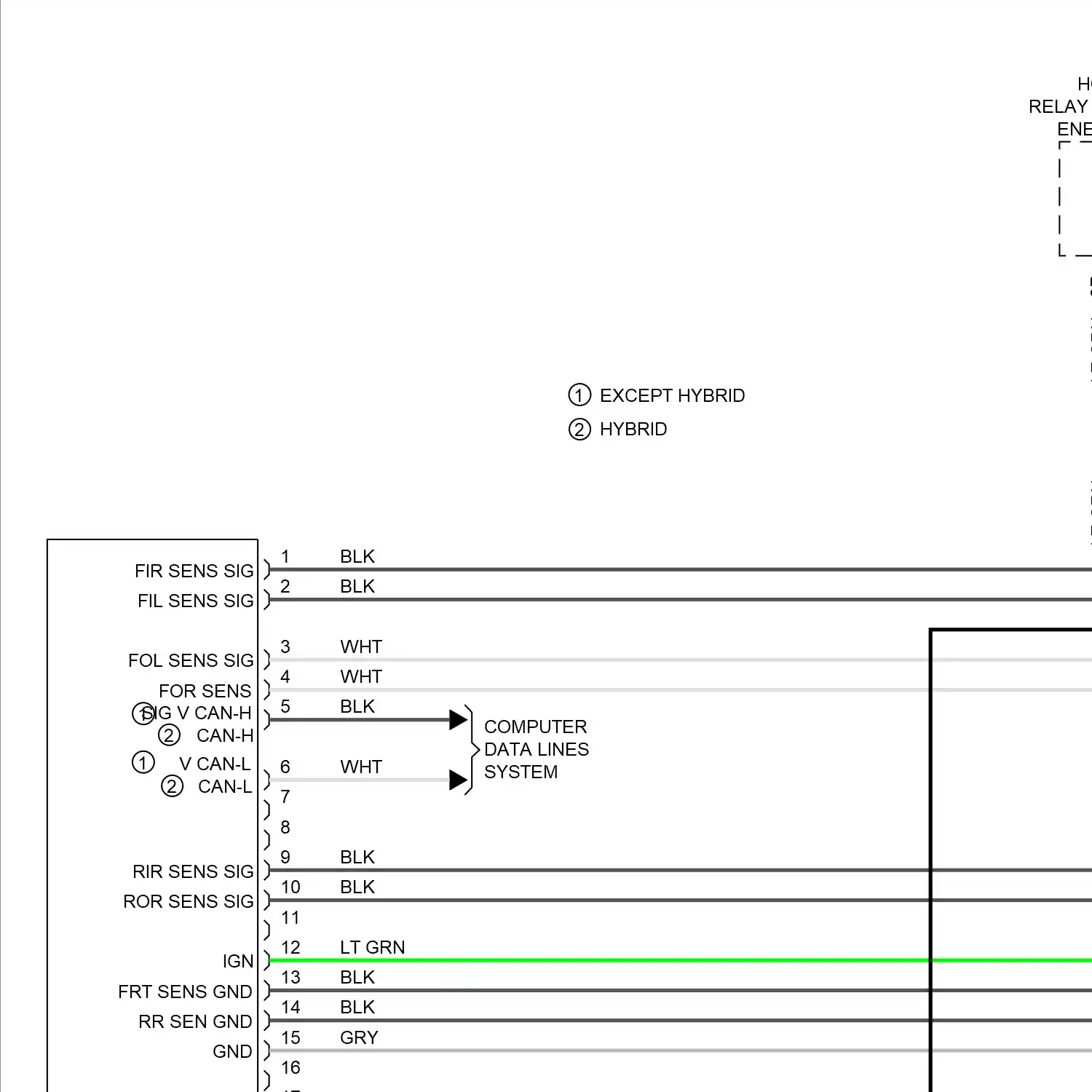

Computer data lines circuit, except hybrid w/ can gateway & icc Computer data lines circuit, except hybrid w/ can gateway w/o icc Computer data lines circuit, except hybrid w/o can gateway Computer data lines circuit, hybrid w/ icc Computer data lines circuit, hybrid w/o icc

Cooling fan circuit

Cruise control circuit, except hybrid Cruise control circuit, hybrid Intelligent cruise control circuit, except hybrid Intelligent cruise control circuit, hybrid

Defoggers circuit

Electronic power steering circuit, except hybrid Electronic power steering circuit, hybrid

Wiring diagram engine performance 3.5l

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit, except hybrid Ground distribution circuit, hybrid

Headlights circuit, w/ drl Headlights circuit, w/o drl

Horn circuit

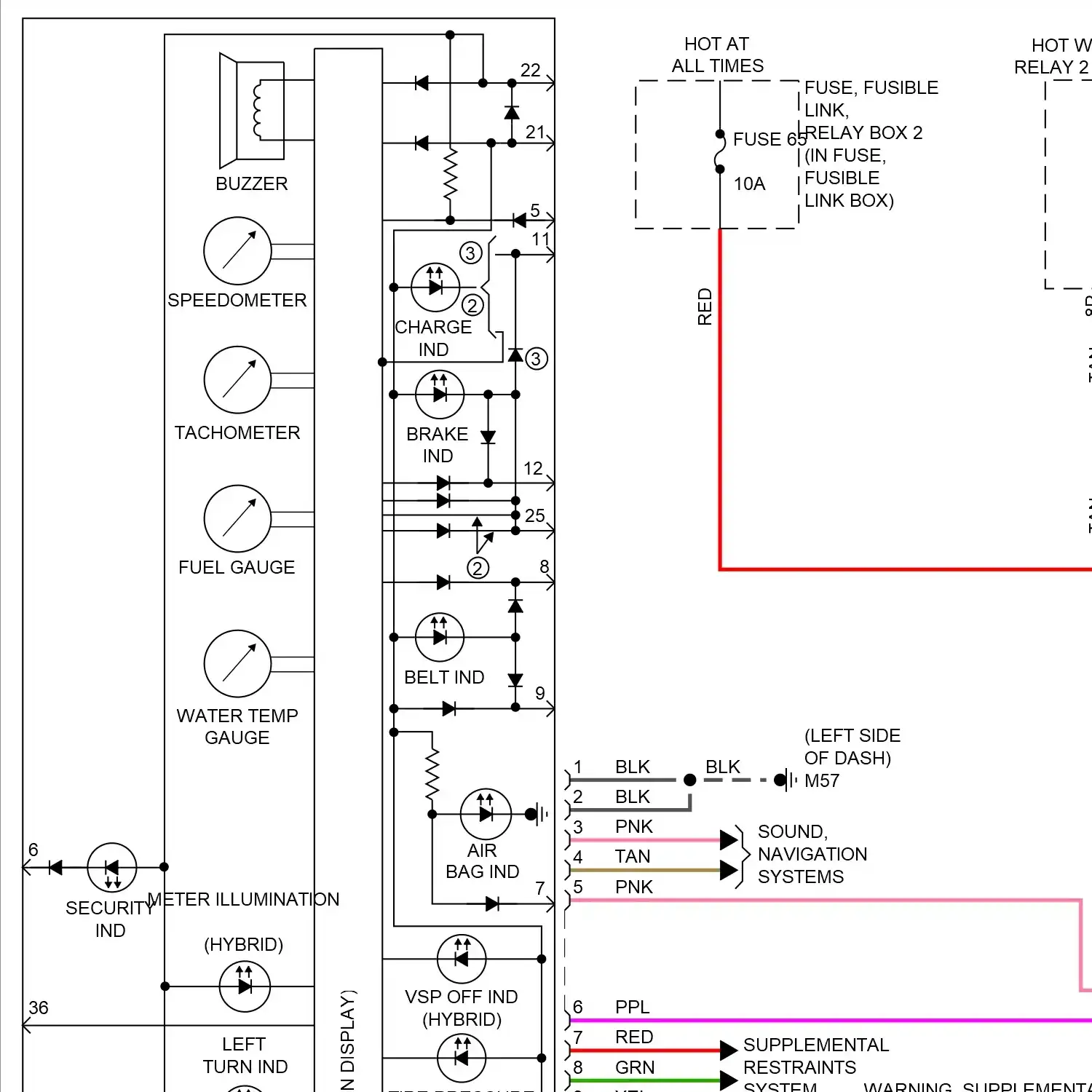

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Memory power tilt & power telescopic circuit Memory seat & mirrors circuit

Around vision camera circuit Blind spot information system circuit Lane departure warning circuit Navigation circuit, except hybrid w/ center point audio Navigation circuit, except hybrid w/o center point audio Navigation circuit, hybrid Rear view camera circuit Sonar circuit Telematics circuit

Passive restraints circuit, except hybrid Passive restraints circuit, hybrid

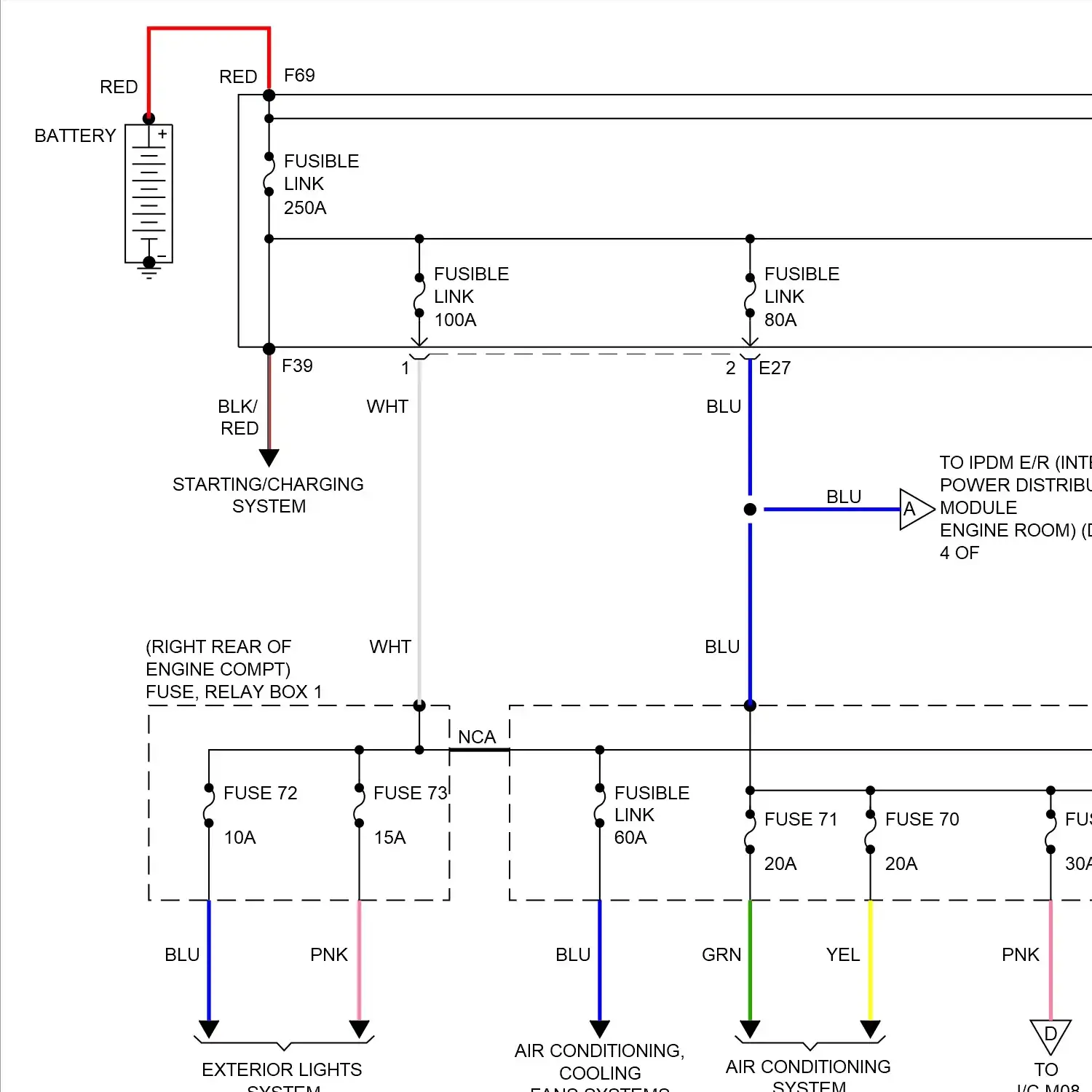

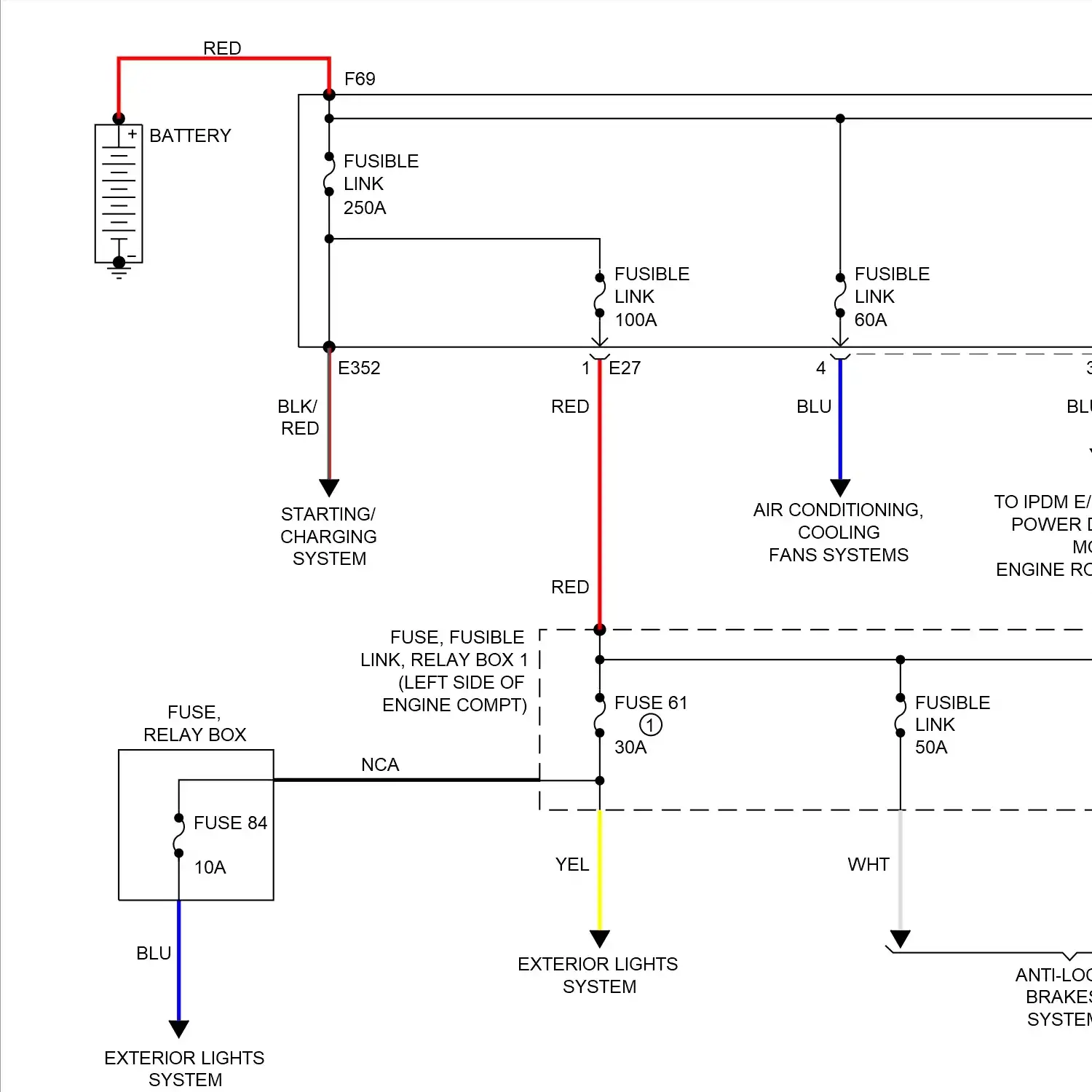

Power distribution circuit, except hybrid Power distribution circuit, hybrid

Power door locks circuit

Auto anti-dazzling inside mirror circuit Fold-back mirrors circuit, w/ memory Fold-back mirrors circuit, w/o memory Power mirrors circuit

Climate control seats circuit Front heated seats circuit, except hybrid Front heated seats circuit, hybrid Heated steering wheel circuit, except hybrid Heated steering wheel circuit, hybrid Lumbar circuit Power seats circuit Rear heated seats circuit Seatback power return control circuit

Power top/sunroof circuit

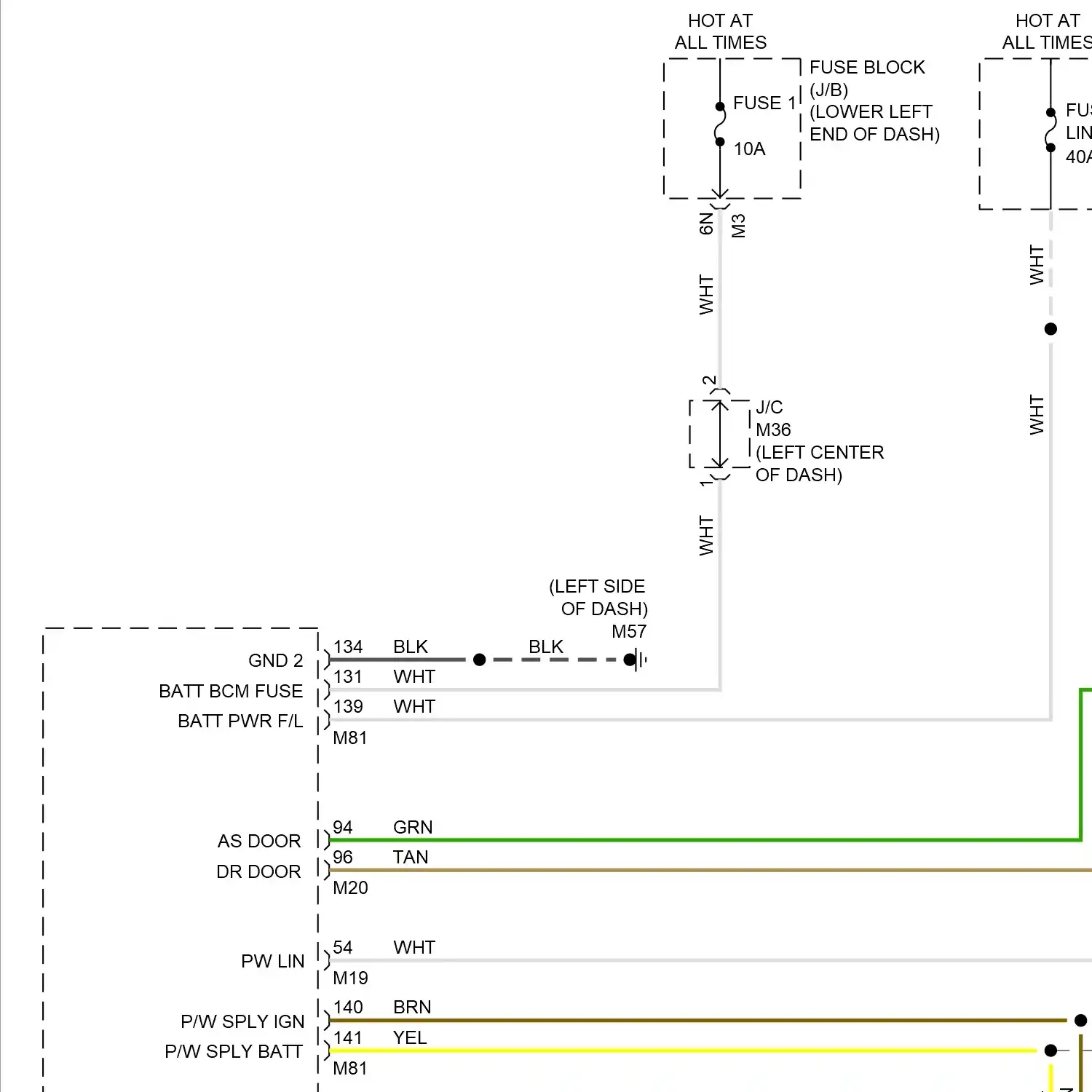

Power windows circuit

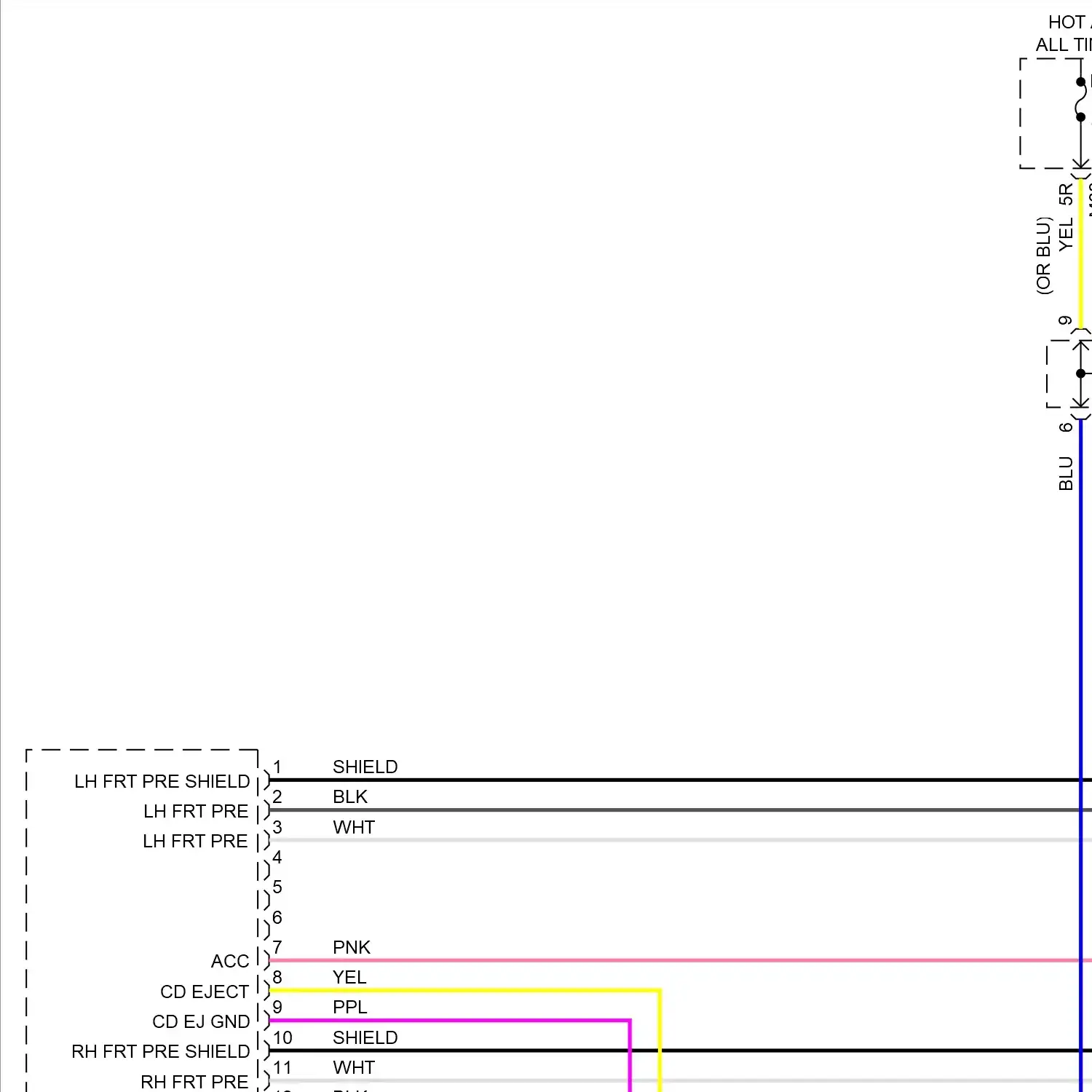

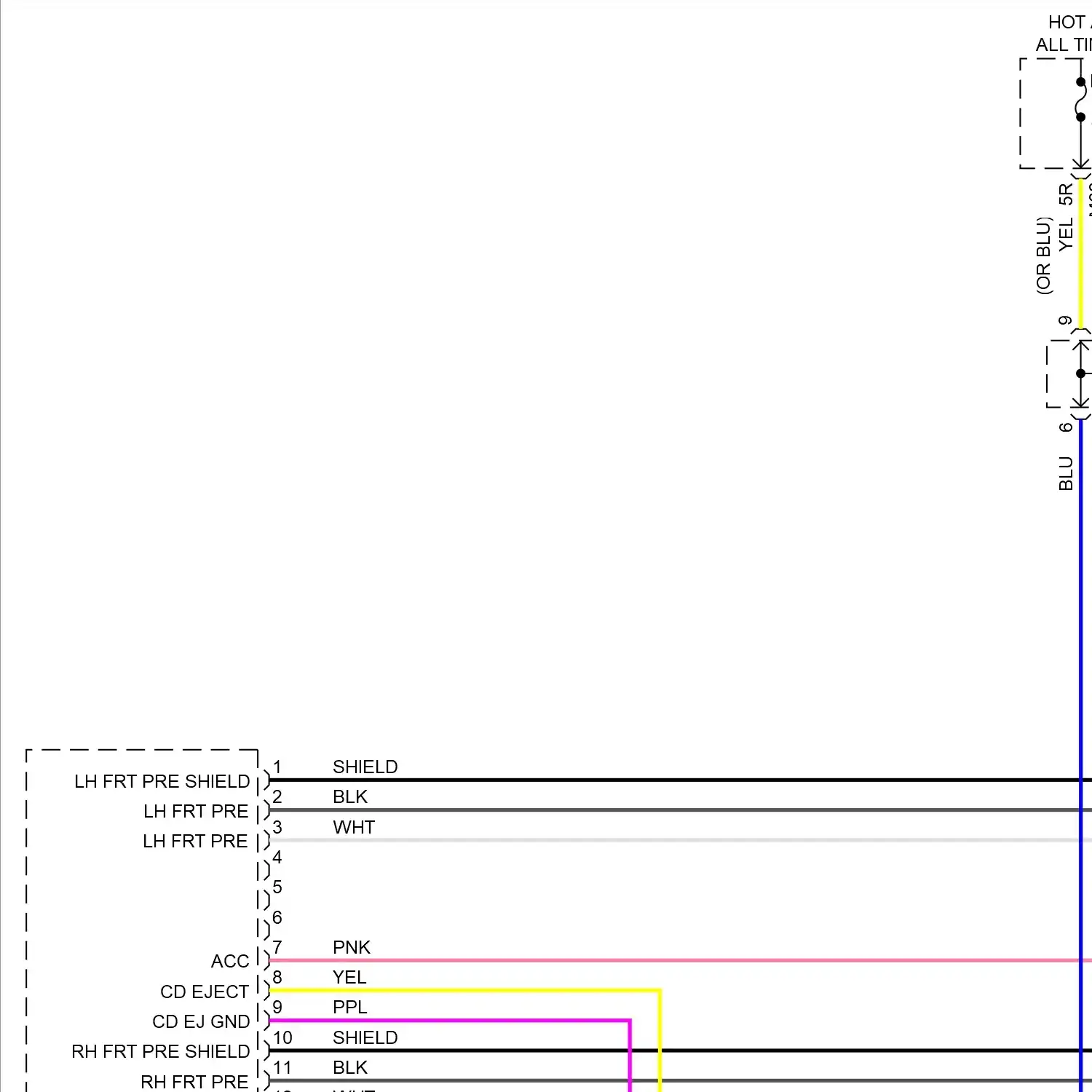

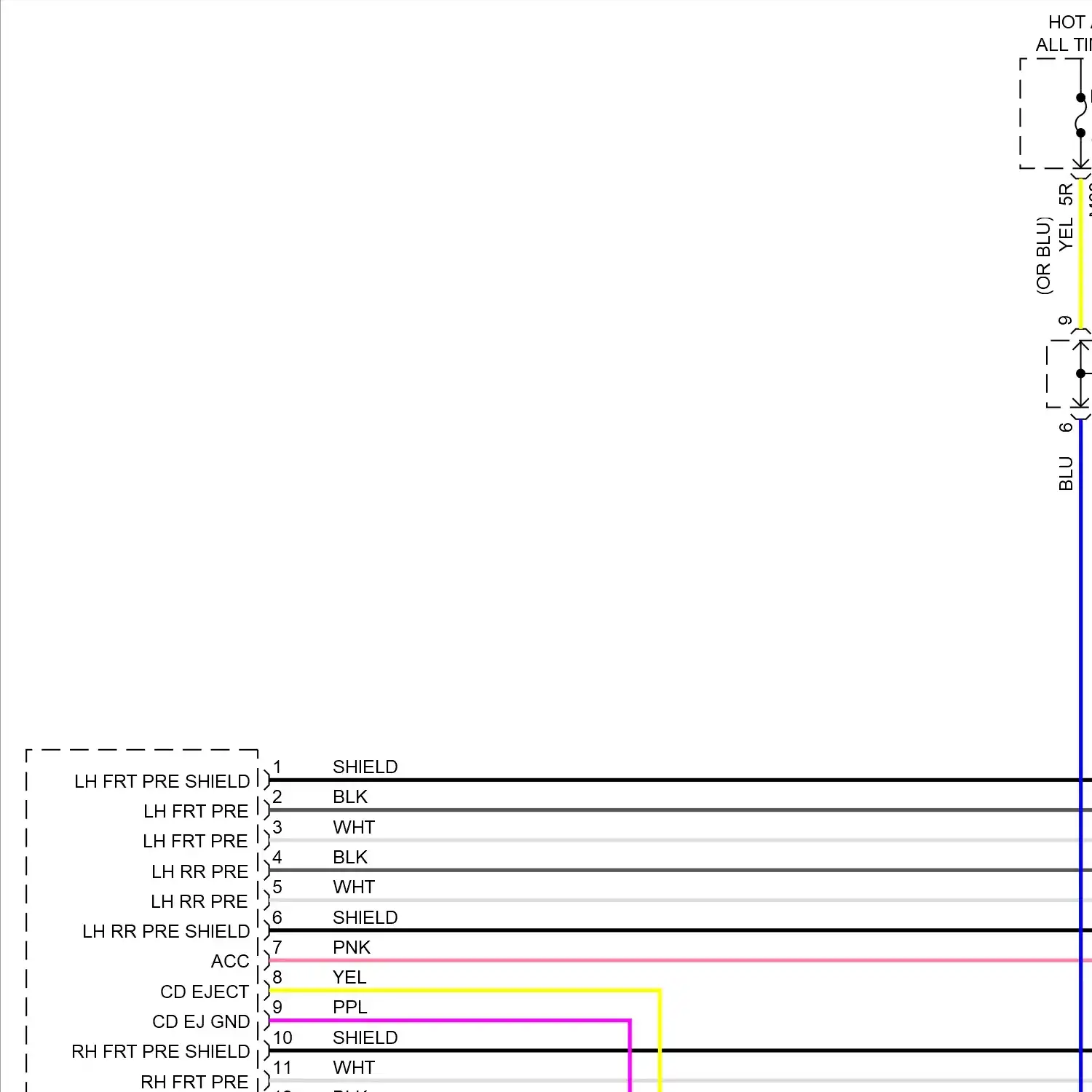

Radio circuit, except hybrid base Radio circuit, except hybrid bose w/ center point audio Radio circuit, except hybrid bose w/o center point audio Radio circuit, hybrid Rear seat entertainment circuit

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

3.5l, a/t circuit 3.5l, awd circuit

Automatic back door circuit

Warning systems circuit

Front wiper/washer circuit Rear wiper/washer circuit

A/C AUTO AMPLIFIER ANTI- THEFT HORN ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, ELECTRONIC POWER STEERING SYSTEMS ANTI-THEFT DIODE BACK DOOR LOCK ASSEMBLY DIODE 2 DIODE 3 DOOR LOCK DR/AS/FL DOOR LOCK RR/RL DR DOOR LOCK STATUS LEFT FRONT DOOR LOCK ASSEMBLY LI-ION BATTERY CONTROLLER LI-ION BATTERY LOCK UNLOCK SHIFT LOCK SHIFT LOCK SOL OUT STARTER RLY OUT UNLOCK LOCK VDC RESISTOR

ACCELERATOR PEDAL ACTUATOR ANTI-LOCK BRAKES, ENGINE CONTROLS, AIR CONDITIONING, CRUISE CONTROL SYSTEMS BATTERY COOLING MODE DOOR MOTOR CINCH LATCH MOTOR COOLING FAN MOTOR 1 COOLING FAN MOTOR 2 CRUISE CONTROL, ENGINE CONTROLS, ANTI-LOCK BRAKES SYSTEMS DRIVER CLIMATE CONTROLLED SEAT BLOWER MOTOR DRIVER SIDE AIR MIX DOOR MOTOR ELECTRIC THROTTLE CONTROL ACTUATOR ELECTRIC THROTTLE CONTROL ACTUATOR SHIELD ELECTRONIC CONTROLLED ENGINE MOUNT CONTROL SOLENOID VALVE ENGINE CONTROLS SYSTEM ENGINE CONTROLS, STARTING/CHARGING, TRANSMISSIONS SYSTEMS ENGINE OIL PRESS SENS ENGINE OIL PRESSURE CONTROL SOLENOID VALVE ENGINE TACH+ FRONT BLOWER MOTOR FRONT MODE DOOR MOTOR FRONT WIPER MOTOR FRONT WIPER MOTOR, A/C COMPRESSOR, FRONT, REAR WASHER MOTOR FUEL LID DOOR LOCK ACTUATOR INTAKE DOOR MOTOR LEFT FRONT LIFTING MOTOR LEFT FRONT POWER WINDOW MOTOR LEFT POWER RETURN MOTOR LEFT REAR DOOR LOCK ACTUATOR LEFT REAR LIFTING MOTOR LEFT REAR POWER WINDOW MOTOR LEFT RECLINING MOTOR LEFT SLIDING MOTOR LOWER RIGHT FRONT OF ENGINE) LUMBAR SUPPORT MOTOR MOONROOF MOTOR ASSEMBLY MOTOR BAT MOTOR GND PASSENGER SEAT CLIMATE CONTROLLED SEAT BLOWER MOTOR PASSENGER SIDE AIR MIX DOOR MOTOR REAR AIR MIX DOOR MOTOR REAR BLOWER MOTOR 1 REAR BLOWER MOTOR 2 REAR BLOWER MOTOR RESISTOR 1 REAR BLOWER MOTOR RESISTOR 2 REAR MODE DOOR MOTOR REAR SHUT-OFF DOOR MOTOR REAR WIPER MOTOR RIGHT FRONT DOOR LOCK ACTUATOR RIGHT FRONT POWER WINDOW MOTOR RIGHT POWER RETURN MOTOR RIGHT REAR DOOR LOCK ACTUATOR RIGHT REAR LIFTING MOTOR RIGHT REAR POWER WINDOW MOTOR RIGHT RECLINING MOTOR RIGHT SLIDING MOTOR SPINDLE MOTOR STARTER MOTOR SUNSHADE MOTOR ASSEMBLY THROTTLE CONTROL MOTOR TRACTION MOTOR INVERTER

ANTENNA AMP ANTENNA BASE CONSOLE INSIDE KEY ANTENNA DRIVER SIDE OUTSIDE KEY ANTENNA GPS ANTENNA LUGGAGE ROOM INSIDE KEY ANTENNA PASSENGER SIDE OUTSIDE KEY ANTENNA REAR BUMPER OUTSIDE KEY ANTENNA SATELLITE ANTENNA TCU ANTENNA

IMMO START BUTTON ANT A IMMO START BUTTON ANT B PUSH BUTTON IGNITION SWITCH

CAMERA GND CAMERA V + R CAMERA COMP R CAMERA SHIELD REAR CAMERA CIRCUIT SIDE CAMERA

CONNECTOR SHIELD DATA LINK CONNECTOR FRONT CONSOLE POWER SOCKET REAR CARGO POWER SOCKET REAR CONSOLE POWER SOCKET

AUTOMATIC BACK DOOR CONTROL MODULE COOLING FAN CONTROL MODULE COOLING FAN CONTROL MODULE, RIGHT FRONT COMBINATION LAMP DRIVER ASSISTANCE BUZZER CONTROL MODULE ELECTRIC INTAKE VALVE TIMING CONTROL MODULE ENGINE MOUNT CONTROL MODULE FUSE BOX POWER STEERING CONTROL MODULE

A/C SW UNIT ABS ACTUATOR, ELECTRIC UNIT ABS/TCS/VDC CONTROL UNIT ADAS CONTROL UNIT AROUND VIEW MONITOR CONTROL UNIT AUTOMATIC DRIVE POSITIONER CONTROL UNIT AV CONTROL UNIT AWD CONTROL UNIT AWD CONTROL UNIT, LEFT REAR LIFTING MOTOR, LEFT POWER SEAT SWITCH, CAN GATEWAY, DONGLE UNIT, CLIMATE CONTROLLED SEAT CONTROL UNIT CONTROL UNIT) CVT UNIT DISPLAY CONTROL UNIT DISPLAY CONTROL UNIT, NAVI CONTROL UNIT, DRIVER CLIMATE CONTROLLED SEAT CONTROL UNIT DRIVER SEAT CONTROL UNIT DRIVER SIDE PRE-CRASH SEAT BELT CONTROL UNIT ECU GND LANE CAMERA UNIT LEFT HEADREST DISPLAY UNIT LEFT HEATED SEAT CONTROL UNIT LEFT SPINDLE UNIT LEFT USB CHARGE PORT, RIGHT SPINDLE UNIT, LEFT SPINDLE UNIT, MOTION ACTIVATED BACK DOOR CONTROL UNIT NAVI CONTROL UNIT OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT PASSENGER CLIMATE CONTROLLED SEAT CONTROL UNIT PASSENGER SIDE PRE-CRASH SEAT BELT CONTROL UNIT RELAY UNIT RIGHT HEADREST DISPLAY UNIT RIGHT HEATED SEAT CONTROL UNIT RIGHT SPINDLE UNIT SEATBACK POWER RETURN CONTROL UNIT SONAR CONTROL UNIT UNIFIED METER CONTROL UNIT

BAT BCM FUSE BATT BCM FUSE BATT REAR WIPER FUSE BRAKE SW FUSE BRAKE SW FUSE PPL SECURITY IND FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 17 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 23 FUSE 24 FUSE 25 FUSE 26 FUSE 27 FUSE 28 FUSE 29 FUSE 30 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 38 FUSE 39 FUSE 40 FUSE 41 FUSE 42 FUSE 43 FUSE 44 FUSE 45 FUSE 46 FUSE 47 FUSE 48 FUSE 49 FUSE 50 FUSE 51 FUSE 52 FUSE 53 FUSE 55 FUSE 56 FUSE 57 FUSE 57 66 FUSE 61 FUSE 62 FUSE 63 FUSE 64 FUSE 65 FUSE 66 FUSE 67 FUSE 67 FUSE 68 FUSE 68 FUSE 69 FUSE 70 FUSE 71 FUSE 71 FUSE 68 FUSE 72 FUSE 72 FUSE 66 FUSE 72 FUSE 84 FUSE 73 FUSE 73 FUSE 69 FUSE 74 FUSE 75 FUSE 77 FUSE 78 FUSE 79 FUSE 80 FUSE 81 FUSE 82 FUSE 83 FUSE 84 FUSE 85 FUSE, FUSIBLE LINK BOX FUSE, FUSIBLE LINK BOX 1 HEATED STEERING WHEEL FUSE

DRIVER FRONT SEAT HEATER HEATER OUTPUT LEFT SEAT BACK HEATER LEFT SECOND ROW SEAT HEATER PASSENGER FRONT SEAT HEATER RIGHT SEAT BACK HEATER RIGHT SECOND ROW SEAT HEATER SEAT CUSHION HEATER

CVT SHIFT INDICATOR GND RF A/L PPL SECURITY INDICATOR LEFT BLIND SPOT WARNING INDICATOR LEFT BLIND SPOT WARNING/INTERVENTION INDICATOR PASSENGER AIR BAG OFF INDICATOR RIGHT BLIND SPOT WARNING INDICATOR RIGHT BLIND SPOT WARNING/INTERVENTION INDICATOR

BRAKE SW LAMP BRK SW LAMP CARGO LAMP CRUISE CONTROL, EXTERIOR LIGHTS, SHIFT INTERLOCK, TRANSMISSIONS SYSTEMS DOOR HANDLE LAMP EXTERIOR LIGHTS, MIRRORS, SEATS, NAVIGATION, SOUND SYSTEMS EXTERIOR LIGHTS, TRANSMISSIONS SYSTEMS FOG LAMP FRONT ROOM/ MAP LAMP ASSEMBLY FRONT ROOM/MAP LAMP ASSEMBLY GLOVE BOX LAMP) HEADLIGHTS, INTERIOR LIGHTS, EXTERIOR LIGHTS SYSTEMS HIGH MOUNTED STOP LAMP HYBRID SYSTEM WARNING LAMP IND INTERIOR LIGHTS, NAVIGATION, SOUND SYSTEMS LEFT BACKUP LAMP LEFT FOOT LAMP LEFT FRONT COMBINATION LAMP LEFT FRONT COMBINATION LAMP, RIGHT FRONT COMBINATION LAMP LEFT FRONT COMBINATION LAMP, RIGHT FRONT COMBINATION LAMP, RIGHT FRONT FOG LAMP LEFT FRONT FOG LAMP LEFT FRONT STEP LAMP LEFT LICENSE PLATE LAMP LEFT PERSONAL LAMP LEFT REAR COMBINATION LAMP LEFT VANITY LAMP REV LAMP OUT REVERSE LAMP OUT RIGHT BACKUP LAMP RIGHT FOOT LAMP RIGHT FRONT COMBINATION LAMP RIGHT FRONT FOG LAMP RIGHT FRONT STEP LAMP RIGHT LICENSE PLATE LAMP RIGHT PERSONAL LAMP RIGHT REAR COMBINATION LAMP RIGHT VANITY LAMP ROOM LAMP CONT STEP LAMP CONT STOP LAMP SW TRANSMISSIONS, EXTERIOR LIGHTS SYSTEMS

F/PUMP- FUEL PUMP HIGH PRESSURE FUEL PUMP

A/C RELAY ACC RELAY ACC RELAY OUT ACCESSORY RELAY 1 ACCESSORY RELAY 2 ANTI- THEFT HORN RELAY CIRCUIT BREAKER-1 SHIELD, ACCESSORY RELAY-2, BRAKE FLUID LEVEL SWITCH, CLIMATE CONTROLLED SEAT RELAY COOLING FAN RELAY DAYTIME RUNNING LIGHT RELAY ECM RELAY FRONT BLOWER MOTOR RELAY FRONT FOG LAMP RELAY FRONT WIPER HIGH RELAY FRONT WIPER RELAY FUEL PUMP RELAY FUSE, FUSIBLE LINK, RELAY BOX 1 FUSE, FUSIBLE LINK, RELAY BOX 2 FUSE, RELAY BOX 1 FUSE, RELAY BOX 2 FUSE/ RELAY BOX HEADLAMP HIGH RELAY HEADLAMP LOW RELAY HEATED SEAT RELAY HEATED SEAT RELAY, RIGHT DOOR MIRROR, HEATED STEERING RELAY HIGH VOLTAGE FUSE, FUSIBLE LINK, RELAY BOX HORN RELAY HOT W/ ECM RELAY ENERGIZED HOT W/ IGNITION RELAY 1 ENERGIZED HOT W/ IGNITION RELAY-2 ENERGIZED ICC BRAKE HOLD RELAY IGNITION RELAY 1 IGNITION RELAY 2 LEFT TRAILER TURN RELAY MOTOR RELAY REAR HEATED SEAT RELAY REAR WINDOW DEFOGGER RELAY RELAY OUT RIGHT TRAILER TURN RELAY SELF SHUT OFF RELAY SOLENOID VALVE RELAY STARTER CONTROL RELAY STARTER RELAY STARTER RELAY OUT TAIL LAMP RELAY TAILLAMP RELAY THROTTLE CONTROL MOTOR RELAY TRAILER BACKUP RELAY TRAILER TOW RELAY 1 TRAILER TOW RELAY 2

ACCELERATOR PEDAL ACTUATOR / ACCELERATOR PEDAL POSITION SENSOR SHIELD ACCELERATOR PEDAL ACTUATOR/ ACCELERATOR PEDAL POSITION SENSOR ACCELERATOR PEDAL POSITION SENSOR ACCELERATOR PEDAL POSITION SENSOR/ ACCELERATOR PEDAL ACTUATOR AIR BAG DIAGNOSIS SENSOR UNIT AMBIENT SENSOR AWD CONTROL UNIT, FUEL LEVEL SENSOR UNIT, FUEL PUMP SHIELD, BRAKE PEDAL STROKE SENSOR BRAKE STROKE SENSOR BRAKE VACUUM SENSOR CRANKSHAFT POSITION SENSOR CRASH ZONE SENSOR CVT FLUID TEMPERATURE SENSOR DOOR UNLOCK SENSOR DRIVER ASSISTANCE BUZZER CONTROL MODULE, LEFT FRONT INNER SONAR SENSOR SHIELD ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL PRESSURE SENSOR ENGINE OIL TEMPERATURE SENSOR EVAP CONTROL SYSTEM PRESSURE SENSOR EXHAUST GAS/OUTSIDE DOOR DETECTING SENSOR EXHAUST GAS/OUTSIDE ODOR DETECTING SENSOR FRONT INNER OCCUPANT CLASSIFICATION SYSTEM SENSOR FUEL LEVEL SENSOR FUEL RAIL PRESSURE SENSOR FUEL TANK TEMPERATURE SENSOR FUEL LEVEL SENSOR UNIT, FUEL PUMP ICC SENSOR IN-VEHICLE SENSOR INPUT SPEED SENSOR INTAKE AIR TEMPERATURE SENSOR INTAKE SENSOR KNOCK SENSOR BANK 1 KNOCK SENSOR BANK 2 LEFT FRONT DOOR SATELLITE SENSOR LEFT FRONT INNER SONAR SENSOR LEFT FRONT OUTER SONAR SENSOR LEFT FRONT SIDE AIR BAG SATELLITE SENSOR LEFT FRONT WHEEL SENSOR LEFT REAR INNER SONAR SENSOR LEFT REAR OUTER SONAR SENSOR LEFT REAR SIDE AIR BAG SATELLITE SENSOR LEFT REAR WHEEL SENSOR LEFT TOUCH SENSOR OPTICAL SENSOR OUTPUT SPEED SENSOR PRIMARY PRESSURE SENSOR PRIMARY SPEED SENSOR PRIMARY SPEED SENSOR, OUTPUT SPEED SENSOR, INPUT SPEED SENSOR R SENSOR K-LINE REAR INNER OCCUPANT CLASSIFICATION SYSTEM SENSOR REFRIGERANT PRESSURE SENSOR RIGHT FRONT DOOR SATELLITE SENSOR RIGHT FRONT INNER SONAR SENSOR RIGHT FRONT OUTER SONAR SENSOR RIGHT FRONT SIDE AIR BAG SATELLITE SENSOR RIGHT FRONT WHEEL SENSOR RIGHT REAR INNER SONAR SENSOR RIGHT REAR OUTER SONAR SENSOR RIGHT REAR SIDE AIR BAG SATELLITE SENSOR RIGHT REAR WHEEL SENSOR RIGHT TOUCH SENSOR SECONDARY PRESSURE SENSOR SENSOR 1 SENSOR 2 SENSOR GND STEERING ANGLE SENSOR SUNLOAD SENSOR THROTTLE POSITION SENSOR VACUUM SENSOR YAW RATE/ SIDE/DECEL G SENSOR

BOSE SPEAKER AMP BOSE SPEAKER AMPLIFIER CENTER SPEAKER LEFT FRONT DOOR SPEAKER LEFT REAR DOOR SPEAKER LEFT REAR SIDE SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT REAR DOOR SPEAKER RIGHT REAR SIDE SPEAKER

ACCELERATE/ RESUME SWITCH ADP STEERING SWITCH AS REQUEST SWITCH ASCD STEERING SWITCH AUTOMATIC BACK DOOR CLOSE SWITCH AUTOMATIC BACK DOOR MAIN SWITCH AUTOMATIC BACK DOOR SWITCH BACK DOOR OPENER SWITCH BCI OFF SWITCH BETWEEN FULL STROKE FULL STROKE, LOCK SWITCH BRAKE FLUID LEVEL SWITCH BRAKE PEDAL POSITION SWITCH CANCEL SWITCH CHANGE OVER SWITCH CLOSE SWITCH COAST/ SET SWITCH COAST/ SET SWITCH CANCEL SWITCH COMBINATION METER, COMBINATION SWITCH DOOR AJAR SWITCH DR REQUEST SWITCH DRIVE MODE SELECT SWITCH DRIVER CLIMATE CONTROLLED SEAT SWITCH DRIVER SEAT BELT BUCKLE SWITCH DRIVER SEAT CLIMATE CONTROL LED SEAT SWITCH DRIVER SIDE REAR SEATBACK SWITCH DRIVER SIDE SEAT BELT BUCKLE SWITCH DRIVER SIDE SEATBACK ANGLE LIMIT SWITCH DRIVER SIDE SECTOR GEAR POSITION LIMIT SWITCH ENGINE START SWITCH EXTENDED STORAGE SWITCH FRONT LIFTING SWITCH HALF SWITCH HAZARD SWITCH HEATED STEERING WHEEL SWITCH HOOD SWITCH HORN SWITCH ICC STEERING SWITCH ILLUMINATION CONTROL SWITCH KEY CYLINDER SWITCH LEFT FRONT DOOR SWITCH LEFT FRONT HEATED SEAT SWITCH LEFT MAP LAMP SWITCH LEFT POWER SEAT SWITCH LEFT REAR DOOR SWITCH LEFT REAR LIFTING MOTOR, LEFT POWER SEAT SWITCH, LEFT REAR POWER WINDOW SWITCH LEFT SECOND ROW HEATED SEAT SWITCH LOCK SWITCH LUMBAR SUPPORT SWITCH MAIN POWER WINDOW, DOOR LOCK/UNLOCK SWITCH METER CONTROL SWITCH MIRROR SWITCH MOONROOF SWITCH MOTOR RLY CTRL SWITCH MULTI- FUNCTION SWITCH ON/OFF SWITCH OPEN SWITCH PARK POSITION SWITCH PARKING BRAKE SWITCH PASSENGER CLIMATE CONTROLLED SEAT SWITCH PASSENGER SEAT BELT BUCKLE SWITCH PASSENGER SEAT CLIMATE CONTROL LED SEAT SWITCH PASSENGER SIDE REAR SEATBACK SWITCH PASSENGER SIDE SEAT BELT BUCKLE SWITCH PASSENGER SIDE SEATBACK ANGLE LIMIT SWITCH PASSENGER SIDE SECTOR GEAR POSITION LIMIT SWITCH PRESET SWITCH PUSH SWITCH REAR LIFTING SWITCH RECLINING SWITCH REQUEST SWITCH RETRACTOR SWITCH RIGHT FRONT DOOR SWITCH RIGHT FRONT HEATED SEAT SWITCH RIGHT FRONT OUTSIDE HANDLE ASSEMBLY, RIGHT POWER WINDOW, DOOR LOCK/UNLOCK SWITCH RIGHT MAP LAMP SWITCH RIGHT POWER SEAT SWITCH RIGHT POWER WINDOW, DOOR LOCK/UNLOCK SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT SECOND ROW HEATED SEAT SWITCH SEAT MEMORY SWITCH SLIDING SWITCH STEERING SWITCH STOP LAMP SWITCH TELEMATICS SWITCH TELESCOPIC SWITCH TILT SWITCH TRANSMISSION RANGE SWITCH TRIP RESET SWITCH UNLOCK BETWEEN SWITCH FULL FULL STROKE STROKE, UNLOCK SWITCH VDC OFF SWITCH VSP OFF SWITCH WARNING SYSTEM SWITCH WARNING SYSTEMS SWITCH WASHER FLUID LEVEL SWITCH

CONTROL VALVE ELECTRICAL CONTROL VALVE EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE EVAP CANISTER VENT CONTROL VALVE LINE PRESS SOL VALVE LINE PRESSURE SOLENOID VALVE PRIMARY PRESSURE SOLENOID VALVE SEC PRESS SOL VALVE PPL PRI PRESS SOL VALVE SECONDARY PRESSURE SOLENOID VALVE SELECT SOL VALVE SELECT SOLENOID VALVE SHIFT LOCK SOLENOID SHIFT LOCK SOLENOID OUT TCC SOL VALVE TORQUE CONVERTER CLUTCH SOLENOID VALVE VIAS CONTROL SOLENOID VALVE 1 VIAS CONTROL SOLENOID VALVE 2

(OR RED/ WIRE ACTR GND PNK ION ON/OFF WIRE BATT PNK CAN-L WIRE BATT PNK WIRE BLK WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/GRN WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/BLK WIRE BRN/RED WIRE BRN/WHT WIRE CAN-H PNK CAN-L WIRE COMBI SW IN 2 PNK COMBI SW IN 1 WIRE COMBI SW OUT 1 PNK CAN-L WIRE COMBI SW OUT 5 PNK COMBI SW OUT 4 PNK COMBI SW OUT 3 WIRE DR DOOR ANT B PNK DR DOOR ANT A WIRE GND PNK CAN-L WIRE GRN WIRE GRN/WHT WIRE GRY WIRE I-KEY LINK SIGNAL PNK BUZZER OUT PNK DOOR HANDLE LAMP WIRE IGNITION PNK CAN-L WIRE INT SENS PNK MODE 2 WIRE LOOP WIRE LT BLU WIRE LT GRN WIRE LT GRN/YEL WIRE NCA WIRE ORG/ WIRE ORG/BLU WIRE OUTPUT 2 PNK OUTPUT 3 PNK OUTPUT 4 WIRE OUTPUT 5 PNK INPUT 1 WIRE PNK ACC LED WIRE PNK ACC OUT WIRE PNK CAN-H WIRE PNK CAN-L WIRE PNK COMBI SW IN 5 PNK COMBI SW IN 4 PPL COMBI SW IN 3 WIRE PNK DR DOOR LOCK STATUS WIRE PNK IGN WIRE PNK IMMO ST BUTT ANT B WIRE PNK M-CAN H WIRE PNK PNK WIRE PNK POWER DISTRIBUTION SYSTEM WIRE PNK ROOM ANT 3 B WIRE PNK SIG BAT WIRE PNK WIRE POWER DISTRIBUTION SYSTEM PNK NAVIGATION, SOUND SYSTEMS WIRE PPL COMBI SW IN 3 PNK COMBI SW IN 4 PNK COMBI SW IN 5 WIRE RED WIRE RED/BLK WIRE RED/GRN WIRE RED/WHT WIRE SENS BACK PNK WIRE SHIFT INTERLOCK SYSTEM PNK IGN USM OUT 1 WIRE STRG HTR RLY PNK CAN-L WIRE TAN WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/PPL WIRE WHT/RED WIRE YEL WIRE YEL/RED WIRE

3.5L, 2.5L HYBRID (OR (OR (OR (OR LT (PINS: 41 TO 45 (PINS: 62 TO 66 (PINS: 82 TO 86 (W/ INFORMATION (W/ TRAILER TOW A/C COMPRESSOR A/C COOL IND A/C CTRL GND A/C HEAT IND A/C IGN A/F SENS 1 A/L SIG A/L SIGNAL ABS IND. AC 1 AC 2 ACC DET IN ACC DET OUT L ACC DET OUT R ACC LED ACC POS SENS 1 ACC POS SENS 2 ACC RLY ACC RLY OUT ACC/ ON IND ACC/ON IND ACCELERATE, ACT VENT- ACU COMN ADDRESS 2 ADDRESS-1 AIR BAG CUTOFF AIR BAG IND AIR BAG MODULE SHIELD AIR BAG W/L AIR CONDITIONING SYSTEM AIR CONDITIONING, COOLING FANS SYSTEMS AIR CONDITIONING, COOLING FANS, TRANSMISSIONS SYSTEMS AIR CONDITIONING, INSTRUMENT CLUSTER, MIRRORS, NAVIGATION, SOUND SYSTEMS AIR CONDITIONING, PASSIVE RESTRAINTS, WIPER/WASHER SYSTEMS ALERT SIG AMP ENABLE AMP ON ANT B+ ANT MAIN ANT SUB ANT-A ANTI-THEFT SYSTEM APP SENS 1 APP SENS 1 APP SENS 1 APP SENS 2 AS DOOR ANT A AS DOOR ANT B AS DOOR SW AS DOOR SW PPL REAR WIPER OUT AS REQUEST SW ASCD STEERING SW ASCD STEERING SW SENS PWR SPLY ASSISTANCE) ASSM VCC AT DEVICE OUT AT SHIFT DN AT SHIFT UP AUDIO DONGLE AUDIO HU IN+ AUDIO HU IN/OUT AUDIO HU IN/OUT SHIELD AUDIO HU OUT- AUDIO SHIELD AUTO ANTI-DAZZLING INSIDE MIRROR AUX AUDIO AUX SHIELD AUX VIDEO - AV GND AWD SOL- BACK BUMPER ANT A BACK BUMPER ANT B BACK DOOR BACK DOOR ANT A BACK DOOR ANT B BACK DOOR OPEN SW BACK DOOR REQ SW BACK DOOR SW BACK DOOR WARNING CHIME BACK TED +HEAT BACKUP LAMPS BAT BCM BAT POWER F/L BAT SAVER OUTPUT BAT+ BATT + BATT FRONT DOOR BATT GND BATT PWR F/L BATT PWR SPLY BATT SAVER OUT BATT SAVER OUTPUT BCI OFF SW BCP OFF SW BELT IND BETWEEN BETWEEN FULL STROKE, N FULL STROKE, N BETWEEN FULL FULL STROKE, STROKE BETWEEN FULL STROKE FULL STROKE, BK FD BK FD BK BLOWER FAN RLY OUT BLWR FAN BODY COMPUTER SYSTEM BODY COMPUTER, DOOR LOCKS, ANTI-THEFT, WARNING SYSTEMS BRAKE IND BRAKE RLY BRK PDL BRK PDL POS SW BRK RLY BRK VACUUM SW BUCKLE SW LH NO BUCKLE SW RH NO BUCKLE SW SIG BUZZER OUT BUZZER SONAR CAN - GND CAN GATEWAY CAN L CAN SHIELD CAN-H CAN-H HEV CAN-H CAN-H HI SIDE START SW LED CAN-L HEV CAN-L CAN-L SHIELD CAN GND CAN-L SHIELD CAN SHIELD CD EJ GND CD EJECT CEC LINE CENTER ACTIVE NOISE CONTROL MICROPHONE CHARGE IND CHARGING CIRCUIT CIRCUIT BREAKER 1 CIRCUIT BREAKER 2 CLOSE SW COMBI SW IN 1 COMBI SW IN 2 COMBI SW IN 3 COMBI SW IN 4 COMBI SW IN 5 COMBI SW OUT 1 COMBI SW OUT 2 COMBI SW OUT 3 COMBI SW OUT 4 COMBI SW OUT 5 COMBINATION METER COMP NAVI IN - COMP SHIELD COMPUTER DATA LINES SYSTEM CONDENSER 1 CONN SHIELD CONN SHLD CONT GND COOL IND COOLANT TEMP SENS CPU CAN-H CRNK POS SENS CRUISE CONTROL SYSTEM CRUISE CONTROL, TRANSMISSIONS SYSTEMS CTR ANC MIC- CUSH TED +HEAT CUTOFF TELLTALE CVT FLUID TEMP SENS CVT SHIFT SELECTOR D OUT D RANGE SW DATA LINES DC/DC CONVERTER DDC CLK DDC DATA DEFOGGER SYSTEM DN UP DN UP DN FD DN UP DN UP DN FD DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DOOR LOCKS, ANTI-THEFT, HORNS SYSTEMS DOOR LOCKS, STARTING/ CHARGING, ANTI-THEFT SYSTEMS DOOR ON DOOR STATE DOOR UNLOCK AS DOOR UNLOCK DR/FL DOOR UNLOCK RR/RL DOWN SW DOWN UP DR DOOR ANT B DR DOOR SW DR REQUEST SW DRIVER AIR BAG MODULE DRIVER SEAT BACK THERMAL ELECTRIC DEVICE DRIVER SEAT CUSHION THERMAL ELECTRIC DEVICE DRIVER SW DRV DOOR SW ECALL SW ECM GND ECM PWR SPLY ECM RLY ECV OUT ECZS 1- EJECT GND ELECTRIC BRAKE ELECTRONIC POWER STEERING SYSTEM ENCD-A 1 ENCD-A 2 ENCD-B 1 ENCD-B 2 ENCD-PUSH 1 ENCD-PUSH 2 ENCODER GND ENCODER SIG 1 ENCODER SIG 2 ENG COMM LINE-H ENG COMM LINE-L ENG COOLANT ENG MOUNT CTRL VLV ENG OIL PRESS SENS ENG OIL TEMP SENS ENG START SW ENG STRT SW EPS IND EV IND EVAP CTRL SYS PRESS SENS EVAP CTRL VLV EVAP SOL VLV EXCEPT HYBRID EXCEPT HYBRID HYBRID EXCEPT HYBRID HYBRID IF EQUIPPED EXCEPT HYBRID, HYBRID W/O AROUND VIEW MONITOR SYSTEM EXHAUST POS SENS F DVD OUT LH- F DVD OUT RH- F DVD OUT SHIELD FAN RLY OUT FD BK BK FD FD BK FD FEB OFF IND FIL SENS SIG FIR SENS SIG FL FLASHER FL RR IN FOG LIGHT IND FOL SENS SIG FOLD-BACK MIRRORS CIRCUIT FOR SENS SIG FOR SENS SIG V CAN-H CAN-H FOR- FPCM CHECK FR FAN PWM FR FLASHER FR RR IN FRONT ACTIVE NOISE CONTROL MICROPHONE FRONT AUXILIARY INPUT JACKS FRT ANC MIC- FRT DR SP LH- FRT DR SP RH- FRT INNER GND FRT INNER SIG FRT INNER VCC FRT LH+IN FRT LH-IN FRT RH+IN FRT RH-IN FRT SENS GND FS CONT FUEL GAUGE FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUEL PMP RLY FUEL PR SENS FUEL TEMP SENS FULL FULL STROKE STROKE FUSIBLE LINK A FUSIBLE LINK B FUSIBLE LINK C FUSIBLE LINK D FUSIBLE LINK E FUSIBLE LINK F FUSIBLE LINK G FUSIBLE LINK G FUSIBLE LINK H FUSIBLE LINK H FUSIBLE LINK I FUSIBLE LINK J FUSIBLE LINK K FUSIBLE LINK L FUSIBLE LINK M FUSIBLE LINK N FUSIBLE LINK O FUSIBLE LINK Q FUSIBLE LINK R FUSIBLE LINK T FUSIBLE LINK V FV POWER FV POWER GND FV PWR FV SERIAL FV SERIAL SIGNAL FV VIDEO + SHIELD FV VIDEO - FV VIDEO+ GAS SENS GND 2 GND BLOWER GND POWER GND PPL SIG GND PWR GND R CONT GND RF A/L GND SENS GND GND SHIELD AUDIO HU OUT SHIELD GND SHIELD SHIELD GPS ANT SHIELD GPS SHIELD GPS ANT SIG GSM ANT SHIELD GSM SHIELD GUI SELECT 1 GUI SELECT 2 GUIDE IN - GUIDE OUT+ GUIDE SHIELD GUIDE VOICE SHIELD GUIDE VOICE- HALF LATCH SW HALL GND HAZARD SW HEADLAMP HIGH HEADLAMP LOW BEAM HEADLIGHTS SYSTEM HEAT IND HEAT OUTPUT HEATED STEERING WHEEL HEV CAN-H HEV CAN-H CAN-H HEV CAN-L HI PRESS PMP HI HI PRESS PMP LO HID CONT HIGH SIDE START SW LED HORNS SYSTEM HOT AT ALL TIMES HOT IN ON OR START HOT PLUG DET HOT PLUG DETECT HSV 1 HSV 2 HYBRID EXCEPT HYBRID HYBRID W/ AROUND VIEW MONITOR SYSTEM HYBRID W/ PANORAMIC SUNSHADE I-KEY SIG IC CAN H IC CAN L IGN 1 RLY IGN 2 IGN ELEC RLY OUT 2 IGN PWR IGN SIG 1 IGN SIG 2 IGN SIG 3 IGN SIG 4 IGN SIG 5 IGN SIG 6 IGN SW IGN USM IGN USM OUT 1 IGN VBAT ILL CONT OUT IMMO ST BUTT ANT A INC SENS IND 1 IND 2 INDT TWDR LH- INDT TWDR RH- INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 INPUT SPD SENS INPUT SPEED SENS INSIDE CLOSE SW INST CENTER SP+ INST TWIDDLER H+ INST TWIDDLER LH- INST TWIDDLER RH- INSTRUMENT CLUSTER SYSTEM INSTRUMENT ILLUMINATION CIRCUIT INTAKE CAM INTAKE POS SENS INTELLIGENT KEY WARNING BUZZER ION ON/OFF ITS ALERT SW ITS ALERT SW LED ITS ALERT SYS SW ITS ALERT SYS SW IND ITS ALRT SYS SW ITS ALRT SYS SW IND ITS CAN-H ITS CAN-L K LINE KEY SCAN IN 0 KEY SCAN IN 1 KEY SCAN IN 2 KEY SCAN IN 3 KEY SCAN OUT 0 KEY SCAN OUT 1 KEY SCAN OUT 2 KEY SCAN OUT 3 KEY SCAN OUT 4 KICK SENS PWR KICK SENS SERIAL SIG L RANGE SW L-H/P PIN JACK GND LAP BELT LATCH MTR CLOSE LATCH MTR OPEN LED A LEFT "C" PILLAR) LEFT DOOR MIRROR LEFT FRONT OUTSIDE HANDLE ASSEMBLY LEFT FRONT SEAT BELT PRE-TENSIONER LEFT FRONT SIDE AIR BAG MODULE LEFT FRONT TWEETER LEFT INSTRUMENT PANEL TWEETER LEFT REAR DOOR TWEETER LEFT RIGHT LEFT SIDE CURTAIN LEFT SIDE CURTAIN AIR BAG MODULE LEFT SIDE RADAR LEFT STOP/ TURN LEFT TURN IND LEFT USB CHARGE PORT LF IN LF OUT LF SENS PWR LF SENS SIG LF+ LH A SIGN LH AUX AUDIO SHIELD AUX SHIELD LH B SIGN LH BUCKLE SW LH DOOR SAT SENS- LH FRT PRE - LH FRT PRE SHIELD LH L-H/P PIN JACK+ LH LIMIT SW GND LH MIRROR SELECT SW LH MTR CLOSE LH MTR OPEN LH NAVI AUDIO + LH POWER LH PRE- LH PWR SEATBACK ANGLE LIMIT SW LH PWR SECTOR GEAR POS LIMIT SW RH SIDE SW LH R-H/P PIN JACK + LH RH LH RR PRE - LH RR PRE SHIELD LH RR SRC OUT - LH RTN MTR LH SENS PWR SPLY LH SHIELD LH SIDE SW LH TAIL LH TOUCH SENS LIGHT IND LOCAL COMM 1 LOCAL COMM 2 LOCAL COMM 2 SHIELD SHIELD GND LOW COOLANT TEMP IND LOW OFF LOW SIDE START SW LED LR IN LR OUT LR SENS PWR LR SENS SIG M CAN GND M CAN-H M CAN-L M RANGE SE M-CAN 1 H M-CAN 1 L M-CAN 1 L IN MAGNET CLUTCH MAIN SW MASS AIR FLOW SENS MEMORY IND 1 MEMORY IND 2 MEMORY POWER TILT, POWER TELESCOPIC CIRCUIT MEMORY SYSTEMS MENU DOWN MENU UP METER ILLUM IND METER ILLUMINATION MIC GND MIC NS ON/OFF MIC OUT GND MIC OUT SHIELD MIC OUT SIG MIC SHIELD MIC SIG MIC VCC MIRROR SIG 1 MIRROR SIG 2 MIRROR SIGNAL 2 MIRROR SW UP MIRRORS SYSTEM MIRRORS, NAVIGATION SYSTEMS MODE 1 MODE 3 MODE 4 MOVE DOWN MOVE UP MR OUTPUT MTR 1 HALL SENS 2 MTR 1 HALL SENS 3 MTR 1 PHASE 1 MTR 1 PHASE 2 MTR 1 PHASE 3 MTR 1 TEMP SENS MTR 2 HALL SENS 1 MTR 2 HALL SENS 2 MTR 2 HALL SENS 3 MTR 2 PHASE 1 MTR 2 PHASE 2 MTR 2 PHASE 3 MTR 2 TEMP SENS MTR DN DR MTR PWR SPLY MTR RLY MTR UP DR N RANGE SW NAVI DVD SHLD NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEMS NEUT STSW NOISE SHIELD LATCH NOT M RANGE SW NOT USED NS ON/OFF NTC- ODS INPUT OIL PR CTRL VLV OIL PR SENS OIL PRESS ON IND. ON OFF OPEN CLOSE OPEN SW OUT 1 - OUT 2 + OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT SPD SENS OUTPUT SPEED SENS P/W PWR SPLY BATT P/W SPLY BATT P/W SPLY IGN PARK POSITION PASSENGER SEAT BACK THERMAL ELECTRIC DEVICE PASSENGER SEAT CUSHION THERMAL ELECTRIC DEVICE PASSIVE RESTRAINTS SYSTEM PASSIVE RESTRAINTS, AIR CONDITIONING, WIPER/WASHER SYSTEMS PKB SIG PNP SIG POS SENS POS SENS 1 POS SENS 2 POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM POWER WINDOWS SYSTEM POWER WINDOWS, POWER TOPS, SEATS SYSTEMS PPL (OR (OR LT PPL AWD SOL- PPL BATT REAR DOOR PPL BUCKLE SW RH NO PPL DOOR UNLOCK DR/FL PPL INTAKE AIR SENS PPL PPL PRESS PWR SPLY PRESS. PRI PRESS SENS PRI SPD SENS PRI SPEED SENS PW LIN PW LIN PW LIN/COM PW LIN/COM PWR GND PWR SPLY R RANGE SW R RANGE SW PPL P RANGE SW R SENS K-LINE R WIPER AUTO STOP SW R WIPER AUTOSTOP SW R-H/P PIN JACK GND READY IND REAR ACTIVE NOISE CONTROL MICROPHONE REAR AIR CONTROL REAR AUXILIARY INPUT JACKS REAR DEFOGGER RLY OUT REAR HEATED SEAT CIRCUIT REAR SEAT ENTERTAINMENT CIRCUIT REAR WINDOW DEFOGGER REAR WINDOW DEFOGGER CONDENSER REAR WIPER OUT REMOTE KEYLESS ENTRY RECEIVER REQUEST SW RET CUSH SENS PPL RET BACK SENS REV SIG REVERSE SIG REVERSE SIGNAL RF IN RF NIMOCO RF OUT RF SENS PWR RF SENS SIG RF+ RH A SIGN RH B SIGN RH FRT PRE - RH FRT PRE SHIELD RH L-H/P PIN JACK+ RH LIMIT SW GND RH MIRROR SELECT SW RH MTR CLOSE RH MTR OPEN RH NAVI AUDIO + RH POWER RH PRE- RH PWR SEATBACK ANGLE LIMIT SW RH PWR SECTOR GEAR POS LIMIT SW RH R-H/P PIN JACK + RH RR PRE + RH RR PRE SHIELD RH RR SRC OUT - RH RTN MTR RH SENS PWR SPLY RH SHIELD RH TOUCH SENS RIGHT DOOR MIRROR RIGHT END OF DASH) RIGHT FRONT OUTSIDE HANDLE ASSEMBLY RIGHT FRONT SEAT BELT PRE-TENSIONER RIGHT FRONT SIDE AIR BAG MODULE RIGHT FRONT TWEETER RIGHT INSTRUMENT PANEL TWEETER RIGHT LEFT RIGHT REAR DOOR TWEETER RIGHT SIDE CURTAIN AIR BAG MODULE RIGHT SIDE CURTAIN AIR BAG MODULE SHIELD RIGHT SIDE RADAR RIGHT STOP/ TURN RIGHT TURN IND RIGHT USB CHARGE PORT RIL SENS SIG RIR SENS SIG RL DOOR SW RL DOOR SW DR DOOR SW RL FLASHER RLY OUT ROL SENS SIG ROOM ANT 2 A ROOM ANT 2 A DR DOOR ANT A ROOM ANT 2 B ROOM ANT 3 A ROR SENS SIG RPM CTRL PWM RR ANC MIC- RR DEFG RLY OUT RR DOOR SW RR DR SP LH+ RR DR SP RH- RR FLASHER RR IN RR INNER GND RR INNER SIG RR INNER VCC RR LH IN- RR OUT RR RH IN- RR SEN GND RR SENS GND RR SENS PWR RR SENS SIG RR SIDE TWDR RR SURROUND SP LH- RR SURROUND SP RH- RR/FAN F/B RR/FAN OUT RSE AUDIO IN LH- RSE AUDIO IN RH- RSE AUDIO SHIELD RUNNING LAMPS RV POWER RV POWER GND RV PWR RV PWR GND RV SERIAL SIG RV SERIAL SIGNAL RV VIDEO + SHIELD RV VIDEO - RV VIDEO+ RX RR SAT ANT SAT SHIELD SEAT BELT REMINDER SEATS SYSTEM SEATS, MEMORY SYSTEMS SEC PRESS SENS SECURITY IND SELECT SW SENS BANK 1 - SENS BANK 2 + SENS CUSH SENS GND SENS GND 1 SENS IN SENS OUT SENS POWER 1 SENS PWR SPLY SENS PWR SPLY APP SENS 1 SENS RTN SENS SIG SET INPUT SET SW SET- SHIELD (OR SHIELD AUDIO SHIELD SHIELD GND SHIELD M CAN GND SHIELD MIC GND SHIELD SHIELD SHIFT INTERLOCK SYSTEM SHIFT N/P SHIFT P SHIFT P/N SHORTING INPUT SHOULDER BELT SIDE MARKER SIG BAT SIG GND SLIP IND SNOW ECO SOUND SYSTEMS SOUND, NAVIGATION SYSTEMS SPD 8 P/R SPKR PWR SPKR RR SIG SQUIB 1 RH+ SQUIB 2 RH- SQUIB-1 LH+ SQUIB-2 LH- STANDARD ECO STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STEERING COLUMN) STEERING SW STEERING SWITCHES STEP LP CONT STER LH IN- STER RH IN- STOP LMP SW STP LMP SW STP LP SW STRG HTR RLY STRG HTR SW STRT RLY CTRL SUN SENS SUPPLEMENTAL RESTRAINTS SYSTEM SW INPUT TAIL LH TAIL/L RLY TEL OUT TEL SHIELD TEL SIG IN- TEMP SENS THROT MTR CTRL CLS THROT MTR CTRL OPN THROT MTR RLY THROT POS SENS 1 THROT POS SENS 2 THROTTLE POS SENS 1 THROTTLE POS SENS 2 TILT MTR DOWN TIRE PRESSURE IND TMDS DATA 0 - TMDS DATA 0 SHLD TMDS DATA 1 - TMDS DATA 1 SHLD TMDS DATA 2 - TMDS DATA 2 SHLD TMDS DATA CLK + TMDS DATA CLK SHLD TOUCH SENS GND TRAILER FLASHER RL TRAILER FLASHER RR TRAILER RECEPTACLE TRAILER) TRANSMISSIONS SYSTEM TRANSMISSIONS, STARTING/ CHARGING SYSTEMS TRUNK ANT 1 A TRUNK ANT 1 B TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN SIGNAL TX RR UNIFIED METER UP DN UP BK UP DOWN UP SW USB D+ SIG USB D+SIG USB D- USB GND USB VBUS SIG USV 1 USV 2 V BUS SIG V CAN H CAN H V CAN-H V CAN-L V IGN V-CAN-L CAN-L VAC SENS GND VAC SENS PWR VAC SENS SIG VB + VDC OFF IND VDC OFF SW VEHICLE SPD VIAS CTRL SOL VLV 1 VIAS CTRL SOL VLV 2 VIDEO DISTRIBUTOR VIDEO OUTPUT + SHIELD VIDEO OUTPUT - VIDEO SHIELD VOLUME DOWN VOLUME UP VSP-1 W/0 INTELLIGENT CRUISE CONTROL W/ BASE AUDIO SYSTEM W/ BOSE AUDIO SYSTEM W/ CAN GATEWAY SYSTEM W/ CLIMATE CONTROLLED SEAT W/ DRIVER ASSISTANCE SYSTEM W/ HEATED SEATS W/ HEATED STEERING WHEEL W/ HEATED STEERING WHEEL, MEMORY W/ INTELLIGENT CRUISE CONTROL W/ INTELLIGENT CRUISE CONTROL HYBRID EXCEPT HYBRID W/ INTELLIGENT CRUISE CONTROL W/0 INTELLIGENT CRUISE CONTROL W/ MEMORY W/ MEMORY W/O MEMORY HYBRID EXCEPT HYBRID W/ PANORAMIC SUNSHADE W/ PRE-CRASH SEAT BELT SYSTEM W/ SURROUND W/ SURROUND W/O SURROUND W/O CENTER POINT AUDIO W/ CENTER POINT AUDIO W/O CLIMATE CONTROL W/O HEATED STEERING WHEEL, MEMORY W/O INTELLIGENT CRUISE CONTROL W/O INTELLIGENT CRUISE CONTROL W/ INTELLIGENT CRUISE CONTROL W/O MEMORY W/O PANORAMIC SUNSHADE W/O TELEMATICS W/ TELEMATICS WAKE UP/IGN SHIELD MIC OUT GND WARNING, SUPPLEMENTAL RESTRAINTS SYSTEMS WASHER MTR - WASHER MTR SW WATER TEMP GAUGE WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM
