Wiring Diagrams for Infiniti QX56 II (2010-2013)

Automatic a/c circuit

Anti-lock brakes circuit

Forced entry circuit Immobilizer circuit

Body control modules circuit

Computer data lines circuit, w/ icc Computer data lines circuit, with icc Computer data lines circuit, without icc Computer data lines circuit, w/o icc

Cooling fan circuit

Cruise control circuit Intelligent cruise control circuit

Defoggers circuit

Electronic power steering circuit

Electronic suspension circuit

Wiring diagram engine performance 5.6l

Backup lamps circuit Exterior lamps circuit Trailer tow circuit

Ground distribution circuit

Adaptive front lighting circuit Headlamps circuit

Horn circuit

Instrument cluster circuit

Courtesy lamps circuit Instrument illumination circuit

Memory systems circuit

Blind spot information system circuit Lane departure warning circuit Navigation circuit Navigation circuit, 13 speakers Navigation circuit, 15 speakers

Passive restraints circuit

Power distribution circuit

Power door locks circuit

Power mirrors circuit

Climate control seats circuit Heated seats circuit Heated steering wheel circuit Passenger power seat circuit Second row seat release circuit Third row folding seat circuit

Power top/sunroof circuit

Power windows circuit

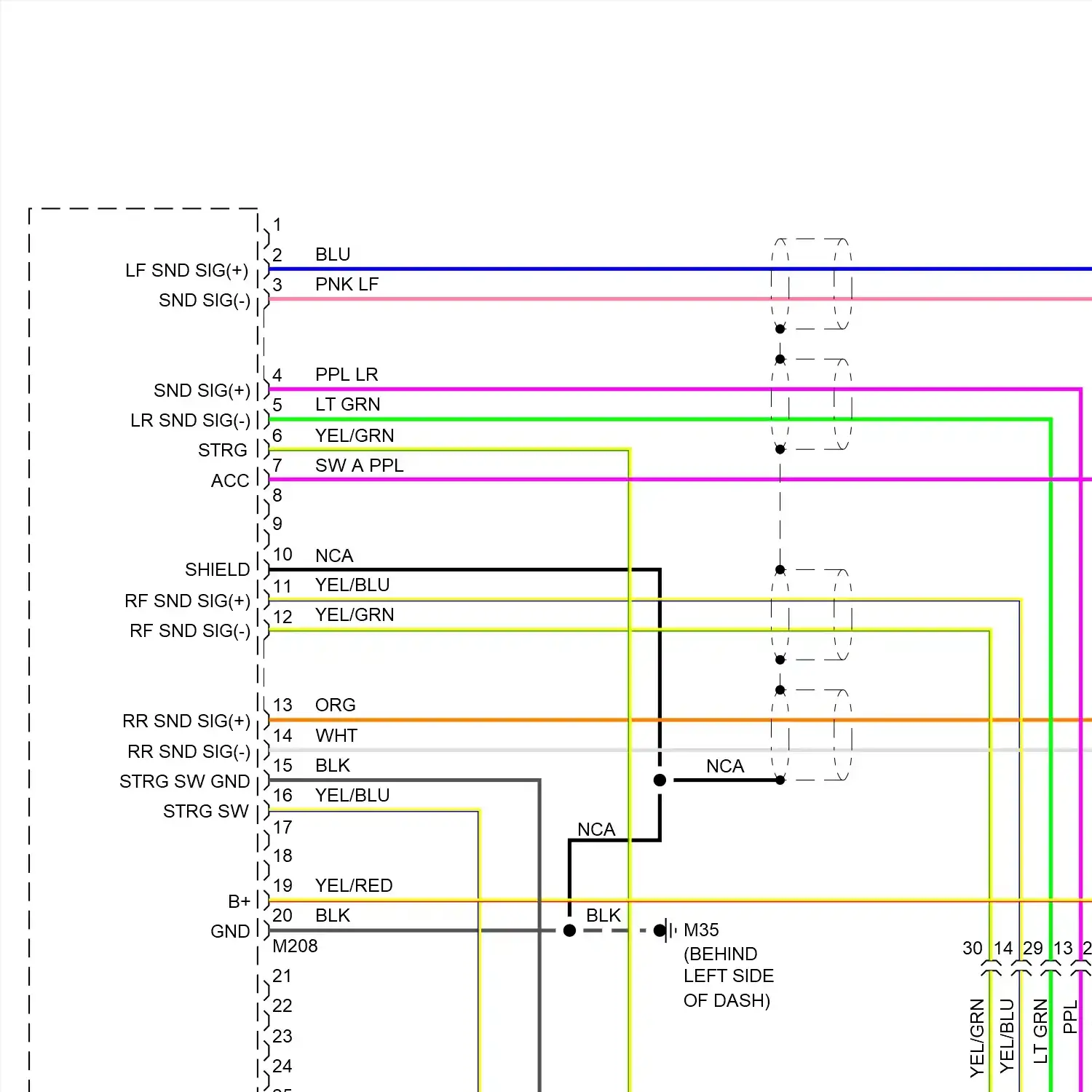

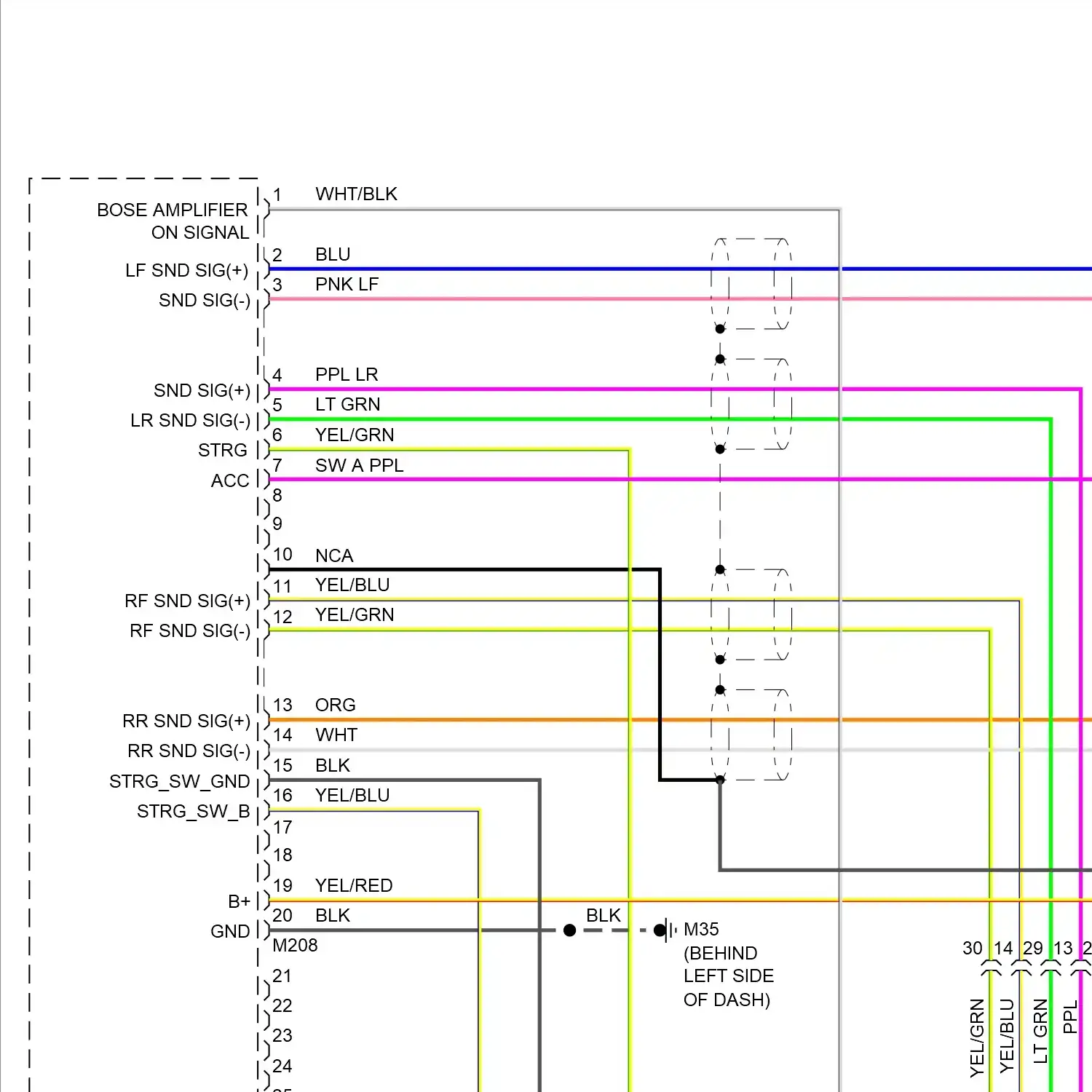

Radio circuit Radio circuit, 13 speakers Radio circuit, 15 speakers

Shift interlock circuit

Charging circuit Starting circuit

Supplemental restraints circuit

4wd circuit A/t circuit

Automatic back door circuit

Chime circuit Tire pressure monitoring circuit

Wiper/washer circuit

A/C AUTO AMPLIFIER ALL DOOR LOCK OUTPUT ALTERNATOR SIG ANTI-LOCK BRAKES SYSTEM ANTI-LOCK BRAKES, CRUISE CONTROL, EXTERIOR LIGHTS SYSTEMS BACK DOOR LOCK ASSEMBLY BATTERY CAN-H GND CAN-H CAN-L BATTERY TERMINAL W/ FUSIBLE LINK BOSE AMPLIFIER BOSE AMPLIFIER ON SIGNAL DRIVER SIDE DOOR LOCK ASSEMBLY DRIVER SIDE FRONT DOOR LOCK ASSEMBLY EXTERIOR LIGHTS, ANTI-LOCK BRAKES SYSTEMS LEFT REAR DOOR LOCK ASSEMBLY LOCK IND LOCK POSITION SEN GND LOCK POSITION SEN SIG LOCK POSITION SEN SPLY LOCK UNLOCK PASSENGER SIDE FRONT DOOR LOCK ASSEMBLY RIGHT REAR DOOR LOCK ASSEMBLY STARTER RLY CONT VEHICLE SECURITY HORN

(RIGHT FRONT OF ENGINE (RIGHT SIDE OF ENGINE ACCELERATOR PEDAL ACTUATOR CLOSURE MOTOR DOOR LOCK ACTUATOR DRIVER SIDE CLIMATE CONTROLLED SEAT CUSHION BLOWER MOTOR DRIVER SIDE CLIMATE CONTROLLED SEAT SEATBACK BLOWER MOTOR DRIVER SIDE FRONT LIFTING MOTOR DRIVER SIDE FRONT POWER WINDOW MOTOR DRIVER SIDE REAR LIFTING MOTOR DRIVER SIDE RECLINING MOTOR DRIVER SIDE SLIDING MOTOR ELECTRIC THROTTLE CONTROL ACTUATOR ENGINE CONTROLS SYSTEM ENGINE CONTROLS SYSTEMS ENGINE CONTROLS, ANTI-THEFT SYSTEMS FRONT BLOWER MOTOR FRONT MODE DOOR MOTOR FUEL LID LOCK ACTUATOR INTAKE DOOR MOTOR LEFT FOLDING MOTOR LEFT FRONT AIR MIX DOOR MOTOR LEFT HEADLAMP AIMING MOTOR LEFT HEADLAMP SWIVEL ACTUATOR LEFT POWER UNLOCK MOTOR LEFT REAR POWER WINDOW MOTOR LOWER RIGHT FRONT OF ENGINE) LUMBAR SUPPORT MOTOR MOTOR BAT MOTOR DRIVE A MOTOR DRIVE B MOTOR GND MOTOR SPLY MOTOR TEMP SEN SPLY PASSENGER SIDE FRONT POWER WINDOW MOTOR REAR AIR MIX DOOR MOTOR REAR BLOWER MOTOR REAR LIFTING MOTOR REAR MODE DOOR MOTOR REAR WIPER MOTOR RECLINING MOTOR RIGHT FOLDING MOTOR RIGHT FRONT AIR MIX DOOR MOTOR RIGHT FRONT FOG LAMP, RIGHT HEADLAMP AIMING MOTOR, RIGHT FRONT COMBINATION LAMP, RIGHT HEADLAMP AIMING MOTOR RIGHT HEADLAMP SWIVEL ACTUATOR RIGHT POWER UNLOCK MOTOR RIGHT REAR POWER WINDOW MOTOR SLIDING MOTOR STARTER MOTOR SUNROOF MOTOR ASSEMBLY, TELESCOPIC MOTOR THROTTLE CONTROL MOTOR TOP OF ENGINE) TRANSFER CONTROL ACTUATOR TRANSFER CONTROL ACTUATOR SHIELD TRANSFER MOTOR UPPER VENTILATOR DOOR MOTOR

ANTENNA AMPLIFIER BACK DOOR OUTSIDE KEY ANTENNA CONSOLE INSIDE KEY ANTENNA DRIVER SIDE OUTSIDE KEY ANTENNA GPS ANTENNA INSTRUMENT CENTER INSIDE KEY ANTENNA LUGGAGE ROOM INSIDE KEY ANTENNA NATS ANTENNA AMPLIFIER PASSENGER SIDE OUTSIDE KEY ANTENNA SATELLITE RADIO ANTENNA

PUSH BUTTON IGNITION SWITCH

CAMERA IMG SIG FR CAMERA COMM FR CAMERA GND FR CAMERA IMG GND FR CAMERA IMG SIG FR CAMERA PWR SPLY FR CAMERA PWR SUPP FRONT CAMERA REAR CAMERA RR CAMERA COMM RR CAMERA GND RR CAMERA IMG GND RR CAMERA IMG SIG RR CAMERA PWR SPLY RR CAMERA PWR SUPP

CUP HOLDER CONSOLE POWER SOCKET DATA LINK CONNECTOR ELECTRIC BRAKE OPTION CONNECTOR FRONT POWER SOCKET JOINT CONNECTOR LUGGAGE ROOM POWER SOCKET OPTION CONNECTOR 1 REAR CONSOLE POWER SOCKET TRAILER OPTION CONNECTOR USB CONNECTOR

AIR LEVELIZER CONTROL MODULE AIR LEVELIZER CONTROL MODULE, LUGGAGE ROOM POWER SOCKET, AUTOMATIC BACK DOOR CONTROL MODULE AUTOMATIC BACK DOOR CONTROL MODULE, BACK DOOR LOCK ASSEMBLY, TRANSMISSION CONTROL MODULE VVEL CONTROL MODULE

ABS ACTUATOR, ELECTRIC UNIT UNIT AFS CONTROL UNIT AIR LEVELIZER CONTROL UNIT AROUND VIEW MONITOR CONTROL UNIT AUTOMATIC DRIVE POSITIONER CONTROL UNIT AV CONTROL UNIT DONGLE UNIT DRIVER SEAT CONTROL UNIT DRIVER SEAT CONTROL UNIT DRIVER SIDE FRONT SEAT DRIVER SIDE CLIMATE CONTROLLED SEAT CONTROL UNIT DRIVER SIDE SEAT BACK THERMAL ELECTRIC UNIT DRIVER SIDE SEAT CUSHION THERMAL ELECTRIC UNIT FRONT DISPLAY UNIT INVERTER UNIT INVERTER UNIT, INVERTER UNIT SHIELD, LANE CAMERA UNIT LEFT HARDEST DISPLAY UNIT LEFT HEADREST DISPLAY UNIT LEFT HEARDEST DISPLAY UNIT LEFT PRE-CRASH SEAT BELT CONTROL UNIT LOW TIRE PRESSURE WARNING CONTROL UNIT OCCUPANT DETECTION SYSTEM CONTROL UNIT PASSENGER SIDE CLIMATE CONTROLLED SEAT CONTROL UNIT PASSENGER SIDE SEAT BACK THERMAL ELECTRIC UNIT PASSENGER SIDE SEAT CUSHION THERMAL ELECTRIC UNIT POWER STEERING CONTROL UNIT RIGHT HARDEST DISPLAY UNIT RIGHT HEADREST DISPLAY UNIT RIGHT PRE-CRASH SEAT BELT CONTROL UNIT SONAR CONTROL UNIT TRANSFER CONTROL UNIT UNIFIED METER CONTROL UNIT

BAT FUSE BATT FUSE FUSE 1 FUSE 2 FUSE 3 FUSE 4 FUSE 5 FUSE 6 FUSE 7 FUSE 8 FUSE 9 FUSE 10 FUSE 11 FUSE 12 FUSE 13 FUSE 14 FUSE 15 FUSE 16 FUSE 18 FUSE 19 FUSE 20 FUSE 21 FUSE 22 FUSE 31 FUSE 32 FUSE 33 FUSE 34 FUSE 35 FUSE 36 FUSE 37 FUSE 38 FUSE 41 FUSE 42 FUSE 43 FUSE 45 FUSE 46 FUSE 47 FUSE 49 FUSE 50 FUSE 51 FUSE 52 FUSE 53 FUSE 54 FUSE 55 FUSE 56 FUSE 57 FUSE 61 FUSE 62 FUSE 64 FUSE 71 FUSE 72 FUSE 73 FUSE 74 FUSE 75 FUSE 76 FUSE 77 FUSE 79 FUSE 80 FUSE 81 FUSE 82 FUSE 83 FUSE 84 FUSE 85 FUSE 86 FUSE 87 FUSE BLOCK J/B (LEFT END FUSE L FUSE M FUSE N/A FUSE, FUSIBLE HOLDER 6 FUSE, FUSIBLE LINK BLOCK FUSE, FUSIBLE LINK HOLDER 1 FUSE, FUSIBLE LINK HOLDER 2 FUSE, FUSIBLE LINK HOLDER 3 FUSE, FUSIBLE LINK HOLDER 4 FUSE, FUSIBLE LINK HOLDER 5 HOT AT ALL TIMES FUSE HOT AT ALL TIMES FUSE 5 HOT AT ALL TIMES FUSE 8 HOT AT ALL TIMES FUSE 9 HOT IN ON OR START FUSE 4

DRIVER SIDE FRONT SEAT HEATER DRIVER SIDE SEAT BACK HEATER DRIVER SIDE SEAT CUSHION HEATER LEFT SEAT BACK HEATER LEFT SEAT CUSHION HEATER MAIN HEATER PASSENGER SIDE FRONT SEAT HEATER PASSENGER SIDE SEAT BACK HEATER PASSENGER SIDE SEAT CUSHION HEATER RIGHT REAR SEAT HEATER RIGHT SEAT BACK HEATER RIGHT SEAT CUSHION HEATER SUB HEATER

A/T CHECK INDICATOR FRONT PASSENGER AIR BAG OFF INDICATOR INDICATOR 1 INDICATOR 2 LEFT BSW INDICATOR MALF- UNCTION INDICATOR LAMP RIGHT BSW INDICATOR

CRUISE CONTROL, EXTERIOR LIGHTS, BODY COMPUTER SYSTEMS DOOR LOCKS, INTERIOR LIGHTS SYSTEMS DRIVER SIDE FOOT LAMP DRIVER SIDE FRONT DOOR GRID MOOD LAMP DRIVER SIDE STEP LAMP DRIVER SIDE VANITY MIRROR LAMP EXTERIOR LIGHTS EXTERIOR LIGHTS SYSTEMS EXTERIOR LIGHTS, CRUISE CONTROL SYSTEMS EXTERIOR LIGHTS, TRANSMISSIONS SYSTEMS HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS HIGH MOUNTED STOP LAMP INT ROOM LAMP PWR SPLY INTERIOR LIGHTS INTERIOR LIGHTS, EXTERIOR LIGHTS SYSTEMS INTERIOR LIGHTS, HEADLIGHTS, EXTERIOR LIGHTS SYSTEMS INTERIOR LIGHTS,, DOOR LOCKS SYSTEMS LEFT BACKUP LAMP LEFT BACKUP LAMP RIGHT BACKUP LAMP LEFT FRONT COMBI- NATION LAMP LEFT FRONT COMBINATION LAMP LEFT FRONT FOG LAMP LEFT LICENSE PLATE LAMP LEFT REAR COMBINATION LAMP LEFT REAR DOOR GRID MOOD LAMP LEFT REAR FOOT LAMP LEFT REAR STEP LAMP LUG ROOM LAMP CONT LUGGAGE ROOM LAMP MAP LAMP PASSENGER SIDE FOOT LAMP PASSENGER SIDE STEP LAMP PASSENGER SIDE VANITY MIRROR LAMP PERSONAL LAMP PUDDLE LAMP PUDDLE LAMP CONT REAR LH DOOR SW LUGGAGE ROOM LAMP CONT REV LAMP RLY RIGHT BACK-UP LAMP RIGHT FRONT COMBI- NATION LAMP RIGHT FRONT COMBINATION LAMP RIGHT FRONT FOG LAMP RIGHT LICENSE PLATE LAMP RIGHT REAR COMBINATION LAMP RIGHT REAR FOOT LAMP RIGHT REAR STEP LAMP ROOM LAMP TIMER CONT STEP LAMP CONT STOP LAMP SW STOP LAMP SW 1 STOP LAMP SW 2 STOP LAMP SW ON

FUEL PUMP CTRL MODULE HEADLAMP WASHER PUMP HI PRESS FUEL PUMP HIGH PRESSURE FUEL PUMP LOW PRESSURE FUEL PUMP WASHER PUMP

A/C RELAY ACC RELAY CONT ACCE- SSORY RELAY ACCESSORY RELAY 2 AIR COMPRESSOR RELAY BACKUP LAMP RELAY BLOWER RELAY CLIMATE CONTROLLED SEAT RELAY ECM RELAY FRONT FOG LAMP RELAY FRONT WIPER HI RELAY FRONT WIPER HIGH RELAY FRONT WIPER RELAY FUSE, FUSIBLE LINK, RELAY BOX HEADLAMP HIGH RELAY HEADLAMP LOW RELAY HEADLAMP WASHER RELAY HEATED STEERING RELAY HORN RELAY HOT W/ ACCESSORY RELAY ENERGIZED HOT W/ IGNITION RELAY 1 ENERGIZED HOT W/ IGNITION RELAY ENERGIZED HOT W/ IGNITION RELAY-2 ENERGIZED ICC BRAKE HOLD RELAY IGN RELAY 3 IGNITION RELAY IGNITION RELAY 1 IGNITION RELAY 2 IGNITION RELAY-3 INJECTOR RELAY INJECTOR RELAY, TRAILER TAIL LAMP RELAY, LEFT DOWN RELAY 1 LEFT DOWN RELAY 2 LEFT POWER UNLOCK RELAY LEFT TRAILER TURN SIGNAL LAMP RELAY LEFT UP RELAY 1 LEFT UP RELAY 2 REAR A/C RELAY REAR WINDOW DEFOGGER RELAY RIGHT DOWN RELAY 1 RIGHT DOWN RELAY 2 RIGHT POWER UNLOCK RELAY RIGHT TRAILER TURN SIGNAL LAMP RELAY RIGHT UP RELAY 1 RIGHT UP RELAY 2 ST RELAY CONT STARTER CONTROL RELAY STARTER RELAY STARTER RELAY CONT STOP LAMP RELAY TAIL LAMP RELAY THROTTLE CONTROL MOTOR RELAY TRAILER POWER RELAY TRAILER TAIL LAMP RELAY VEHICLE SECURITY HORN RELAY VVEL ACTUATOR MOTOR RELAY WIPER DEICER RELAY

A/T FLUID TEMP SENSOR ACCELERATOR PEDAL POSITION SENSOR AIR BAG DIAGNOSIS SENSOR UNIT AMBIENT SENSOR ATF PRESSURE SENSOR BATTERY CURRENT SENSOR BATTERY TEMPERATURE SENSOR BREAK PEDAL STROKE SENSOR CRANKSHAFT POSITION SENSOR CRASH ZONE SENSOR ECM, ICC SENSOR, ENGINE COOLANT TEMPERATURE SENSOR ENGINE OIL TEMPERATURE SENSOR EVAP CONTROL SYSTEM PRESSURE SENSOR EXHAUST GAS/OUTSIDE DOOR DETECTING SENSOR FRONT HEIGHT SENSOR FRONT IN-VEHICLE SENSOR FRONT LIFTING SENSOR FUEL LEVEL SENSOR, FUEL PUMP ASSEMBLY FUEL RAIL PRESSURE SENSOR FUEL TANK TEMPERATURE SENSOR HEIGHT SENSOR ICC SENSOR INPUT SPEED SENSOR 1 INPUT SPEED SENSOR 2 INTAKE SENSOR INTAKE TEMPERATURE SENSOR INTERNAL SPEED SENSOR KNOCK SENSOR BANK 1 KNOCK SENSOR BANK 2 LEFT FRONT CORNER SENSOR LEFT FRONT SATELLITE SENSOR LEFT FRONT WHEEL SENSOR LEFT REAR CORNER SENSOR LEFT REAR SATELLITE SENSOR LEFT REAR SATELLITE SENSOR SHIELD LEFT REAR WHEEL SENSOR LEFT TOUCH SENSOR LOW FUEL PRESSURE SENSOR MANIFOLD ABSOLUTE PRESSURE SENSOR MASS AIR FLOW SENSOR OPTICAL SENSOR OUTPUT SPEED SENSOR POWER STEERING PRESSURE SENSOR RAIN SENSOR REAR HEIGHT SENSOR REAR IN-VEHICLE SENSOR REAR LIFTING SENSOR RECIVER/SENSOR GND RECLINING SENSOR REFRIGERANT PRESSURE SENSOR RIGHT FRONT CORNER SENSOR RIGHT FRONT SATELLITE SENSOR RIGHT FRONT WHEEL SENSOR RIGHT REAR CORNER SENSOR RIGHT REAR SATELLITE SENSOR RIGHT REAR SATELLITE SENSOR SHIELD RIGHT REAR WHEEL SENSOR RIGHT TOUCH SENSOR SENSOR 1 SENSOR 2 SENSOR GND SLIDING SENSOR STEERING ANGLE SENSOR SUNLOAD SENSOR THROTTLE POSITION SENSOR TRANSFER FLUID TEMPERATURE SENSOR TRANSFER HI-LO POSITION SENSOR TRANSFER LOCK POSITION SENSOR TRANSFER MOTOR TEMPERATURE SENSOR TRANSFER ROTARY POSITION SENSOR UNLOCK SENSOR YAW RATE/SIDE/DECEL G SENSOR

CENTER SPEAKER LEFT FRONT DOOR SPEAKER LEFT FRONT LEFT FRONT DOOR DOOR SPEAKER TWEETER LEFT REAR DOOR SPEAKER LEFT ROOF SPEAKER RIGHT FRONT DOOR SPEAKER RIGHT REAR DOOR SPEAKER RIGHT ROOF SPEAKER

ASCD BRAKE SWITCH ASCD STEERING SWITCH AUTOMATIC BACK DOOR CLOSE SWITCH AUTOMATIC BACK DOOR MAIN SWITCH BACK DOOR OPENER SWITCH BACK DOOR OPENER SWITCH ASSEMBLY BACK DOOR OPENER SWITCH ASSEMBLY, LEFT REAR DOOR SWITCH, BACK DOOR REQUEST SWITCH BACK DOOR SWITCH BRAKE FLUID LEVEL SWITCH CANCEL SWITCH CHANGE OVER SWITCH CLOSE SWITCH COMBINATION SWITCH DOOR KEY CYLINDER SWITCH DOOR LOCK, UNLOCK SWITCH DOOR MIRROR REMOTE CONTROL SWITCH DOOR SWITCH DRIVER DOOR SIDE SWITCH DRIVER HEATED SEAT SWITCH DRIVER SIDE CLIMATE CONTROLLED SEAT SWITCH DRIVER SIDE FRONT DOOR REQUEST SWITCH DRIVER SIDE FRONT DOOR SWITCH DRIVER SIDE POWER SEAT SWITCH FRONT LIFTING SWITCH FRONT PASSENGER HEATED SEAT SWITCH HALF SWITCH HAZARD SWITCH HEATED STEERING WHEEL SWITCH HOOD SWITCH HORN SWITCH IBA OFF SWITCH ICC BRAKE SWITCH ICC STEERING SWITCH ILLUMINATION CONTROL SWITCH IMG SWITCH SIG KEY CYLINDER SWITCH LEFT FOLD DOWN SWITCH LEFT REAR DOOR SWITCH LEFT REAR POWER WINDOW SWITCH LEFT RECLINING SWITCH LEFT SECOND HEATED SEAT SWITCH LEFT SECOND SEAT POWER UNLOCK SWITCH LOCK SWITCH LUMBAR SUPPORT SWITCH MIRROR SWITCH MODE SELECT SWITCH MULTI- FUNCTION SWITCH OIL PRESSURE SWITCH OPEN SWITCH OPEN/CLOSE SWITCH PARK POSITION SWITCH PARKING BRAKE SWITCH PASSENGER SIDE CLIMATE CONTROLLED SEAT SWITCH PASSENGER SIDE CLIMATE CONTROLLED SEAT SWITCH ILLUMINATION PASSENGER SIDE FRONT DOOR REQUEST SWITCH PASSENGER SIDE FRONT DOOR SWITCH PASSENGER SIDE FRONT POWER WINDOW SWITCH PASSENGER SIDE POWER SEAT SWITCH POSITION SELECT SWITCH POWER WINDOW LOCK SWITCH POWER WINDOW MAIN SWITCH PUSH SWITCH PUSH+ ROTARY SWITCH REAR LIFTING SWITCH RECLINING SWITCH RESUME/ACCEL SWITCH RIGHT FOLD DOWN SWITCH RIGHT REAR DOOR SWITCH RIGHT REAR POWER WINDOW SWITCH RIGHT RECLINING SWITCH RIGHT SECOND HEATED SEAT SWITCH RIGHT SECOND SEAT POWER UNLOCK SWITCH SEAT BELT BUCKLE SWITCH SEAT MEMORY SWITCH SET/COAST SWITCH SHIFT POSITION SWITCH SLIDING SWITCH SNOW MODE SWITCH SNOW MODE/ TOW MODE/ VDC OFF SWITCH ASSEMBLY SNOW MODE/TOW MODE/ VDC OFF SWITCH ASSEMBLY STEERING SWITCH STEERING SWITCH ILLUMINATION STOP LAMP SWITCH SUNROOF SWITCH SWITCH 1 SWITCH 2 SWITCH 3 SWITCH 4 SWITCH GND TELESCOPIC SWITCH TILT SWITCH TILT, TELESCOPIC SWITCH TOW MODE SWITCH TRANSMISSION RANGE SWITCH TRANSMISSION RANGE SWITCH A/T ASSEMBLY TRIP COMPUTER SWITCH TRIP RESET SWITCH TRIP RESET, ILLUMINATION CONTROL SWITCH UNLOCK SWITCH VDC OFF SWITCH WASHER LEVEL SWITCH

2346 BRAKE SOLENOID VALVE ANTI- INTERLOCK SOLENOID VALVE CTRL SOL VALVE DIRECT CLUTCH SOLENOID VALVE EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE EVAP CANISTER VENT CONTROL VALVE EXHAUST SOLENOID EXHAUST SOLENOID GND EXHAUST SOLENOID PWR SPLY FRONT BRAKE SOLENOID VALVE HIGH BEAM SOLENOID HIGH, LOW REVERSE CLUTCH SOLENOID VALVE LOW BRAKE SOLENOID VALVE INPUT CLUTCH SOLENOID VALVE LINE PRESSURE SOLENOID VALVE POWER STEERING SOLENOID VALVE REAR A/C SOLENOID VALVE SHIFT LOCK SOLENOID TORQUE CONVERTER CLUTCH SOLENOID VALVE

1 21 CAN-H CAN-L PNK WIRE 2 1 CAN-H CAN-L PNK WIRE 5 2 PNK WIRE 5 6 PNK WIRE 7 6 CAN-H CAN-L PNK WIRE 8 3 PNK 32 31 8 3 CAN-L CAN-H WIRE 11 12 PNK WIRE 13 12 PNK CAN-L CAN-H WIRE 14 4 CAN-H CAN-L PNK WIRE 16 7 CAN-H CAN-L PNK WIRE 16 32 PNK WIRE 21 22 CAN-H CAN-L PNK WIRE 26 27 PNK CPU WIRE 27 26 CPU PNK WIRE 27 41 PNK CAN-L CAN-H WIRE 30 7 CAN-H PNK CAN-L WIRE 39 40 CAN-H CAN-L PNK WIRE 41 27 CAN-H CAN-L PNK WIRE 59 60 CAN-H CAN-L PNK WIRE 146 151 166 161 CAN COMM LINE CAN COMM LINE PNK WIRE (OR RED/ WIRE BACKWARD PNK UPWARD WIRE BLK WIRE BLK YEL/RED WIRE BLK/BLU WIRE BLK/LT BLU WIRE BLK/ORG WIRE BLK/RED WIRE BLK/WHT WIRE BLK/YEL WIRE BLU WIRE BLU/BLK WIRE BLU/GRN WIRE BLU/LT BLU WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE BLU/YEL WIRE BRN WIRE BRN/RED WIRE BRN/WHT WIRE BRN/YEL WIRE CAN COMM LINE PNK CAN COMM LINE WIRE CAN COMMUNICATION LINE PNK CAN COMMUNICATION LINE WIRE CAN-H PNK CAN-L WIRE COMPOSITE IMG SIG GND PNK COMPOSITE IMG SIG WIRE CPU PNK WIRE GRN WIRE GRN/BLK WIRE GRN/ORG WIRE GRN/RED WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLK WIRE GRY/BLU WIRE GRY/RED WIRE GRY/YEL WIRE KYLS ENT RECEIVER COMM PNK NATS ANT AMP WIRE LT BLU WIRE LT GRN PNK/ WIRE LT GRN WIRE LT GRN/BLK WIRE LT GRN/RED WIRE NCA WIRE ORG WHT/BLU WIRE ORG/ WIRE ORG/BLK WIRE ORG/BLU WIRE PNK 2 18 1 17 3 20 21 5 23 8 7 19 WIRE PNK CAMSHAFT POS SENS WIRE PNK CAN-L WIRE PNK CLK WIRE PNK OPEN SW WIRE PNK SENS PWR SPLY WIRE PNK WIRE PNK/BLK WIRE PNK/BLU WIRE PPL/RED WIRE PPL/WHT WIRE RED WIRE RED/BLK WIRE RED/BLU WIRE RED/GRN WIRE RED/ORG WIRE RED/WHT WIRE RED/YEL WIRE WHT WIRE WHT/BLK WIRE WHT/BLU WIRE WHT/GRN WIRE WHT/RED WIRE YEL WIRE YEL/BLK WIRE YEL/BLU WIRE YEL/GRN WIRE YEL/PPL WIRE YEL/RED WIRE

1 2 3 4 5 6 7 8 9 10 11 12 CAN-H 1 17 CAN-H CAN-L PPL 4 5 ITS COMM-L ITS COMM-H 6 3 ITS COMM -H ITS COMM -L 8 4 ITS COMM-L ITS COMM-H 18 19 20 PPL 24 11 CAN-L CAN-H 28 29 PPL 29 13 PPL 146 151 166 161 CAN COMM LINE CAN COMM LINE & RECEIVER (OR (PINS 13 TO 17 +IG A/C AUTO AMP A/C AUTO AMP CONT RECOG SIG A/C COMPRESSOR A/F SENS 1 A/F SENS 1 HTR A/T ASSEMBELY A/T ASSEMBLY A/T SHIFT SEL PWR SPLY A/T SHIFT SEL- ECT PWR SPLY A/T SHIFT SELECT A/T SHIFT SELECT PWR SPLY A/T SHIFT SELECTOR ABD CLOSE SW ABD SW ACC IND ACC PEDAL POS SENS 1 ACC PEDAL POS SENS 2 ACC PWR SUPP ACC SIG ACC SIG FOR LH ACC SIG FOR LH DISPLAY ACC SIG FOR RH ACC SIG FOR RH DISPLAY ACCELERATE, ADDRESS 2 ADDRESS-1 AFS OFF IND AIR BAG IND AIR BAG SIG AIR COMPRESSOR AIR COMPRESSOR GND AIR COMPRESSOR PWR SPLY AIR CONDITIONING SYSTEM AIR CONDITIONING, TRUNK, TAILGATE, FUEL DOORS, SEATS, NAVIGATION, SOUND SYSTEMS AIR FLOW SENS AIR TEMP SENS AIRBAG W/L ALL DOOR LCK OUTPUT AM-FM MAIN AMB SENS GND AMB SENS SIG AMBIENT SENS GND AMBIENT SENS SIG AMDS-L AMDS-R ANT AMP ON SIG ANTEN AMP ON SIG ANTI-THEFT SYSTEM ANTI-THEFT, DOOR LOCKS SYSTEMS ANTI-THEFT,DOOR LOCKS, WARNING SYSTEMS AS REQUEST SW ASSISTANCE) AUTO ANTI-DAZZLING INSIDE MIRROR AUTO SW AUTOMATIC BACK DOOR WARNING BUZZER AUX IMG SIG AUX IMG SIG GND AUX SND SIG GND AV COMM AV GND AV GND FOR LH AV GND FOR RH B+ GND BACK DOOR ANT - BACK DOOR OPENER SW BACK DOOR OPNR SW BACK DOOR REQ SW BACK DOOR SW BACK DR ANT+ BACK- WARD BACKUP LAMPS CIRCUIT BAT PPL BAT BAT PWR SPLY BAT PWR SPLY GND BAT PWR SPLY PPL ACC PWR SPLY BATT CURRENT SENS BATT PWR SIGNAL BATT TEMP SENS BETWEEN BETWEEN FULL STROKE, N FULL STROKE, N BETWEEN FULL STROKE FULL STROKE, N BETWEEN FULL STROKE, N BK DOOR OPNR SW BK DOOR SW BK FD BK FD BK BLWR FAN MTR RELY CONT BODY COMPUTER SYSTEM BODY COMPUTER, TRANSMISSIONS SYSTEMS BOSE AMP ON SIG BRAKE FLUID LEVEL SW BRAKE HOLD RLY DRV SIG GND BSW IND BUCKLE SW LH NO BUCKLE SW RH+ BWD FWD CAMSHAFT POS SENS CAN COMM CAN COMM LINE CAN COMM LINE ECM COMM LINE CAN COMMUNICATION LINE CAN GATEWAY CAN L CAN-H CAN-L IGN SIGNAL CANISTR VENT CTRL VLV CHARGE IND CIRCUIT BREAKER CLH - CLOSE SW COM IM SIG GND COMB SW OUT 1 COMB SW OUT 2 COMB SW OUT 3 COMBI SW IN 1 COMBI SW IN 2 COMBI SW IN 3 COMBI SW IN 4 COMBI SW IN 5 COMBI SW INPUT 1 COMBI SW INPUT 2 COMBI SW INPUT 2 PPL COMBI SW INPUT 1 COMBI SW INPUT 3 COMBI SW INPUT 4 COMBI SW INPUT 5 COMBI SW OUT 1 COMBI SW OUT 2 COMBI SW OUT 3 COMBI SW OUT 4 COMBI SW OUT 5 COMBI SW OUTPUT 1 COMBI SW OUTPUT 2 COMBI SW OUTPUT 3 COMBI SW OUTPUT 4 COMBI SW OUTPUT 5 COMBINATION METER COMM CONT COMM DISP COMP IMG COMP IMG SIG COMP IMG SIG GND COMP IMG SYNC SIG COMP IMG SYNGC SIG COMPT IMG GND COMPT IMG SIG COMPT IMG SIG GND COMPT SND SIG COMPUTER DATA COMPUTER DATA LINES SYSTEM CONN RECOG SIG CONT GND CONTROL SIG COOL IND COOLING FAN COOLING FAN SPEED COOLING FANS SYSTEM CORNER SEN LF CORNER SEN LR CORNER SEN RF CORNER SEN RR CRANKING REQ CRANKING REQUEST CRH - CRNKSHFT POS SENS CRUISE CONTROL SYSTEM CRUISE CONTROL, NAVIGATION, SOUND SYSTEMS CRUISE IND CTRL SOL VLV CUTOFF TELLTALE DATA LINES DEFOGGER SYSTEM DIAG SIG DIMMER SIG DIMMER SIGNAL DISK EJECT SIG DISK EJECT SIG MODE CHANGE SIG DN CL DN UP FD DN UP UP DN BK FD DONGLE LINK DOOR LOCKS SYSTEM DOOR LOCKS, ANTI-THEFT SYSTEMS DP FL DP FR DP RL DP RR DR DOOR ANT+ DR DOOR REQ SW DR DOOR UNLCK SENS DR DOOR UNLOCK SENS DRIVER AIR BAG MODULE DRIVER DOOR SW DRIVER DR SW DRIVER SIDE DOOR MIRROR DRIVER SIDE FRONT SEAT DRIVER SIDE SEAT BELT ASSEMBLY DRIVER'S DOOR SW DRV DR ANT+ DRV DR REQ SW DRV DR REQUEST SW DRV DR UNLCK SENS DRV PWR SPLY DS FL DS FR DS RL DS RR EACH DR MTR LIN SIG EACH DR MTR PWR SPLY ECM COMM LI ECM COMM LI ECM COMM LINE ECM GND ECM RLY ELECTRICALLY CONTROLLED COOLING FAN COUPLING ELECTRONIC SUSPENSION SYSTEM ELECTRONICALLY CONTROLLED COOLING FAN COUPLING ENG COOL TEMP SENS ENG SPD SIG OUT ENG START SW ENG TACHO ENTER SW SIG EPS SOL GND EPS SOL SPLY EVAP CTRL PRESS SENS EXH GAS/OUT SIDE DR DETECTING SENS SIG FAM MTR RLY CONT FD BK FD FD FD BK BK FD FL TIRE PRESSURE RECEIVER GND FL TIRE PRESSURE RECEIVER PWR SPLY FL TIRE PRESSURE RECEIVER SIG FM SUB FOR- WARD FPC IN SIG FR BLWR MTR CTRL SIG FR IN-VEH SENS SIG FR TIRE PRESSURE RECEIVER GND FR TIRE PRESSURE RECEIVER PWR SPLY FR TIRE PRESSURE RECEIVER SIG FRONT AUXILIARY INPUT JACKS FRONT PASSENGER SIDE SEAT FUEL INJ DRV PWR SPLY FUEL INJECTOR 1 FUEL INJECTOR 2 FUEL INJECTOR 3 FUEL INJECTOR 4 FUEL INJECTOR 5 FUEL INJECTOR 6 FUEL INJECTOR 7 FUEL INJECTOR 8 FUEL LEVEL SENS SIG FUEL LID UNLK OUTPUT FUEL LVL SENS GND FUEL PRESS SENS FULL FULL STROKE STROKE FULL STROKE FULL STROKE FULL STROKE, N FUSIBLE LINK A FUSIBLE LINK B FUSIBLE LINK C FUSIBLE LINK D FUSIBLE LINK E FUSIBLE LINK F FUSIBLE LINK G FUSIBLE LINK H FUSIBLE LINK HOLDER 1 FUSIBLE LINK HOLDER 2 FUSIBLE LINK I FUSIBLE LINK J FUSIBLE LINK K FUSIBLE LINK L FUSIBLE LINK M FUSIBLE LINK N FUSIBLE LINK O FUSIBLE LINK P FUSIBLE LINK Q FUSIBLE LINK R FUSIBLE LINK S FUSIBLE LINK T FUSIBLE LINK U FUSIBLE LINK V GND 3 GND TOUCH SENS GPS ANTEN SIG H/LP HI H/LP LO HALF LATCH SW HAZARD SW HEADLIGHTS SYSTEM HEAT IND HEATED OXYGEN SENS HEATED STEERING WHEEL HI MID HI MID LO HI SENS PWR SPLY HI-LO POSITION SEN 1 HI-LO POSITION SEN 2 HI-LO POSITION SEN 3 HID CONT HIGH BEAM IND HORNS SYSTEM HOT AT ALL TIMES HOT IN ON OR HOT IN ON OR ACC HOT IN ON OR START HS-F HS-R HSG-F HSV-F HSV-R I KEY IDNT SIG I KY LNK OUTPUT I-KEY WARN BUZZER IBA OFF SW ICC BRAKE SW ICC BRK SW ICC STEERING SW ICC STERNG SW IDNT SIG IGN 2 IGN PWR SPLY IGN PWR SPLY 2 IGN PWR SPLY 2 SHIFT N/P IGN RLY IGN SIG IGN SIG 1 IGN SIG 2 IGN SIG 3 IGN SIG 4 IGN SIG 5 IGN SIG 6 IGN SIG 7 IGN SIG 8 IGN SW IGNITION CAN-L GND CAN-L IGNITION SIG IGNITION SIGNAL IGNTION SIG ILL IND ILL+ GND ILLU SIG ILLUMI- NATION IMAGE SIG IMG GND IMG SIG IN LUGGAGE COMPT) IND 1 IND 2 INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 INPUT 5 PPL OUT 1 INPUT 5 PPL OUTPUT 1 OUTPUT 2 INSTRUMENT CLUSTER SYSTEM INSTRUMENT CLUSTER, COMPUTER DATA LINES SYSTEMS INT ROOM LP PWR SPLY INT SPEED SEN DIR INTAKE SENS SIG INTELLIGENT KEY BUZZER INTELLIGENT KEY WARNING BUZZER INTERNAL SPEED SEN GND INTERNAL SPEED SEN IMP PPL INTERNAL SPEED SEN SPLY ION MODE ION ON/OFF IONIZER CTRL SIG ITS COMM-H ITS COMM-H ITS COMM-L ITS COMM-L JOINT CONNE- CTOR K LINE KEY IND KEY LINK OUTPUT KNK SENS KYLS ENT RECE COMM KYLS ENT RECE RSSI KYLS ENT RECEIVER COMM KYLS ENT RECEIVER RSSI KYLS ENT RECIVER COMM KYLS ENT RECIVER RSSI LAGGAGE ROOM ANT- LAP PRE TENSIONER LEFT "C" PILLAR) LEFT FRONT CURTAIN AIR BAG MODULE LEFT FRONT DOOR TWEETER LEFT FRONT TIRE PRESSURE RECEIVER LEFT REAR CURTAIN AIR BAG MODULE LEFT REAR DOOR TWEETER LEFT REAR TIRE PRESSURE RECEIVER LEFT SEAT BELT PRE-TENSIONER LEFT SECOND SEAT LEFT SIDE AIR BAG MODULE LEFT SIDE RADAR LEFT SQUAWKER LEFT THIRD SEAT LH BUCKLE SW LH BUCKLE SW INPUT LH CONT TRAILER TURN SIG LH REAR DOOR SW LH REAR DOOR SW DRIVER DOOR SW LH SIDE CAM COMM LH SIDE CAM GND LH SIDE CAM IMG GND LH SIDE CAM IMG SIG LH SIDE CAM PW SUPL LH SIDE CAM PWR SPLY LH TOUCH SENS LINES SYSTEM LO MID LOCAL COMM 1 LOCAL COMM 2 LOCAL COMM 2 SHIELD SHIELD GND LOCATION RECN SIG LOCATION RECOGN SIG LOW HIGH OFF LOW OFF LOW SIDE PUSH LED LUGGAGE ROOM ANT+ M-RLY MAIN SW MANUAL AUTO MANUAL MODE SHIFT DN SIG MANUAL MODE SHIFT DOWN SIG MANUAL MODE SHIFT UP SIG MANUAL MODE SIG MEM 1 SET MEM 2 MEMORY SYSTEMS MEMORY, BODY COMPUTER SYSTEMS MENU DOWN MENU UP MICRO SHIELD MICROPH VCC MICROPHONE SIG MIRRORS, NAVIGATION, AIR CONDITIONING, SOUND SYSTEMS MODE CHANGE SIG MTR PWR 2 MTR SUPPLY NATS ANT AMP NAVIGATION SYSTEM NAVIGATION, SOUND SYSTEM NAVIGATION, SOUND SYSTEMS NON MANUAL MODE SIG NOT USED NOT USED) (PINS 13 TO 17 ODS INPUT OF DASH) OFF OFF OIL TEMP SENS ON IND. OPEN SW OPTICAL SENS OUT 1 - OUT 2 + OUT 3 OUT 4 OUT 5 OUT PUT OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OXYGEN SENS 2 P-GND PARK- ING PARKING BRAKE SW SIGNAL PARKING BRK SW SIG PASS DOOR ANT+ PASS DOOR REQ SW PASS DOOR SW PASS DOOR UNLK OUT PASS DOOR UNLK OUTPUT PASS DR ANT+ PASS DR REQUEST SW PASSENGER AIR BAG MODULE PASSENGER DOOR SW PASSENGER SEAT BELT WARNING SIG PASSENGER SIDE DOOR MIRROR PASSENGER SIDE FRONT SEAT PASSENGER SIDE SEAT BELT ASSEMBLY PASSIVE RESTRAINT SYSTEM PASSIVE RESTRAINTS SYSTEM PKNG BRAKE SIG POWER DISTRIBUTION SYSTEM POWER TOPS SYSTEM POWER WINDOWS SYSTEM POWER WINDOWS, POWER TOPS SYSTEMS POWER WINDOWS, SEATS SYSTEM PPL 5 21 20 3 17 1 18 2 19 7 8 23 PPL 28 29 PPL ABSOLUTE PRESS SENS PPL AUX IMG GND PPL AUX IMG GND SHIELD PPL CAN-L PPL COMBI SW INPUT 1 PPL COOL FAN SPEED ELECTRICALLY CTRLD SENS GND PPL DR DOOR, FUEL LID UNLCK OUT GND PPL POWER WINDOW SW COMM PPL PPL PPL PWR WINDOW SW COMM PRESS SENS PRESS. PRH - PS-L PS-R PSG-L PSG-R PSH-BTN IGN SW ILL PWR PSV-L PSV-R PUSH BTN IGN SW ILL PWR PUSH SW PWR SPLY PWR SPLY FOR ECM PWR STRNG SENS PWR WINDOW SW COMM R/L SW SIG RAIN SENS SERIAL LINK REAR A/C CONTROL REAR AUXILIARY INPUT JACKS REAR DOOR UNLK OUTPUT REAR LH DOOR SW REAR RH DOOR SW REAR WINDOW DEFOGGER REAR WIP ST POS REAR WIPER OUT REAR WIPER OUTPUT PASS, REAR DOOR UNLK OUTPUT REAR WIPER STP POS RECE PWR SPLY RECE SENS GND RECEIVER PWR SPLY RECEIVER RSSI RECEIVER SIG RECEIVER, SENS GND RECEIVER/SENS GND RECIVER PWR SPLY REFR PR SENS REFRI PRESS SENS REMOTE KEYLESS ENTRY RECEIVER REQ+ REVERSE SIG RGB DIGITAL RH BUCKLE SW RH BUCKLE SW INPUT RH CONT TRAILER TURN SIG RH REAR DOOR SW RH SIDE CAM GND RH SIDE CAM IMG GND RH SIDE CAM IMG SIG RH SIDE CAM PW SUPP RH SIDE CAM PWR SPLY RH SIDE COMM RH TOUCH SENS RIGHT END OF DASH) RIGHT FRONT CURTAIN AIR BAG MODULE RIGHT FRONT TIRE PRESSURE RECEIVER RIGHT REAR CURTAIN AIR BAG MODULE RIGHT REAR DOOR TWEETER RIGHT REAR TIRE PRESSURE RECEIVER RIGHT SEAT BELT PRE-TENSIONER RIGHT SECOND SEAT RIGHT SIDE AIR BAG MODULE RIGHT SIDE RADAR RIGHT SQUAWKER RIGHT THIRD SEAT RL TIRE PRESSURE RECEIVER GND RL TIRE PRESSURE RECEIVER PWR SPLY RL TIRE PRESSURE RECEIVER SIG RLY CONT ROOM LP TIMER CONT ROTARY POSITION SEN GND ROTARY POSITION SEN PWM ROTARY POSITION SEN SPLY RR A/C RL CTRL SIG RR BLWR MTR CTRL SIG RR CONT RX RR CONT TX RR IN-VEH SENS SIG RR TIRE PRESSURE RECEIVER GND RR TIRE PRESSURE RECEIVER PWR SPLY RR TIRE PRESSURE RECEIVER SIG SAT ANTA SIG SATE ANTA SIG SEAT BELT IND SEAT BELT W/L SEATBELT W/L SEATS SYSTEM SEATS, MEMORY, BODY COMPUTER SYSTEMS SECURITY IND SECURITY IND CONT SECURITY SIG SECURITY SIG WASHER LEVEL SW SIG SELECT LH SELECT RH SELECT SW SIG SELECTOR LEVER POSITION IND SEN GND SEN PWR SUP SENS GND SENS GND 1 SENS POWER 1 SENS PWR SPLY SERIAL LINK SET SW SET- SHIELD 25 11 10 26 27 SHIELD 25 27 26 11 10 SHIFT INTERLOCK SYSTEM SHIFT N/P SHIFT P SIDE INF LH- SIDE MARKER SIDE SENS LH- SIDE SENS RH- SIG BAT SIG GND SIG OUT SNOW MODE SIG SNSR GND SOUND SYSTEMS SOUND, NAVIGATION SYSTEMS SPD SIG OUT START RLY STARTING/ CHARGING SYSTEM STARTING/CHARGING SYSTEM STOP LP SW STOP MOVE STP 2 STRG SW A PPL STRG SW B STRG SW GND STRG_SW_B STRG_SW_GND SUPPLEMENTAL RESTRAINTS SYSTEM SW GND SW IND SW SIG SYN SIG SYNC SIG TEL UP TELESCOPIC SENS TEMP SENS THERM- OSTAT THROT POS SENS 2 THROTTLE CTRL MTR OPEN THROTTLE CTRL MTR PWR SPLY THROTTLE CTRL MTR RLY THRT CTRL MTR RLY THRT CTRL PWR SPLY THRT POS SENS 1 TILT SENS TIRE PRESSURE IND TOW MODE SIG TR RANGE SW TRAILER TURN SIG LH CONT TRAILER TURN SIG RH CONT TRANSFER C/U SPLY TRANSFER FLUID TEMP SEN GND TRANSFER FLUID TEMP SEN SPLY TRANSMISSIONS SYSTEM TRIP RESET SW SIG TRUNK, TAILGATE, FUEL DOORS SYSTEM TURN IND, TAIL IND, BUZZER TURN SIG LH OUT TURN SIG LH OUTPUT TURN SIG RH OUT TURN SIG RH OUTPUT TURN SIGNAL USB D+ SIG USB D- DIG USB GND V BUS SIG VDC OFF IND, ABS IND BRAKE IND, VDC IND VDC OFF SW VEH SPD VEHICLE HEIGHT SENS GND VEHICLE HEIGHT SENS SIG VIDEO DISTRIBUTOR VOICE SIG VOLUME DOWN VOLUME UP VOLUME- VVEL CTRL MODULE W/ AFS W/ ICC W/O ICC W/ PRE-CRASH SEAT BELT W/ REAR ENTERTAINMENT W/O REAR ENTERTAINMENT WARN BUZZER WARNING BUZZER WARNING SYS ON IND WARNING SYS SW WARNING SYSTEM WARNING SYSTEM ON IND WARNING SYSTEM SW WARNING SYSTEMS SW WASH LEVEL SW SIG WIPER DEICER WIPER/ WASHER SYSTEM WIPER/WASHER SYSTEM
