Infiniti M45 II (2002-2004) haz sw, bcm Wiring diagram
This page shows the only wiring diagram for the component.haz sw, bcm, which is found in the car Infiniti M45 II (2002-2004). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

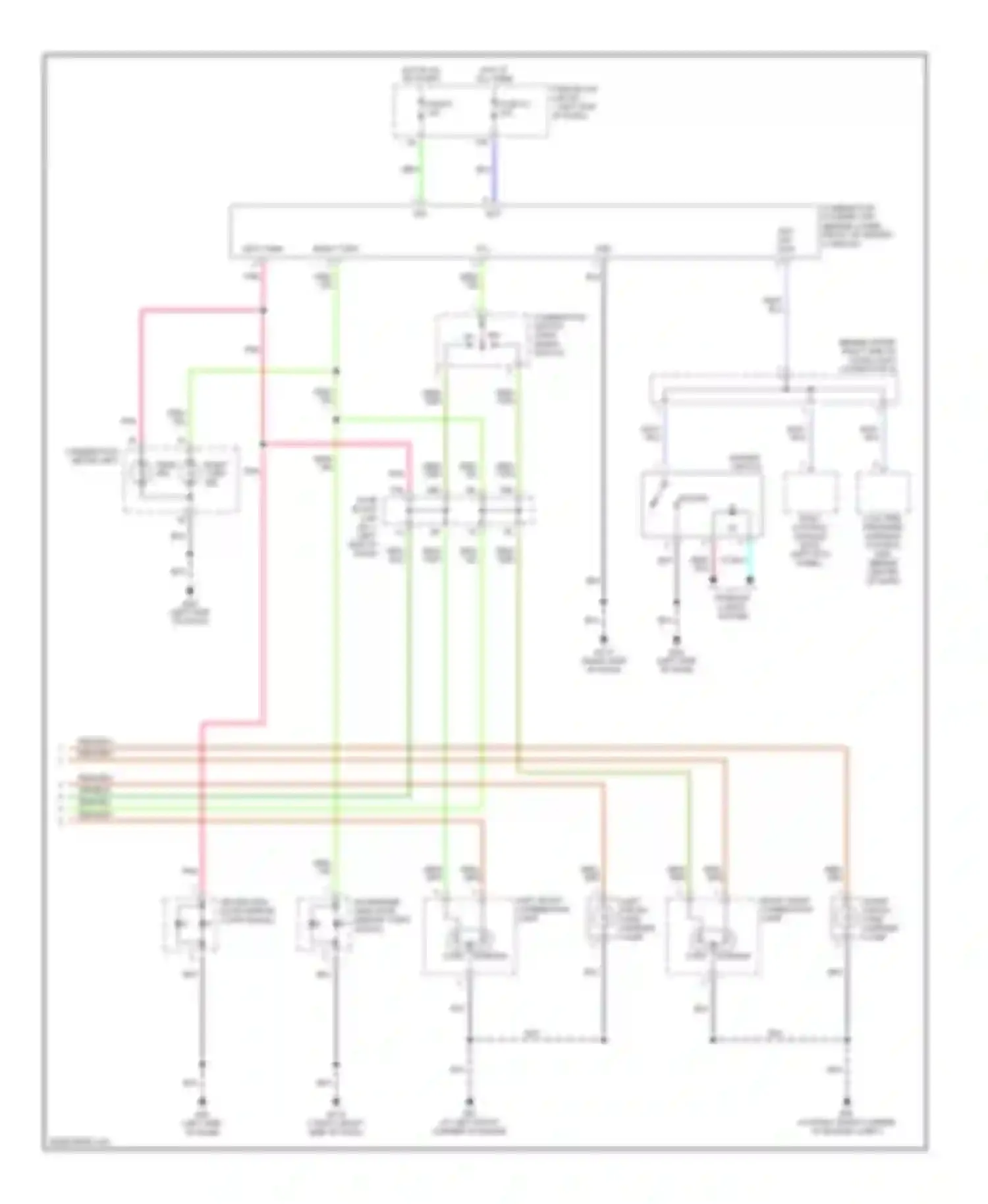

Wiring diagram haz sw, bcm (1 of 1)
BLK WIRE
BLU WIRE
BODY CONTROL MODULE (BCM) (LEFT KICK PANEL) ILL
COMBINATION FLASHER UNIT (BEHIND LOWER FRONT OF CENTER CONSOLE)
COMBINATION METER LEFT TURN IND
COMBINATION SWITCH TURN SIGNAL SWITCH
DRIVER SIDE DOOR MIRROR (TURN SIGNAL)
FUSE 22
FUSE 5
FUSE BLOCK (J/B) NO. 1 (LEFT END OF DASH)
GRN WIRE
GRN/BLK WIRE
GRN/YEL WIRE
HAZ SW, BCM
HAZARD
HAZARD SWITCH
HOT AT ALL TIMES
HOT IN ON OR START
IGN SW
LEFT FRONT COMBINATION LAMP
LEFT FRONT SIDE MARKER LAMP
LEFT TURN
LOW TIRE PRESSURE WARNING CONTROL UNIT (BEHIND CENTER OF DASH)
LT BLU WIRE
ORG/ WIRE
PARKING TURN
PASSENGER SIDE DOOR MIRROR (TURN SIGNAL)
PNK WIRE
RED WIRE
RED/GRN WIRE
RIGHT FRONT COMBINATION LAMP
RIGHT FRONT SIDE MARKER LAMP
RIGHT TURN
RIGHT TURN IND
T/S SW
TURN PARKING
WHT WIRE
YEL WIRE
Go to component -> Exterior lights circuit (2 of 2) -> HAZ SW, BCM
