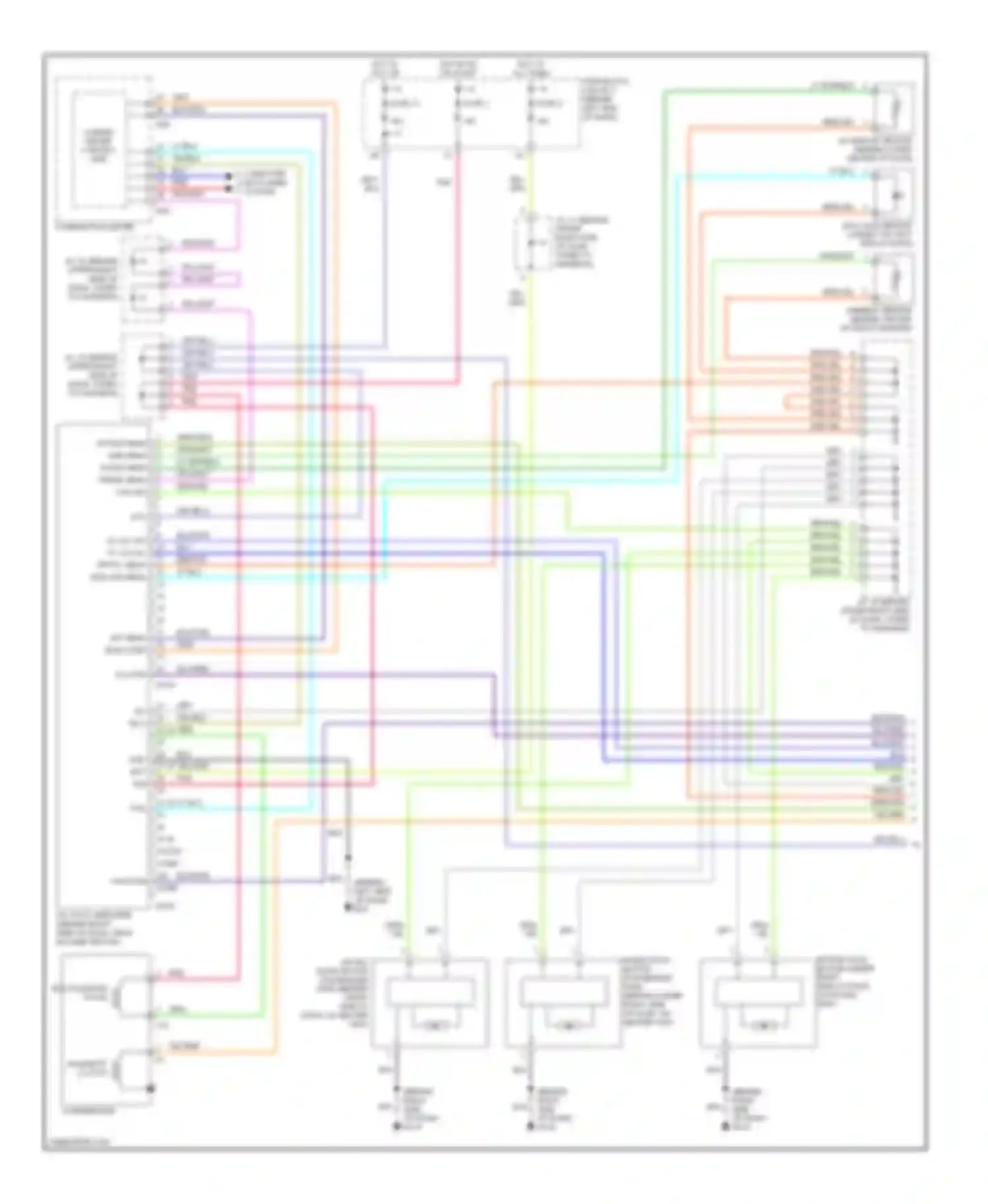

Infiniti M45 II (2002-2004) 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 vactr comp on comp on ecv Wiring diagram

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 VACTR COMP ON COMP ON ECV A/C AUTO AMPLIFIER (BEHIND RIGHT SIDE OF DASH, NEAR BLOWER MOTOR) A/C-AV (FR TX) AV-A/C (FR RX) SENS GND SUN SENS AIR MIX DOOR MOTOR (PASSENGER SIDE) (BEHIND RIGHT SIDE OF DASH, ON HEATER UNIT) AMBIENT SENSOR BEHIND CENTER OF FRONT BUMPER BLK WIRE BLU WIRE BLU/ORG WIRE BLU/RED WIRE BLU/WHT WIRE CLK (FR) COMBINATION METER COMPRESSOR) COMPUTER DATA LINES SYSTEM ECV SOLENOID VALVE FAN ON FAN PWM FUSE 2 FUSE 21 FUSE 6 FUSE BLOCK (J/B) NO.1 (BEHIND LEFT END OF DASH) GND BAT IGN GRN WIRE GRN/ORG WIRE GRN/WHT WIRE GRN/YEL WIRE GRY WIRE GRY/BLU WIRE HOT AT ALL TIMES HOT IN ACC OR ON HOT IN ON OR START IN-VEHICLE SENSOR (BEHIND LOWER CENTER OF DASH) INTAKE DOOR MOTOR (UNDER RIGHT SIDE OF DASH, ON INTAKE UNIT) J/C 11 (BEHIND UPPER RIGHT SIDE OF DASH, TAPED TO HARNESS) J/C 14 (BEHIND UPPER RIGHT SIDE OF DASH, TAPED TO HARNESS) J/C 16 (BEHIND UPPER RIGHT SIDE OF DASH, TAPED TO HARNESS) J/C 19 (BEHIND UPPER RIGHT SIDE OF DASH, TAPED TO HARNESS) LT BLU WIRE LT GRN/BLK WIRE MAGNETIC CLUTCH ORG/ WIRE PNK PNK PNK WIRE PNK WIRE PPL/WHT WIRE RED WIRE RED/YEL WIRE SUN LOAD SENSOR (UNDER TOP LEFT SIDE OF DASH) UNIFIED METER CONTROL UNIT W/T SENS ECM COMP YEL WIRE YEL/BLK WIRE YEL/GRN WIRE YEL/RED WIRE
