Infiniti M37 IV (2010-2014) heated steering wh sw sig Wiring diagram
This page shows the only wiring diagram for the component.heated steering wh sw sig, which is found in the car Infiniti M37 IV (2010-2014). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

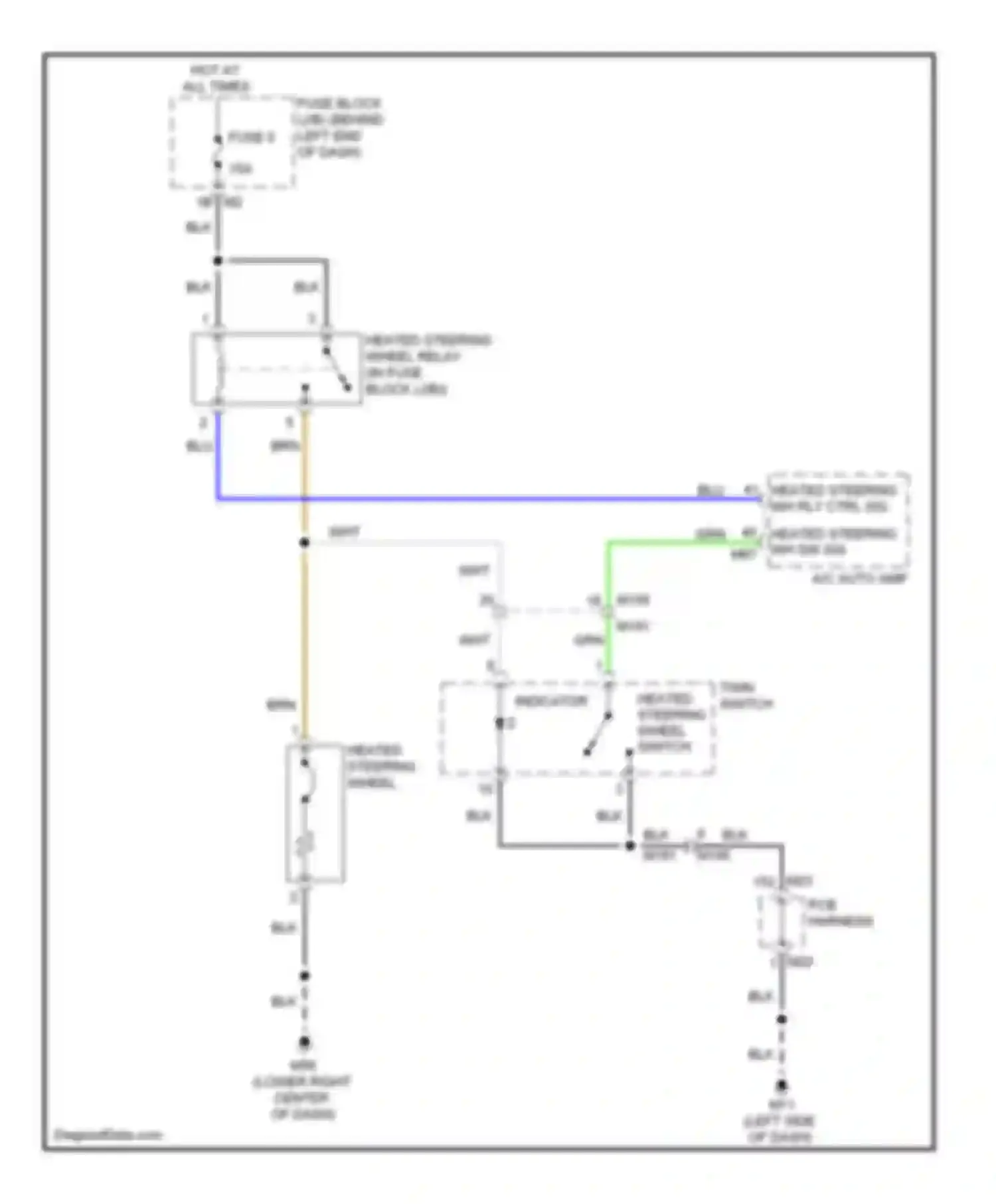

Wiring diagram heated steering wh sw sig (1 of 1)
A/C AUTO AMP
BLK WIRE
BLU WIRE
BRN WIRE
FUSE 5
FUSE BLOCK (J/B) (BEHIND LEFT END OF DASH)
GRN WIRE
HEATED STEERING WH RLY CTRL SIG
HEATED STEERING WH SW SIG
HEATED STEERING WHEEL
HEATED STEERING WHEEL RELAY (IN FUSE BLOCK (J/B))
HEATED STEERING WHEEL SWITCH
HOT AT ALL TIMES
INDICATOR
PCB HARNESS
TWIN SWITCH
WHT WIRE
Go to component -> Heated steering wheel circuit -> HEATED STEERING WH SW SIG
