Infiniti G20 I (1991-1996) right rear window switch dn up Wiring diagram
This page shows the only wiring diagram for the component.right rear window switch dn up, which is found in the car Infiniti G20 I (1991-1996). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

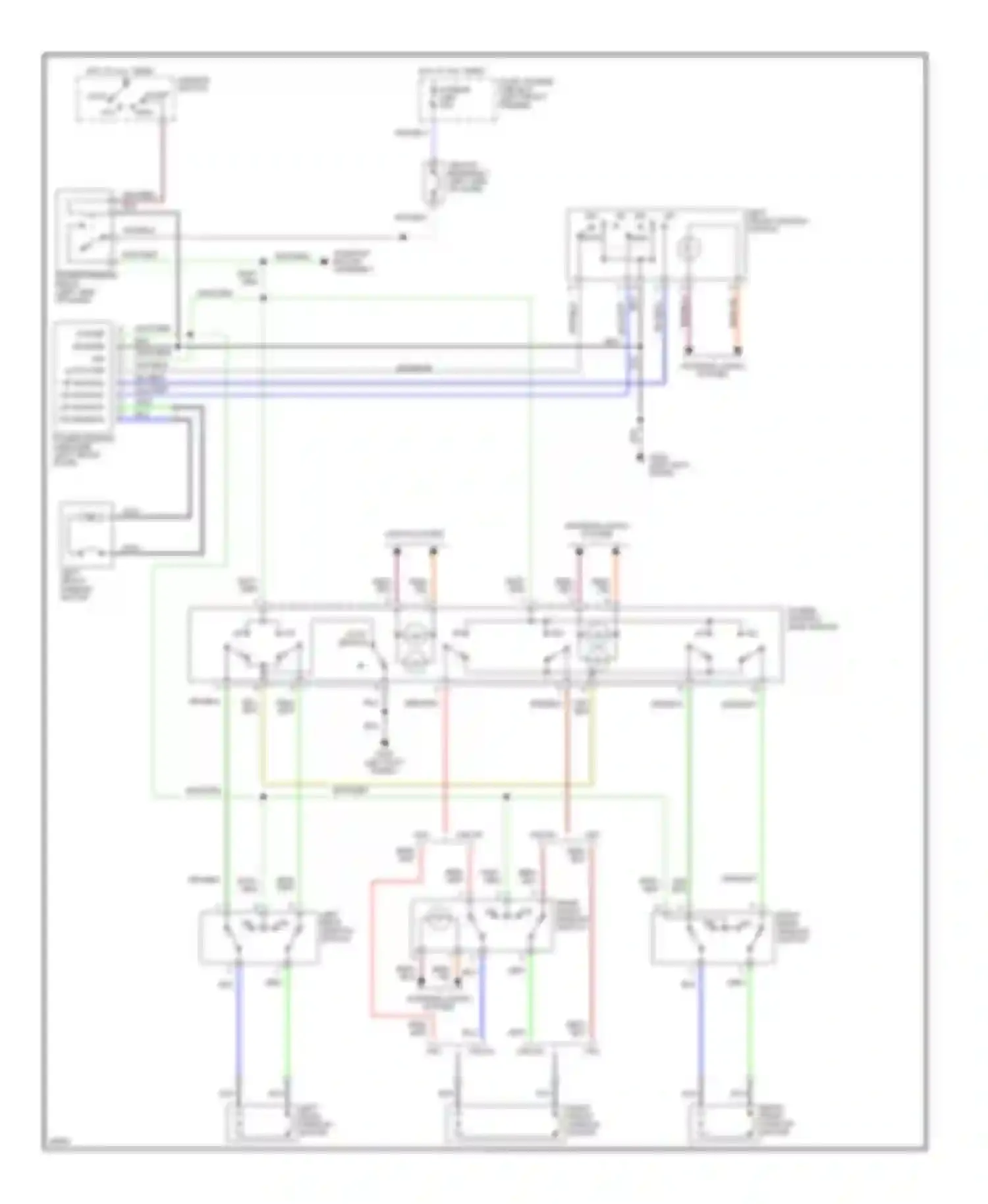

Wiring diagram right rear window switch dn up (1 of 1)
1992-94
AUTO MAN
BLK WIRE
BLK/RED WIRE
BLU WIRE
BLU/BLK WIRE
BLU/WHT WIRE
CIRCUIT BREAKER 1 (LEFT SIDE OF DASH)
FUSE, FUSIBLE LINK BOX (LEFT FRONT FENDER)
FUSIBLE LINK
GN/
GRN WIRE
GRN/BLK WIRE
GRN/WHT WIRE
HOT AT ALL TIMES
IGNITION SWITCH
INTERIOR
LEFT FRONT WINDOW MOTOR
LEFT FRONT WINDOW SWITCH
LEFT REAR WINDOW MOTOR
LEFT REAR WINDOW SWITCH
LIGHTS SYSTEM
LOCK
LOCK SWITCH
NCA WIRE
POWER WINDOW AMPLIFIER (LEFT FRONT DOOR)
POWER WINDOW MAIN SWITCH
POWER WINDOW RELAY (LEFT SIDE OF DASH)
RED WIRE
RED/BLK WIRE
RED/BLU WIRE
RED/WHT WIRE
RED/YEL WIRE
RIGHT FRONT WINDOW MOTOR
RIGHT FRONT WINDOW SWITCH
RIGHT REAR WINDOW MOTOR
RIGHT REAR WINDOW SWITCH DN UP
RUN WIRE
SUNROOF MOTOR ASSEMBLY,
UP DN
UP DN DN
WHT WIRE
WHT/BLK WIRE
WHT/BLU WIRE
WHT/GRN WIRE
YEL WIRE
Go to component -> Power window circuit -> RIGHT REAR WINDOW SWITCH DN UP
