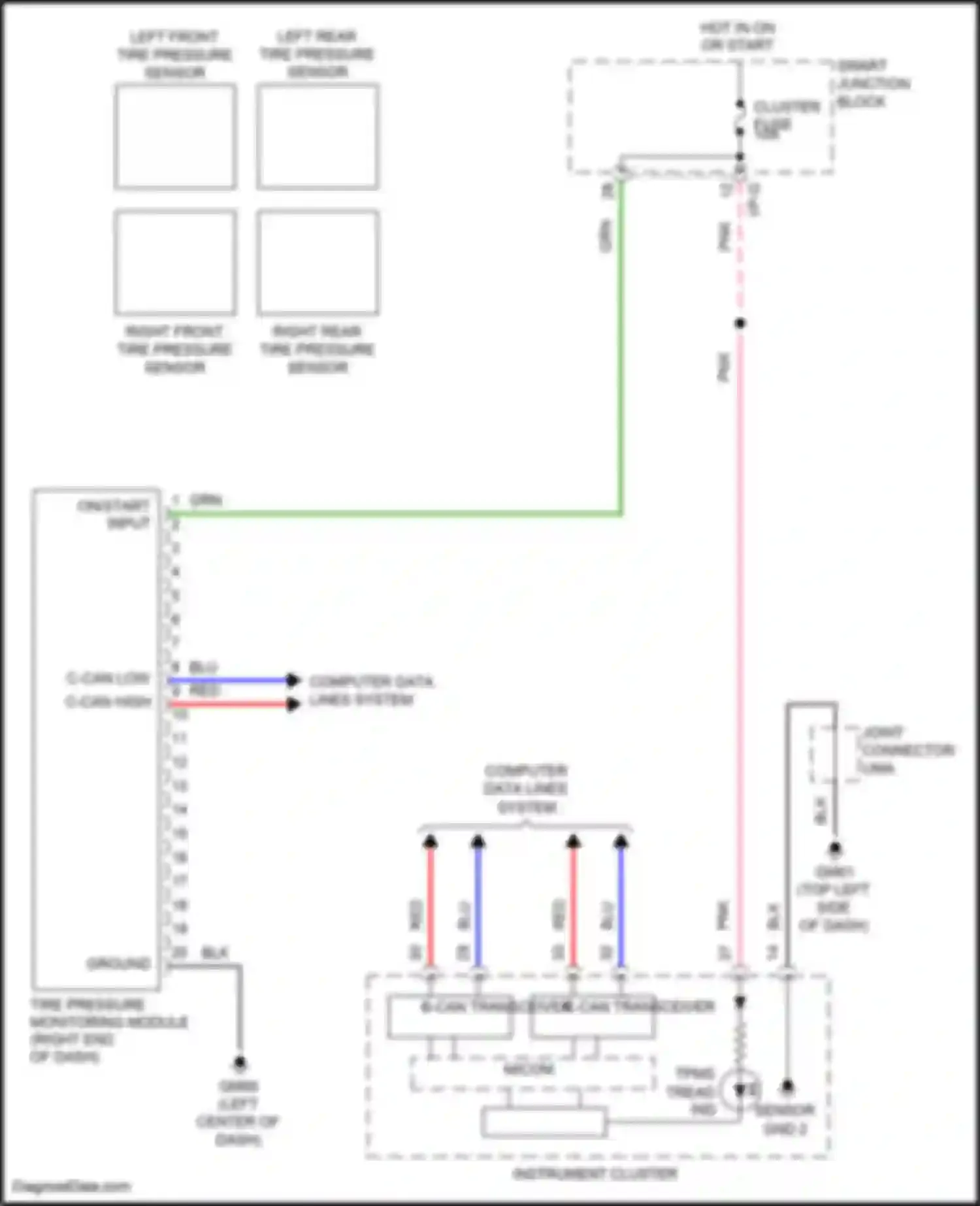

Tire pressure monitoring circuit for Hyundai Veloster I facelift (2015-2017)

B-CAN TRANSCEIVER BLK WIRE BLU WIRE C-CAN HIGH C-CAN LOW C-CAN TRANSCEIVER CLUSTER FUSE COMPUTER DATA LINES SYSTEM GRN WIRE GROUND HOT IN ON OR START I/P-G INSTRUMENT CLUSTER JOINT CONNECTOR UMA LEFT FRONT TIRE PRESSURE SENSOR LEFT REAR TIRE PRESSURE SENSOR MICOM ON/START INPUT PNK WIRE RED WIRE RIGHT END OF DASH) RIGHT FRONT TIRE PRESSURE SENSOR RIGHT REAR TIRE PRESSURE SENSOR SENSOR GND 2 SMART JUNCTION BLOCK TIRE PRESSURE MONITORING MODULE TPMS TREAD IND
