Hyundai Veloster I facelift (2015-2017) hazard b-can lamp sw sig Wiring diagram
This page shows the only wiring diagram for the component.hazard b-can lamp sw sig, which is found in the car Hyundai Veloster I facelift (2015-2017). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

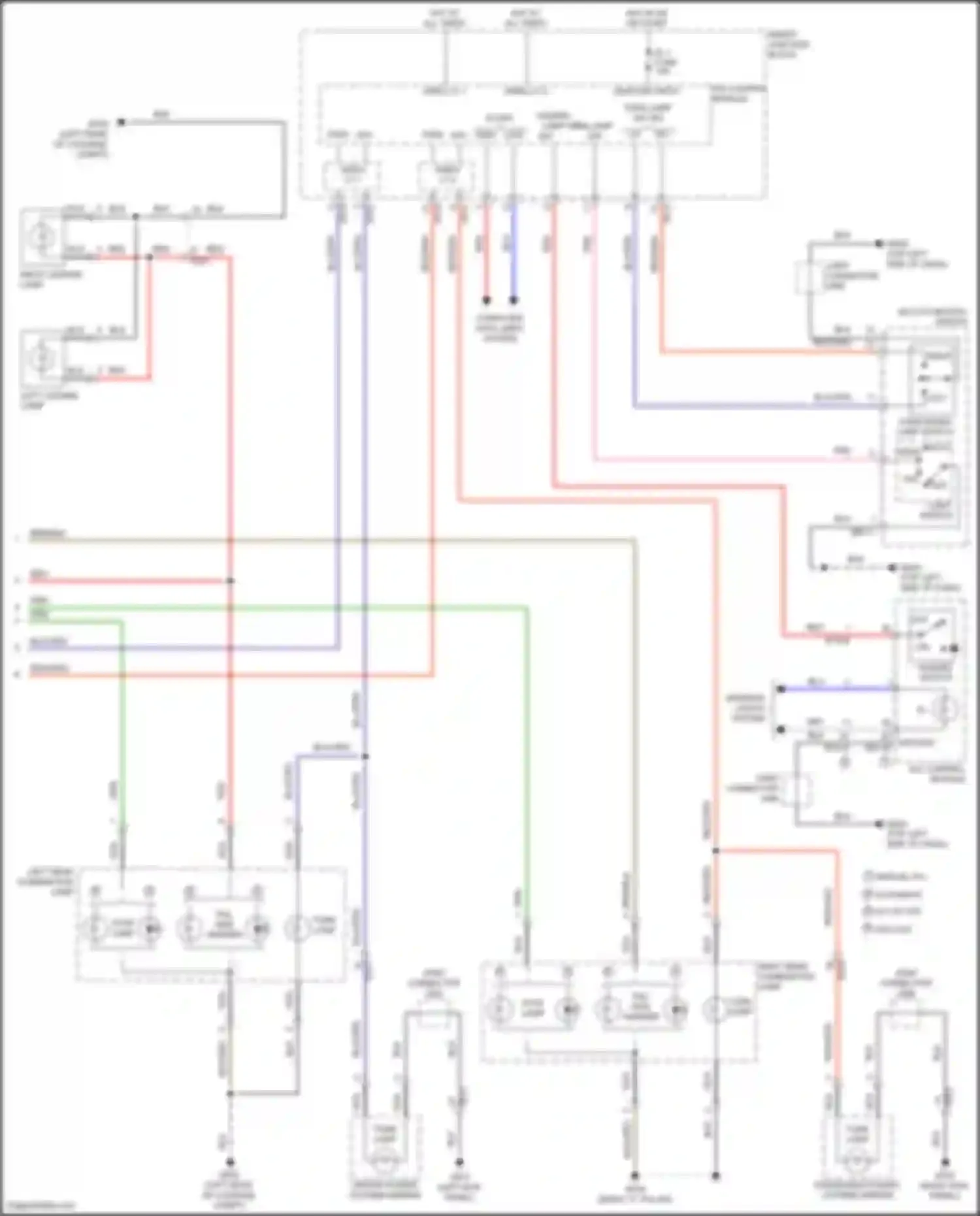

Wiring diagram hazard b-can lamp sw sig (1 of 1)
A/C CONTROL MODULE
ARISU LT 2
ARISU-LT 1
AUTO HEAD
AUTOMATIC A/C W/ LED
BLK WIRE
BLK/ORG WIRE
BLU WIRE
BLU/ORG WIRE
BRN/BLK WIRE
COMPUTER DATA LINES SYSTEM
DRIVER POWER OUTSIDE MIRROR
GRN WIRE
GROUND
GRY WIRE
HAZARD B-CAN LAMP SW SIG
HAZARD SWITCH
HOT AT ALL TIMES
HOT IN ON OR START
I/P-C
I/P-K
I/P-N
IG 1 FUSE
ILL
IPS CONTROL MODULE
JOINT CONNECTOR UDA
JOINT CONNECTOR UDB
JOINT CONNECTOR UMA
JOINT CONNECTOR UMB
LEFT
LEFT LICENSE LAMP
LEFT REAR COMBINATION LAMP
LH RH SW
LIGHT SWITCH
MANUAL A/C
MULTI- FUNCTION SWITCH
NCA WIRE
OFF
ON/START INPUT
PASSENGER POWER OUTSIDE MIRROR
PNK WIRE
PWM ADC
PWM ADC HIGH LOW
RED WIRE
RED/ORG WIRE
RIGHT
RIGHT LICENSE LAMP
RIGHT REAR COMBINATION LAMP
SMART JUNCTION BLOCK
STOP LAMP
TAIL (SIDE MARKER)
TAIL OFF
TAILLAMP
TURN LAMP
TURN LAMP SW SIG
TURN SIGNAL LAMP SWITCH
W/O LED
Go to component -> Exterior lamps circuit (3 of 3) -> HAZARD B-CAN LAMP SW SIG
