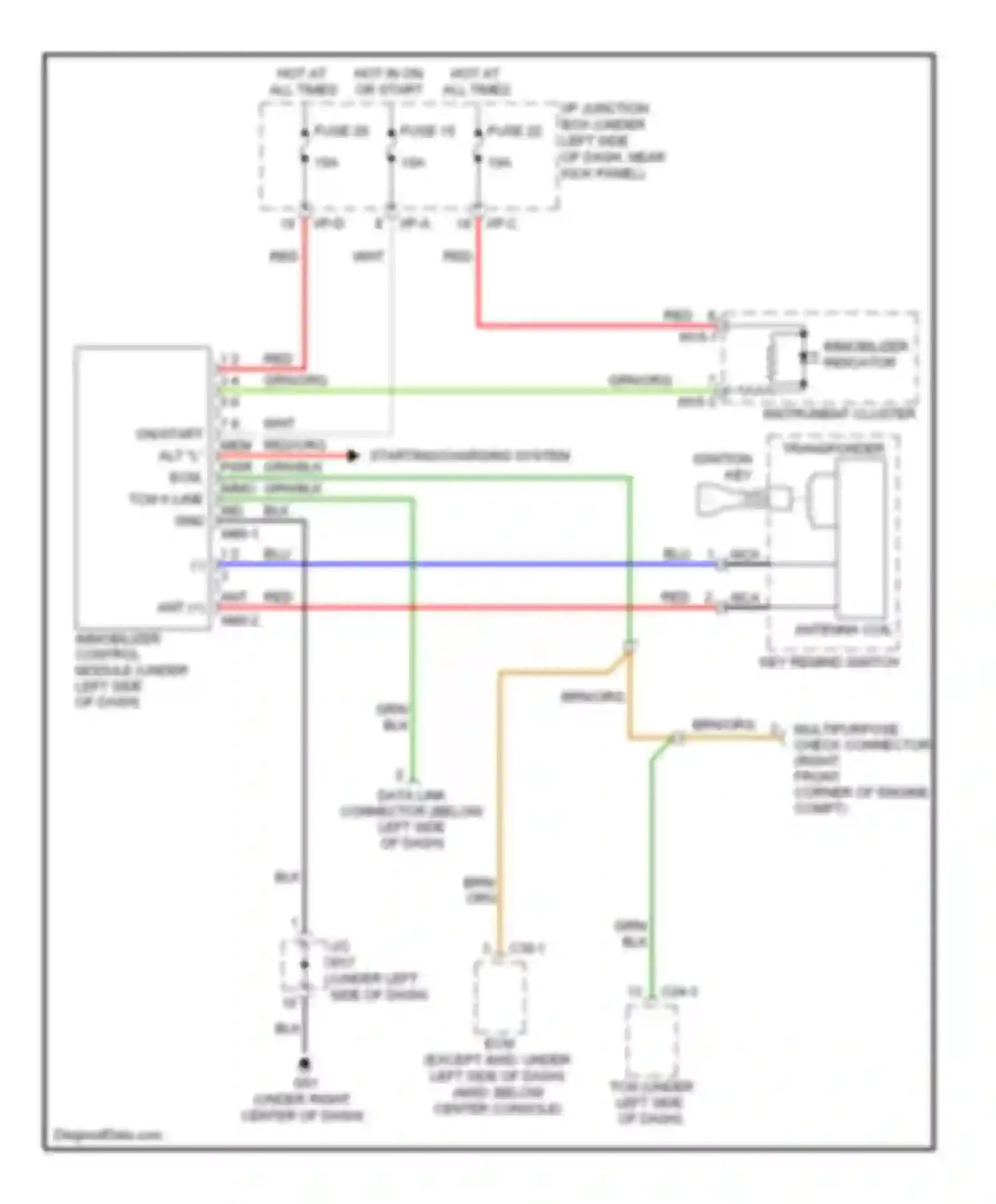

2.7l, immobilizer circuit for Hyundai Tucson I (2004-2011)

1 2 3 4 5 6 7 8 MEM PWR IMMO IND 1 2 3 ANT (-) ANT ANTENNA COIL BLK WIRE BLU WIRE BRN WIRE BRN/ORG WIRE CENTER CONSOLE DATA LINK CONNECTOR (BELOW LEFT SIDE OF DASH) FUSE 15 FUSE 22 FUSE 29 GRN WIRE GRN/BLK WIRE GRN/ORG WIRE HOT AT ALL TIMES HOT IN ON OR START I/P JUNCTION BOX (UNDER LEFT SIDE OF DASH, NEAR KICK PANEL) I/P-A I/P-C I/P-D IGNITION KEY IMMOBILIZER CONTROL MODULE (UNDER LEFT SIDE OF DASH) IMMOBILIZER INDICATOR INSTRUMENT CLUSTER J/C KEY REMIND SWITCH MULTIPURPOSE CHECK CONNECTOR (RIGHT FRONT CORNER OF ENGINE COMPT) NCA WIRE ON/START ALT "L" ECM, TCM K-LINE GND ORG/ WIRE RED WIRE RED/ORG WIRE STARTING/CHARGING SYSTEM TCM (UNDER LEFT SIDE OF DASH) TRANSPONDER WHT WIRE
