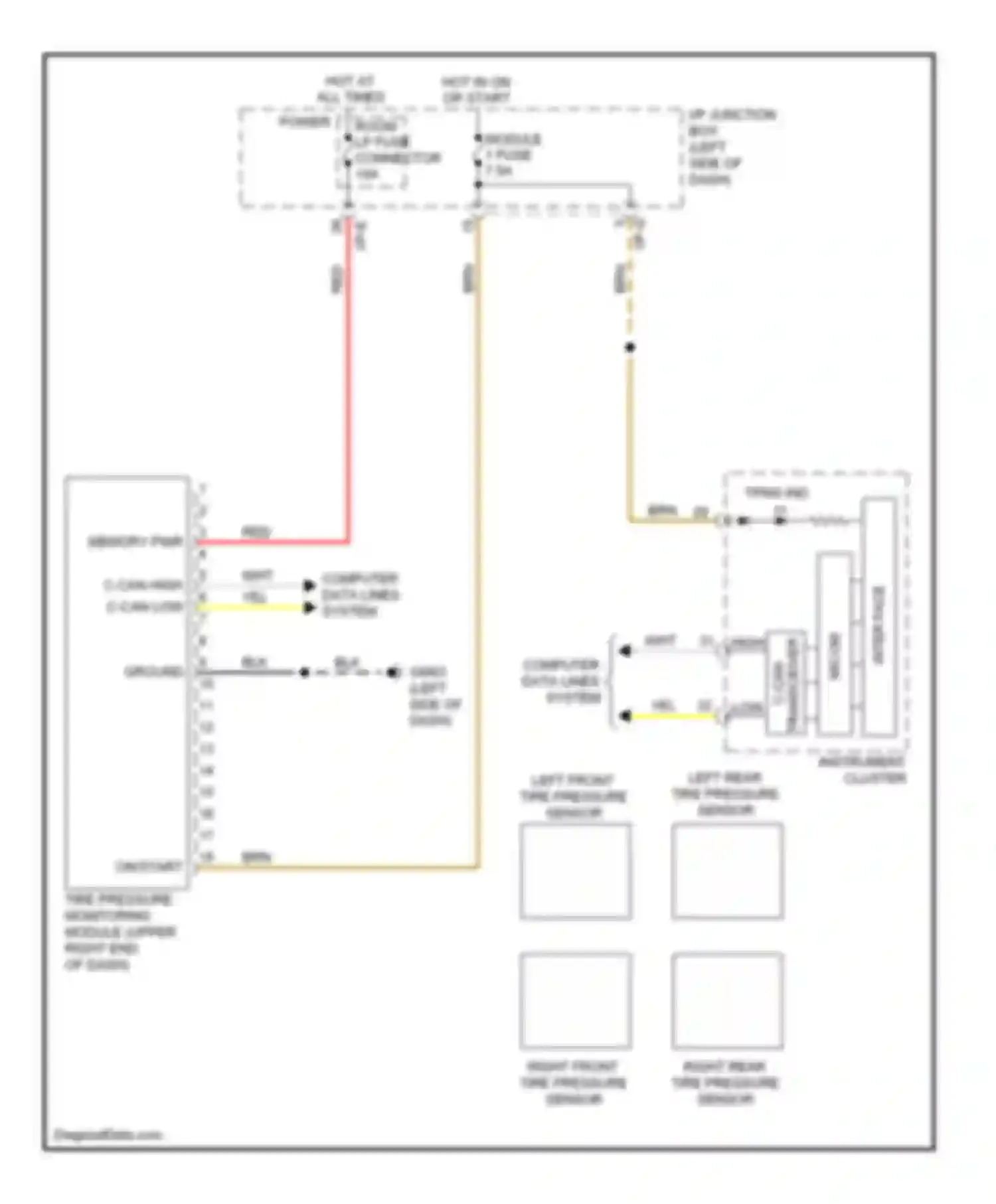

Tire pressure monitoring circuit, except hybrid for Hyundai Sonata VI (2009-2014)

BLK WIRE BRN WIRE C-CAN HIGH C-CAN LOW COMPUTER DATA LINES SYSTEM GROUND HOT AT ALL TIMES POWER ROOM LP FUSE CONNECTOR HOT IN ON OR START I/P JUNCTION BOX (LEFT SIDE OF DASH) I/P-E I/P-G INSTRUMENT CLUSTER INTER- FACE LEFT FRONT TIRE PRESSURE SENSOR LEFT REAR TIRE PRESSURE SENSOR MEMORY PWR MICOM MODULE 1 FUSE ON/START IN RED WIRE RIGHT FRONT TIRE PRESSURE SENSOR RIGHT REAR TIRE PRESSURE SENSOR TIRE PRESSURE MONITORING MODULE (UPPER RIGHT END OF DASH) TPMS IND TRANSCEIVER C-CAN WHT WIRE YEL WIRE
