Hyundai Sonata VI (2009-2014) transceiver c-can Wiring diagrams
This page contains all the electrical diagrams for the component. transceiver c-can, in which he is found in the car Hyundai Sonata VI (2009-2014). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..
transceiver c-can wiring diagram (1 of 4)
2.0L
2.4L
A/V, NAVIGATION HEAD UNIT
ALT FUSE
ALTERNATOR
AMS FUSE
BATTERY
BATTERY GROUND
BATTERY SNSR SENSOR (ON BATTERY) LIN LINE
BATTERY, BATTERY FUSE BOX
BLK WIRE
BLU (OR RED) WIRE
BLU WIRE
BLU/ORG WIRE
BOX (LEFT SIDE OF DASH)
BRN WIRE
CHARGE IND
CHG-BG
CHTG-BG
COM
COMPUTER DATA LINES
E/R FUSE, RELAY BOX
FACE
GRN WIRE
I/P JUNCTION
I/P-E
I/P-G
IG 1 FUSE
IG 1 RELAY
IGNITION SWITCH
INSTRUMENT CLUSTER
INTER
LAMP FR
LOCK
MICOM
MODULE 1 FUSE
MULTI FUSE
PCM (LEFT SIDE OF ENGINE COMPT)
PNK WIRE
SMART KEY)
SYSTEM
TRANSCEIVER B-CAN
TRANSCEIVER C-CAN
W/ SMART KEY
W/O SMART KEY
W/O W/ SMART KEY
WHT WIRE
WHT/ORG WIRE
YEL WIRE
YEL/ORG WIRE
Go to component -> Charging circuit, except hybrid -> TRANSCEIVER C-CAN

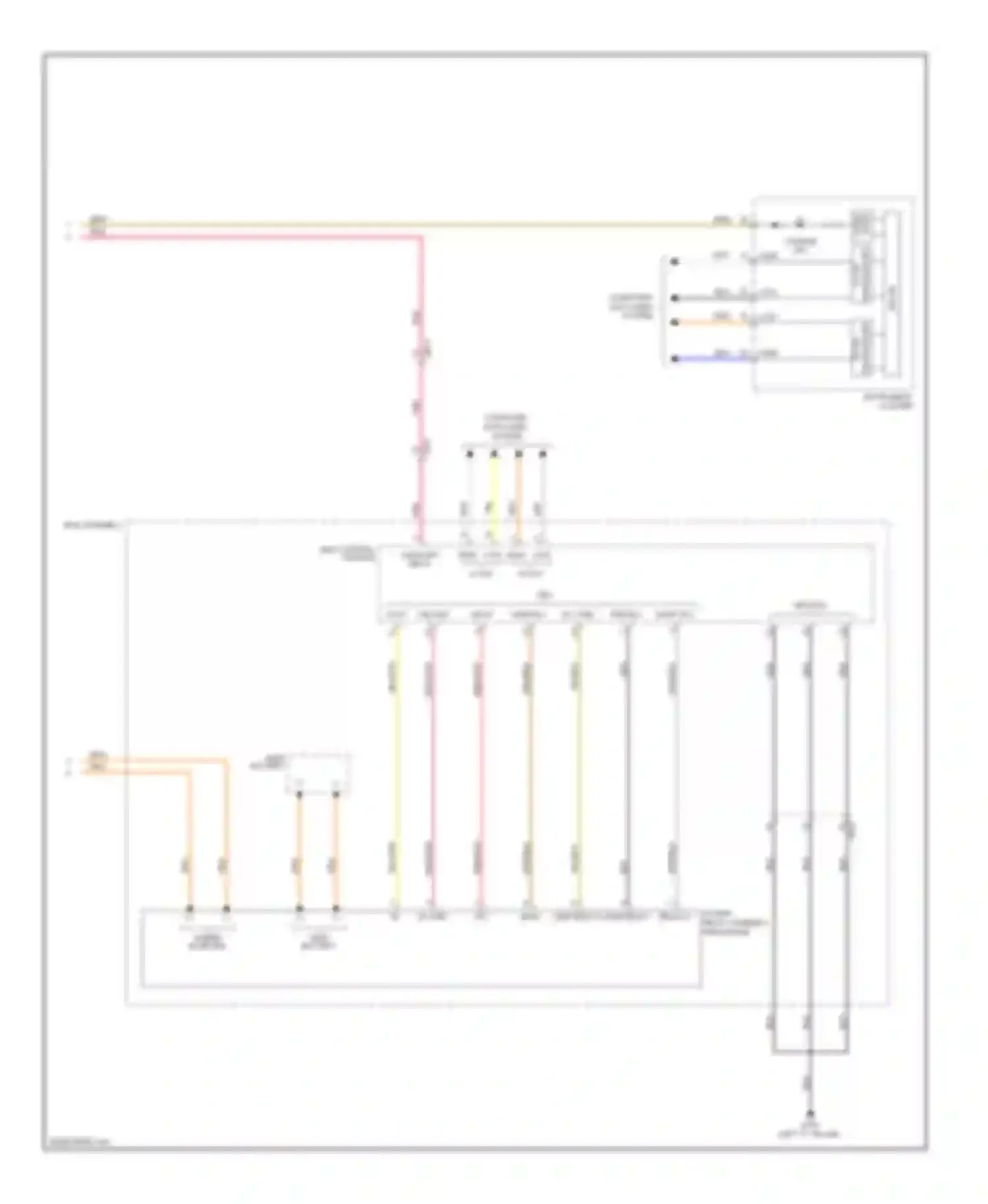

transceiver c-can wiring diagram (2 of 4)
B+ B+ GND
BLK WIRE
BLU WIRE
BMS ASSEMBLY
BMS CONTROL MODULE
BRN WIRE
C-CAN H-CAN
CHARGE IND
COMPUTER DATA LINES
COMPUTER DATA LINES SYSTEM
FACE
GROUND
GRY WIRE
HYBRID INVERTER
INSTRUMENT CLUSTER
INTER
LEFT "C" PILLAR)
LOW HIGH LOW
MAIN BATTERY
MAIN GND RELAY(-)
MAIN RLY RLY GND
MICOM
ON/START INPUT
ORG/ WIRE
ORG/BLK WIRE
PNK WIRE
PNK/WHT WIRE
POWER RELAY ASSEMBLY PRECHARGE MAIN RELAY RELAY(+)
PRA
PRE RLY MAIN+ RLY
RED/WHT WIRE
SYSTEM
TRANSCEIVER B-CAN
TRANSCEIVER C-CAN
VOUT VIB GND
WHT WIRE
WHT/BLK WIRE
YEL WIRE
YEL/BLK WIRE
YEL/ORG WIRE
Go to component -> Charging circuit, hybrid (2 of 2) -> TRANSCEIVER C-CAN

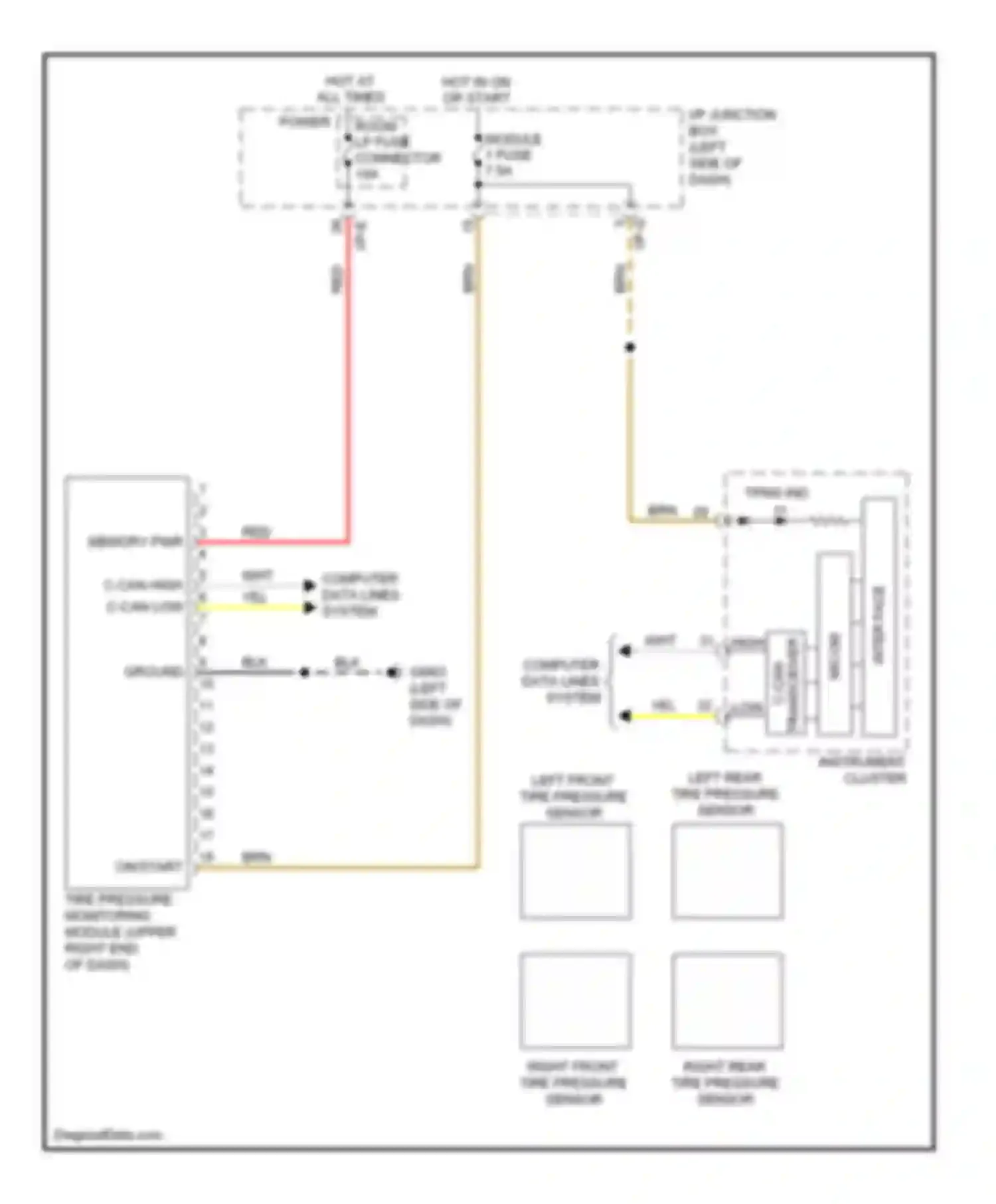

transceiver c-can wiring diagram (3 of 4)
BLK WIRE
BRN WIRE
C-CAN HIGH C-CAN LOW
COMPUTER DATA LINES SYSTEM
GROUND
HOT AT ALL TIMES POWER ROOM LP FUSE CONNECTOR
HOT IN ON OR START
I/P JUNCTION BOX (LEFT SIDE OF DASH)
I/P-E
I/P-G
INSTRUMENT CLUSTER
INTER- FACE
LEFT FRONT TIRE PRESSURE SENSOR
LEFT REAR TIRE PRESSURE SENSOR
MEMORY PWR
MICOM
MODULE 1 FUSE
ON/START IN
RED WIRE
RIGHT FRONT TIRE PRESSURE SENSOR
RIGHT REAR TIRE PRESSURE SENSOR
TIRE PRESSURE MONITORING MODULE (UPPER RIGHT END OF DASH)
TPMS IND
TRANSCEIVER C-CAN
WHT WIRE
YEL WIRE
Go to component -> Tire pressure monitoring circuit, except hybrid -> TRANSCEIVER C-CAN

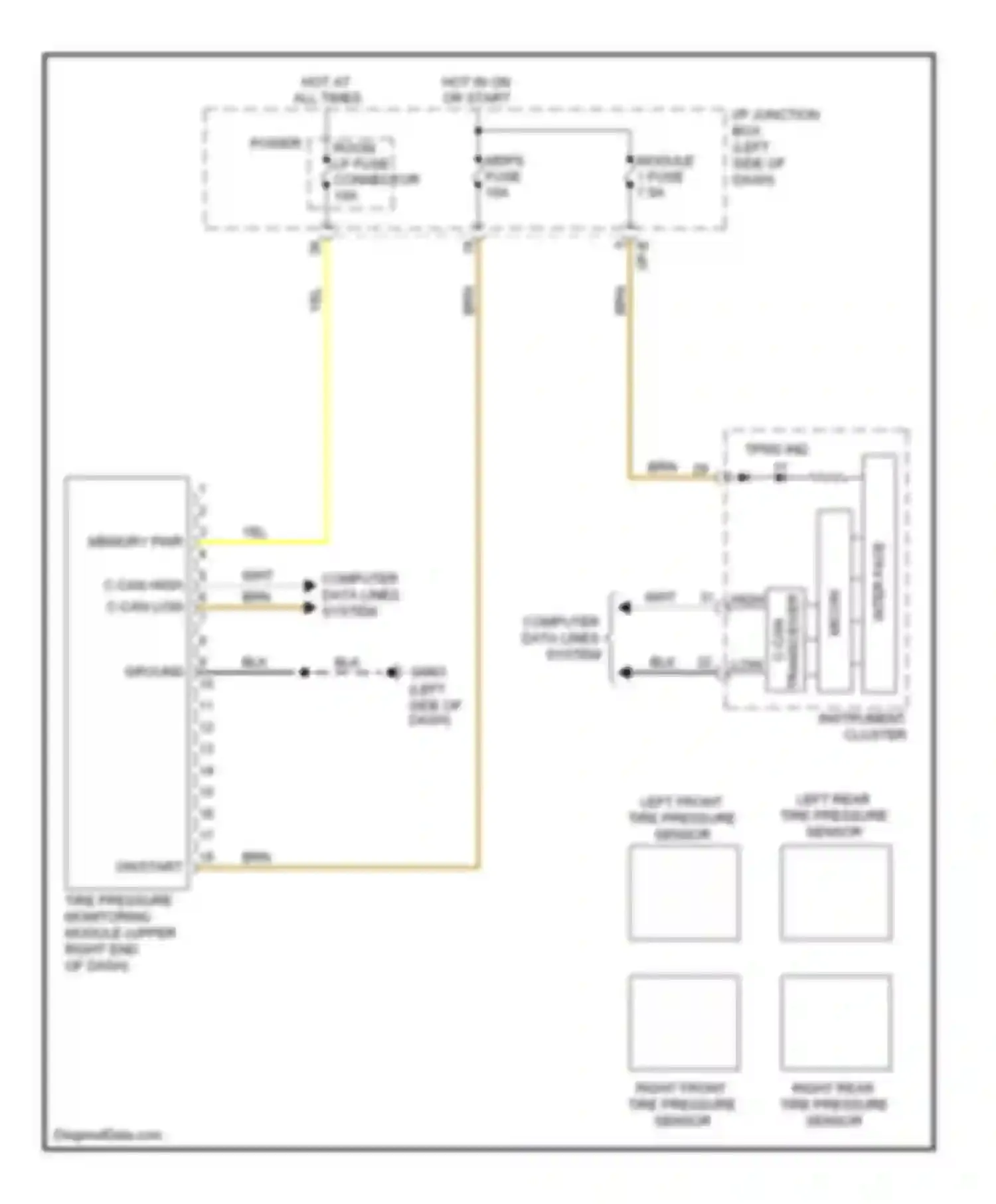

transceiver c-can wiring diagram (4 of 4)
BLK WIRE
BRN WIRE
C-CAN HIGH C-CAN LOW
COMPUTER DATA LINES SYSTEM
GROUND
HOT AT ALL TIMES
HOT IN ON OR START
I/P JUNCTION BOX (LEFT SIDE OF DASH)
I/P-E
INSTRUMENT CLUSTER
INTER- FACE
LEFT FRONT TIRE PRESSURE SENSOR
LEFT REAR TIRE PRESSURE SENSOR
MDPS FUSE
MEMORY PWR
MICOM
MODULE 1 FUSE
ON/START IN
POWER ROOM LP FUSE CONNECTOR
RIGHT FRONT TIRE PRESSURE SENSOR
RIGHT REAR TIRE PRESSURE SENSOR
TIRE PRESSURE MONITORING MODULE (UPPER RIGHT END OF DASH)
TPMS IND
TRANSCEIVER C-CAN
WHT WIRE
YEL WIRE
Go to component -> Tire pressure monitoring circuit, hybrid -> TRANSCEIVER C-CAN
