Hyundai Sonata VI (2009-2014) hybrid control unit hybrid power control unit Wiring diagram
This page shows the only wiring diagram for the component.hybrid control unit hybrid power control unit, which is found in the car Hyundai Sonata VI (2009-2014). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

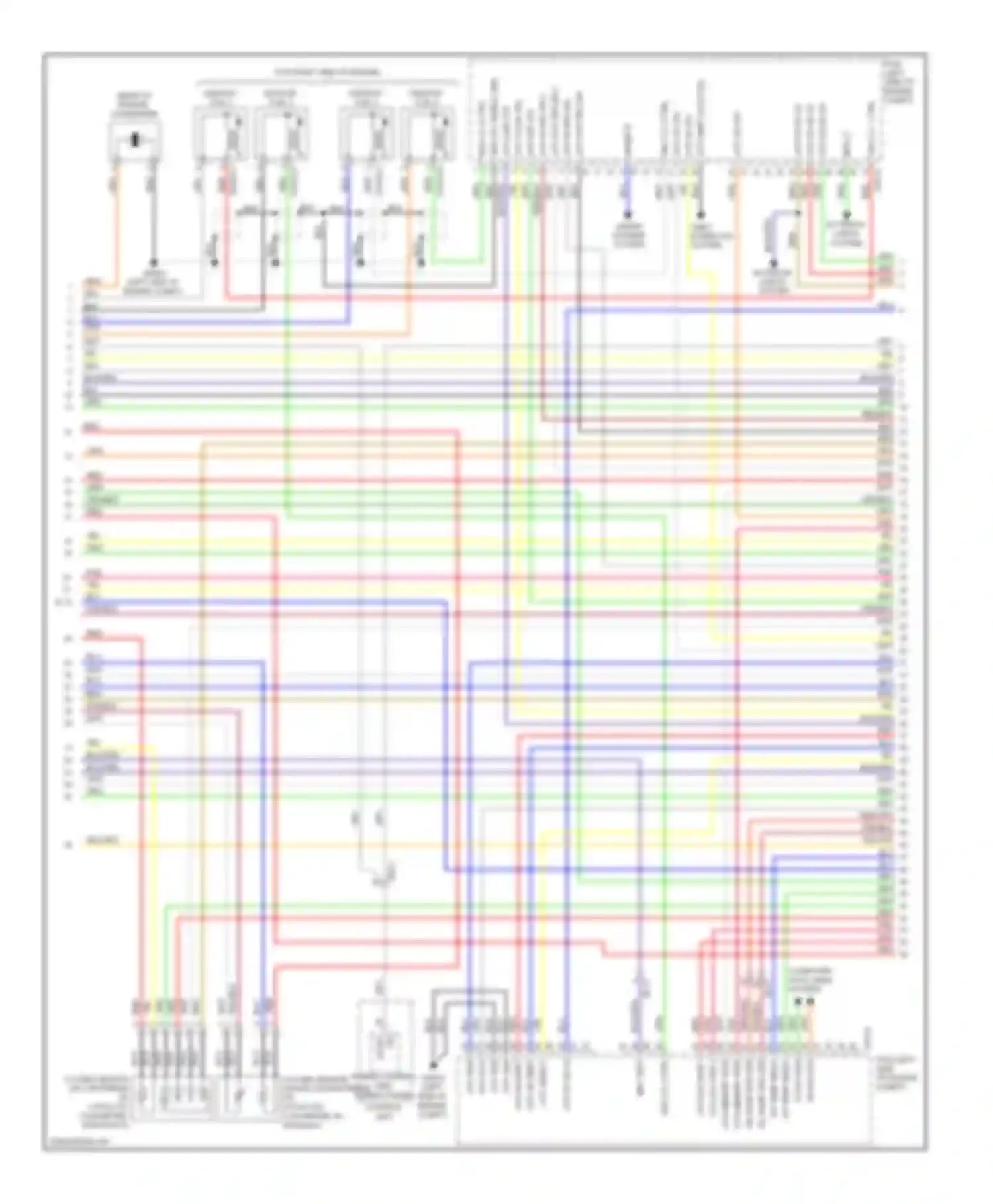

Wiring diagram hybrid control unit hybrid power control unit (1 of 1)
A/T TEMP SENS-
BLK WIRE
BLU WIRE
BLU/ORG WIRE
BRK LT SW
BRK TEST SW
BRN WIRE
CHG-A
COMPUTER DATA LINES SYSTEM
GRN WIRE
GRN/BLK WIRE
GRY WIRE
H-CAN HIGH
H-CAN LOW
HYBRID CONTROL UNIT HYBRID POWER CONTROL UNIT
IGN COIL SHIELD GND
IGN CYL 1 CTRL
IGN CYL 2 CTRL
IGN CYL 3 CTRL
IGN CYL 4 CTRL
IGNITION COIL 1
IGNITION COIL 2
IGNITION COIL 3
IGNITION COIL 4
NCA WIRE
OIL PUMP MTR SPD
OIL PUMP OPU SPD
ORG/ WIRE
OXYGEN SENSOR (DOWN) (DOWNSTREAM OF CATALYTIC CONVERTER, IN EXHAUST)
OXYGEN SENSOR (UP) (UPSTREAM OF CATALYTIC CONVERTER, IN EXHAUST)
PCM (LEFT
PCM (LEFT SIDE OF ENGINE COMPT)
PNK 20 21 22 23 WIRE
PNK WIRE
PNK/BLK WIRE
RED WIRE
RED/BLK WIRE
RED/ORG WIRE
SHIFT INTERLOCK SYSTEM
SIDE OF ENGINE COMPT)
SIG
VIP
VRC
WHT WIRE
WIPER "P" IN
WIPER/ WASHER SYSTEM
YEL WIRE
YEL/ORG WIRE
Go to component -> Wiring diagram engine performance 2.4l hybrid, mfi control circuit (3 of 5) -> HYBRID CONTROL UNIT HYBRID POWER CONTROL UNIT
