Hyundai Sonata VI (2009-2014) aps 1 sig cmps 1 gnd Wiring diagram
This page shows the only wiring diagram for the component.aps 1 sig cmps 1 gnd, which is found in the car Hyundai Sonata VI (2009-2014). This component is only found in one wiring diagram on your vehicle, and you can see its details here. If necessary, you can also go to other diagrams for this system for more information..

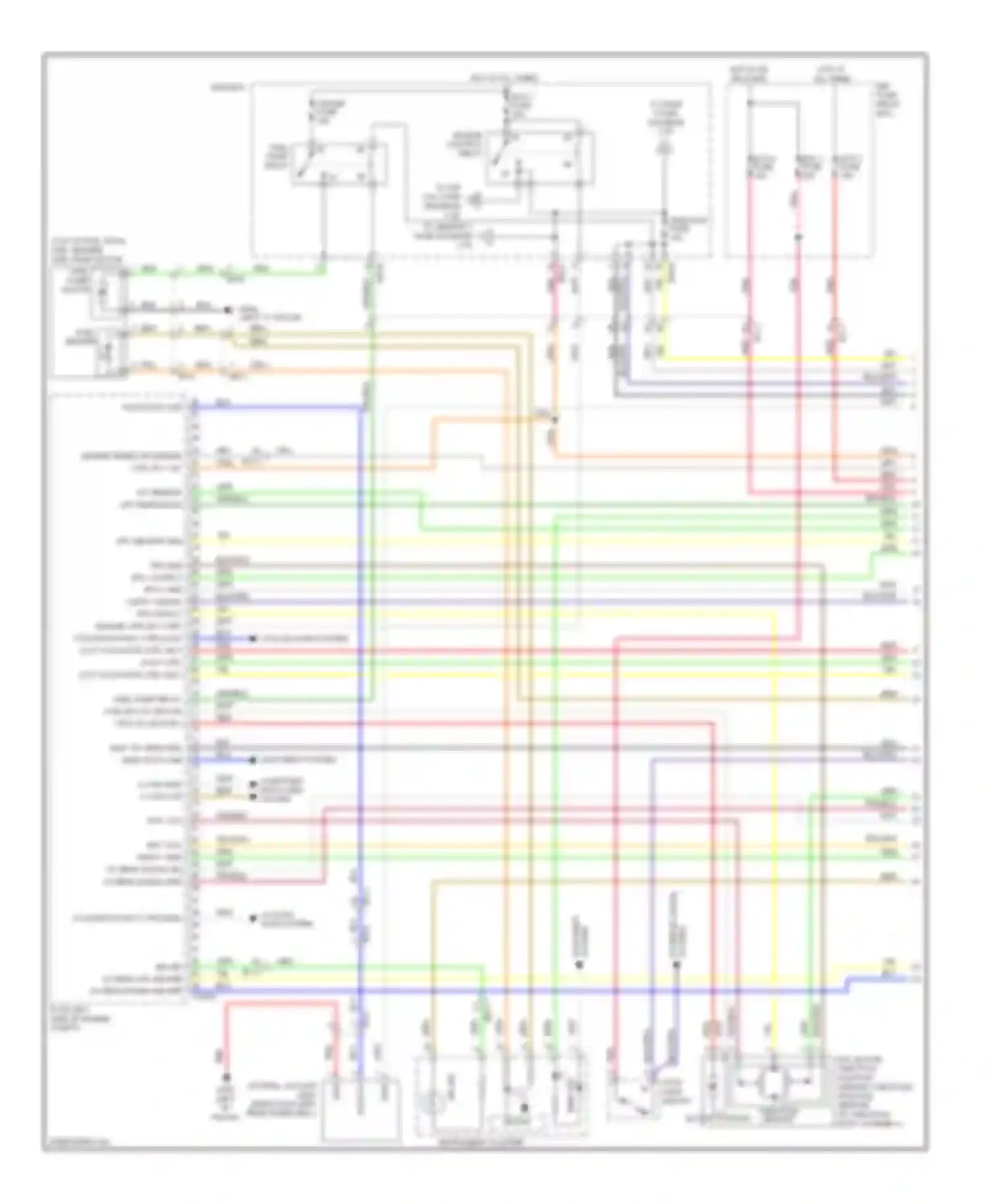

Wiring diagram aps 1 sig cmps 1 gnd (1 of 1)
ANTI-THEFT SYSTEM
APS 1 SIG CMPS 1 GND
APT SENSOR GND
BLK WIRE
BLK/ORG WIRE
BLU WIRE
BLU/ORG WIRE
BRN WIRE
C-CAN HIGH C-CAN LOW
CHG-K
COMPUTER DATA LINES SYSTEM
COOLING FAN RLY CTRL(HIGH)
COOLING FANS SYSTEM
DATA I/O
E/R FUSE, RELAY BOX
E/R-A
E/R-B
ECU 1 FUSE
ECU 2 ESC 3 FUSE FUSE
ECU 4 FUSE
EMS BOX
ENGINE CONTROL RELAY
ENGINE SPEED SIG ENGINE CTRL RLY 'ON' IN
ETC MOTOR, THROTTLE POSITION
F/PUMP FUSE
FUEL PUMP MOTOR
FUEL PUMP RELAY
FUEL PUMP RELAY CTRL ETC DC MOTOR 1 ETC DC MOTOR 2
FUEL SENDER
GRN WIRE
GRN/BLK WIRE
GRY WIRE
HOT AT ALL TIMES
HOT IN ON OR START
IAT SENSOR APT SENSOR SIG
IMMO IND
INJECTOR FUSE
INSTRUMENT CLUSTER
LEFT "C" PILLAR)
MAP, TIA SENS GND IMMO DATA LINE
MICOM
MIL IND
NATURAL VACUUM LEAK DETECTION (LEFT REAR WHEELWELL)
ORG/ WIRE
PCM (LEFT SIDE OF ENGINE COMPT)
PNK WIRE
PNK/BLK WIRE
PWR
RED WIRE
SENSOR (THROTTLE POSITION SENSOR:
STOP LAMP SWITCH
THROTTLE MOTOR POSITION SENSOR
TO IGN COIL FUSE (DIAGRAM 2 OF 5)
TO SENSOR 2 FUSE (DIAGRAM 2 OF 5)
TO SNSR 1 FUSE (DIAGRAM 2 OF 5)
TPS 1 SIG
WHT WIRE
YEL WIRE
YEL/ORG WIRE
Go to component -> Wiring diagram engine performance 2.4l hybrid, mfi control circuit (1 of 5) -> APS 1 SIG CMPS 1 GND
