Hyundai Sonata VI (2009-2014) 1 2 3 4 5 6 battery on/start in c-can hi c-can low pnk Wiring diagrams
This page contains all the electrical diagrams for the component. 1 2 3 4 5 6 battery on/start in c-can hi c-can low pnk, in which he is found in the car Hyundai Sonata VI (2009-2014). You can view various wiring diagrams where this component is used, as well as go to more detailed diagrams to see the complete connection and interaction in the system. All diagrams have links to quickly jump to the corresponding section with the component for easy viewing..

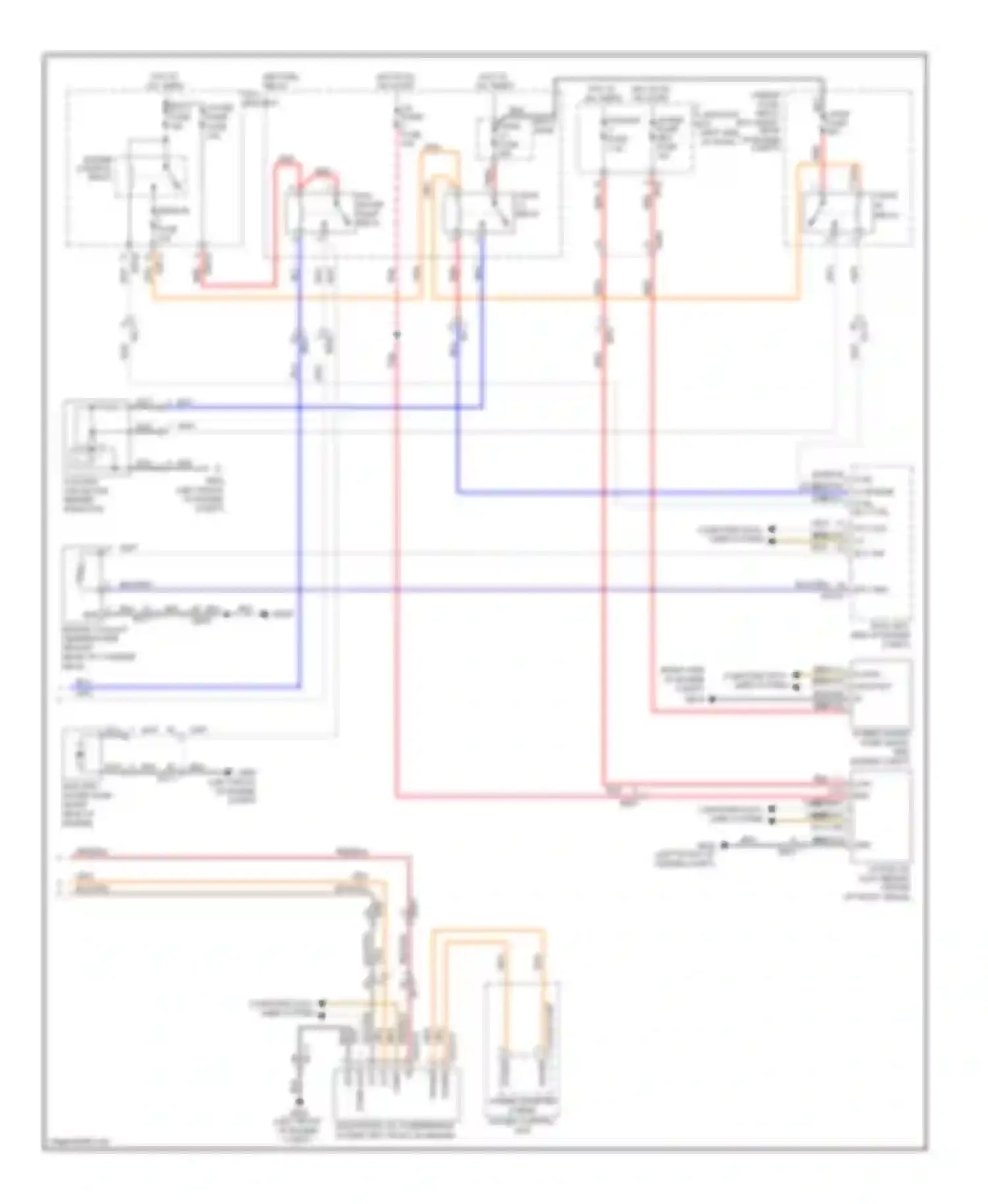

Wiring diagram 1 2 3 4 5 6 battery on/start in c-can hi c-can low pnk (1 of 2)
1 2 3 4 5 6 BATTERY ON/START IN C-CAN HI C-CAN LOW PNK WIRE
1 2 3 4 C-CAN LOW C-CAN HI GND ON/START IN
88 65 64 RLY CTRL HI RLY CTRL LO ENGINE CTRL
ACTIVE AIR FLAP (BEHIND CENTER
AUX WATER
BLK WIRE
BLK/ORG WIRE
BLU WIRE
BLU/ORG WIRE
BOX)
BRN WIRE
C/FAN FUSE
C/FAN FUSE LO FUSE
C/FAN HI RELAY
C/FAN LO
COMP HI
COMP LOW
COMPUTER DATA LINES SYSTEM
COOLING FAN MOTOR (BEHIND RADIATOR)
E/R FUSE, RELAY BOX EMS BOX
E/R-A
E/R-B
ECT GND CHG-K
ECT SIG
ECU 1 WATER FUSE PUMP FUSE
ELECTRIC WATER PUMP (RIGHT REAR OF ENGINE)
ELECTRONIC A/C COMPRESSOR (LOWER LEFT FRONT OF ENGINE)
ENGINE COMPT)
ENGINE CONTROL RELAY
ENGINE COOLANT TEMPERATURE SENSOR (REAR OF CYLINDER HEAD)
FUSE
HOT AT ALL TIMES
HOT IN ON OR START
HYBRID FUSE, RELAY BOX (RIGHT REAR OF ENGINE COMPT)
HYBRID INVERTER HYBRID POWER CONTROL UNIT
HYBRID WATER PUMP (RIGHT SIDE OF
I/P JUNCTION
I/P-E
MODULE
MULTI-
NCA WIRE
OF FRONT GRILLE)
OIL PUMP
ORG/ WIRE
OUT
PCM (LEFT SIDE OF ENGINE COMPT)
PNK WIRE
POWER
PUMP RELAY
RED WIRE
RED/BLK WIRE
RELAY
RLY CTRL 77 78 C-CAN HI C-CAN LO
SENSOR
WATER PUMP HEV FUSE
WHT WIRE
Go to component -> 2.4l hybrid, automatic a/c circuit (2 of 2) -> 1 2 3 4 5 6 BATTERY ON/START IN C-CAN HI C-CAN LOW PNK WIRE

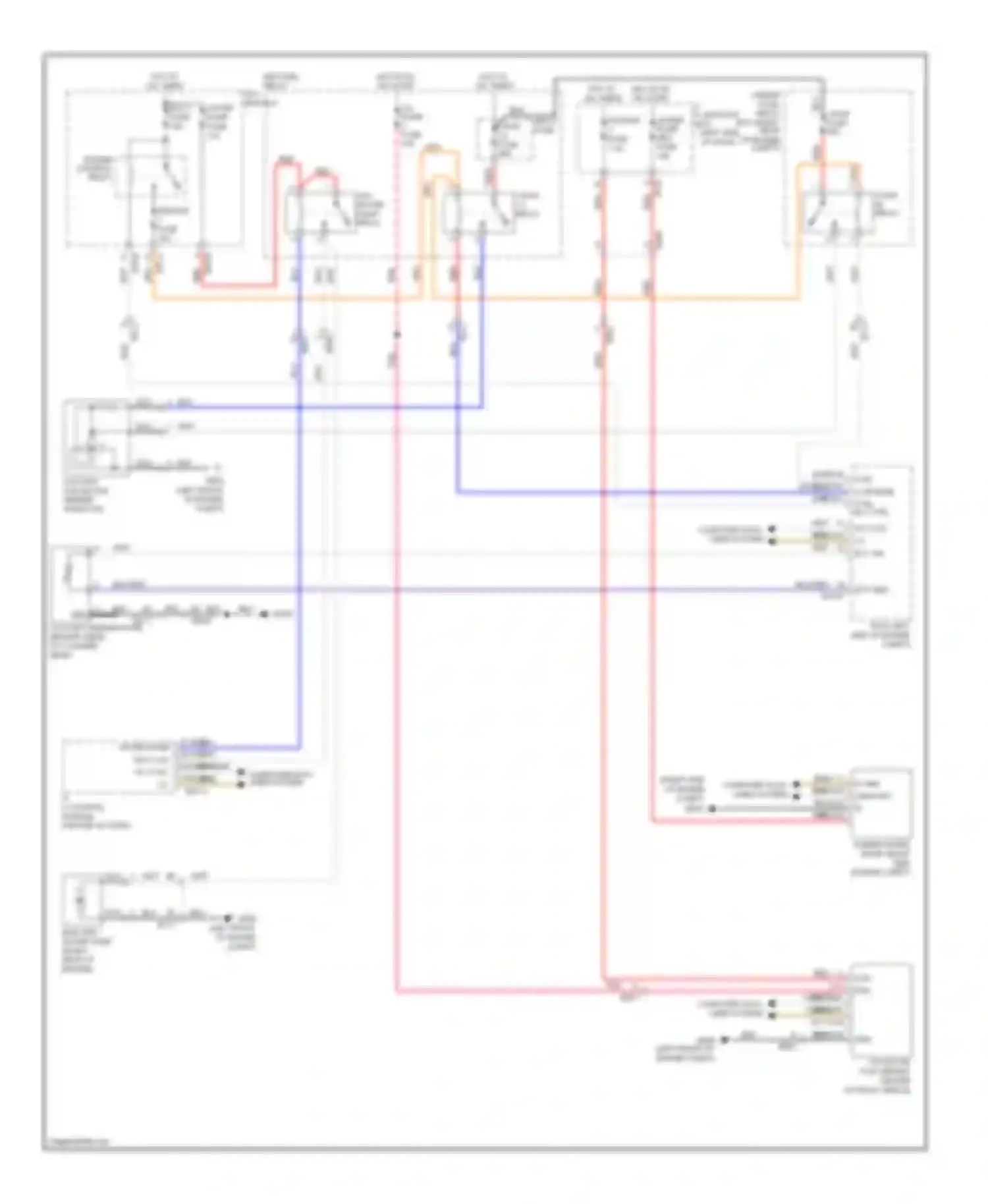

Wiring diagram 1 2 3 4 5 6 battery on/start in c-can hi c-can low pnk (2 of 2)
1 2 3 4 5 6 BATTERY ON/START IN C-CAN HI C-CAN LOW PNK WIRE
1 2 3 4 C-CAN LOW C-CAN HI GND ON/START IN
35 36 24 25 AUX WATER PUMP CTRL AUX WATER PUMP F/B C-CAN HI C-CAN LO
88 65 64 RLY CTRL HI RLY CTRL LO ENGINE CTRL
A/C CONTROL MODULE
ACTIVE AIR FLAP (BEHIND CENTER
AUX WATER
BLK WIRE
BLU WIRE
BLU/ORG WIRE
BOX)
BRN WIRE
C/FAN FUSE
C/FAN FUSE LO FUSE
C/FAN HI RELAY
C/FAN LO
COMPUTER DATA LINES SYSTEM
COOLING FAN MOTOR (BEHIND RADIATOR)
E/R FUSE, RELAY BOX EMS BOX
E/R-A
E/R-B
ECT GND CHG-K
ECT SIG
ECU 1 WATER FUSE PUMP FUSE
ELECTRIC WATER PUMP (RIGHT REAR OF ENGINE)
ENGINE COMPT)
ENGINE CONTROL RELAY
FUSE
GND ENGINE COOLANT TEMPERATURE SENSOR (REAR OF CYLINDER HEAD)
HOT AT ALL TIMES
HOT IN ON OR START
HYBRID FUSE, RELAY BOX (RIGHT REAR OF ENGINE COMPT)
HYBRID WATER PUMP (RIGHT SIDE OF
I/P JUNCTION
I/P-E
MODULE
MULTI-
NCA WIRE
OF FRONT GRILLE)
OIL PUMP
ORG/ WIRE
PCM (LEFT SIDE OF ENGINE COMPT)
PNK WIRE
PUMP RELAY
RED WIRE
RELAY
RLY CTRL 77 78 C-CAN HI C-CAN LO
SENSOR
WATER PUMP HEV FUSE
WHT WIRE
Go to component -> 2.4l hybrid, cooling fan circuit -> 1 2 3 4 5 6 BATTERY ON/START IN C-CAN HI C-CAN LOW PNK WIRE
